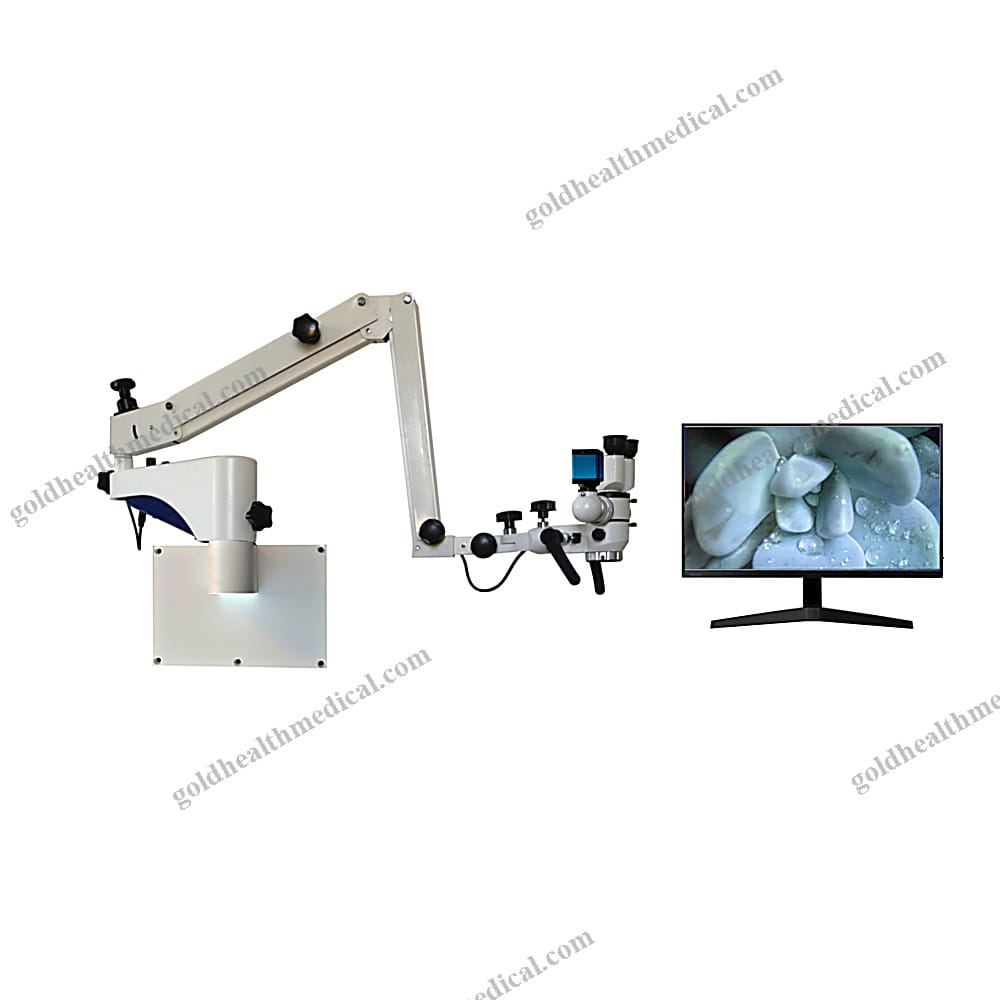

YSX120 Multifunction Surgical Microscope for Medical Dental
Reference: 1601044453538
Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Operation Microscope
Characteristics:

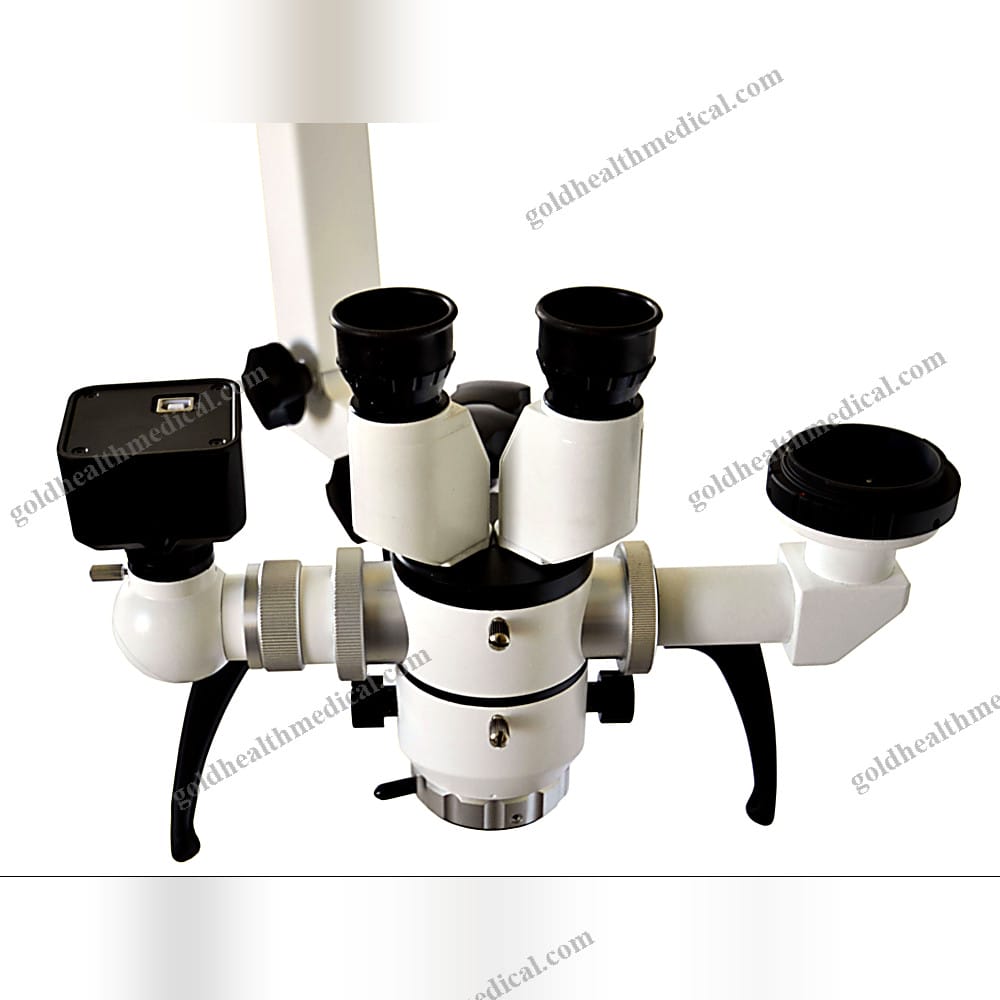

- Observation Angle: Straight design for precise alignment and ergonomic comfort.
- Observation Lens Magnification: 6X, ensuring clear and detailed visuals.
- Pupil Distance Range: Adjustable from 50mm to 80mm, accommodating a wide range of users.
- Visual Adjustment: ±5 diopters for personalized focus correction.
- Objective Lens Focal Length: Dual objective lenses with focal lengths of F=200mm and F=300mm, offering versatility for various procedures.
- Zoom System: Three-speed zoom (0.6X, 1X, 1.6X), enabling seamless transitions between magnifications.
- Total Magnification: Multiple levels of magnification (3X, 5X, 8X, 4.7X, 7.5X, 12X) for exceptional adaptability in medical applications.
- Line of Sight: Optimized field of view at 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, and 15.8mm for precision work.
- Fine Adjustment Distance: 10mm for meticulous positioning during procedures.
- Lighting System: Equipped with 10W LED coaxial lighting, adjustable brightness, and illumination exceeding 30,000 lux for superior clarity.
- Filters: Built-in green and orange filters to enhance contrast and visibility.
- Camera Compatibility: Includes a splitter and camera connector, compatible with C-interface 1/3-inch cameras for seamless documentation.
- Balance Arm: Two-section arm with universal joints, adjustable counterweight, and locking mechanism for stability and flexibility.

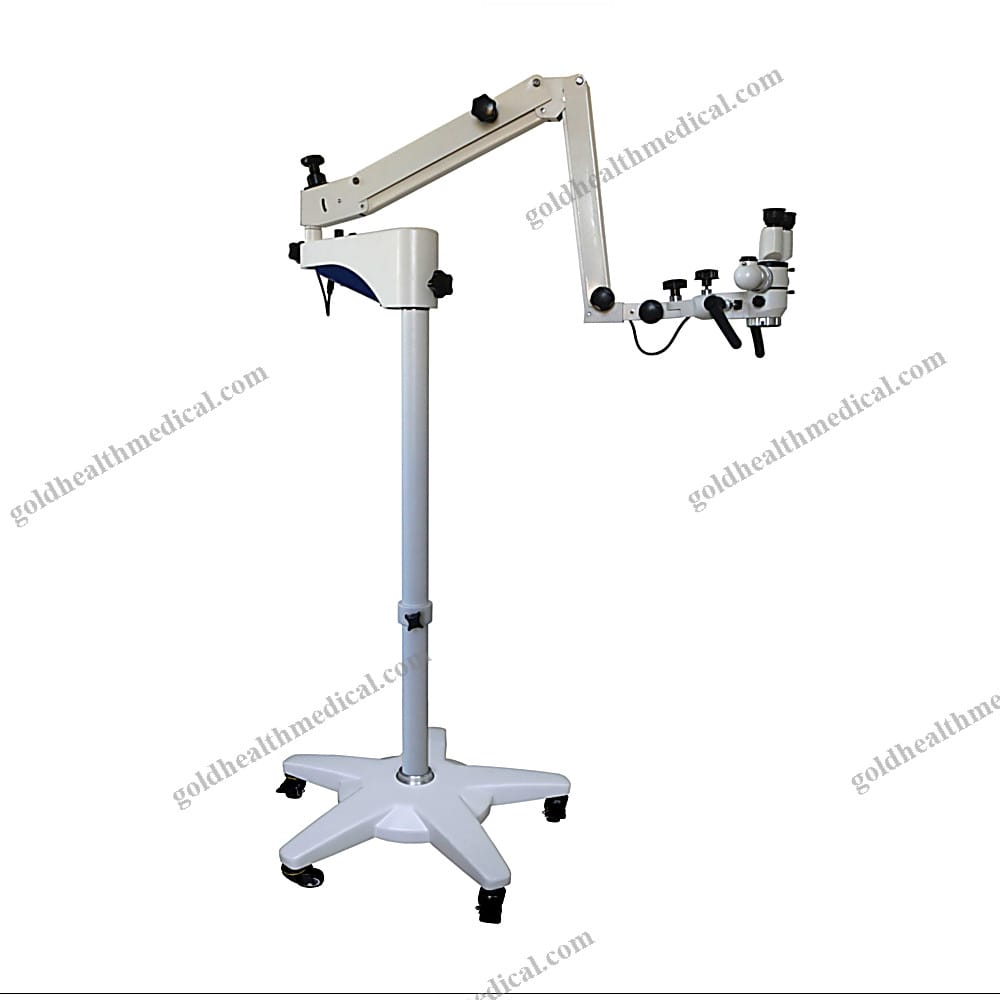

- Floor Standing Bracket: Features two pillars and a five-star base with casters, ensuring smooth mobility and secure placement.
- Power Supply: AC100V-240V, 50Hz-60Hz input with a DC12V3A, 36W power adapter for global compatibility.
Optional Accessories:
- Teaching mirror for enhanced training and collaboration.
- Additional cameras (e.g., U3CMOS03100KPA, XCAM1080PHA) for advanced imaging needs.
- SLR camera connector for professional-grade photography.
- Displays (e.g., S24R352FHC, S24F350FHC) for real-time monitoring.
- Objective lenses with focal lengths of F=250mm and F=400mm for extended versatility.
- Desktop, wall-mounted, and display stands (e.g., GM112B, GM112W) for diverse installation options.
Unique Selling Points:
- Precision Engineering: Designed for unparalleled accuracy and reliability in surgical and diagnostic applications.
- Versatile Magnification: Multiple zoom levels and magnification options cater to a wide range of medical procedures.
- Advanced Lighting: High-intensity LED illumination with adjustable brightness ensures optimal visibility in any setting.
- Ergonomic Design: Adjustable components and a stable balance arm reduce operator fatigue during extended use.
- Global Compatibility: Wide-ranging power supply support and optional accessories make it adaptable to diverse environments.
GoldHealth Medical is committed to delivering innovative, high-quality medical equipment designed to meet the needs of hospitals, clinics, research institutions, and home healthcare providers worldwide. Our products are trusted for their exceptional performance, reliability, and cost-effectiveness, backed by comprehensive after-sales support.
Warranty: 12 months for the microscope, with specific warranty periods for accessories available upon request.
About Us:
GoldHealth Medical is a leading manufacturer and supplier of advanced medical equipment, specializing in diagnostic and treatment solutions. With a focus on innovation, quality, and customer satisfaction, we have established a robust global network, serving over 130 countries. Our partnerships with international organizations and commitment to excellence ensure that our products meet the highest standards in the medical field.
FAQ:
- What is your Minimum Order Quantity?
Our MOQ is generally 1 unit, with exceptions for certain items. Contact us for specific details.
-
Which payment methods do you accept?
We accept bank transfers, T/T, direct transfers, L/C, and Western Union. Confirm with our sales team for eligibility. -
What is your shipping and delivery time?
Orders are shipped within 5 working days after confirmation of payment. -
What product guarantees do you offer?
All products are protected under Alibaba
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
GoldHealth Medical presents a cutting-edge Class II medical instrument designed to deliver precision and reliability in a variety of healthcare settings. Engineered with advanced optical technology and robust materials, this device is ideal for hospitals, clinics, laboratories, and home care environments. Its sleek design and high-performance capabilities make it an indispensable tool for medical professionals and caregivers alike.
Key Features and Specifications:
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sales Service: Dedicated online technical support to ensure uninterrupted performance
- Safety Standard Compliance: Meets stringent MFDS requirements for medical devices
- Place of Origin: Proudly manufactured in Jiangsu, China, ensuring world-class quality
- Power Source: Electric, with universal input power supply (AC100V-240V, 50HZ-60HZ) for global compatibility
- Power Adapter: Efficient DC12V3A, 36W adapter for stable and reliable operation
- Material: Durable metal and high-grade plastic construction for long-lasting use
- Observation Lens Magnification: Exceptional 6X magnification for detailed and accurate visualization
- Shelf Life: 1 year, ensuring product integrity and performance
- Quality Certification: ISO-certified, guaranteeing adherence to international standards
Unique Selling Points:
- Unmatched precision with a 6X magnification lens, enabling clear and accurate observations
- Versatile power compatibility for seamless use across different regions
- Robust build quality with premium materials, ensuring durability and reliability
- Backed by GoldHealth Medical’s commitment to innovation and excellence in healthcare solutions
Ideal For:
Hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare environments.
GoldHealth Medical is dedicated to empowering healthcare professionals and patients with tools that combine advanced technology, ergonomic design, and uncompromising quality.
