15 LED Sonar Cardiac Ultrasound Laptop Machine with 3
Reference: 1600271828041
Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Ultrasound Technology
Product Overview
GoldHealth Medical presents an advanced portable ultrasound machine designed for superior imaging and versatility. This innovative device combines cutting-edge 3D/4D echocardiography with a sleek laptop design, making it ideal for a wide range of medical applications, including cardiology, obstetrics, gynecology, urology, and more.
Key Features
- PC-Based Platform: Seamlessly integrates with printers of all brands for effortless documentation.
- Built-In 3D Software: Activated free during promotional periods, enabling advanced imaging capabilities.
- Long-Lasting Battery: Equipped with a built-in battery that provides up to 3 hours of continuous operation without power.

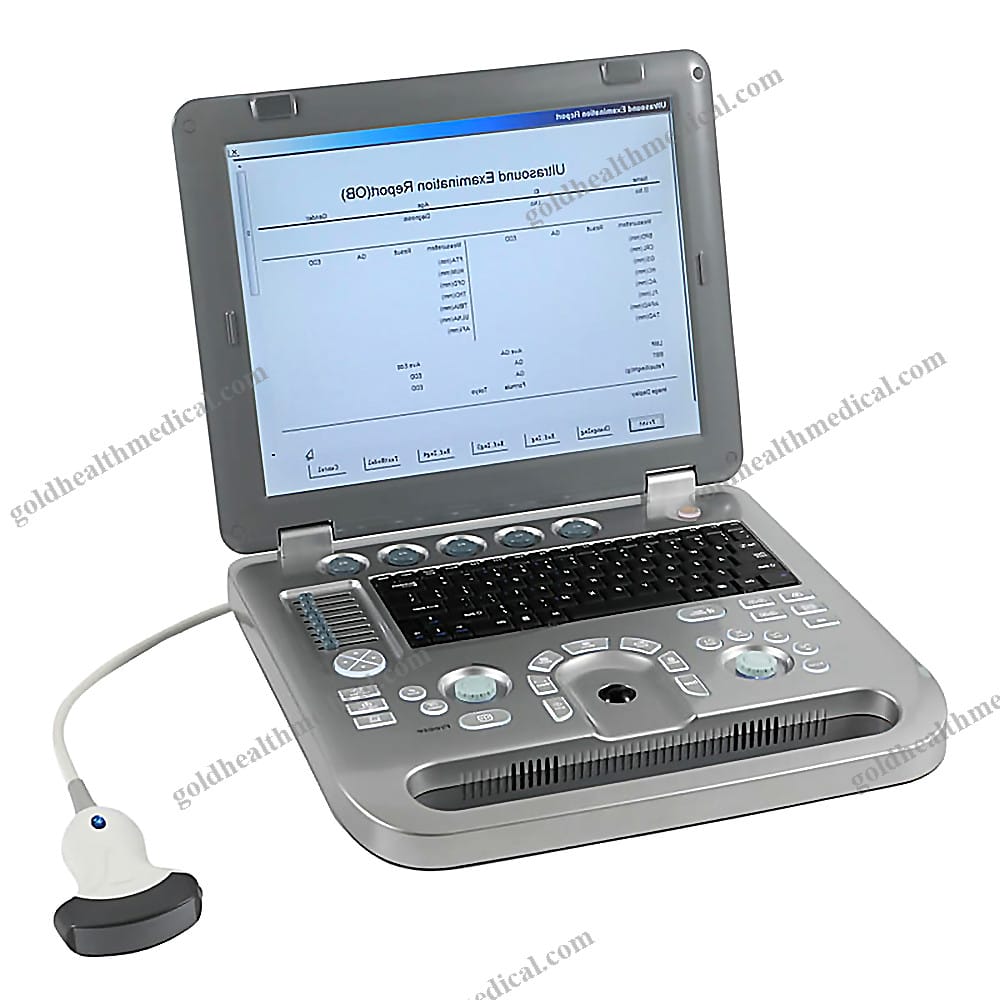

- Comprehensive Auto-Reports: Includes six types of automated measurements for OB/GYN, cardiology, urology, small organs, muscles, and vascular applications.
- 15-Inch LED Display: A large, high-resolution monitor with a 175-degree viewing angle ensures exceptional image clarity.
- Intuitive Operation: Real-time tips displayed on-screen guide users through each step of the process.
- Multi-Language Support: Available in English, Chinese, Spanish, Portuguese, Russian, Arabic, and French.
- Superior Image Quality: Advanced beamforming and dynamic frequency scanning deliver unparalleled precision.
Technical Specifications
- Display: 15-inch full-digital LED with 3D ultrasound capability.
- Probes:
- 3.5MHz R60/R50 convex probe (2.0MHz–5.0MHz).
- 7.5MHz L40 linear probe (5.0MHz–10.0MHz).
- 6.5MHz R10/R13 transvaginal probe (5.0MHz–8.0MHz).
- 3.5MHz R20 cardiac probe (2.0MHz–5.0MHz).
- Beamforming Technologies: DBF, RDA, DRA, DRF, DFS, with dynamic frequency scanning from 2.0MHz to 12.0MHz.
- Dynamic Range: ≥100dB with four-step switching functions.
- Image Processing: Frame correlation, gamma correction, edge enhancement, smoothing, denoising, and automatic gain adjustment.
- Magnification: Stepless magnification and real-time PIP local zoom.
- Cine Loop: 512-frame auto/manual cine loop with multi-screen support (4B, 9B).
- Image Management: Save, print, and transfer thousands of images and cine loops with full-screen browsing.
- Measurements: Automatic calculations for perimeter, area, volume, stenosis ratios, and angles.
- Assist Tools: Puncture guide, distogram, sectional drawing, and one-key optimization.
- Auto-Measurement Software: Specialized for OB/GYN, small organs, cardiology, urology, and more.
Applications and Measurement Capabilities
- OB/GYN: BPD, CRL, GS, HA, AC, HC, FL, AFI, and more.
- Cardiac: AOD, LAD, IVSTd, EF, CO, CI, LVMWI, and additional metrics.
- Urology: Residual urine, prostate measurements, PSAD.
- Small Organs: Thyroid, hip joint, and other specialized assessments.
Extended Connectivity
- Ports: VGA, S-Video, TV video, USB 2.0, RJ-45 network.
- Storage: Supports soft disk, hard disk, flash disk, CF card, SD card, and more.
- Printer Compatibility: Jet, laser, video printers, and recorders.
Standard Configuration
- Main unit with 15-inch high-resolution LED display.
- One convex probe (3.2MHz R50).
- Lithium battery and carrying bag.
- Free 3D software during promotions.
- Two USB ports, VGA output, video port, and power inlet.
- Comprehensive measurement and calculation software packages.
Warranty
- 18 months for the main unit.
- 12 months for probes.
GoldHealth Medical’s portable ultrasound machine is engineered to deliver precision, portability, and performance, empowering healthcare professionals with the tools they need to achieve exceptional patient outcomes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Revolutionizing Diagnostic Imaging with Advanced 3D Ultrasound Technology
- Instrument Classification: Class II Medical Device
- Place of Origin: Shanghai, China
- Power Source: Electricity
- Materials: Durable metal and high-grade plastic construction for enhanced longevity
- Shelf Life: 2 years
Key Features and Benefits
- Imaging Excellence:
- Multiple imaging modes including 2D and free-hand 3D for unparalleled precision.
- Supports a wide range of applications such as OB/GYN, vascular, cardiology, urinary, small organs, and general diagnostics.
-
Advanced 8-segment TGC for precise near/far gain adjustments, ensuring crystal-clear imaging.
-
Versatile Connectivity:
- Equipped with 2 USB ports for seamless integration with USB flash drives and laser printers.
-
Compatible with any printer, offering flexibility in documentation and reporting.
-
Extended Battery Life:
-
Battery supports continuous operation for over 3 hours, ideal for uninterrupted use in clinical and field settings.
-
Multi-Language Support:
-
Intuitive interface available in English, Chinese, Spanish, Portuguese, and French, catering to a global audience.
-
Image/Video Formats:
-
Supports multiple formats including AVI, JPG, BMP, PNG, TIF, and DICOM, ensuring compatibility with various systems and workflows.
-
Cine Loop Functionality:
- Advanced 512-frame cine loop (Auto/Manual) for detailed review and analysis of dynamic imaging sequences.
Quality Assurance
- Certifications: CE-certified for safety and reliability.
- Warranty and After-Sales Support: Comprehensive warranty and dedicated after-sales service to ensure long-term performance and customer satisfaction.
Packaging and Delivery
- Package Dimensions: 49 x 49 x 26 cm
- Gross Weight: 12.500 kg
- Each unit is meticulously packaged to ensure safe transit and easy setup upon arrival.
GoldHealth Medical’s 3D ultrasound system is designed to empower healthcare professionals with cutting-edge technology, delivering exceptional diagnostic accuracy and versatility across a wide range of medical specialties.
