YSMRI042 042T Permanent Magnet MRI
Reference: 1600235185753
Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

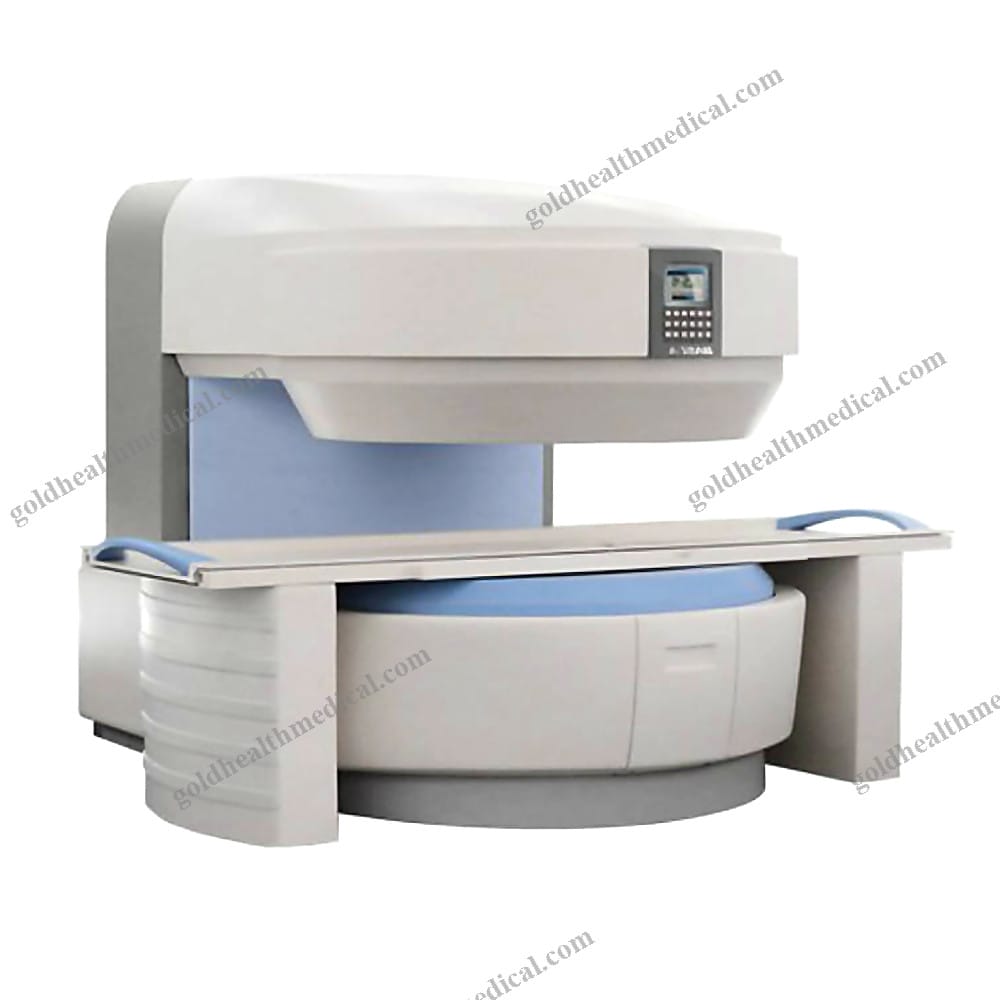

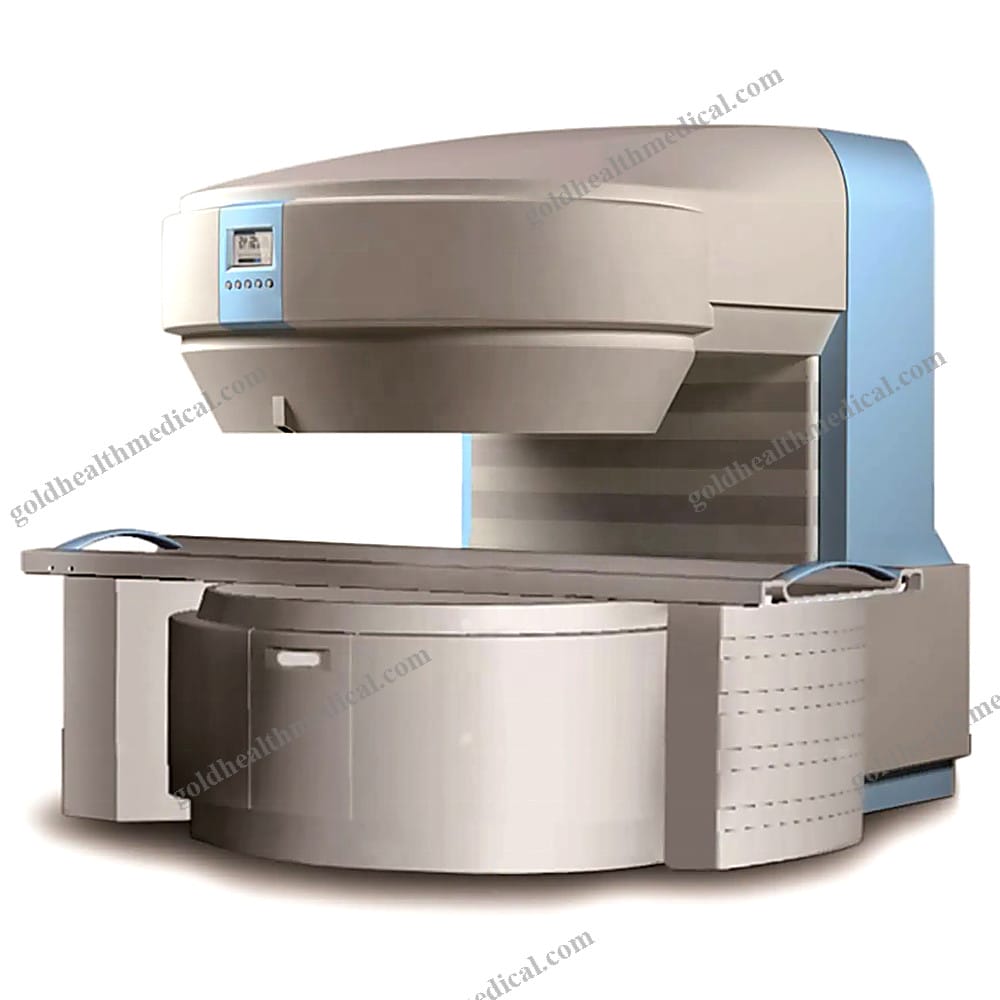

GoldHealth Medical MRI System
GoldHealth Medical presents a cutting-edge MRI system designed to deliver unparalleled imaging precision and patient comfort. Engineered with advanced technology, this system is ideal for hospitals, clinics, research institutions, and rehabilitation centers.
Magnet System
- Magnet Type: Permanent magnet with an automatic constant temperature system ensures consistent performance.
- Field Strength: 0.42T for high-quality imaging.
- Magnet Shape: C-shape design for enhanced accessibility.
- Homogeneity (40cm DSV, VRMS): 2ppm for exceptional image clarity.
- Shim Method: Active, Passive, and Dynamic shimming for optimal field uniformity.
- Magnet Vertical Gap: 40cm, providing ample space for patient positioning.
- Accessibility (Horizontal Opening Angle): 250° for easy patient access.
- 5 Gauss Fringe Field: Compact at 2.5m x 2.5m x 2.5m, minimizing space requirements.
Gradient System
- Gradient Field Strength (Single Axis): 31mT/m for sharp imaging.
- Gradient Slew Rate (Single Axis): 107mT/m/ms ensures rapid gradient switching.
- Rise Time: 0.29ms for precise imaging sequences.
- Gradient Cooling System: Air-cooled gradient coils and power electronics for reliability.
RF System
- Spectrometer: Fully digital for accurate signal processing.
- RF System Type: Digital Transmit and Receive for superior data acquisition.
- Number of RF Channels: 4 channels for versatile imaging.
- Transmitter Amplifier Peak Power: 6kW for robust signal transmission.
- RF Bandwidth of Receiver: Each channel supports 400kHz bandwidth.
- Dynamic Range: 80dB for exceptional sensitivity.
- Noise Factor: 0.3dB for minimal signal distortion.
- Coil Type: Phase array technology for enhanced image quality.
- Available Coils: Head, Neck, Small Body, Large Body, Knee, Ankle, Shoulder (optional), Soft (optional).
Patient Communication
- Max. Patient Weight: Supports up to 210kg for diverse patient needs.
- High-Accuracy Position Assist: Ensures precise patient alignment.
- Localizer: Integrated for accurate positioning.
- Position Accuracy: 1mm for exact imaging.
- Position Accessories: Included for added convenience.
- Emergency Call: Equipped for patient safety.
- Communication System: Facilitates seamless interaction with patients.
Computer System
- Host Computer: Dual-core industrial computer for reliable performance.
- MRI Software: Advanced V30 software for comprehensive imaging control.
- Operating System: Windows 7 for compatibility.
- CPU Clock Rate: 3.0GHz for fast processing.
- Main Memory: 4GB RAM for efficient multitasking.
- Color LCD Monitor: 24” display for clear visualization.
- Keyboard and Mouse: Included for ease of use.
- Hard Disk: 500GB storage for extensive data management.
- Media Driver: CRW/DVD for versatile data handling.
- DICOM 3.0: Supported for seamless integration.
- Ethernet: Enabled for network connectivity.
Scanning Parameters
- Max. FOV: 400mm for wide-area imaging.
- Min. FOV: 10mm for detailed scans.
- Min. 2D Thickness: 1mm for fine resolution.
- Min. 3D Thickness: 0.1mm for ultra-high precision.
- Max. Image Matrix: 1024x1024 for sharp and detailed images.
Scanning Sequences & Imaging Technology
- Spin Echo 2D/3D (SE 2D/3D): Yes.
- Multi-Slice Multi-Echo (MSME): Yes.
- Gradient Echo (GRE 2D/3D): Yes.
- Steady State Process Gradient Echo (SSPGRE): Yes.
- Fast Spin Echo (FSE): Yes.
- Fast Double Echo (FDE): Yes.
- Fast Recover Fast Spin Echo (FRFSE): Yes.
- Single Shot Fast Spin Echo (SSFSE): Yes.
- Multi Shot Fast Spin Echo (MSFSE): Yes.
- Inversion Recovery (IR): Yes.
- Inversion Recovery Fast Spin Echo (IRFSE): Yes.
- Short Time Inversion Recovery (STIR): Yes.
- Fluid Attenuated Inversion Recovery (FLAIR)
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Magnet System by GoldHealth Medical
Key Features and Benefits:
- Unmatched Precision: Designed for advanced imaging with a field strength of 0.42T, delivering exceptional clarity and diagnostic accuracy.
- Versatile Applications: Perfectly suited for veterinary use, including dogs, cats, mice, and other small animals, making it ideal for research and clinical environments.
- Reliable Performance: Equipped with a permanent C-shaped magnet, ensuring consistent magnetic homogeneity (2ppm over a 40cm DSV) and long-term stability.
- Advanced Gradient Technology: Features a gradient slew rate of 107mT/m/ms and gradient field strength of 31mT/m (single axis), enabling rapid and precise imaging.
- Efficient Rise Time: Achieves an ultra-fast rise time of 0.29ms, minimizing delays and enhancing workflow efficiency.
Technical Specifications:
- Magnet Type: Permanent magnet
- Magnet Shape: C-shape for optimal accessibility and ease of use
- Field Strength: 0.42T
- Power Source: Electric
- Instrument Classification: Class II medical device
- Safety Standard Compliance: Certified by MFDS and CE, ensuring the highest standards of safety and reliability
Warranty and Support:
- Comprehensive Warranty: Backed by a 5-year warranty for peace of mind and long-term value.
- Dedicated After-Sales Service: Access to online technical support, ensuring seamless operation and quick resolution of any issues.
Additional Details:
- Shelf Life: 5 years, maintaining performance and reliability over time.
- Place of Origin: Proudly manufactured in Guangdong, China, with meticulous attention to quality and detail.
GoldHealth Medical’s Magnet System is engineered to redefine veterinary and research imaging, combining cutting-edge technology with user-centric design to deliver unparalleled results.
