Viatom Checkme Pro Portable ECG Monitor with Pulse Rate Sleep
Reference: 62487890777

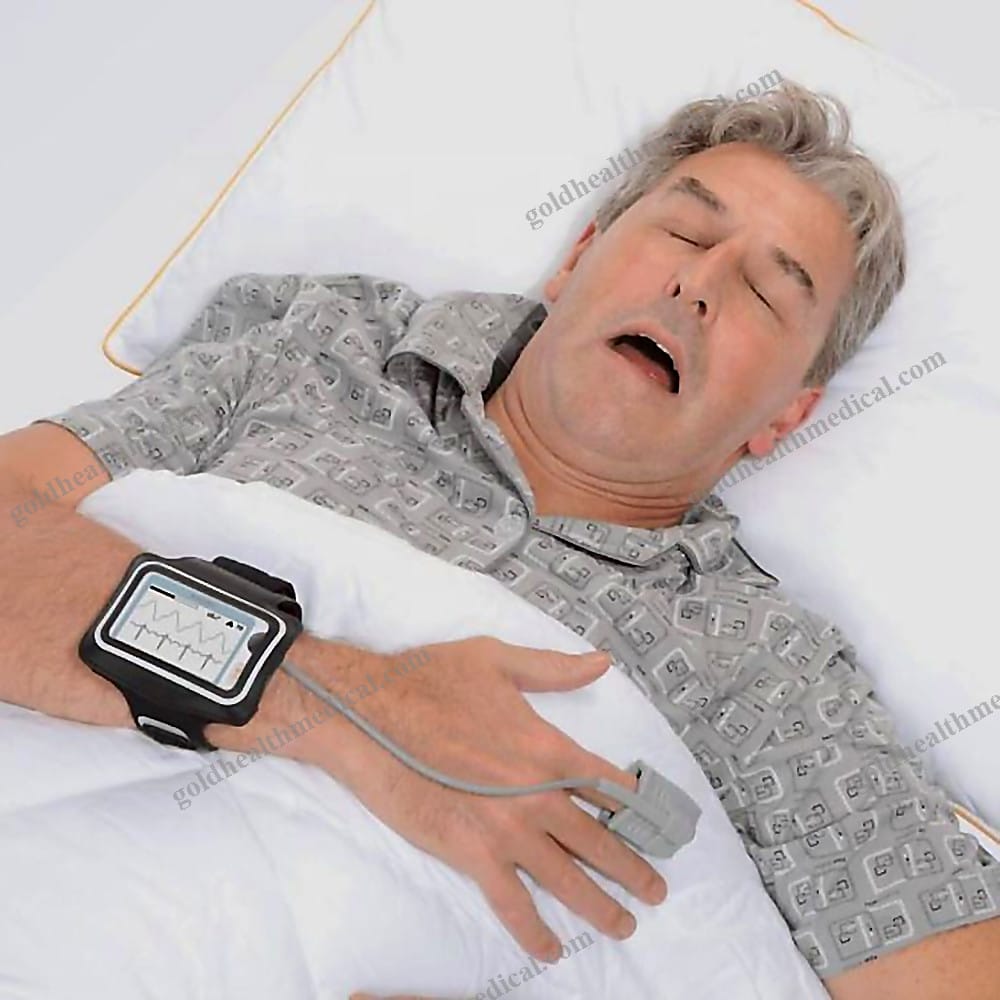

Sleep Monitor
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents the Checkme Pro Doctor Pulse Rate Sleep Monitor Portable ECG Machine
Revolutionize cardiac monitoring with our state-of-the-art portable ECG solution, designed for unparalleled precision and versatility in diverse medical settings.
Key Features and Technical Specifications:
- ECG Capabilities:
- Integrated ECG electrodes for seamless monitoring
- Optional external ECG cable and electrodes for extended functionality
- Multiple display gain options: 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
- Bandwidth: 0.05 to 40 Hz
- Lead configurations: Lead I, Lead II
-
Sweep speed: 25 mm/s
-
Performance Metrics:
- Electrode offset potential tolerance: ±300 mV
- Measurement modes: Episode and continuous monitoring
- Heart rate accuracy: ±2 bpm or ±2%, whichever is greater
- Sampling rate: 500Hz
- HR measurement range: 30 to 250 bpm
-
Sampling accuracy: 16 bit
-
Advanced Analysis:
- ST measurement range: -0.5 to +0.5 mV
- Comprehensive measurement summary including:
- Heart rate
- QRS duration
- ST segment analysis
- QT/QTc measurements
- Rhythm analysis featuring:
- Regular ECG Rhythm
- High/Low Heart Rate detection
- High/Low ST Value alerts
- Irregular ECG Rhythm identification
- Analysis confidence indicators
Unique Selling Points: - Unmatched portability combined with professional-grade accuracy - Intelligent rhythm analysis system for enhanced diagnostic capabilities - Versatile monitoring options suitable for various clinical environments - High-resolution data acquisition with 16-bit sampling precision
Applications: - Ideal for hospital wards and emergency departments - Perfect for remote patient monitoring in home care settings - Suitable for research facilities requiring precise cardiac data - Excellent choice for rehabilitation centers and senior care facilities
Why Choose GoldHealth Medical: Our portable ECG machine represents the perfect fusion of cutting-edge technology and practical medical application, delivering reliable cardiac monitoring solutions that healthcare professionals can trust. The device's sophisticated analysis capabilities and flexible configuration options make it an indispensable tool for modern medical practice.
Technical Summary: - Display Gain Options: 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV - Bandwidth: 0.05 to 40 Hz - Lead Configurations: Lead I, Lead II - Sweep Speed: 25 mm/s - Electrode Offset Potential Tolerance: ±300 mV - Measurement Modes: Episode, Continuous - Heart Rate Accuracy: ±2 bpm or ±2% - Sampling Rate: 500Hz - HR Measurement Range: 30 to 250 bpm - Sampling Accuracy: 16 bit - ST Measurement Range: -0.5 to +0.5 mV
GoldHealth Medical's portable ECG solution delivers exceptional performance and reliability, setting a new standard in cardiac monitoring technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Portable ECG Machine by GoldHealth Medical
Application: Advanced vital signs monitor designed for personal health management
Key Features

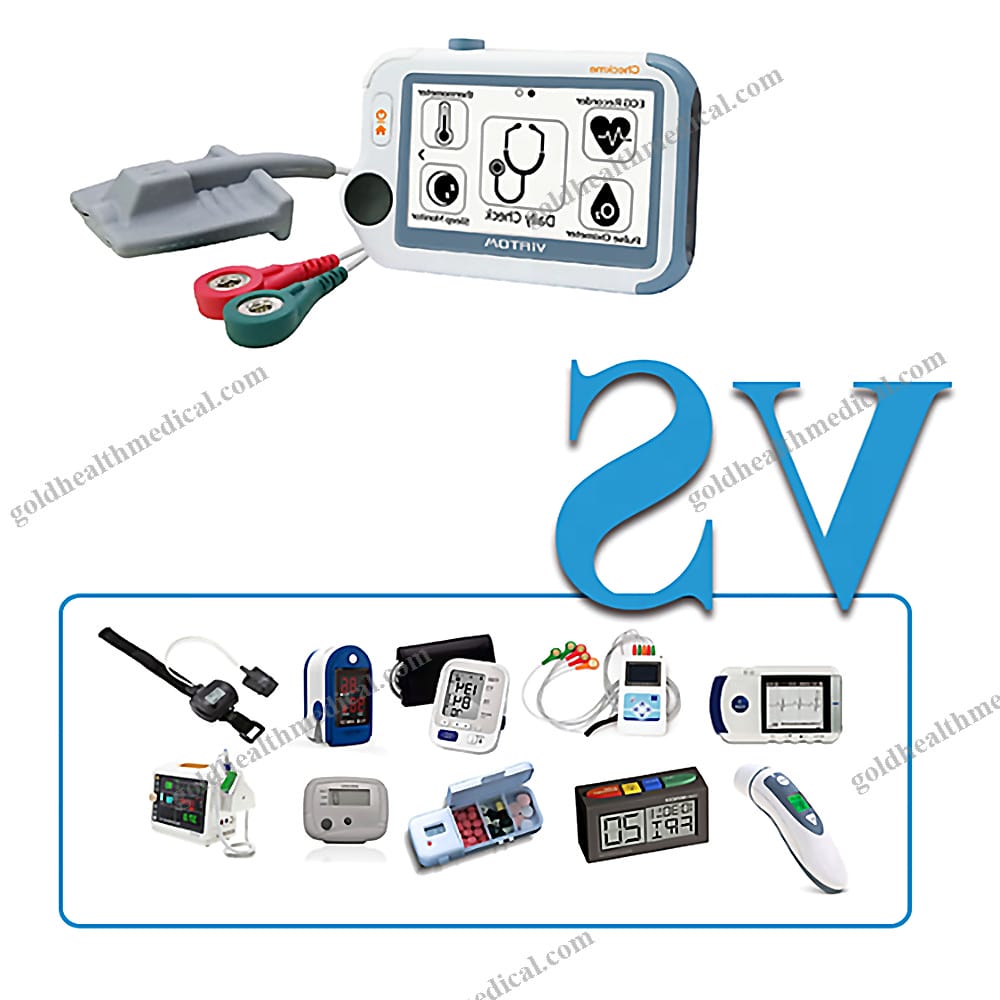

- Multi-Parameter Monitoring: Combines ECG recording, pulse rate monitoring, and blood oxygen measurement into one sleek device.
- Unmatched Accuracy: Delivers precise readings with an accuracy rate of 99%, ensuring reliable health insights.

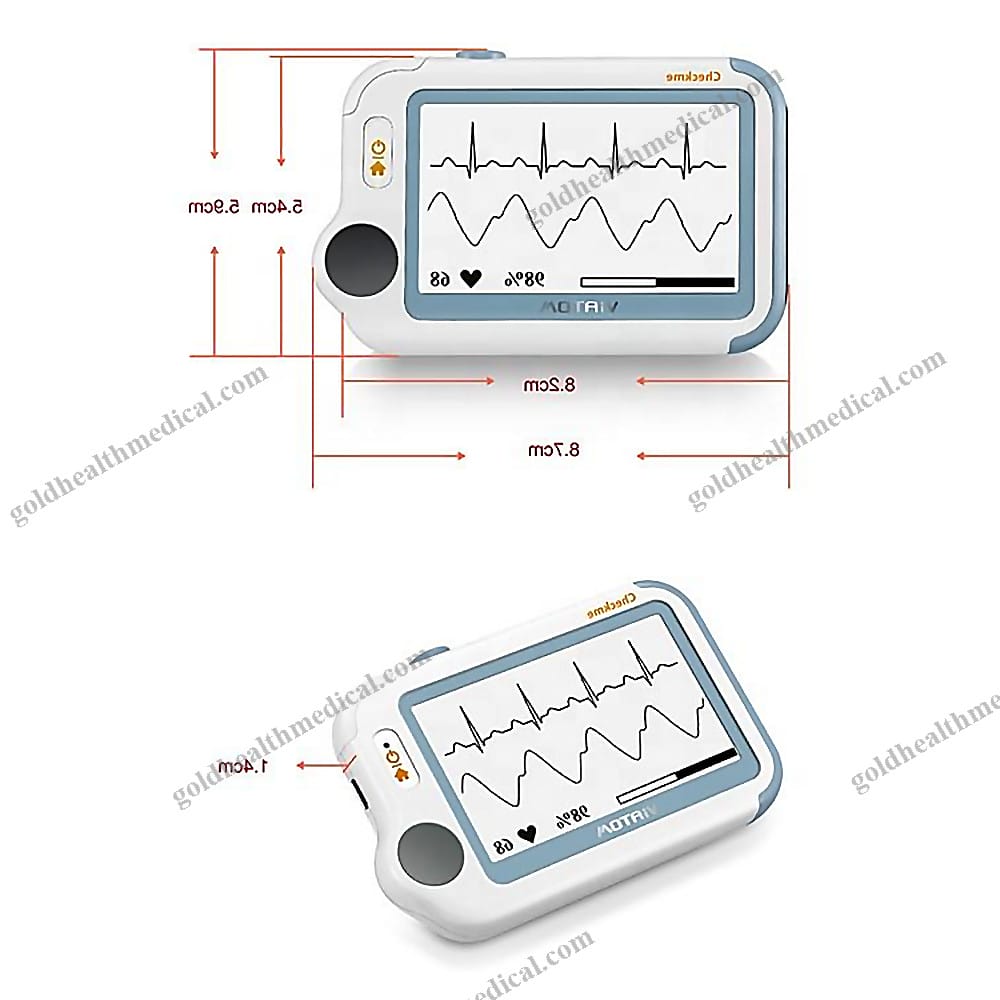

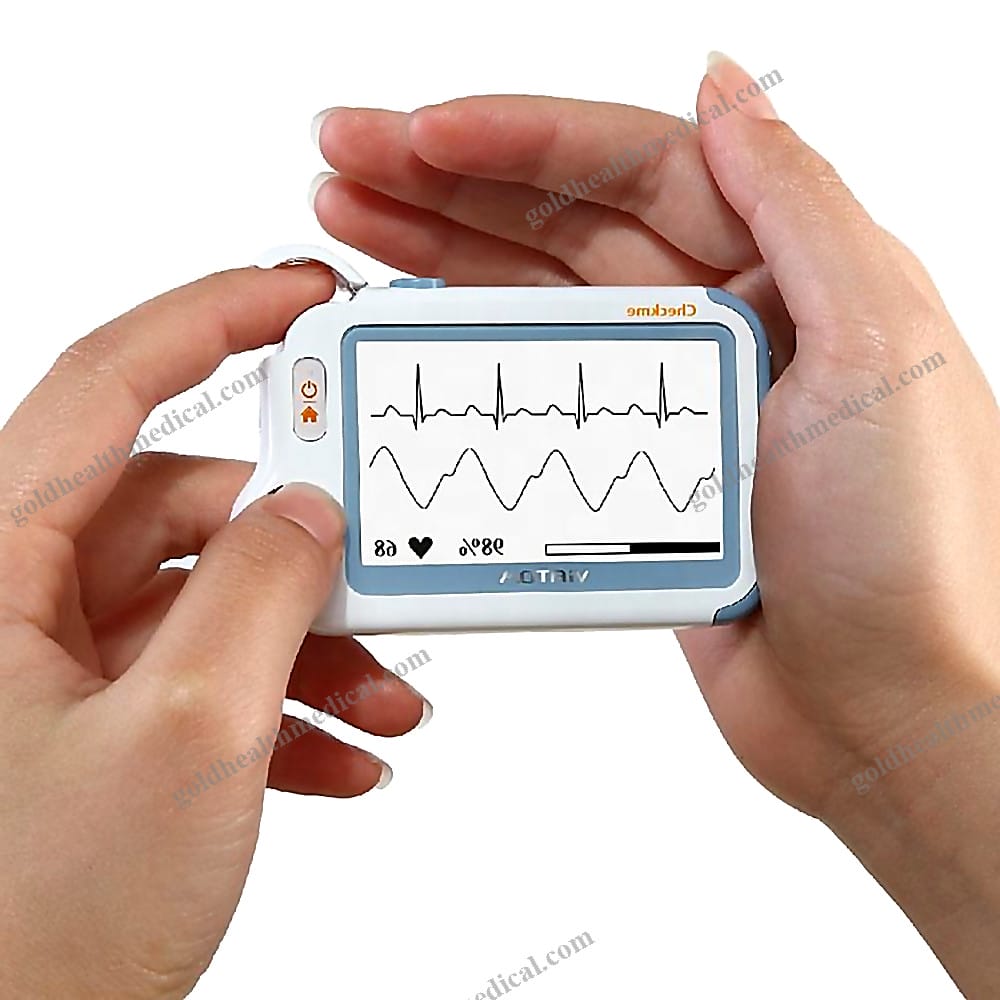

- Compact & Portable Design: Lightweight and easy to carry, making it ideal for home self-testing, clinics, and on-the-go health monitoring.
- User-Friendly Interface: Intuitive controls and clear display for effortless operation by users of all technical levels.
Technical Specifications
- Power Source: Built-in rechargeable battery for uninterrupted performance.
- Material: Durable, medical-grade plastic ensuring long-lasting use.
- Instrument Classification: Class I medical device, meeting stringent safety and quality standards.
- Quality Certifications: ISO13485 and CE certified, guaranteeing compliance with global healthcare regulations.
Functions
- Pulse Rate Monitor: Tracks heart rate with precision for comprehensive cardiovascular insights.
- ECG Recorder: Captures detailed electrocardiogram data for accurate heart health analysis.
- Blood Oxygen Measurement: Monitors SpO2 levels to ensure optimal oxygen saturation.
Packaging Details
- Each unit is securely packed in an individual box.
- Bulk packaging: 16 units per carton, dimensions 53.2 x 39.2 x 41.8 cm.
- Net Weight: 17.10 kg; Gross Weight: 18.15 kg.
Supply & Support
- Supply Capacity: Up to 1,000 units per month to meet high demand.
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Dedicated online technical support to assist with any queries or troubleshooting.
Why Choose GoldHealth Medical?
GoldHealth Medical’s portable ECG machine is engineered to empower healthcare professionals and individuals alike. With its cutting-edge technology, robust build, and versatile functionality, this device is the ultimate solution for monitoring heart health in any setting—whether at home, in a clinic, or during travel. Elevate your health management with a device that combines precision, portability, and reliability.
