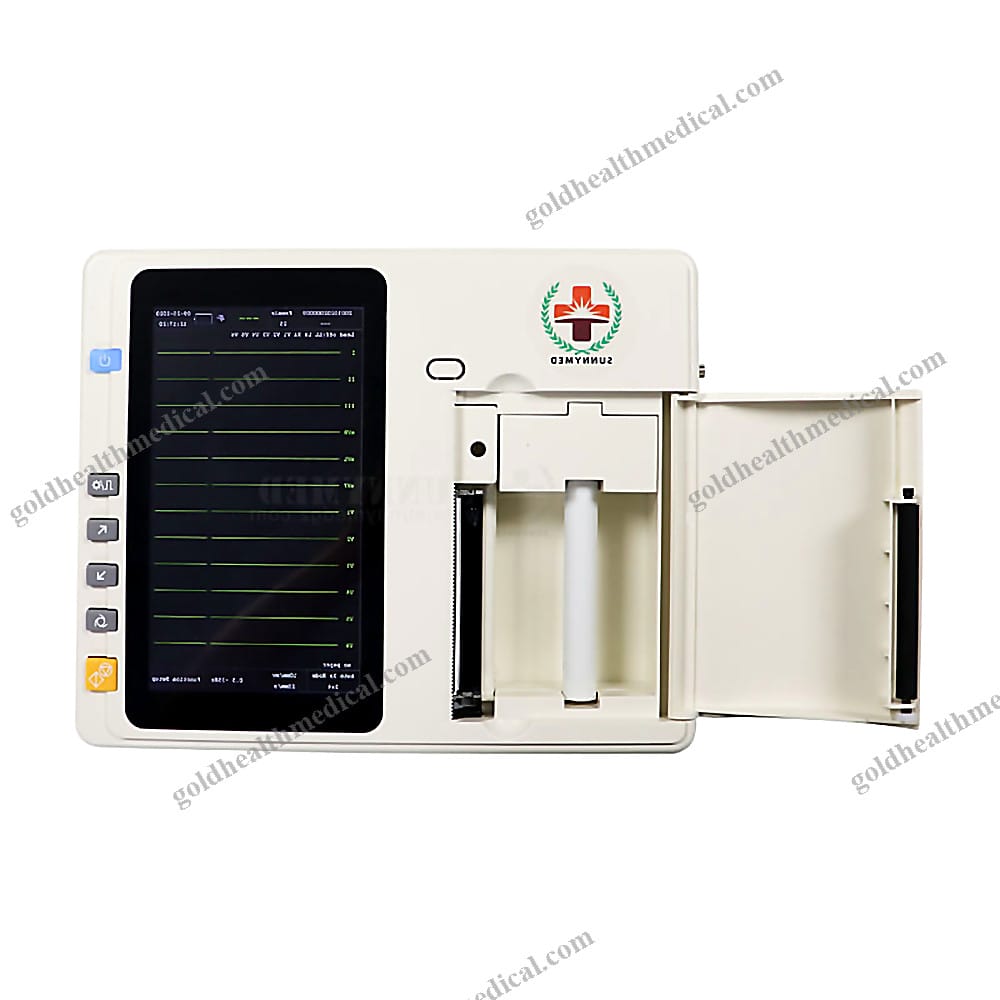

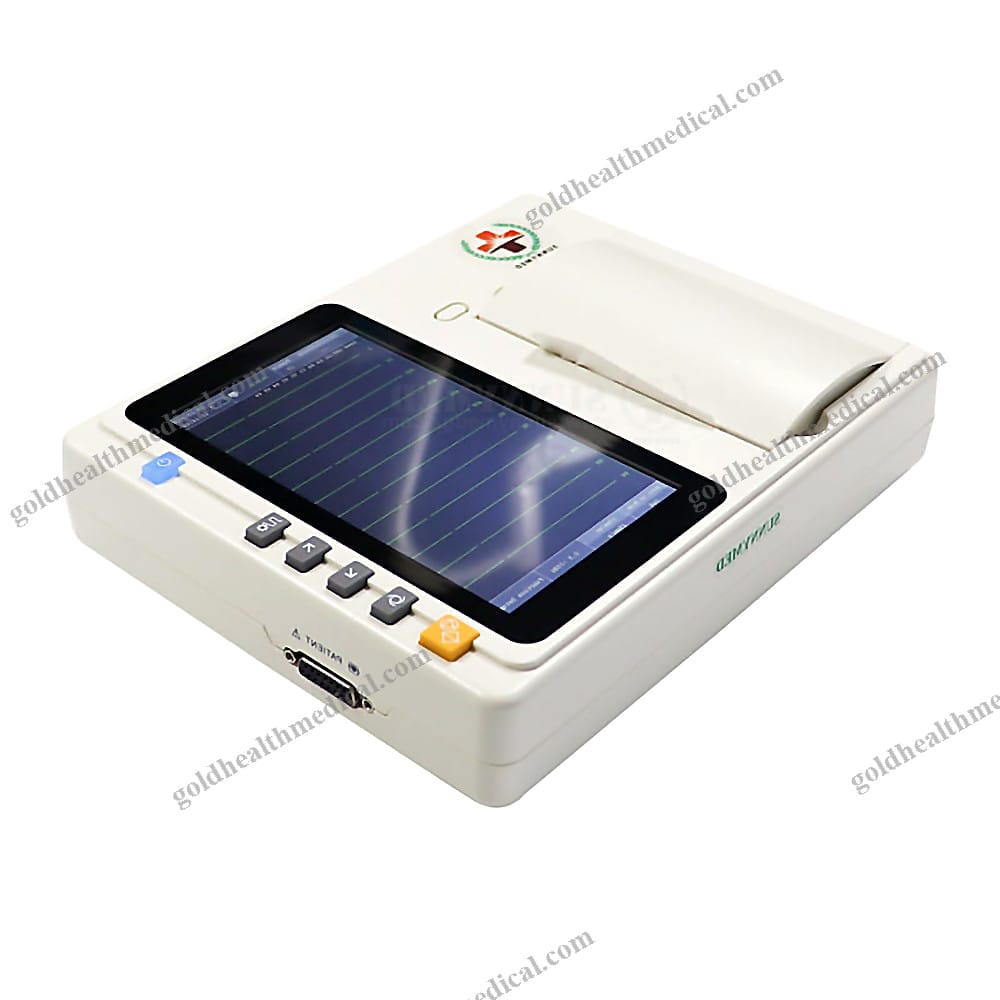

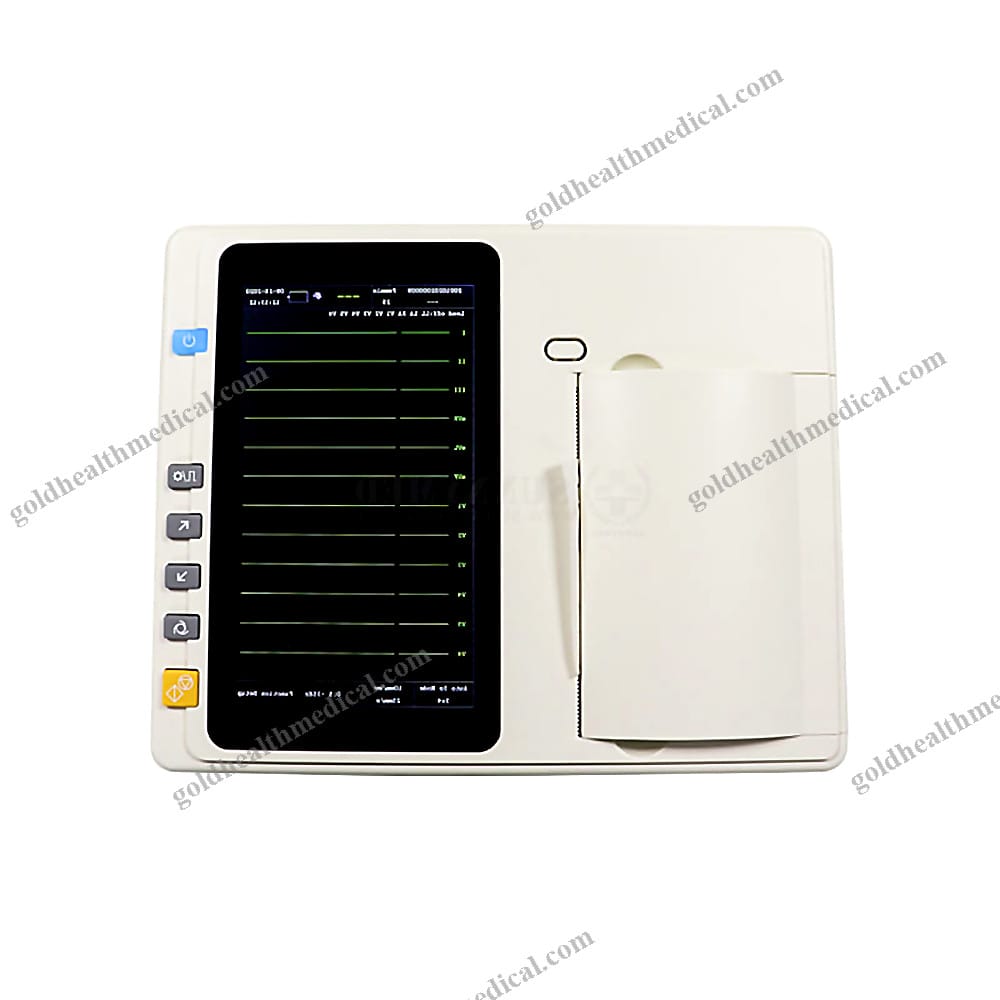

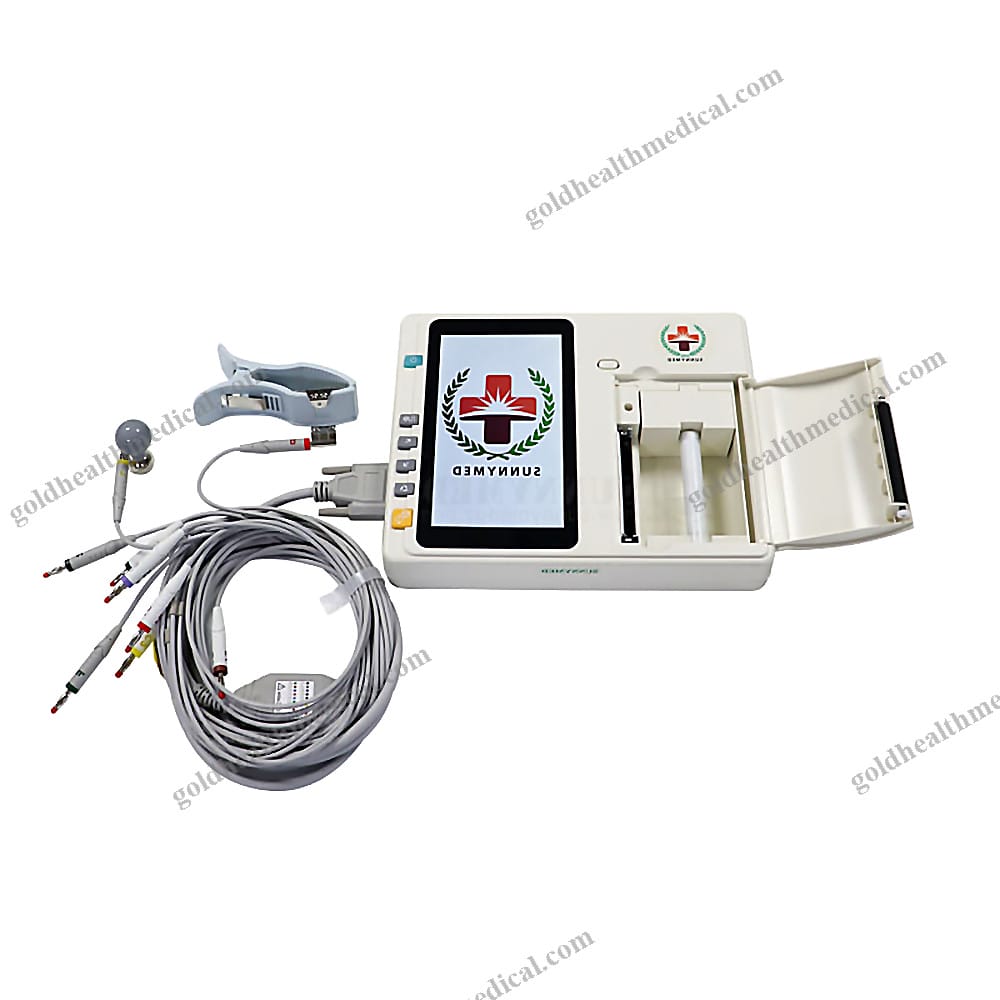

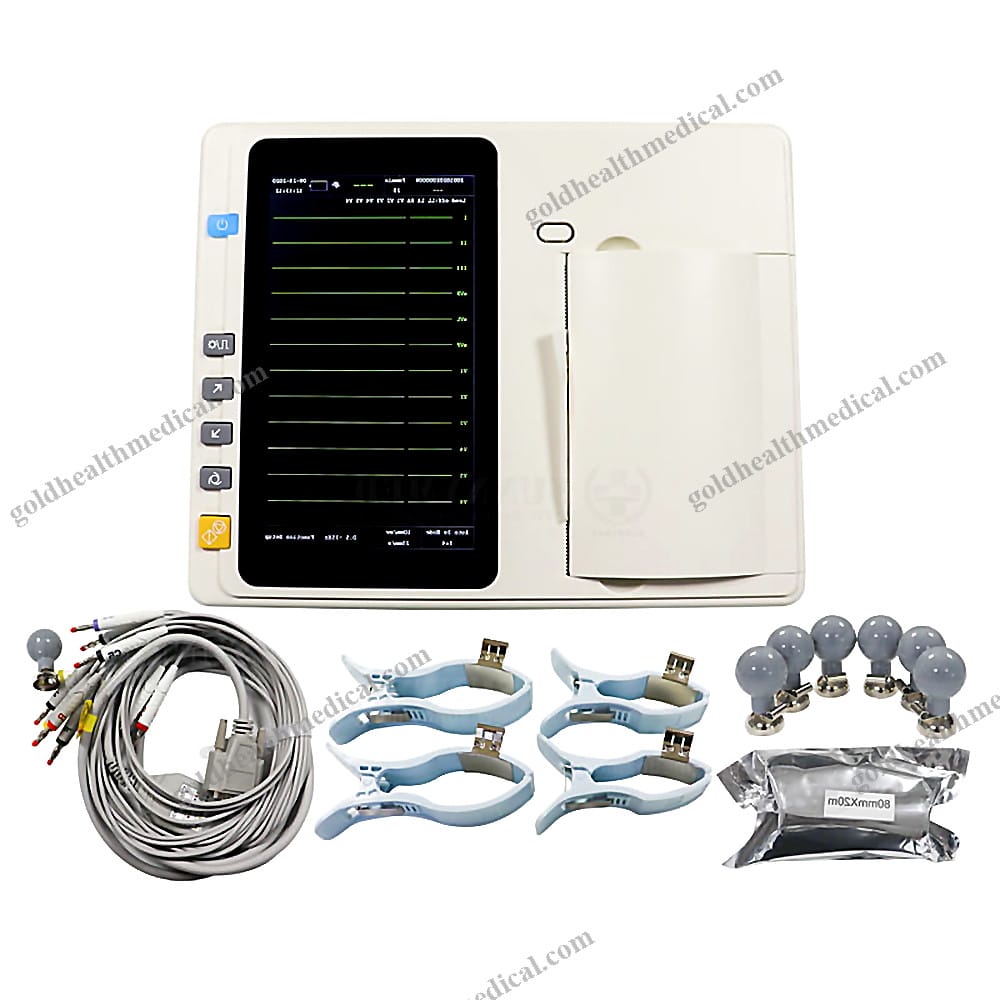

SYH004 3Channel 12Lead E
Reference: 1601363782835
Sleep Monitor
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Cardiac Care with Advanced ECG Technology
Experience the future of cardiac diagnostics with our cutting-edge 3-channel ECG machine, designed to deliver precision and reliability in every setting. Engineered for healthcare professionals and institutions, this state-of-the-art device combines advanced features with user-friendly functionality, ensuring accurate 12-lead ECG readings for comprehensive patient analysis.
Key Features
- Intuitive Interface: A vibrant 7-inch color LCD touch screen simplifies operation, offering seamless navigation and real-time visualization of ECG waveforms.
- Advanced Analysis: Equipped with robust ECG analysis capabilities, this device ensures precise interpretation of cardiac data.
- Data Storage: Store records for over 30,000 patients, with support for SD cards and USB disks for effortless data management.
- Safety First: Floating input circuitry and a defibrillator protection circuit safeguard both patients and equipment during use.
Technical Specifications
- Leads: Standard 12-lead acquisition with synchronous recording.
- Input Circuit: Floating design with an impedance β₯50MΞ© and input current β€0.05ΞΌA.
- Recording Modes:
- Automatic: 3CHΓ4+1R, 3CHΓ4, 3CHx2+2CHx3, 6CHX2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable.
- Filters:
- EMG Filter: 25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz.
- DFT Filter: 0.05 Hz / 0.15 Hz.
- AC Filter: 50 Hz / 60Hz.
- CMRR: >100dB for exceptional signal clarity.
- Patient Safety: Leakage current <10ΞΌA, ensuring maximum safety during operation.
- Frequency Response: 0.05Hz~150Hz (-3dB) for accurate waveform capture.
- Sensitivity Options: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV.
- Anti-Baseline Drift: Automatic adjustment for stable readings.
- Paper Speed: 12.5mm/s, 25mm/s, 50mm/s.
- Thermal Printing System: Compatible with Sun-7031 (80mmx20m) and Sun-7062 (120mmx20m) paper rolls.
- Power Supply: AC 100~240V, 50/60Hz, 30VA~100VA.
- Safety Classification: IEC60601-1 Class I, Type CF.
Why Choose GoldHealth Medical?
- Unmatched Quality: Delivering the lowest price for comparable quality in the industry.
- Comprehensive Support: From video tutorials to real-time online training, we ensure youβre equipped to maximize the potential of our devices.
- Global Reach: Trusted by healthcare providers across South America, Southeast Asia, North America, and Africa since 2014.
- Warranty & Service: Enjoy peace of mind with a warranty period of 12-60 months and responsive after-sales support within 8 hours.
Unique Selling Points
- Precision Redefined: Synchronous 12-lead acquisition ensures unparalleled accuracy in cardiac diagnostics.
- Compact and Versatile: Ideal for hospitals, clinics, research labs, and home healthcare settings.
- Reliability You Can Trust: Rigorous one-to-one inspection before delivery guarantees every unit meets the highest standards.
GoldHealth Medical is committed to empowering healthcare providers with innovative tools that enhance patient care. Elevate your diagnostic capabilities with our advanced ECG solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the 3-Lead ECG Machine, a cutting-edge solution designed for precision, portability, and ease of use. Engineered to meet the demands of modern healthcare environments, this device is ideal for operation rooms, ICUs, clinics, research labs, and home care settings. With its advanced analysis modes, vibrant display, and versatile connectivity options, it redefines how ECG monitoring is conducted.
Key Features
- Advanced Display: Equipped with a 7-inch color LCD touch screen for intuitive operation and crystal-clear visualization of ECG waveforms.
- Analysis Modes: Offers Manual, Auto, and Arrhythmia detection modes, ensuring comprehensive and accurate diagnostics.
- Portable Design: Lightweight and compact, making it easy to transport and use in various medical settings.
- Rechargeable Battery: Built-in rechargeable battery for uninterrupted performance, even in mobile or off-grid scenarios.
Technical Specifications
- Power Source: Electric (Plug-in) with rechargeable battery support.
- Material: High-quality, durable plastic construction.

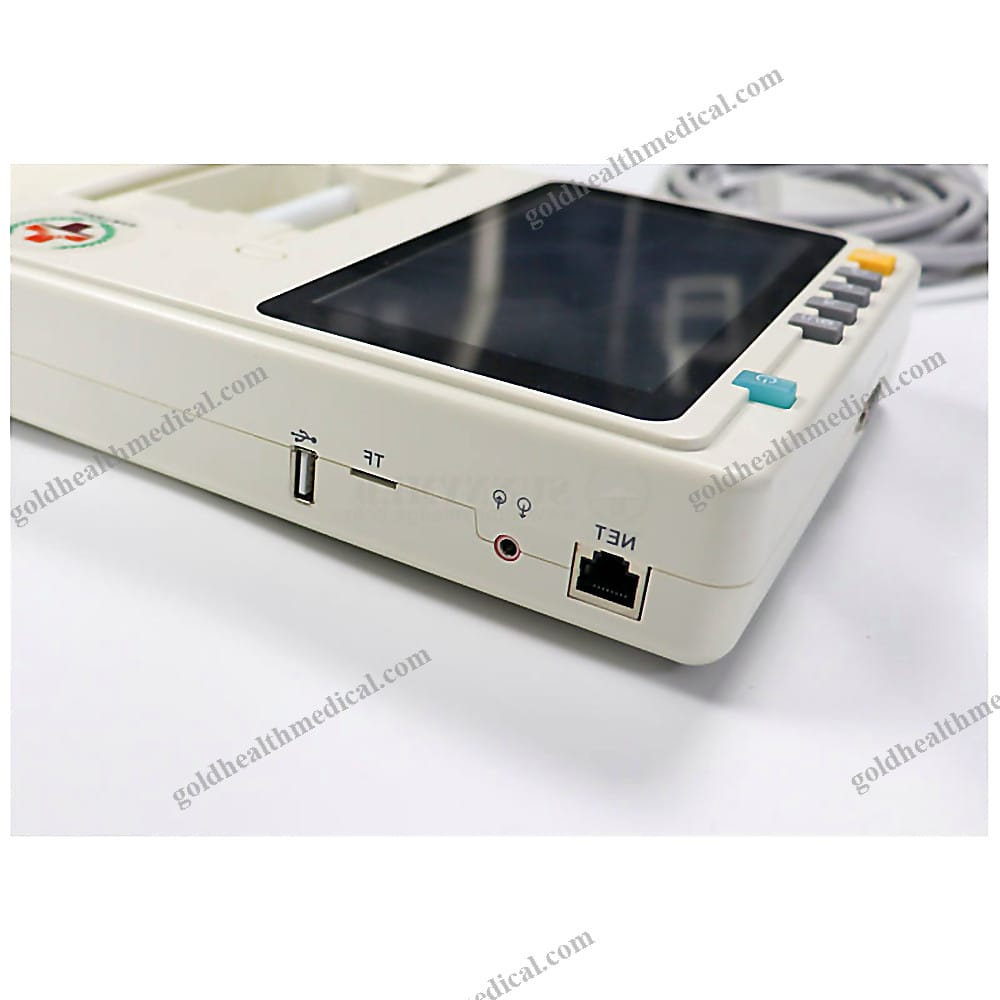

- Storage Options: Supports SD card and USB disk for convenient data storage and transfer.
- Interfaces: USB and RS232 ports for seamless connectivity with external devices.
- Recording: Thermal printer with 112mm x 20m recording paper for reliable hard-copy outputs.
Certifications and Standards
- Complies with Class II medical instrument classification and adheres to the GB15979-2002 safety standard.
- Certified with CE quality assurance for global reliability and performance.
Applications
- Designed for critical environments such as Operation Rooms and ICUs, as well as general clinical and home healthcare use.
Warranty and Support
- Backed by a 1-year warranty and access to online technical support, ensuring peace of mind and long-term usability.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare professionals and improve patient outcomes. The 3-Lead ECG Machine exemplifies our dedication to precision engineering and user-centric design, making it an indispensable tool for modern healthcare providers.
Additional Details
- Shelf Life: 1 year from the date of manufacture.
- Place of Origin: Guangdong, China.
Experience the future of cardiac monitoring with GoldHealth Medicalβs 3-Lead ECG Machine β where innovation meets reliability.
