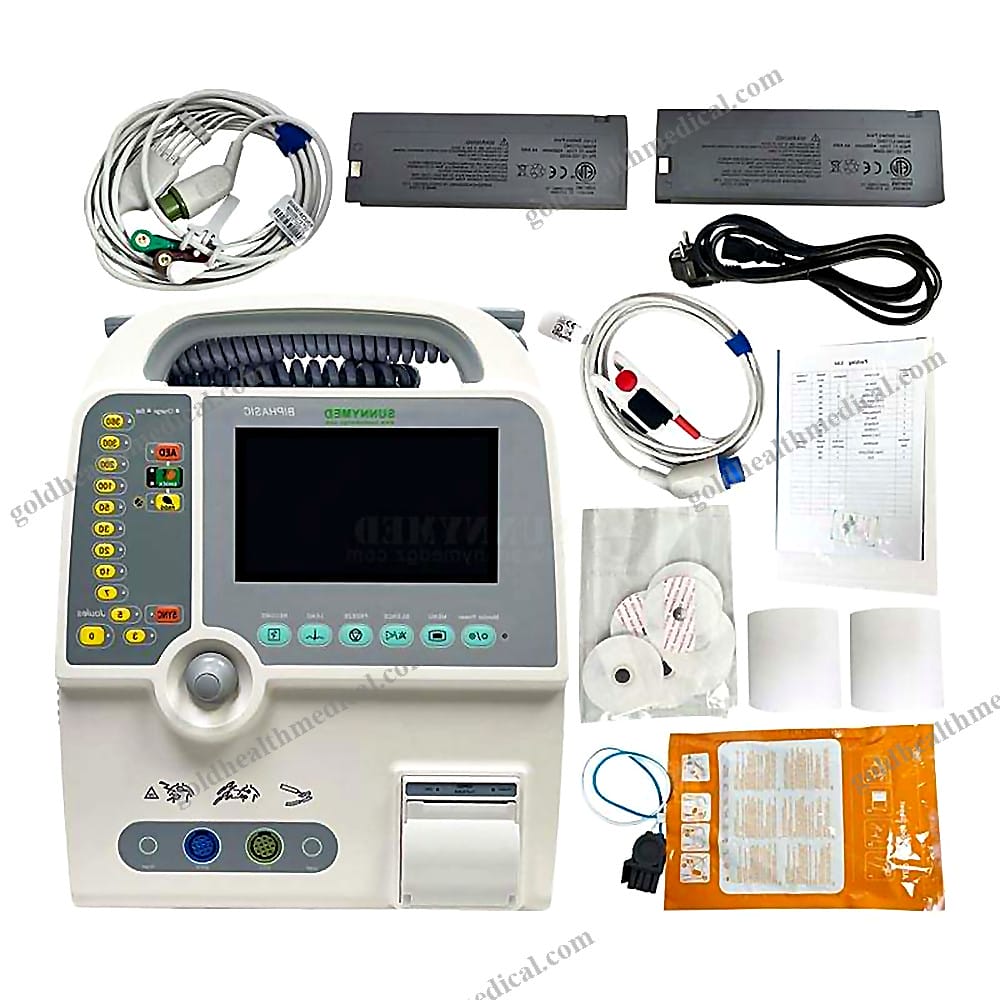

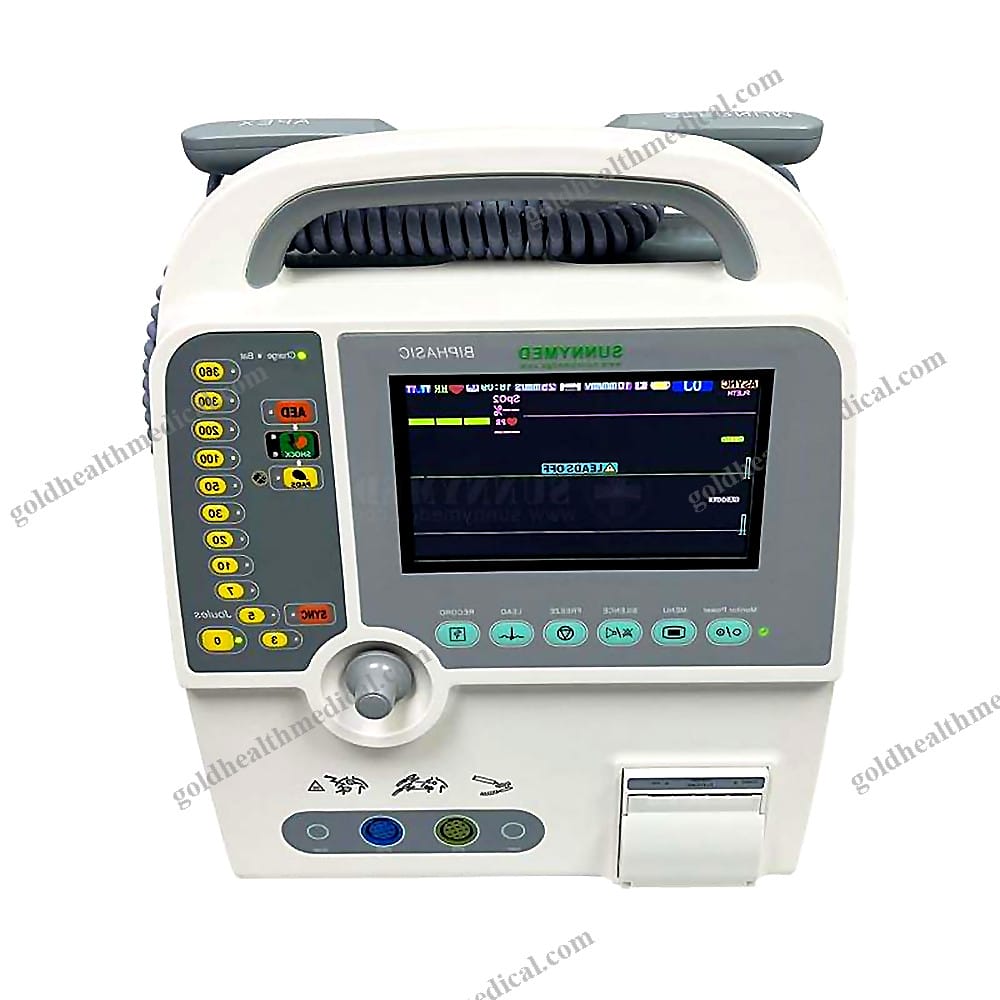

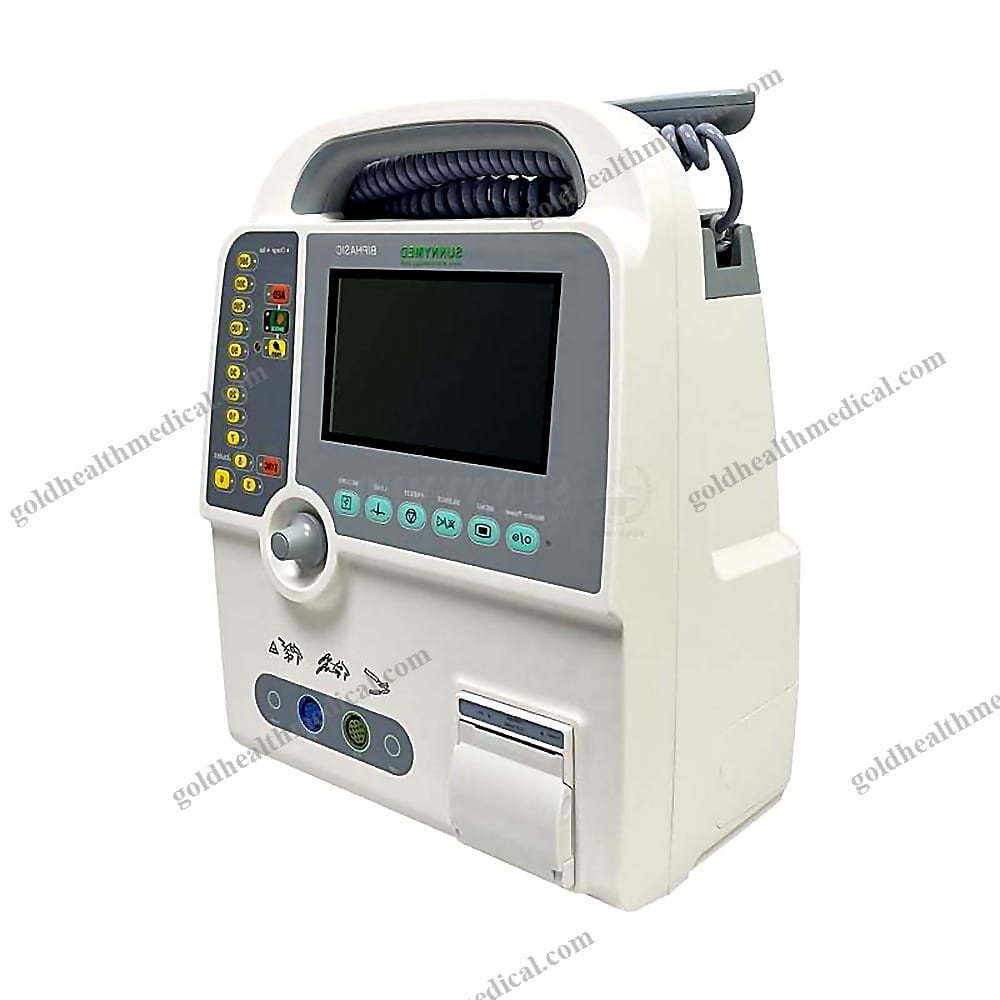

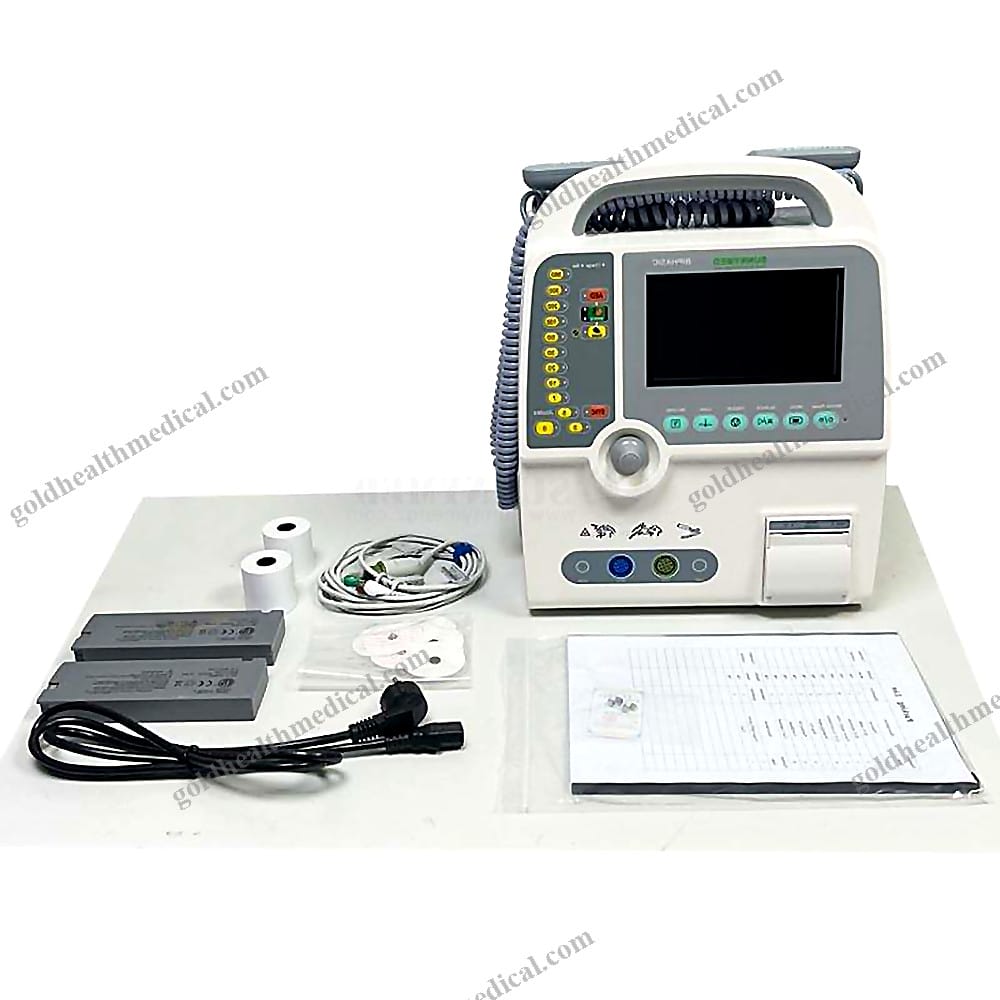

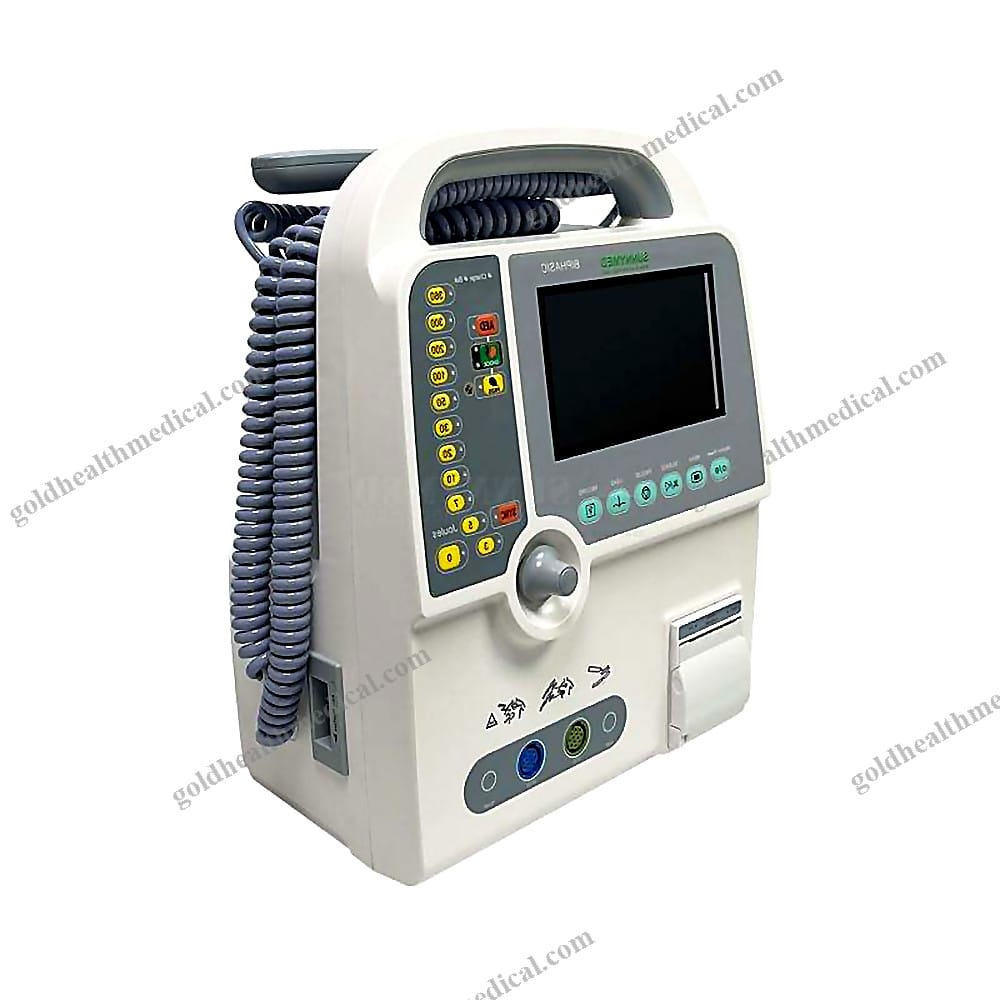

SYC029 Portable Cardiac Defibrillator for Medical Training
Reference: 1601171849805
First-Aid Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Emergency Care with Advanced Defibrillation Technology
Product Overview
GoldHealth Medical presents a state-of-the-art Portable Biphasic Automated External Defibrillator (AED), designed to deliver exceptional performance in critical situations. Engineered for reliability, precision, and ease of use, this device is a cornerstone of modern emergency medical care. Whether in hospitals, clinics, or remote settings, it ensures life-saving intervention with unmatched efficiency.
Key Features
- Optional SPO2 Monitoring: Enhances patient assessment with real-time oxygen saturation data.
- Intuitive Voice Prompts: Guides users through each step, ensuring confidence even in high-pressure scenarios.
- Built-in Event Recorder: Captures defibrillation discharge data for comprehensive post-event analysis.
- ECG Waveform Display via Paddle Electrodes: Provides clear visualization of cardiac activity during treatment.
- Advanced Monitoring: Displays heart rate, lead selection, alarms, and delivered energy on a high-resolution screen.
Technical Specifications
- Defibrillator Modes: Manual, synchronized, and asynchronous operation for versatile clinical applications.
- Energy Accuracy: Precise to within ±1%, ensuring consistent and reliable performance.
- Energy Selection: Adjustable settings from 0 to 360 joules (nominal at 50 ohms resistance):
- 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules.
- Charging Time: Maximum of 10 seconds to reach 360 joules.
- Paddle Options: Reusable adult and integrated pediatric paddles for seamless adaptability.
Power Requirements
- AC Power Supply: 100V–240V, 50Hz/60Hz.
- Optional Vehicle Voltage: DC 12V.
- Internal Battery Backup:
- Battery Type: Rechargeable lead-acid battery (12V 2.0Ah x2).
- Charging Time: Minimum 4 hours for full charge.
- Battery Capacity: Supports 120 minutes of monitoring and 30 discharges at 360 joules.
- Charging/Low Battery Indication: Red LED alert system.

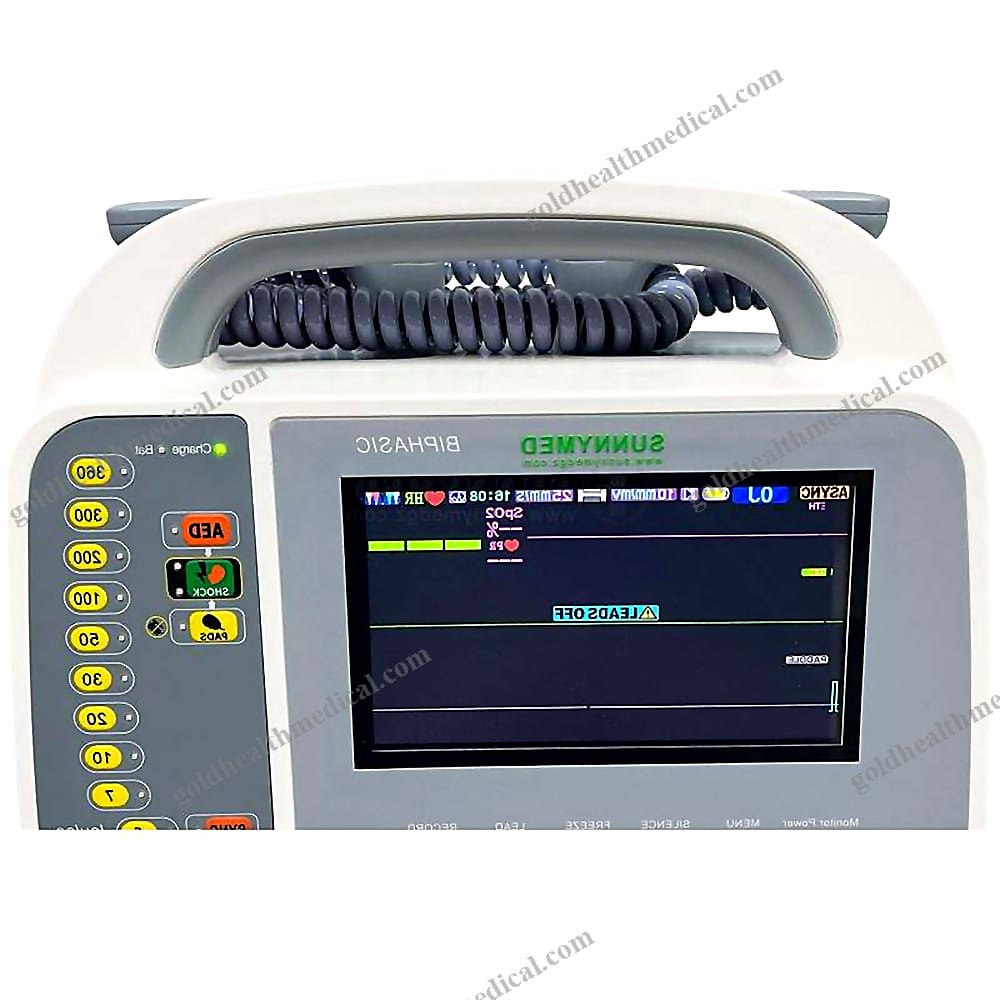

Display
- Screen Type: 7-inch (17.7cm diagonal) high-resolution TFT color display.
- Resolution: 480x234 pixels for sharp, detailed visuals.
- Sweep Speed: Adjustable at 12.5/25/50mm/sec.
- Displayed Information: Heart rate, lead selection, alarm status, and delivered energy.
Standard Parameters and Configuration
- Patient Connection: Compatible with 3-lead or 5-lead ECG cables and paddles.
- Lead Selection: I, II, III, AVR, AVL, AVF, V displayed on the monitor.
- ECG Size: Adjustable display options of 2.5, 5, 10, 20, 30 mm/mV.
- Heart Rate Range: 20–350 BPM.
- Protection: Withstands 4000V AC/50Hz isolation, resistant to electrosurgical interference and defibrillation effects.
Defibrillation Capabilities
- Waveform: Biphasic for optimal energy delivery.
- Charge Time: Less than 10 seconds to 360 joules.
- Energy Display: Monitor shows both selected and delivered energy levels.
- Charge Prompts: Voice and visual cues for seamless operation.
Unique Advantages
- Comprehensive Functionality: Combines defibrillation, pacing, monitoring, and AED modes to address diverse life-support needs.
- Versatile Applications: Ideal for both pre-hospital emergency care and in-hospital usage.
- Pacing Modes: On-demand and fixed pacing for rapid intervention in cardiac arrest and severe arrhythmias.
- Advanced Monitoring Options: Includes optional SpO2, temperature, EtCO2, IBP, and 12-lead ECG for continuous patient monitoring.
- Patented Analysis Algorithm: Automated analysis and intuitive settings guide clinical personnel in delivering effective defibrillation and basic life support.
Why Choose GoldHealth Medical?
With a legacy of excellence since 2014, GoldHealth Medical has established itself as a trusted provider of innovative medical solutions. Our products are designed to meet the rigorous demands of healthcare
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Name: Defibrillator Automated External
Product Overview
The GoldHealth Medical Defibrillator Automated External is a cutting-edge, life-saving device designed for precision, reliability, and ease of use in critical situations. Engineered to meet the demands of modern healthcare environments, this defibrillator combines advanced technology with user-centric design to deliver exceptional performance. Whether in hospitals, clinics, or home care settings, this device ensures rapid response and accurate treatment for cardiac emergencies.
Key Features
- 7'' TFT Display: A high-resolution, intuitive interface for clear visualization of critical data during emergencies.
- Versatile Defibrillation Modes: Supports manual, synchronized, and asynchronized defibrillation to adapt to diverse clinical needs.
- Comprehensive Monitoring Parameters: Includes ECG, SPO2, TEMP, NIBP, and DEFIBRILLATOR functions for real-time patient assessment.
- Dual Power Source: Operates on AC power (100~240V, 50/60Hz) for consistent performance in any setting.
- Durable Construction: Crafted from premium acrylic and metal materials for long-lasting reliability.
Technical Specifications
- Instrument Classification: Class II medical device
- Safety Standard Compliance: GB15979-2002
- Quality Certifications: CE, ISO
- Shelf Life: 1 year
- Place of Origin: Guangdong, China
After-Sale Support
- Warranty: 1-year comprehensive coverage
- Lifetime Service: Dedicated support for the entire product lifecycle
- Online Technical Support: Expert assistance available to ensure seamless operation
Packaging Details
- Selling Unit: Single item
- Package Dimensions: XX cm
- Gross Weight: XX kg
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions that empower healthcare professionals and improve patient outcomes. Our defibrillator stands out with its advanced features, robust build, and unwavering reliability, making it an indispensable tool for emergency care.
Experience the GoldHealth Medical difference today—where precision meets performance.
