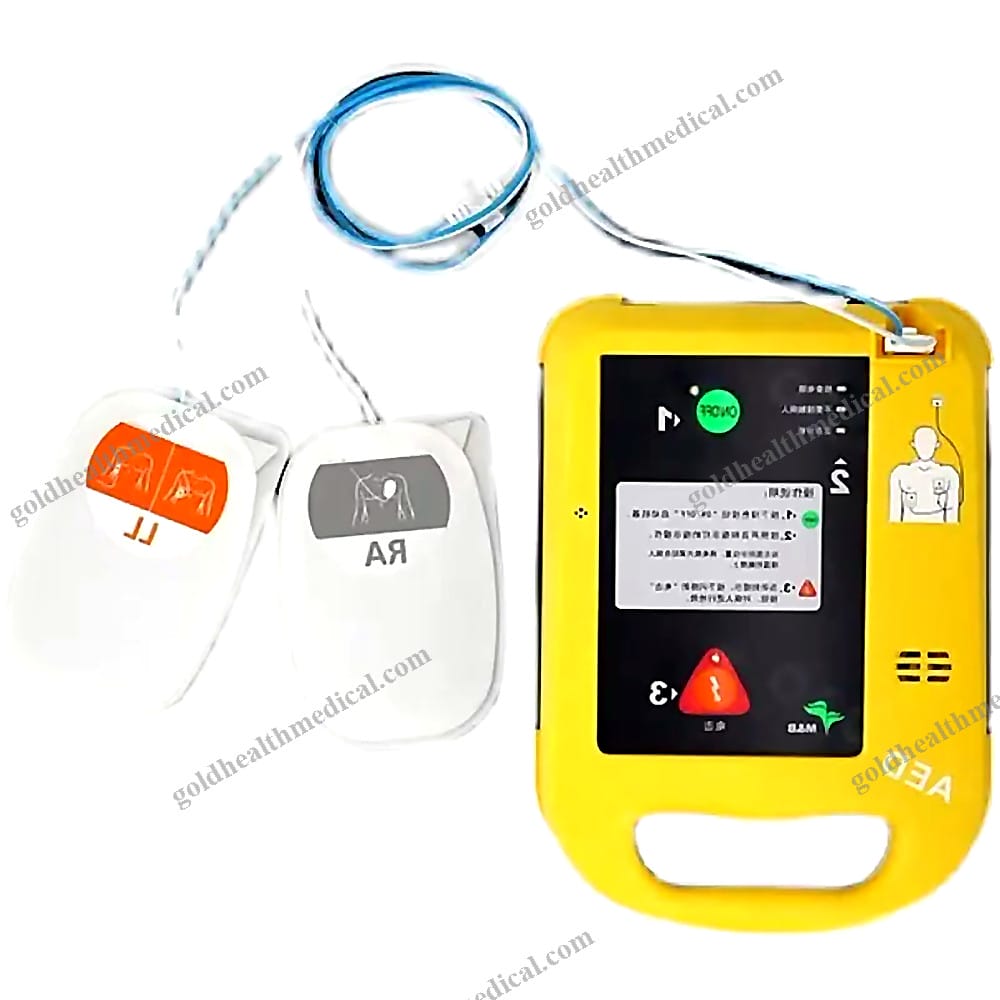

Biphasic AED Pro Portable Defibrillator
Reference: 1601288154439
First-Aid Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

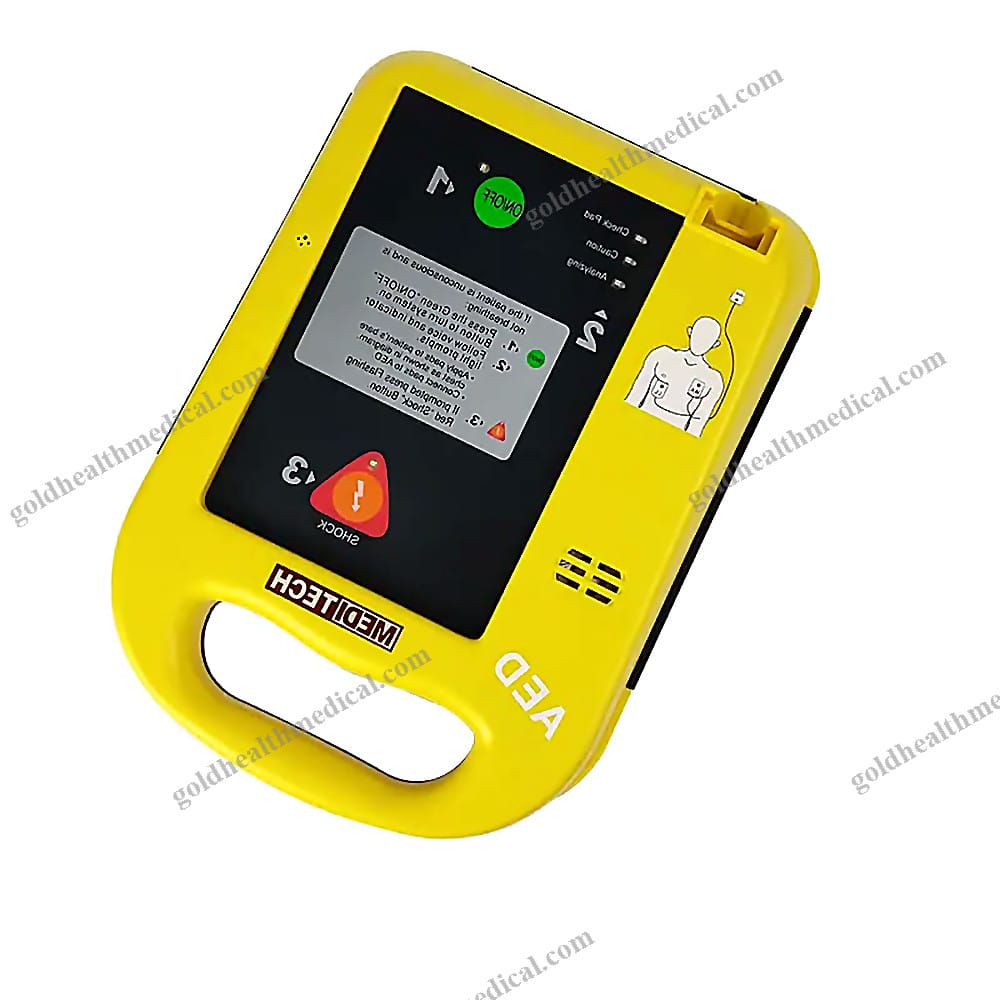

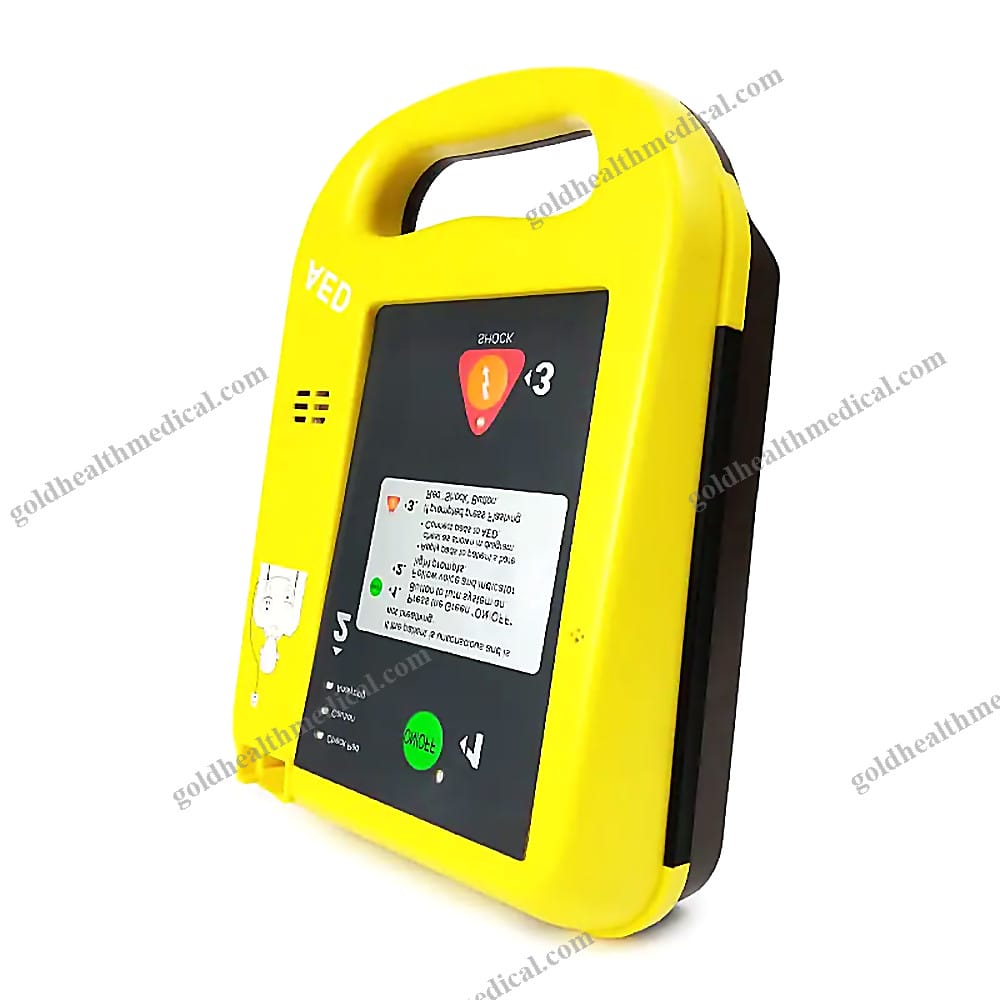

GoldHealth Medical Automated External Defibrillator
Revolutionize emergency response with the GoldHealth Medical Automated External Defibrillator (AED). Designed for simplicity, precision, and reliability, this device is engineered to empower medical professionals and caregivers in critical moments. Its advanced features and user-centric design ensure rapid, effective defibrillation in any setting.
Key Features
- Intuitive Three-Step Defibrillation Process: Simplifies operation for users of all experience levels.
- Two-Button Operation: Minimalistic control for maximum efficiency during high-pressure situations.
- Comprehensive Guidance: Extensive voice and visual prompts guide operators seamlessly through each step.
- Biphasic Energy Output: Delivers precise energy tailored to patient impedance for optimal outcomes.
- Lock-Out Protection: Prevents accidental discharge, ensuring safety for both patient and operator.
- Continuous Event Recording: Captures every use for detailed reporting to printers or computers, aiding in post-event analysis.
- Weekly Self-Test: Ensures the device is always ready for action, providing peace of mind in emergencies.
Technical Specifications
Output
- Waveform: Biphasic Truncated Exponential
- Energy Sequence: 150J, 150J, 200J
- Charge Time:
- 8 seconds to 150J
- 10 seconds to 200J (with a new battery)
- Analysis Time: 9 seconds
- Maximum Time from Rhythm Analysis to Discharge:
- Less than 30 seconds with a new battery
- Less than 35 seconds after 6 shocks
- Less than 25 seconds from power-on to readiness
User Guidance
- Audible Prompts: 20 distinct prompts for clear instructions
- Visual Prompts: LED indicators for enhanced situational awareness
Performance
- Output Energy Accuracy: ±15% across impedances from 25 to 175Ω
- Maximum Voltage: 120±50V
- Patient Impedance Range: 20Ω to 200Ω (output disabled outside this range)

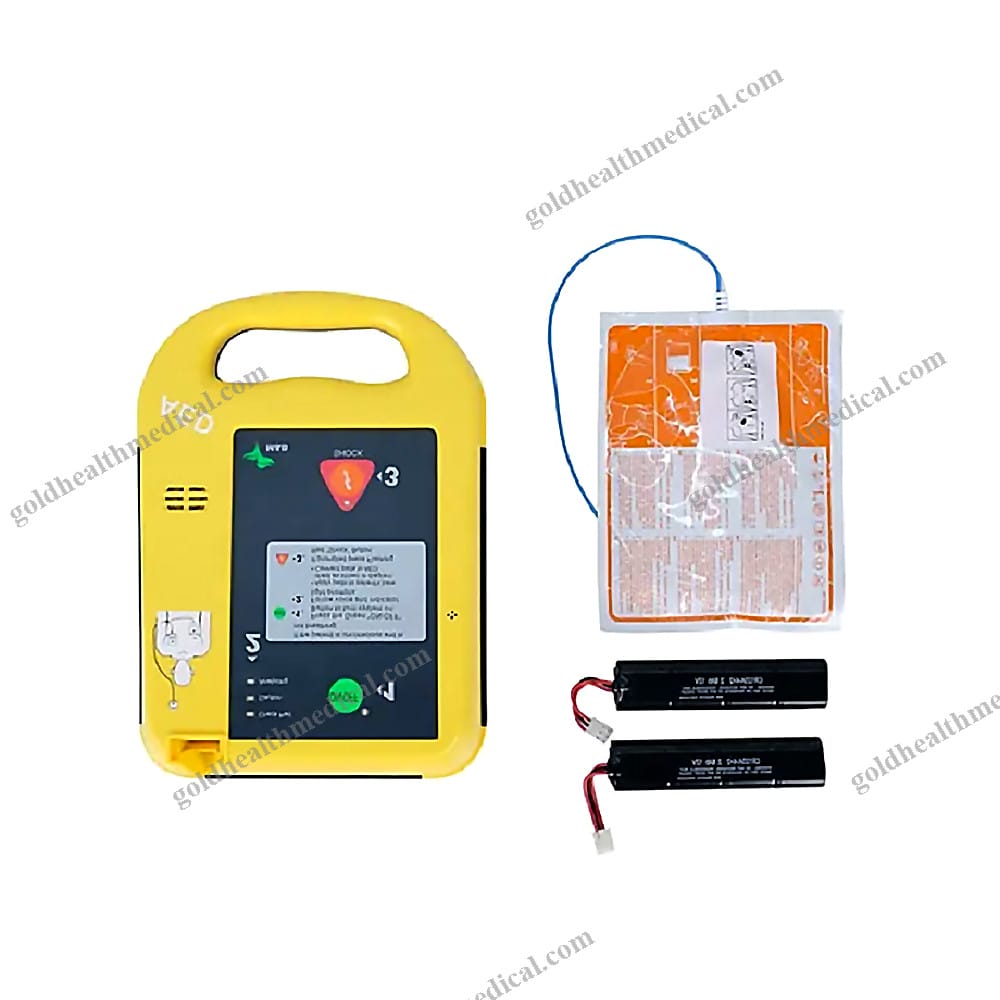

Battery
- Type: Non-rechargeable CR123A-4×2, 12V DC, 3.0Ah
- Capacity:
- 100 discharges at 200J
- 120 discharges at 150J
- Shelf Life:
- 10 years total (5 years storage + 5 years standby)
- 5 years standby after installation

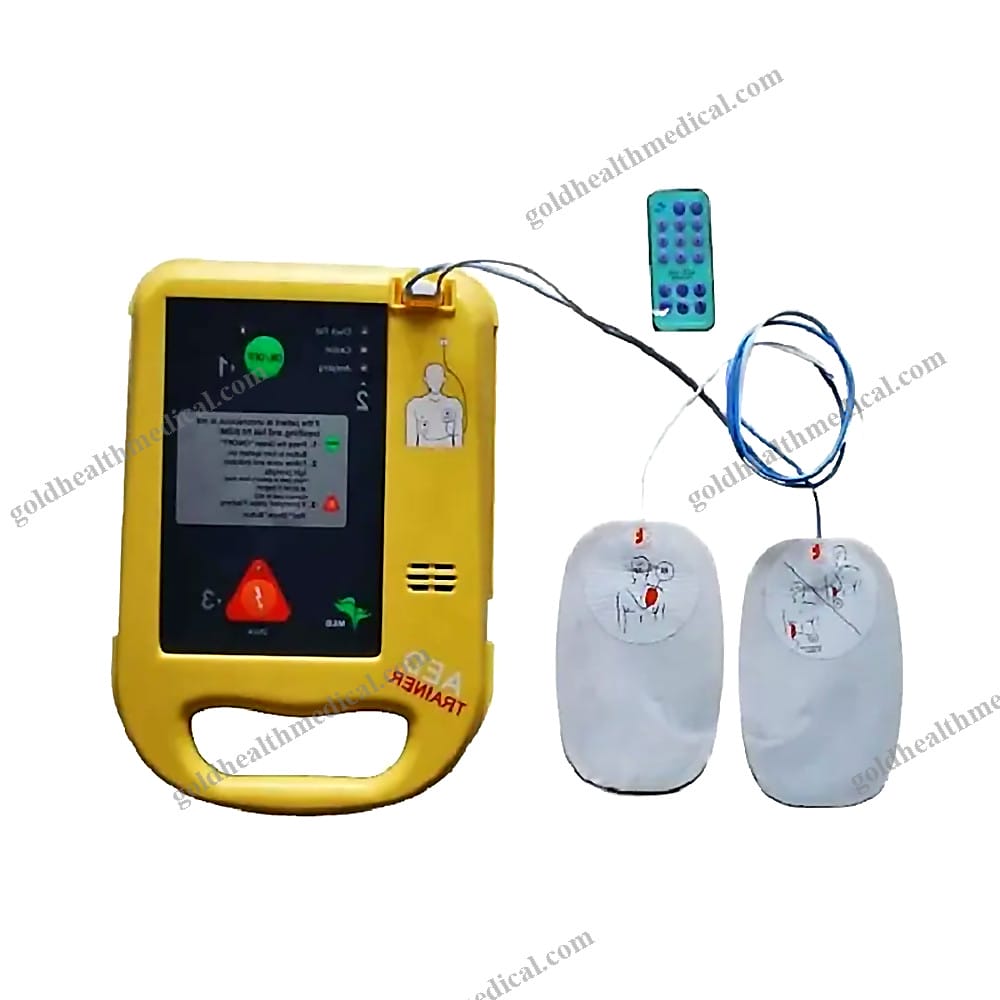

AED Pads
- Adult Pads:
- Designed for external defibrillation, non-invasive pacing, synchronized cardioversion, and monitoring
- Suitable for adults and children weighing more than 20kg (55 lbs)
- Child Pads:
- Specifically designed for children weighing between 15kg and 20kg (33–55 lbs)
Why Choose GoldHealth Medical?
GoldHealth Medical’s AED stands out with its precision engineering, user-friendly design, and unwavering reliability. Whether in hospitals, clinics, or home settings, this device ensures rapid response and exceptional performance when every second counts. Backed by rigorous testing and a commitment to quality, it is the ultimate choice for saving lives.
Choose GoldHealth Medical—where innovation meets life-saving technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Advanced AED Multi-functional Defibrillator
Product Overview
The Advanced AED Multi-functional Defibrillator by GoldHealth Medical is a cutting-edge emergency care device designed for life-saving interventions in critical situations. Engineered with precision and reliability in mind, this defibrillator is ideal for hospitals, clinics, emergency response teams, and home users. Its versatility ensures it is equally effective for adults, pediatrics, and neonates, making it an indispensable tool in any medical setting.
Key Features
- Emergency Rescue Ready: Designed for rapid deployment in emergency scenarios, ensuring timely and effective care.
- Multi-functional Design: Combines advanced defibrillation with intuitive controls for seamless operation.
- LED Visual Indicators: Clear and precise LED prompts guide users through each step, reducing the risk of errors during high-pressure situations.
- Universal Compatibility: Suitable for adults, pediatrics, and neonates, offering adaptable care for diverse patient needs.
- Powerful Battery Backup: Equipped with a 12V, 2800mAh Li-MnO2 cell, ensuring reliable performance even in remote or power-limited environments.
- Wide Voltage Range: Operates on 100 to 240V AC (50/60 Hz), making it adaptable to global power standards.
Technical Specifications
- Instrument Classification: Class II
- Safety Standard Compliance: EN 149-2001+A1-2009
- Material Composition: Durable acrylic, metal, and high-grade plastic for long-lasting performance.
- Power Source: 12V, 2800mAh Li-MnO2 cell; AC power adapter (100-240V, 50/60Hz)
- Shelf Life: 2 years
- Quality Certifications: CE
Packaging Details
- Package Dimensions: 30 x 24 x 8 cm
- Gross Weight: 1.900 kg
Support and Warranty
- Warranty Period: 2 years, ensuring peace of mind and long-term reliability.
- After-Sale Service: Comprehensive online technical support to assist with any operational or technical queries.
GoldHealth Medical’s Advanced AED Multi-functional Defibrillator is more than just a device—it’s a lifeline. Designed with innovation, precision, and user-centric features, it empowers healthcare professionals and caregivers to act swiftly and confidently in life-threatening situations. Choose GoldHealth Medical for unmatched quality and reliability in emergency care.
