SP100 Portable Spirometer with 7 TFT Touch Screen for
Reference: 1601044858388
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

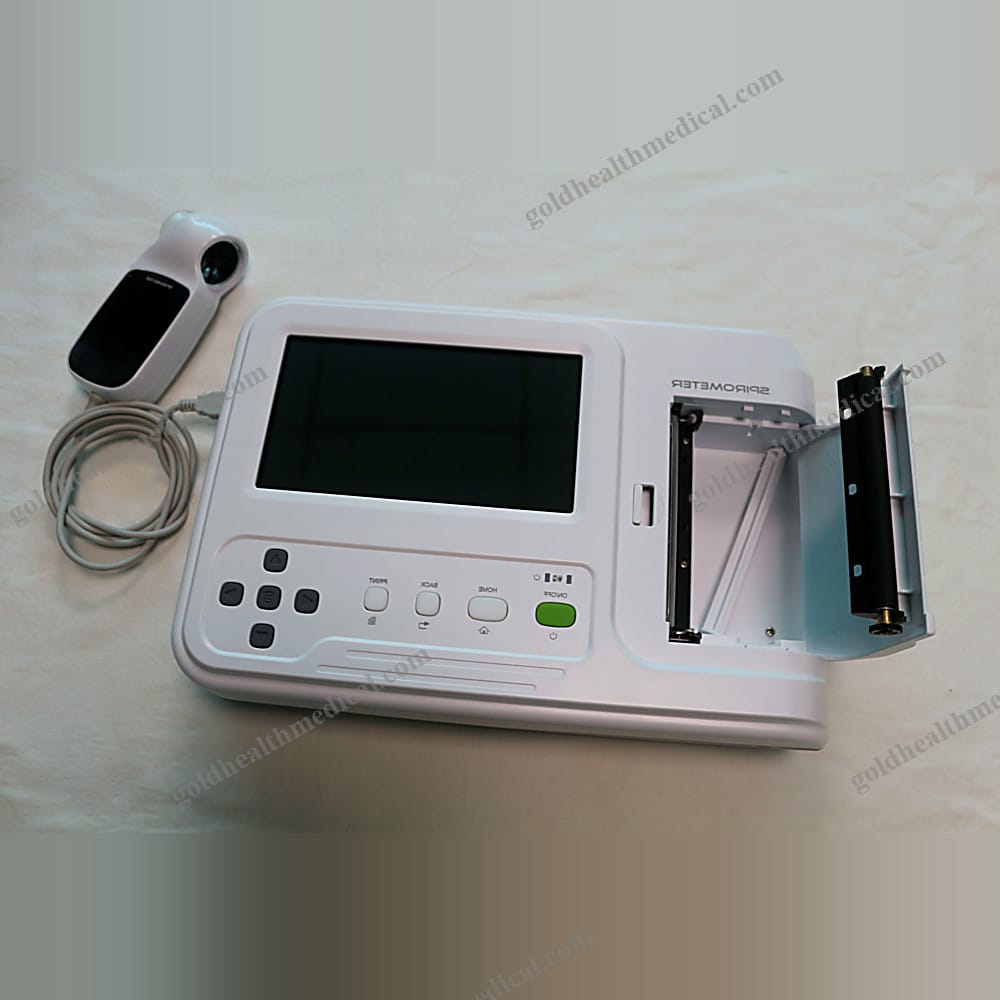

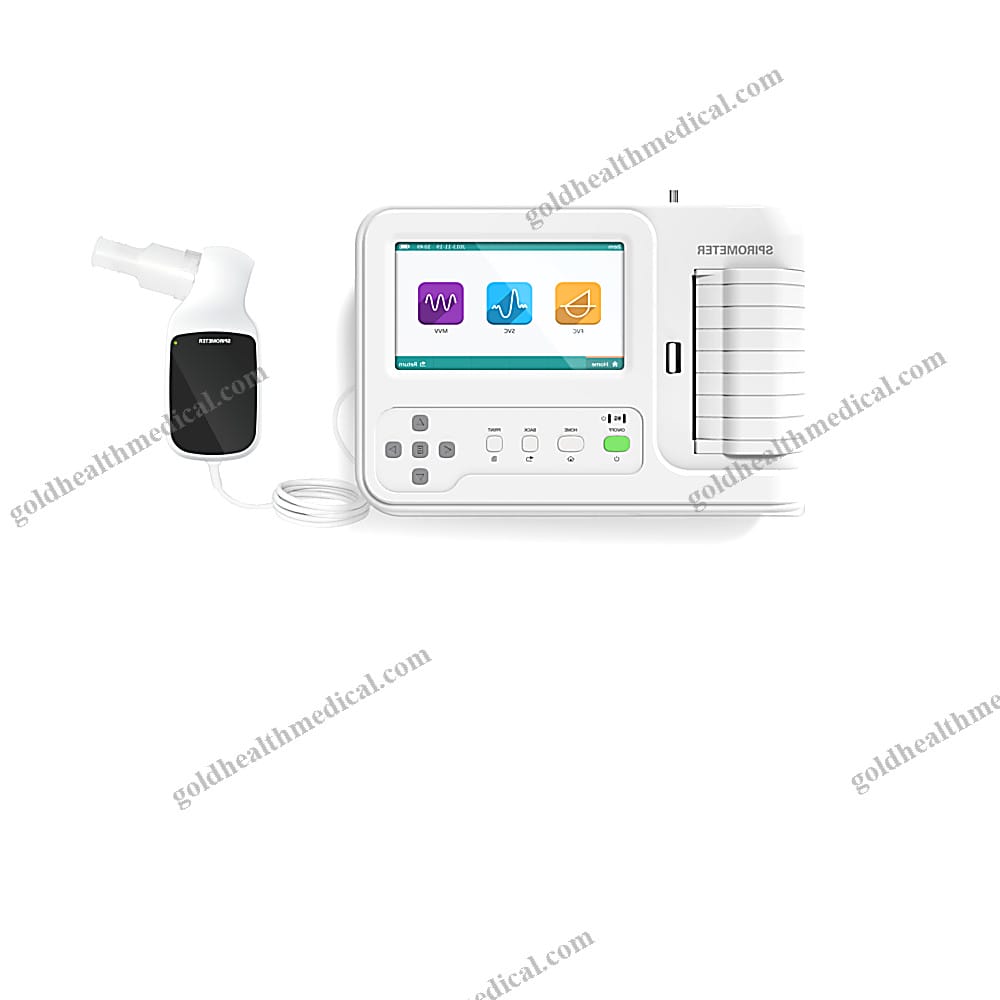

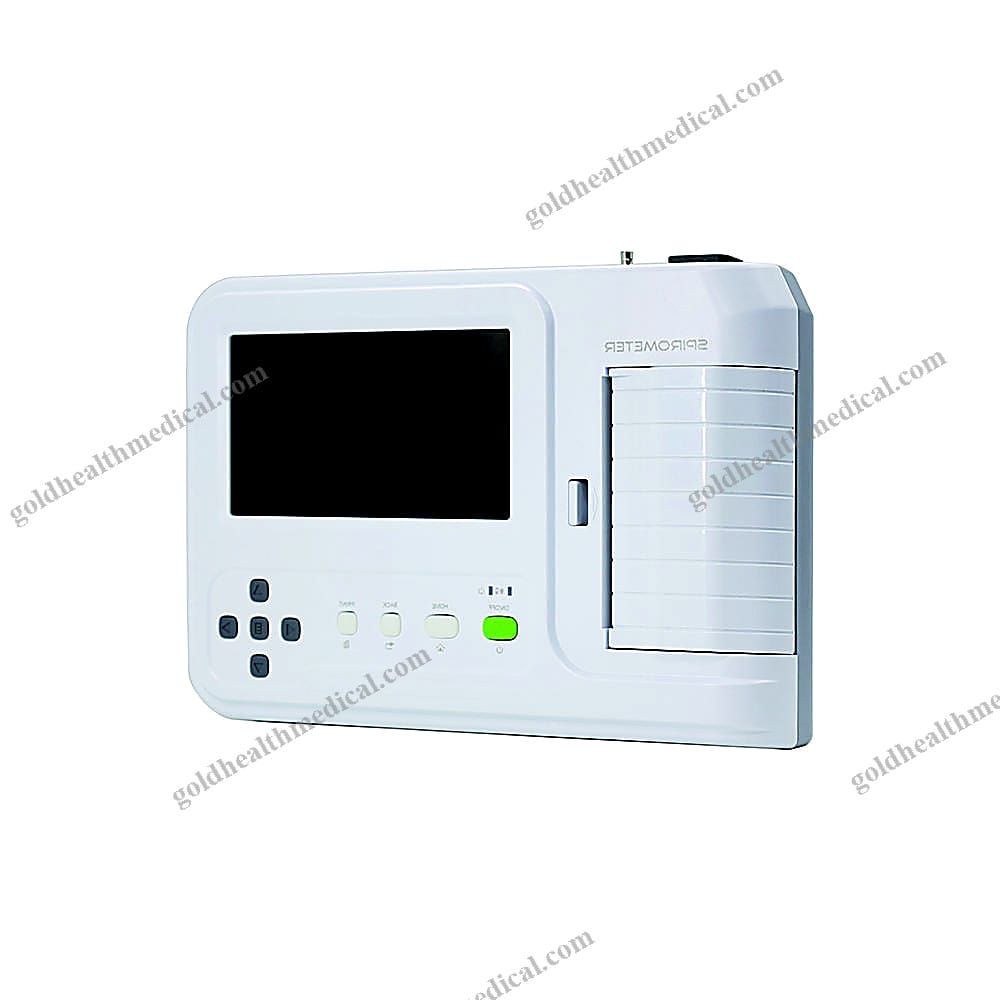

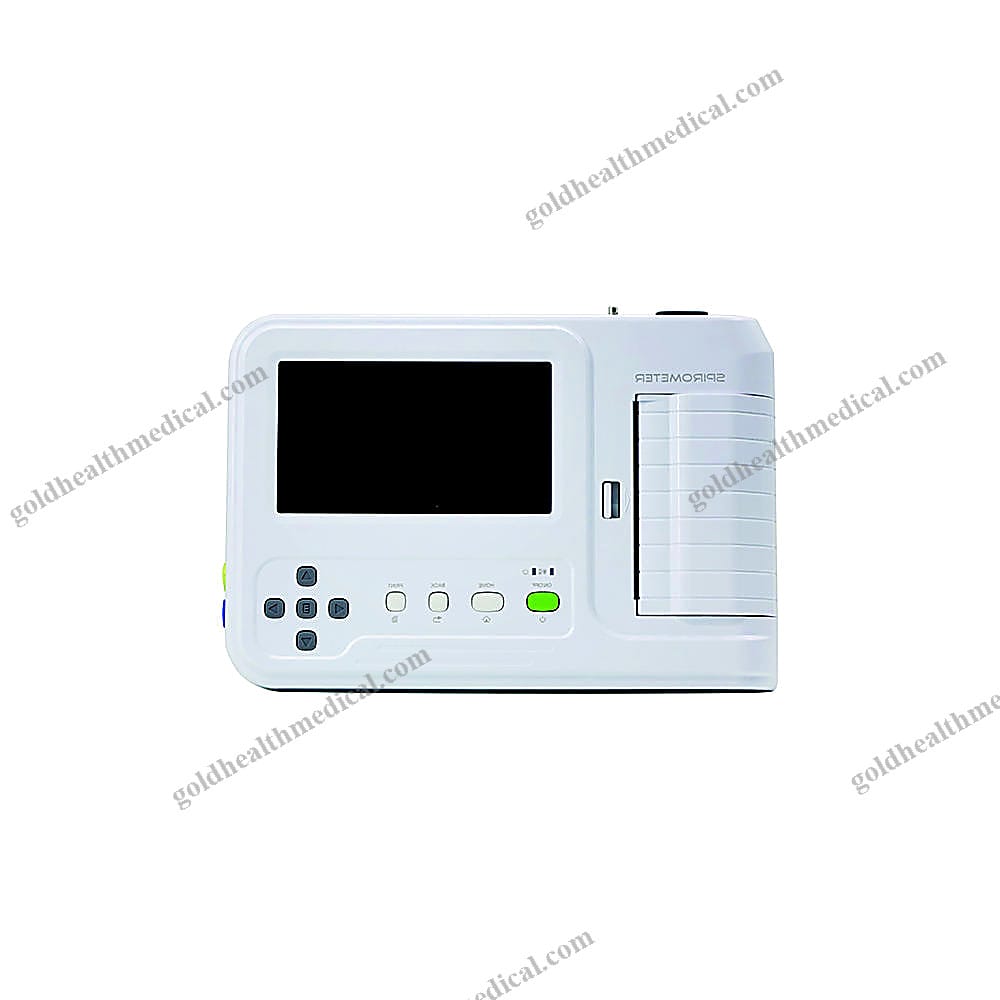

GoldHealth Medical Portable Spirometer
GoldHealth Medical proudly presents a cutting-edge portable spirometer designed for comprehensive lung function testing. This device is meticulously crafted to assess critical lung parameters, making it indispensable in hospitals, clinics, and beyond. Its versatility extends to community health screenings, occupational health assessments, and more.
Key Features
- Comprehensive Parameter Measurement:
- Forced Vital Capacity (FVC): FVC, FEV1, PEF, FEV1%, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV
- Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tI/tE, tE, TV/tI, tI/ttot
- Maximum Ventilatory Volume (MVV): MVV
-
Over 50 parameters can be measured and displayed, with the optimal result selected from multiple measurements.
-
Real-Time Waveform Display:
-
Flow-Volume loop and Volume-Time curve chart for immediate visual feedback.
-
User-Friendly Interface:
- 7" color LCD touch screen with button operation.
-
Incentive animation guides for ease of use, especially beneficial for children and the elderly.
-
Advanced Functionality:
- Built-in thermal printer for direct report printing.
- BTPS automatic correction to compensate for environmental differences.
- Calibration function ensuring measurement accuracy.
- Multiple predicted values suitable for diverse populations.
- Lung age estimation feature.
-
Storage capacity for over 10,000 data groups.
-
Reliable Power Options:
- Built-in lithium battery supporting both AC and DC power.
Performance Specifications
- Volume Range: 0~10 L (FVC)
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: 0~16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Type: Class I equipment, type BF applied part
- Printing Paper: 112 mm(W)×20 m(L) high-speed thermal paper
- Dimensions: 315 mm(L)×215 mm(W)×92 mm(H)
- Weight: 1.8 kg
Accessories
- Spirometer
- Mouthpiece (4 pcs, disposable)
- Nose clip
- USB cable
- Recording paper
- Power cord
- User Manual
GoldHealth Medical's portable spirometer stands out with its precision, ease of use, and advanced features, making it an essential tool for healthcare professionals and institutions worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced portable flow spirometer designed for clinical excellence.
- Instrument Classification: Class II medical device, ensuring precision and reliability in every measurement.
- Place of Origin: Proudly crafted in Guangdong, China, with a commitment to quality and innovation.
- Power Source: Electric, powered by a versatile 100 V-240 V~ 50 Hz/60 Hz supply, making it adaptable to global standards.
- Input Power: Efficient 60 VA design ensures optimal performance without excessive energy consumption.
- Key Features:
- Portable Design: Lightweight and compact, ideal for use in clinics, hospitals, laboratories, and even home care settings.
- Advanced Display: Equipped with a 7" color TFT touch screen for intuitive operation and clear visualization of results.
- High-Speed Thermal Printing: Utilizes 112 mm(W) x 20 m(L) thermal paper for fast and reliable documentation.
- Data Storage: Capable of storing over 10,000 groups of data, ensuring comprehensive record-keeping for long-term analysis.
- Technical Specifications:
- Volume Range: 0~10 L (FVC), accommodating a wide range of clinical applications.
- Flow Range: 0~16 L/s, delivering accurate measurements for diverse respiratory assessments.
- Dimensions: Compact at 315 mm(L) x 215 mm(W) x 92 mm(H), ensuring portability and ease of use.
- Weight: Just 1.8 kg, making it effortless to transport and handle.
- Packaging Details:
- Single package size: 40X30X20 cm.
- Single gross weight: 3.500 kg, ensuring secure and efficient shipping.
- Warranty & Support:
- Backed by a 1-year warranty for peace of mind.
- Comprehensive online technical support to assist with any operational or troubleshooting needs.
- Certifications: CE-certified, guaranteeing compliance with international safety and quality standards.
- Shelf Life: 1 year, ensuring product integrity and performance.
- Customization Options: OEM services available to meet specific branding or functional requirements.
GoldHealth Medical’s portable spirometer is the ultimate solution for precise, reliable, and versatile respiratory diagnostics. Elevate your clinical practice with a device that combines cutting-edge technology, portability, and user-friendly design.
