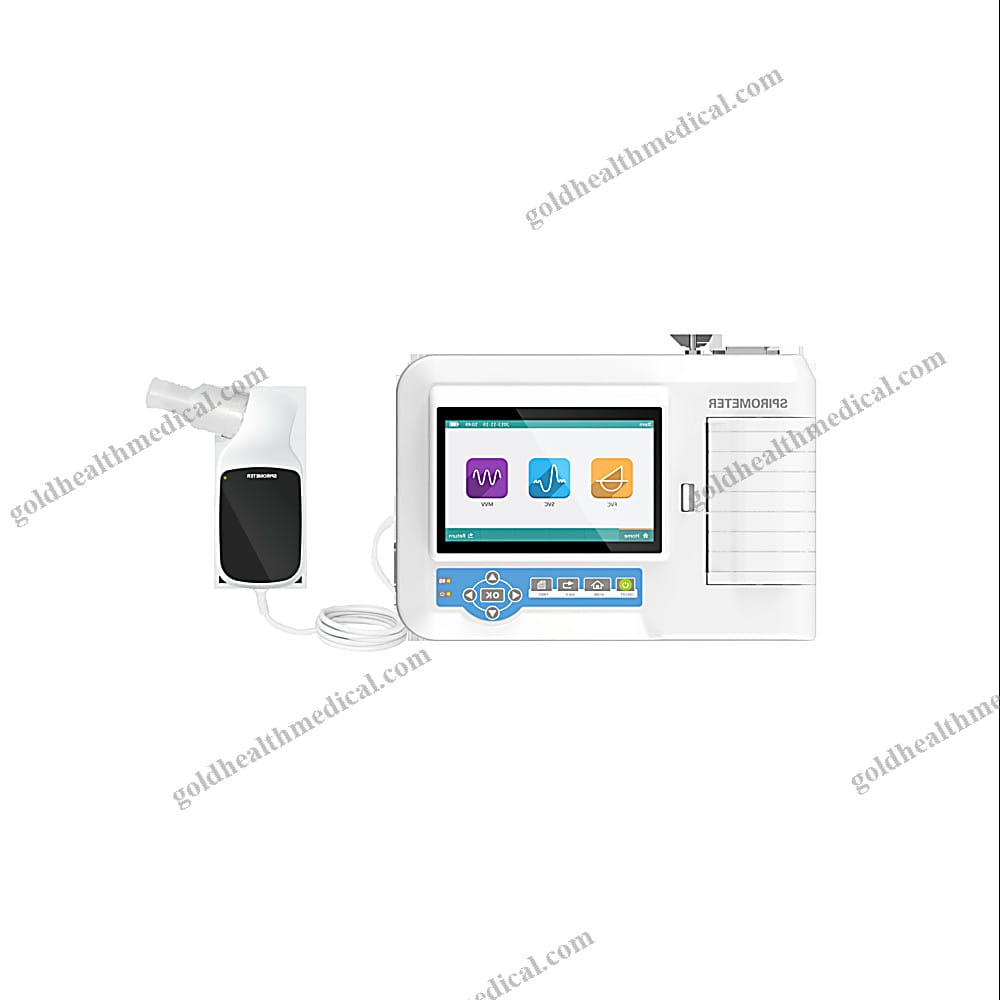

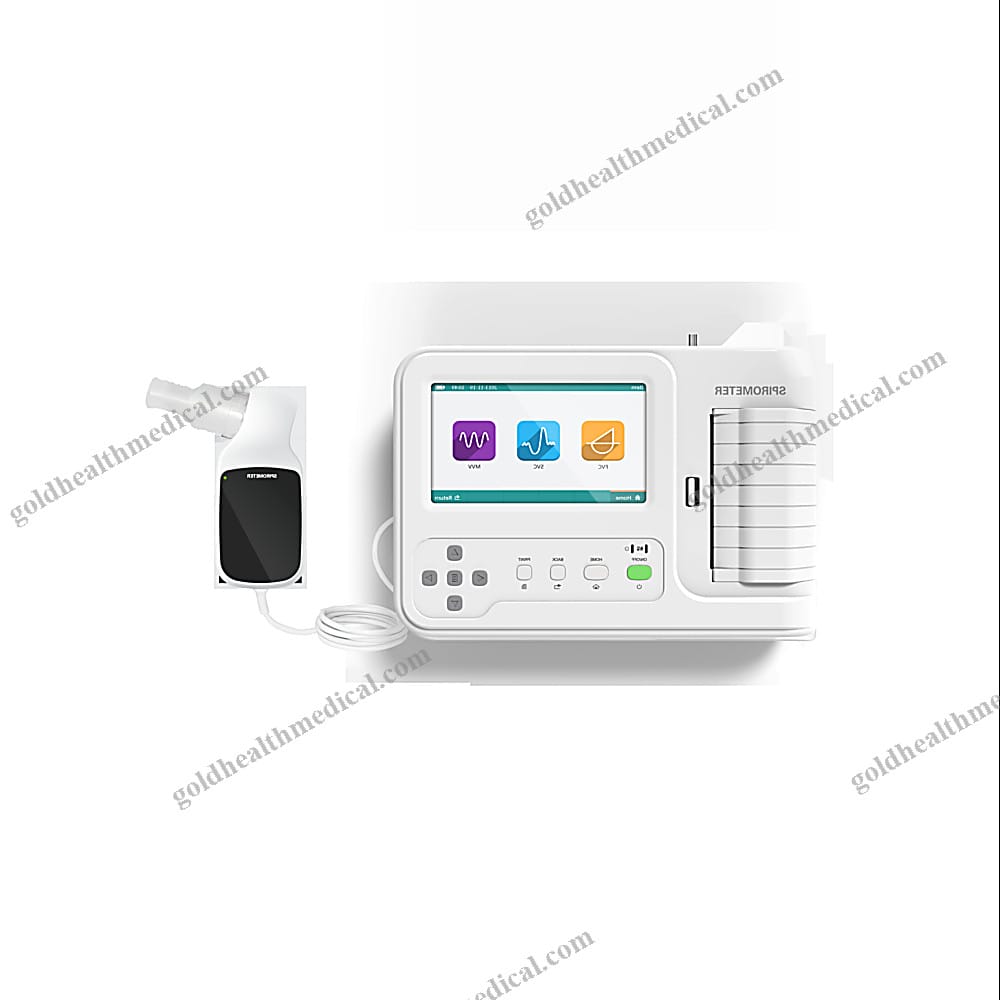

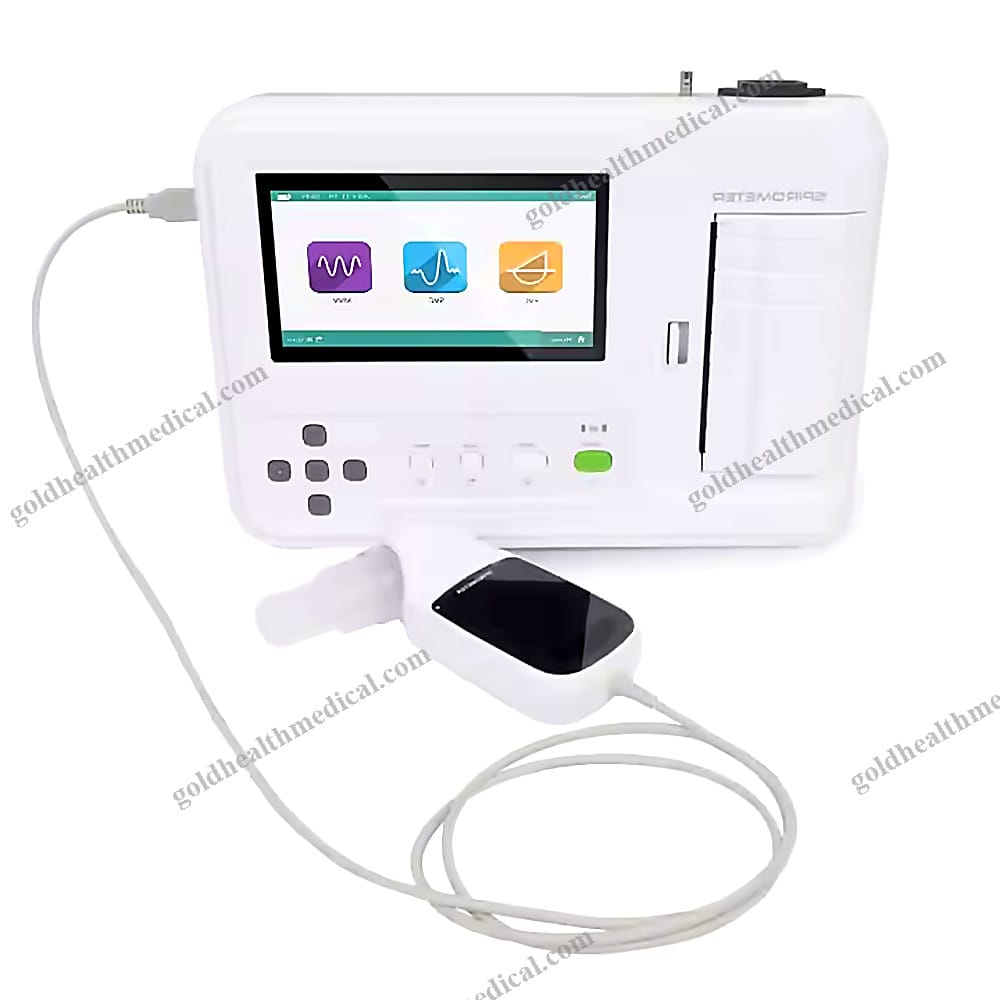

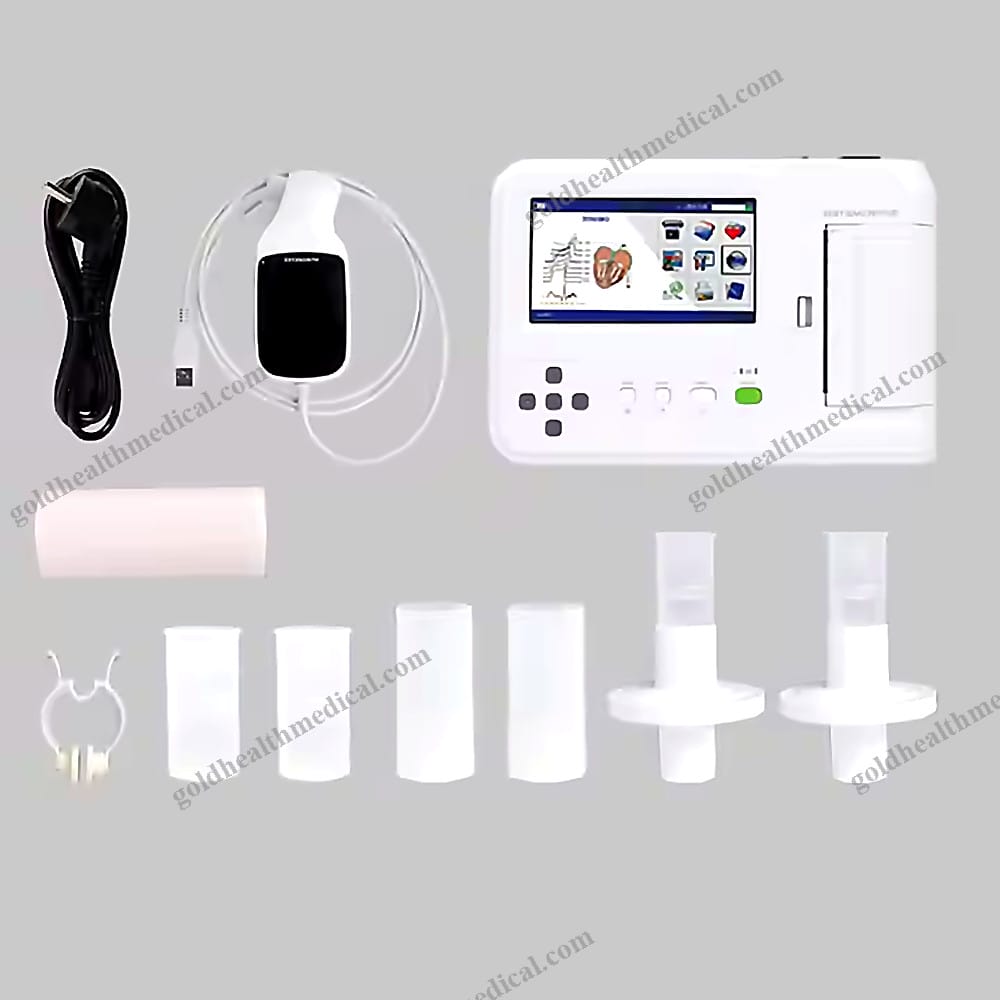

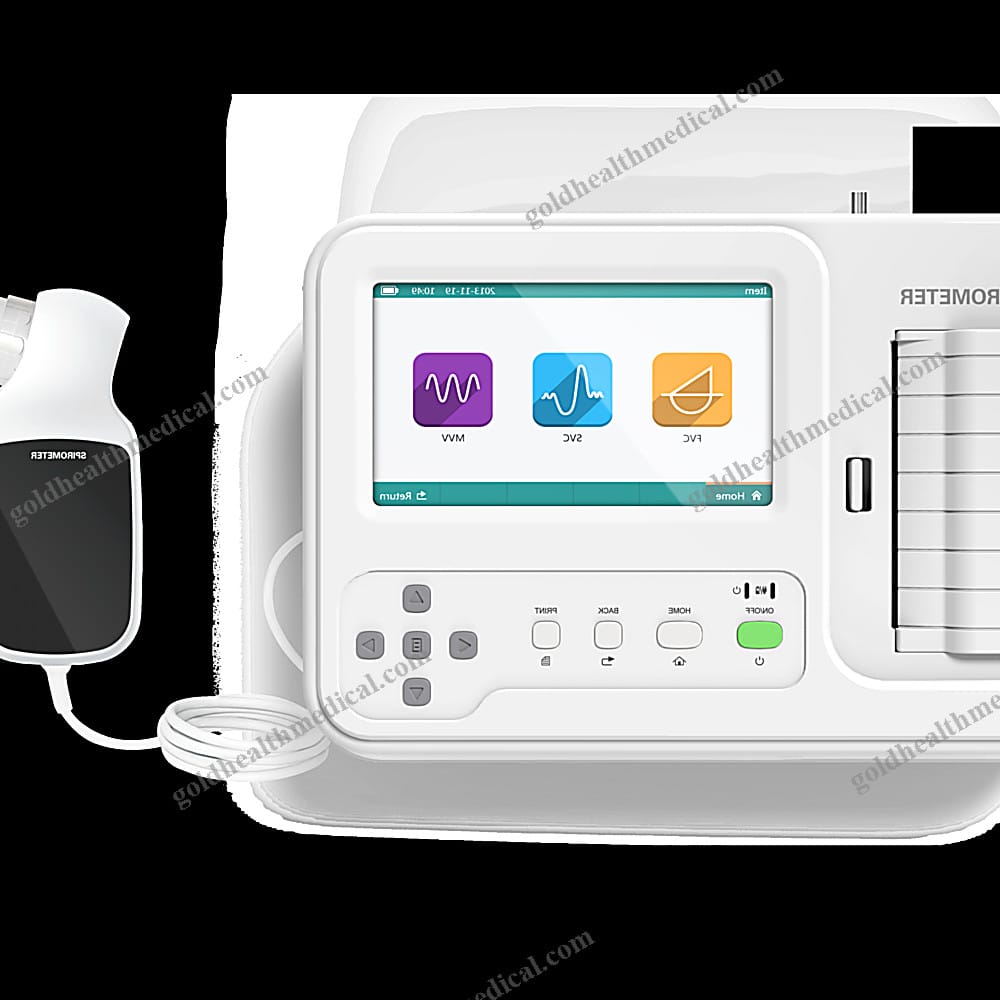

Advanced Portable Handheld Spirometer
Reference: 1601281506374
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Advanced Pulmonary Function Testing System by GoldHealth Medical
GoldHealth Medical presents a cutting-edge pulmonary function testing system designed to deliver unparalleled precision and ease of use. Engineered for healthcare professionals, this device combines advanced technology with user-centric features to ensure accurate diagnostics and seamless operation.
Key Features and Benefits
-
Comprehensive Measurement Capabilities:
Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 30 additional parameters. Automatically selects the optimal result from multiple measurements and provides a clear assessment of the subject's condition through measured-to-predicted value ratios. -
Real-Time Waveform Display:
Features real-time visualization of respiratory waveforms, including Flow-Volume loops and Volume-Time curves, for enhanced diagnostic clarity. -
Intuitive 7" Color Touchscreen Interface:
Equipped with a vibrant 7" TFT color LCD touchscreen, offering both touch and button operation for maximum flexibility. -
Incentive Animation Guidance:
Includes engaging animations to simplify the testing process, making it accessible for children and elderly users alike. -
Built-In Thermal Printer:
Instantly prints detailed reports using high-speed thermal paper, ensuring quick access to results. -
Advanced BTPS Correction:
Automatically compensates for environmental variations, ensuring consistent accuracy regardless of testing conditions. -
Precision Calibration and Environmental Monitoring:
Features a built-in calibration function and displays real-time test time and ambient temperature for reliable measurements. -
Multiple Predicted Value Options:
Offers a selection of predicted values tailored to diverse populations, enhancing diagnostic relevance. -
Extensive Data Storage:
Stores over 10,000 data groups, providing ample capacity for high-volume testing environments. -
Lung Age Estimation:
Includes a unique lung age estimation function to help patients better understand their respiratory health. -
Versatile Power Options:
Powered by a built-in lithium battery, supporting both AC and DC operation for uninterrupted performance.
Technical Specifications
- Volume Range: ±10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V–240 V, 50/60 Hz
- Safety Classification: Class I equipment, Type BF applied part
- Printing Paper: 112 mm (W) x 20 m (L) high-speed thermal paper
Measured Parameters
- Forced Vital Capacity (FVC): FVC, FEV1, PEF, FEV1%, FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV
- Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot
- Maximum Ventilatory Volume (MVV): MVV
GoldHealth Medical’s pulmonary function testing system is designed to meet the needs of hospitals, clinics, research institutions, and home healthcare settings. With its advanced features, robust accuracy, and user-friendly design, this device sets a new standard in respiratory diagnostics.
