Sop2 Portable AED Defibrillator Monitor
Reference: 1601030067347
First-Aid Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

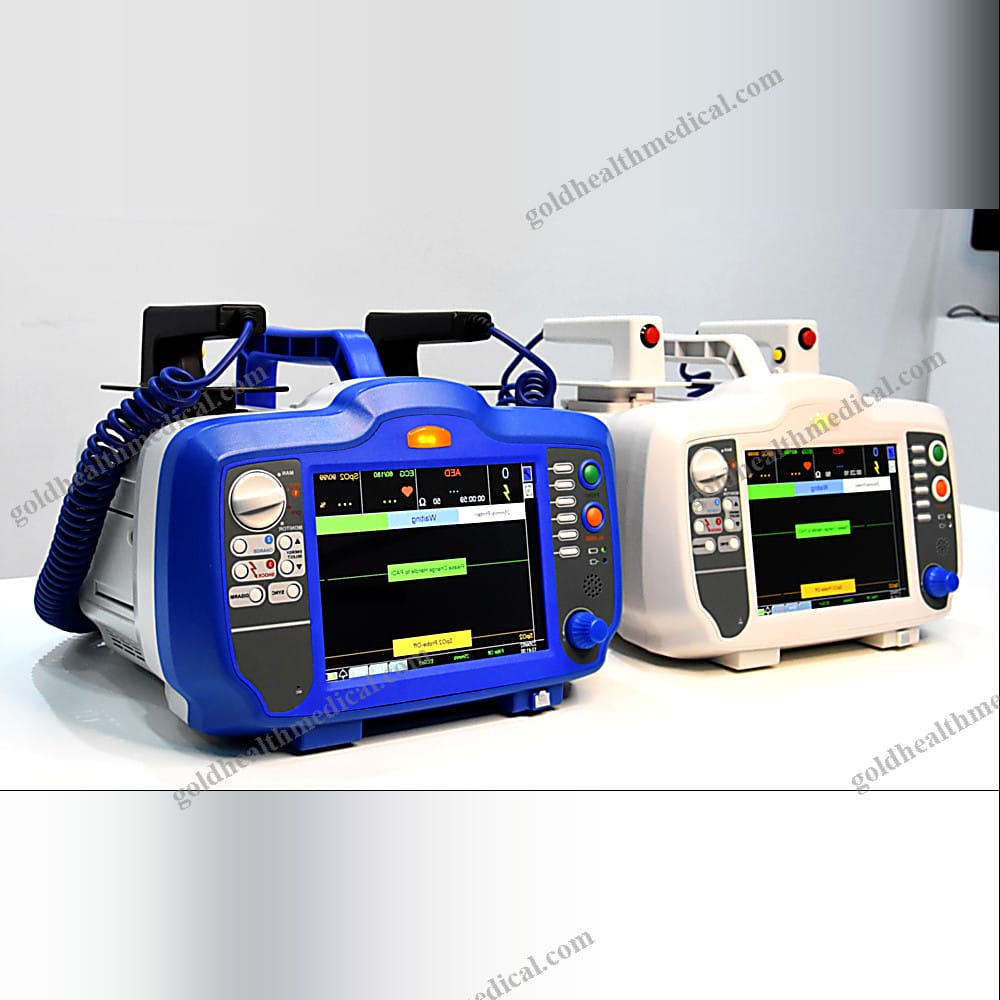

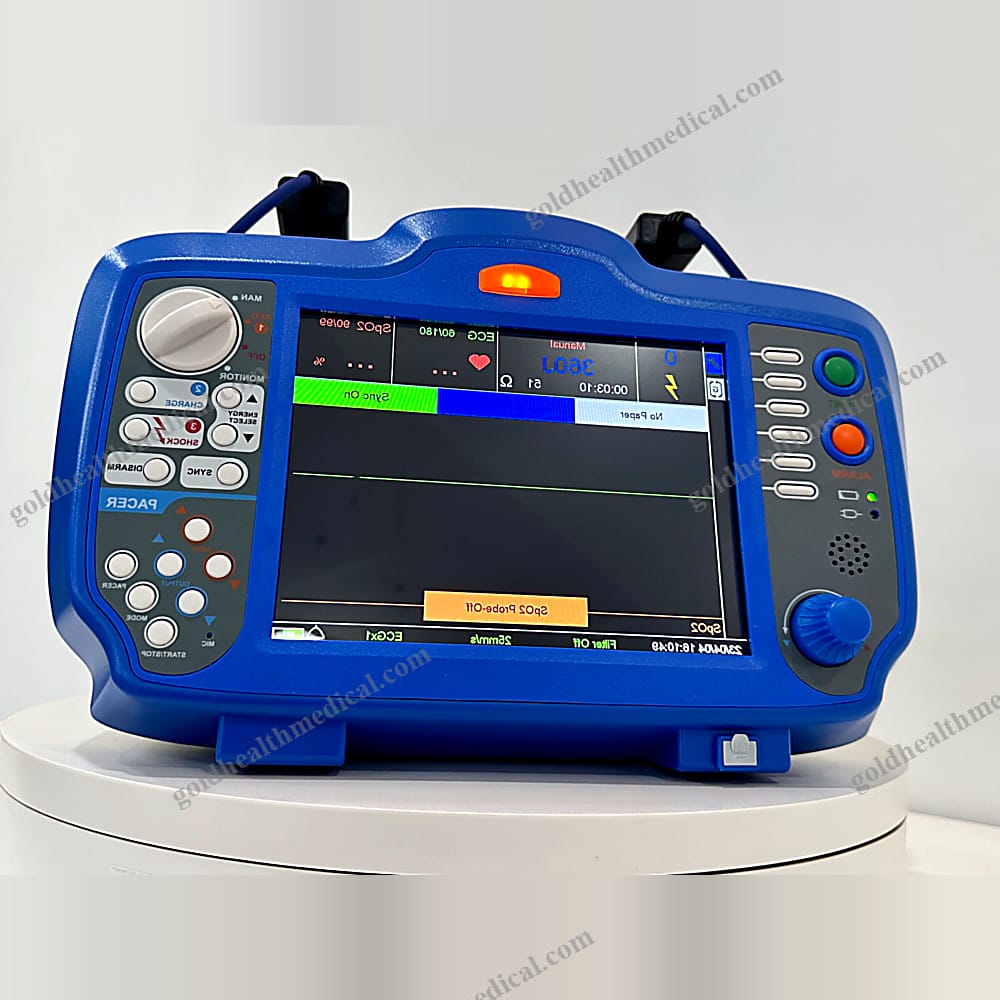

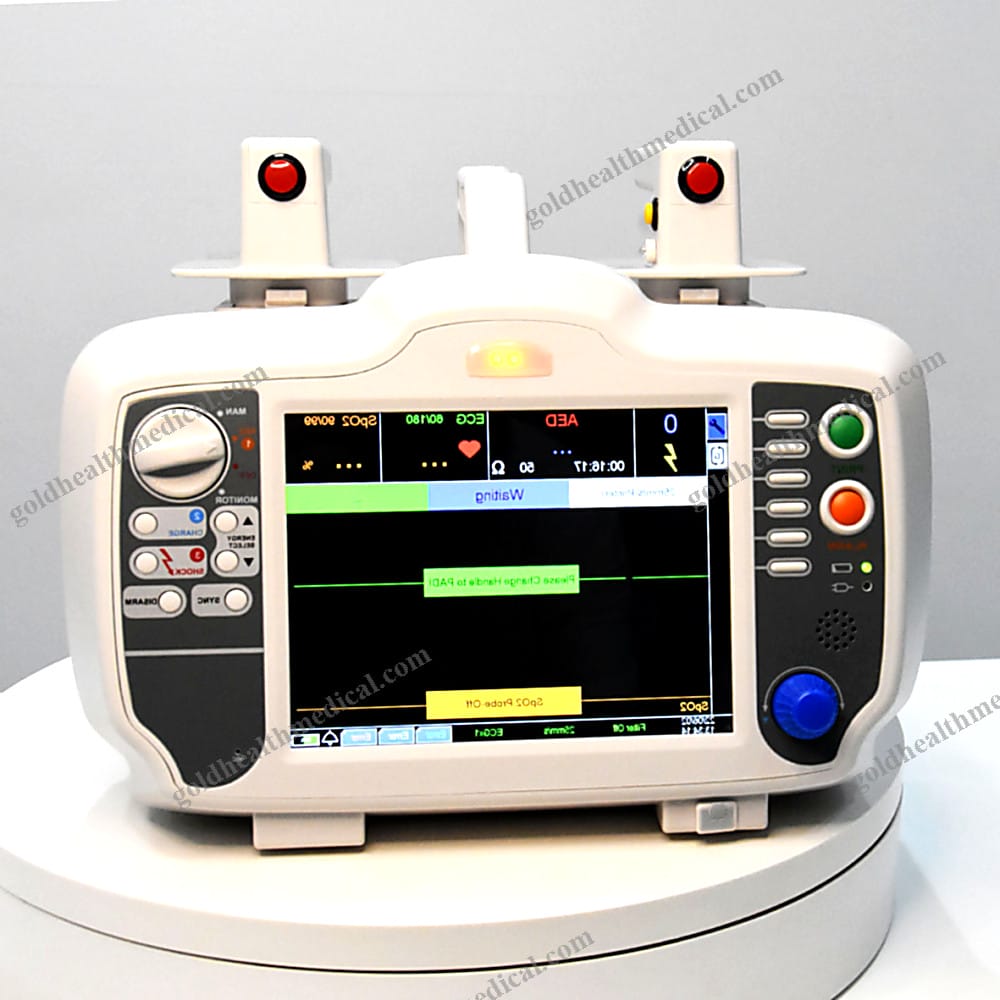

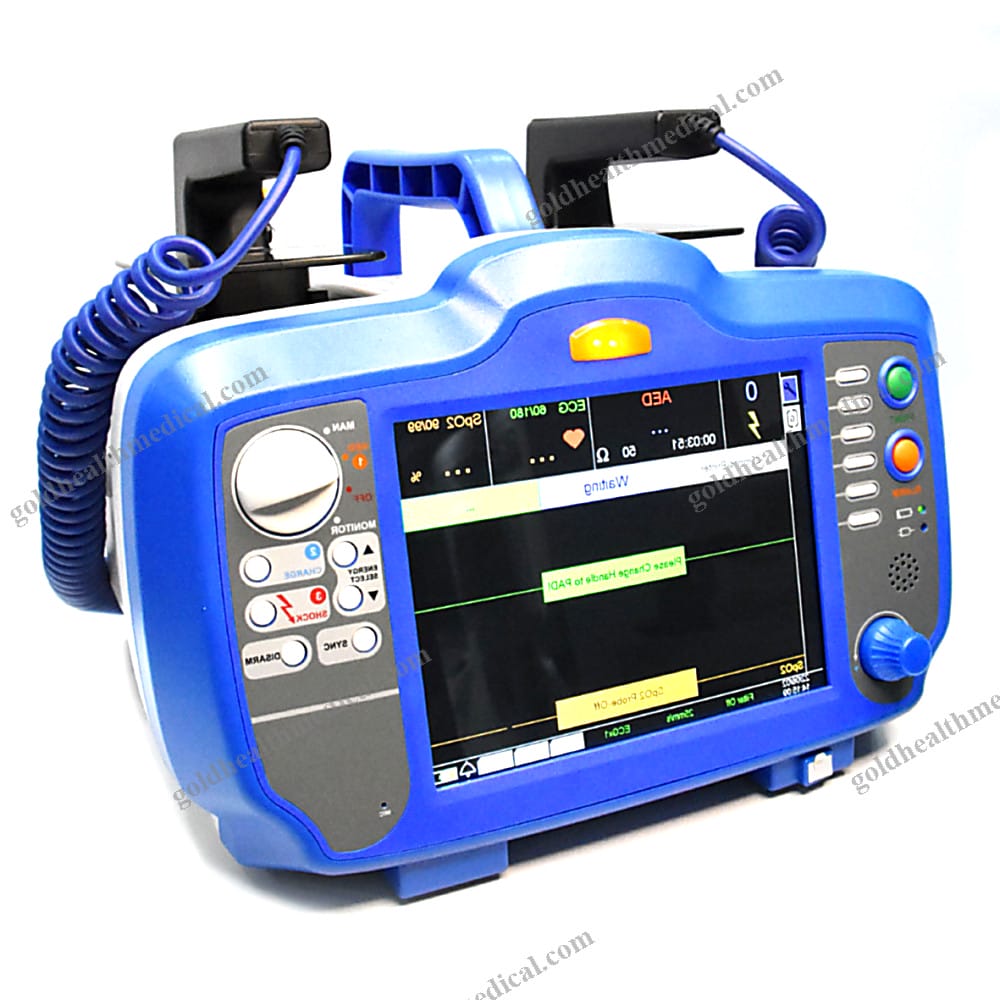

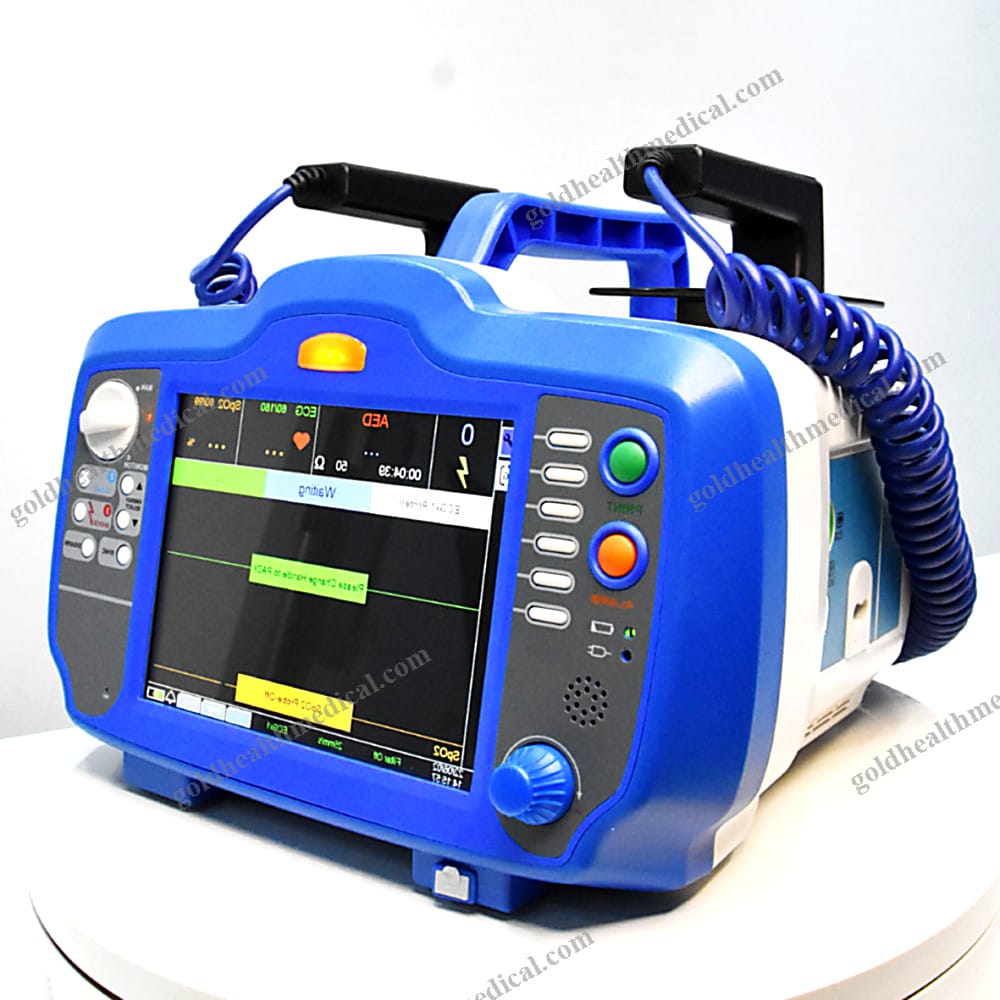

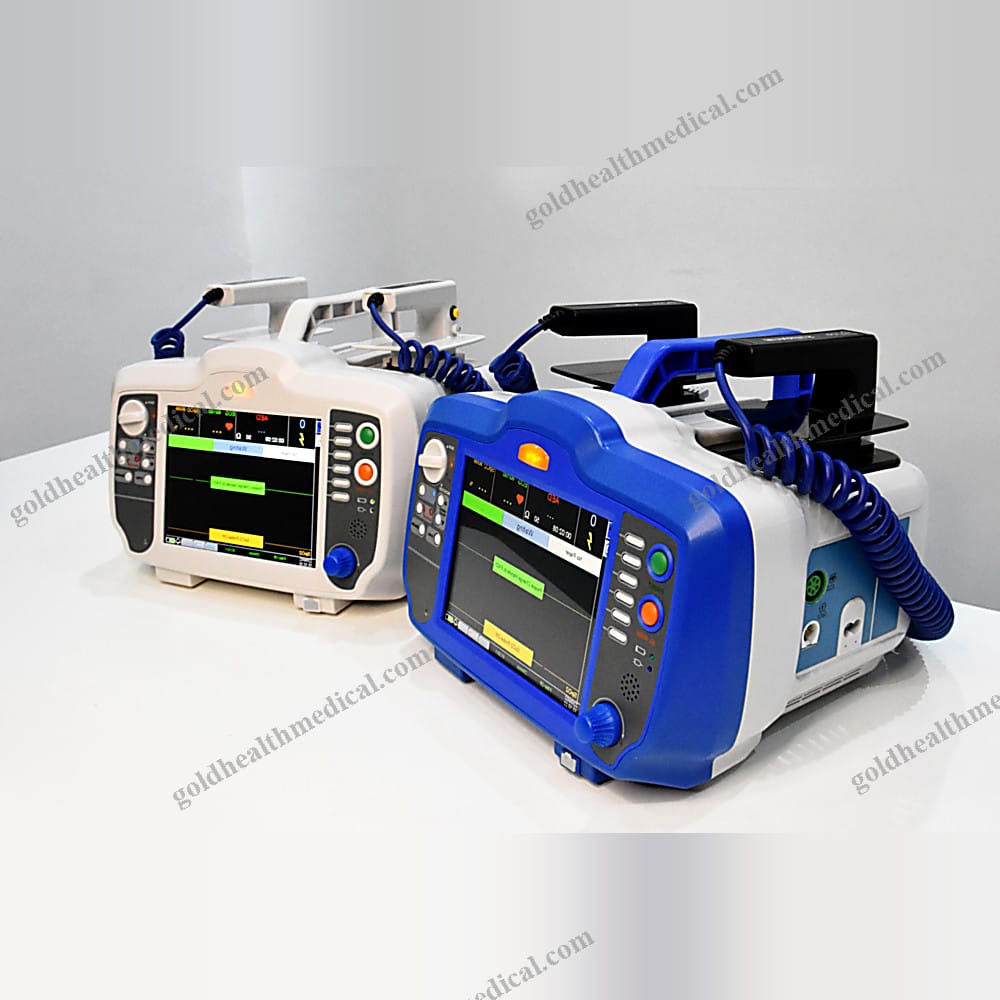

GoldHealth Medical Defibrillator Monitor
GoldHealth Medical presents a cutting-edge Portable AED First-aid Machine, designed for ambulances and emergency medical scenarios. This advanced defibrillator monitor combines AED Mode and Manual & Pacer Mode, offering unparalleled versatility and precision in life-saving technology.
Key Features:
- AED Mode:
- Displays real-time ECG values for accurate monitoring.
- Automatically adjusts defibrillation energy sequences for optimal performance.
- Tracks and displays the number of shocks delivered, the defibrillation process, and ECG waveforms.
-
Provides detailed analysis results and supports ECG waveform printing for post-event review.
-
Manual & Pacer Mode:
- Offers manual defibrillation with adjustable energy levels ranging from 2J to 360J, catering to diverse patient needs.
- Displays human body resistance for enhanced precision during treatment.
- Includes demand pacer and independent pacer modes with customizable rates and output settings.
Technical Specifications:
- Dimensions: 330mm x 240mm x 180mm
- Weight: Approximately 5.0kg
- Altitude Range: -91m to 4573m
- Operating Conditions:
- Temperature: 0°C to 40°C
- Relative Humidity: 95% (non-condensing)
- Power Supply:
- NI-MH Battery: 12V, 3800mAh
- AC Power Supply
- Pressure Range: 70kPa to 106kPa
- Waveform Type: Biphasic
- Energy Levels (Manual): 2J, 5J, 7J, 10J, 20J, 30J, 50J, 70J, 100J, 150J, 200J, 300J, 360J
- Energy Levels (AED):
- Two Shocks: 150J, 200J
- Three Shocks: 150J, 150J, 200J
- Four Shocks: 150J, 150J, 150J, 200J
Monitoring Capabilities:
- ECG measurement
- Optional SpO2 measurement
- Optional NIBP measurement
- Optional ETCO2 measurement
Safety and Compliance:
- Defibrillator: BF Type (Compliant with GB9706.1/IEC 60601-1 standards)
- Monitor: ECG is CF Type; other components are BF Type
Why Choose GoldHealth Medical?
This defibrillator monitor is engineered for reliability, precision, and adaptability, making it an indispensable tool for hospitals, clinics, ambulances, and home care environments. Its compact design, wide energy range, and advanced monitoring capabilities ensure superior performance in critical situations.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals and enhance patient outcomes.
Applications:
- Emergency medical services
- Hospitals and clinics
- Research laboratories
- Rehabilitation centers
- Home healthcare
GoldHealth Medical’s defibrillator monitor is more than a device—it’s a lifeline designed to meet the demands of modern healthcare with unmatched precision and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Introduction:
Introducing the next generation of advanced medical equipment from GoldHealth Medical, designed to deliver unparalleled precision and reliability in critical care environments. This Class III medical device is engineered for professionals who demand the highest standards of performance and safety.
Key Features and Specifications:
- Portable Design: Compact and lightweight, making it ideal for use in hospitals, clinics, laboratories, and even home care settings.
- Waveform Technology: Utilizes a Biphasic waveform for efficient and effective operation.
- Rapid Analysis: Delivers accurate results within just 7 seconds, ensuring timely decision-making in emergencies.
- Wide Environmental Adaptability: Operates seamlessly at altitudes ranging from -91m to 4573m and under pressure conditions of 70kPa to 106kPa.
- Power Source: Fully electric, ensuring consistent and reliable performance without interruptions.
- Shelf Life: Designed for long-term durability with a shelf life of up to 3 years.
Quality Assurance:
- Backed by a 3-year warranty and comprehensive quality certifications, including CE approval.
- After-Sales Support: Access to online technical support ensures your operations remain uninterrupted.
Packaging Details:
- Single item per package.
- Package dimensions: 50 x 50 x 50 cm.
- Gross weight: 10.000 kg.
Applications:
Perfectly suited for hospitals, research institutions, rehabilitation centers, and home healthcare, this device is a versatile solution for modern medical challenges.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge innovation with meticulous engineering to create products that redefine industry standards. Our commitment to quality, portability, and precision ensures that every device meets the rigorous demands of healthcare professionals worldwide.
OEM Services Available: Tailored solutions to meet your specific requirements.
Experience the future of medical technology with GoldHealth Medical – where innovation meets reliability.
