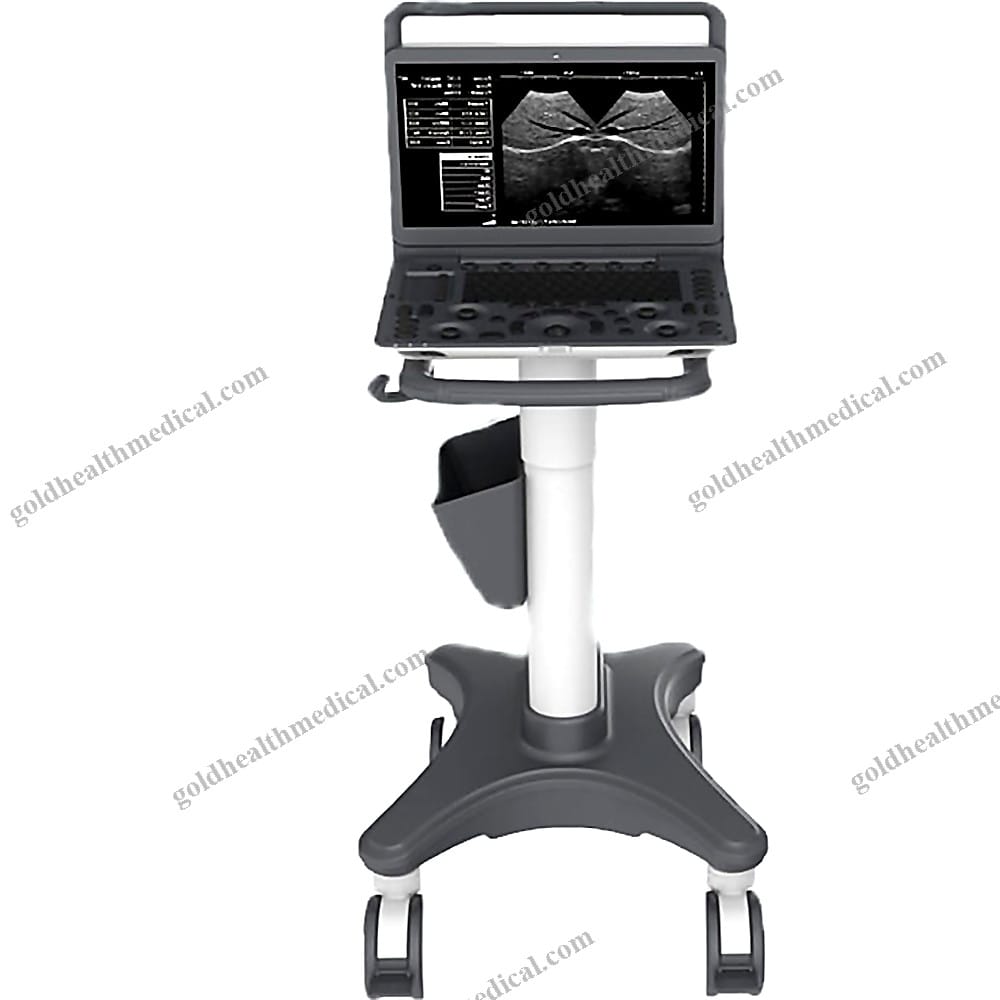

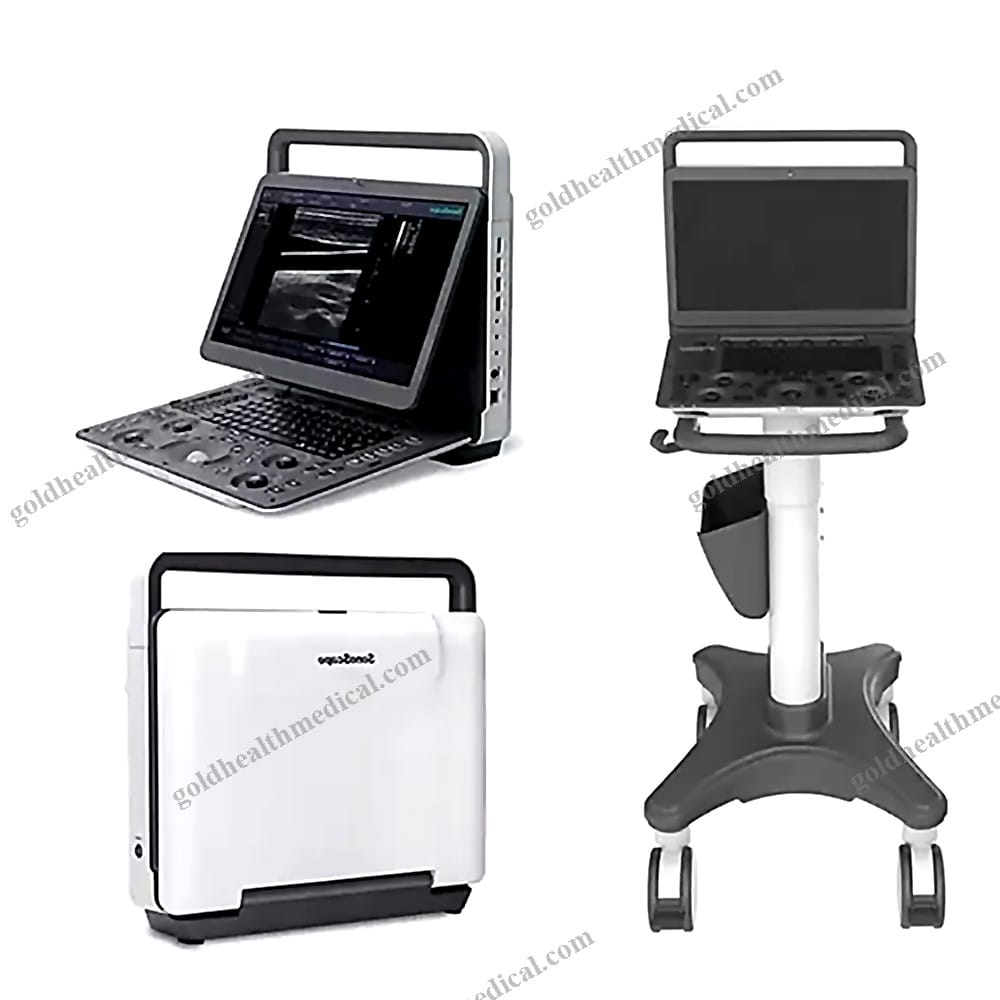

Sonoscape E2 Pro Portable Ultrasound Machine with Stand Trolley for
Reference: 1600928266881
Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

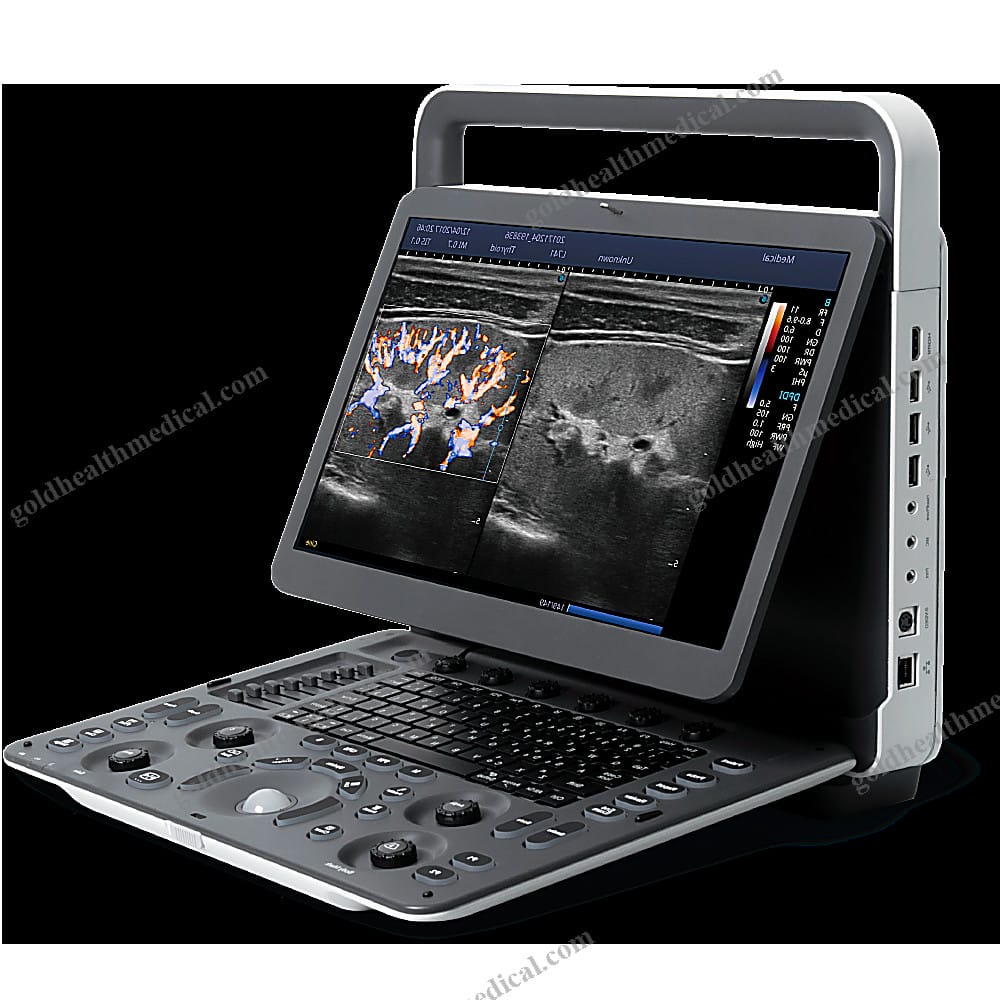

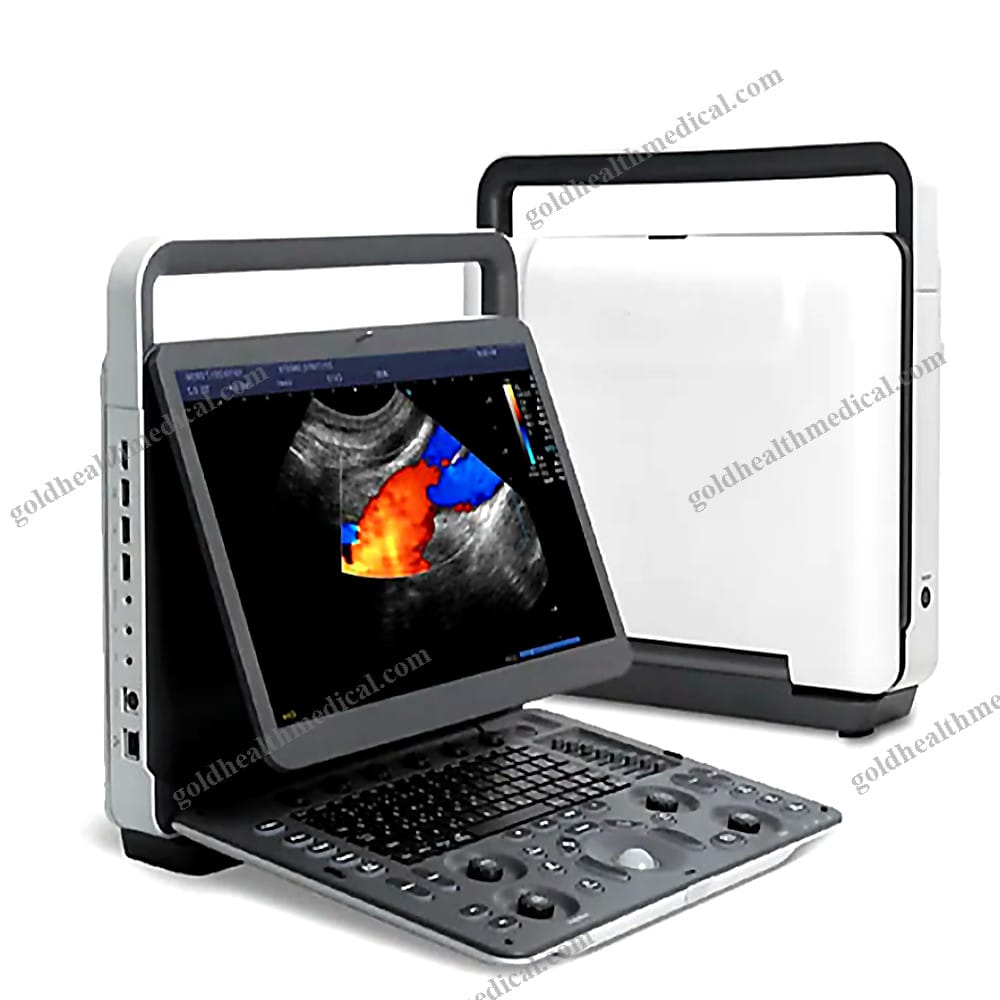

GoldHealth Medical Portable Color Doppler Ultrasound System
GoldHealth Medical introduces a cutting-edge portable color Doppler ultrasound system designed to exceed expectations in medical imaging. This innovative device combines advanced technology with a sleek, compact design, making it ideal for a wide range of applications including OB/GYN, urology, abdomen, emergency, ICU, and small parts imaging.
Key Features and Benefits

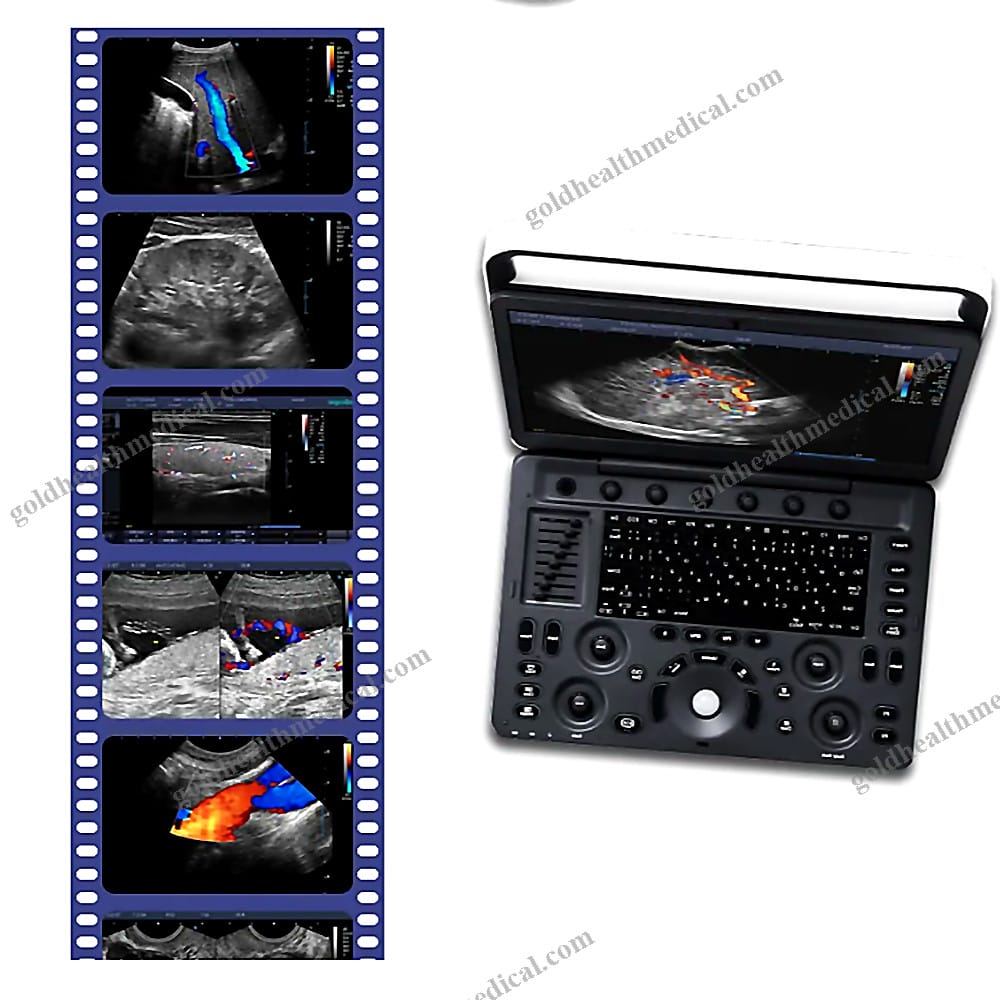

- Advanced Imaging Modes: B / 2B / 4B / M / CFM / PDI / DirPDI / PW
- Extended Battery Life: Up to 3 hours of continuous use with dual 6800 mAh batteries
- High-Resolution Display: 15" LED monitor with optional 15.6" LCD color monitor
- Multiple Transducer Ports: Standard 2 ports, expandable to 3
- Multilingual Support: English, Chinese, German, French, Italian, Spanish, Russian, Portuguese, and more
- 2D Speckle Reduction Technology: Enhances image clarity and diagnostic accuracy
Technical Specifications
- Power Source: Electric
- Warranty: 2 years
- Material: Metal, Plastic, Steel
- Shelf Life: 2 years
- Quality Certification: CE, ISO
- Instrument Classification: Class III
- Safety Standard: GB/T18830-2009
Standard Hardware Includes
- Main unit with high-resolution LED color monitor
- Two transducer connectors
- USB 2.0, 500GB hard disk
- Standard battery and adaptor
Standard Software Features
- Dynamic Multi-beam Technology
- Tissue Harmonic Imaging
- Pure Inversion Harmonic Imaging
- Spatial Compound Imaging
- ΞΌ-Scan: 2D speckle reduction technology
- PW Auto Trace
- TEI Index
- DICOM 3.0 compatibility
- Auto optimization for B/ M/ PW/ CW modes
- Time gain compensation (TGC)
- Duplex, Triplex, B/C dual live modes
- Standby mode, zoom, and gallery view
Optional Software Enhancements
- Color M Mode
- Continuous Waves Mode
- Tissue Doppler Imaging
- Anatomic M Mode
- Lateral gain compensation (LGC)
- SR Flow, Vis-Needle
- 2D Panoramic Imaging
- Wi-Fi and ECG Module
Transducer Options
- Linear Array L741: 4.0-16.0MHz, 46mm (Vascular, Small Parts, MSK)
- Convex Array 3C-A: 1.0-7.0MHz, R50mm (Abdominal, Obstetrics, Gynecology)
- Phased Array 7P-B: 2.0-9.0MHz (Cardiac, Transcranial)
- Endocavity EC9-5: 3.0-15.0MHz, R8mm (Gynecology, Obstetrics, Urology)
- Micro-convex Array C613: 4.0-13.0MHz, R14mm (Cardiology, Pediatrics)
Unique Advantages
- Auto Image Optimization: One-touch image adjustment for superior clarity
- Automated Calculations: Auto IMT for vascular sclerosis assessment
- Ergonomic Design: Lightweight, compact, with tilting monitor and backlit keyboard
- Efficient Diagnosis Tools: ΞΌ-Scan, spatial compound imaging, and wide scan capabilities
- User-Friendly Interface: Quick boot-up, auto brightness adjustment, and intuitive controls
- Comprehensive Accessories: Wi-Fi, DICOM 3.0, 500GB hard disk, and adjustable trolley
GoldHealth Medical's portable ultrasound system is engineered to deliver unparalleled performance and reliability, empowering healthcare professionals with precise diagnostics and efficient workflows. Whether in a hospital, clinic, or field setting, this device stands as a testament to innovation and excellence in medical imaging.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Portable Color Doppler Ultrasound System
- Applications: Designed for specialized medical fields including OB/GYN, Urology, Abdomen, Emergency, ICU, and Small Parts imaging.
- Instrument Classification: Class III medical device, ensuring the highest standards of safety and performance.
- Safety Standard Compliance: Meets GB/T18830-2009 standards for reliability and precision.
- Power Source: Electric, engineered for consistent and uninterrupted performance.
- Materials: Constructed with premium metal, steel, and durable plastic for longevity and stability.
- Shelf Life: 2 years, maintaining optimal functionality throughout its lifecycle.
- Quality Certifications: CE and ISO certified, guaranteeing global standards of excellence.
Key Features
- Display:
- 15" high-resolution LED monitor with advanced imaging clarity.
- Optional 15.6" High-Resolution LCD color monitor for enhanced visualization.
- Display Modes: Offers versatile imaging modes including B, 2B, 4B, M, CFM, PDI, DirPDI, and PW for comprehensive diagnostic capabilities.
- ΞΌ-Scan Technology: Incorporates 2D speckle reduction technology for sharper, more detailed images.
- Battery Performance: Equipped with 2 batteries (6800 mAh each), providing up to 3 hours of continuous ultrasound examination.
- Transducer Ports: 2 standard ports, expandable to 3 ports for added versatility.
- Storage: Built-in 1GB flash storage for seamless data management.
- Elements: 128 elements for superior image resolution and accuracy.
Languages Supported
English, Chinese, German, French, Italian, Spanish, Russian, Portuguese, and more, ensuring global accessibility.
Packaging Details
- Dimensions: 65 x 53 x 44 cm (L x W x H).
- Gross Weight: 17.5 kg, ensuring secure and reliable transportation.
Warranty and After-Sales Service
- Warranty: 2-year comprehensive coverage for peace of mind.
- After-Sales Service: Includes free spare parts to ensure uninterrupted operation.
Unique Selling Points
- Compact and portable design, ideal for both clinical and field use.
- Advanced imaging technologies tailored for precise diagnostics in diverse medical specialties.
- Lightweight yet robust construction, making it a reliable choice for hospitals, clinics, research labs, and home healthcare.
GoldHealth Medicalβs Portable Color Doppler Ultrasound System redefines precision, portability, and performance, empowering healthcare professionals with cutting-edge diagnostic tools.
