SmartECG Pro Advanced 12Lead ECG Machine with
Reference: 1600720392472
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

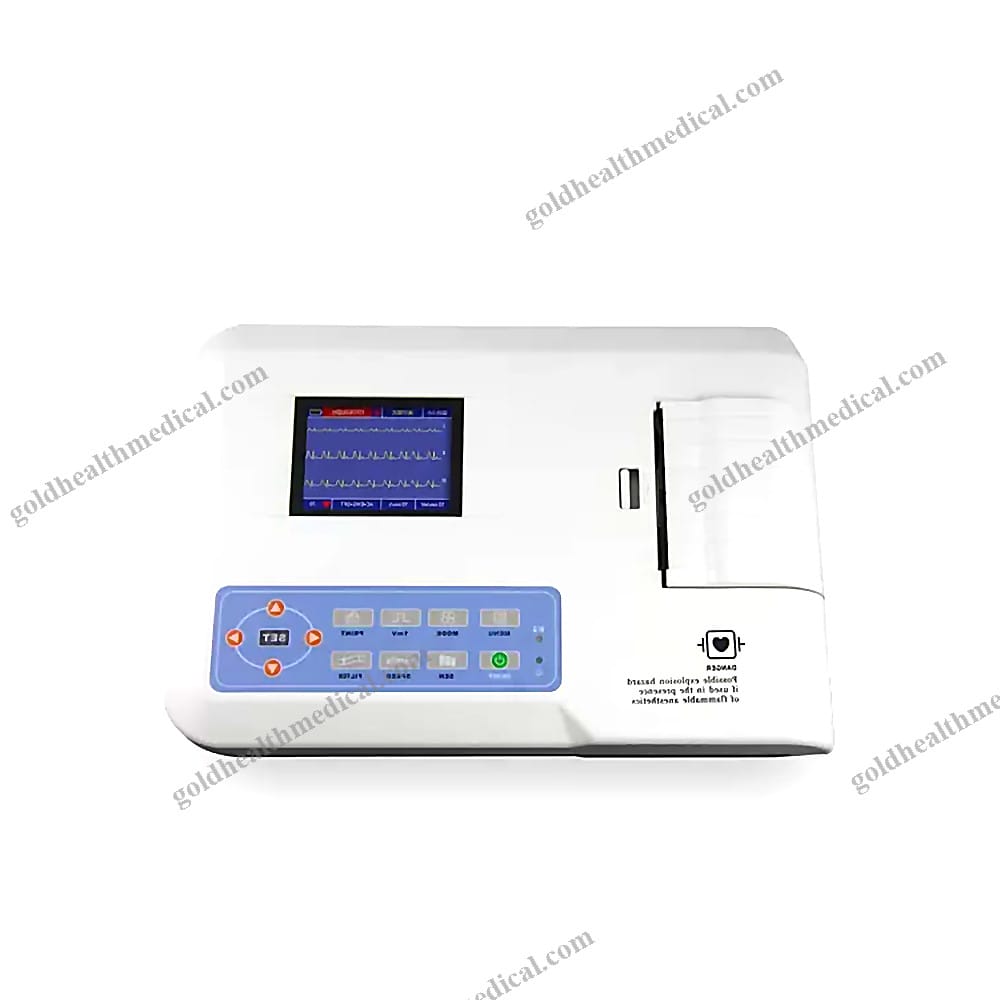

GoldHealth Medical ECG Device
GoldHealth Medical presents an advanced Electrocardiograph designed to deliver unparalleled precision and versatility in cardiac diagnostics. This device captures 12-lead ECG signals and utilizes a thermal printing system to produce high-quality waveform outputs. Engineered for both clinical and research environments, it combines intuitive operation with cutting-edge technology.
Key Features
- Intelligent Operation: Supports AUTO and Manual modes for recording and displaying ECG waveforms. Automatically measures and diagnoses ECG parameters while providing alerts for "Lead off" and "Lack of paper."
- Multilingual Interface: Offers a user-friendly interface in multiple languages, including English, Spanish, French, German, and more.
- Flexible Power Options: Operates on both AC and DC power, ensuring uninterrupted functionality.
- Customizable Rhythm Leads: Allows selection of any rhythm lead for tailored diagnostic approaches.
- Comprehensive Case Management: Built-in database stores up to 1000 cases for easy review and statistical analysis.
Advanced Functionalities
- Synchronized 12-Lead ECG Collection: Employs digital signal processing with advanced filters (power, frequency, baseline, and EMG) to deliver high-fidelity ECG waveforms.

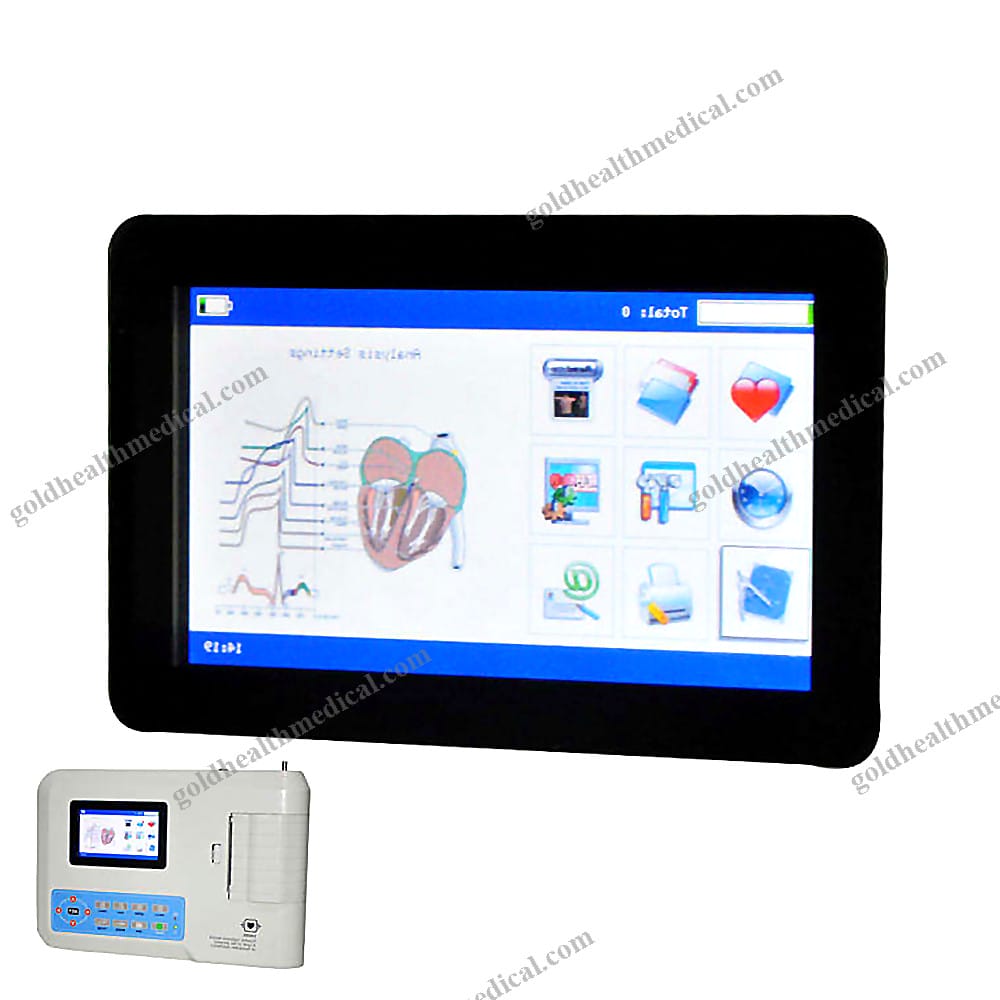

- Multi-Lead Display: Simultaneously displays 3/6/12-lead ECGs, print modes, sensitivity, paper speed, and filter status on a single screen for efficient comparative diagnosis.
- Versatile Printing Options: Multiple formats, including manual, auto 4×3, auto 3×4+1, auto 2×6, rhythm modes, and more. Adjustable waveform length and time-stamped prints cater to diverse requirements.
- Automated Analysis: Provides precise measurements and auto-diagnosis for critical ECG parameters such as HR, P-R interval, QRS duration, QT interval, axis deviations, and more, significantly reducing clinician workload.
- Compact and Portable Design: Lightweight at 1.6 kg with dimensions of 315mm(L) × 215mm(W) × 77mm(H), making it ideal for various settings.
Technical Specifications
- Working Environment:
- Temperature: 5°C to 40°C
- Relative Humidity: 25% to 95% (non-condensing)
- Atmospheric Pressure: 700hPa to 1060hPa
- Storage and Transport:
- Temperature: -40°C to +55°C
- Relative Humidity: ≤95%
- Atmospheric Pressure: 500hPa to 1060hPa
- Input Mode: Floating with defibrillation protection
- Frequency Response: 0.05Hz to 150Hz (-3dB to +0.4dB)
- CMRR: >60dB (>100dB with filter)
- Time Constant: ≥3.2s
- Patient Leak Current: <10µA
- Calibration Voltage: 1mV
- Sensitivity: 5, 10, 20 mm/mV ±5%; Standard: 10mm/mV ±2%
- Noise Level: ≤15µVp-p
- Input Circuit Current: ≤50nA
- Input Impedance: ≥50MΩ
- Sampling Accuracy: 12-bit
- Safety Classification: Class I, Type CF, defibrillation-proof applied part
- Recording System: Thermal printing
- Paper Size: 80mm(W) × 20m(L)
- Sampling Frequency: 1000Hz
- EMG Interference Filter: 35Hz (-3dB)
- Power Frequency Filter: AC 50Hz/60Hz (-20dB)
- Paper Speed: 25, 50mm/s ±5%
- Power Supply:
- AC: 100V to 240V (50/60Hz)
- DC: 7.4V/2000mAh rechargeable lithium battery
- Fuse Specification: Two AC time-lag fuses (φ5×20mm), T1.6AL250V
- Waterproof Rating: IPX0
- Working Mode: Continuous operation
What Sets Us Apart
GoldHealth Medical’s ECG device is designed to empower healthcare professionals with tools that enhance diagnostic accuracy and streamline workflows. Its robust build, advanced signal processing, and user-centric features make it indispensable in modern medical practice. Whether in hospitals, clinics, or home care settings, this device delivers reliable performance and exceptional value
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge Class II medical instrument designed to deliver precision, reliability, and ease of use. Engineered for professionals in hospitals, clinics, research labs, and home healthcare settings, this device sets a new benchmark for performance and user experience. Backed by a 1-year warranty and comprehensive online technical support, it ensures uninterrupted service and peace of mind.
Key Features and Specifications
- Brand Name: GoldHealth Medical
- Instrument Classification: Class II medical device
- Warranty: 1 year, underscoring our commitment to quality and durability
- After-Sale Service: Dedicated online technical support for seamless operation
Technical Details
- Dimensions (Single Package Size): 10 x 51 x 20 cm
- Weight (Single Gross Weight): 10.000 kg
- Packaging: Standard international transportation packaging tailored to customer requirements
Supply and Delivery
- Supply Ability: Up to 10,000 sets per month, ensuring scalability for large orders
- Ports of Delivery: Shanghai, Shenzhen, Xiamen, Dalian, Tianjin, Ningbo
Why Choose GoldHealth Medical?
- Precision Engineering: Designed for accuracy and consistency in critical applications
- Global Reach: Delivered to major ports worldwide, ensuring accessibility for international clients
- Customer-Centric Approach: Customizable packaging and responsive technical support tailored to your needs
GoldHealth Medical is committed to empowering healthcare providers with innovative solutions that enhance patient care and operational efficiency. Explore the future of medical instrumentation with us.
