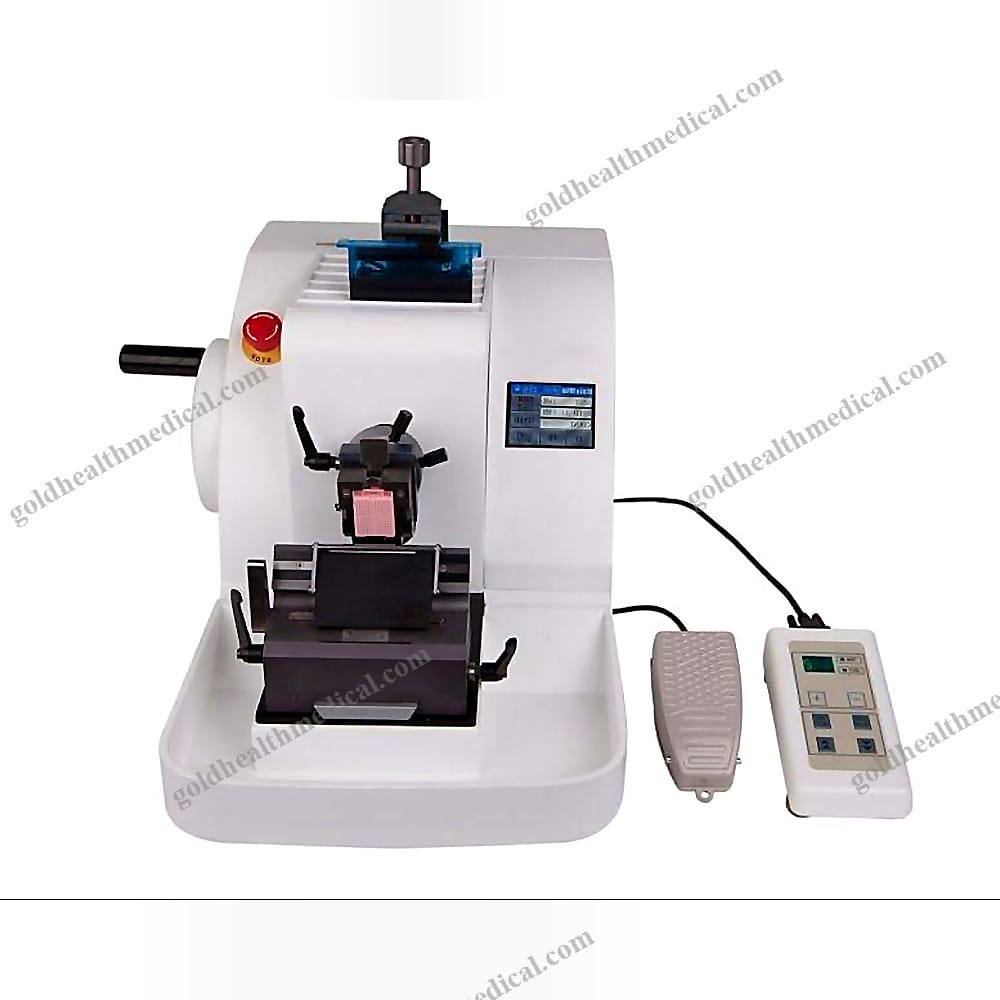

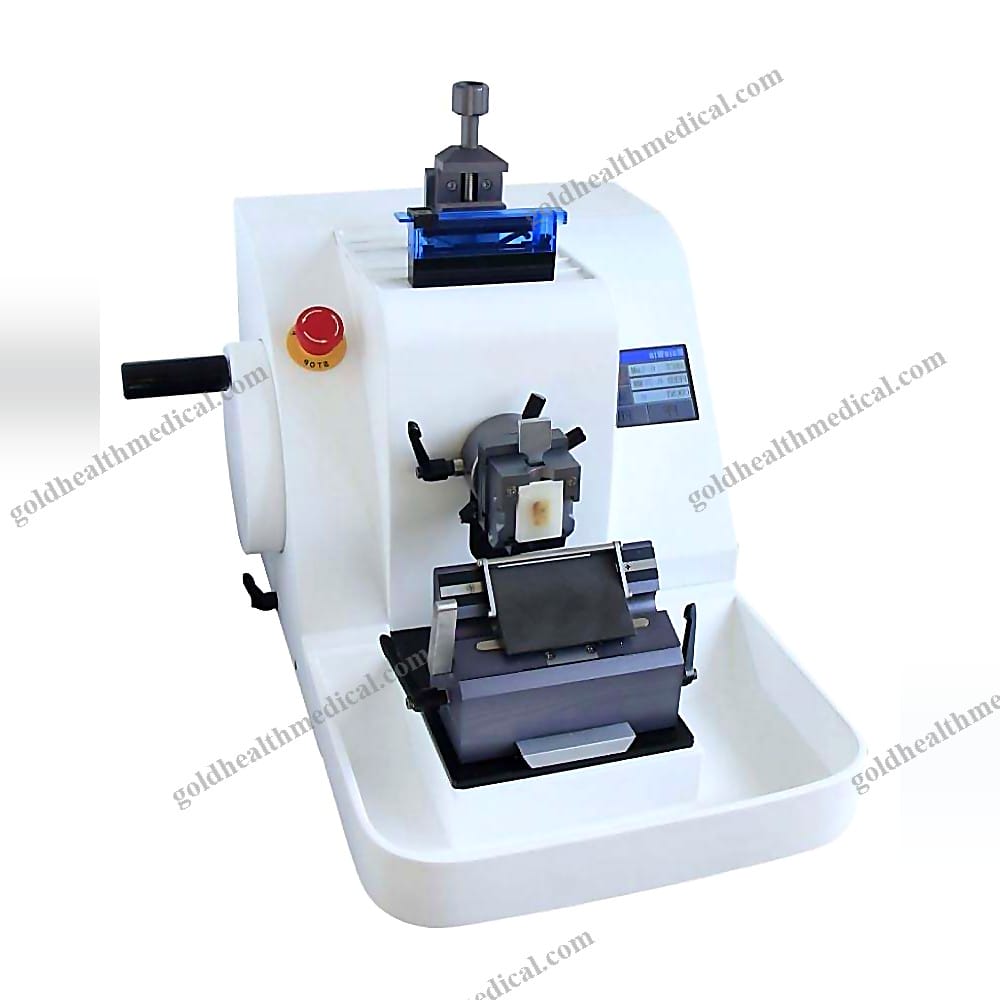

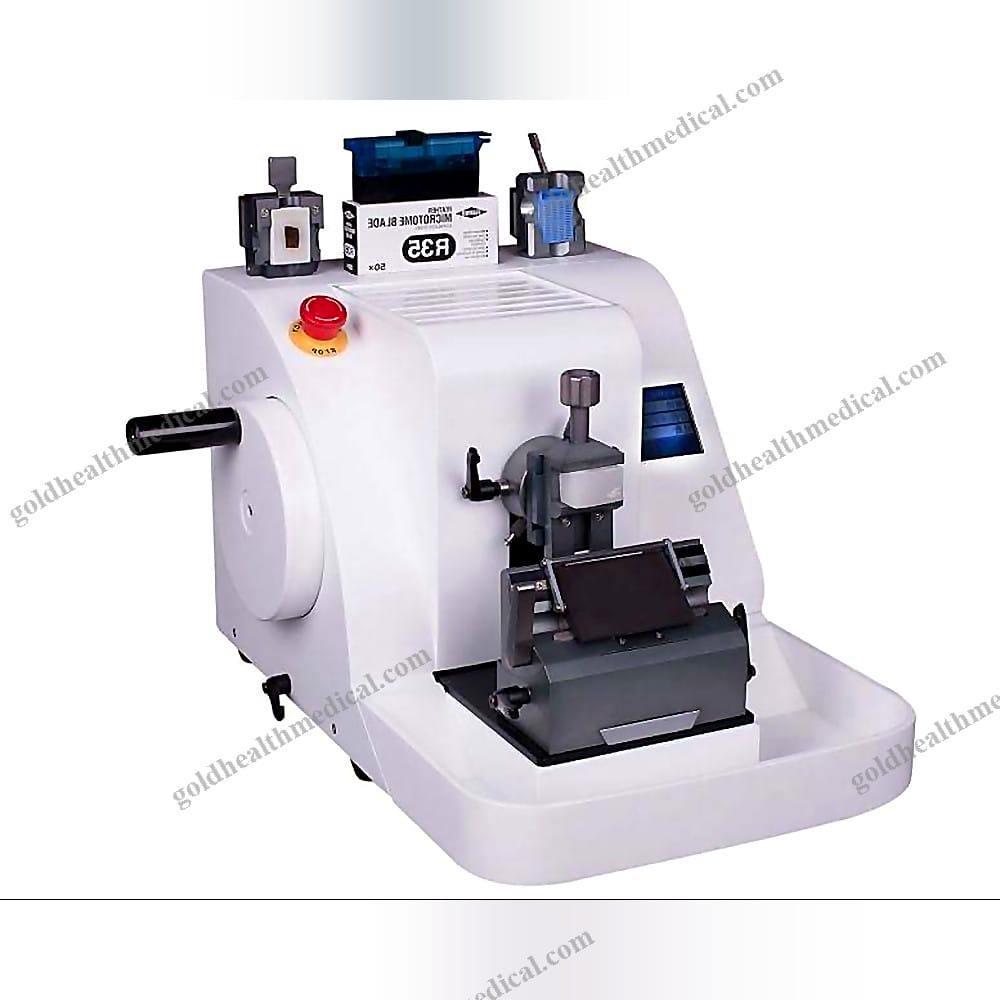

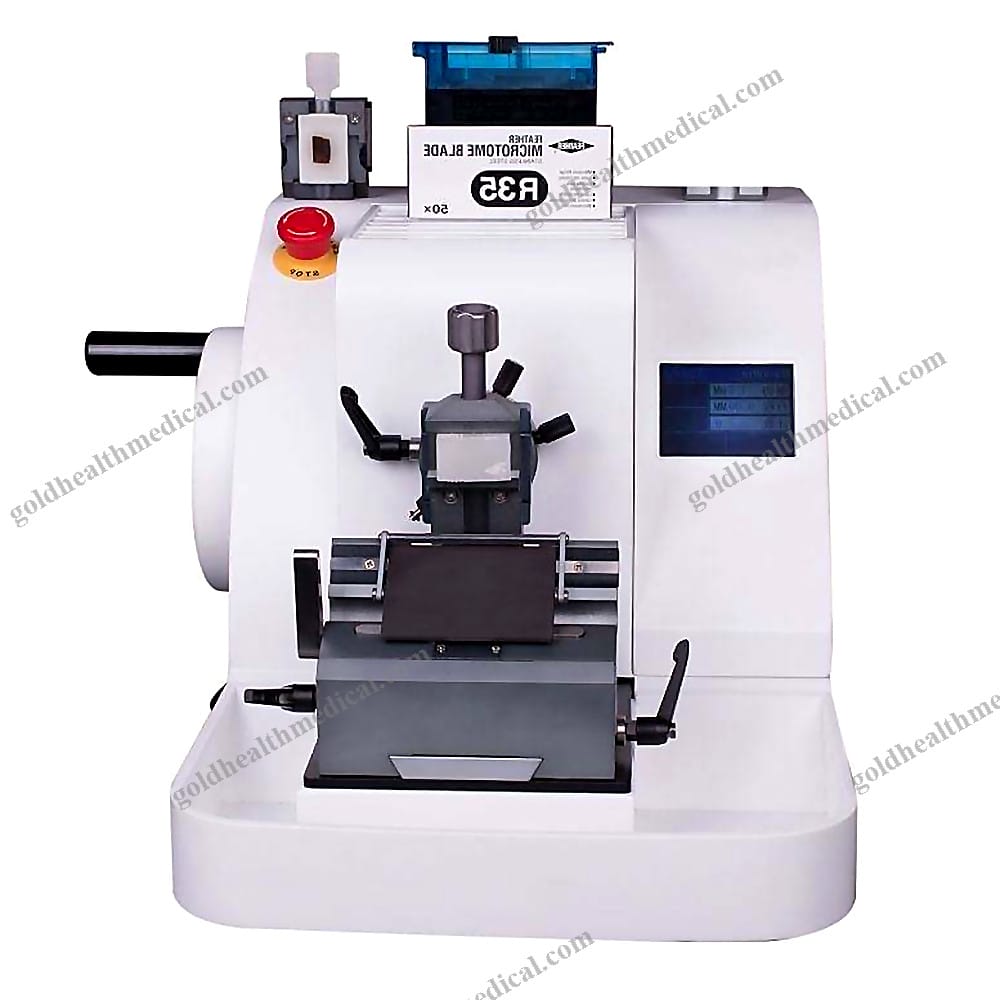

MSLK241 Rotary Microtome for Histological Use in Labs
Reference: 1601273254032
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Precision Redefined in Microtomy
GoldHealth Medical introduces a cutting-edge microtome designed to elevate laboratory precision and operational comfort. Engineered for versatility, this fully automatic microtome is a cornerstone for paraffin and hard sectioning techniques in biological, medical, and industrial labs.
Unmatched Features for Superior Performance
- Two-in-One Versatility: Seamlessly switch between fully automatic and manual sectioning modes, ensuring reproducible, high-quality results tailored to your needs.
- German Engineering Excellence: Equipped with a precision German motor drive, this microtome delivers unparalleled accuracy, reliability, and whisper-quiet operation.
- Intuitive Touchscreen Interface: Monitor slice thickness, trimming settings, section counters, modes, speed, and stroke distance with ease, ensuring precision at your fingertips.
- Specimen Retraction Technology: A unique feature that minimizes sample-knife friction, enhancing sectioning smoothness while extending blade life.
- Universal Blade Compatibility: Supports both high and low-profile disposable blades, with an optional blade carrier for steel knives or blade holders.
- Enhanced Safety and Convenience:
- Lockable handwheel for secure and effortless sectioning.
- Detachable waste tray for effortless cleaning.
- Comprehensive safety features, including overload protection, sleep mode, and emergency stop functionality.

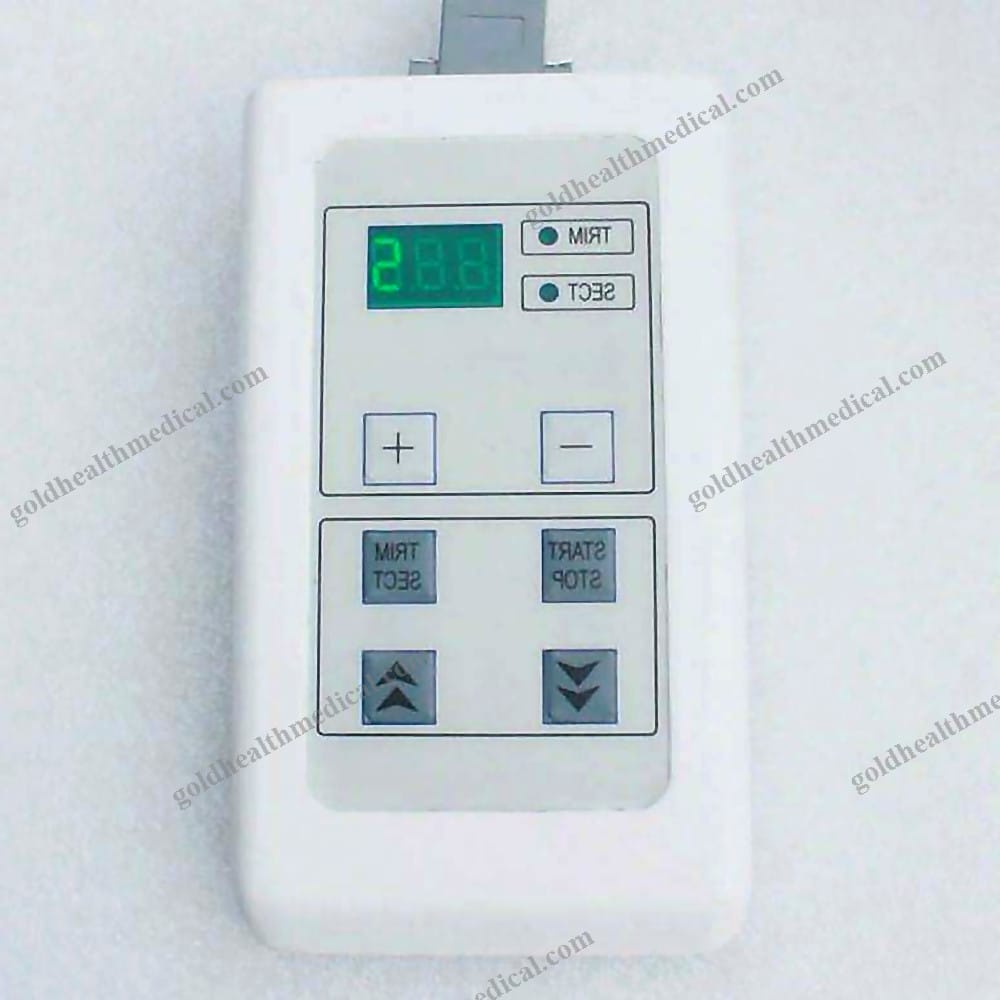

- Precision Control: Operate the microtome effortlessly with an optional foot switch, ensuring hands-free sectioning precision.
Technical Specifications
Fully Automatic Mode
- Section Thickness Range: 0.5–100μm
- Increments:
- 0.5–2μm: 0.5μm steps
- 2–10μm: 1μm steps
- 10–20μm: 2μm steps
- 20–50μm: 5μm steps
- 50–100μm: 10μm steps
- Trimming Section Thickness Range: 0–999μm (1μm increments)
- Horizontal Specimen Stroke: 28mm
- Vertical Specimen Stroke: 60mm (70mm optional)
- Specimen Retraction: 12μm
- Sample Orientation: 8° along X-Y axis, rotatable 360°
- Fast Forward/Backward Speed: 1mm/s
- Precision Error: ±5%
- Maximum Section Size: 50×45mm
- Cutting Speed Range: 0.5mm/s–500mm/s
- Voltage and Power: 220V/50Hz or 110V/60Hz
- Net Weight: 35kg
- Dimensions (L/W/H): 500mm × 320mm × 500mm
Manual Mode
- Section Thickness Range: 0–100μm
- Increments:
- 0–10μm: 1μm steps
- 10–20μm: 2μm steps
- 20–50μm: 5μm steps
- 50–100μm: 10μm steps
- Trimming Section Thickness Range: 0–500μm
- Horizontal Specimen Stroke: 28mm
- Vertical Specimen Stroke: 60mm (70mm optional)
- Specimen Retraction: 12μm
- Precision Error: ±5%
- Maximum Section Size: 50×45mm
- Dimensions (L/W/H): 520mm × 450mm × 300mm
- Net Weight: 30kg
Why Choose GoldHealth Medical?
GoldHealth Medical’s microtome is more than a tool—it’s a commitment to precision, reliability, and innovation. Designed for professionals across hospitals, clinics, research labs, and educational institutions, this microtome redefines operational efficiency and accuracy. Elevate your lab’s capabilities with a device that combines advanced engineering with user-centric design.
Experience the future of microtomy with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Overview
The Bio-Separation System by GoldHealth Medical is a cutting-edge solution designed for precision and reliability in medical, laboratory, and research environments. Engineered to deliver exceptional performance, this system offers unparalleled accuracy in bio-separation processes, making it an indispensable tool for professionals across healthcare and scientific fields.
Key Features
- Section Thickness Range: Achieve precise cuts with adjustable thickness from 0.5μm to 100μm, catering to a wide variety of applications.
- Horizontal Specimen Stroke: A generous 28mm stroke ensures smooth and consistent movement for optimal sample handling.
- Vertical Specimen Stroke: With a 60mm vertical range, the system accommodates larger specimens with ease.
- Voltage and Power Options: Versatile power configurations of 220V/50Hz or 110V/60Hz, ensuring compatibility across global standards.
- Compact Dimensions: Measuring 500mm(L) x 320mm(W) x 500mm(H), the system is designed for efficient use of space without compromising functionality.
Performance Highlights
- Delivers consistent, high-quality results for applications in histology, pathology, and advanced research.
- Ergonomic design minimizes user fatigue during prolonged use, enhancing productivity.
- Advanced engineering ensures minimal maintenance requirements while maximizing operational uptime.
Warranty and Support
- 1-Year Warranty: Backed by GoldHealth Medical’s commitment to quality and reliability.
- Online Technical Support: Access expert assistance anytime to ensure uninterrupted performance.
Packaging Details
- Selling Units: Single item
- Single Package Size: Customizable based on client requirements
- Single Gross Weight: Optimized for secure and efficient transportation
GoldHealth Medical’s Bio-Separation System is more than just equipment—it’s a gateway to precision, efficiency, and innovation in your operations. Elevate your capabilities with a system designed to meet the demands of modern healthcare and research environments.
