SixChannel ECG Machine with DICOM Data Transfer
Reference: 1600838824208
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

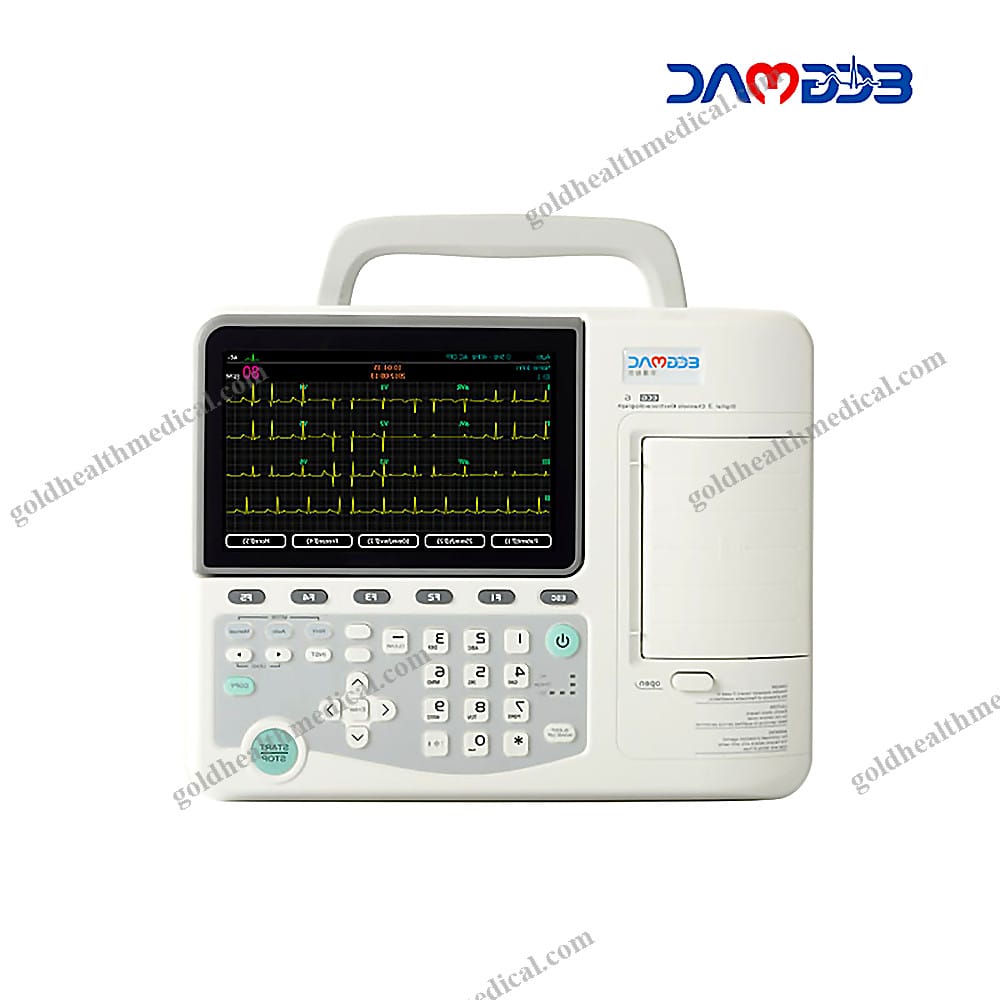

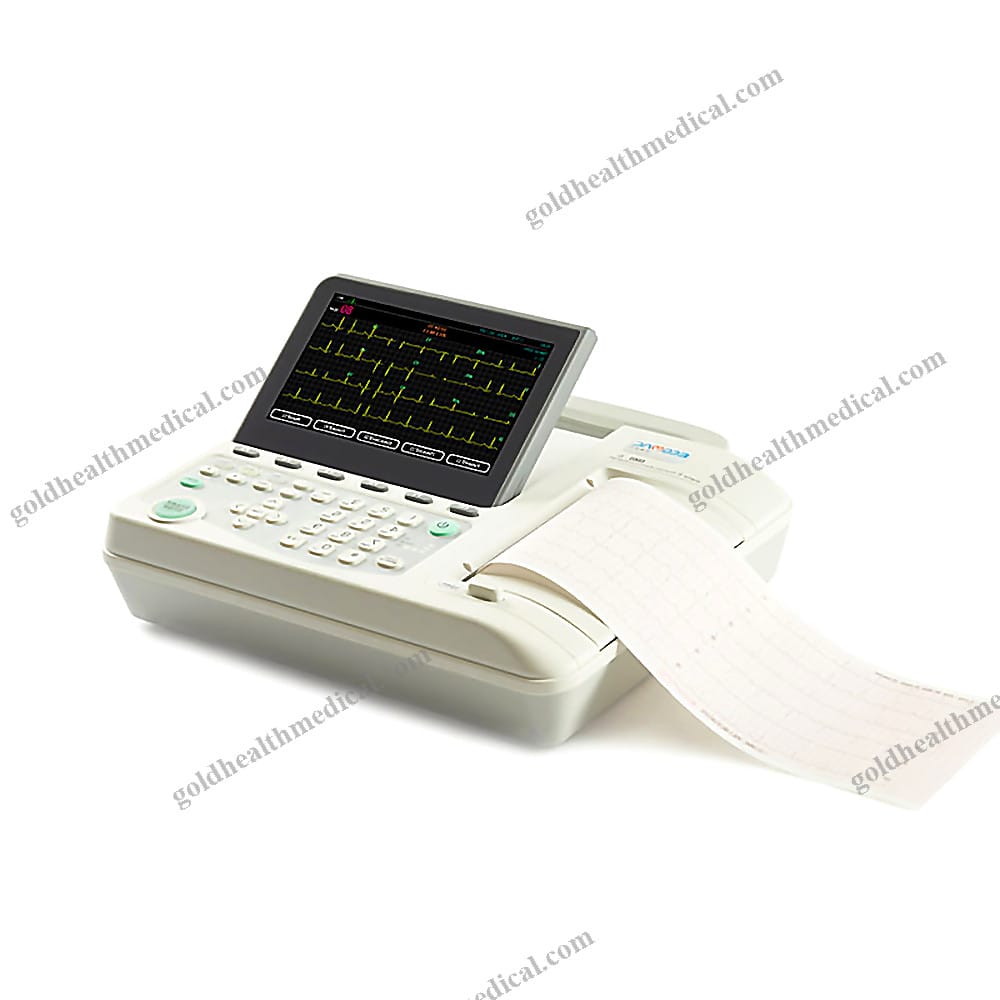

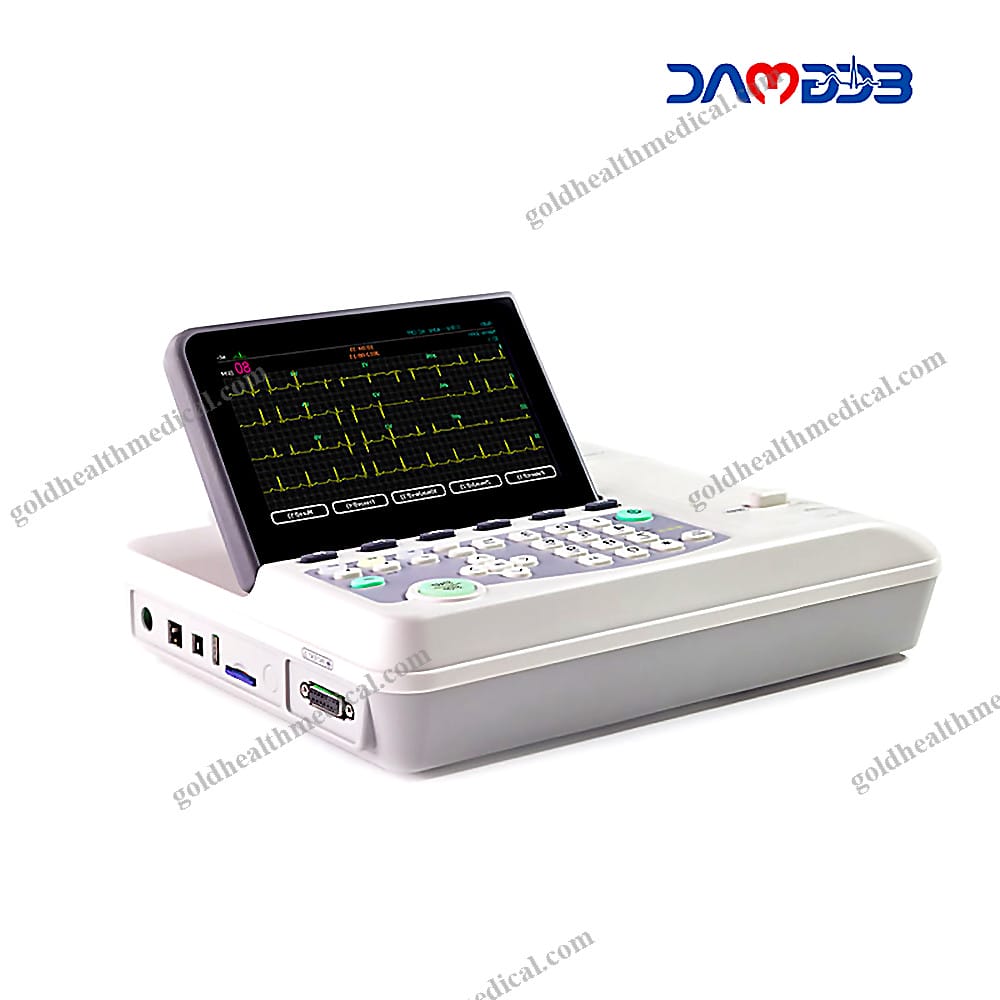

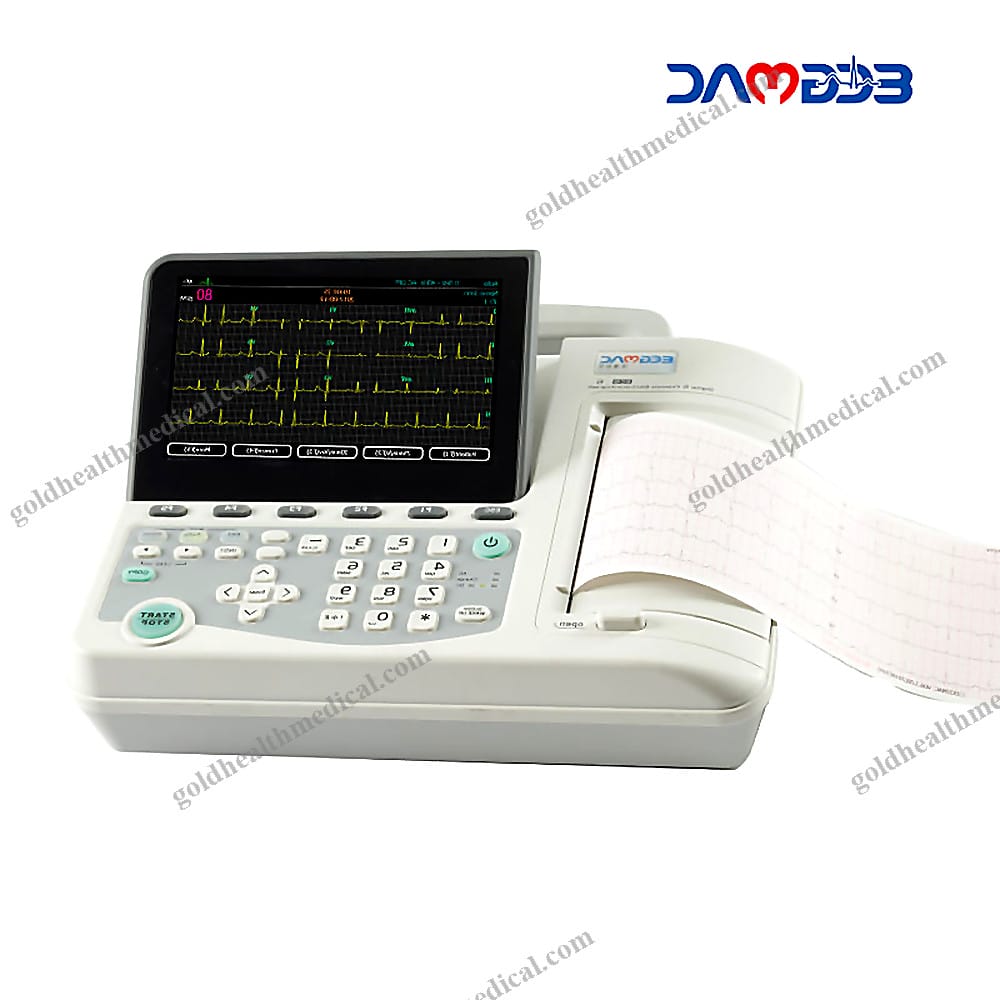

GoldHealth Medical ECG Machine
Product Highlights
- 7-inch foldable TFT color display with a resolution of 800×480, featuring a grid background for enhanced clarity.
- High-capacity rechargeable lithium battery ensures extended use without frequent recharging.
- Local internal memory capable of storing up to 1000 ECGs, providing ample space for data management.
- Alpha-numeric keyboard with shortcut keys for efficient and streamlined operation.
- Support for various peripherals including SD Card, Keyboard, U-disk, Barcode Scanner, and Wireless Network Adapter.
- Built-in high-resolution thermal printer with support for external USB printers via USB Port.
- ECG data transmission to a PC via USB cable, U-disk, or SD card for easy data transfer.
- Direct connectivity to external USB ports for seamless integration with other devices.
- Simultaneous 12-lead ECG acquisition and display for comprehensive cardiac monitoring.
- Automatic ECG measurements and interpretation to assist healthcare professionals with accurate diagnostics.
- Pacemaker detection support for specialized cardiac care.
- Multiple format report export options: PDF, JPG, BMP, XML, SCP, DICOM, FDA-XML.
- Triggered sample mode starts recording automatically upon detecting arrhythmias.
Specifications
- Paper Speed Options: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s.
- Print Type: Built-in thermal printer and specific external USB printer.
- Paper Type: Thermal roll paper (110mm width for built-in thermal printer), A4 size paper (via external USB printer).
- File Formats: PDF, JPG, DICOM, BMP, EM-XML, FDA-XML (optional), SCP (optional), BKG (optional).
- Report Formats: 3×4, 3×4+1R, 3×4+3R, 6×2, 6×2+1R, 1R.
Accessories
- Recommended Products:
- Portable ECG PE-1201 PC 12 Channel ECG EKG Machine.
- Hot Sale 3 Channel 7 Days 72/48/24 Hour Holter Monitor ECG Recording System and Analysis.
- OLED Display Portable Recorder 24 Hours Dynamic ECG Holter.
- Portable 3 Channel 12 Leads Channel EKG ECG Machine.
- CE TUV LCD Display Thermal Printer Portable 12 Lead Cardiology ECG Machine 3 Channel.
- OEM EM-1201B 12 Channel Lead EKG ECG Machine Electrode.
- Hot Sale EM-301B 7 Inch TFT Color Display ECG EKG Machine 12 Channel Wireless Portable ECG Machine.
- ECGMAC Portable Electrocardiogram Bluetooth Wireless 12 Leads ECG Machine 12 Channel ECG.
- ECGMAC Electrocardiograph for Animals EM-301 VET Portable Electrocardiograph 3-channel ECG EKG Machine Animal Veterinary ECG.
- CE ISO 12 Channel ECGMAC PE-1201 PC ECG Electrocardiograph Telemedicine ECG EKG Machine Device.
- ECGMAC PE-1204 Portable 12 Channel Mini Bluetooth ECG EKG Machine.
Company Profile
GoldHealth Medical is dedicated to providing high-quality medical devices with exceptional after-sales service. Our commitment to customer satisfaction is unwavering.
Our Service
- After-sales Service:
- Free installation guidance.
- Free software upgrades.
- Quick response to inquiries and issues.
FAQ
- Q: Are you a manufacturer or reseller?
-
A: We are a manufacturer with over 10 years of experience in research, design, production, and sales.
-
Q: Where is your factory located? How can I visit it?
-
A: Our factory is located in Shenzhen City, Guangdong Province, China. We warmly welcome visits from potential partners.
-
Q: Do you support customization?
-
A: Yes, we offer OEM/ODM services. We can design boxes according to your requirements and even create molds for different device appearances.
-
Q: How can I place an order?
-
A: We support Alibaba Trade Assurance orders. You can place an order directly or contact us for a payment link. We can also issue invoices for payment via TT/Paypal/LC/Western Union.
-
**Q: How many days for shipping after payment is done?
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Advanced Diagnostic ECG Machine
Product Highlights
- Precision Redefined: Designed for accurate and reliable diagnostic results, this ECG machine is an essential tool for modern healthcare environments.
- User-Centric Design: Featuring a 7-inch high-resolution color LCD display, it ensures clear visualization of ECG waveforms and data for seamless analysis.
- Versatile Functionality: Supports multi-language options, making it adaptable for global use in diverse medical settings.
- Compact and Portable: Weighing just 2.45kg with dimensions of 310(L) x 244(W) x 65(H) mm, it is ideal for both stationary and mobile clinical applications.
Technical Specifications
- Instrument Classification: Class II Medical Device
- Application: Clinical Examination Aids for diagnostic purposes
- Display: 7-inch Color LCD with intuitive interface
- Power Supply: AC100-240V, 50/60Hz for universal compatibility
- Weight: 2.45kg (lightweight for enhanced portability)
- Dimensions: 310mm (L) x 244mm (W) x 65mm (H)
- Certifications: Compliant with CE and ISO standards for safety and performance
Packaging Details
- Package Size: 38cm (L) x 19cm (W) x 35cm (H)
- Gross Weight: 4.500kg
- Packaging: Optimized for secure transportation and easy unpacking
Support and Warranty
- Warranty: Comprehensive 3-year coverage for peace of mind
- After-Sales Service: Dedicated online technical support to ensure uninterrupted performance
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-focused design to deliver medical devices that empower healthcare professionals. Our ECG machine stands out for its precision, portability, and ease of use, making it a trusted choice for hospitals, clinics, research labs, and home healthcare providers worldwide.
