Portable Spirometer System for Lung Testing
Reference: 1601243287178
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

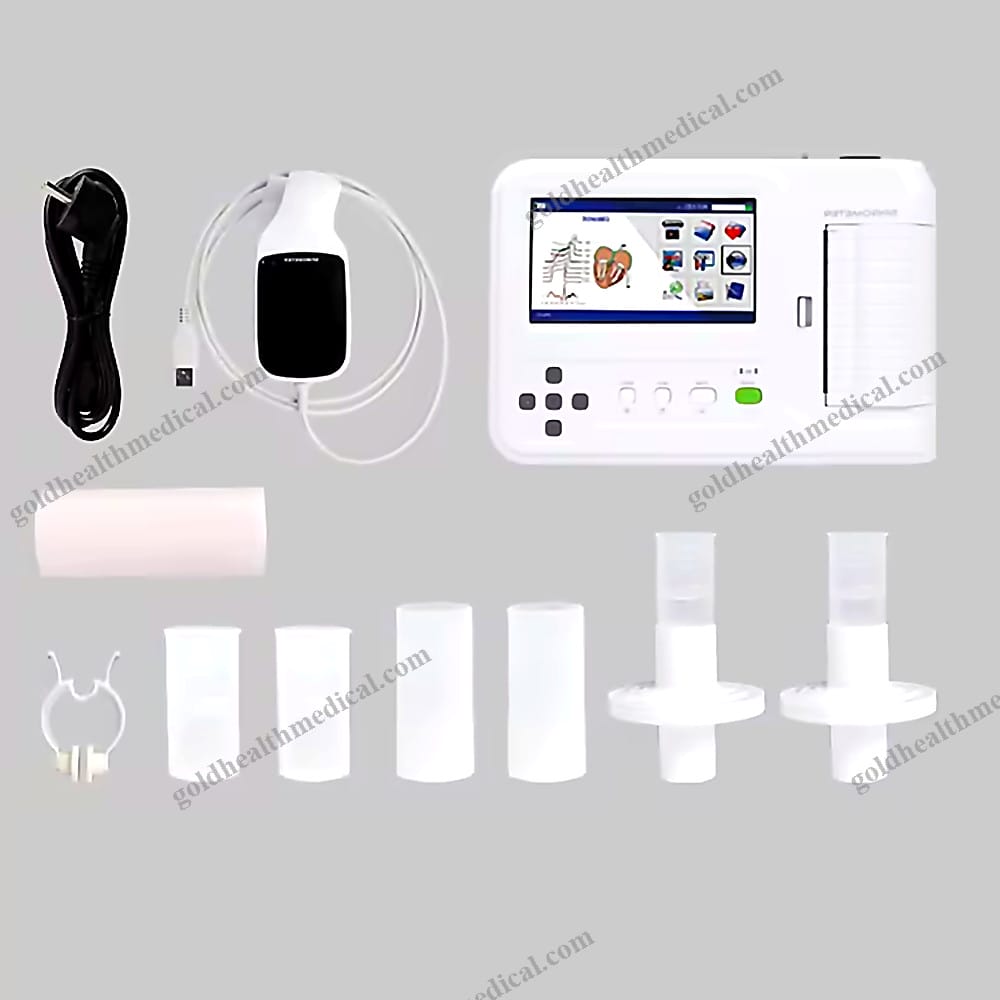

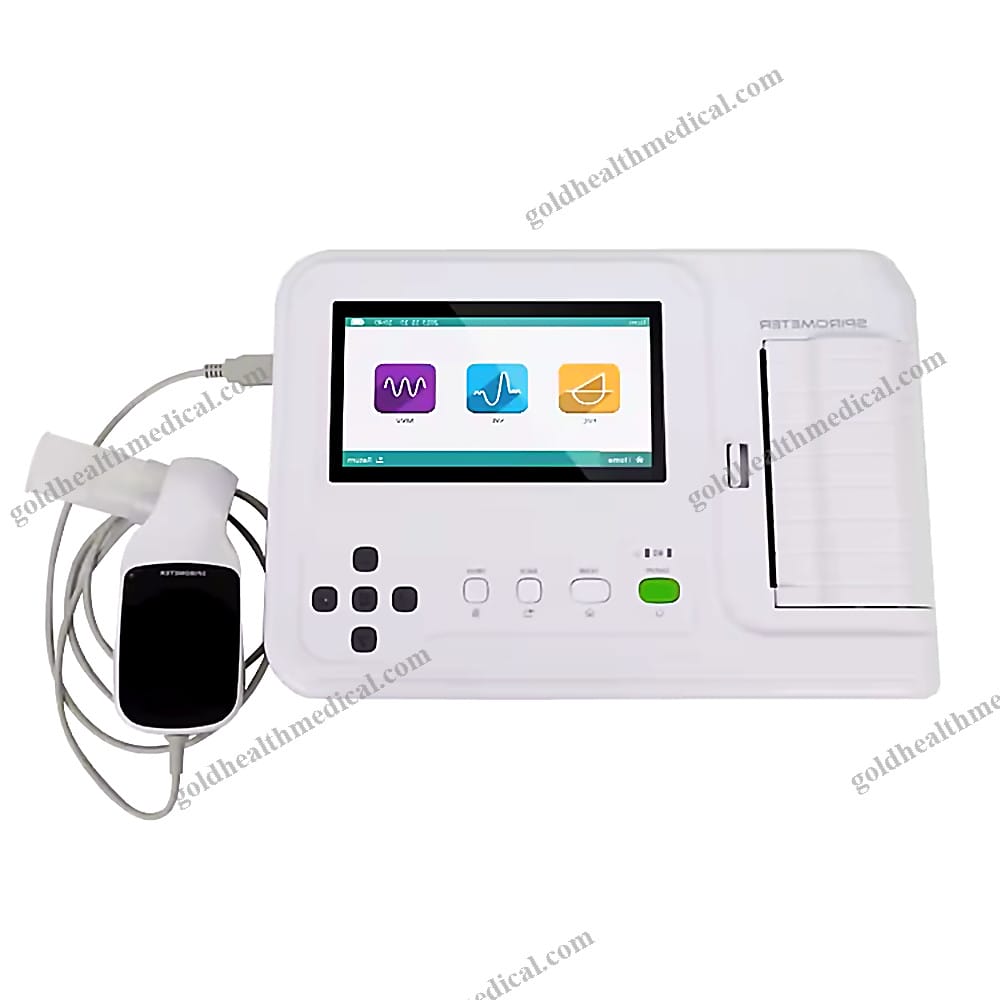

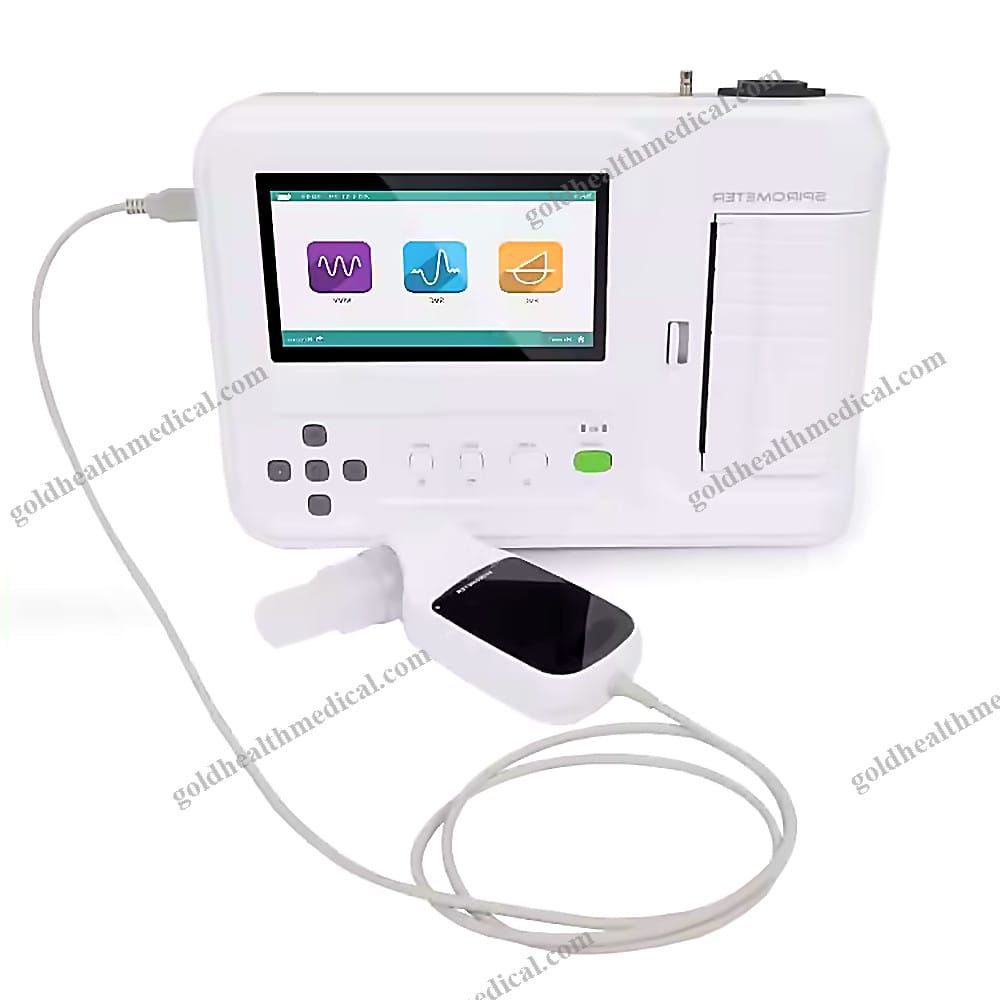

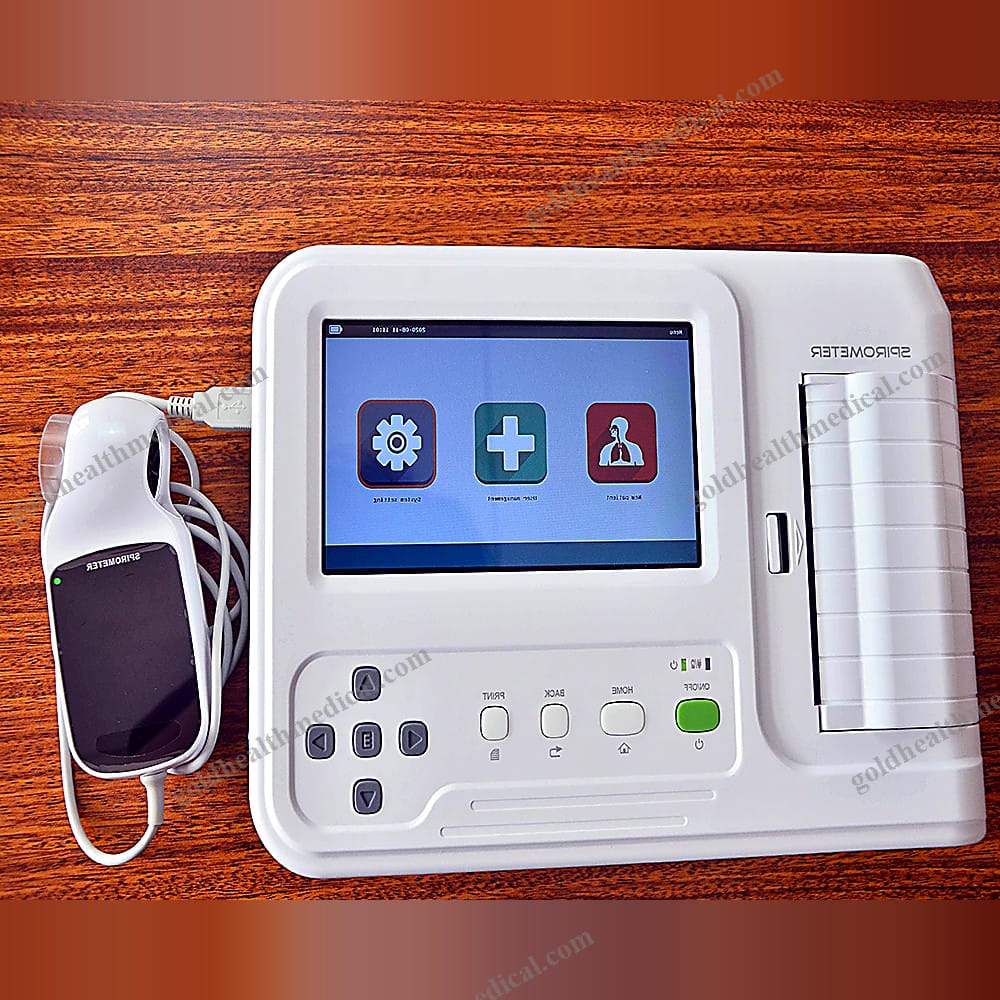

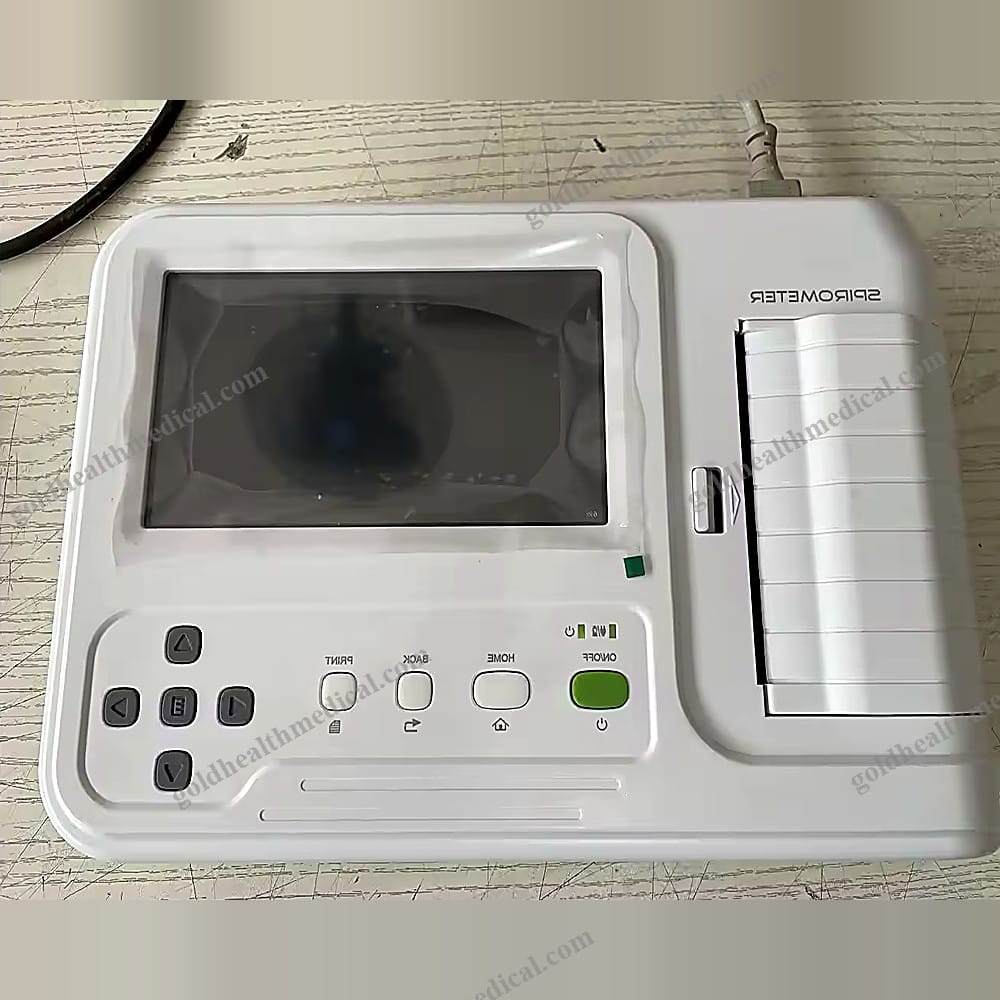

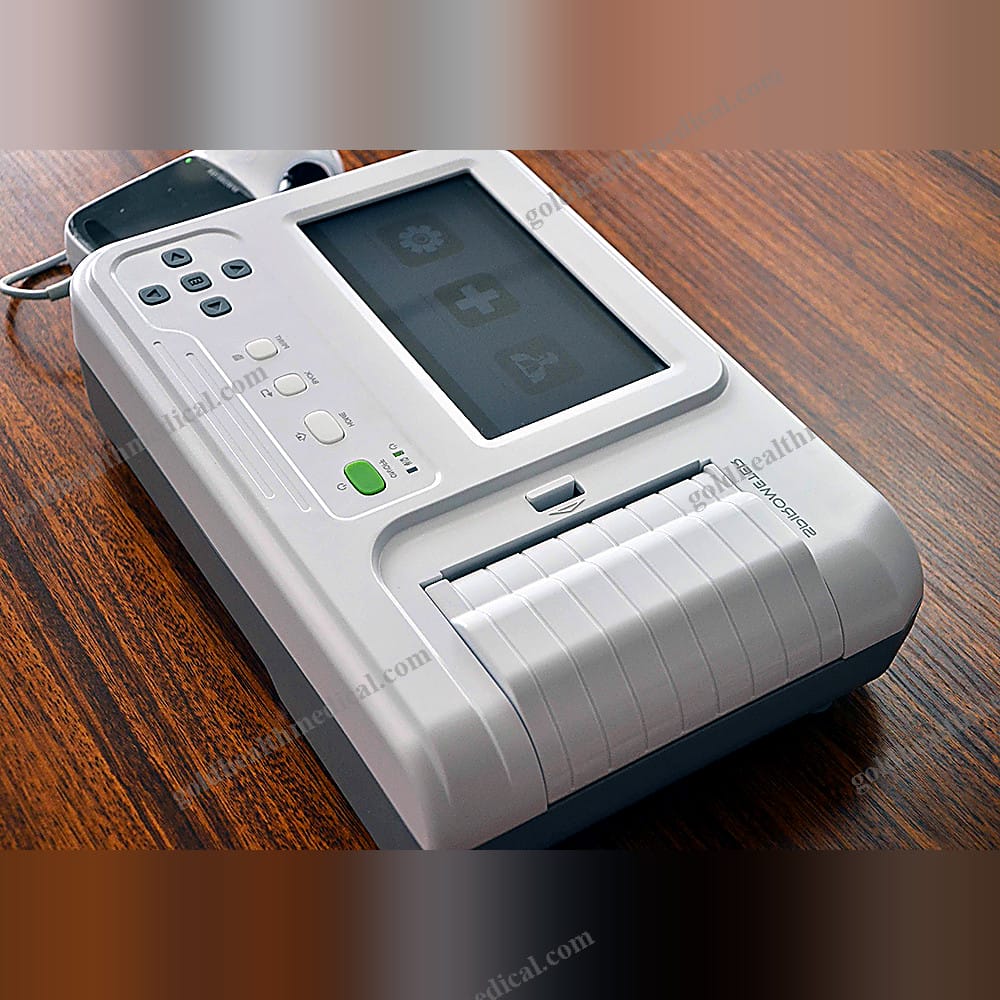

Introducing GoldHealth Medical's Advanced Spirometer
GoldHealth Medical presents a cutting-edge spirometer designed to deliver unparalleled precision and ease of use in pulmonary function testing. Engineered with both healthcare professionals and patients in mind, this device is an essential tool for accurate respiratory assessment.
Key Features and Benefits:
-
Comprehensive Measurement Capabilities:
Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 30 additional parameters. Automatically selects the optimal result from multiple measurements and compares measured values to predicted norms for clear insights into patient health. -
Real-Time Respiratory Waveforms:
Displays Flow-Volume loops and Volume-Time curves in real time, offering dynamic visualization of respiratory function. -
Intuitive 7" Color TFT Touch Screen:
Combines a responsive touch interface with tactile buttons for seamless operation. Includes incentive animation to guide users, making it especially user-friendly for children and elderly patients. -
Built-In Thermal Printer:
Enables instant printing of test results for convenience and record-keeping. -
Advanced BTPS Correction:
Automatically compensates for environmental variations, ensuring consistent accuracy regardless of location. -
Enhanced Usability:
Features a calibration function to maintain measurement precision, multiple selectable predicted values for diverse populations, and a lung age estimation function for patient education. -
Robust Data Storage:
Stores over 10,000 data sets, providing ample capacity for high-volume clinical environments. -
Portable and Versatile Power Options:
Equipped with a built-in lithium battery, supporting both AC and DC power sources for flexibility in various settings.
Technical Specifications:
- Volume Range: 0–10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Input Power: 60 VA
- Power Supply: 100 V–240 V~, 50 Hz/60 Hz
- Dimensions: 315 mm (L) × 215 mm (W) × 92 mm (H)
- Weight: 1.8 kg
- Safety Standards: Class II medical device, Type BF applied part
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions tailored to meet the needs of modern healthcare. Our spirometer combines advanced technology with user-centric design, empowering clinicians to achieve precise diagnostics and improve patient outcomes. Backed by rigorous quality assurance and a dedication to excellence, our products are trusted by hospitals, clinics, and research institutions worldwide.
Experience the future of respiratory diagnostics with GoldHealth Medical—where precision meets simplicity.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Type: Advanced Spirometer
Product Overview
The GoldHealth Medical Spirometer is a cutting-edge respiratory diagnostic tool designed for precision, reliability, and ease of use. Engineered to meet the demands of modern healthcare environments, this device delivers accurate measurements of lung function with an intuitive interface and robust performance. Whether used in hospitals, clinics, or home care settings, it ensures exceptional clinical value and user satisfaction.
Key Features
- High-Resolution Display: Equipped with a 7" color TFT touch screen for clear visualization of data and effortless navigation.
- Wide Measurement Range: Volume range of 0~10L and flow range of ±16 L/s to accommodate diverse patient needs.
- Compact and Portable Design: Dimensions of 315 mm (L) x 215 mm (W) x 92 mm (H) and a lightweight build at just 1.8 kg, making it ideal for both stationary and mobile use.
- Durable Construction: Crafted with high-quality plastic materials for long-lasting performance.
- Energy Efficiency: Powered by an electric source with an input power of 60 VA, ensuring stable operation.
Technical Specifications
- Instrument Classification: Class II medical device
- Shelf Life: 1 year
- Quality Certification: CE certified for safety and compliance
- Packaging Details:
- Single package size: 32 x 22 x 10 cm
- Single gross weight: 5.000 kg
Support and Warranty
- Comprehensive Warranty: Backed by a 1-year warranty for peace of mind.
- Dedicated After-Sales Support: Access to online technical support for seamless troubleshooting and assistance.
Applications
This spirometer is tailored for a wide range of healthcare settings, including hospitals, clinics, research institutions, rehabilitation centers, and home care environments. Its precision and versatility make it an indispensable tool for respiratory diagnostics and monitoring.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals and enhance patient outcomes. Choose the GoldHealth Medical Spirometer for unmatched accuracy, durability, and performance.
