Portable Spirometer Machine For Clinic And Hospital Use
Reference: 1601368582370
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

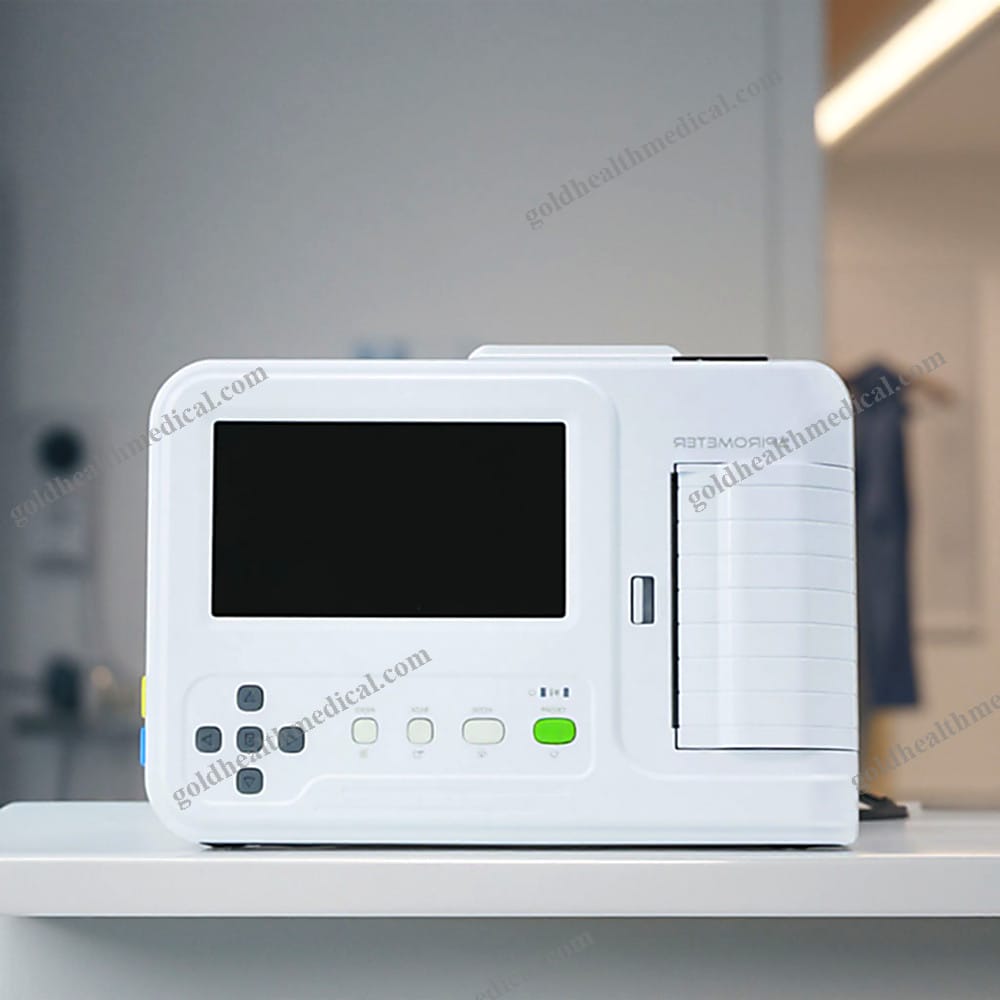

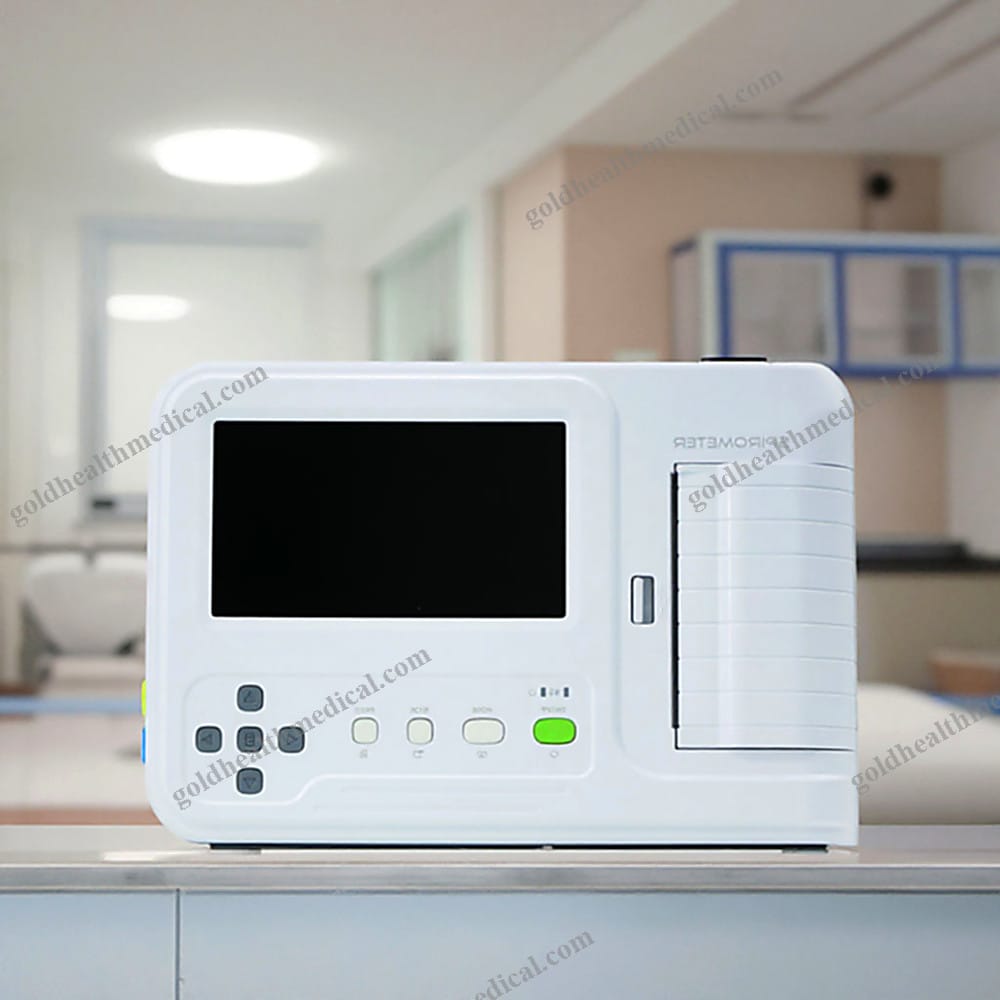

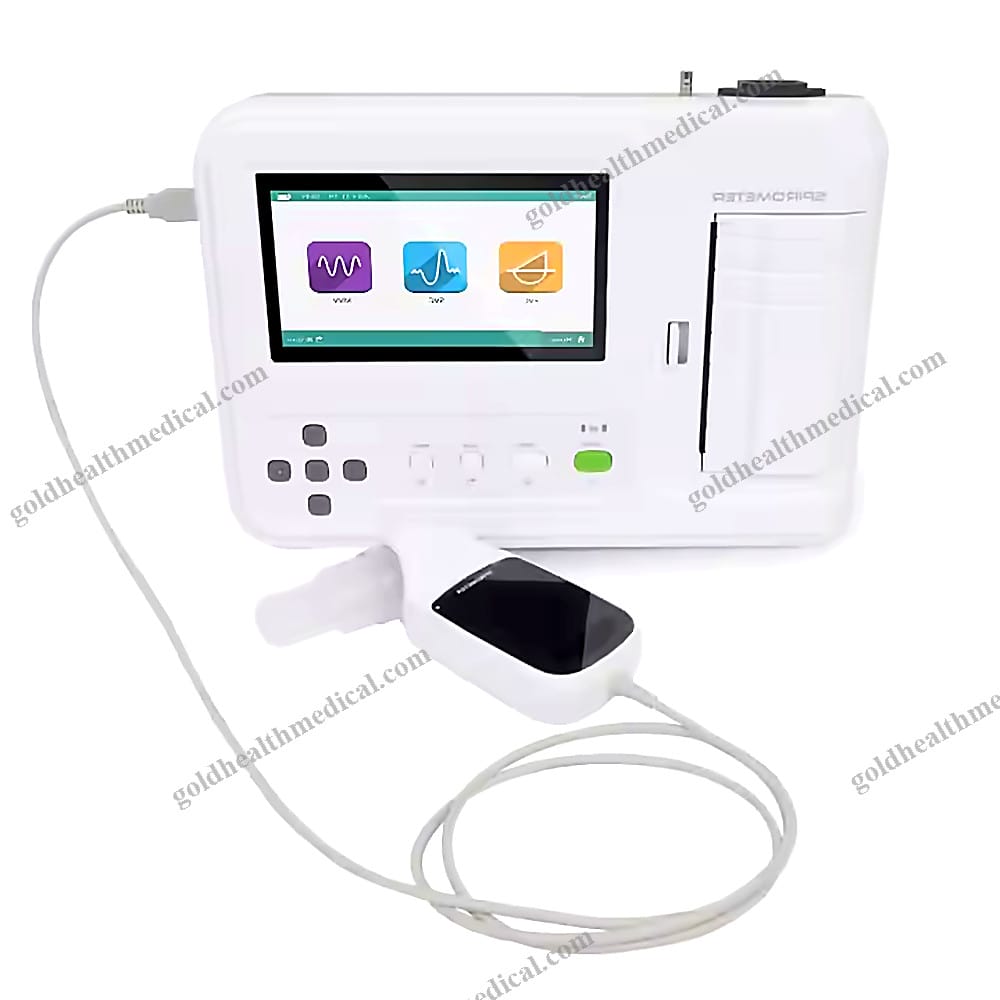

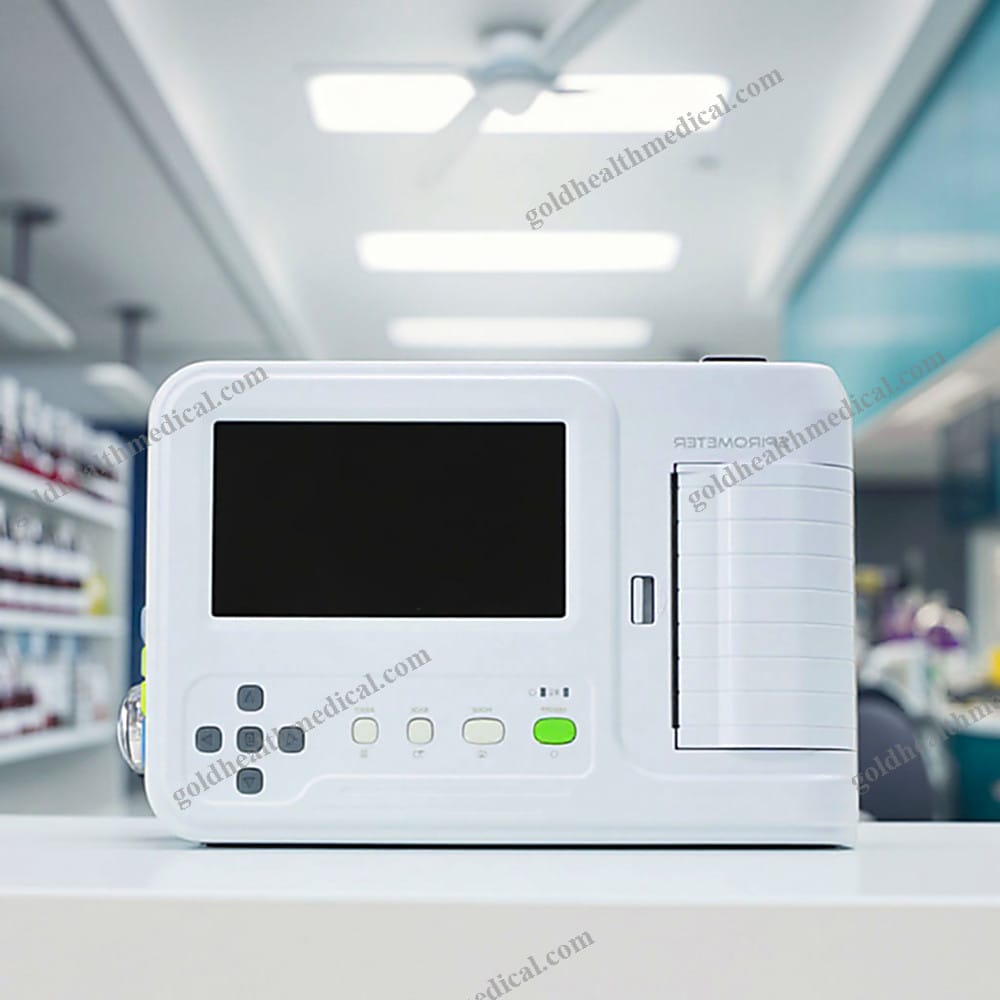

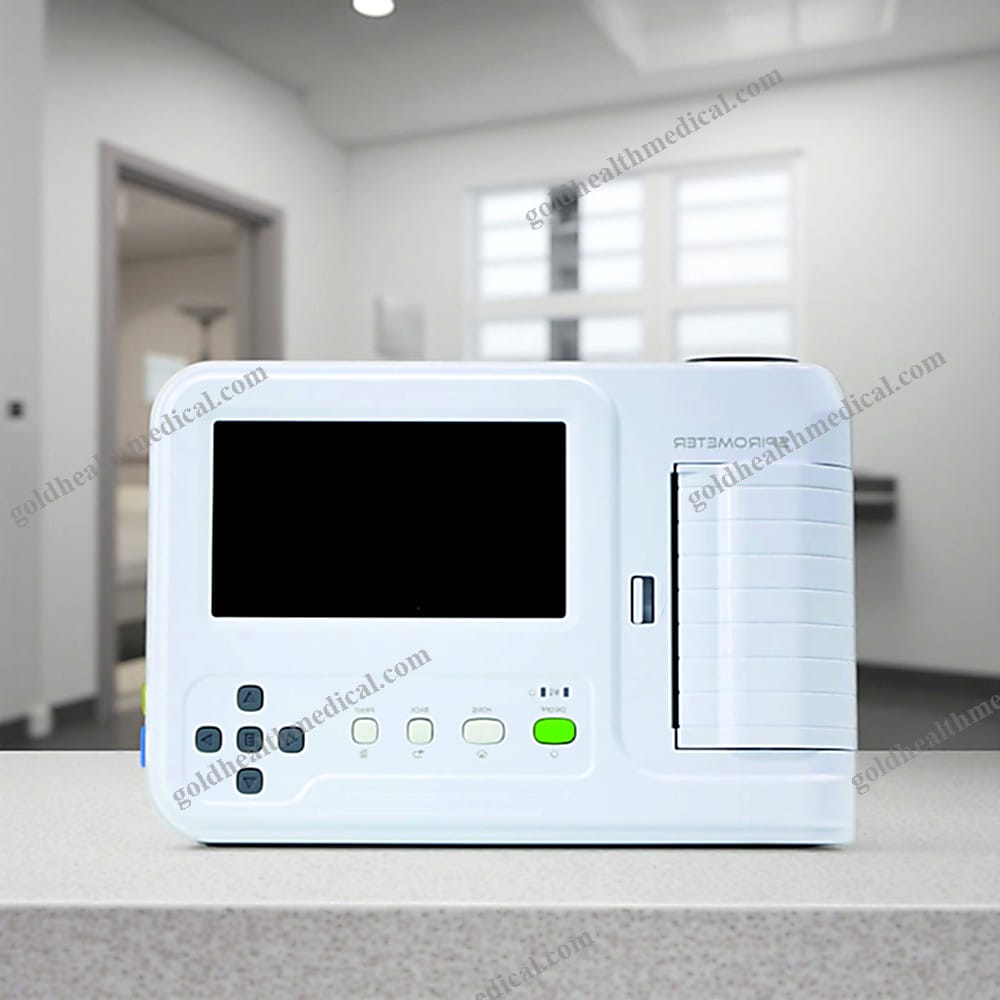

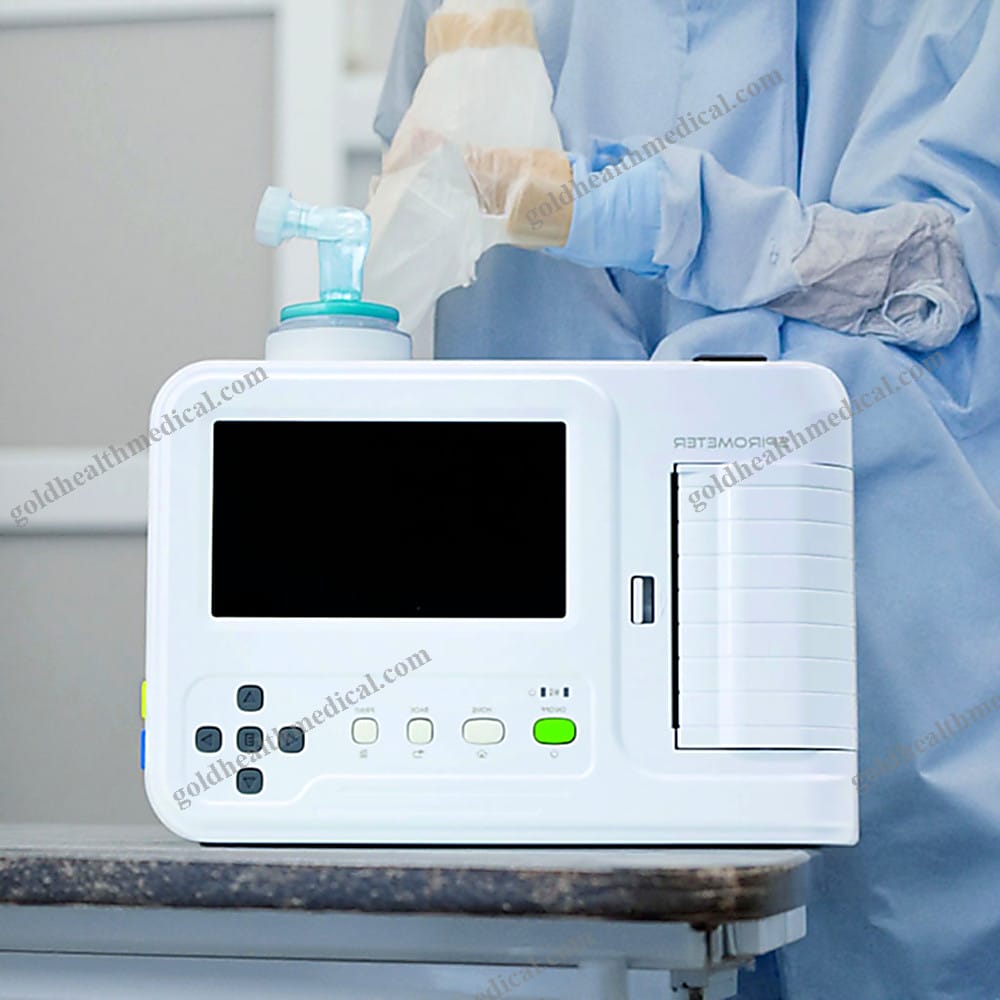

GoldHealth Medical Portable Spirometer
GoldHealth Medical proudly presents a cutting-edge portable spirometer designed to redefine lung function testing. This advanced device is meticulously engineered to measure critical respiratory parameters with precision, making it an indispensable tool for hospitals, clinics, research institutions, and home healthcare.
Key Features
-
Comprehensive Lung Function Analysis: Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 50 additional parameters. Automatically selects the optimal result from multiple measurements and displays the ratio of measured to predicted values.
-
Extensive Parameter Coverage:
- Forced Vital Capacity (FVC): FVC, FEV1, PEF, FEV1%, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV, etc.
- Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tI/tE, tE, TV/tI, tI/ttot.
-
Maximum Ventilatory Volume (MVV): MVV.
-
Real-Time Visualization: Features real-time Flow-Volume loop and Volume-Time curve charts for immediate insights into respiratory performance.
-
Intuitive Interface: Equipped with a 7" color LCD touch screen and physical buttons for seamless operation. Includes incentive animation to guide users, particularly children and the elderly, through the testing process.
-
Integrated Thermal Printer: Built-in printer for instant report generation.
-
Advanced Correction Technology: BTPS automatic correction function compensates for environmental variations, ensuring consistent accuracy.
-
Environmental Monitoring: Displays test time and ambient temperature.
-
Precision Calibration: Ensures reliable measurement accuracy.
-
Customizable Predictive Values: Offers multiple predictive value options tailored to diverse populations.
-
Extensive Data Storage: Capable of storing over 10,000 data sets.
-
Lung Age Estimation: Provides an estimation of lung age for enhanced patient understanding.
-
Versatile Power Options: Powered by a built-in lithium battery, supporting both AC and DC power sources.
Performance Specifications
- Volume Range: 0~10 L (FVC)
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: 0~16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Type: Class I equipment, type BF applied part
- Printing Paper: 112 mm(W)×20 m(L) high-speed thermal paper
- Dimensions: 315 mm(L)×215 mm(W)×92 mm(H)
- Weight: 1.8 kg
Accessories
- Spirometer
- Mouthpiece (4 pcs, disposable)
- Nose clip
- USB cable
- Recording paper
- Power cord
- User Manual
GoldHealth Medical's portable spirometer stands out with its advanced features, user-friendly design, and unparalleled accuracy, making it the ideal choice for comprehensive lung function testing across various settings.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents a cutting-edge solution for respiratory diagnostics, designed to elevate clinical precision and patient care.
- Instrument Classification: Class II medical device, engineered for reliability and safety
- Origin: Proudly crafted in Guangdong, China, adhering to global quality standards
- Power Source: Electric, with universal compatibility (100 V-240 V~, 50 Hz/60 Hz)
- Key Feature: Exceptionally PORTABLE, empowering healthcare professionals with unmatched mobility
- Type: Advanced flow spirometer, tailored for clinical applications
- Shelf Life: 1 year, ensuring consistent performance over time
- Quality Certification: CE-certified, guaranteeing compliance with international safety and efficacy benchmarks
Technical Specifications:
- Volume Range: 0–10 L (FVC), accommodating a wide spectrum of respiratory measurements
- Flow Range: 0–16 L/s, delivering precise airflow analysis
- Input Power: 60 VA, optimized for energy efficiency
- Safety Type: Class I equipment with Type BF applied part, prioritizing user and patient safety
- Display: 7" color TFT touch screen, offering intuitive operation and crystal-clear visuals
- Printing Capability: High-speed thermal paper (112 mm width x 20 m length), enabling instant, detailed reports
- Storage Capacity: Over 10,000 data groups, ensuring robust record-keeping for extensive patient histories
- Dimensions: Compact design at 315 mm (L) x 215 mm (W) x 92 mm (H), maximizing portability without compromising functionality
- Weight: Lightweight at 1.8 kg, perfect for on-the-go diagnostics
- Packaging Details:
- Single item per package
- Package size: 40 cm (L) x 30 cm (W) x 20 cm (H)
- Gross weight: 3.5 kg
Warranty & Support:
- Warranty: Comprehensive 1-year coverage, reflecting our confidence in product durability
- After-Sale Service: Dedicated online technical support, ensuring seamless operation and troubleshooting
Why Choose GoldHealth Medical?
Our spirometer combines portability, precision, and advanced technology to meet the demands of modern healthcare environments. Whether in hospitals, clinics, research labs, or home care settings, this device redefines respiratory diagnostics with its innovative design and unwavering reliability. Elevate your practice with a tool that’s as versatile as it is dependable.
