Portable Pulmonary Function Spirometer for Lung Breathing Exercises
Reference: 1600719891894
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

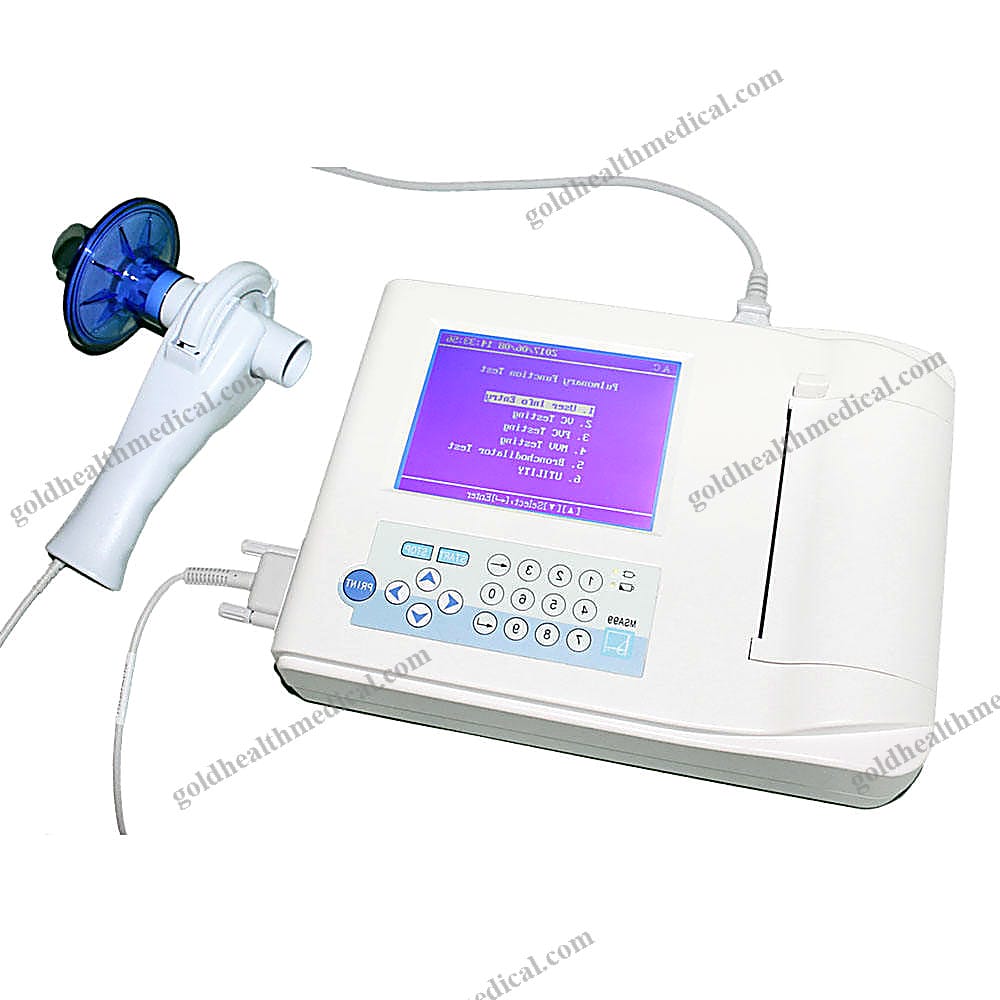

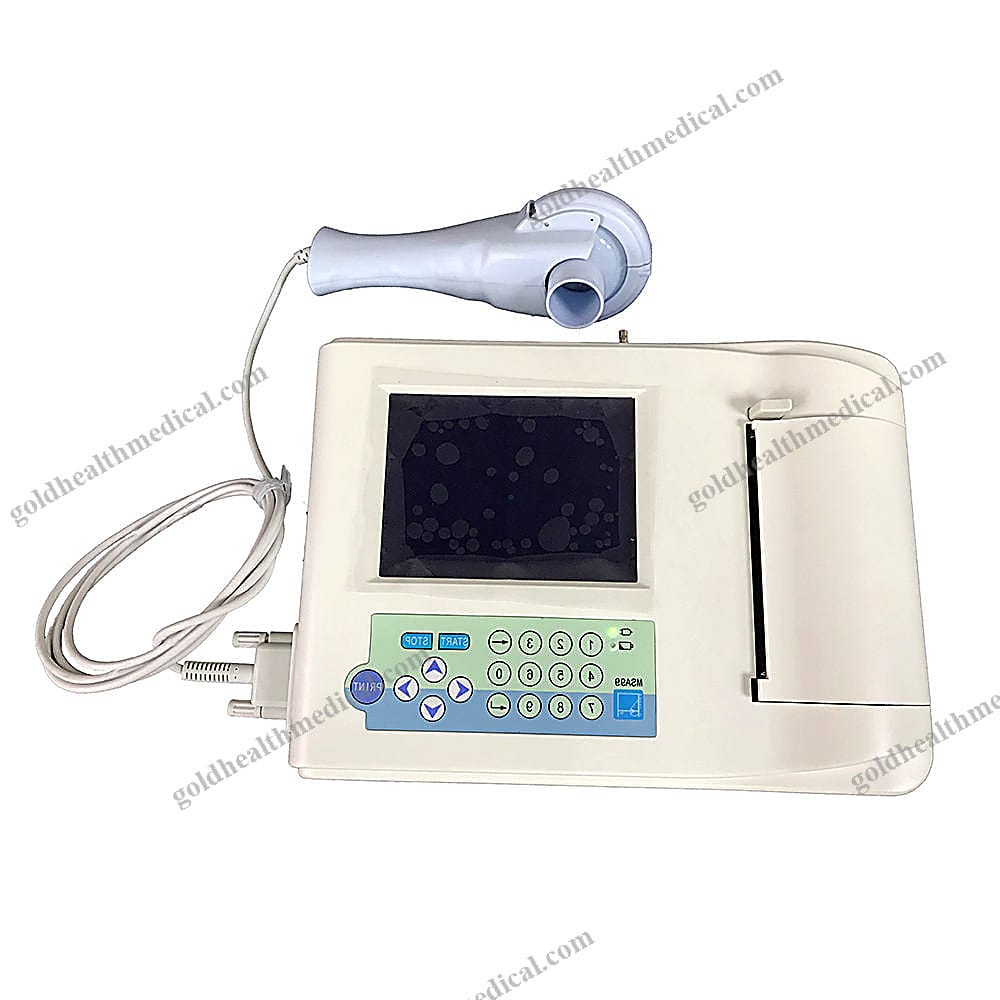

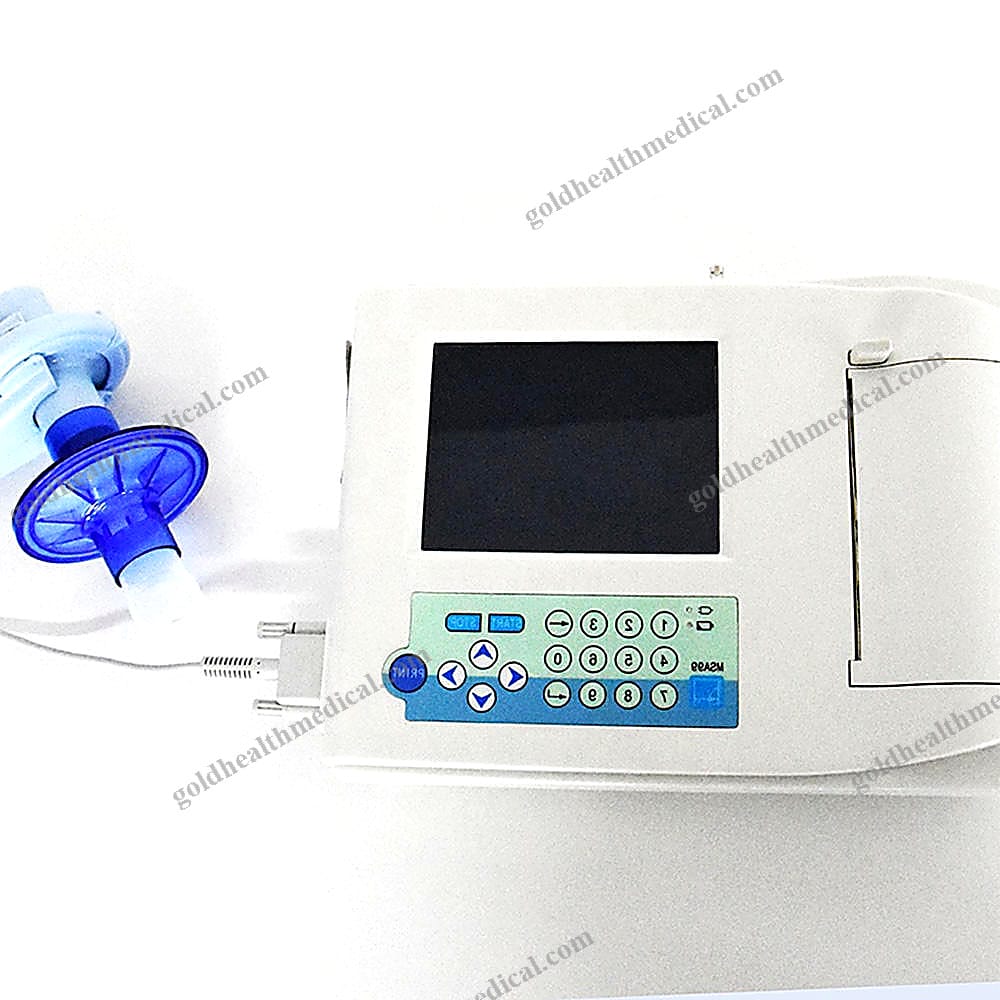

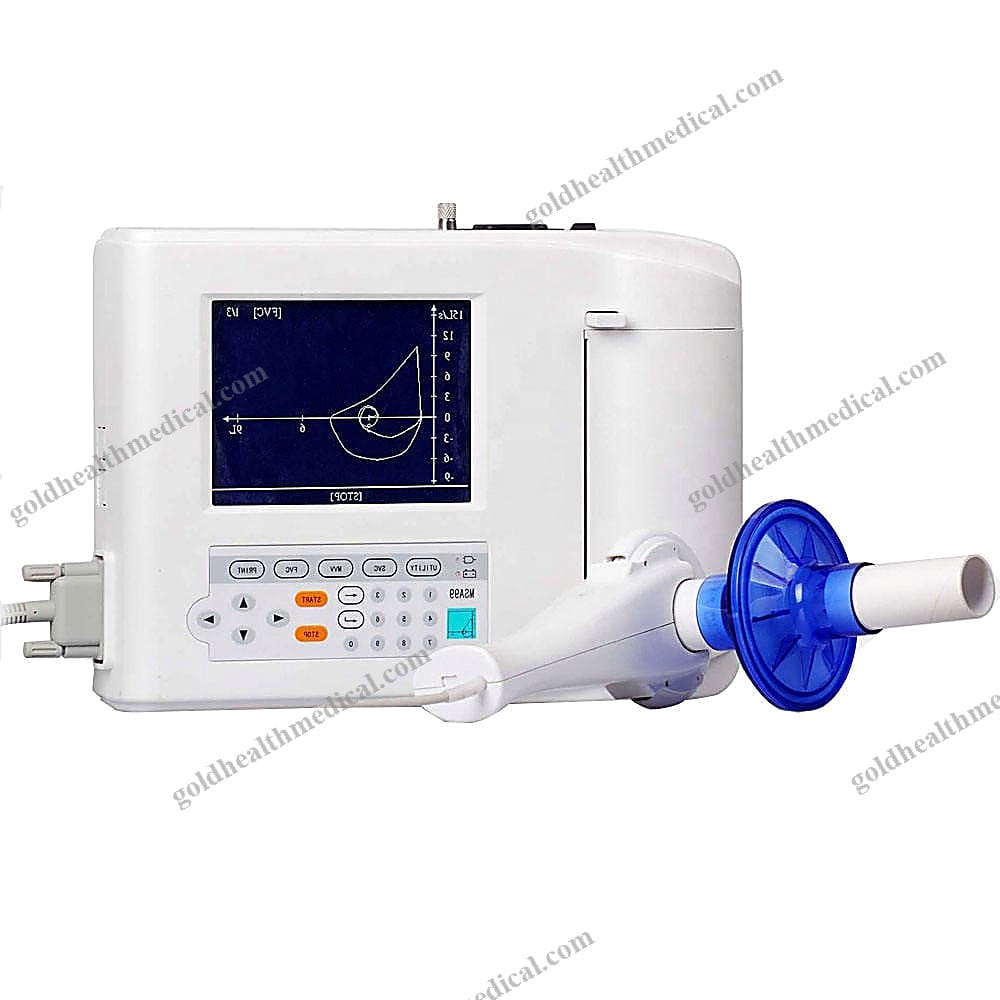

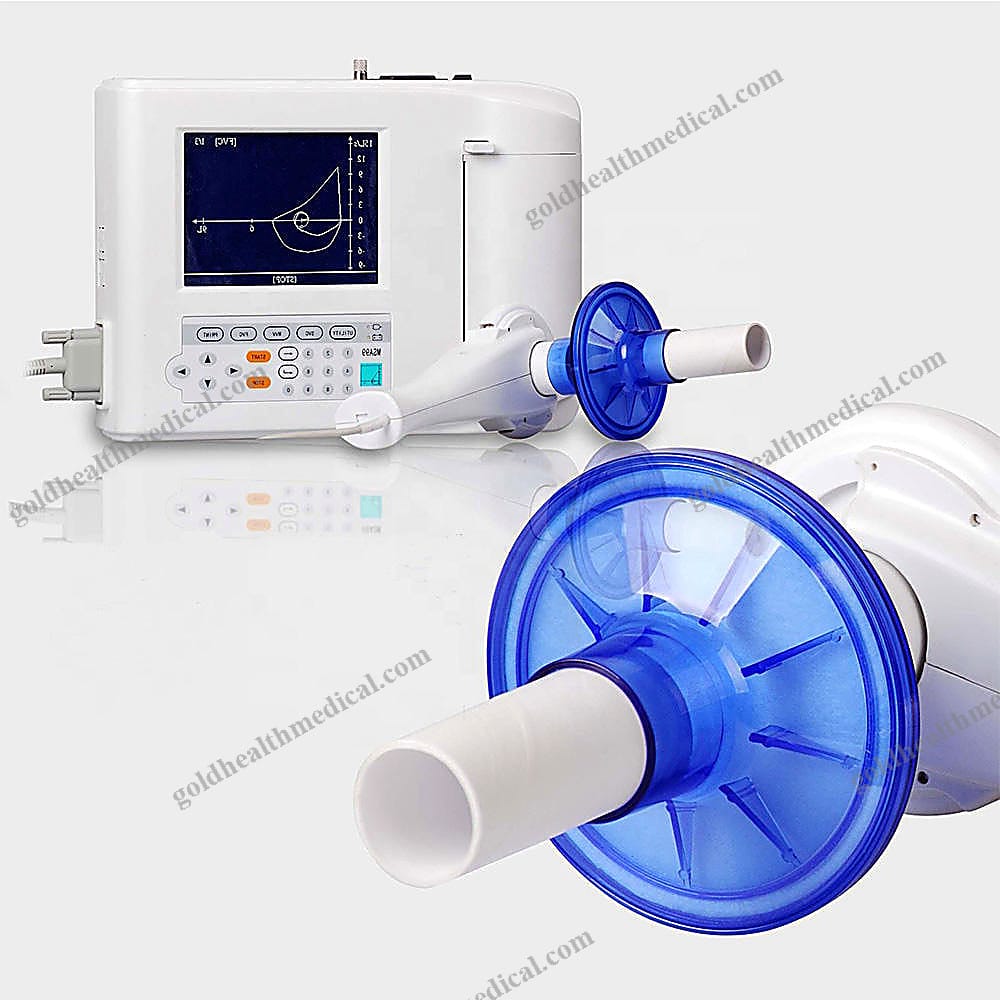

GoldHealth Medical Spirometer
The GoldHealth Medical Spirometer is a cutting-edge, hand-held device designed to assess lung health with precision and ease. Utilizing advanced infrared signal acquisition technology, this spirometer delivers accurate measurements of critical pulmonary functions, making it an indispensable tool for hospitals, clinics, research labs, and home use.
Key Features
- Comprehensive Pulmonary Metrics: Measures Forced Vital Capacity (FVC), FEV1/FVC ratio, Peak Expiratory Flow (PEF), FEF25, FEF50, FEF75, and FEF2575.
- Personalized User Profiles: Input patient details such as height, age, and gender for tailored assessments.
- Dynamic Data Visualization: Real-time flow-volume and volume-time charts for clear insights.
- Advanced Data Management: Store, delete, upload, and review data effortlessly. Trend charts provide a longitudinal view of lung health.
- Health Status Indicators: Instant feedback on respiratory health with intuitive alerts.
- Precision Calibration: Ensures consistent accuracy over time.
- Smart Alerts: Over-limit prompts for volume and flow, with a 6-second expiration indicator.
- One-Touch Operation: Simplifies the measurement process with a single-button start.
- Seamless Connectivity: Transfer data via USB for further analysis.
- Real-Time Clock: Set and display time for accurate record-keeping.
- Battery Status Monitoring: Alerts users to remaining power, with an auto-shutdown feature after two minutes of inactivity.
Technical Specifications
- Display: 5.7-inch monochrome LCD with 320x240 resolution.
- Control Keys: Utility, SVC, FVC, MVV, Print, 10-Word, [ ], Start, Stop.
- Measurement Technology:
- Flow velocity detection via pressure gradient pneumatic flow sensor.
- Capacity detection through flow velocity integration.
- Measuring Range:
- Capacity: 0L to 9L.
- Flow Velocity: 0 to 14L/s.
- Accuracy:
- Capacity: ±50ml (0L to 1.6L), ±3% (6L to 9L).
- Flow Rate: ±5% or 0.2L/s.
- Respiratory Rate: ±1/min (4-20/min), ±5% (20-60/min).
- Measurement Timelines:
- Vital Capacity: Every 50 seconds, 3 measurements.
- FVC: Per second, 25 seconds, 3 measurements.
- Maximum Ventilation Volume: Every 12 seconds, 3 measurements.

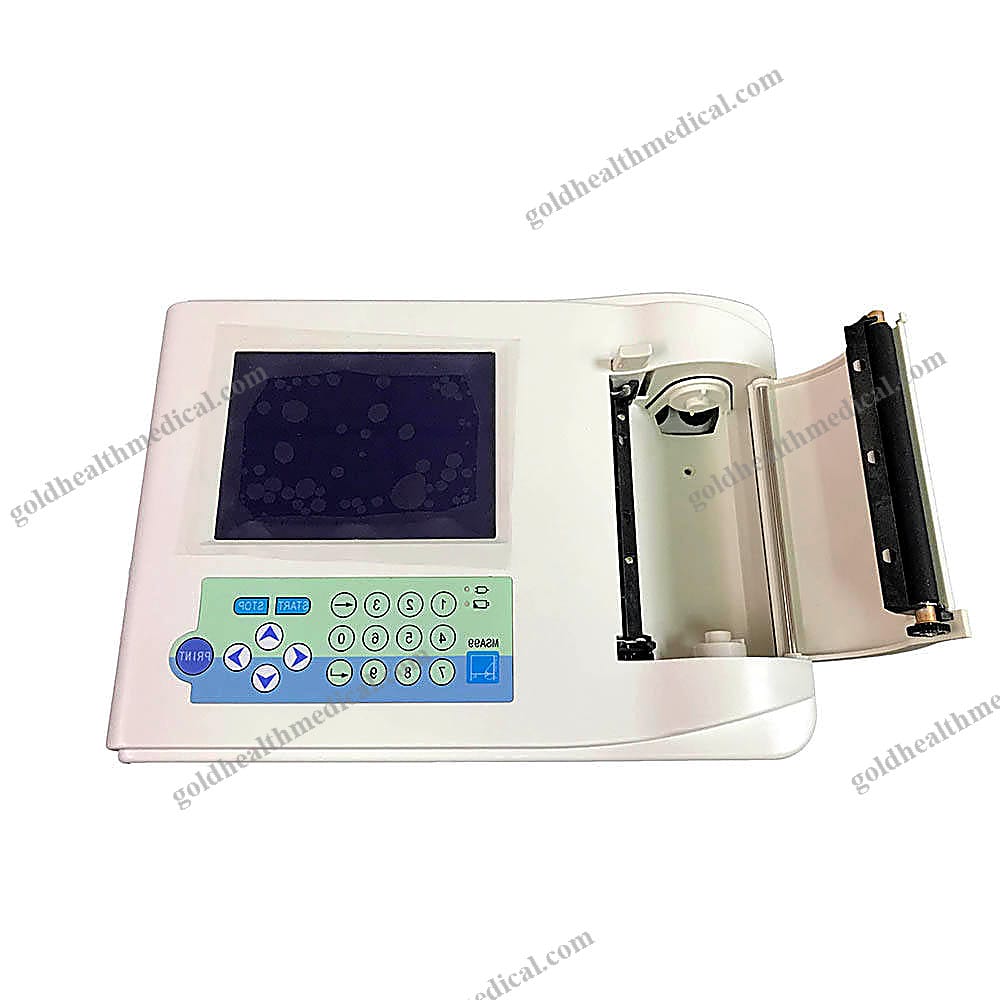

- Paper Recorder:
- Dot matrix method.
- Resolution: 8 d/mm horizontal, 8 d/mm vertical.
- Wave Channels: 1.
- Paper Width: 110mm, Length: 15m.
- Feed Speed: 12.5, 25, and 50mm/s (±2%).
- Power Supply:
- AC: 100V-240V.
- DC: Rechargeable Nickel-Metal Hydride (Ni-MH), 14.4V, 1.8Ah.
- Safety Classification: IEC60601-1 Class I, Type CF.
Included Accessories
- User Manual.
- USB Cable.
- Disposable Mouthpiece.
- Optional Nose Clip.
- Optional Power Adapter.
- PC Software.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and user-friendly medical devices. Our spirometer stands out with its precision engineering, intuitive design, and versatility, catering to a wide range of healthcare settings. Whether you're conducting routine tests or monitoring chronic conditions, our spirometer ensures unparalleled accuracy and ease of use.
Experience the future of respiratory diagnostics with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: GoldHealth Medical Portable Spirometer – Your Advanced Lung Exercise Device
Key Features and Benefits:
- Precision Redefined: Equipped with a resolution of 0.001Abs (displayed) and 0.0001Abs (calculated), this spirometer delivers unparalleled accuracy for reliable respiratory assessments.
- Advanced Light Source: Utilizes a durable halogen lamp with selectable wavelengths (340, 405, 500, 546, 620nm) and optional filters for versatile testing capabilities.
- Compact and Portable Design: Lightweight at just 7KG with dimensions of 360 x 318 x 160mm, making it ideal for use in clinics, labs, or home settings.
- Class II Medical Instrument: Designed to meet stringent safety standards, including GB2626-2006, ensuring optimal performance and user safety.
- Electric Power Source: Operates on AC 110V/220V ± 10%, 50HZ/60Hz, providing flexibility across global power systems.
Technical Specifications:
- Material: High-quality acrylic for durability and hygiene.
- Wavelength Accuracy: ±2nm for consistent and precise measurements.
- Band Width: ≤10nm, ensuring minimal interference during analysis.
- Cross Contamination Rate: ≤1%, maintaining a hygienic testing environment.
- Shelf Life: 2 years, ensuring long-term usability and reliability.
Quality Assurance:
- Backed by CE certification for compliance with international quality standards.
- Supported by a 2-year warranty and online technical support, ensuring peace of mind for users.
Applications:
Perfect for hospitals, clinics, research institutions, rehabilitation centers, and home care, this portable spirometer is designed to empower healthcare professionals and patients alike with accurate lung function monitoring.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver medical devices that are reliable, precise, and easy to use. Our portable spirometer is a testament to our commitment to improving respiratory health worldwide.
Packaging and Delivery:
- Standard protective packaging ensures safe transit.
- Ships from Guangzhou with a robust supply ability of 1000 units per month to meet your demands.
Invest in the GoldHealth Medical Portable Spirometer today and experience the perfect blend of innovation, precision, and portability for all your respiratory assessment needs.
