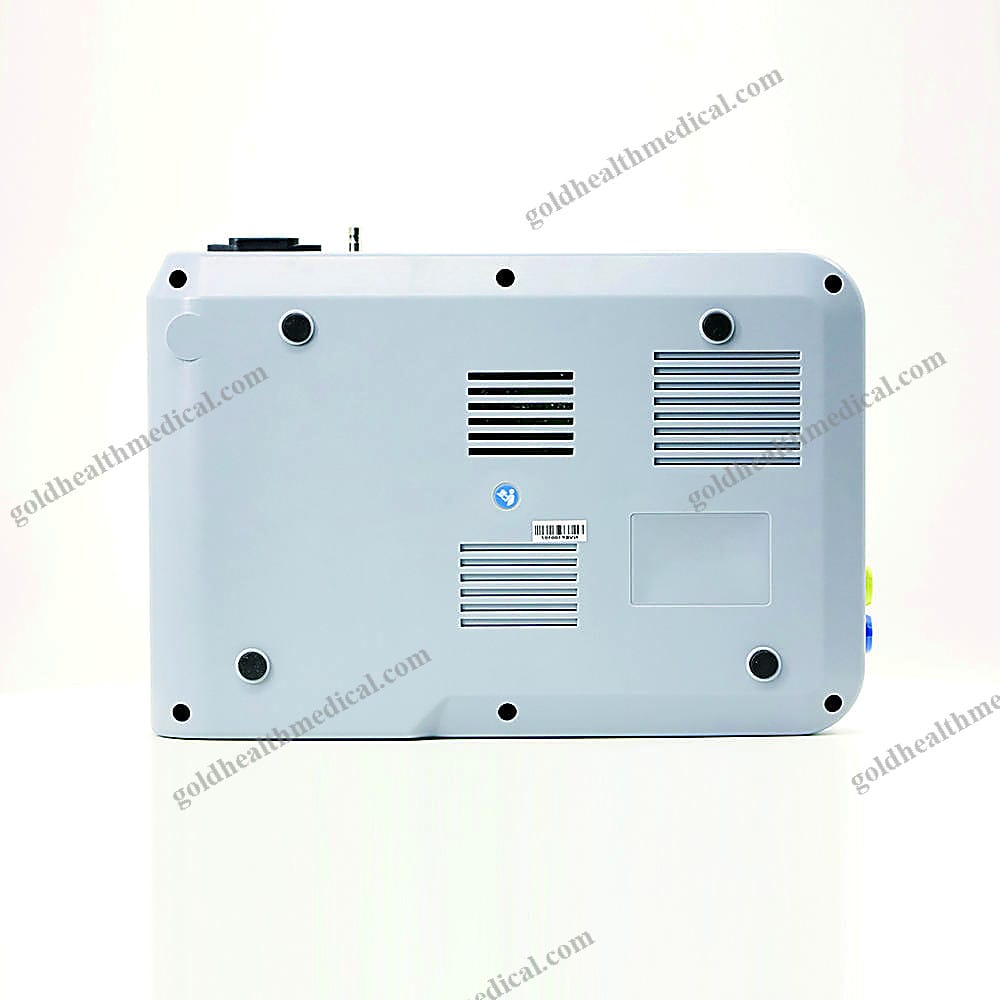

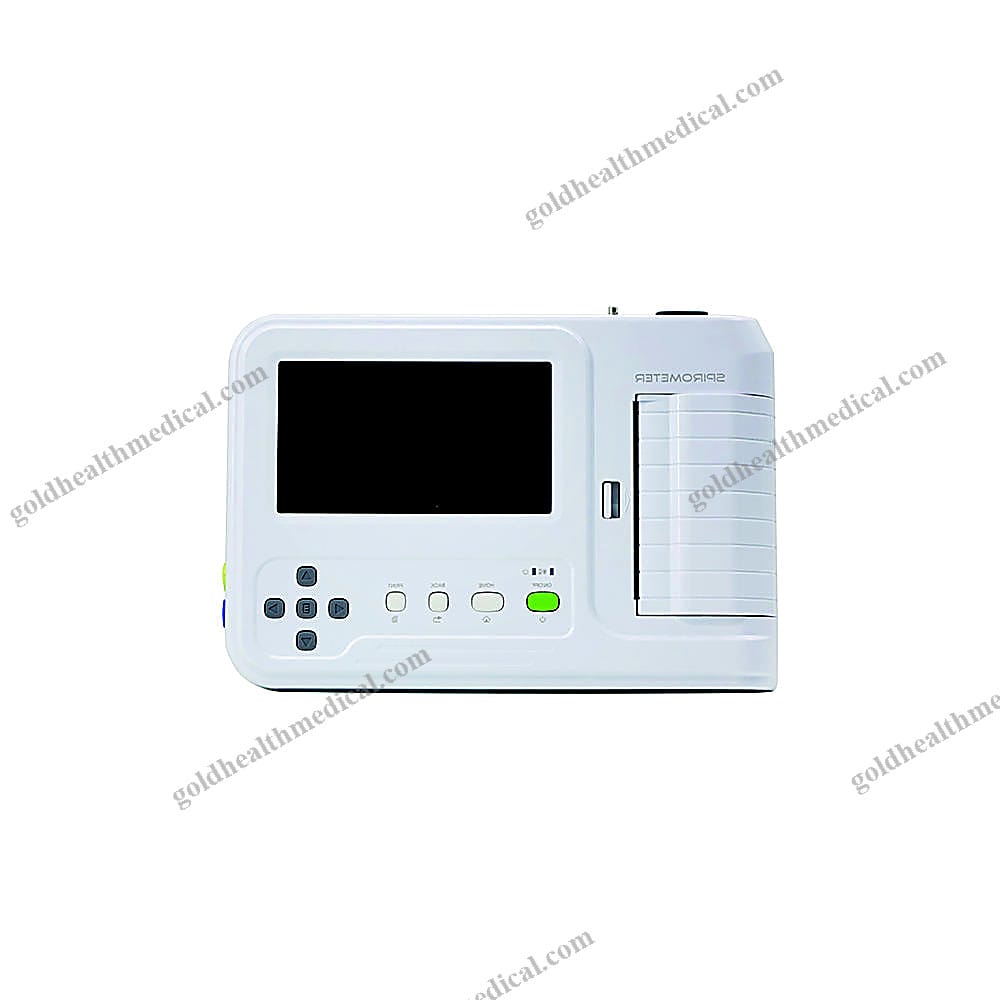

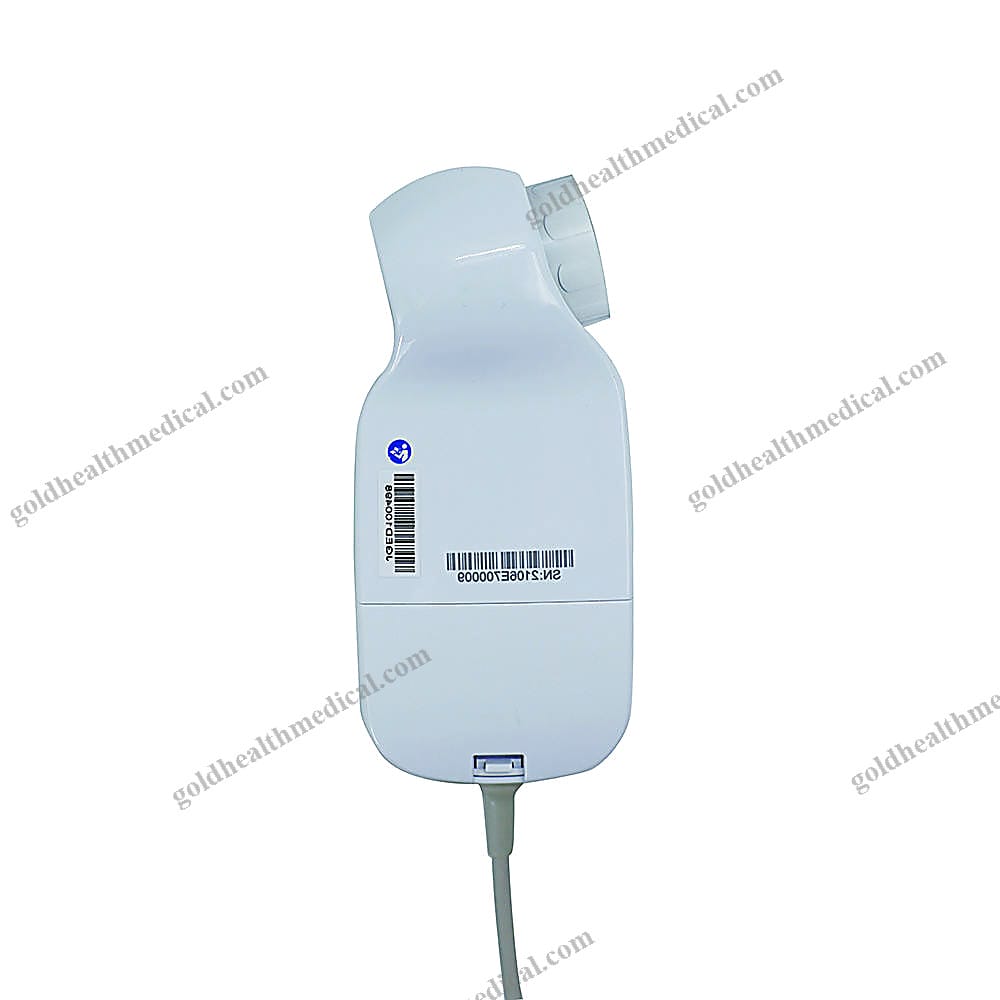

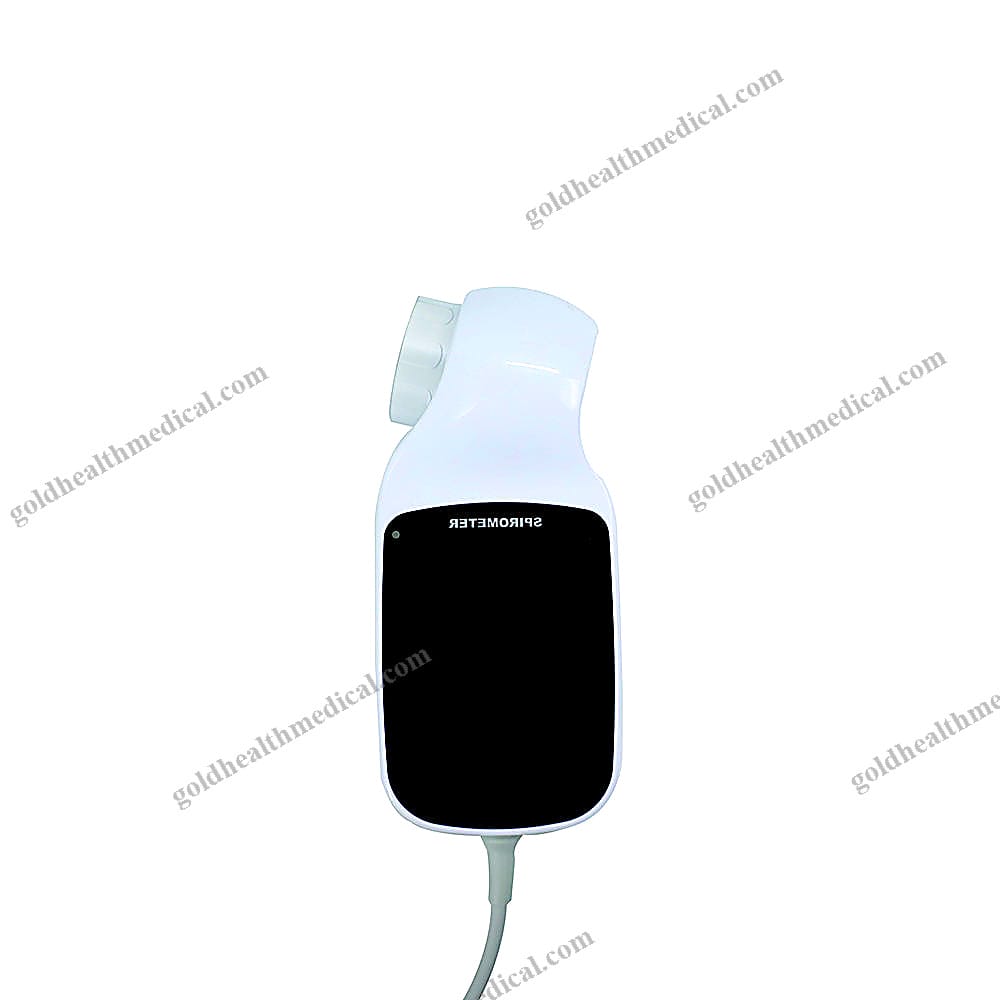

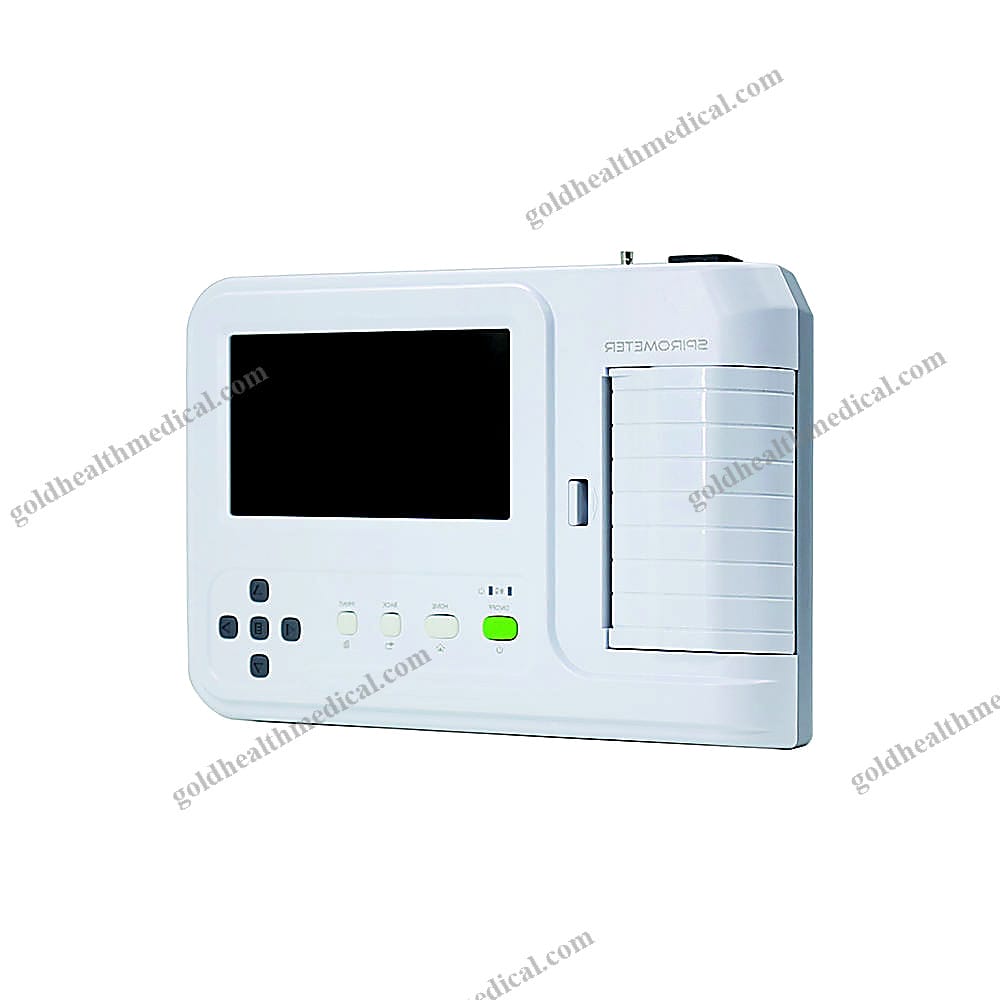

Portable Pulmonary Function Spirometer for Home and Clinical Use
Reference: 1601241143371
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Spirometer: Precision in Every Breath
The GoldHealth Medical Spirometer is a state-of-the-art portable lung function testing device designed to assess critical pulmonary parameters with exceptional accuracy. Engineered for versatility, it is ideal for use in hospitals, clinics, research institutions, rehabilitation centers, and even home environments. Its advanced functionality makes it equally effective for community health screenings, occupational health assessments, and epidemiological studies.
Key Features:
-
Comprehensive Parameter Measurement:
Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 50 additional parameters. Automatically selects the optimal result from multiple measurements and compares measured values to predicted norms for a clear assessment of respiratory health. -
Real-Time Waveform Visualization:
Displays Flow-Volume loops and Volume-Time curves in real time, providing immediate insights into respiratory performance. -
Intuitive Interface:
Equipped with a 7" color LCD touch screen and tactile buttons for seamless operation. Includes incentive animation guidance, making it user-friendly for both children and elderly patients. -
Built-In Thermal Printer:
Instantly generates detailed reports for immediate review and record-keeping. -
Advanced Environmental Compensation:
Features BTPS automatic correction to account for environmental variations, ensuring consistent accuracy regardless of location. -
Precision Calibration:
Built-in calibration functionality guarantees reliable and repeatable results. -
Extensive Data Storage:
Stores over 10,000 data sets, enabling comprehensive tracking of patient progress over time. -
Lung Age Estimation:
Provides an innovative lung age estimation feature to help patients better understand their respiratory health. -
Dual Power Options:
Powered by a built-in lithium battery, supporting both AC and DC operation for uninterrupted use in any setting.
Technical Specifications:
- Volume Range: 0–10 L (FVC)
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: 0–16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V–240 V~, 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Classification: Class I equipment, Type BF applied part
- Display: 7" color TFT touch screen
- Printing Paper: 112 mm (W) × 20 m (L) high-speed thermal paper
Why Choose GoldHealth Medical Spirometer?
- Unmatched Versatility: Suitable for diverse applications, from clinical diagnostics to occupational health screenings.
- User-Centric Design: Simplifies testing for patients of all ages with intuitive controls and engaging animations.
- Reliable Performance: Backed by advanced calibration and environmental correction technologies for consistent accuracy.
- Comprehensive Insights: Delivers detailed pulmonary function data and visualizations to support informed decision-making.
GoldHealth Medical is dedicated to delivering high-quality medical equipment that empowers healthcare professionals and enhances patient care. Our spirometer exemplifies our commitment to innovation, precision, and reliability in respiratory diagnostics.
Additional Product Details:
- Applications: Hospitals, clinics, research labs, rehabilitation centers, schools, factories, and home use.
- Unique Selling Points: Portable design, real-time waveform analysis, extensive parameter measurement, and user-friendly interface.
GoldHealth Medical: Elevating Respiratory Care Through Innovation.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Portable Lung Function Test Devices by GoldHealth Medical
Type: Advanced Spirometer
Key Features
- Unmatched Portability: Designed for seamless use in hospitals, clinics, laboratories, and even home care environments.
- Precision Engineering: Delivers accurate and reliable lung function measurements, empowering healthcare professionals with critical data.
- User-Friendly Design: Intuitive interface ensures ease of operation for both experienced practitioners and new users.
Technical Specifications
- Power Source: Electric, ensuring consistent performance without interruptions.
- Material: Durable, medical-grade plastic for long-lasting use and hygiene.
- Instrument Classification: Class II medical device, guaranteeing safety and efficacy.
- Shelf Life: 1 year from the date of manufacture.
- Quality Certification: CE-certified, meeting stringent international standards for medical devices.
After-Sale Support
- Comprehensive Warranty: Backed by a 1-year warranty for complete peace of mind.
- Dedicated Online Technical Support: Access expert assistance anytime to resolve queries or troubleshoot issues.
Unique Selling Points
- Compact and Lightweight: Perfect for on-the-go testing, whether in remote locations or within large healthcare facilities.
- Versatile Applications: Ideal for pulmonary function testing in diverse settings, including research institutions, rehabilitation centers, and elderly care facilities.
- Proven Reliability: Trusted by medical professionals worldwide for its accuracy and durability.
Origin
- Proudly crafted in Guangdong, China, with a commitment to innovation and quality in every unit.
GoldHealth Medical is dedicated to advancing respiratory health diagnostics with cutting-edge technology and superior design. Choose our Portable Lung Function Test Devices for precision, reliability, and convenience.
