Portable Lung Spirometer for Diagnostic Breathing Function Testing
Reference: 1600997221603
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

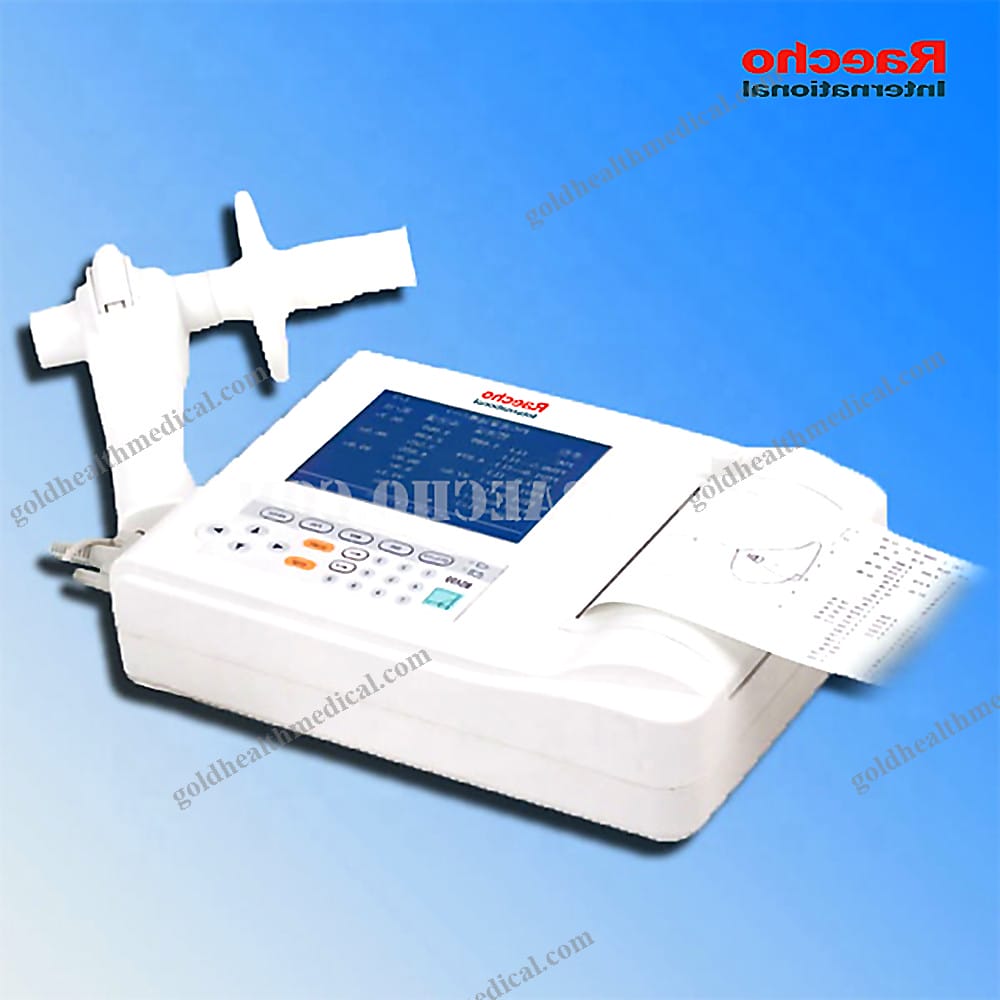

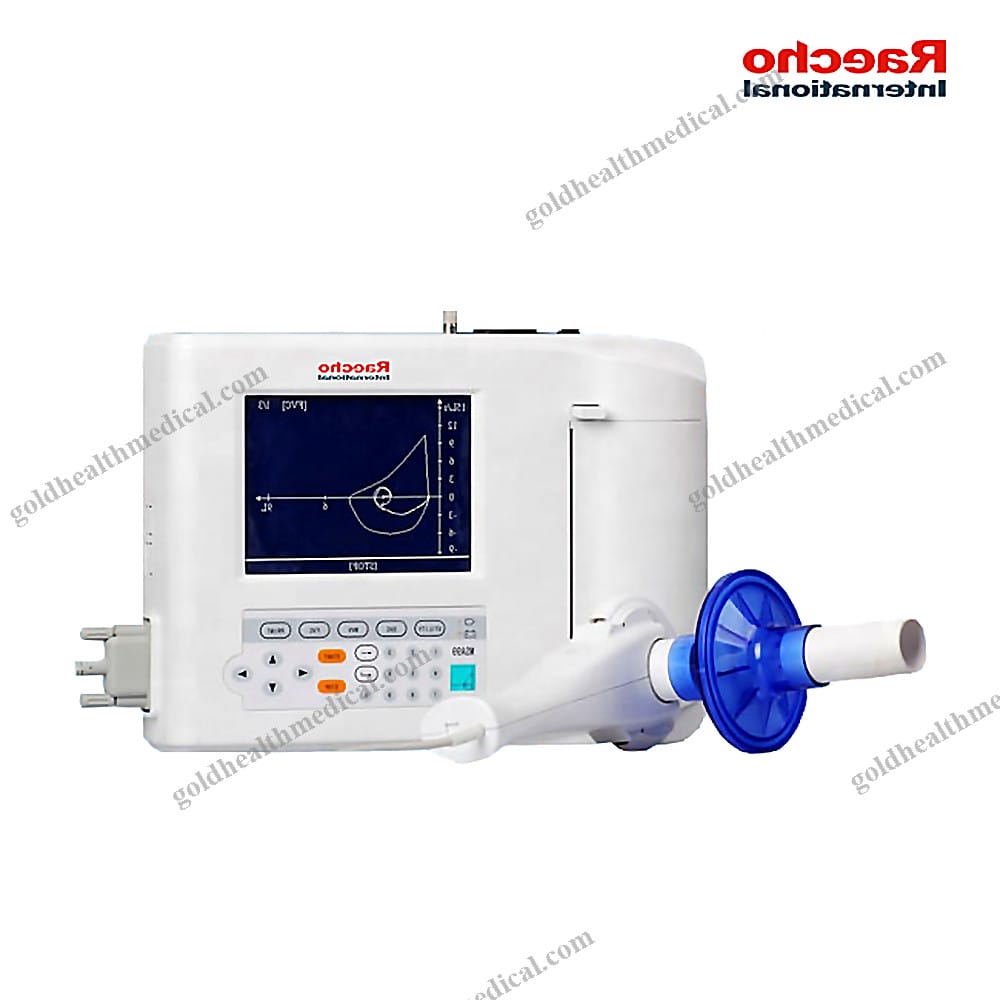

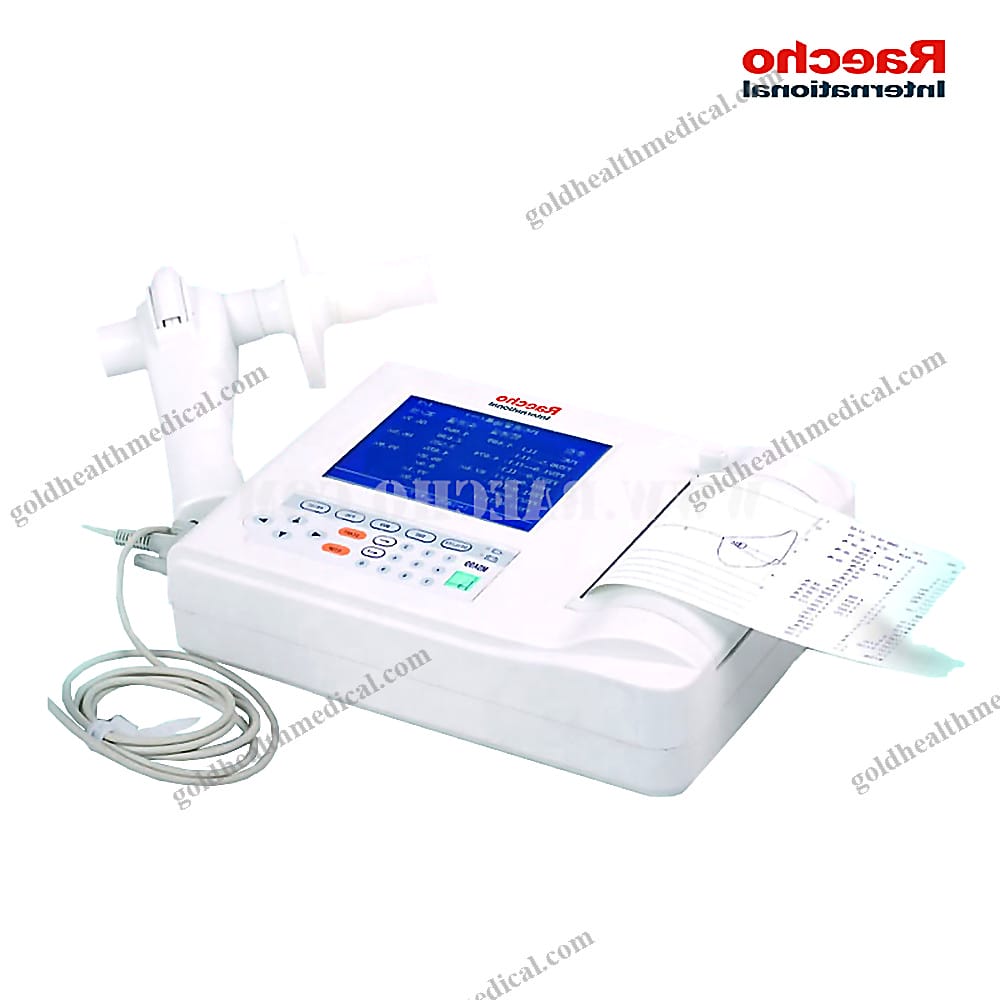

GoldHealth Medical Portable Spirometer
Product Overview
The GoldHealth Medical Portable Spirometer is a cutting-edge device designed to measure vital capacity (VC), forced vital capacity (FVC), and maximum ventilatory volume (MVV). Engineered with precision, it adheres to the ITS and ERS standards set by the American Thoracic Society (ATS), ensuring unparalleled accuracy and reliability in pulmonary function testing.
Key Features
- Advanced Display: A 5.7-inch, 320×240-dot monochrome LCD screen displays all parameters clearly and stores up to 300 measurement reports for easy access.
- Compact and Portable: Lightweight design with soft-touch keys ensures effortless handling and maintenance, making it ideal for both clinical and field use.
- Built-in Thermal Printer: Equipped with a precise 110mm thermal printer for instant, high-quality printouts of test results.
- Seamless Connectivity: Connects to a PC workstation via USB, enabling direct pulmonary function testing and storage of thousands of records.
- Pre- and Post-Medication Analysis: PC workstations support comparative analysis of measurements before and after medication, enhancing diagnostic precision.
- High-Precision Sensor: Utilizes a differential pressure flow sensor for accurate and consistent readings.
- Patient-Friendly Timing: Optimized measurement durations—VC (50 seconds), FVC (25 seconds), and MVV (12 seconds)—ensure smooth coordination between patients and the device.
- Automatic Calibration: Features intuitive all-English operation with automatic calibration for hassle-free use.
Technical Specifications
- Display: 5.7-inch monochrome LCD, 320×240 resolution
- Measurement Method: Flow velocity detection using a pressure gradient pneumatic flow sensor; capacity detection via flow velocity integral
- Measuring Range:
- Capacity: 0L to 9L
- Flow Velocity: 0 to 14L/s
- Accuracy:
- Capacity: ±50ml (0L to 1.6L), ±3% (6L to 9L)
- Flow Rate: ±5% or 0.2L/s
- Respiratory Rate: ±1/min (4–20/min), ±5% (20–60/min)
- Measurement Time:
- Vital Capacity: 50 seconds per test, up to 3 measurements
- FVC: 25 seconds per test, up to 3 measurements
- Maximum Ventilation Volume: 12 seconds per test, up to 3 measurements
- Thermal Printer:
- Method: Dot matrix
- Resolution: 8 d/mm (horizontal and vertical)
- Paper Width: 110mm
- Paper Length: 15m
- Feed Speed: 12.5, 25, and 50mm/s (±2%)
- Controls: UTILITY, SVC, FVC, MVV, PRINT, 10-WORD, START, and STOP keys
- Power Supply:
- AC: 100V–240V
- DC: Rechargeable Nickel-Metal Hydride (Ni-MH), 14.4V, 1.8Ah
- Safety Classification: IEC60601-1 Class I, Type CF
Why Choose GoldHealth Medical?
GoldHealth Medical’s Portable Spirometer combines precision engineering with user-centric design, delivering exceptional performance for healthcare professionals and patients alike. Its portability, advanced features, and compliance with global standards make it an indispensable tool for hospitals, clinics, research labs, and home care settings.
Applications
- Hospitals and Clinics
- Research Institutions
- Rehabilitation Centers
- Home Healthcare
GoldHealth Medical is committed to empowering healthcare providers with innovative, reliable, and precise medical devices. Experience the future of pulmonary diagnostics with our Portable Spirometer.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced pulmonary function testing device, meticulously engineered to deliver precision and reliability in respiratory diagnostics. Designed for healthcare professionals and institutions, this device sets a new benchmark in clinical performance and user experience.
Product Highlights
- Unmatched Accuracy: Utilizing a cutting-edge pressure gradient pneumatic flow sensor, this device ensures precise measurements of flow velocity and capacity, critical for accurate respiratory assessments.
- Intuitive Display: Equipped with a 5.7-inch monochrome LCD screen, featuring a resolution of 320x240, offering clear and detailed visualization of test results.
- Wide Measurement Range:
- Capacity Range: 0L to 9L
- Flow Velocity Range: 0 to 14L/s
- Vital Capacity: Measures every 50 seconds with 3 measurements
- FVC (Forced Vital Capacity): Measures every 25 seconds with 3 measurements
- Exceptional Precision:
- Capacity Accuracy: ±50ml (0L to 1.6L), ±3% (6L to 9L)
- Flow Rate Accuracy: ±5% or 0.2L/s
- Respiratory Rate: 4-20/min (±1/min), 20-60/min (±5% error)
- Durable Construction: Crafted from high-quality metal materials, ensuring long-lasting performance in demanding clinical environments.
- Class II Medical Instrument: Designed to meet the rigorous demands of professional healthcare settings.
Technical Specifications
- Power Source: Electric
- Shelf Life: 1 year
- Flow Velocity Detection: Pressure gradient pneumatic flow sensor
- Capacity Detection: Flow velocity integral
- Display: 5.7-inch monochrome LCD, 320x240 resolution
- Measurement Capabilities:
- Capacity Range: 0L to 9L
- Flow Velocity Range: 0 to 14L/s
- Vital Capacity: Every 50 seconds, 3 measurements
- FVC: Every 25 seconds, 3 measurements
- Respiratory Rate: 4-20/min (±1/min), 20-60/min (±5% error)
Support and Assurance
- Comprehensive Warranty: Backed by a 1-year warranty, ensuring peace of mind for users.
- Dedicated After-Sales Service: Access to online technical support for seamless operation and troubleshooting.
GoldHealth Medical is committed to empowering healthcare providers with innovative tools that enhance patient care and diagnostic accuracy. This pulmonary function testing device exemplifies our dedication to quality, precision, and reliability.
