Portable ECG Monitor with Thermal Printer
Reference: 1600067253339
Visual Acuity Examination Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

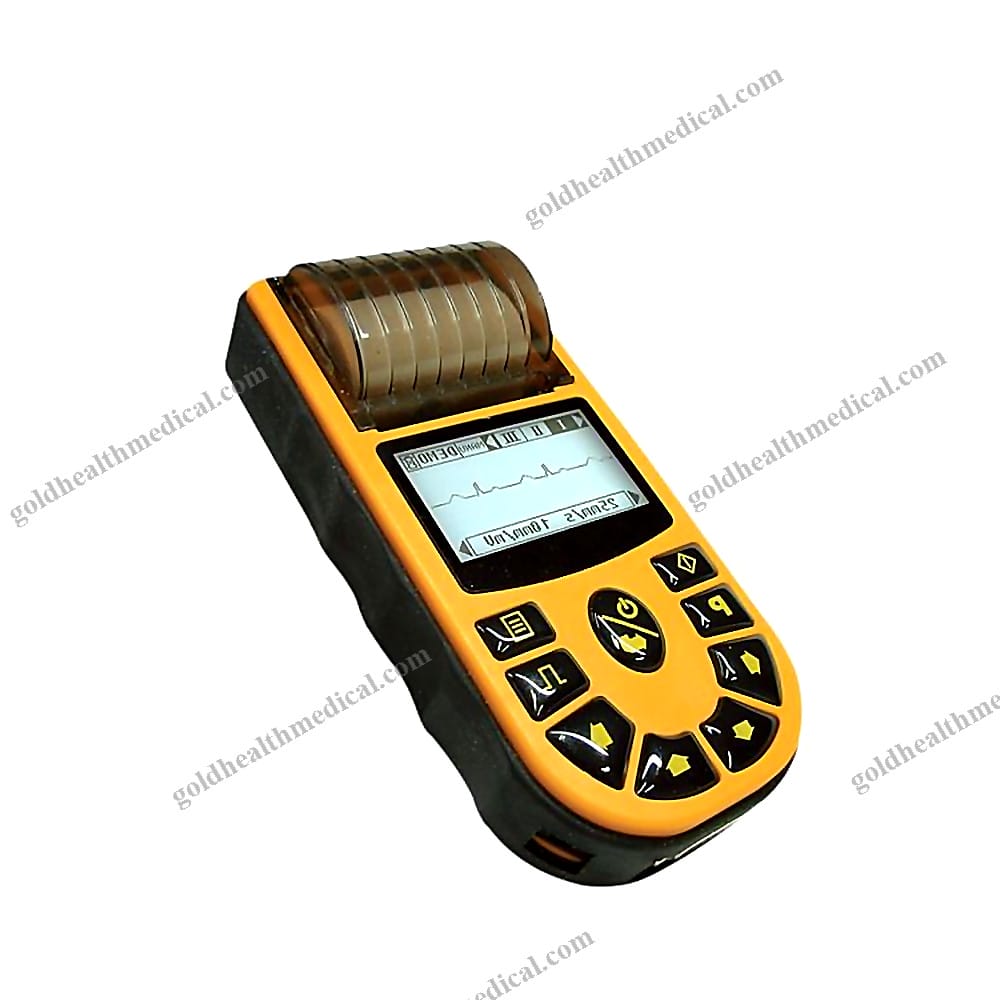

GoldHealth Medical Portable ECG Monitor with Thermal Printer
Product Overview
GoldHealth Medical introduces a state-of-the-art portable ECG monitor designed to deliver precision, efficiency, and reliability in cardiac diagnostics. Engineered for seamless operation in diverse medical environments, this device combines advanced signal processing with an intuitive user interface, making it an indispensable tool for healthcare professionals.
Key Features
- High-Resolution Thermal Printing: Equipped with a thermal-array system (32 dots/mm) that requires no adjustments, ensuring sharp and accurate waveform recordings with a frequency response of 150Hz (-3dB, +0.4dB).
- Precision Recording: Captures exact single ECG waveforms with detailed annotations, including lead sign, sensitivity, paper speed, and filter status.
- One-Touch Operation: Under automatic mode, a single button press initiates the recording process, significantly enhancing workflow efficiency.
- Multilingual Interface: Supports multiple languages, including English, French, Italian, Turkish, and Spanish, catering to a global audience.
- Touch-Control Keyboard: Features a fully touch-sensitive keyboard for effortless operation.
- Clear LCD Display: Provides real-time visibility of operational states, ensuring ease of use and readability.
- Advanced Signal Processing: Employs a digital signal processor to effectively suppress AC, EMG, and DFT interference, delivering superior ECG waveforms.
- Continuous Operation: Designed for uninterrupted use, classified as continuous operation equipment under IEC standards.
- Long Battery Life: Powered by a lithium rechargeable battery, capable of recording up to 150 ECG waveforms or 90 minutes of continuous operation under optimal conditions.
- Elegant Design: Combines sleek aesthetics with a smooth, user-friendly form factor.
Technical Specifications
- Measurement Parameters:
- EMG Interference Filter: 35Hz (-3dB)
- AC Filter: 50Hz/60Hz (≥20dB)
- Sensitivity Options: 5, 10, 20mm/mV (±5% error; standard sensitivity: 10mm/mV ±0.2mm/mV)
- Input Specifications:
- Input Method: Floating with defibrillation protection
- Lead Configuration: Standard 12 leads
- Patient Leak Current: <10µA
- Sampling Rate: 1000Hz
- A/D Conversion: 12-bit
- Frequency Response: 0.05Hz~150Hz (-3dB, +0.4dB)
- Time Constant: >3.2s
- CMRR: >60dB (>100dB with filter)
- Enduring Polarization Voltage: ±500mV
- Noise Level: ≤15µVp-p
- Recording Specifications:
- Recording Method: Thermal printing system
- Auto-Record: Configurable auto-mode with automatic lead switching, measurement, and analysis
- Manual Record: Customizable recording format with manual lead switching
- Paper Specifications: 50mm(W) × 20mm(L) high-speed thermal paper
- Paper Speed: 25mm/s, 50mm/s (±5% error)
- Power Supply:
- Input: AC 100-240V, 50/60Hz
- Output: DC 9V, DC 7.4V (lithium rechargeable battery)
- Environmental Conditions:
- Operating Temperature: +5°C to +35°C
- Relative Humidity: ≤80%
- Atmospheric Pressure: 86kPa~106kPa
- Storage/Transport Temperature: -10°C to +55°C
- Relative Humidity (Storage): ≤95%
- Atmospheric Pressure (Storage): 50kPa~106kPa
- Dimensions and Weight:
- Size: 190mm(L) × 90mm(W) × 40mm(H)
- Net Weight: 0.45kg
Safety and Compliance
- Classification: IEC Class I, Type CF
- Safety Standards: Designed for use in non-flammable environments and complies with international safety regulations.
Why Choose GoldHealth Medical?
GoldHealth Medical’s portable ECG monitor stands out with its cutting-edge technology, ergonomic design, and unwavering commitment to quality. Whether in hospitals, clinics, or home care settings, this device ensures accurate diagnostics and enhances operational efficiency. Backed by rigorous quality control processes and a two-year warranty, it is the ultimate solution for modern cardiac care.
Frequently Asked Questions
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Electrocardiograph Portable ECG Machine by GoldHealth Medical
Key Features and Benefits:
- Advanced Diagnostics: Designed for precision and reliability, this portable ECG machine is a vital tool for diagnosing cardiac conditions in various medical settings.
- Lightweight and Portable: Compact design with a weight of just 3KG, making it easy to transport and use in clinics, hospitals, laboratories, or even at home.
- Long-Lasting Power: Equipped with a rechargeable lithium battery, ensuring uninterrupted performance during critical procedures.
- Durable Construction: Made from high-quality plastic materials, built to withstand daily use while maintaining its sleek, professional appearance.
Technical Specifications:
- Instrument Classification: Class II medical device
- Safety Standard Compliance: Meets GB/T 32610 standards for safety and performance
- Power Source: Rechargeable lithium battery
- Shelf Life: 1 year from the date of manufacture
- Color: Modern yellow finish for visibility and aesthetic appeal
- Packing Dimensions: 41 x 20 x 30 cm (carton packaging)
- Gross Weight (GW): 3KG
Certifications and Standards:
- Quality Certifications: CE, ISO
- Compliance: Meets international safety and quality benchmarks, ensuring confidence in every use.
Applications:
- Ideal for use in hospitals, clinics, research institutions, rehabilitation centers, and home healthcare.
- Supports accurate diagnosis in cardiology, general practice, and emergency care.
Warranty and Support:
- Warranty: 2-year comprehensive warranty for peace of mind.
- After-Sales Service: Includes free spare parts to ensure long-term usability and customer satisfaction.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare professionals and improve patient outcomes. Our portable ECG machine combines cutting-edge technology with user-friendly design, setting a new standard for cardiac diagnostics.
Additional Details:
- Functionality: Specifically designed for diagnosing heart conditions with accuracy and ease.
- Versatility: Suitable for a wide range of applications in the medical field, including cardiology, geriatrics, and emergency response.
Choose GoldHealth Medical’s Portable ECG Machine for unmatched precision, portability, and reliability in cardiac care.
