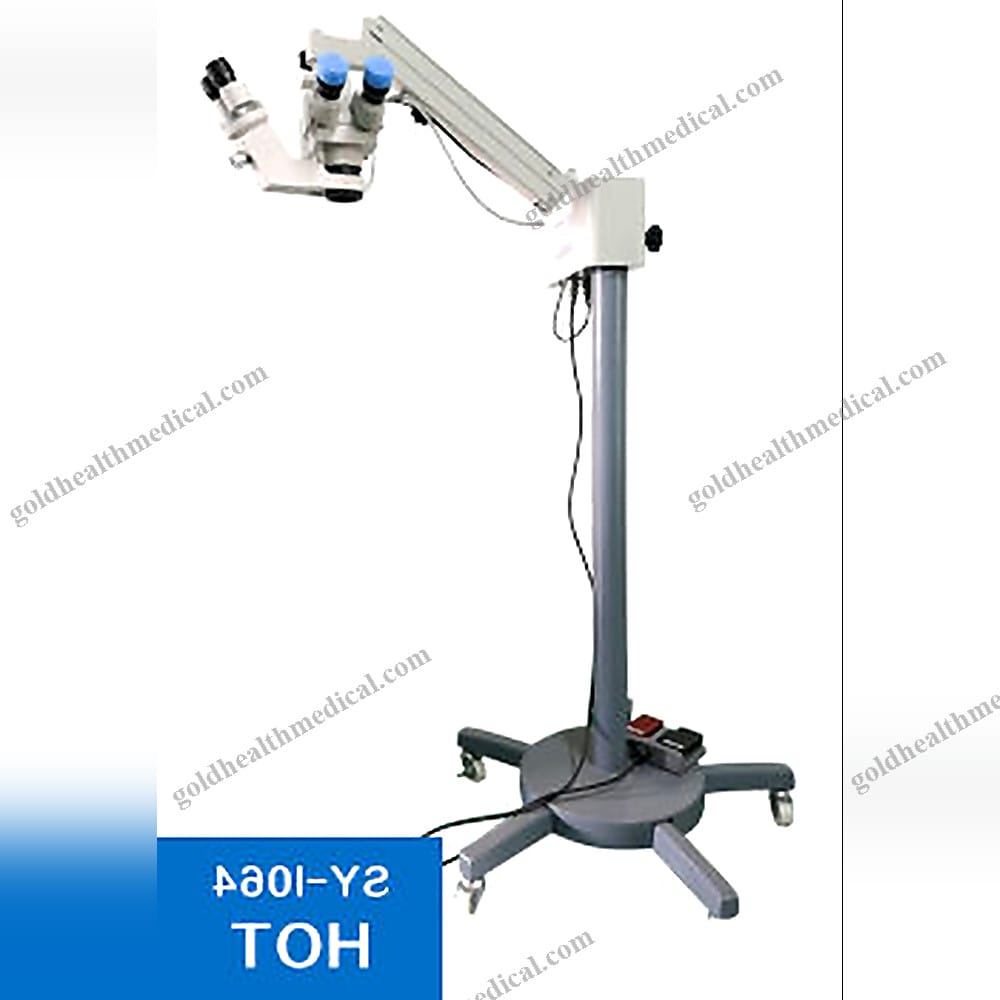

SYI064 Ophthalmology Microsurgery Operating Microscope
Reference: 1601345546862Visual Acuity Examination Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

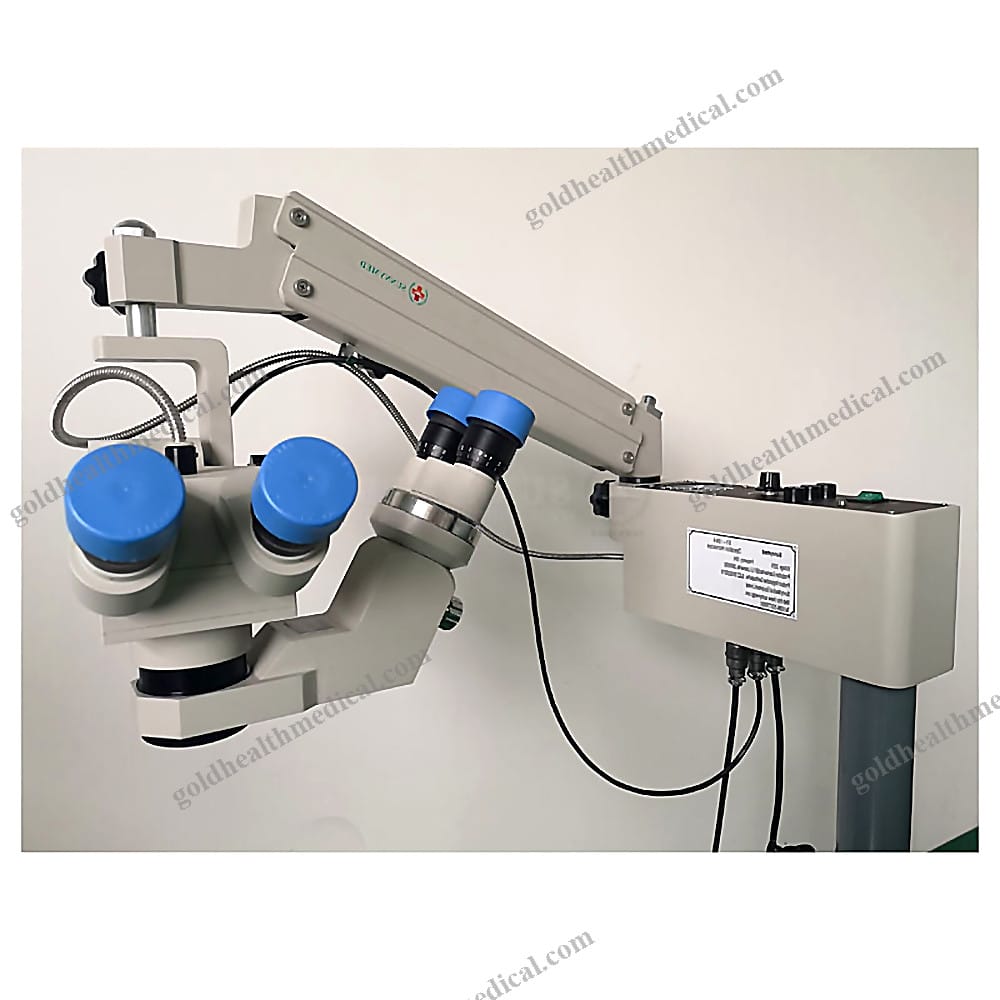

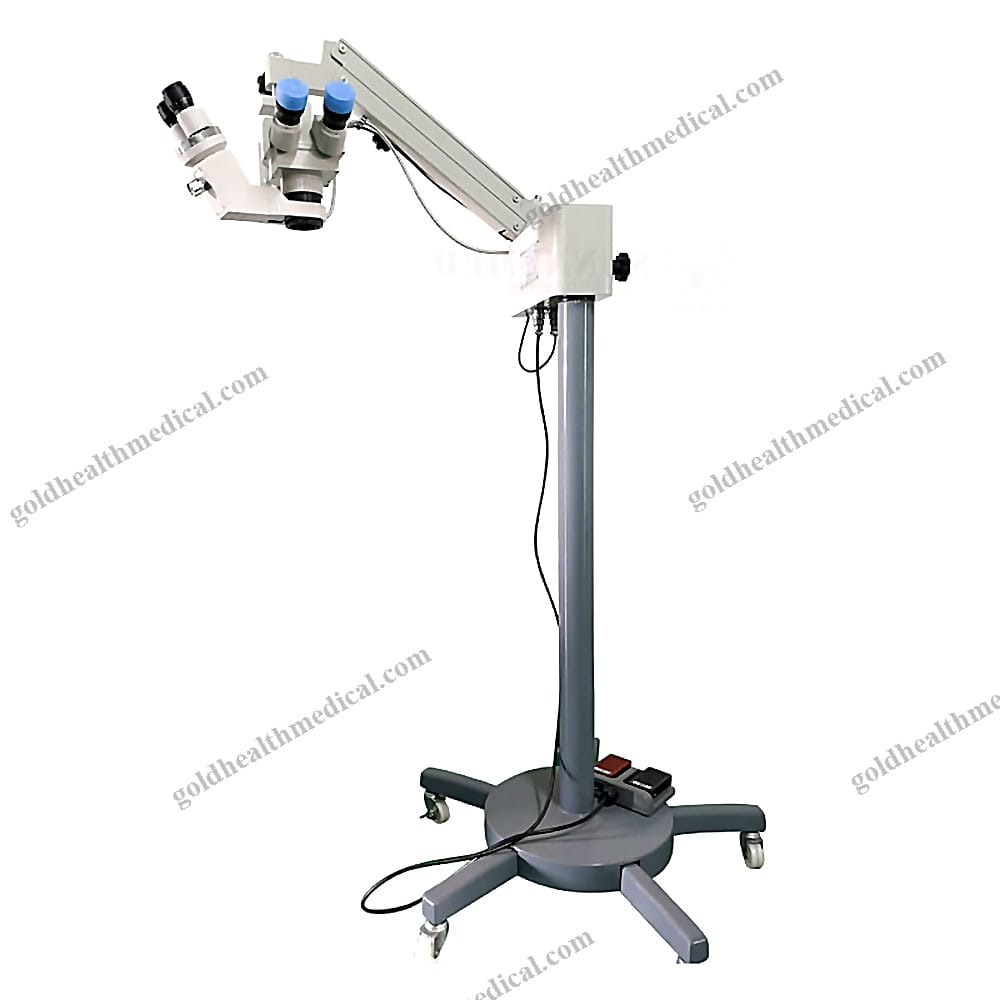

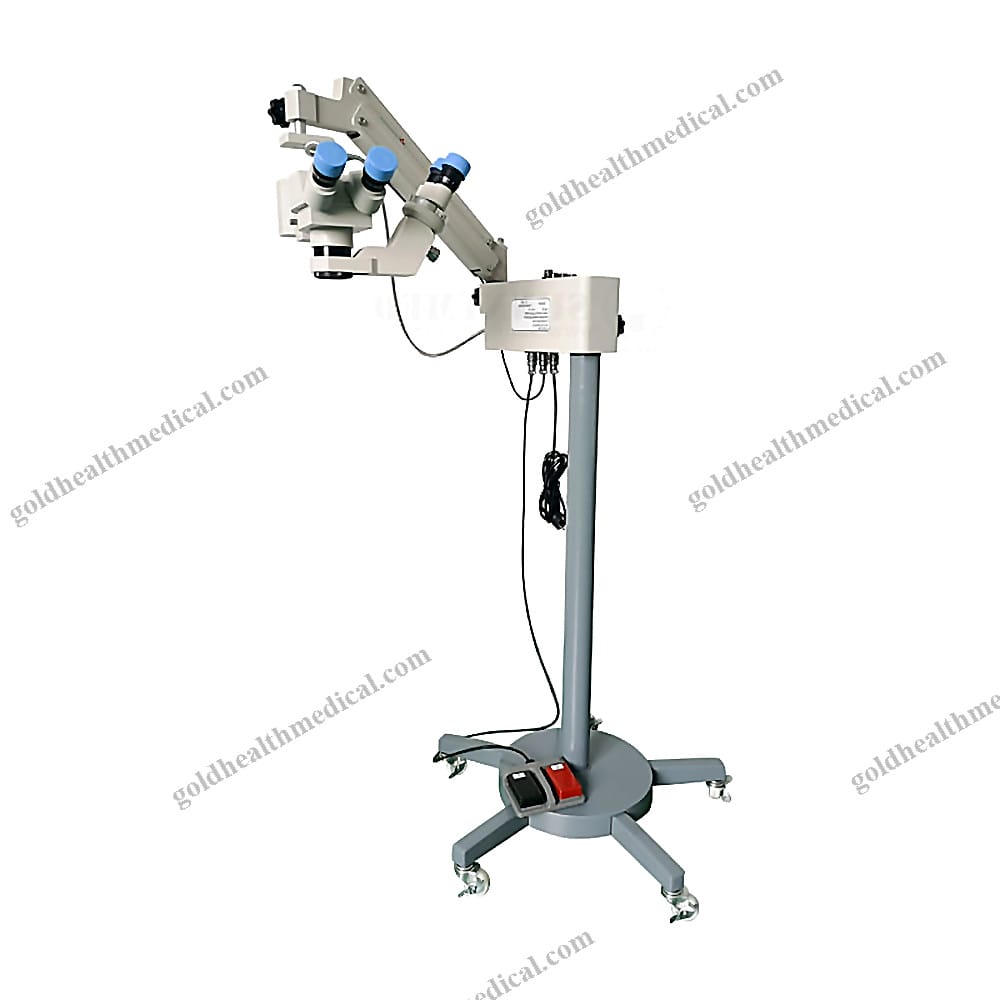

GoldHealth Medical Microscope: Precision Redefined for Ophthalmology
Product Overview
The GoldHealth Medical Microscope is meticulously engineered for ophthalmology surgeries, offering unparalleled precision and adaptability. Designed to meet the demands of modern medical practices, this microscope supports seamless operation by one, two, or three surgeons simultaneously, making it ideal for both surgical procedures and teaching environments. Its advanced features ensure smooth zooming, rapid focusing, and exceptional illumination control, delivering an unmatched user experience.
Key Features and Specifications
- Smooth and Continuous Zooming
- Controlled via ergonomic knobs or a foot panel for effortless adjustments.
Smooth transitions between magnifications for uninterrupted workflows.
Advanced Focusing System
- Rapid focusing for small adjustments and precise, retarded focusing for larger increments.
Focusing speed: ≤2.5mm/s with an adjustment range of ≥40mm.

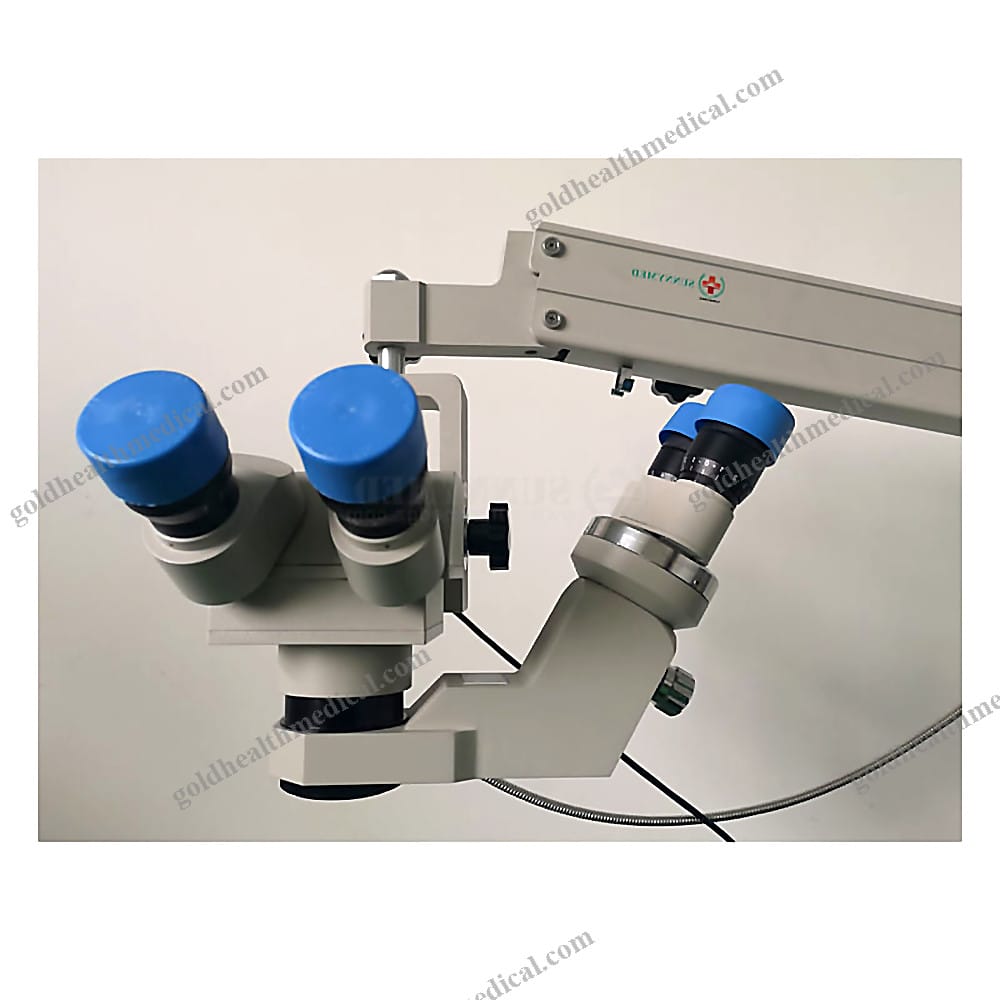

Optical Excellence
- Apochromatic optical system for superior clarity and color accuracy.
- Main and assistant eyepieces: 12.5X wide-field eyepieces with dioptric adjustment (+5/-5) and IPD adjustment (55mm–75mm).
View head rotates 180° for optimal positioning.
Versatile Objectives
- Three interchangeable objectives tailored for varying surgical depths.
- Main objective zoom: 10X; assistant objective zoom: 4X.
Sight range: 27.5mm; working distance: 200mm.
Superior Illumination
- Coaxial cold light illumination with an 8V/50W OSRAM halogen lamp.
Three-level brightness control (≥50,000LX) via knobs or foot panel for precise lighting adjustments.
Ergonomic Design
- Extension arm with an 800mm radius, rotating smoothly around its axis for maximum flexibility.
- Automatic balancing ensures stability at any position.
Height adjustable from 1.8m to 2m for user comfort.

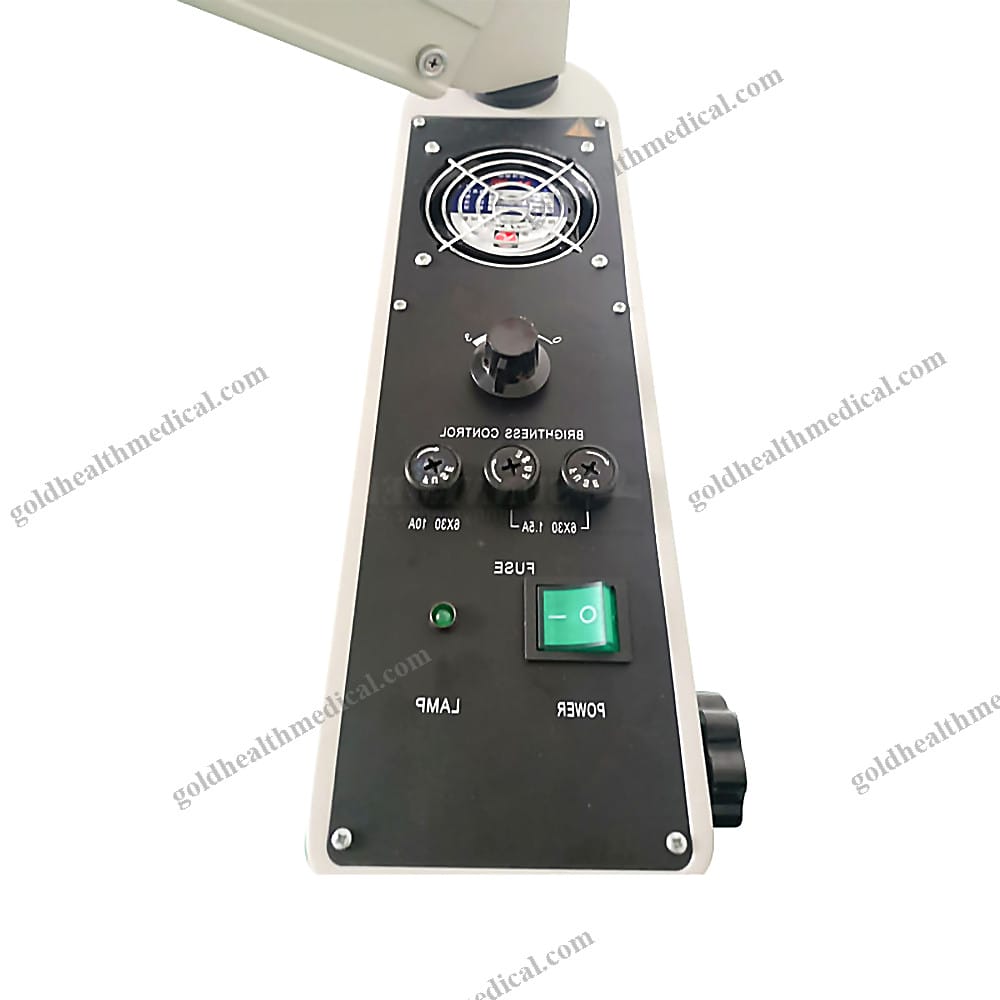

Multifunctional Control Panel
- Integrated into the support system for intuitive operation.
Includes X-Y movement control (40mm x 40mm range) via foot panel.
Power Supply
- Operates on AC220V, 50Hz.
Optional Enhancements
- Attachable camera system for documentation and analysis.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering cutting-edge medical equipment designed to elevate patient care and surgical precision. Our microscopes combine innovative technology with user-centric design, ensuring reliability and performance in every application. Trusted by hospitals, clinics, and research institutions worldwide, our products are synonymous with quality and innovation.
Applications
- Ophthalmology surgeries
- Medical training and education
- Research and laboratory use
- Rehabilitation and diagnostic procedures
Experience the GoldHealth Medical difference—where precision meets innovation.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Surgical Operating Microscope by GoldHealth Medical
Key Features and Benefits:
- Precision Redefined: Designed for unparalleled accuracy in medical procedures, this surgical operating microscope is ideal for kidney disease analysis, hospital use, and home healthcare environments.
- Advanced Optical Performance: Equipped with a 10X magnification main microscope and a 4X magnification vice microscope, ensuring every detail is captured with clarity.
- Optimal Working Conditions: Features a 200mm working distance and an adjustable pupillary distance range of 54-75mm, providing ergonomic comfort and adaptability for diverse users.
- Superior Illumination: Delivers a maximum illuminance of 30,000 lux, enabling clear visualization even in the most intricate procedures.
- Binocular Design: The binocular drawtube enhances depth perception and reduces eye strain during prolonged use.
Technical Specifications:
- Instrument Classification: Class II medical device
- Power Source: Electric
- Shelf Life: 1 year
- Quality Certification: CE-approved for safety and reliability
Applications:
- Tailored for use in hospitals, clinics, research laboratories, rehabilitation centers, and home healthcare settings.
- Specifically optimized for kidney disease analysis and other precision-driven medical applications.
After-Sales Support:
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support, ensuring uninterrupted performance and quick resolution of queries.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver medical equipment that meets the highest standards of quality and functionality. Our surgical operating microscope is engineered to empower healthcare professionals with the tools they need to achieve exceptional outcomes.
Place of Origin: Guangdong, China
Theory: Operating Microscope
