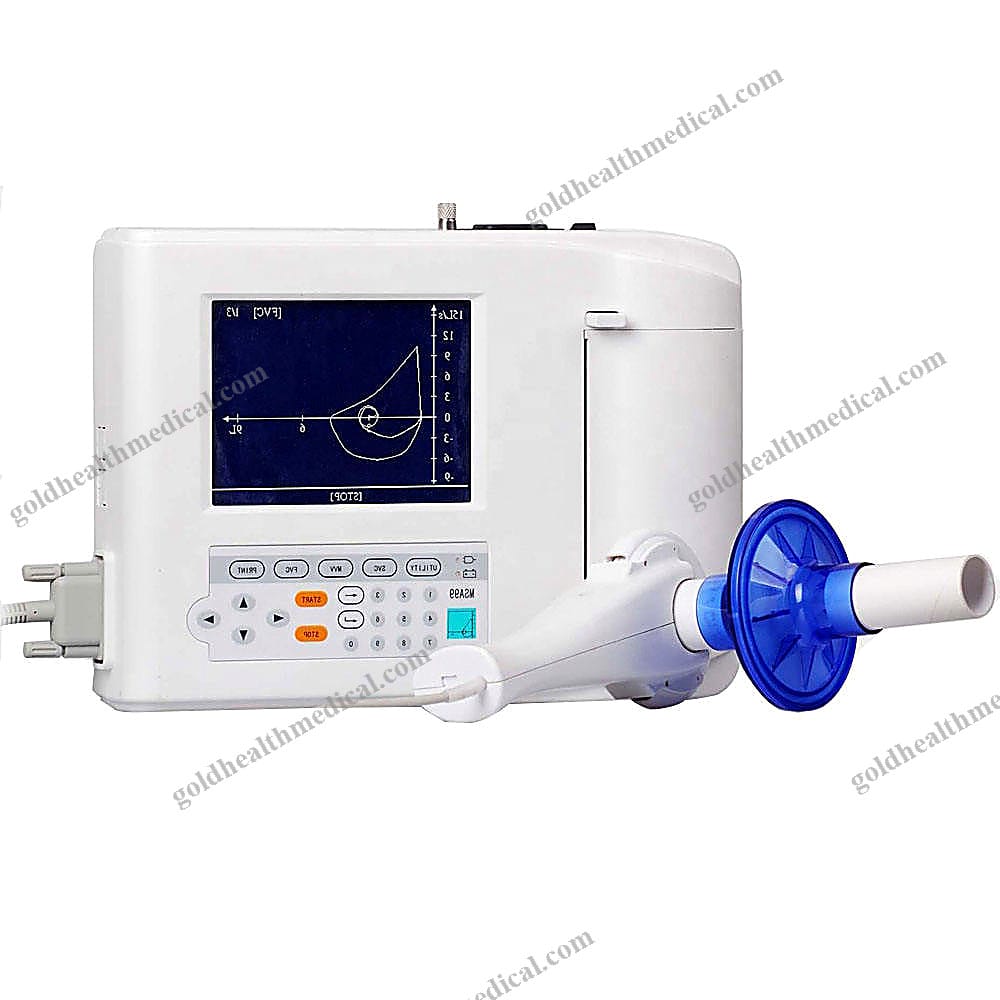

Portable Digital Spirometer for Hospitals
Reference: 60649356024
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents the Portable Spirometer – a cutting-edge solution for pulmonary function testing. Designed to meet the highest standards in medical diagnostics, this device is ideal for hospitals, clinics, and research institutions.
Key Features
- Precision Redefined: Equipped with a high-accuracy flow sensor that ensures reliable measurements while being easy to clean and sterilize for long-term durability.
- Advanced Display: A 5.7-inch monochrome LCD with 320x240 resolution provides clear visuals, and the device can store up to 300 measurement records.
- Built-In Thermal Printer: Includes a precise 110mm thermal printer for instant, detailed reports.
- Compact and Portable: Lightweight and small in size, it’s perfect for on-the-go use in various medical settings.
- Seamless Connectivity: Connects to a PC workstation via USB for direct pulmonary function testing. The PC workstation supports advanced features like post-bronchodilator testing and multi-language display/report printing.
- Global Compatibility: Supports multiple prediction equations (ITS, ECGS, KNUDSON, MORRIS/DOLGAR) tailored for different ethnicities, ensuring accurate results across diverse populations.
- Compliance with Standards: Meets ITS, NIOSH, ERS, and DIAGNOSIS standards, guaranteeing precision and reliability.
Technical Specifications
- Display:
- 5.7-inch diagonal monochrome LCD
-
Resolution: 320x240 pixels
-
Control Functions:
- Standard keys: UTILITY, SVC, FVC, MVV, PRINT, 10-WORD, START, STOP, and more
-
Light alarm for alerts
-
Measurement Technology:
- Flow velocity detection: Pressure gradient pneumatic flow sensor
-
Capacity detection: Flow velocity integral
-
Measuring Range:
- Capacity: 0L to 9L
-
Flow velocity: 0 to 14L/s
-
Measurement Accuracy:
- Capacity:
- 0L to 1.6L: ±50ml
- 6L to 9L: ±3%
- Flow rate: ±5% or 0.2L/s
-
Respiratory rate:
- 4-20/min: ±1/min
- 20-60/min: ±5%
-
Testing Parameters:
- Vital Capacity: Every 50 seconds, 3 measurements
- FVC: Per second, 25 seconds, 3 measurements
-
Maximum Ventilation Volume: Every 12 seconds, 3 measurements
-
Paper Recorder:
- Method: Dot matrix
- Resolution: 8 dots/mm (horizontal and vertical)
- Paper width: 110mm
- Paper length: 15m
-
Feed speed: 12.5, 25, and 50mm/s (±2%)
-
Power Supply:
- AC: 100V-240V
-
DC: Rechargeable Nickel-Metal Hydride (Ni-MH), 14.4V, 1.8Ah
-
Safety Classification:
- IEC60601-1 Class I, Type CF
Why Choose GoldHealth Medical’s Spirometer?
This spirometer combines portability, precision, and versatility, making it an indispensable tool for healthcare professionals. Its compliance with global standards, multi-language support, and advanced connectivity options ensure it meets the needs of modern medical practices. Whether for clinical diagnostics, research, or home care, this device delivers unparalleled performance and reliability.
Elevate your pulmonary function testing with GoldHealth Medical’s Portable Spirometer – where innovation meets accuracy.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Digitail Spirometer
A cutting-edge solution designed for precision lung testing, tailored to meet the needs of medical professionals, researchers, and caregivers alike.
Product Highlights
- Advanced Display: Equipped with a 5.7-inch LCD monitor for clear, real-time data visualization.
- Wide Measuring Range: Measures lung capacity from 0-9L and flow velocity from 0-14L/S, ensuring accurate diagnostics across diverse patient profiles.
- Durable Construction: Crafted from high-quality acrylic and metal, built to withstand rigorous daily use.
- Universal Power Compatibility: Operates seamlessly with AC 100V-240V power supply, making it ideal for global use.
Technical Specifications
- Instrument Classification: Class II medical device
- Safety Standard Compliance: GB2626-2006
- Measuring Range:
- Capacity Range: 0-9L
- Flow Velocity Range: 0-14L/S
- Power Source: Electric
- Shelf Life: 2 years
- Color Options: Sleek blue and white design
Certifications and Standards
- ISO Certified
- CE Quality Certification
Applications
- Designed for comprehensive lung function testing in hospitals, clinics, research labs, and home care settings.
Support and Warranty
- Warranty: 2-year coverage for peace of mind
- After-Sales Service: Access to online technical support for seamless operation
Supply and Delivery
- Origin: Guangdong, China
- Supply Capacity: Up to 5,000 sets per month
- Packaging: Standard protective packaging for secure transit
GoldHealth Medical’s Digitail Spirometer combines precision engineering with user-centric design, empowering healthcare providers to deliver exceptional patient care. Choose reliability, accuracy, and innovation—choose GoldHealth Medical.
