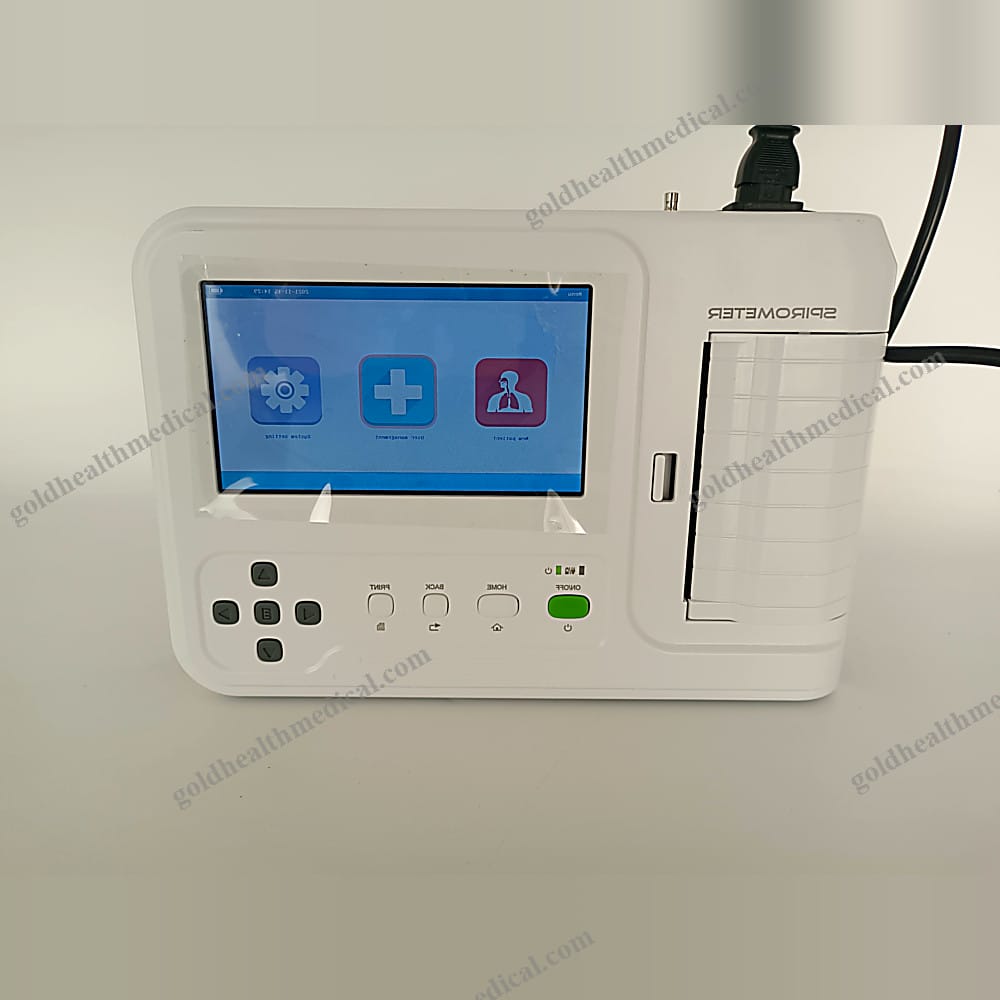

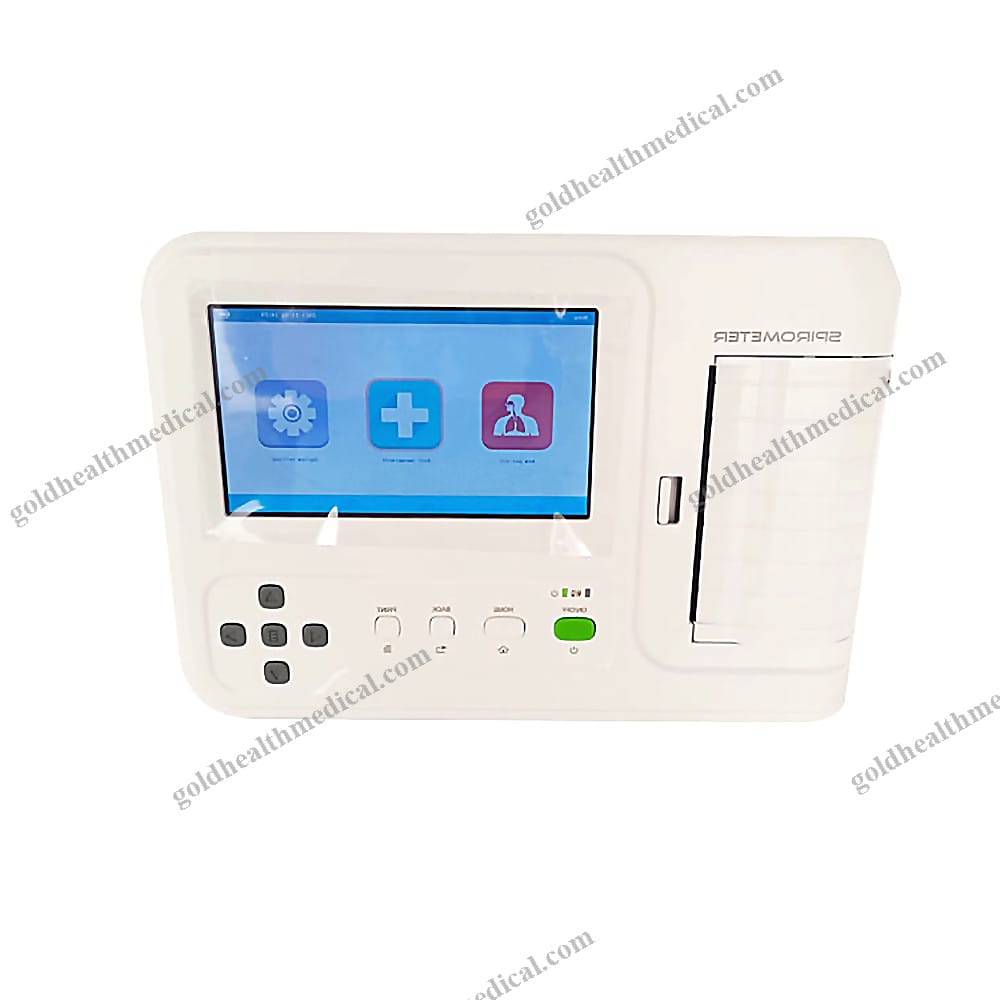

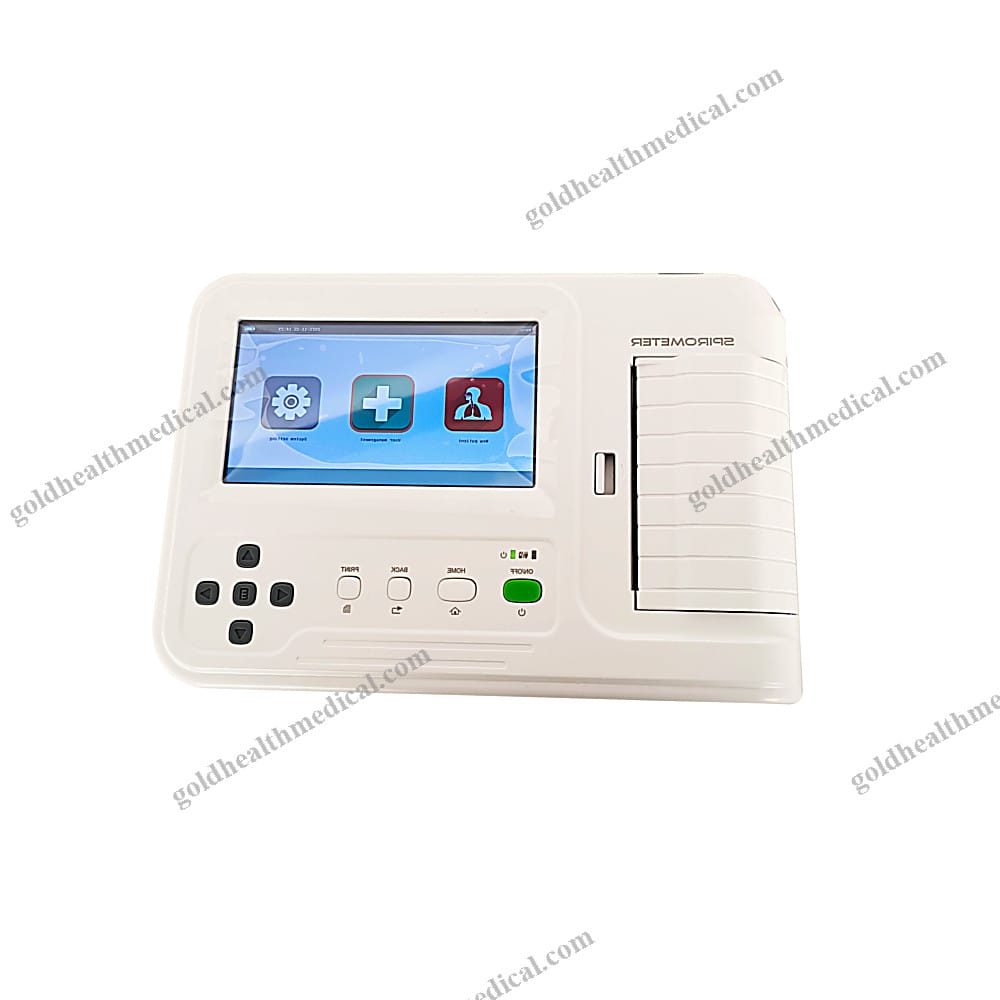

Portable Color Desktop Spirometer Pulmonary Function Tester
Reference: 1600223276628
Spirometer
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Portable Spirometer
Introduction
The GoldHealth Medical Portable Spirometer is a cutting-edge lung function testing device designed to assess critical pulmonary parameters. It is versatile enough for use in hospitals, clinics, and other healthcare settings, while also being ideal for community health screenings, schools, factories, and more.
Features
- Comprehensive Measurement Capabilities: Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 30 additional parameters. Automatically displays the best result from multiple measurements and compares measured values to predicted values.
- Key Parameters Include:
- Forced Vital Capacity (FVC): FVC, FEV1, PEF, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV
- Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot
- Maximum Ventilatory Volume (MVV): MVV

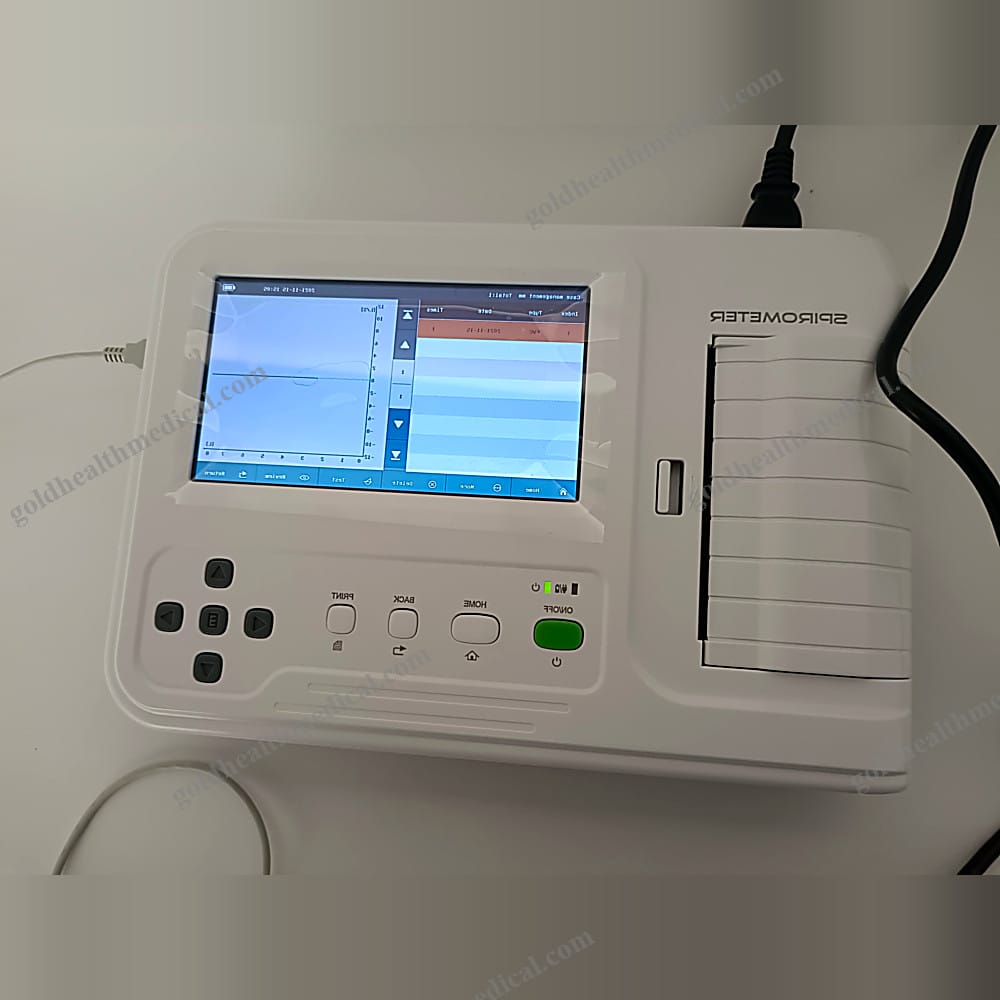

- Real-Time Waveform Display: Provides Flow-Volume loop and Volume-Time curve charts for immediate visual feedback.
- Intuitive Interface: Equipped with a 7" color LCD touch screen and physical buttons for seamless operation.
- User-Friendly Guidance: Features incentive animation to assist users of all ages, including children and the elderly.

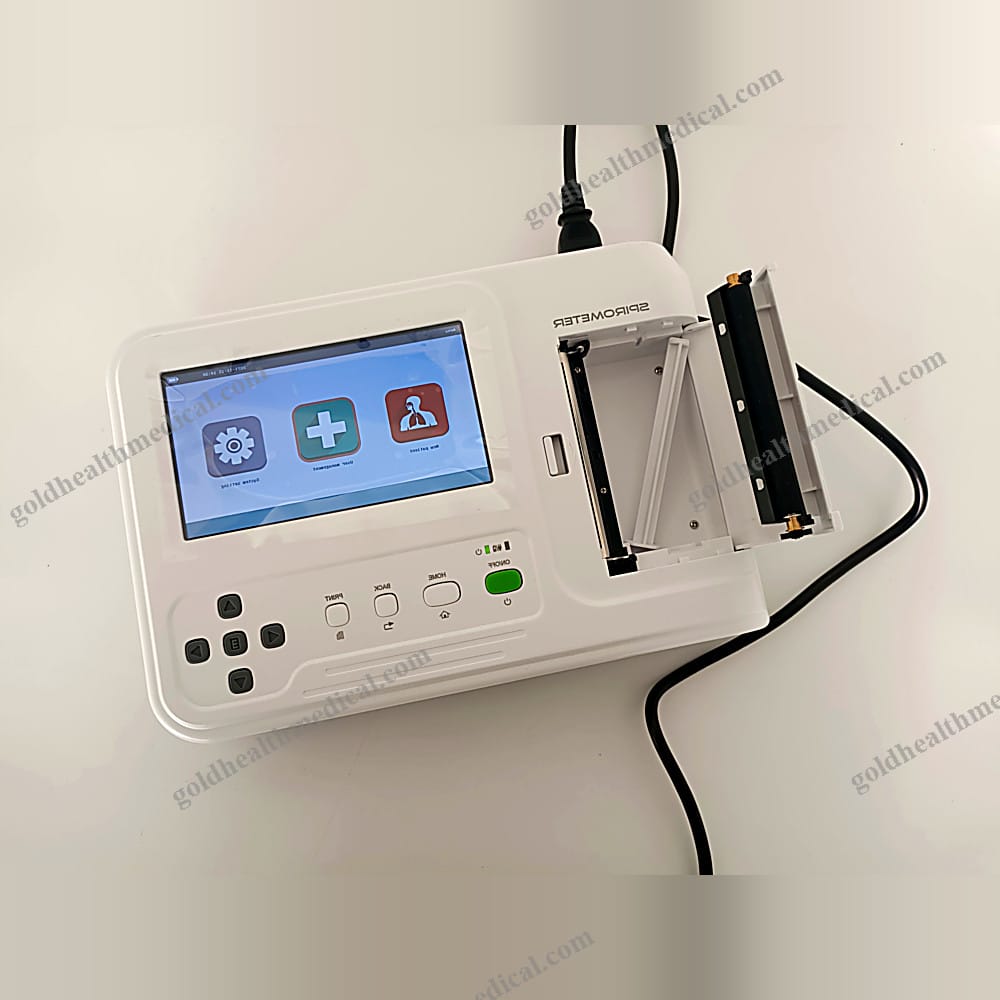

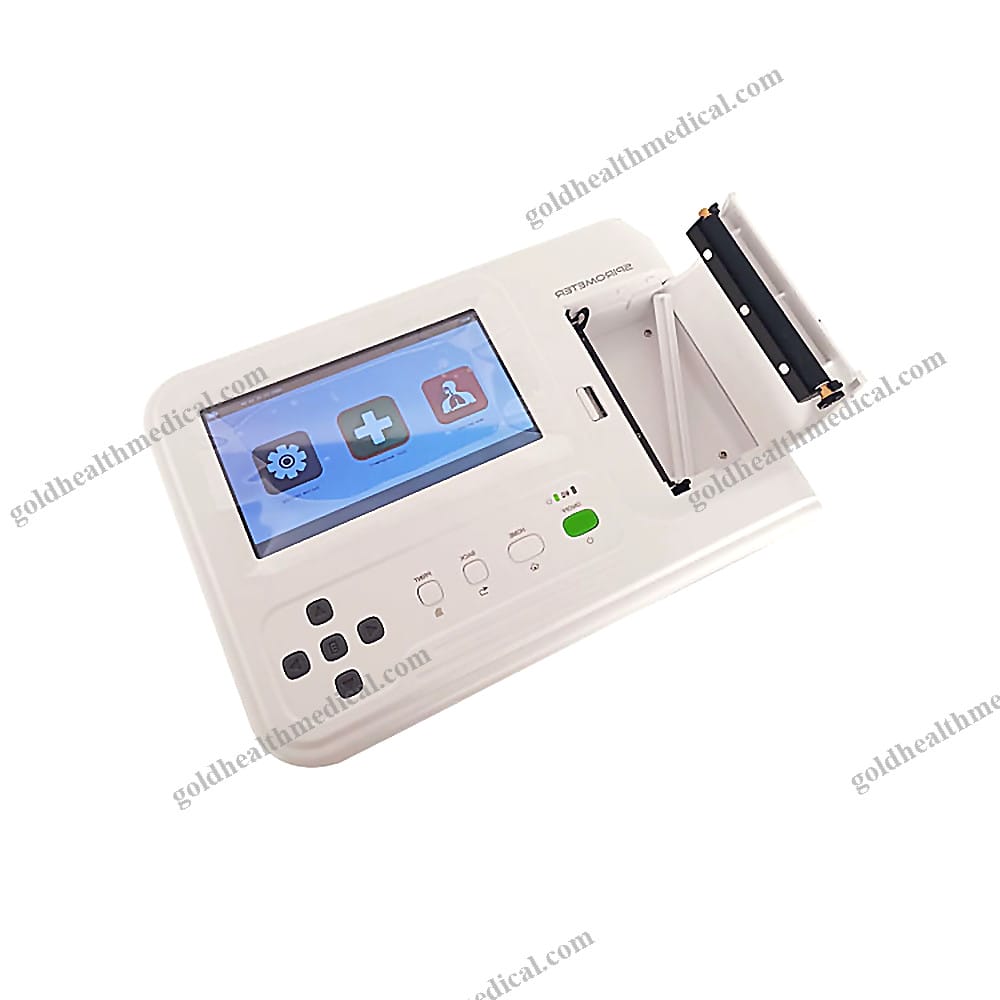

- Integrated Thermal Printer: Enables direct printing of test results for convenience.
- BTPS Correction: Automatically compensates for environmental differences to ensure accurate readings.
- Environmental Monitoring: Displays test time and ambient temperature.
- Precision Calibration: Ensures consistent measurement accuracy.
- Customizable Predicted Values: Offers multiple predicted value options tailored to diverse populations.
- Extensive Data Storage: Stores over 10,000 data sets for comprehensive record-keeping.
- Lung Age Estimation: Provides an innovative lung age estimation feature.
- Dual Power Options: Powered by a built-in lithium battery, supporting both AC and DC power sources.
Performance
- Volume Range: ±10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Classification: Class I equipment, type BF applied part
- Display: 7" color TFT touch screen
- Printing Paper: 112 mm(W)×20 m(L) high-speed thermal paper
Accessories
- Spirometer
- Mouthpieces (4 pcs)
- Nose clip
- USB cable
- Recording paper
- Power cord
- User Manual
Physical Characteristics
- Dimensions: 315 mm(L)×215 mm(W)×92 mm(H)
- Weight: 1.8 kg
Quality Assurance
GoldHealth Medical adheres to stringent quality control protocols to ensure the highest standards. Our spirometer is CE-certified, backed by a two-year warranty for both the main unit and accessories. Our professional service engineers are available to respond to service requests within 24 hours.
Frequently Asked Questions
- Quality Control: We maintain a robust QC system to guarantee product quality.
- Certifications: Our spirometer is CE-certified.
- Warranty: We provide a two-year warranty for the main unit and accessories.
- Custom Branding: We offer OEM services with over 20 years of experience.
- Pre-Delivery Testing: Every unit undergoes rigorous testing before shipment.
- Shipping Costs: Provide your destination port or address, and we will calculate Sea Freight or Air Freight based on your requirements.
GoldHealth Medical is committed to delivering precision, reliability, and innovation in pulmonary diagnostics.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Pulmonary Function Tester
Product Overview
The GoldHealth Medical Pulmonary Function Tester is a cutting-edge spirometer designed to deliver precise and reliable respiratory assessments. Featuring a sleek, user-friendly design and advanced measurement capabilities, this device is ideal for hospitals, clinics, research institutions, and home healthcare settings. Its compact form factor and intuitive interface make it an essential tool for medical professionals seeking accurate pulmonary diagnostics.
Key Features
- High-Precision Measurements: Achieves exceptional accuracy with a volume precision of ±3% or ±0.05L (whichever is greater) and a flow range of ±16 L/s.
- Advanced Display: Equipped with a 7" color TFT touch screen for clear visualization and effortless operation.
- Compact and Portable: Lightweight at just 1.8 kg, with dimensions of 315 mm (L) x 215 mm (W) x 92 mm (H), ensuring convenience in any setting.
- Wide Measurement Range: Supports a volume range of 0–10L, accommodating diverse testing requirements.
- Energy Efficiency: Operates with an input power of 60 VA, ensuring reliable performance without excessive energy consumption.
Technical Specifications
- Instrument Classification: Class II
- Material: Durable, high-quality plastic
- Power Source: Electricity
- Flow Range: ±16 L/s
- Volume Accuracy: ±3% or ±0.05L (whichever is greater)
- Shelf Life: 1 year
- Color: White
Compliance and Certification
- Safety Standard: Compliant with GB/T18830-2009
- Quality Certification: CE-certified for safety and reliability
Support and Warranty
- Warranty: 1-year comprehensive warranty for peace of mind
- After-Sale Service: Access to online technical support, ensuring uninterrupted performance and assistance when needed
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare providers and improve patient outcomes. Our Pulmonary Function Tester combines precision engineering with user-centric design, making it the ideal choice for professionals who demand accuracy, reliability, and ease of use.
Experience the future of respiratory diagnostics with GoldHealth Medical.
