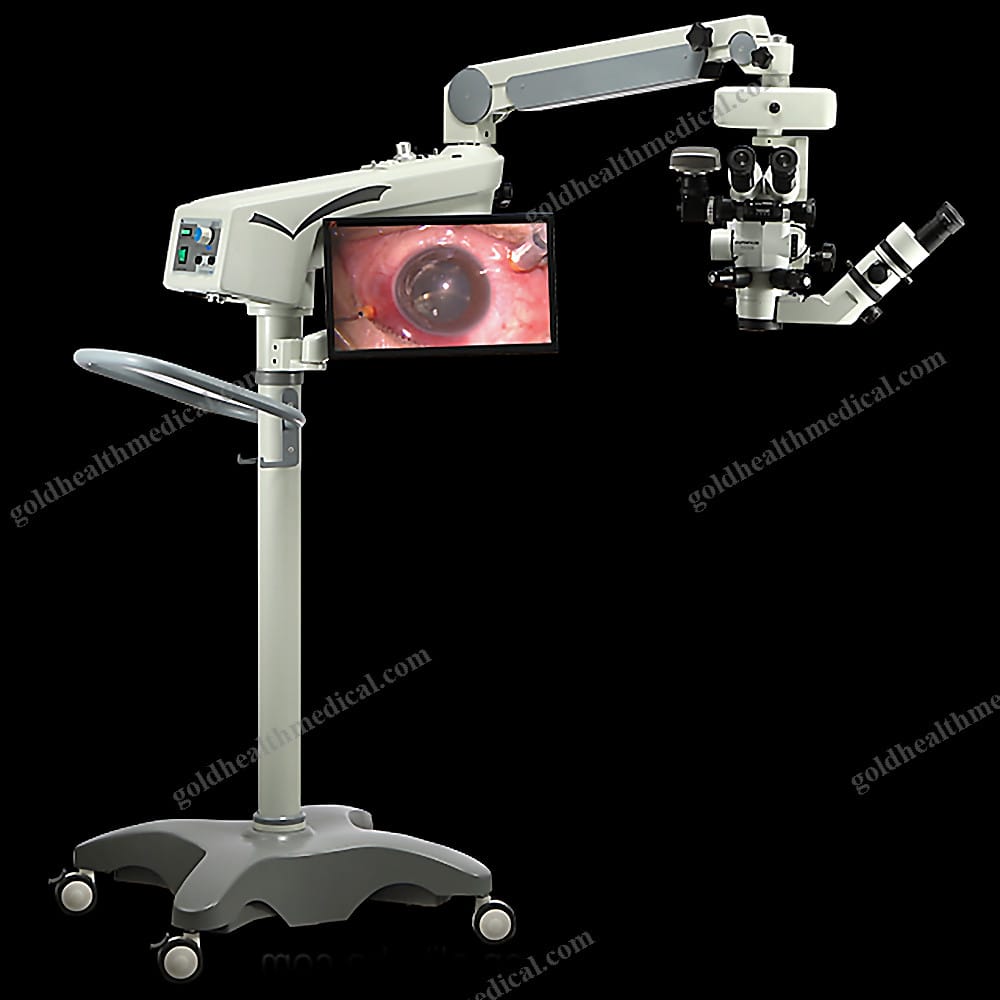

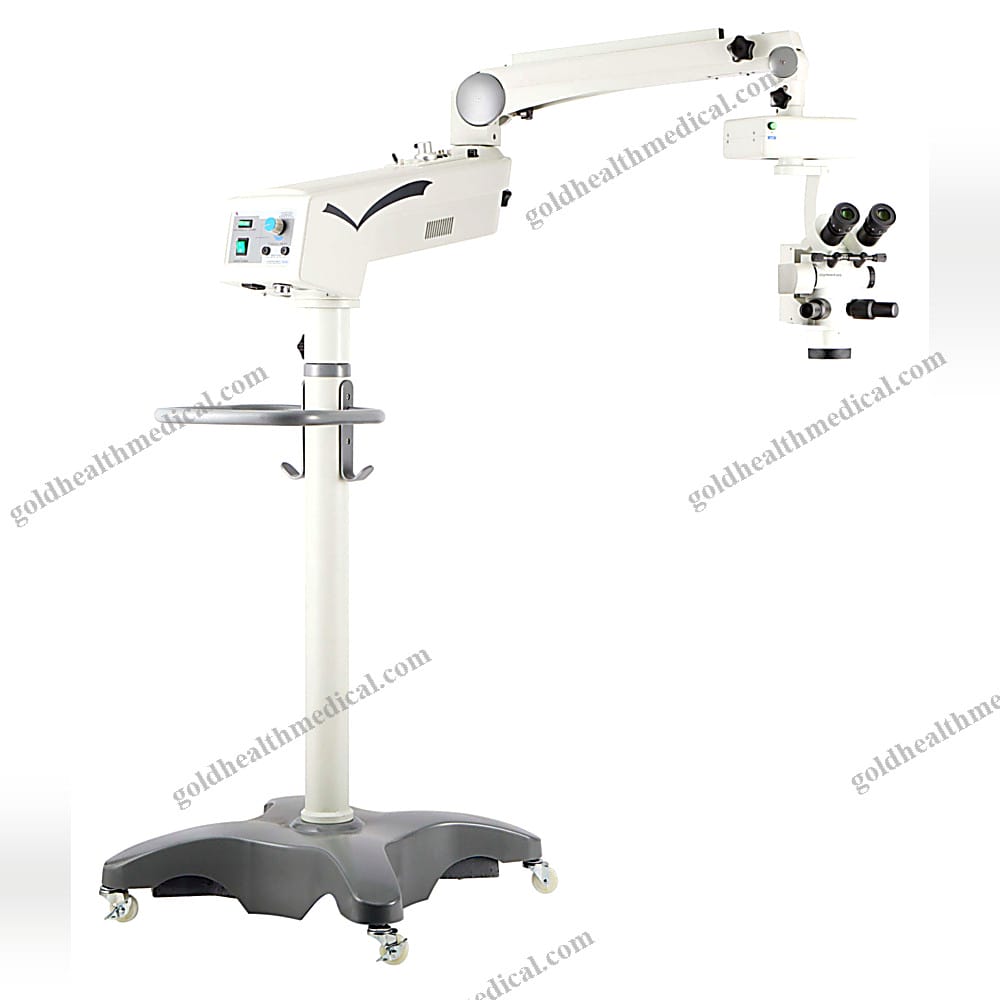

Ophthalmic Operating Microscope SZX7 SM2000
Reference: 1600833589478
Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents an advanced ophthalmic operating microscope designed for precision and versatility in eye surgery. This state-of-the-art optical surgical instrument combines cutting-edge technology with ergonomic design to deliver unparalleled performance in medical environments.
Key Features and Technical Specifications:
- Optics and Eyepiece
- Equipped with a 10X wide-field eyepiece for enhanced clarity and detail.
- Observation angle of 30° ensures optimal viewing comfort.
- Pupil distance adjustable between 50mm and 76mm, accommodating various users.
-
Diopter adjustment of ±5D (binocular) for personalized focus.
-
Magnification and Field of View
- Continuously motorized zoom with magnification ranging from 4X to 20X, providing seamless transitions during procedures.
-
Field of view spans from 8mm to 50mm, offering flexibility for intricate tasks.
-
Precision Control
- X-Y speed of 2.2mm/sec via foot control for smooth adjustments.
-
Focus adjustment range of ±20mm through intuitive foot control.
-

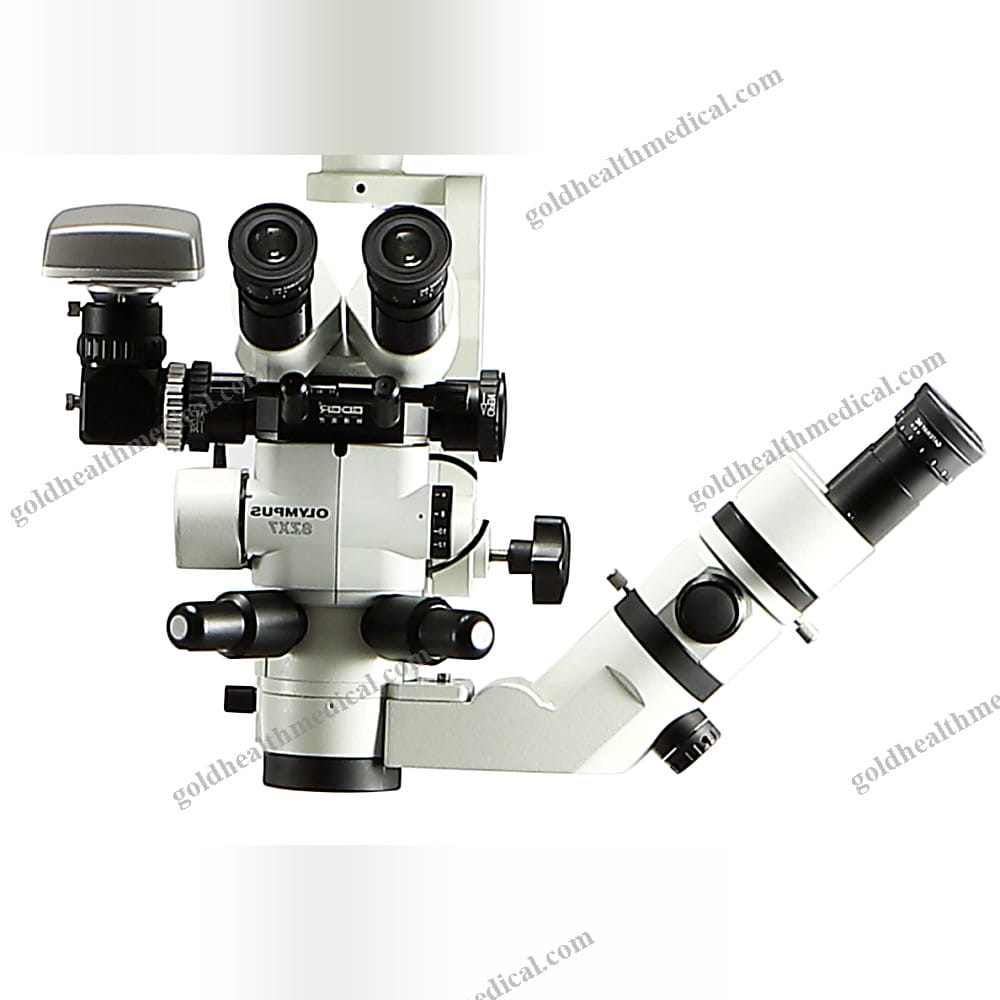

Stereo Coaxial Assistant Microscope
-
Additional stereo coaxial assistant microscope with fixed magnifications of 4X and 7X, ensuring precise collaboration during surgeries.
-
Illumination System
- High-intensity light source with options for a 15V/150W halogen lamp or energy-efficient LED light.
-
Illumination intensity exceeding 80,000Lux for superior visibility in all conditions.
-

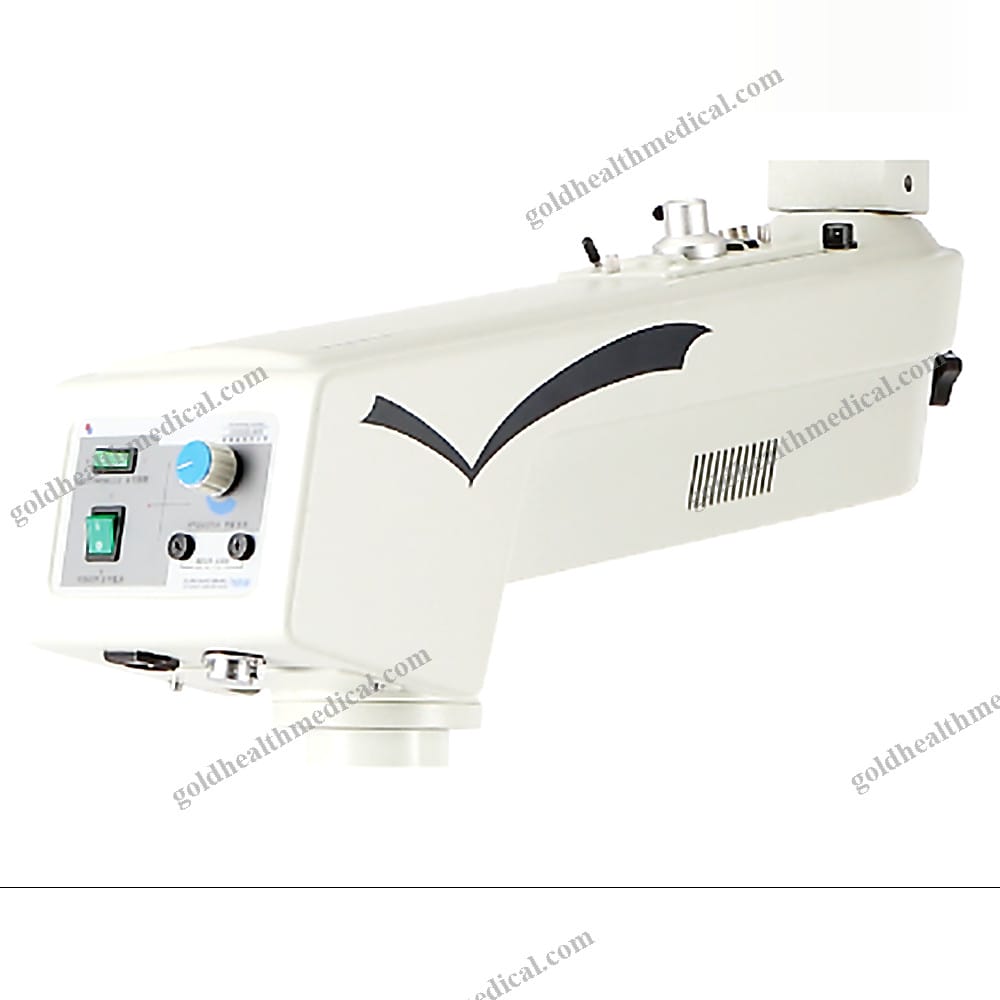

Ergonomic Base and Arm Design
- Extended arm length of 1200mm for expansive reach and positioning flexibility.
- Upper and lower adjustment range of ±150mm to suit varying procedural needs.
-
Compact base size of 560mm x 560mm ensures stability without occupying excessive space.
-

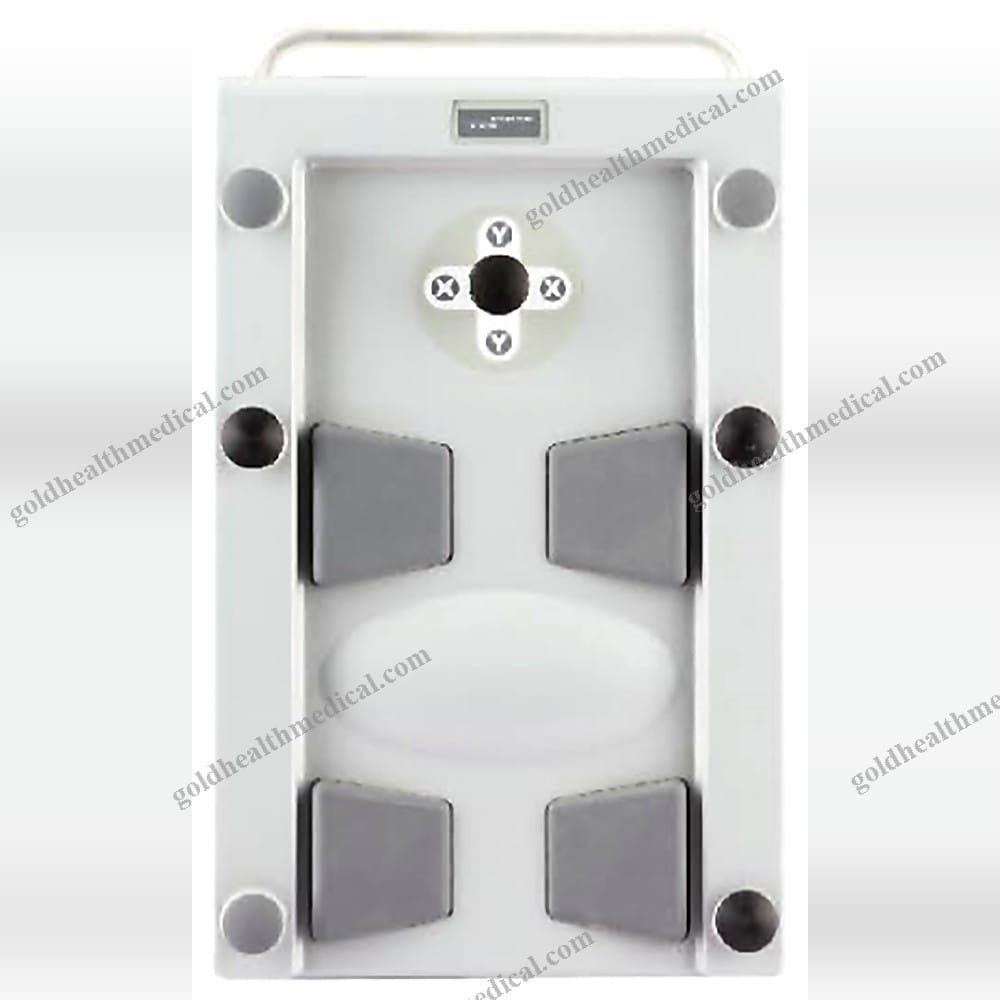

Foot Switch Integration
-
Advanced foot switch system for hands-free control of X-Y focus, motorized focus, and zoom functions, enabling surgeons to maintain focus on the task at hand.
-
Working Distance
- Working distance of ≥170mm provides ample space for surgical tools and maneuverability.
This meticulously engineered ophthalmic operating microscope from GoldHealth Medical redefines precision and reliability in eye surgery. Its innovative features and robust design make it an indispensable tool for hospitals, clinics, research institutions, and rehabilitation centers worldwide. Elevate your surgical capabilities with a device that seamlessly blends functionality, comfort, and cutting-edge technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Ophthalmic Operating Microscope
A precision-engineered solution designed for superior visualization and seamless performance in ophthalmic procedures. Trusted by medical professionals worldwide, this microscope combines cutting-edge technology with ergonomic design to deliver unparalleled accuracy and reliability.
Key Features
- Magnification: Continuously motorized zoom ranging from 4X to 20X, ensuring precise control and adaptability for diverse surgical needs.
- Eyepiece: Equipped with a 10X wide-field eyepiece for enhanced clarity and an expansive field of view.
- Field of View: Adjustable from 8mm to 50mm, offering flexibility for intricate procedures.
- Diopter Adjustment: ±5D (binocular) for personalized focus settings, reducing eye strain during extended use.
Technical Specifications
- Instrument Classification: Class II medical device, meeting stringent safety and performance standards.
- Safety Standard Compliance: Designed to adhere to GB/T18830-2009, ensuring optimal safety and reliability.
- Power Source: Fully electric operation for consistent performance.
- Materials: Constructed with high-grade metal, plastic, and steel for durability and stability.
- Shelf Life: 2 years, maintaining peak performance with proper care.
Certifications
- Backed by CE and ISO quality certifications, guaranteeing compliance with international standards.
Warranty & Support
- Warranty: Comprehensive 2-year warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring uninterrupted performance and quick resolution of queries.
Applications
Designed for use in hospitals, clinics, research institutions, and rehabilitation centers, this microscope is ideal for ophthalmic surgeries, diagnostic procedures, and advanced medical research. Its versatility also makes it suitable for home healthcare environments requiring professional-grade equipment.
Elevate your practice with the GoldHealth Medical Ophthalmic Operating Microscope – where precision meets innovation.
