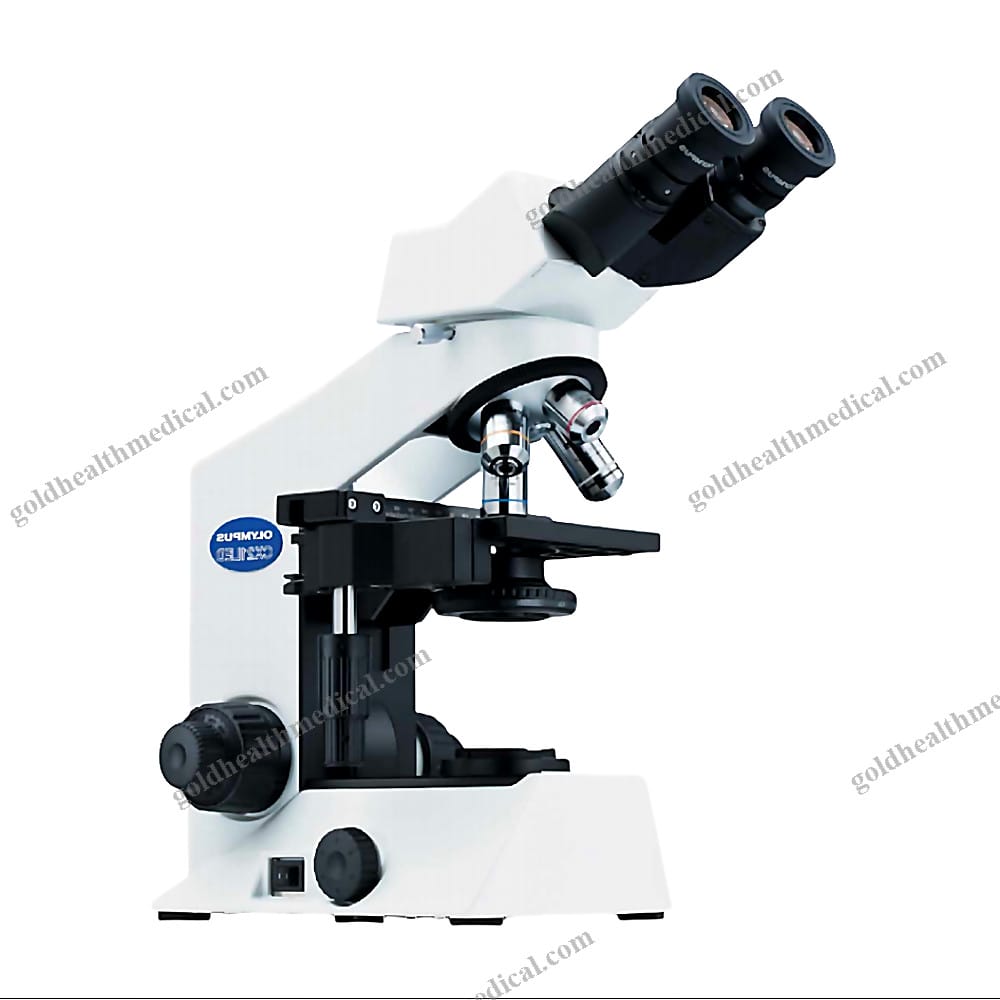

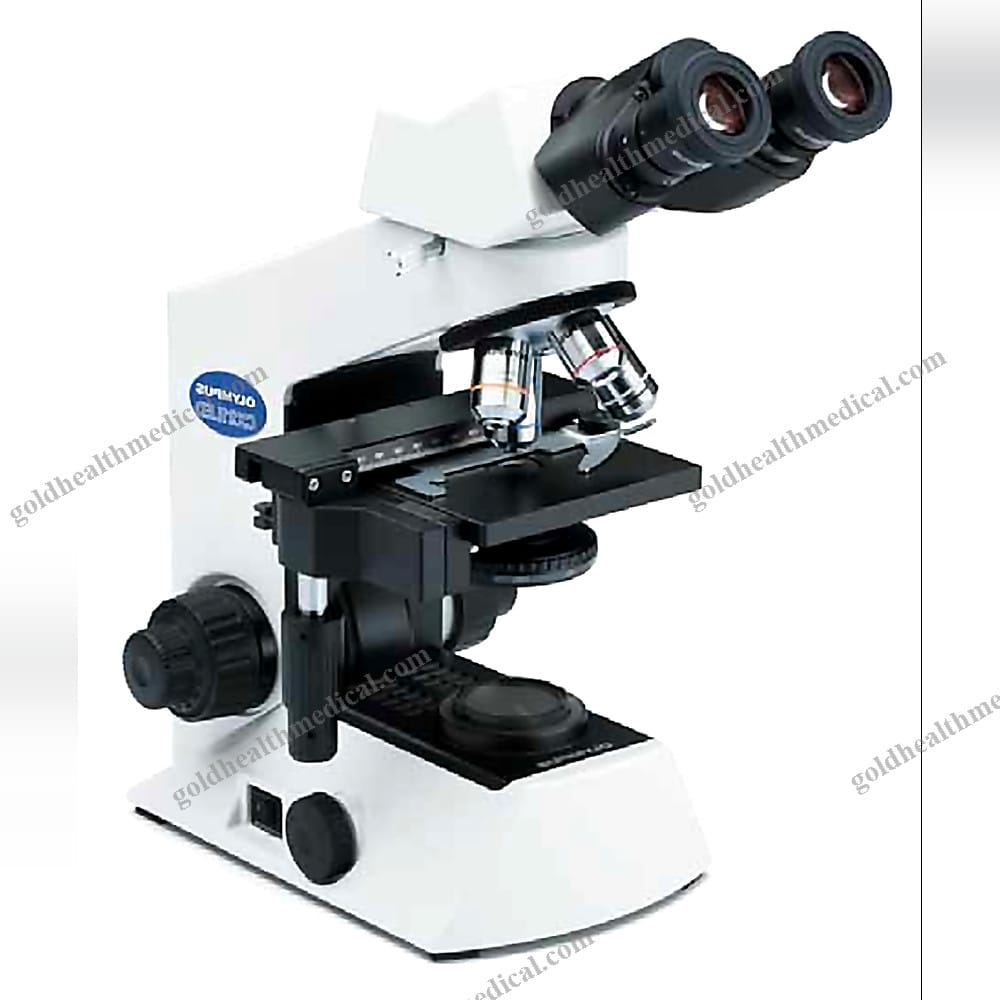

Olympus CX21 Trinocular Biological Microscope with Stereo In

Long-Life LED Illumination Microscopes by GoldHealth Medical

GoldHealth Medical presents a series of clinical and educational microscopes designed for consistent, long-term performance in biological and medical applications. Engineered to deliver high performance that lasts, these microscopes feature built-in LED illumination, eliminating the need for frequent lamp replacements.

• Impressive LED Lifespan: Equipped with a light-emitting diode (LED) boasting a lifetime of 20,000 hours, these microscopes offer extended, environmentally friendly performance with reduced running costs.
• Power Source Flexibility: An optional mirror unit allows observations even without a power source.

Secure and Durable Design

GoldHealth Medical microscopes are crafted for long-term use. The eyepiece, objectives, and condenser are all factory-attached to the body, while the revolving nosepiece is firmly fixed to a wide and rigid arm. This design eradicates the danger of parts loss and minimizes the risk of breakage during transport. Additionally, the body is designed with minimal weight, dimensions, and protrusions to ensure safer transport and storage.

• Anti-Fungus Treatment: Applied to the objectives, eyepieces, and observation tube, this treatment preserves image clarity and ensures a long operational life, even in hot, humid conditions.

Consistent Color Balance

Experience high-quality LED illumination that maintains faithful color balance to the specimen at hand. The color temperature remains constant across varying brightness levels, ensuring stable color balance at any desired brightness.

• Plan Objectives for Optimal Flatness: Standard plan objectives ensure sharp focus extending to the periphery of the view, offering advantageous clarity and contrast.

Ergonomic and Durable Features

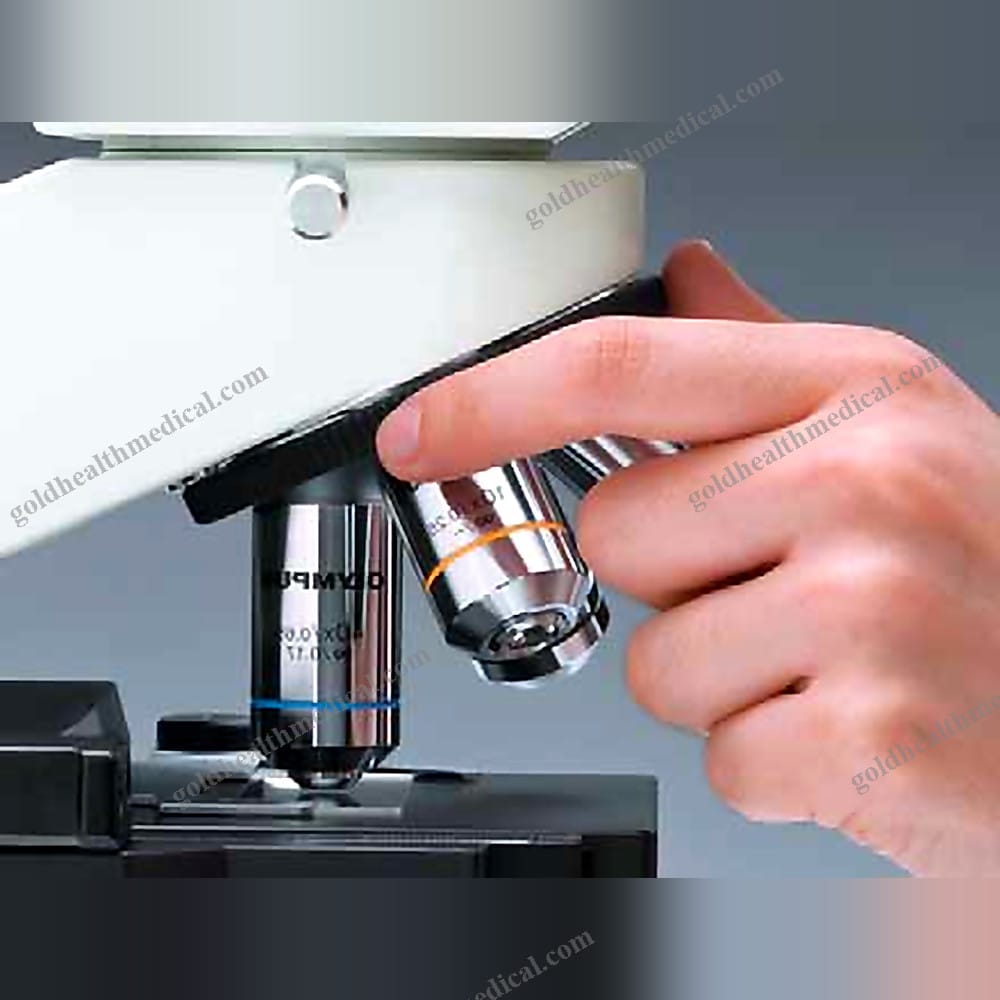

• Ultra-Smooth Revolving Nosepiece: High-precision machining ensures smooth operation and durability, with a rubber ring for an ergonomic grip.
• Rackless Stage: Wire-driven stage movement avoids rack protrusion, preventing accidental hand injuries. The abrasion-resistant design ensures continuous smooth movement.
• Smooth and Sharp Focusing: Coarse movement tension can be adjusted to personal preference, and the coaxial coarse/fine-focusing knob can be operated from either side.
• Mechanical Stage Focus-Lock: Prevents mishaps by locking the focus position, making it easy to refocus when changing specimens. The upper stage position lock prevents the objective from accidentally touching the slide.

Specifications

• Place of Origin: China
• Power Source: Electricity
• Warranty: 1 Year
• Material: Plastic
• Shelf Life: 1 Year
• Quality Certification: CE
• Instrument Classification: Class II
• Safety Standard: GB

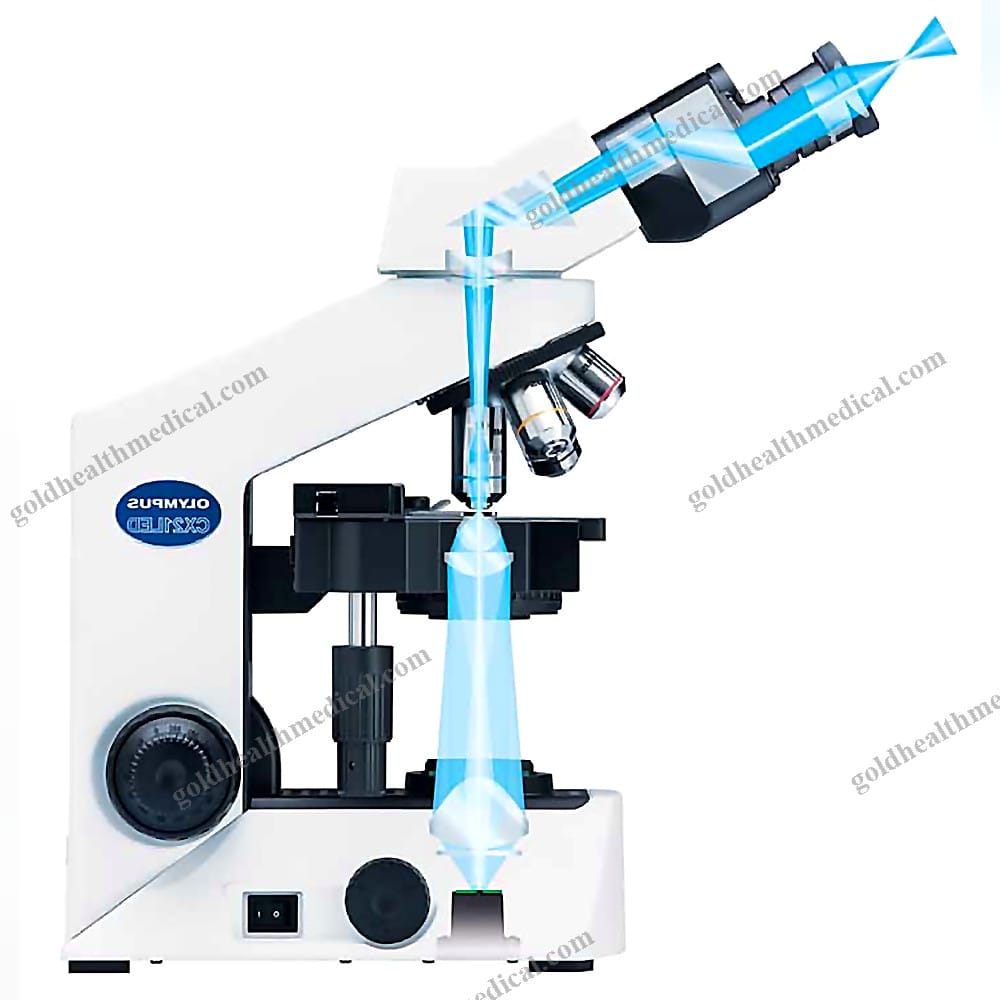

• Optical System: UIS2 (Universal Infinity System) optical system
• Stage Height Movement: Focusing with fine focus graduation: 2.5 µm
• Revolving Nosepiece: Fixed quadruple nosepiece
• Stage: Wire movement mechanical fixed stage: 120 x 132 mm, Traveling range: 76 mm (X) x 30 mm (Y), Single specimen holder
• Condenser: Abbe type with aperture iris diaphragm N.A.: 1.25

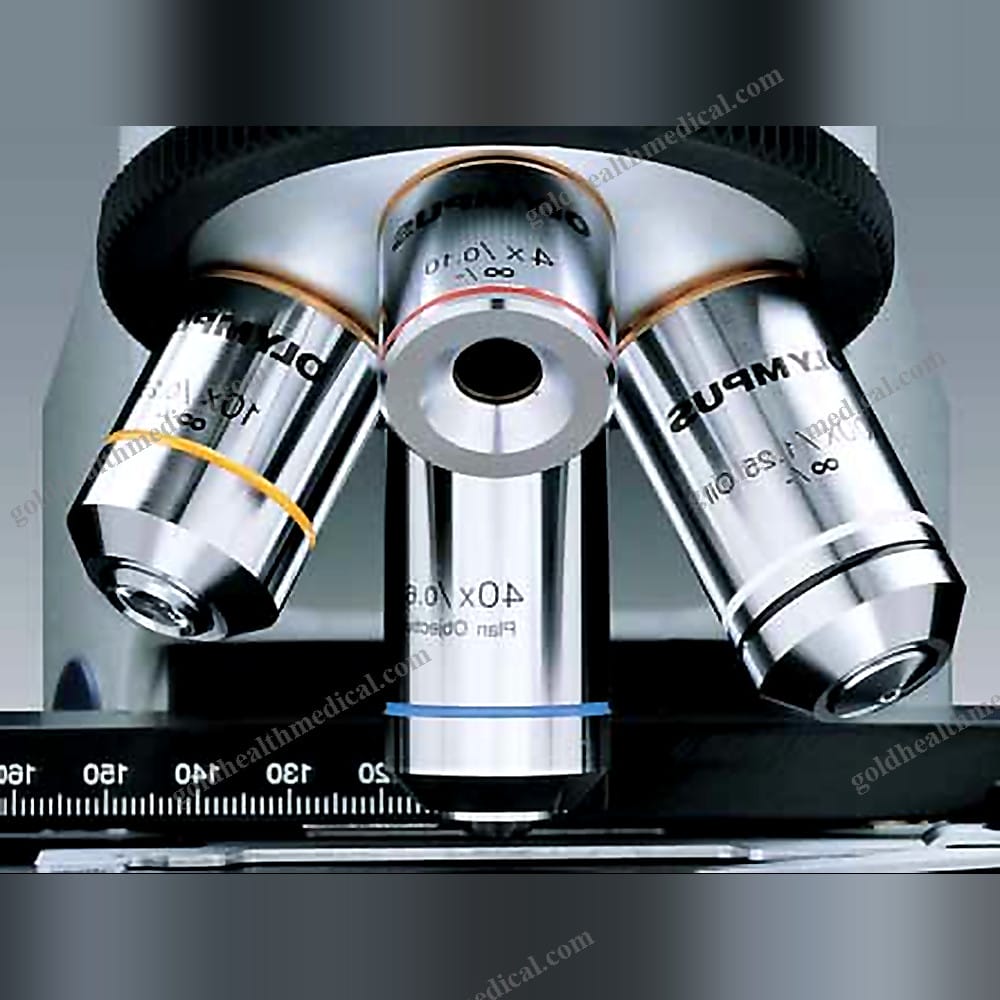

• Objectives: Plan Achromatic objectives (anti-fungus)
• 4x N.A.: 0.10 W.D.: 18.5 mm
• 10x N.A.: 0.25 W.D.: 10.6 mm
• 40x N.A.: 0.65 W.D.: 0.6 mm
• 100xOil N.A.: 1.25 W.D.: 0.13 mm
• Eyepiece (10x): Field Number (F.N.): 18 (anti-fungus)
• Optional Accessories: Mirror unit, 15x eyepiece (F.N. 12, anti-fungus), wooden storage box, filar micrometer, wire pointer, filter holder, darkfield stop, cord rest
• Weight: Approx. 6 kg
• Rated Voltage/Electric Current: AC 100–240 V 50/60 Hz 0.4 A
• Power Consumption: 1.7 W

GoldHealth Medical is committed to providing professional, environmentally friendly, convenient, and efficient packaging services to ensure the safety of your goods. Our mission is to make the purchase of medical equipment easier, and we look forward to working with global customers.
