Nitinol Memory Wire Medical Super Elastic Shape Memory 01mm
Reference: 1600965708478
Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionary Nitinol Alloys by GoldHealth Medical
Nitinol, a remarkable nickel-titanium alloy, is celebrated for its unparalleled superelasticity and shape memory capabilities. The shape memory effect allows Nitinol to deform at one temperature and regain its original shape when heated above its transformation temperature. Superelasticity, occurring just above this temperature, enables the material to recover its shape without heating, showcasing elasticity up to 30 times greater than ordinary metals.
Key Features of Our Nitinol Alloys - Superelasticity: Achieves extraordinary recoverable strains, making it resistant to kinks. - Shape Memory: Recovers a pre-set shape when heated, ideal for advanced actuator applications. - Precision Composition: Small changes in composition significantly enhance material properties.
Product Variants and Their Applications - Superelastic Ni-Ti Alloy - Composition: Ti-50.8at%Ni - Transformation Temperature (Af): -5°C ± 5°C - Min. Elongation to Failure: 10% - Max. Residual Elongation after 6% Strain: 0.1% - Applications: Eyeglass frames, cellular phone antennae, bra underwire
- Body Temperature Ni-Ti Alloy
- Composition: TiNiVAl, TiNiCr
- Transformation Temperature (Af): -40°C ~ 50°C
- Min. Elongation to Failure: 10%
- Max. Residual Elongation after 6% Strain: 0.1%
-
Applications: Implantable devices, bone staples, vascular stents
-
High-Temperature Ni-Ti Alloy
- Composition: 54.8~55.5wt%Ni
- Transformation Temperature (Af): 45 - 95°C
- Min. Elongation to Failure: 10%
- Max. Residual Elongation after 6% Strain: 0.1%
-
Applications: Implantable active devices, surgical tools, thermostats, coffeepots
-
TiNiCu Alloy
- Composition: As-Ms ≤ 5
- Min. Elongation to Failure: 10%
- Max. Residual Elongation after 6% Strain: 0.1%
- Applications: Heat engines, resilient glass frames, orthodontic arc wire, medical devices, actuators, high-reliability couplings, temperature control system couplings
Unique Selling Points - Unmatched Versatility: Suitable for a wide range of medical and mechanical applications. - Precision Engineering: Tailored compositions to meet specific performance requirements. - Reliability and Durability: Exceptional material properties ensure long-lasting performance.

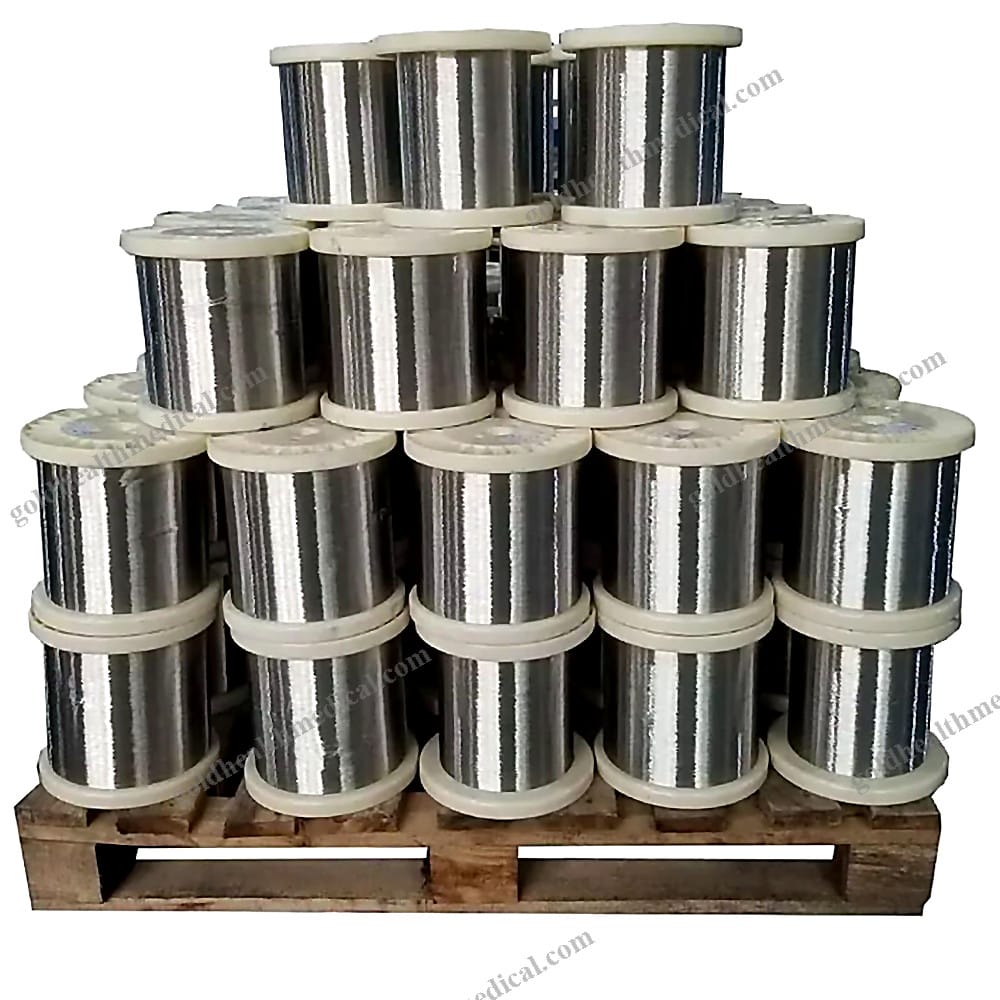

Packaging Excellence Our Nitinol wires are meticulously packed with waterproof paper or weave bags, secured onto pallets or within wooden cases. Special packaging requests are welcomed, and custom OEM solutions are available to meet your unique needs.
GoldHealth Medical is dedicated to advancing healthcare and engineering solutions through innovative Nitinol alloys, ensuring superior performance and reliability in every application.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Nitinol Wire - Shape Memory Alloy & Superelastic NiTi Wires by GoldHealth Medical
Key Features and Benefits:
- Revolutionary Material: Crafted from high-grade nickel-titanium alloy (Nitinol), offering unparalleled shape memory and superelastic properties.
- Exceptional Performance: With a tensile strength of 950 MPa and elongation ranging from 25-50%, this wire is engineered for demanding medical and industrial applications.
- Precision Engineering: Polished, ground, and oxide surface finishes ensure optimal performance and durability.
- High Purity Composition: Minimum titanium content of 45%, ensuring consistent quality and reliability.
- Versatile Applications: Ideal for medical devices, orthodontics, robotics, and advanced research applications.
Technical Specifications:
- Material: Nickel-Titanium Alloy (Nitinol)
- Density: 6.45 g/cm³
- Melting Point: 1310°C
- Surface Finish Options: Polished, Ground, Oxide Surface
- Instrument Classification: Class I Medical Device
- Safety Standard Compliance: ASTM F2063
Packaging Details:
- Selling Unit: Single item
- Package Dimensions: 0.08 x 5 x 10 cm
- Gross Weight per Unit: 2.000 kg
Ordering Information:
- Minimum Order Quantity (MOQ): 1 KG
- Shelf Life: 1 Year
Support and Assurance:
- Warranty: 1 Year
- After-Sales Service: Comprehensive online technical support to ensure seamless integration and operation.
- Certifications: CE, ASTM F2063
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical materials that redefine precision and reliability. Our Nitinol wires are trusted by hospitals, research institutions, and innovators worldwide for their superior quality and versatility.
Applications:
- Medical devices and implants
- Orthodontic tools and equipment
- Robotics and automation systems
- Research and development projects
Experience the GoldHealth Medical difference – where innovation meets excellence.
