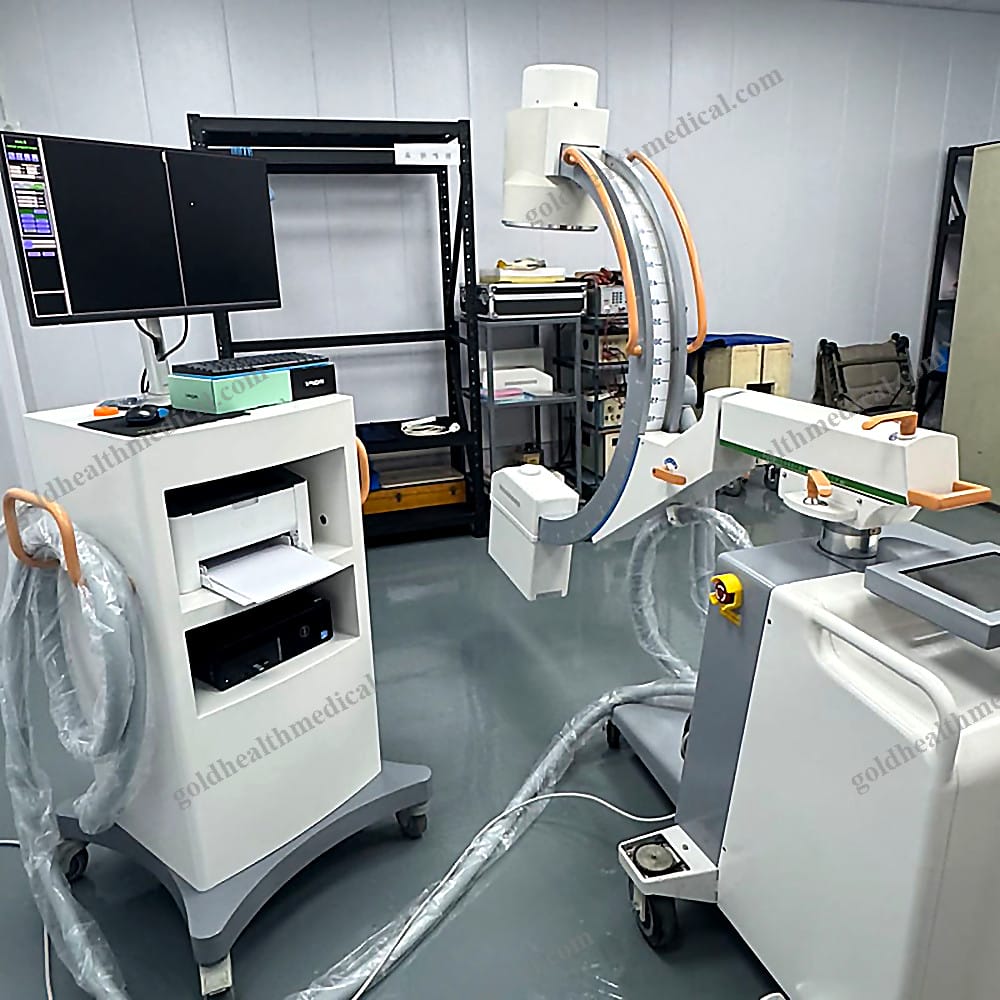

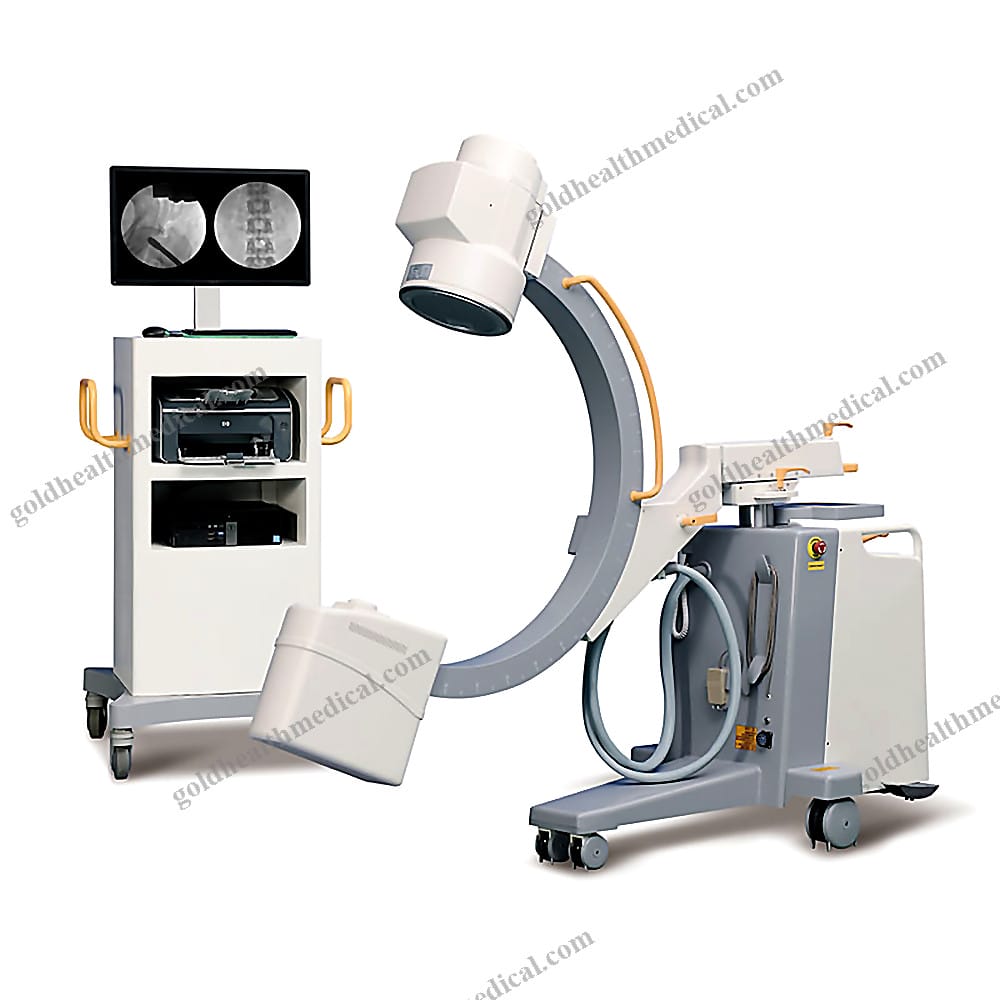

CArm XRay Fluoroscopy Machine for Orthopedic Surgery
Reference: 1601358450033
Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Diagnostic Imaging
GoldHealth Medical presents a cutting-edge digital imaging system designed to deliver unparalleled clarity for diagnostic purposes. Its sleek, lightweight mechanical design ensures effortless operation, making it an indispensable tool across a wide range of clinical applications. From spinal surgeries to trauma care, joint pain management, orthopedics, general surgery, rehabilitation, urology, gastroenterology, and oncology, this system provides the ultimate diagnostic solution.
Key Specifications
- HF Generator: 120kV, 5kW, 40kHz
- Fluoroscopy Modes:
- Standard Fluoroscopy: 40–110 kV / 0.5–5 mA (manual and automatic KV adjustment)
- Pulsed Fluoroscopy: 40–110 kV / 0.5–5 mA
- Boost Fluoroscopy: 40–110 kV / 5–10 mA
- Photography: 40–110 kV / 1–250 mAs

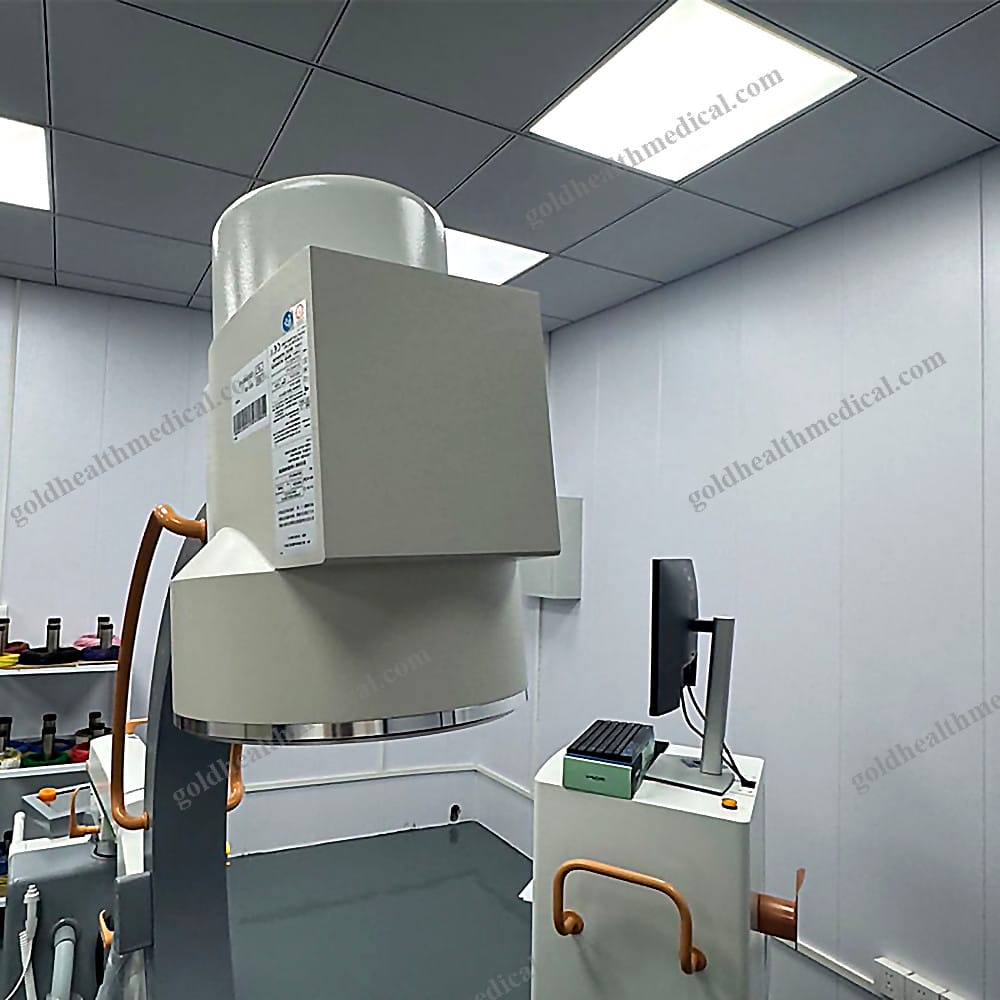

- X-ray Tube: Dual-focus rotating anode (0.3mm/0.6mm), IMD Technology Tube
- Detector:
- Manufacturer: France Thales
- Plate: Single A-Si TFT + photodiode plate
- Scintillator: CsI
- Total Transmitted Image Width: 1024 (1344 optional)
- Total Transmitted Image Height: 1024 (1344 optional)
- Pixel Pitch: 154 µm
- Quantization Depth: 16-bit
- Power Supply Input: 24V ± 10%
- Communication/Image Transfer: Ethernet cable
Detector Features (Pixium 2121S-U)
- Cold start functionality
- Offset stability valid for up to 10 minutes
- Capable of both fluoroscopy and radiographic imaging
- Passive cooling system for enhanced reliability
- High-speed image transfer via Ethernet link

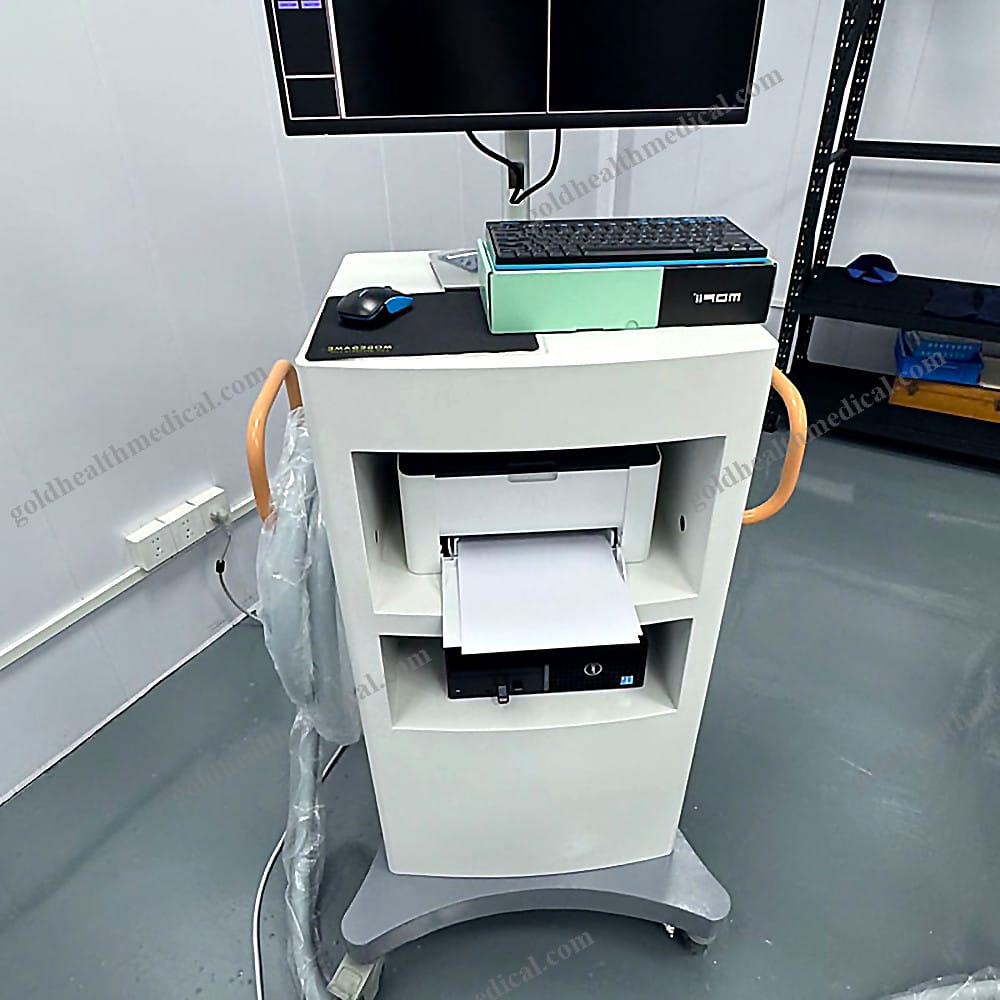

Image System Capabilities
- 5-degree recursive noise reduction for sharper images
- Frame freezing for precise analysis
- Storage for thousands of image datasets
- Image inversion and rotation for versatile viewing
- Side-by-side image comparison for enhanced diagnostics
- One-click printing of image reports
- DICOM 3.0 network port (optional)
- Support for DICOM 3.0 standard data export

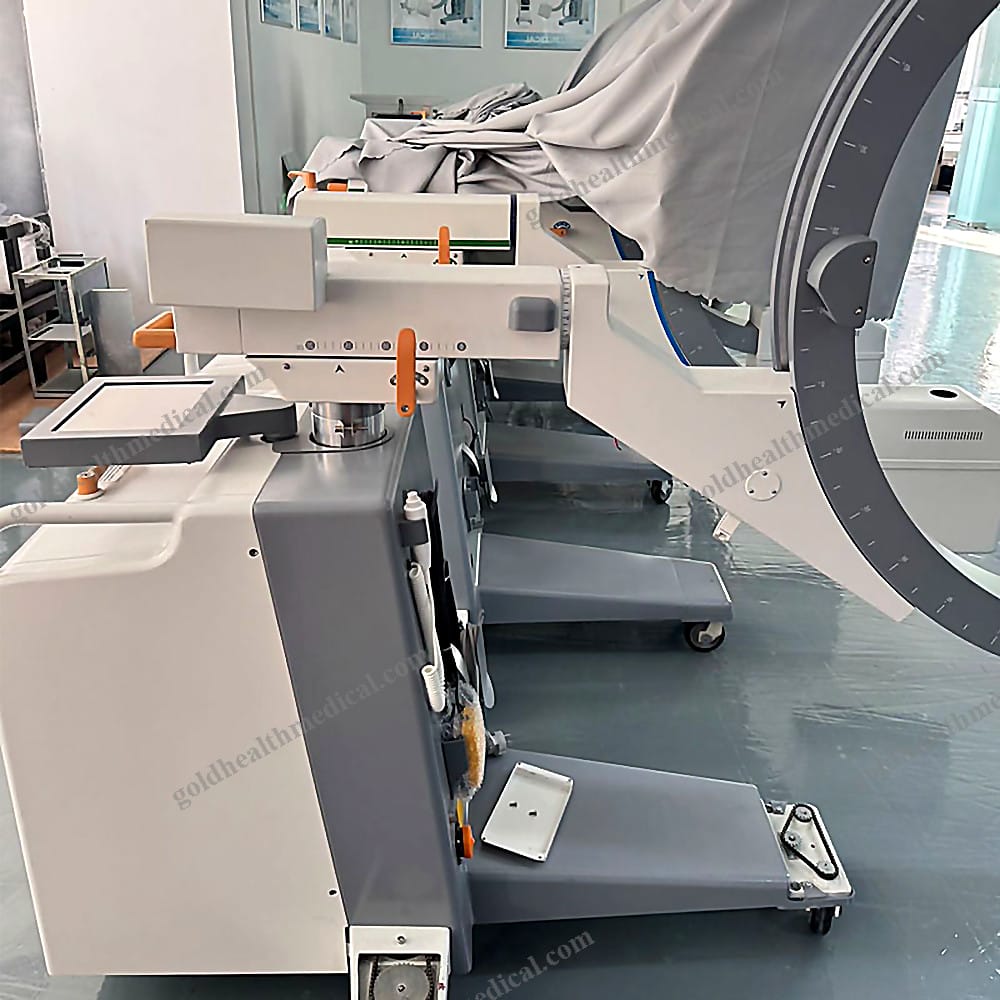

Mechanical Motion Specifications
- Vertical Travel: 0–400 mm (electric)
- Horizontal Travel: 0–200 mm (electric, optional)
- Rotation about Horizontal Axis: ±180° (electric, optional)
- Slipping Along Circular Rail: Electric (optional)

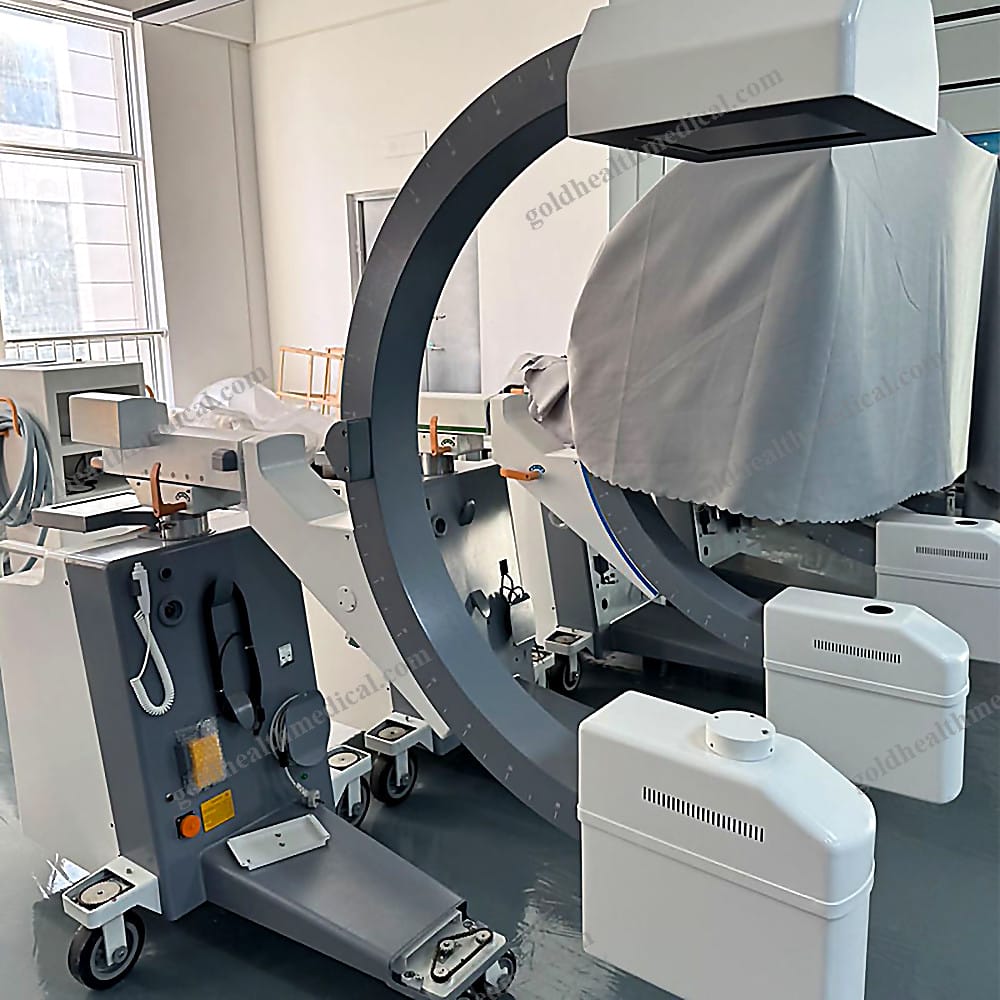

C-arm Dimensions
- Distance from focal spot to image generator (SID): 1000 mm
- Depth in arm: ≥650 mm
- Mobile Stand Dimensions: 1800 mm × 800 mm × 1850 mm
- Image System Dimensions: 750 mm × 530 mm × 1680 mm
Standard Configuration
- Detector: 1 set
- X-ray Generator: 1 set
- Image Processor: Included
- 24" LCD High-Definition Display: 1 set
- Mobile Stand: 1 set
- Printer: 1 set
GoldHealth Medical is committed to delivering innovative solutions that redefine precision and efficiency in medical imaging. Our products are crafted with meticulous attention to detail, ensuring they meet the highest standards of performance and reliability. Whether you’re in a hospital, clinic, or research facility, our imaging system is designed to empower healthcare professionals with the tools they need to achieve exceptional outcomes.
Experience the future of diagnostic imaging with GoldHealth Medical—where clarity meets convenience.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class I
Key Features:
- Application: Designed for medical diagnosis, radiography departments, and X-ray photography, offering precision and reliability in clinical environments.
- Mobility & Portability: Compact and mobile C-arm design with 360° rotation, enabling seamless maneuverability in tight spaces such as operating rooms, clinics, and emergency settings.
- Power Source: Electric-powered system with a high-frequency (HF) generator rated at 3.5kW and 40kHz for consistent, high-quality imaging performance.
Technical Specifications:
- X-ray Tube: Dual-focus fixed anode with focal spots of 0.6mm and 1.5mm, ensuring sharp and detailed imaging for diverse diagnostic needs.
- Radiography Output: Adjustable range of 30-60mA, with a maximum output of 80mA for enhanced versatility.
- Photography Settings: Supports exposure times from 1~250mAs, accommodating both low-dose and high-detail imaging requirements.
- Pulsed Fluoroscopy: Operates at 0.5-5mA, minimizing radiation exposure while maintaining exceptional image clarity during real-time procedures.
Imaging Capabilities:
- Image Intensifier: Equipped with a Thales-brand intensifier featuring three fields of vision (9", 6", 4.5") for precise visualization across various anatomical areas.
- CCD Camera: High-resolution Japanese Watt-brand CCD camera for superior image capture and clarity.
- Image Storage: Stores up to 8 images, allowing quick access to critical diagnostic data during procedures.
Performance Highlights:
- Energy Capacity: 30KJ/40kHu, ensuring sustained operation during lengthy procedures without compromising performance.
- Versatility: Ideal for orthopedic, cardiovascular, urological, and pain management applications, making it a multi-purpose solution for modern healthcare facilities.
Quality Assurance:
- Certifications: CE-certified, guaranteeing compliance with international safety and quality standards.
- Shelf Life: 2 years, ensuring long-term reliability and performance.
After-Sales Support:
- Comprehensive warranty and lifetime technical assistance tailored to meet the needs of hospitals, clinics, and research institutions.
- Hassle-free return and replacement policies to ensure customer satisfaction.
GoldHealth Medical’s C-arm system redefines precision and portability in medical imaging, empowering healthcare professionals with cutting-edge technology to deliver superior patient care.
