Multiparameter Portable Vet Monitor for Critical Care
Reference: 1601222712030
First-Aid Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

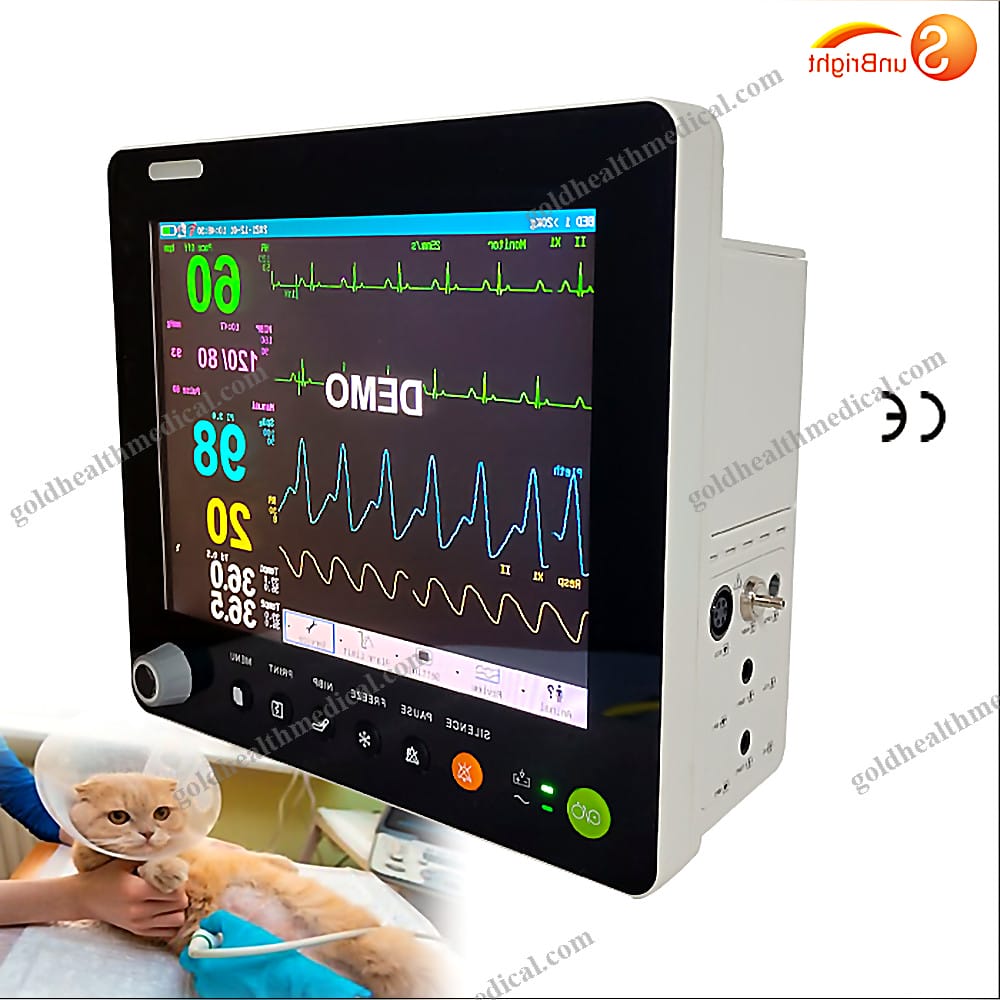

GoldHealth Medical: Multi-parameter Portable Veterinary Monitor
Revolutionize critical care veterinary monitoring with GoldHealth Medical's state-of-the-art portable monitor. Designed for versatility and precision, this compact device integrates advanced parameter measurement, display, and recording in one sleek unit.
Key Features
- Comprehensive Monitoring: Simultaneously track ECG, RESP, SpO2, NIBP, and dual-channel TEMP.
- Built-in Replaceable Battery: Ensures uninterrupted monitoring during patient transport.

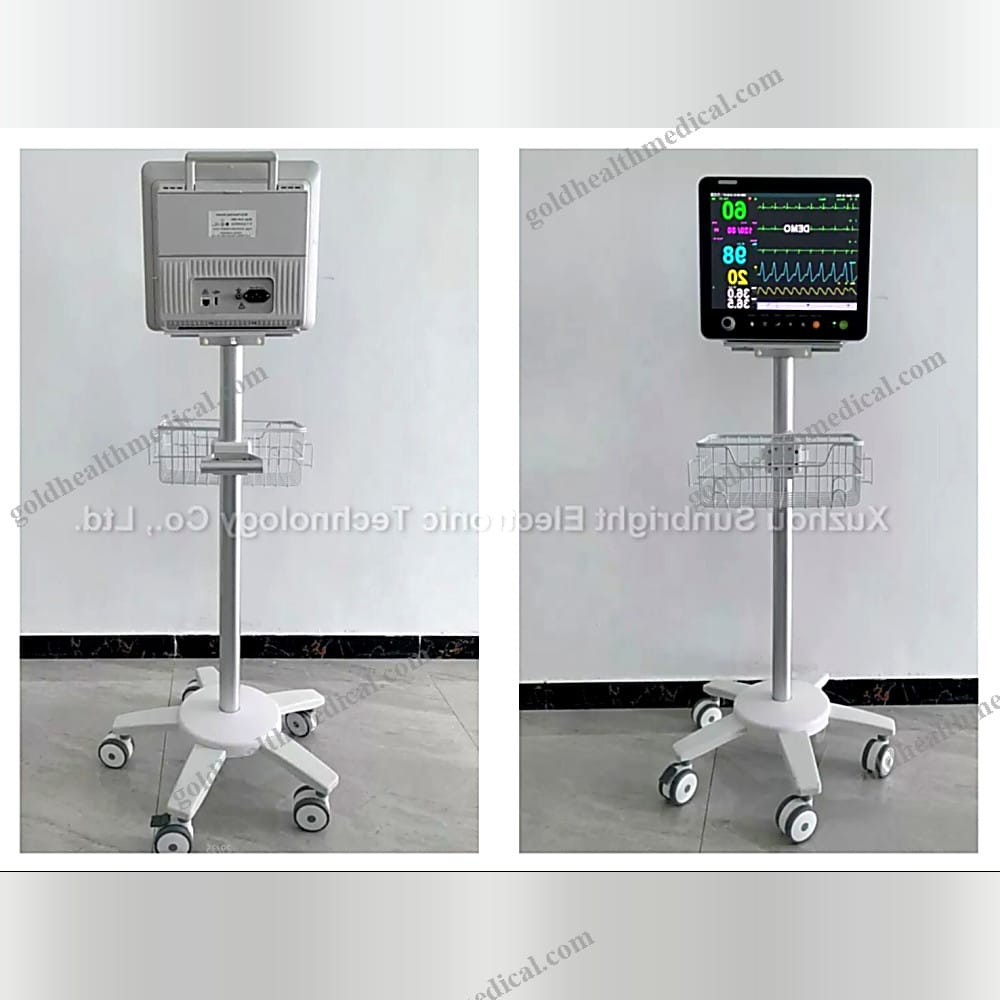

- Optional Advanced Modules: Expand capabilities with optional WIFI, CMS, Printer, Anesthetic Gas Module, ETCO2, IBP, Touch Screen, Wall Bracket, and Trolley.
- Versatile Application: Suitable for adult, pediatric, and neonatal patients.
- Intuitive Interface: Operate seamlessly with English and Chinese interface (optional languages include French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Polish).

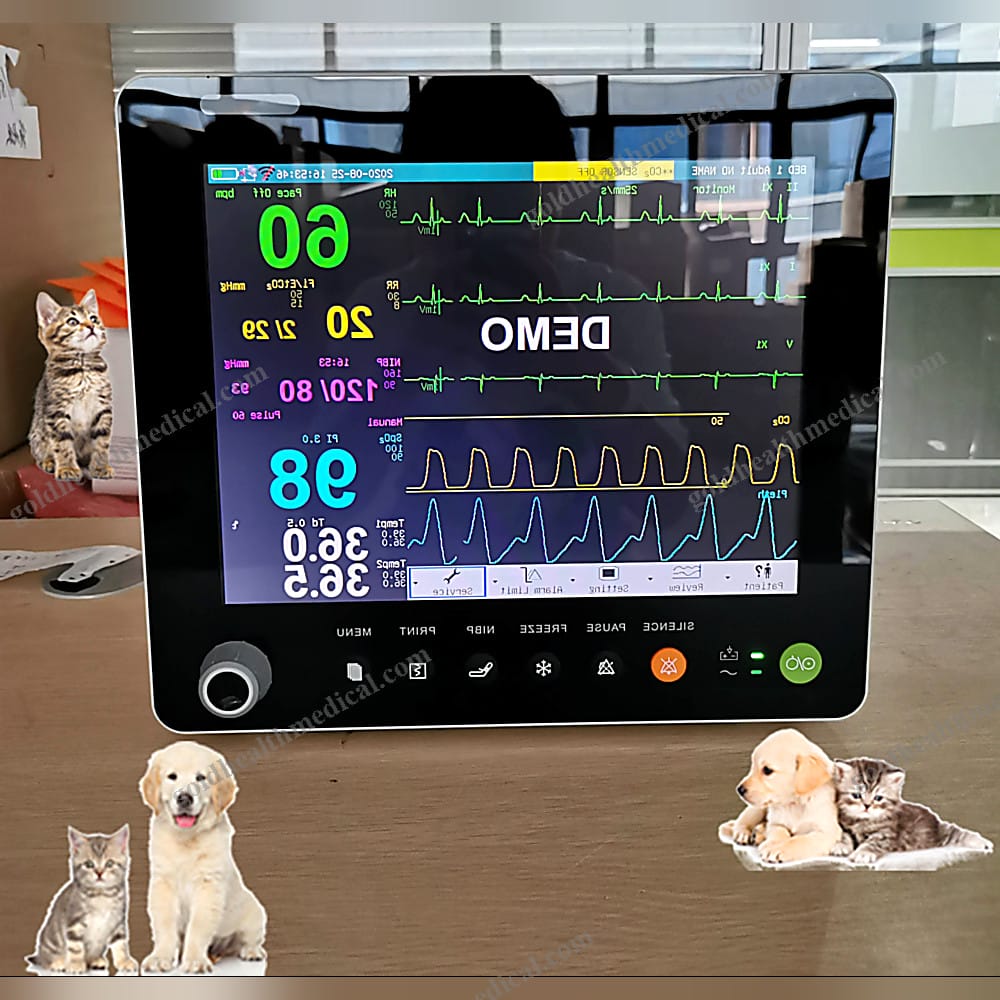

- High-Resolution Display: 12.1" color TFT LCD provides clear visualization of patient parameters, waveforms, alarms, and more.
- Extensive Data Storage: Store up to 480 hours of trend data, 72 hours of ECG waveforms, and 2400 NIBP data points.
- Advanced SpO2 Technology: Strong anti-interference and anti-weak filling capabilities.
- Network Connectivity: Wireless and wired options for central station connection and software updates.
- Defibrillation-Proof Design: Ensures safety during high-frequency surgical procedures.
- Optional HRV Analysis: Enhance diagnostic capabilities with heart rate variability analysis.
Detailed Specifications
ECG
- Lead Modes: Optional 3-lead and 5-lead
- Wave: 5-lead: 2 channels, 3-lead: 1 channel
- Gain: ×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV
- HR Measuring and Alarm Range: 15 ~ 300 bpm
- Accuracy: ±1% or ±1bpm
- Alarm Accuracy: ±2bpm
- Resolution: 1 bpm
- CMRR: ≥ 100 dB (Monitor), ≥ 100 dB (Surgery), ≥ 60 dB (Diagnosis)
- Bandwidth:
- Surgery: 1 ~ 20 Hz
- Monitor: 0.5 ~ 40 Hz
- Diagnosis: 0.05~75Hz; 76Hz~150Hz
- Calibration Signal: 1 mV (Vp-p), ±5% Accuracy
- ST Segment Monitoring: -0.6 mV~ + 0.8 mV
- ARR Detection: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Respiration
- Method: R-F(RA-LL) Impedance
- Differential Input Impedance: >2.5 MΩ
- Measuring Impedance Range: 0.3~5.0Ω
- Baseline Impedance Range: 100Ω– 2500Ω
- Bandwidth: 0.3 ~ 2.5 Hz
- Resp. Rate: 0~120rpm
- Resolution: 1 rpm
- Measuring Accuracy: ±2 rpm
- Alarm Accuracy: ±3rpm
- Apnea Alarm: 10 ~ 40 S
NIBP
- Method: Oscillometry
- Mode: Manual, Auto, Continuous
- Measuring Interval in AUTO Mode: 1 /2 /3 /4 /5/ 10/ 15/ 30 /60 / 90/120/240/480/960 Min
- Measuring Period in Continuous Mode: 5 Min
- Measuring and Alarm Range: 10~270mmHg
- Resolution: 1mmHg
- Cuff Pressure: ±3 mmHg
- Accuracy: ±10% or ±8mmHg
- Over-pressure Protection:
- Adult Mode: 315±10 mmHg
- Pediatric Mode: 265±10 mmHg
- Neonatal Mode: 155±10 mmH
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Advanced Parameter Patient Monitor
A cutting-edge solution designed for precision, reliability, and ease of use in diverse healthcare environments.
Product Highlights
- 12.1" High-Resolution LCD Display: Crisp visuals for accurate monitoring of vital signs.
- ECG Monitoring: Supports 3/5 lead configurations with advanced graphic trends and 96-hour tabular data storage.
- Enhanced Safety Features:
- Dual over-pressure protection for NIBP.
- Isolated floating design for added safety.
- Defibrillation protection and high-frequency interference resistance.
- English Talking Function: Audible alerts and guidance for seamless operation.
- Optional Modules: Customize your monitor with add-ons like WIFI, CMS, Printer, Anesthetic Gas Module, ETCO2, IBP, and Touch Screen functionality.
Technical Specifications
- Instrument Classification: Class II medical device.
- Power Source: Electricity.
- Shelf Life: 1 year.
- Materials: Durable metal and high-quality plastic construction.
- Quality Certification: CE certified for global standards compliance.
Packaging Details
- Single Package Size: 37 x 29 x 34 cm.
- Single Gross Weight: 9.000 kg.
After-Sale Support
- Warranty: Comprehensive 1-year coverage.
- Online Technical Support: Expert assistance available to ensure uninterrupted performance.
Engineered for excellence, the GoldHealth Medical Parameter Patient Monitor is your trusted companion in critical care, research, and home healthcare settings. Elevate your monitoring standards today.
