MSLEC05 Portable 12Lead ECG Machine
Reference: 1601253901460
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionizing Cardiac Care with GoldHealth Medical

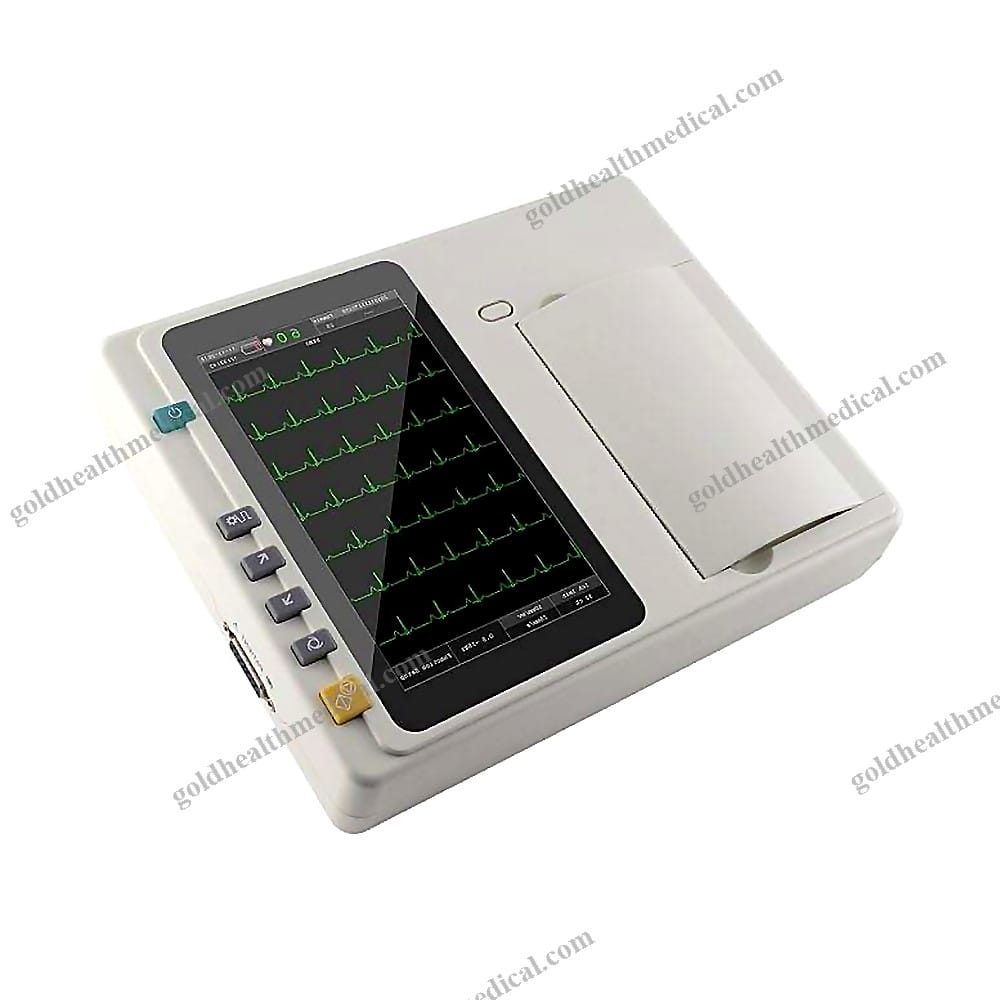

GoldHealth Medical presents a cutting-edge Portable ECG Machine, designed to deliver unparalleled precision and convenience for cardiac diagnostics. This state-of-the-art device combines advanced technology with a sleek, user-friendly design, making it an indispensable tool for healthcare professionals and institutions.
Key Features:

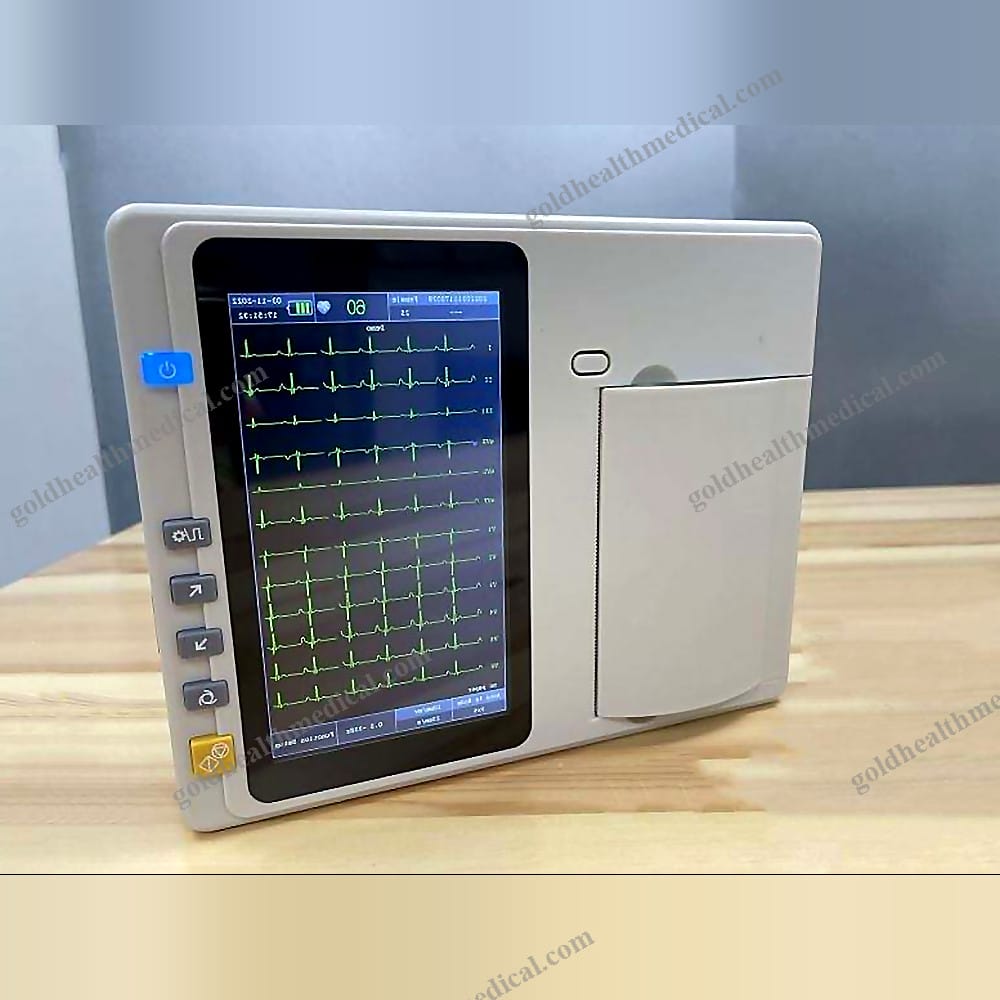

- 7-inch High-Resolution Color Touch Screen: Offers crystal-clear visualization of ECG waveforms and intuitive navigation.
- 12-Lead Simultaneous Acquisition and Display: Ensures comprehensive and accurate cardiac data capture in real-time.
- Automatic Measurement and Interpretation: Empowers users with instant, reliable analysis of ECG results.
- Advanced Digital Filters: Effectively resists baseline drift, AC interference, and EMG noise for pristine signal quality.
- Compact and Lightweight Design: Engineered for portability, enabling seamless use in diverse clinical and non-clinical settings.
- Expandable Memory: Supports USB flash drives and micro SD cards for extended storage capacity.
- Software Upgrade Capability: Effortlessly update via USB or SD card to ensure access to the latest features and improvements.
- Built-in Rechargeable Li-ion Battery: Provides reliable performance without the need for constant power supply.
Technical Specifications:
- Leads: Standard 12-lead configuration.
- Acquisition Mode: Simultaneous 12-lead acquisition for comprehensive data collection.
- Measurement Range: ±5mVpp.

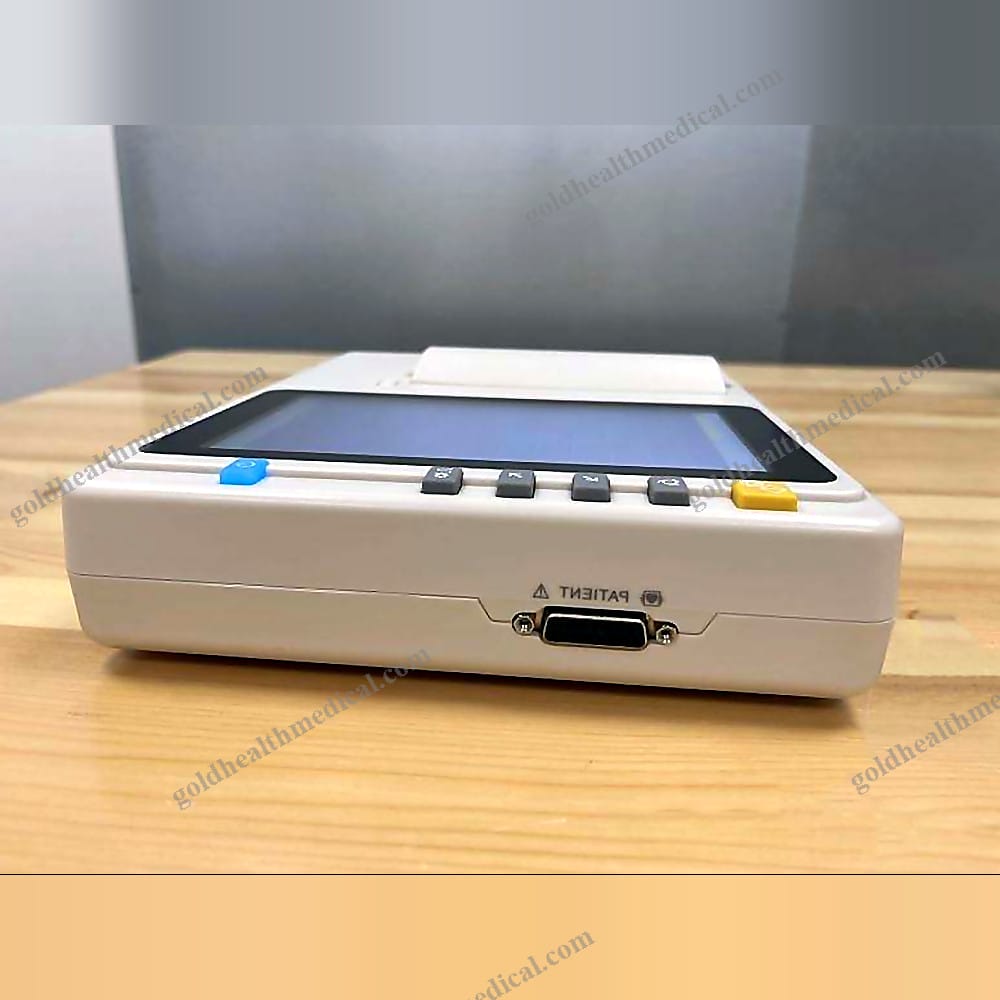

- Input Circuit: Floating design with defibrillator protection circuit.
- Input Impedance: ≥50MΩ.
- Input Circuit Current: <0.05µA.
- Recording Modes:
- Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable.
- Filters:
- EMG Filter: 25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz.
- DFT Filter: 0.05 Hz / 0.15 Hz.
- AC Filter: 50 Hz / 60Hz.
- CMRR: >100dB.
- Patient Leak Current: <10µA (220V-240V).
- Frequency Response: 0.05Hz~150Hz (-3dB).
- Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV (error: ±5%).
- Anti-Baseline Drift: Automatic adjustment.
- Time Constant: ≥3.2s.
- Noise Level: <15µVp-p.
- Paper Speed: 12.5 mm/s, 25 mm/s, 50 mm/s.

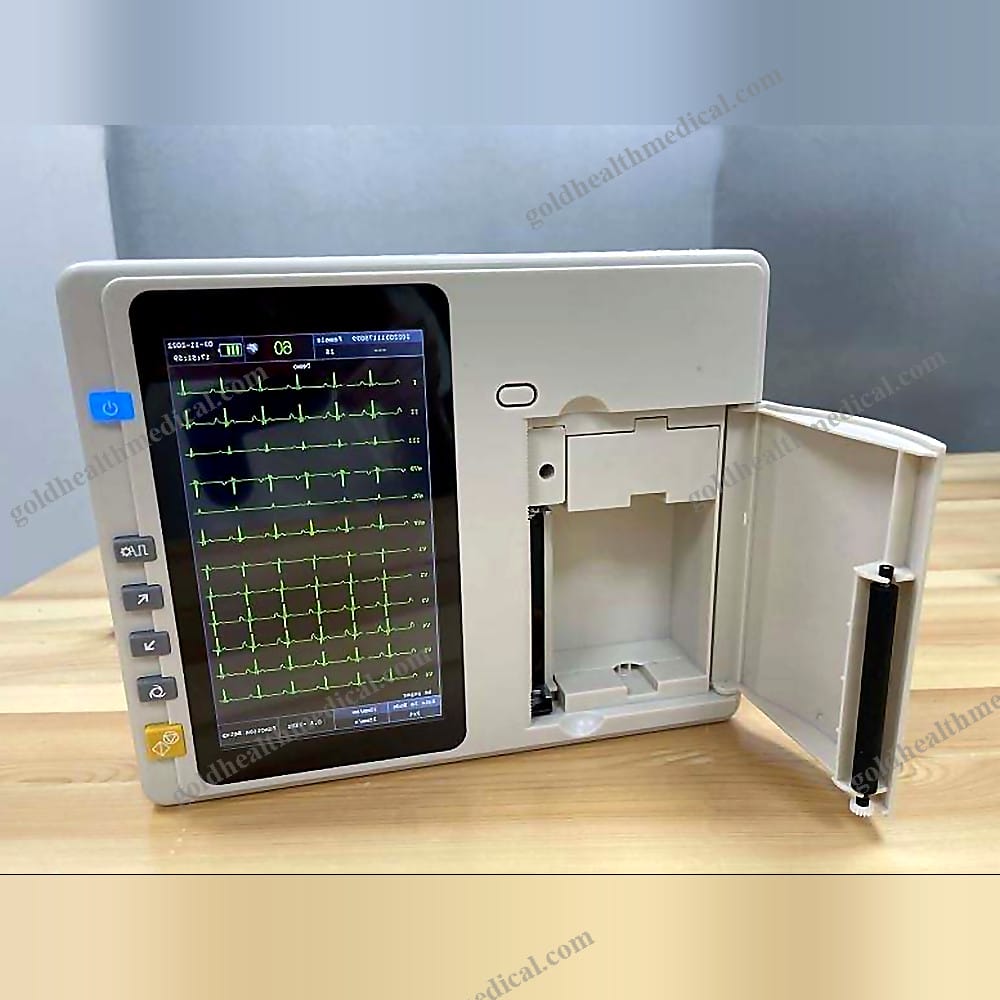

- Recording System: Thermal printing system.
- Paper Specification: Roll 80mm x 20M.
- Safety Standard: IEC I/CF.
- Sample Rate: Normal: 1000sps/channel.

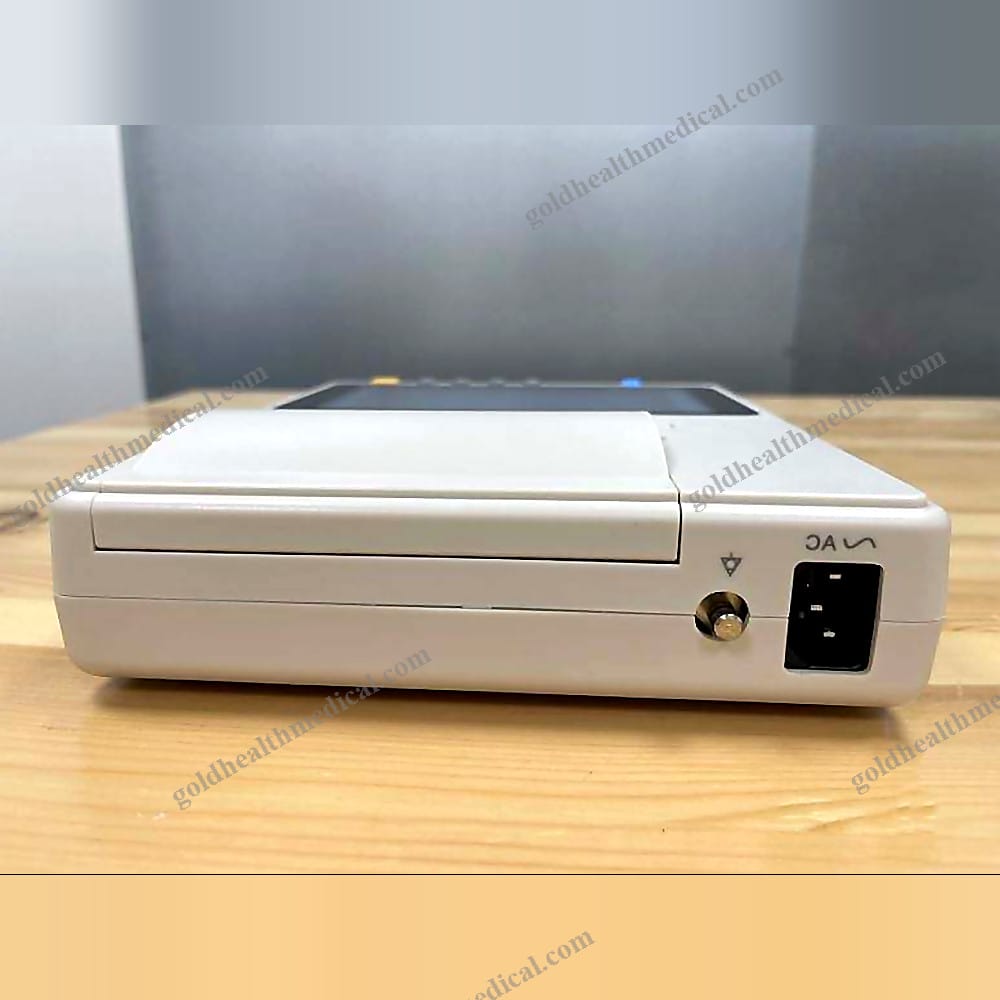

- Power Supply:
- AC: 100~240V, 50/60Hz, 30VA~100VA.
- DC: 14.8V/2200mAh, built-in lithium battery.

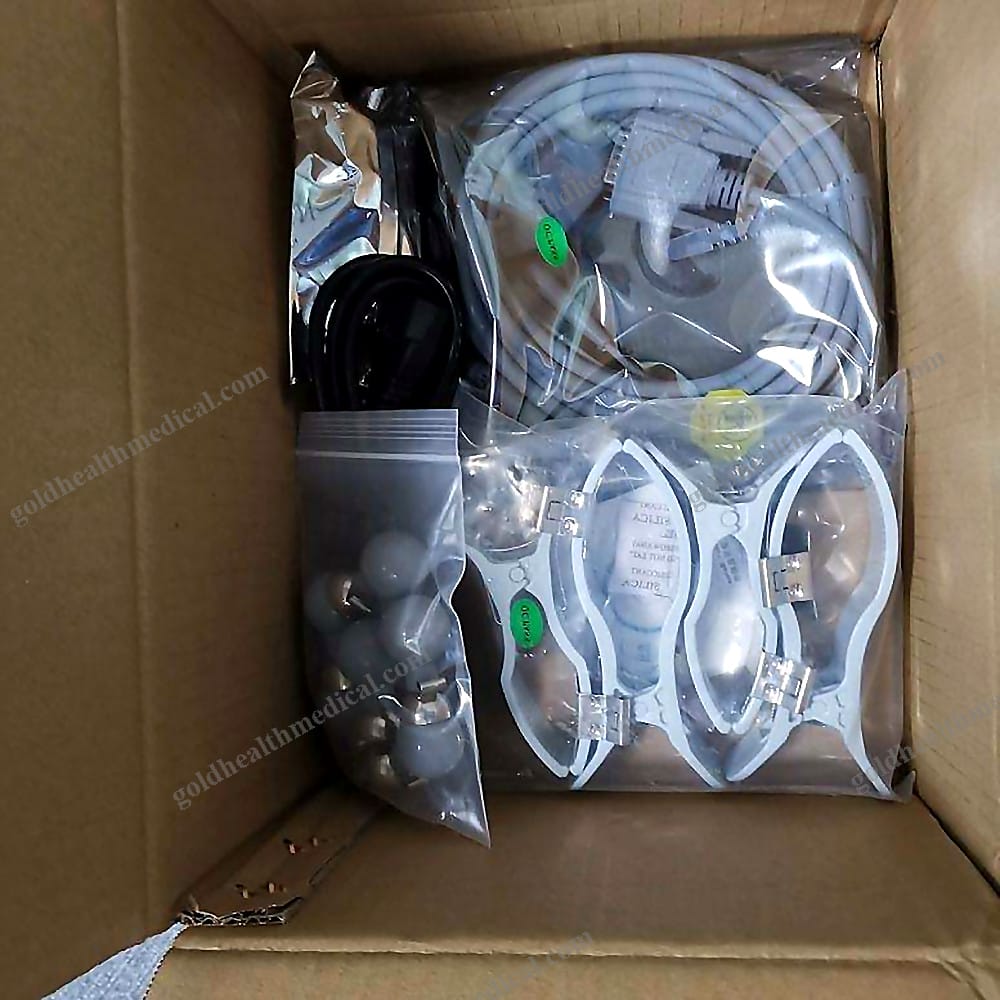

Standard Configuration:
- Main Machine: 1 unit.
- Patient Cable: 1 unit.
- Limb Electrodes: 1 set (4 pieces).
- Chest Electrodes: 1 set (6 pieces).
- Power Cable: 1 unit.
- Recording Paper (80mm x 20M): 1 roll.
- Paper Axis: 1 unit.
- Power Cord: 1 unit.
Packaging Details:
- Single Package Size: 322517cm.
- Single Gross Weight: 2.8 KG.
- Carton Capacity: 8 units per carton.
- Carton Size: 543375cm.
- Total Gross Weight: 22 KG.
GoldHealth Medical’s Portable ECG Machine is meticulously crafted to meet the demands of modern healthcare environments. Its blend of precision, portability, and advanced features ensures superior diagnostic capabilities, empowering healthcare providers to deliver exceptional patient care.
