Mindray Sysmex Hematology Analyzer 35 Part
Reference: 1601193311678
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

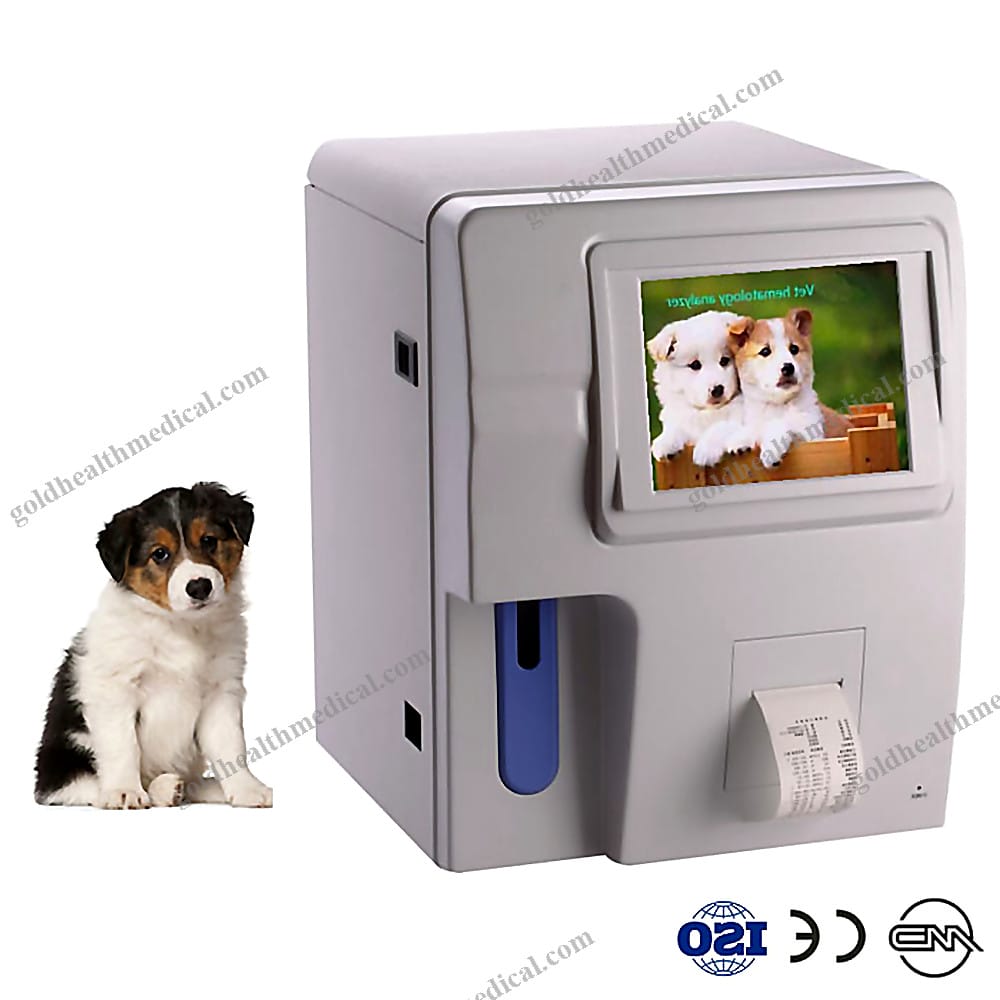

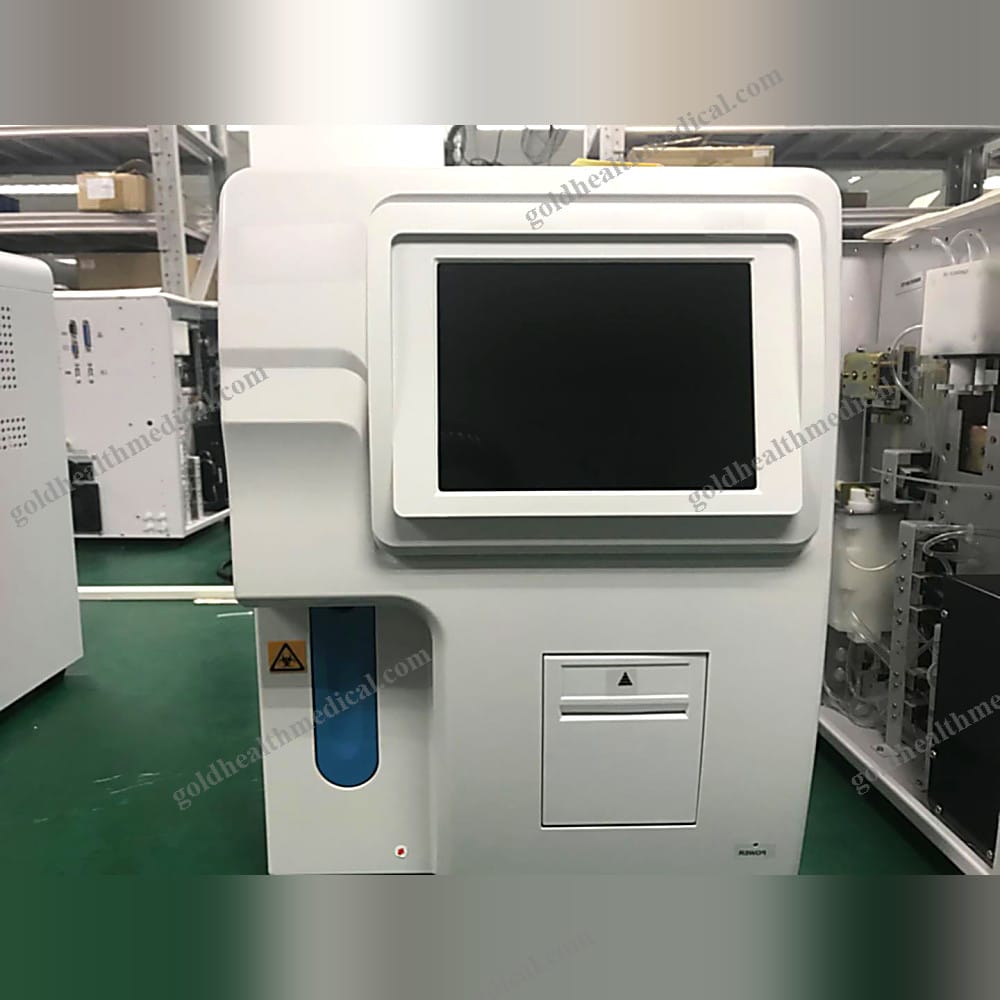

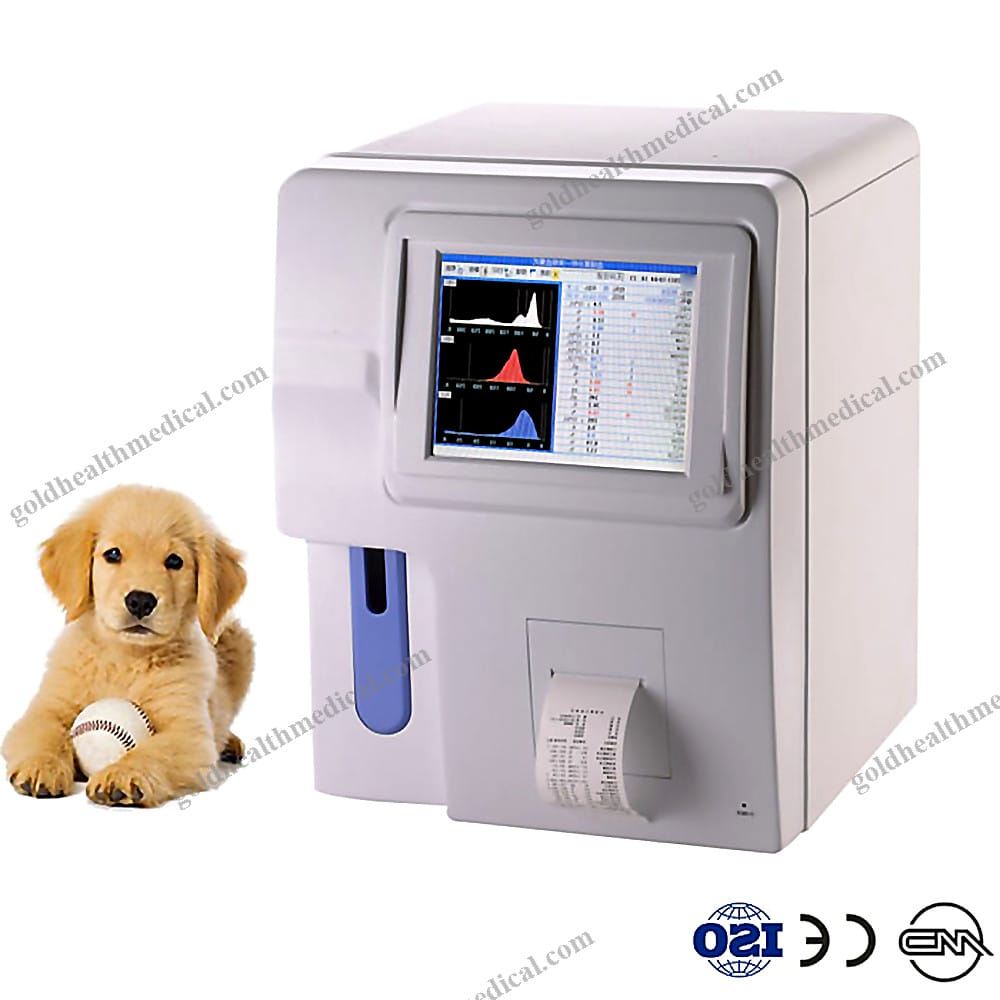

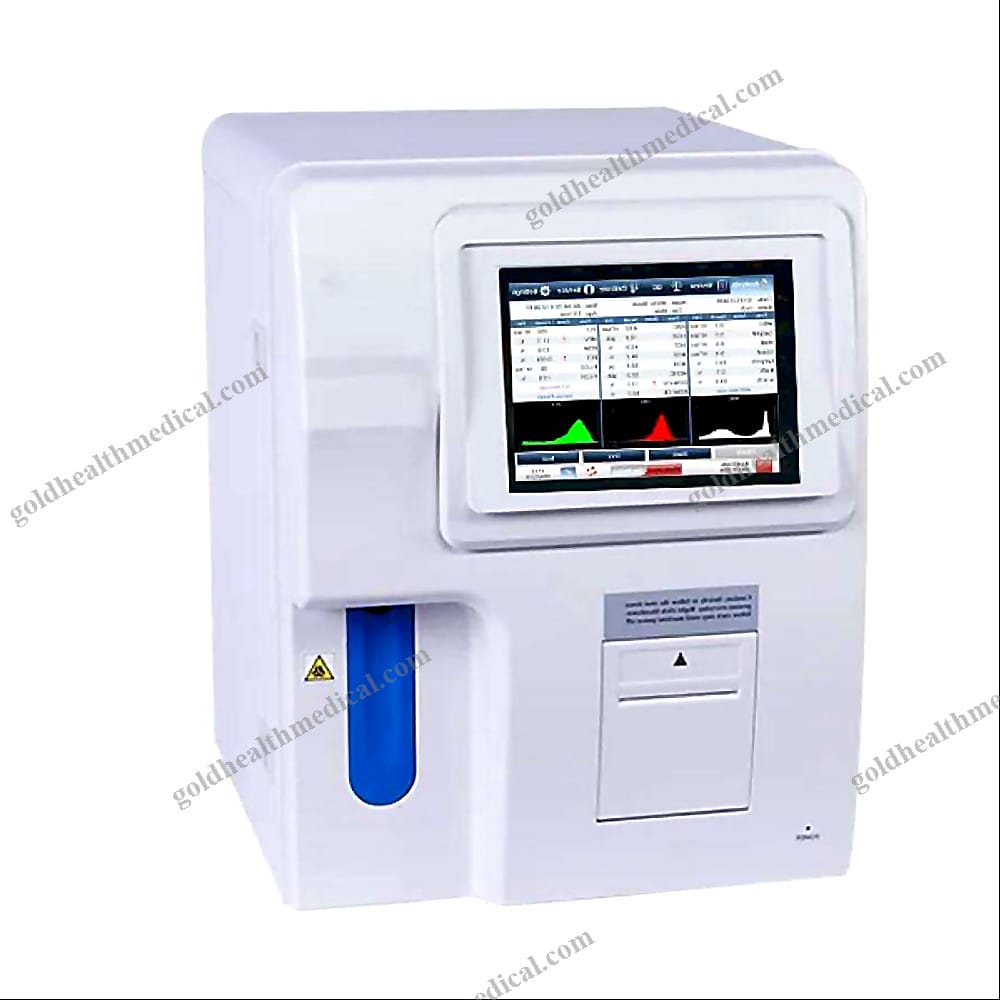

GoldHealth Medical Hematology Analyzer
Product Overview
GoldHealth Medical presents a cutting-edge hematology analyzer designed for precision and efficiency in blood testing. This device is engineered to deliver reliable results with advanced technology, making it an indispensable tool for laboratories, clinics, and research institutions.
Key Features
- Advanced Methodology: Utilizes electrical resistance for cell counting and the hemiglobincyanide method combined with SFT for hemoglobin measurement.
- Comprehensive Parameters: Offers 3-part differentiation of white blood cells (WBC), 20 parameters, and 3-color histograms for WBC, RBC, and PLT.
- Dual Channel System: Incorporates a unique hemoglobin test system with double channel operation for enhanced accuracy.
- Minimal Sample Volume: Requires only 9.8µl for venous and capillary modes and 20µl for prediluted mode, ensuring efficient sample usage.
- High Throughput: Capable of storing up to 100,000 sample results including histograms, facilitating easy data management and historical review.
- User-Friendly Interface: Operates in English with an 8.4" color TFT display, presenting all testing parameters simultaneously for seamless operation.
- Automated Functions: Features automatic diluting, mixing, rinsing, and clog clearing, along with automatic cleaning of the sample probe.
- Flexible Connectivity: Equipped with RS232 interface for PC connection, and supports various printing formats with an internal thermal-sensitive printer or optional external printer.
Technical Specifications
- Linear Range and CV%:
- WBC (10^9/L): 0.0-99.9, ≤2%
- RBC (10^12/L): 0.0-9.99, ≤1.5%
- MCV (fL): 40-150, ≤0.5%
- PLT (10^9/L): 0-999, ≤4.0%
- HGB (g/L): 0.0-300.0, ≤1.5%
- Testing Capacity: Up to 30 samples per hour.
- Storage: Stores up to 100,000 samples with 3 histograms.
- Environmental Conditions: Operates efficiently at temperatures between 18°C-30°C and humidity levels ≤10-90%.
- Power Supply: 220V±22VAC, 50±1Hz.
- Dimensions: 33cm (L) x 38cm (W) x 43cm (H).
- Weight: 20kg.
Additional Details
- Reference Value Setting: Customizable for Male, Female, Children, and Neonate.
- Input/Output: RS232, parallel printer, and keyboard support.
- Print Options: Graphic thermal printer with versatile printing formats and optional external printer.
Packing Information
- Model LBI120:
- Net Weight: 19KG
- Gross Weight: 24.5KG
- Machine Dimensions: 343843(H) cm
- Packing Dimensions: 544762 cm
- Shipment Volume: 35KG
GoldHealth Medical is dedicated to providing high-quality medical equipment with exceptional service and competitive pricing. Our hematology analyzer stands out with its innovative features and reliable performance, ensuring accurate diagnostics and efficient laboratory operations.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the next-generation Blood & Gas Analysis System, meticulously engineered to deliver precision and reliability in critical healthcare environments.
- Instrument Classification: Class II medical device, ensuring safety and performance standards for professional use
- Throughput: Exceptional efficiency with the ability to process over 30 samples per hour, ideal for high-demand settings
- Storage Capacity: Advanced data management with storage for up to 100,000 sample results, ensuring comprehensive record-keeping
- Reference Value Setting: Customizable settings for diverse patient groups, including male, female, children, and neonates, for tailored diagnostics
- Dimensions: Compact design at 33 cm (L) x 38 cm (W) x 43 cm (H), optimizing space in any medical facility
- Weight: Lightweight at 20 kg, ensuring portability and ease of placement
- Sample Volume: Minimal sample requirements – just 9.8 µL for venous blood and 20 µL for prediluted mode, reducing patient discomfort
- Work Mode: Single channel operation combined with a unique hemoglobin analysis feature for enhanced accuracy
- Packaging Details: Each unit is securely packed in a robust carton measuring 55 x 50 x 60 cm, with a gross weight of 35 kg for safe transportation
Why Choose GoldHealth Medical’s Blood & Gas Analysis System?
Our system is designed to meet the rigorous demands of modern healthcare, offering unparalleled precision, versatility, and ease of use. With its advanced technology and user-centric features, it is the perfect solution for hospitals, clinics, laboratories, and research institutions seeking reliable diagnostic tools.
Warranty: Backed by a 2-year warranty, reflecting our confidence in the system’s durability and performance.
GoldHealth Medical – Elevating Healthcare Through Innovation.
