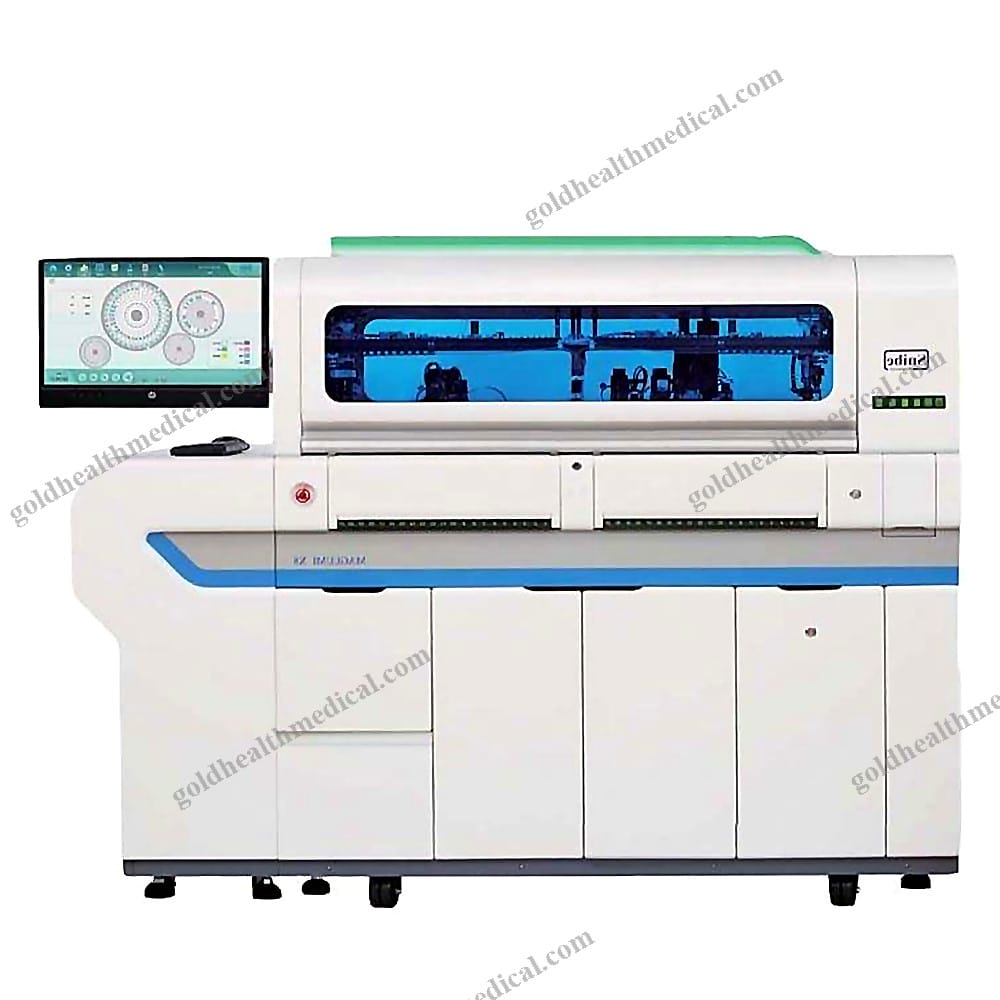

MAGLUMI X8 Fully Automatic CLIA System
Reference: 1601256722381
Blood Testing Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Fully Automatic Chemiluminescence Immunoassay (CLIA) System
Product Overview
The GoldHealth Medical Fully Automatic Chemiluminescence Immunoassay (CLIA) System is designed to deliver exceptional performance in diagnostic testing. Featuring advanced flash chemiluminescence labeling and magnetic microbeads separation, this system ensures high sensitivity, long-term stability, and rapid, efficient processing. It is ideal for a wide range of medical and research applications.
Key Features
- Throughput: Achieves up to 600 tests per hour with a single module.
- Time to First Result: Delivers results in just 15 minutes.
- 24/7 Availability: Ready to use around the clock.
- Walk-Away Capacity: Supports up to 2800 tests without interruption.
- Modular Flexibility: Seamlessly integrates multiple modules, including immunoassay, biochemistry, and ISE modules, and connects with Laboratory Automation Systems (TLA/LAS).
Sample Handling
- Sample Positions: Up to 300 positions with continuous loading.
- STAT Functionality: Available for urgent samples.
- Auto Remeasuring: Ensures accuracy with minimal intervention.
- Sample Editing Modes: Supports LIS connection, barcode recognition, auto-naming, and manual editing.
Reagent Handling
- Reagent Positions: 42 onboard positions with continuous loading.
- RFID Technology: Provides real-time tracking and management.
- Temperature Control: Maintains working temperature at 8°C-12°C and storage at 2°C-8°C.
- Reagent Needle: Titanium construction with Teflon coating for durability and carry-over prevention. Dual-arm design allows simultaneous pipetting of different reagents.
- Advanced Features: Liquid level detection, collision detection, and automatic probe depth adjustment.
Reagent Characteristics
- Ready-to-Use: No pretreatment required.
- Calibrators and Controls: Included for precision.
- RFID Tags: Store comprehensive reagent information.
- Calibration Stability: Up to 4 weeks with 2-point recalibration.
- Storage Temperature: 2°C-8°C.
Sampling System
- Disposable TIPs: Ensures contamination-free pipetting.
- Multi-Test Capability: One pipetting action supports multiple tests.
- Detection Features: Clot, liquid level, bubble, and collision detection.
Reaction Disk
- Cuvette Capacity: Incubates 252 cuvettes simultaneously.
- Temperature Stability: Maintains a precise 37.0°C incubation.
- Mixing Technology: Non-contact mixing for consistent results.
Tip and Cuvette Storage
- Tip Storage: Holds up to 576 TIPs (6 boxes) with intelligent loading and real-time reserve monitoring.
- Cuvette Storage: Single-cup design accommodates up to 2912 cuvettes (16 boxes) with continuous loading and monitoring.
Washer System
- Washing Technology: 4-step process with high-speed single-channel design.
- Magnetic Field Design: Ensures superior separation.
- Suspension Technology: Non-contact magnetic microbeads suspension for optimal performance.
Software System
- LIS Connectivity: Bidirectional communication via TCP/IP and COM Port.
- Remote Diagnostics: Supports SnibeLinker for seamless troubleshooting.
Dimensions and Weight
- Power Input: AC 100-240V, 50/60Hz.
- System Size: 192 x 118 x 150 cm.
- Weight: 670 kg.
Product Ecosystem
GoldHealth Medical offers a comprehensive range of diagnostic solutions, including Chemiluminescence Immunoassay (CLIA), Biochemistry, and Integrated Systems, all designed to elevate laboratory efficiency and accuracy.
Experience the future of diagnostic excellence with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge automated immunoassay analyzer designed to deliver unparalleled precision, efficiency, and reliability for diagnostic laboratories and healthcare facilities. Engineered with advanced technology, this system is tailored to meet the demands of high-throughput environments while maintaining exceptional accuracy and ease of use.
Key Features and Specifications
- Throughput Performance: Achieves up to 600 tests per hour (single module), ensuring rapid and efficient processing for busy laboratories.
- Time to First Result: Delivers results in just 15 minutes, enabling faster clinical decision-making.
- Sample Capacity: Supports up to 300 sample positions, accommodating a wide range of testing requirements.
- Reagent Loading: Equipped with 42 on-board reagent positions for seamless operation and minimal downtime.
- Cuvette Storage: Holds up to 2,912 cuvettes in one loading (16 boxes), reducing the need for frequent reloading.
- Tip Storage: Stores up to 576 tips in one loading (6 boxes), ensuring uninterrupted workflow.
- Calibration Stability: Maintains calibration stability for up to 4 weeks, enhancing operational consistency.
Design and Build Quality
- Constructed with premium materials, including metal, steel, and resin, ensuring durability and long-term reliability.
- Compact yet robust design with dimensions of 192 x 118 x 150 cm and a weight of 670 kg, optimized for space efficiency without compromising performance.
Technical Specifications
- Power Source: Operates on AC 100-240V, 50/60Hz, making it adaptable to various electrical systems worldwide.
- Software System: Features bidirectional LIS connectivity via TCP/IP and COM port, enabling seamless integration with laboratory information systems.
- Safety Standards: Complies with GB2626-2006 and holds CE certification, guaranteeing safety and quality assurance.
- Instrument Classification: Class I medical device, ensuring high standards of safety and performance.
Warranty and After-Sales Support
- Backed by a 1-year warranty and comprehensive after-sales service, including return and replacement options, ensuring peace of mind for users.
Applications
Ideal for hospitals, clinics, research institutions, laboratories, and rehabilitation centers, this analyzer is designed to elevate diagnostic capabilities and streamline workflows. Its versatility also makes it suitable for home healthcare settings, providing reliable performance across diverse environments.
Why Choose GoldHealth Medical?
GoldHealth Medical combines innovation, precision engineering, and user-centric design to deliver solutions that empower healthcare professionals. This analyzer represents the pinnacle of diagnostic technology, offering unmatched speed, accuracy, and reliability to meet the evolving needs of modern healthcare.
Packaging Details
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
Experience the future of diagnostic excellence with GoldHealth Medical.
