LTSD13 AED Defibrillator Portable Automatic Emergency
Reference: 1601359369287
First-Aid Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

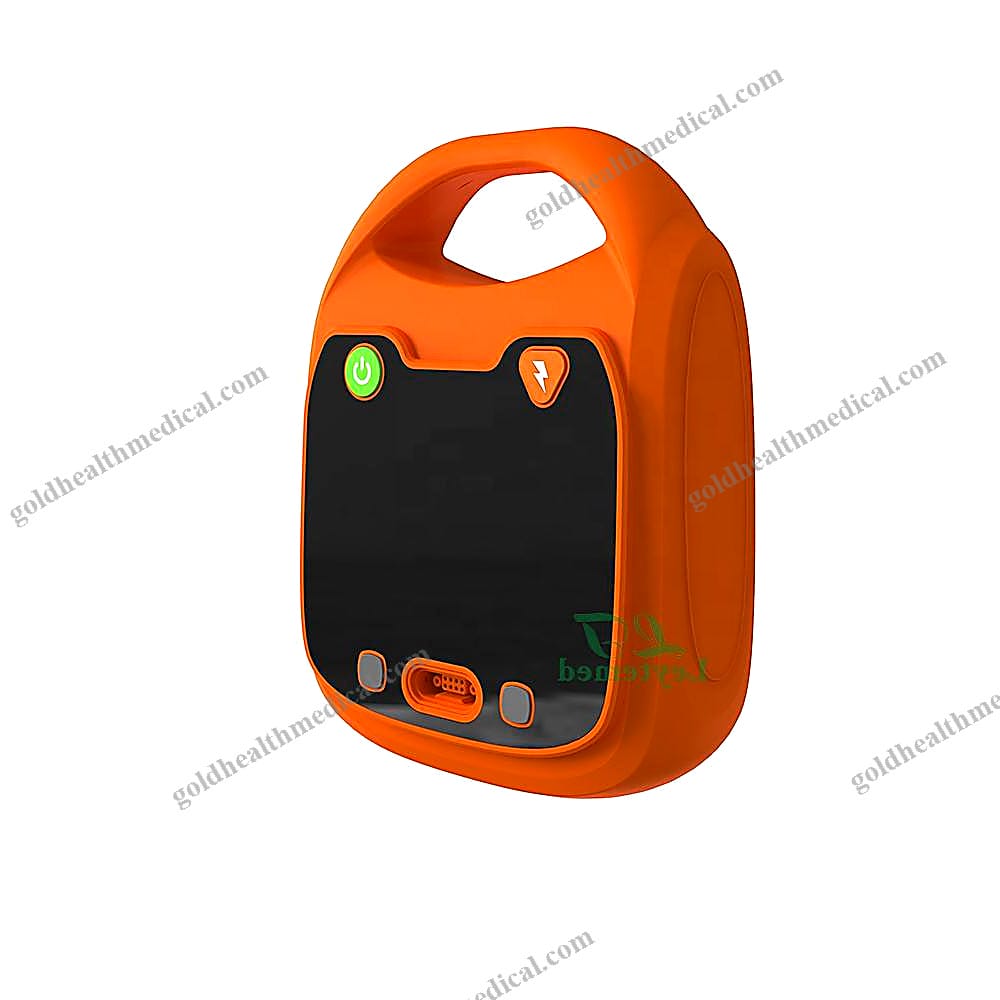

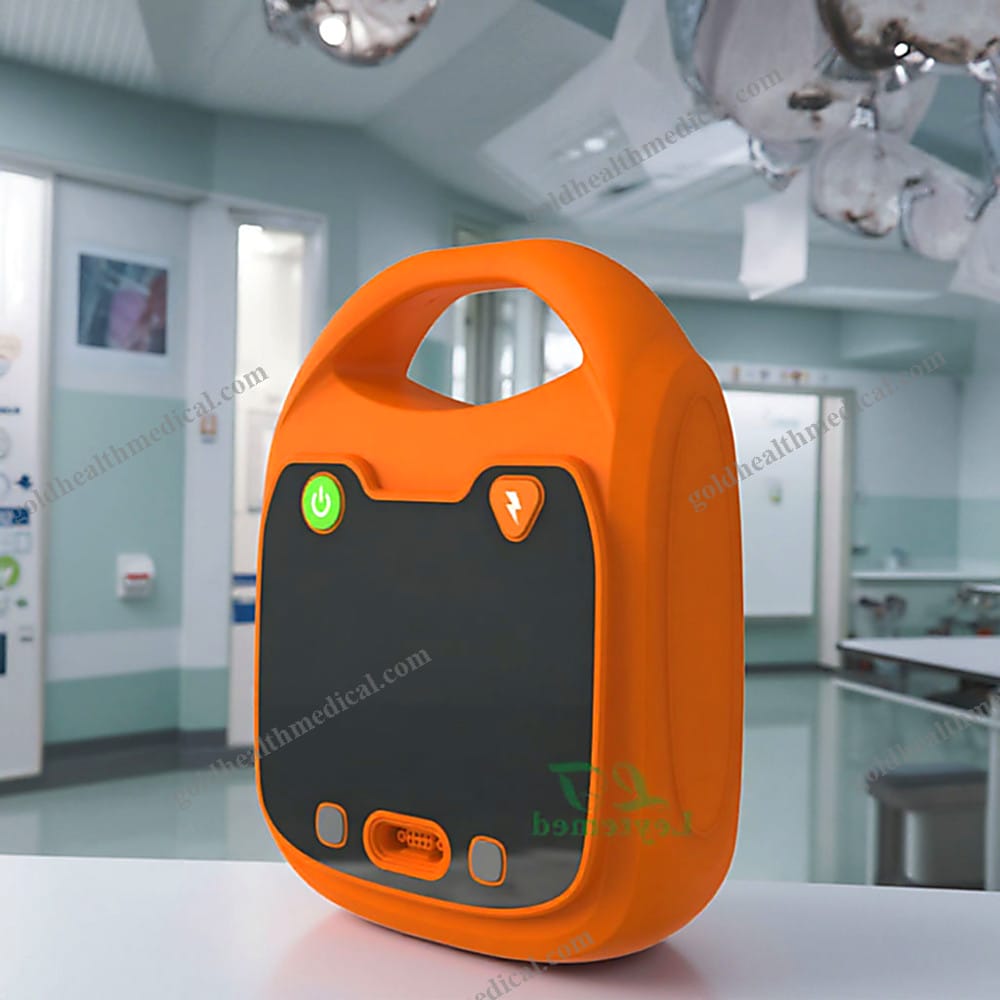

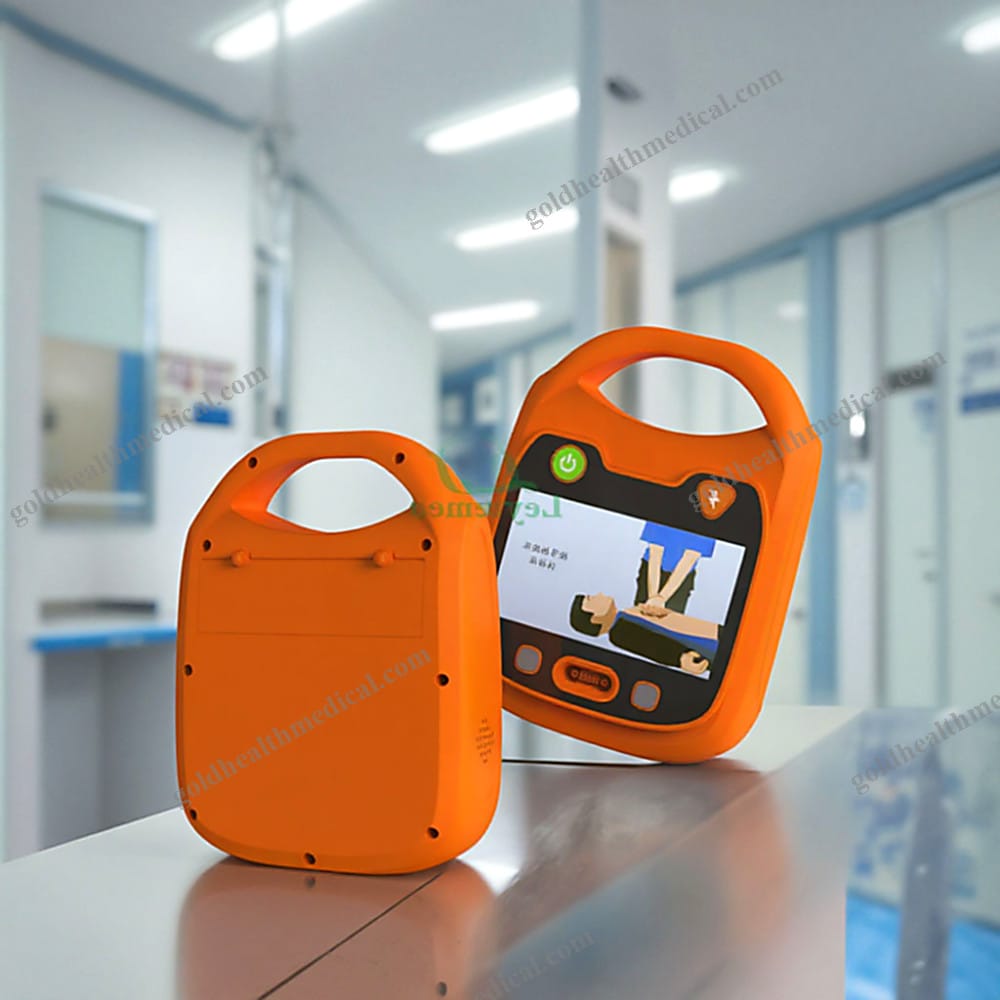

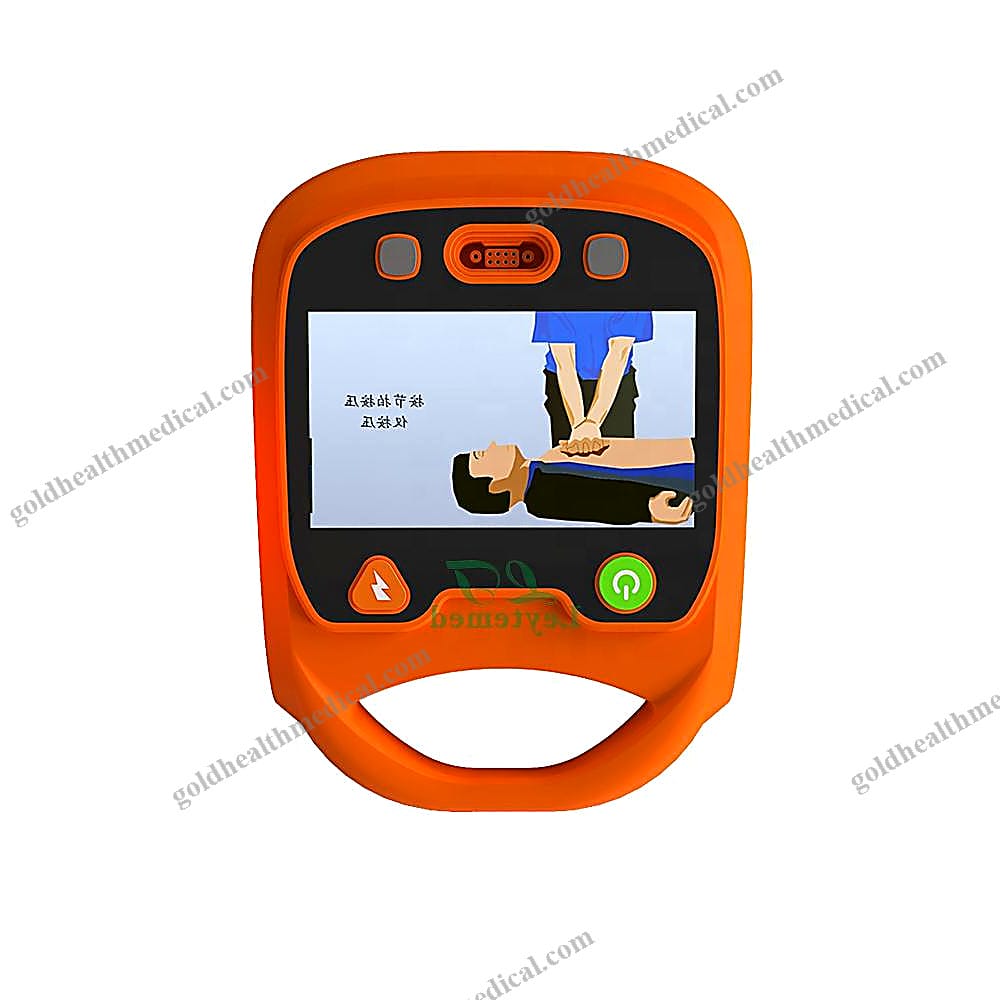

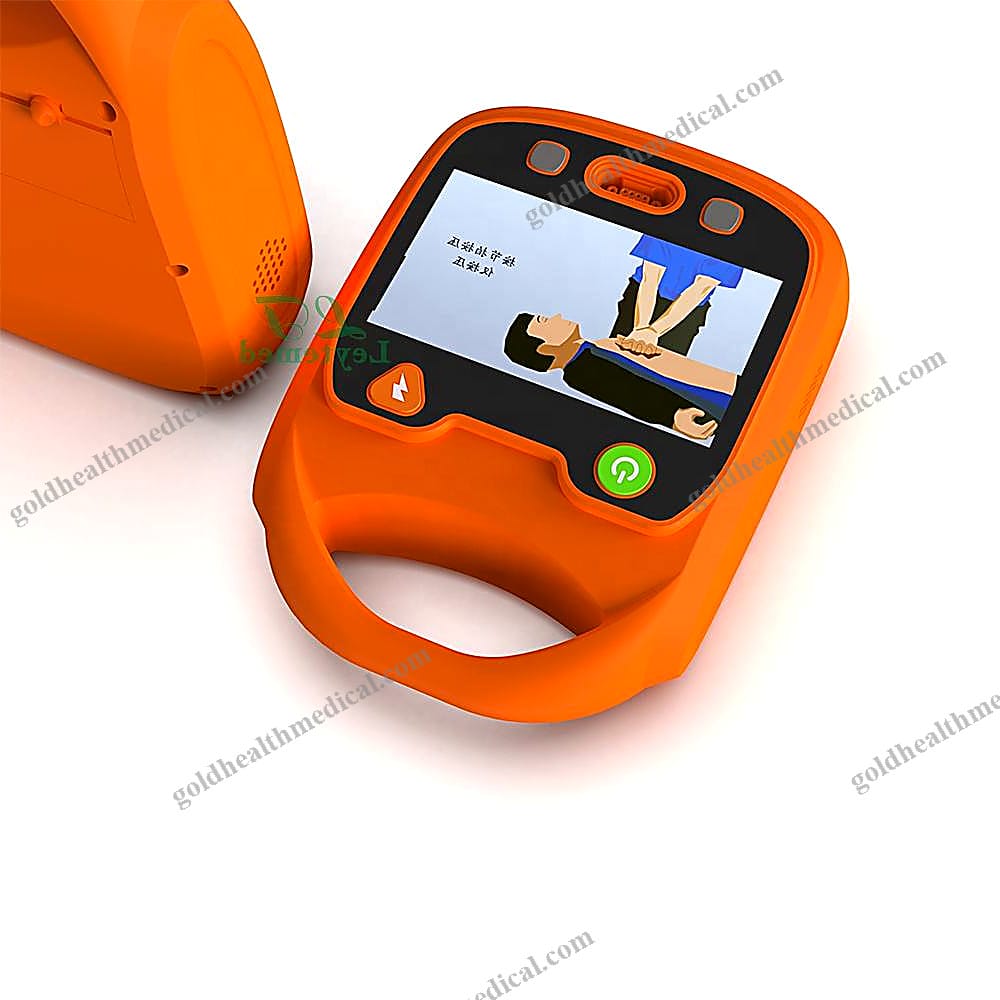

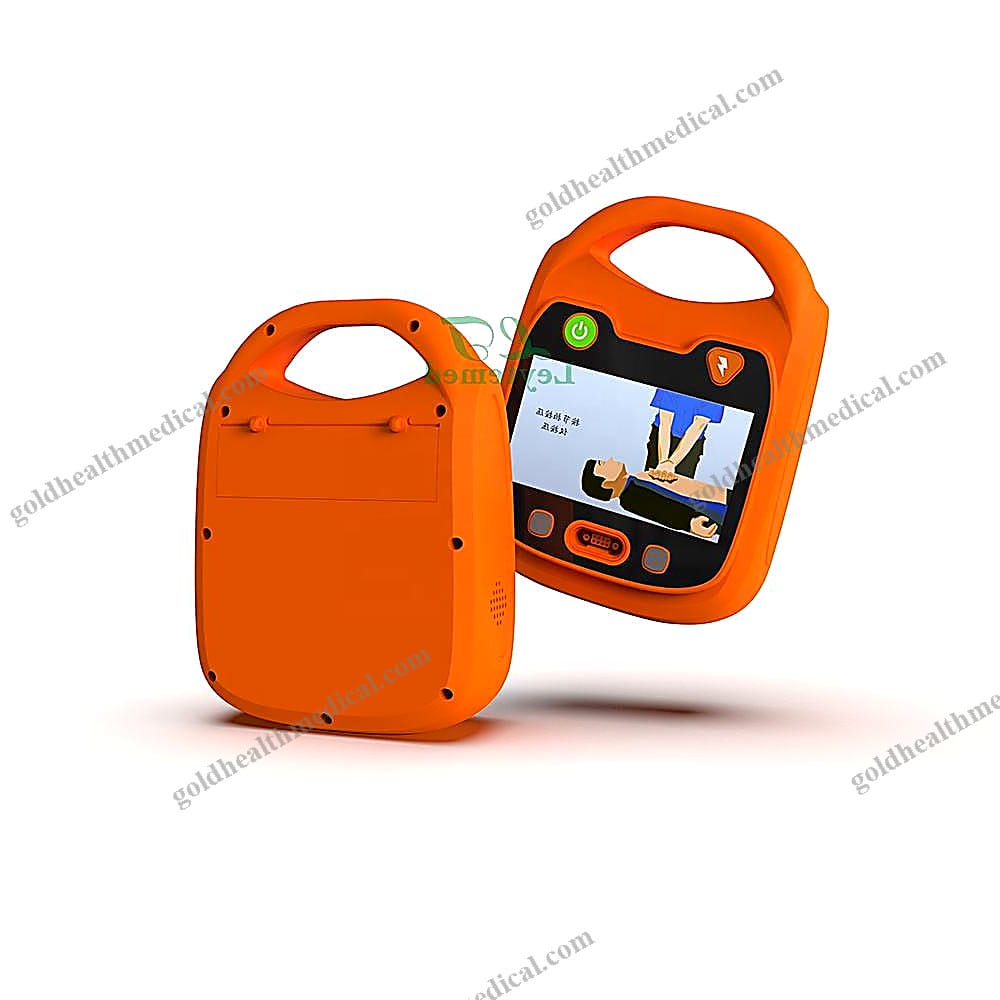

GoldHealth Medical Portable AED Defibrillator
Product Overview
GoldHealth Medical introduces a cutting-edge Portable Automatic External Defibrillator (AED) designed for first-aid emergencies. This device is engineered to deliver life-saving defibrillation with precision and speed, making it an essential tool for hospitals, clinics, and emergency responders.
Key Features and Specifications
- Waveform Technology: Utilizes advanced Biphasic Truncated Exponential waveform for optimal energy delivery.
- Energy Sequence: Delivers 150J, 150J, and 200J in sequence to ensure effective treatment.
- Charge Time:
- 8 seconds to reach 150J with a new battery.
- 10 seconds to reach 200J with a new battery.
- Analysis Time: Rapid rhythm analysis completed in just 9 seconds.
- Response Time:
- Less than 20 seconds from rhythm analysis to readiness for discharge with a new battery.
- Less than 25 seconds after delivering 6 shocks.
- Less than 30 seconds from power-on to readiness for discharge.
- User Guidance: Equipped with 22 audible prompts and LED visual indicators for clear instructions during emergencies.
- Self-Test Functionality: Automatic self-test ensures the device is always ready for use.
- Controls: Simplified operation with only two buttons—On/Off and Shock.
- Energy Accuracy: ±15% across impedances ranging from 25 to 175Ω.
- Safety Mechanism: Output disabled if patient impedance falls outside the 20Ω to 200Ω range.
- Maximum Voltage: 1200±50V for reliable performance.
- Battery Performance:
- Non-rechargeable CR123A-4x2 battery with a capacity of 2.8Ah.
- Supports 100 discharges at 200J or 120 discharges at 150J.
- 7-year standby life after installation.
- Physical Attributes:
- Compact dimensions: 280 x 209 x 80 mm.
- Lightweight design: Only 2.5 kg for portability.
- Environmental Tolerance:
- Operating temperature: 0°C to 40°C.
- Operating humidity: 30% to 95% (non-condensing).
- Storage temperature (without battery): -20°C to 55°C.
- Storage humidity (without battery): Up to 93% (non-condensing).
Why Choose GoldHealth Medical?
GoldHealth Medical is a trusted name in the medical equipment industry, offering innovative solutions tailored to meet the needs of healthcare professionals and institutions worldwide. Our commitment to quality, reliability, and customer satisfaction sets us apart.
Pre-Sales and After-Sales Support
- Pre-Sales Service:
- 24/7 online support from a professional team.
- Customizable OEM services to meet specific requirements.
- After-Sales Service:
- One-year warranty for peace of mind.
- Access to experienced engineers with over a decade of expertise to resolve any issues promptly.
Related Products
- Ultrasound Systems: High-performance portable and trolley-based ultrasound machines with advanced imaging capabilities.
- Electrosurgical Generators: Precision-engineered units for operating rooms, offering multiple modes and high-frequency surgical support.
- Flexible Laryngoscopes: Versatile video laryngoscopes available in various sizes with optional working channels.
- ECG Machines: Touchscreen-enabled electrocardiogram devices with 6 or 12 channels for accurate diagnostics.
GoldHealth Medical’s Portable AED Defibrillator is more than just a device—it’s a lifeline. Designed with precision, durability, and ease of use in mind, it empowers healthcare providers to act swiftly and confidently in critical situations. Choose GoldHealth Medical for unmatched quality and innovation in medical technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class III
Place of Origin: Guangdong, China
Product Overview
GoldHealth Medical presents a cutting-edge First-Aid Device designed to deliver unparalleled performance in critical situations. Engineered with precision and reliability at its core, this device is ideal for hospitals, clinics, research institutions, and home users seeking advanced medical support.
Key Features
- Power Source: Electric
- Shelf Life: 1 Year
- Quality Certification: CE
Technical Specifications
- Output Type: Biphasic Truncated Exponential
- Energy Sequence: 150J, 150J, 200J
- Analysis Time: 9 seconds
- Audible Prompts: 22 distinct prompts for clear guidance
- Visual Prompts: LED indicators for enhanced usability
- Automatic Self-Test: Ensures readiness for emergency use
- Controls: Simplified interface with two buttons – On/Off and Shock
Performance Metrics
- Output Energy Accuracy: ±15% across impedances ranging from 25 to 175Ω
- Maximum Voltage: 1200±50V
User Experience
GoldHealth Medical prioritizes user-friendly design, ensuring that even non-specialists can operate the device with confidence. The combination of audible and visual prompts minimizes errors during high-stress scenarios, making it an indispensable tool for emergency response.
Packaging Details
- Package Dimensions: 40 x 30 x 18 cm
- Gross Weight: 3.500 kg
Warranty and Support
- Warranty Period: 1 Year
- After-Sale Service: Comprehensive online technical support to address any queries or concerns
Why Choose GoldHealth Medical?
Our First-Aid Device stands out with its robust engineering, intuitive controls, and unwavering reliability. Designed to meet the demands of modern healthcare, it ensures rapid, accurate, and dependable performance when every second counts.
Minimum Order Quantity (MOQ)
- MOQ: 1 Set
GoldHealth Medical is committed to empowering healthcare providers and individuals with innovative solutions that save lives and enhance outcomes.
