LTDM7000 Portable AED Defibrillator with Pads
Reference: 1601357107467
First-Aid Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

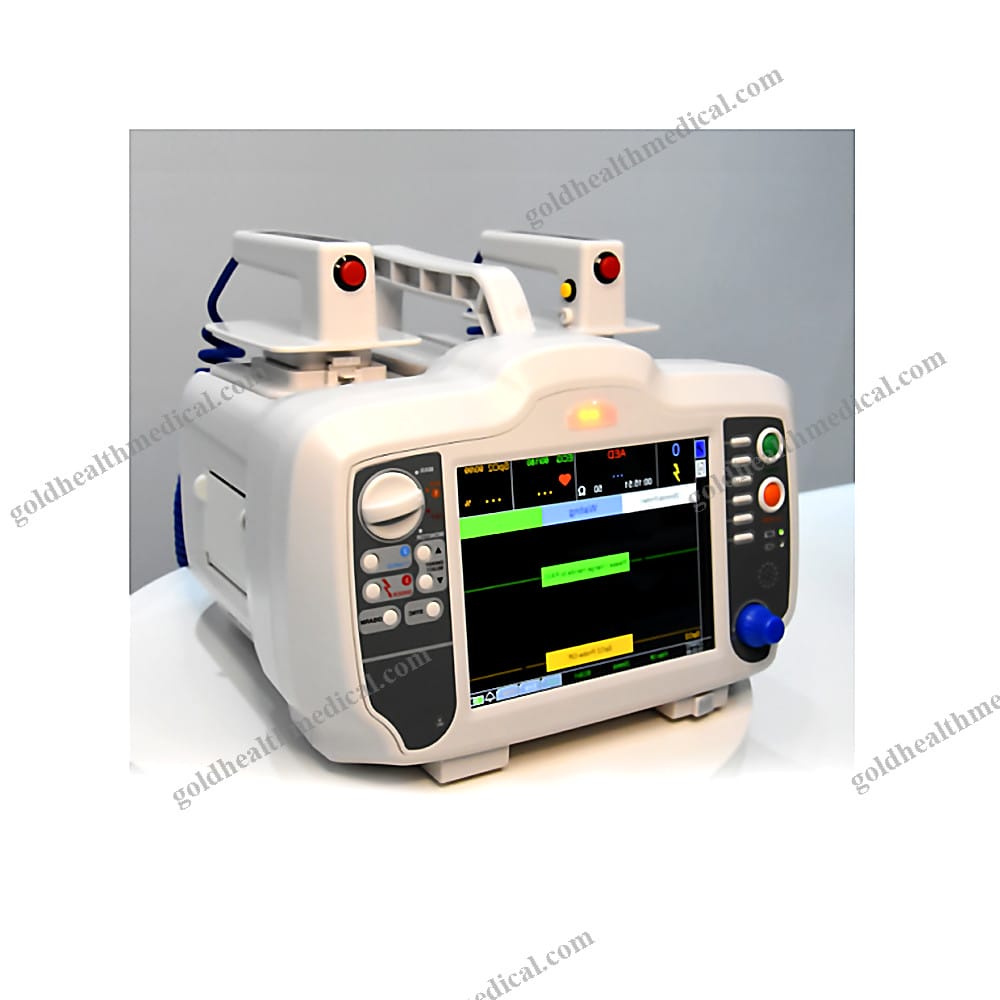

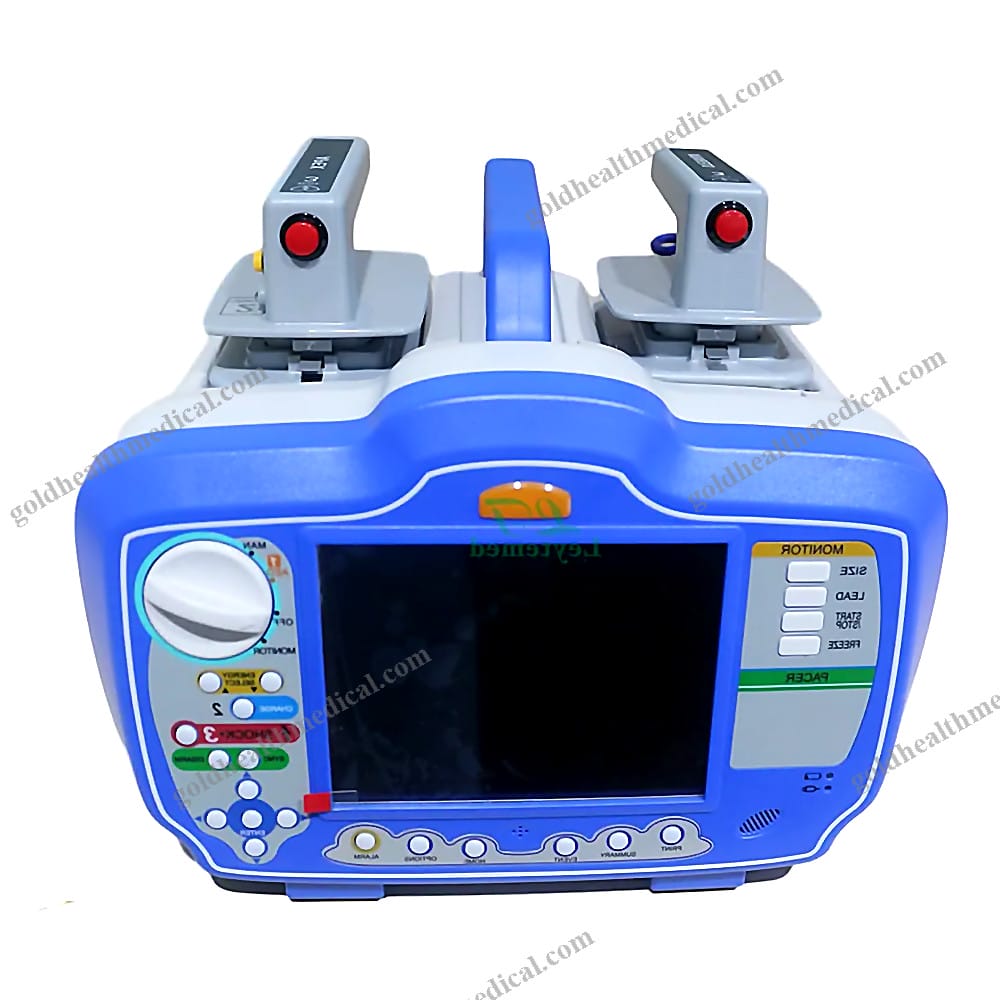

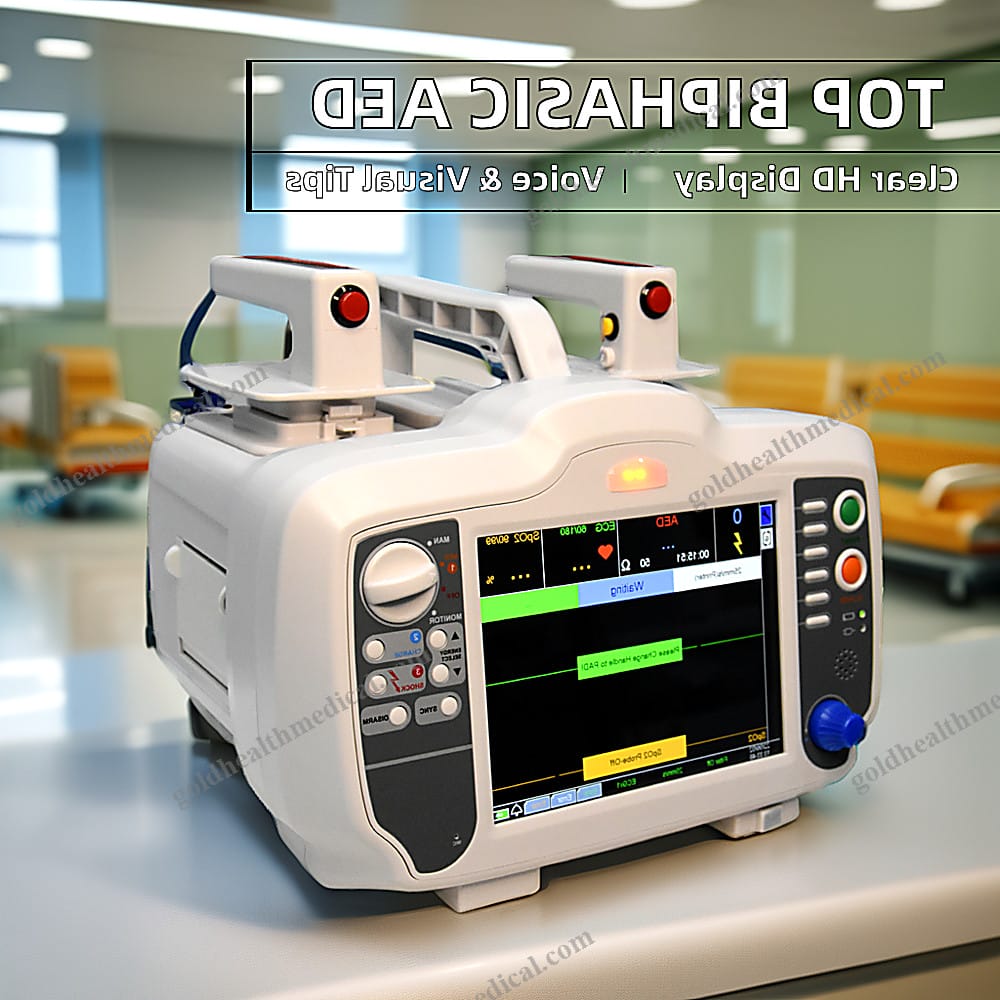

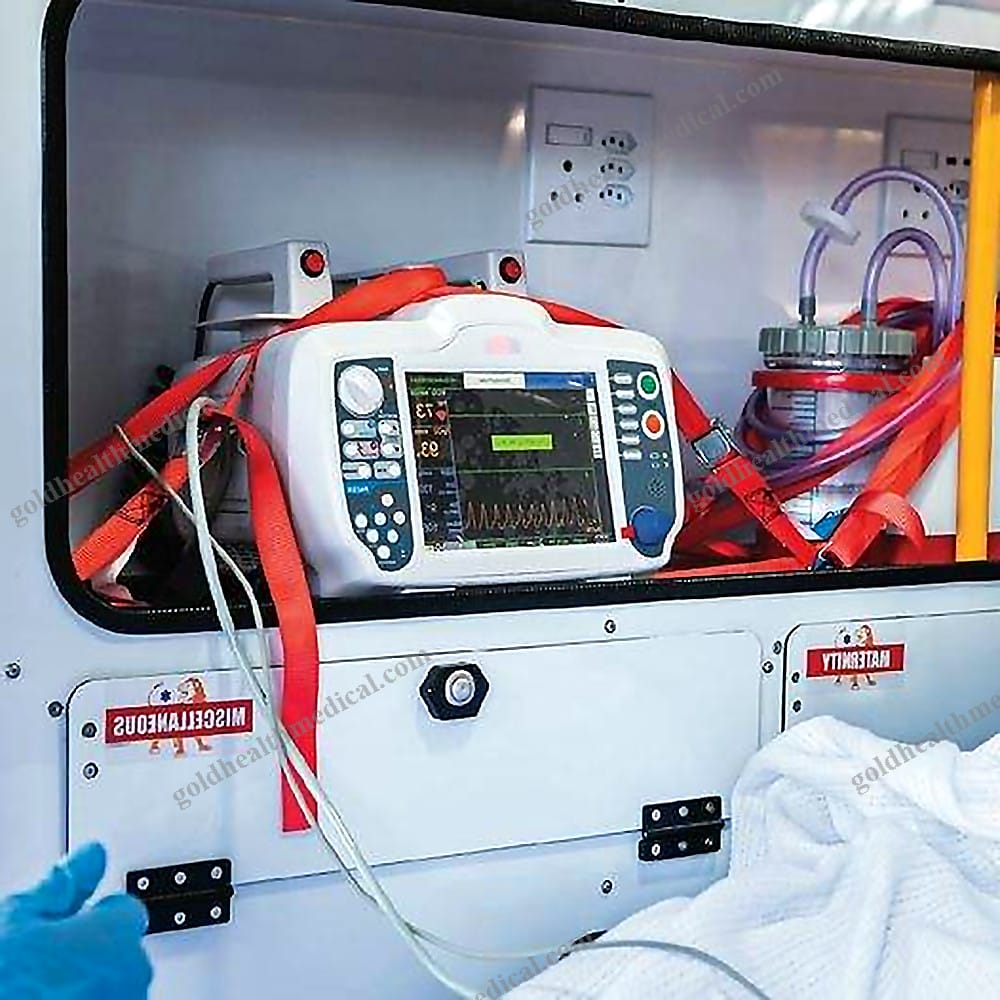

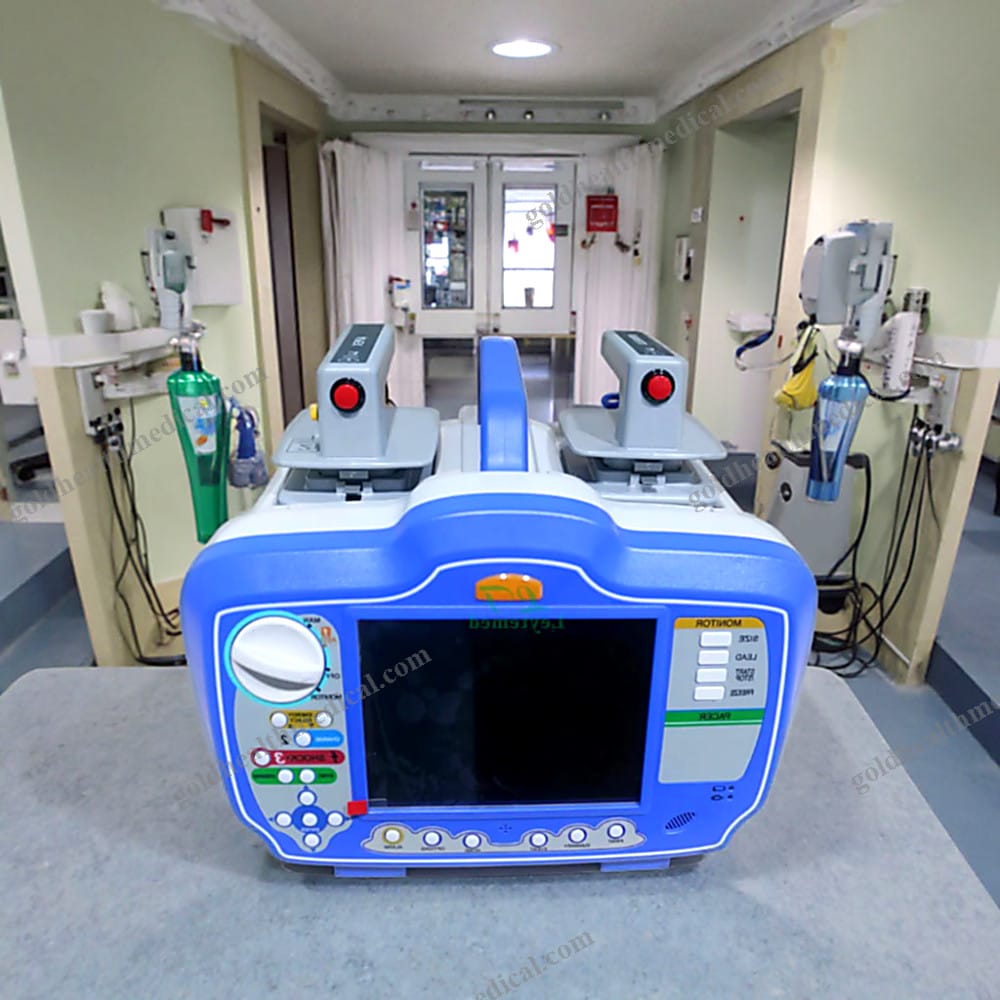

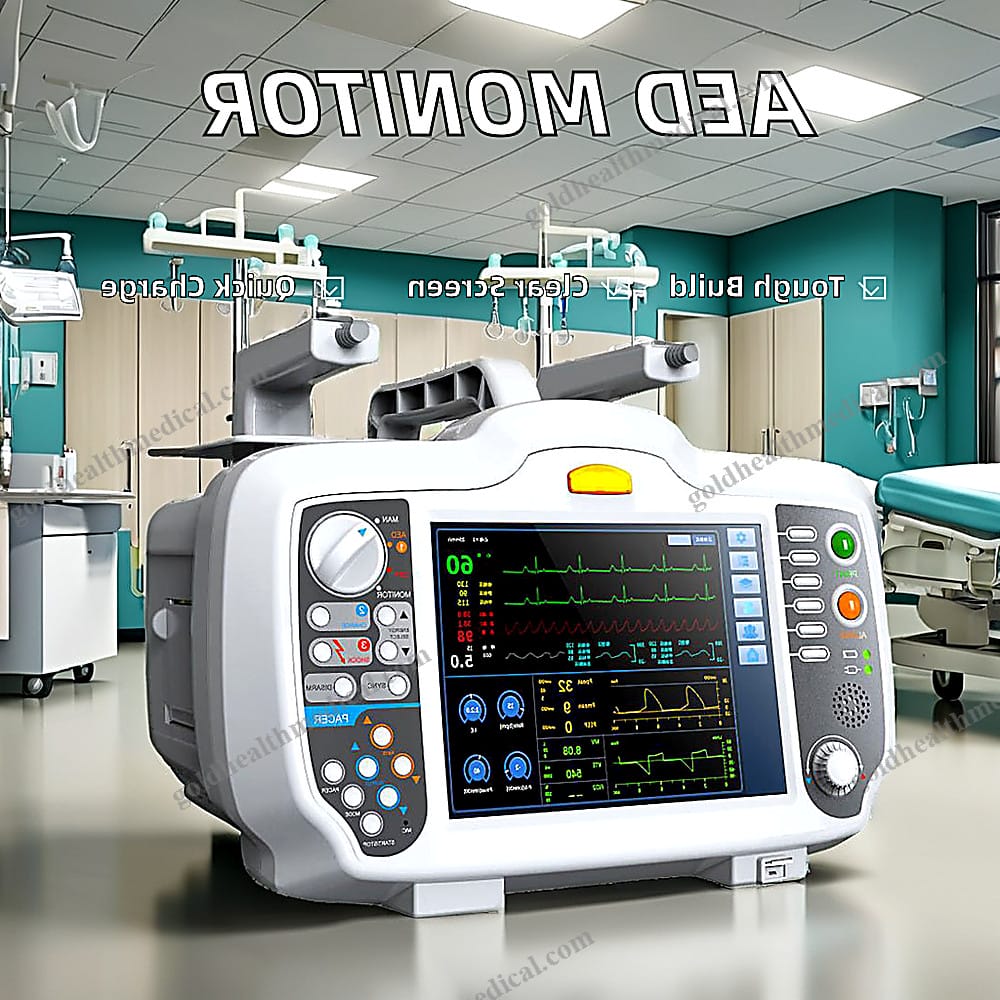

GoldHealth Medical Biphasic AED Defibrillator
Product Overview
GoldHealth Medical introduces a cutting-edge Biphasic AED Defibrillator, designed to deliver unparalleled performance in emergency cardiac care. Featuring a high-resolution 7-inch display, this device combines advanced monitoring capabilities with intuitive operation, ensuring precision and reliability in critical moments.
Key Features and Parameters
- Display and Screen
- High-resolution 7-inch (17.7cm diagonal) display for clear visualization.
-
Sweep speed: 25mm/sec.
-
Monitoring and Information
- Real-time heart rate monitoring.
- Lead/pads status, alarm on/off, and SpO2 data displayed.
-
Customizable alarm settings and energy delivery prompts.
-
Battery Performance
- Rechargeable Ni-MH battery (12V).
- Delivers up to 60 defibrillator discharges at maximum energy or provides 3 hours of continuous ECG monitoring on a fully charged battery.
-
Operating time varies based on selected functions.
-
SpO2 Module
- Measurement range: 30%–100%.
- Accuracy: ±2% between 80%–90%, ±5% for other ranges.
- User-settable high and low alarm limits with ±10% accuracy within set values.
-
Alarm response time: Less than 12 seconds.
-
AED Mode
- Auto-analyzer with programmable energy level selection.
- Detects shockable rhythms:
- Ventricular fibrillation (amplitude ≥200mV).
- Ventricular tachycardia (rate ≥140bpm).
- QRS complex wave (duration ≥140ms).
-
Voice and visual prompts guide users through each step.
-
Defibrillator Specifications
- Biphasic waveform technology for optimal energy delivery.
-
Electrode impedance measurement range: 0–250 ohms.
-
ECG Monitoring
- Patient connection via 3-lead or 5-lead ECG cables.
- Lead selection: I, II, III, AVR, AVL, AVF, V.
- ECG size adjustable: 0.25, 0.5, 1, 1.5, 2, 4cm/mV.
- Heart rate range: 20–300 BPM with customizable alarms.
-
Smart alarms with beeper/voice prompts for shockable rhythms.
-
Recorder
- Thermal paper width: 50mm.
- Printing speeds: 12.5mm/sec, 25mm/sec, 50mm/sec (user-selectable).
- High-resolution thermal print head for detailed outputs.
-
Automatic 9-second recording triggered by alarms or defibrillation events.
-
Manual Mode
- Energy levels selectable from 2J to 360J.
- Synchronized mode aligns defibrillator pulse with the patient’s R-wave, indicated by “SYNC” on the monitor.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and high-performance medical devices. Our Biphasic AED Defibrillator is engineered to meet the needs of hospitals, clinics, research institutions, and home users, ensuring superior care in every setting.
Unique Selling Points
- Advanced Technology: Biphasic waveform and auto-analyzer for precise energy delivery.
- User-Friendly Design: Intuitive voice and visual prompts for seamless operation.
- Durability and Reliability: Long-lasting battery and robust construction for uninterrupted performance.
- Comprehensive Monitoring: Integrated SpO2 and ECG capabilities for holistic patient assessment.
Related Products
- Portable Patient Monitors.
- Advanced Surgical Devices.
- Emergency Respiratory Equipment.
GoldHealth Medical is your trusted partner in delivering life-saving solutions. Explore our range of products to elevate your healthcare capabilities.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced, life-saving solution designed for professional and personal use.
- Instrument Classification: Class III medical device, ensuring the highest standards of safety and performance.
- Place of Origin: Proudly crafted in Guangdong, China, with precision engineering and quality materials.
- Power Source: Fully electric operation for reliable performance in any setting.
- Shelf Life: 1 year, maintaining optimal functionality and readiness when needed most.
- Quality Certification: CE-certified, meeting rigorous international standards for medical devices.
- Type: Cutting-edge First-Aid Device, engineered to deliver rapid and effective emergency care.
- Screen Type: High-resolution display for crystal-clear visibility, even in challenging environments.
- Screen Size: 7-inch (17.7cm) diagonal screen, offering an expansive view of critical data.
- Sweep Speed: 25mm/sec, ensuring precise and real-time monitoring of vital signs.
- Information Display: Includes heart rate, lead/pads status, SpO2 levels, and customizable alarm settings.
- Functionality: Advanced AED functions with intuitive prompts, guiding users through life-saving procedures.
- Features: Customizable alarm selection and limits, empowering users with tailored safety parameters.
- Delivered Energy: Biphasic waveform technology for efficient and effective defibrillation.
- Battery Type: Rechargeable Ni-MH battery (12V), providing extended use and rapid recharging capabilities.
- Charge Prompt Type: Voice and visual prompts ensure clear communication during critical moments.
- Packaging Details:
- Selling Units: Single item
- Single Package Size: 50 x 46 x 46 cm
- Single Gross Weight: 12.000 kg
Warranty & Support: - Warranty: Comprehensive 1-year warranty for peace of mind and long-term reliability. - After-Sale Service: Access to online technical support, ensuring seamless operation and troubleshooting.
GoldHealth Medical’s device combines innovative technology, user-centric design, and unmatched reliability, making it the ideal choice for hospitals, clinics, research institutions, and home users alike. Elevate your emergency response capabilities with a device that’s built to save lives.
