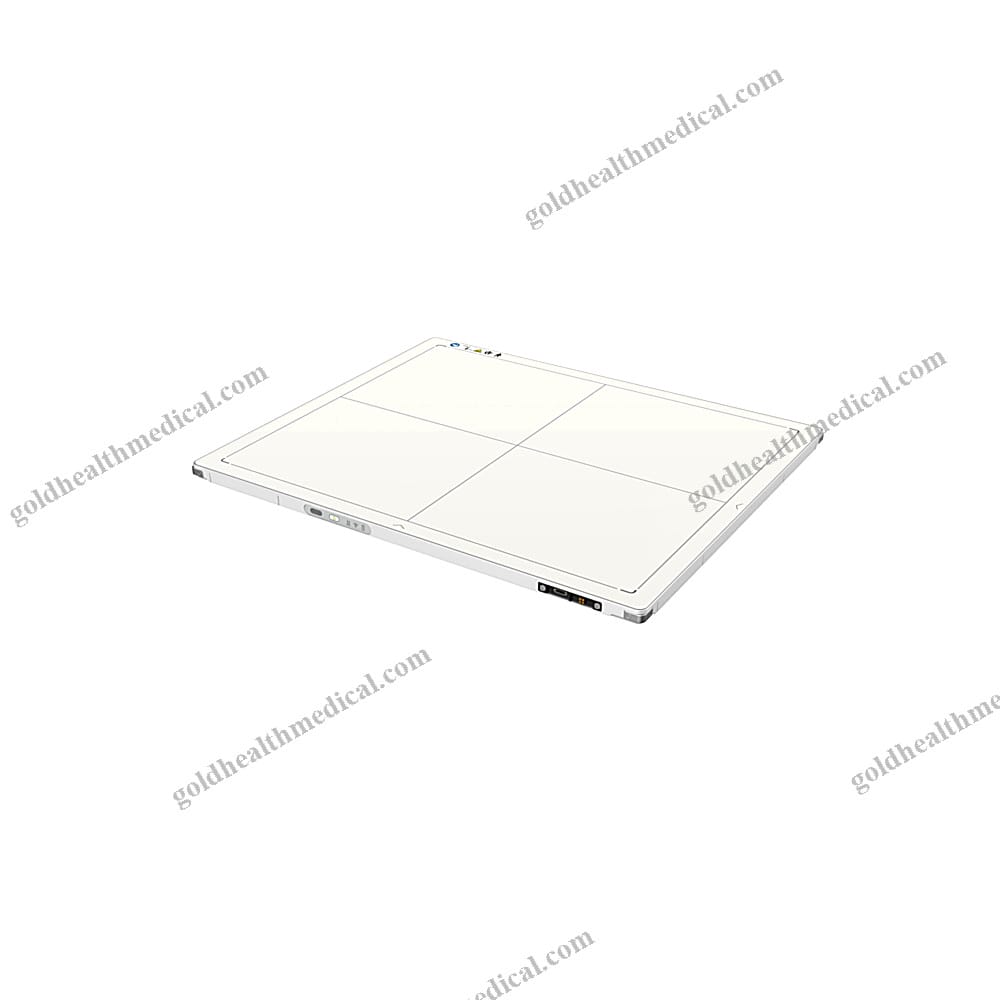

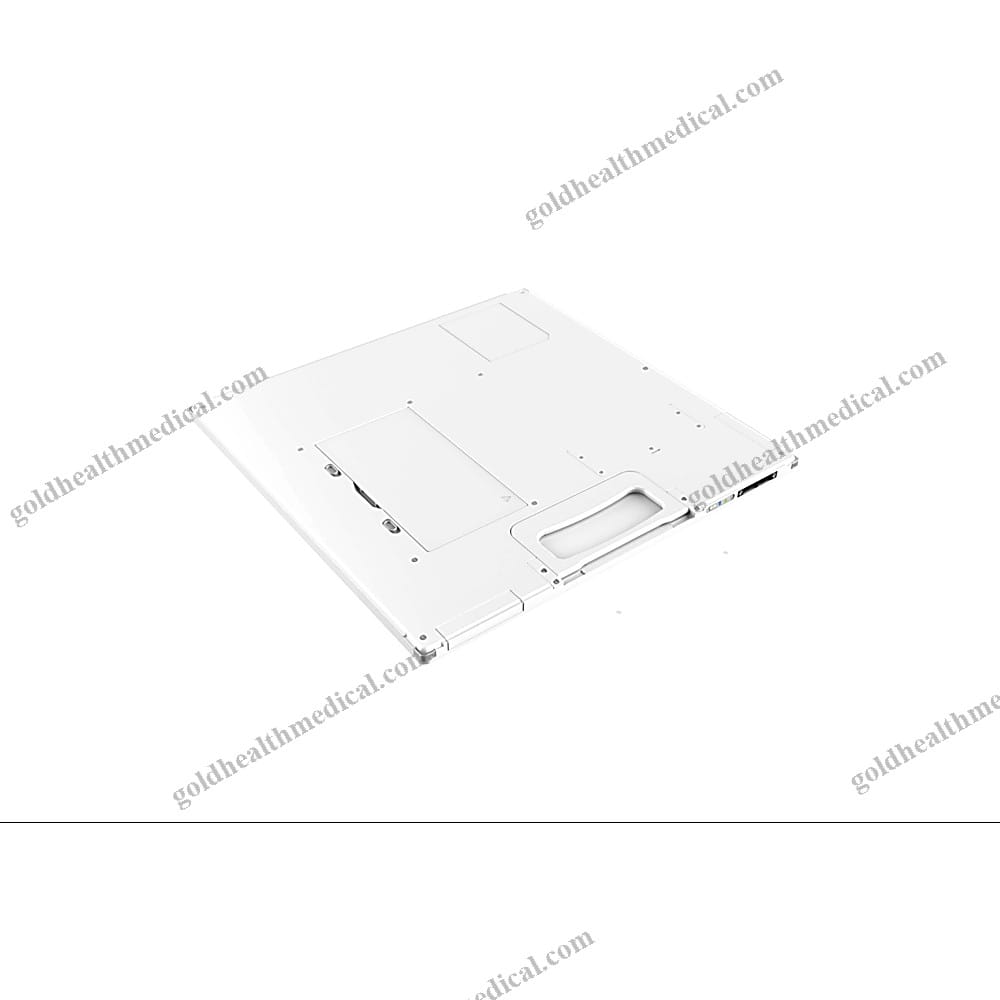

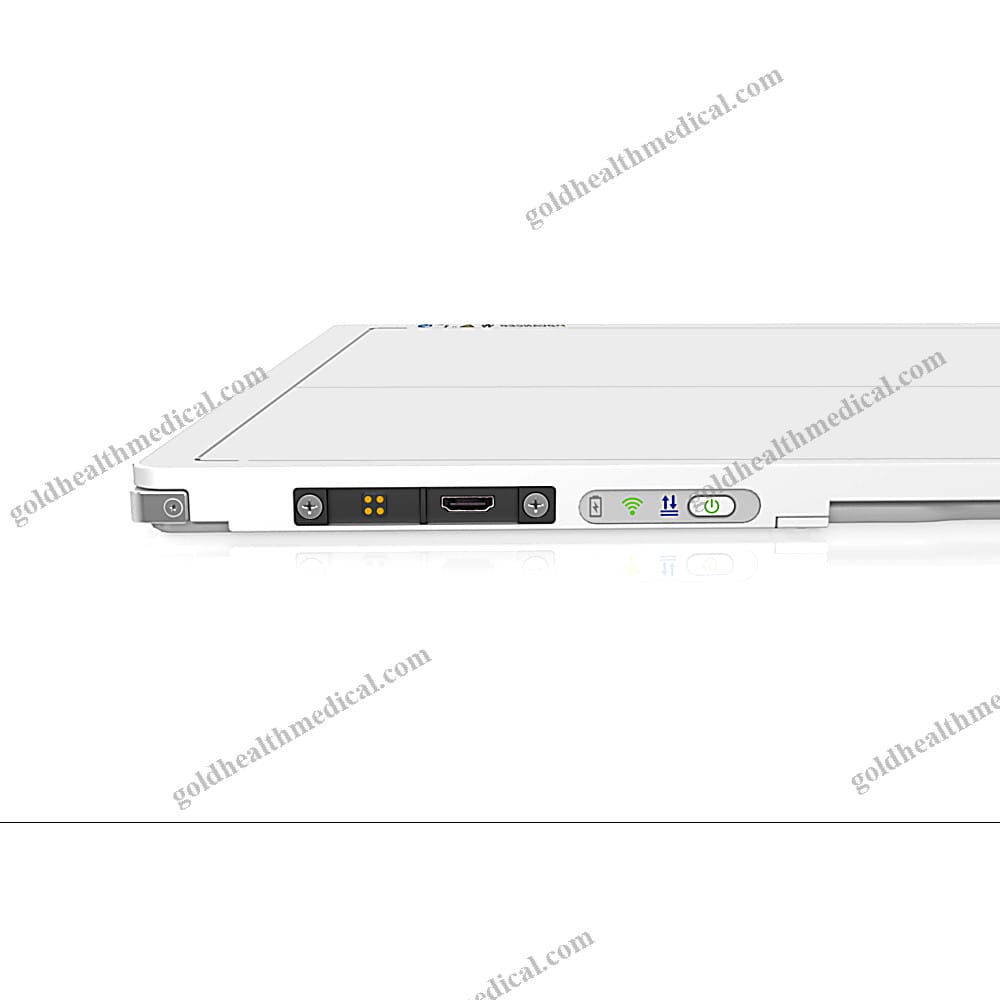

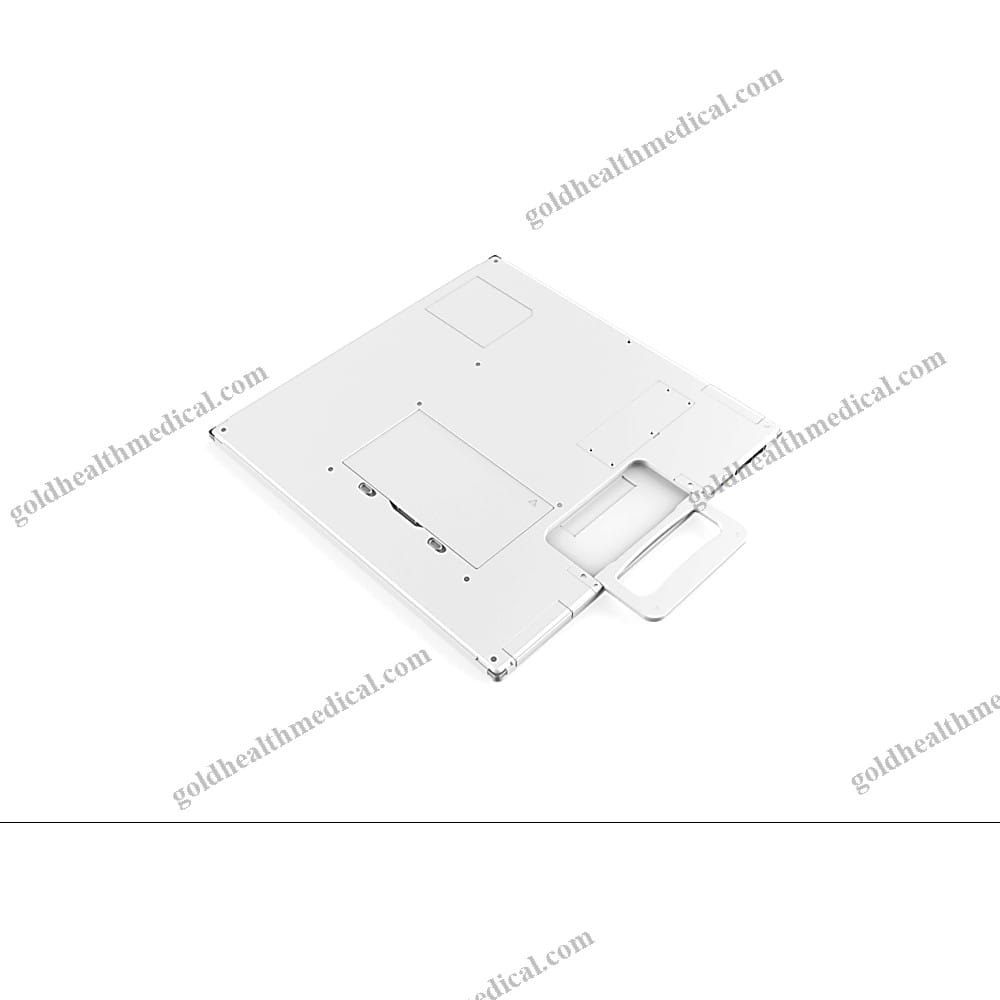

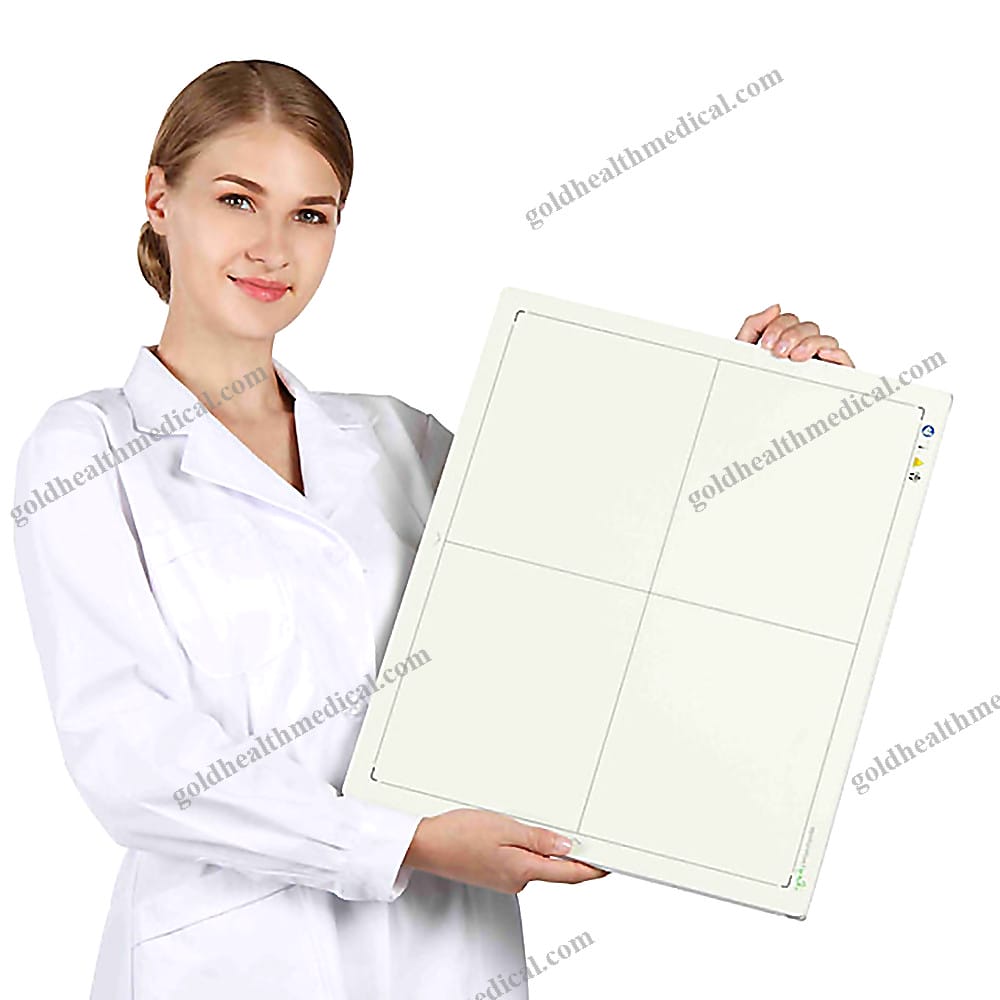

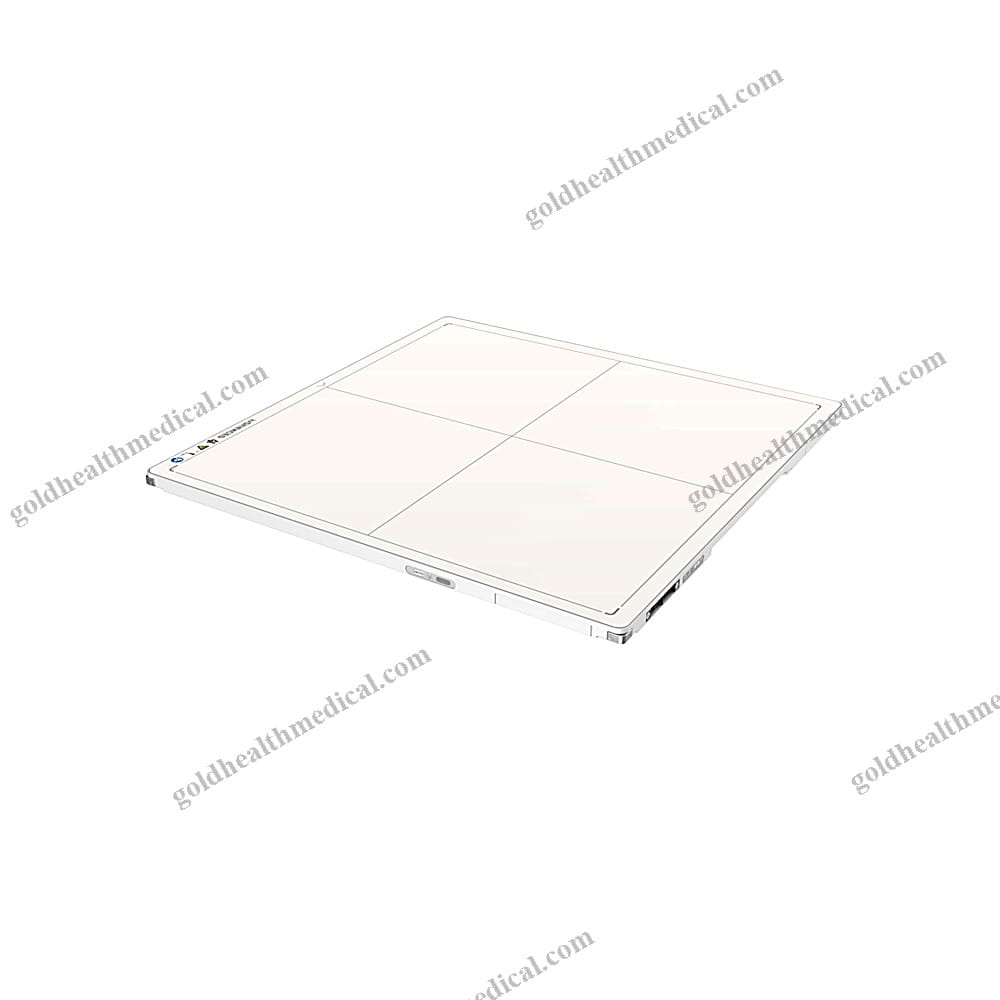

Iray 17x17 Wireless CsI Flat Panel Digital X
Reference: 1601297348764
Medical Nuclide Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionizing Medical Imaging with GoldHealth Medical
GoldHealth Medical presents a cutting-edge wireless flat-panel digital X-ray detector designed to elevate diagnostic precision and efficiency. Harnessing advanced technology, this detector is engineered to deliver exceptional image quality while prioritizing patient safety and operational convenience.
Why Choose Our Digital X-ray Detector?
Flat-panel detectors outperform traditional film in sensitivity and speed, enabling superior image quality at a reduced radiation dose. Compared to X-ray image intensifiers, they are lighter, more compact, highly durable, and deliver minimal image distortion. With a larger active area and enhanced accuracy, this detector is ideal for a wide range of applications, including fluoroscopy and general radiography.
In mammography, our direct conversion flat-panel detector (FPD) sets a new benchmark. It surpasses film and indirect technologies in resolution, signal-to-noise ratio, and quantum efficiency, making it the preferred choice for breast screening programs.
Why Direct Conversion FPDs?
Our detector employs amorphous selenium (a-Se), a photoconductor that directly converts X-ray photons into electric charge. This eliminates the optical conversion step found in indirect detectors, reducing blur and enhancing spatial resolution. Combined with a thin-film transistor (TFT) array for precise readout, this technology ensures unparalleled clarity and detail, particularly for low-energy photons (<30 kev). the result is an imaging solution optimized for applications demanding the highest resolution, such as mammography.
Key Features and Specifications
- Detector Technology: Amorphous Silicon with Csl Scintillator
- Active Area: 427x427 mm²
- Pixel Matrix: 3072 x 3072
- Resolution: 3.6 Ip/mm
- Trigger Mode: AED/Software
- Static Loading: 150kg uniformly distributed
- Operating Temperature: 10°C to 90% humidity
- Storage & Transport Humidity: 5%-95% with packaging
- Wireless Connectivity: Dual-band WIFI (2.4G and 5G, IEEE802.11 a/b/g/n/ac)
- Full Image Time: Typically 5 seconds
- Weight: 4.6 kg
Included Laptop Specifications
- Processor: Intel Core i5 or higher
- Resolution: 1920x1080
- Operating System: Windows 10 (64-bit)
- Memory: 8GB or higher
- Storage: 512GB or higher
GoldHealth Medical’s digital X-ray detector is designed to meet the demands of modern healthcare facilities, research institutions, and home care environments. Its combination of precision, portability, and advanced imaging capabilities makes it an indispensable tool for medical professionals worldwide.
Experience the future of diagnostic imaging with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly introduces a cutting-edge imaging solution designed to redefine precision and reliability in medical diagnostics. Engineered with advanced detector technology and versatile connectivity options, this device is tailored for healthcare professionals seeking uncompromising quality and performance.
Key Features and Specifications
- Instrument Classification: Class II medical device, ensuring compliance with rigorous safety and performance standards.
- Detector Technology: Utilizes state-of-the-art Amorphous Silicon with a Csl scintillator for exceptional image clarity and sensitivity.
- Active Area: 427mm x 427mm, providing a wide imaging field for comprehensive diagnostic coverage.
- Pixel Matrix: 3072 x 3072, delivering ultra-high resolution images with intricate detail.
- Resolution: 3.6 Ip/mm, enabling precise visualization of even the smallest anatomical structures.
- Power Source: Fully electric operation, ensuring consistent performance without interruptions.
- WIFI Connectivity: Dual-band support (2.4G and 5G) with IEEE802.11 a/b/g/n/ac compatibility for seamless data transfer and integration into modern healthcare systems.
- Trigger Mode: Supports both AED (Automatic Exposure Detection) and software-based triggering for flexible operation.
- Static Loading Capacity: Engineered to withstand up to 150kg uniformly distributed, ensuring durability in demanding clinical environments.
Quality Assurance
- Warranty: Comprehensive 3-year warranty, reflecting our confidence in the product’s reliability and longevity.
- Shelf Life: 3 years, maintaining optimal performance over time.
- Certifications: CE and ISO certifications, guaranteeing adherence to international quality and safety standards.
Additional Highlights
- After-Sale Service: Access to online technical support, ensuring uninterrupted operation and quick resolution of any issues.
- Packaging: Each unit is meticulously packaged to ensure safe delivery, with dimensions and weight optimized for efficient logistics.
Applications
This advanced imaging solution is ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings. Its versatility and precision make it an indispensable tool for medical professionals committed to delivering exceptional patient care.
Ordering Information
- Minimum Order Quantity (MOQ): 1 unit, making it accessible for both large institutions and individual practitioners.
GoldHealth Medical is dedicated to empowering healthcare providers with innovative tools that enhance diagnostic accuracy and improve patient outcomes. Experience the future of medical imaging today.
