HighPerformance Portable ELISA Microplate Reader 96Well Plate
Reference: 1600620172893
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

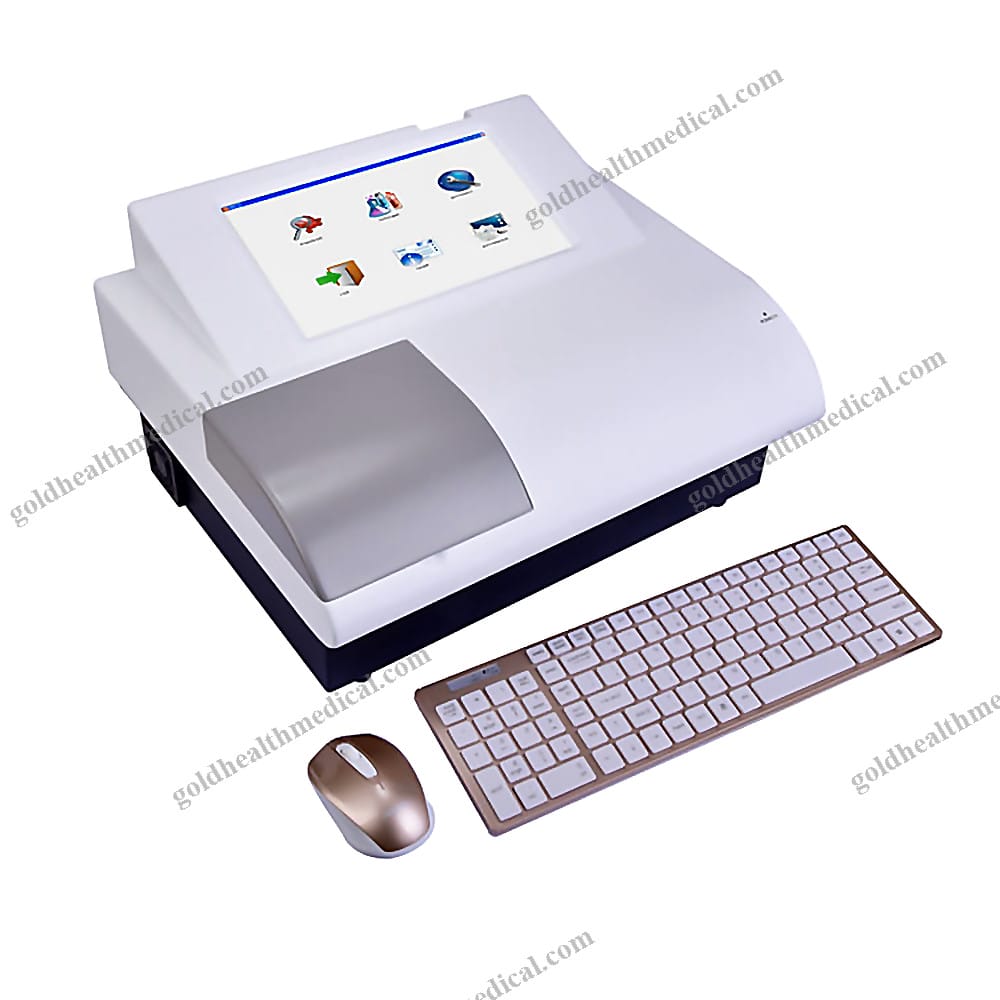

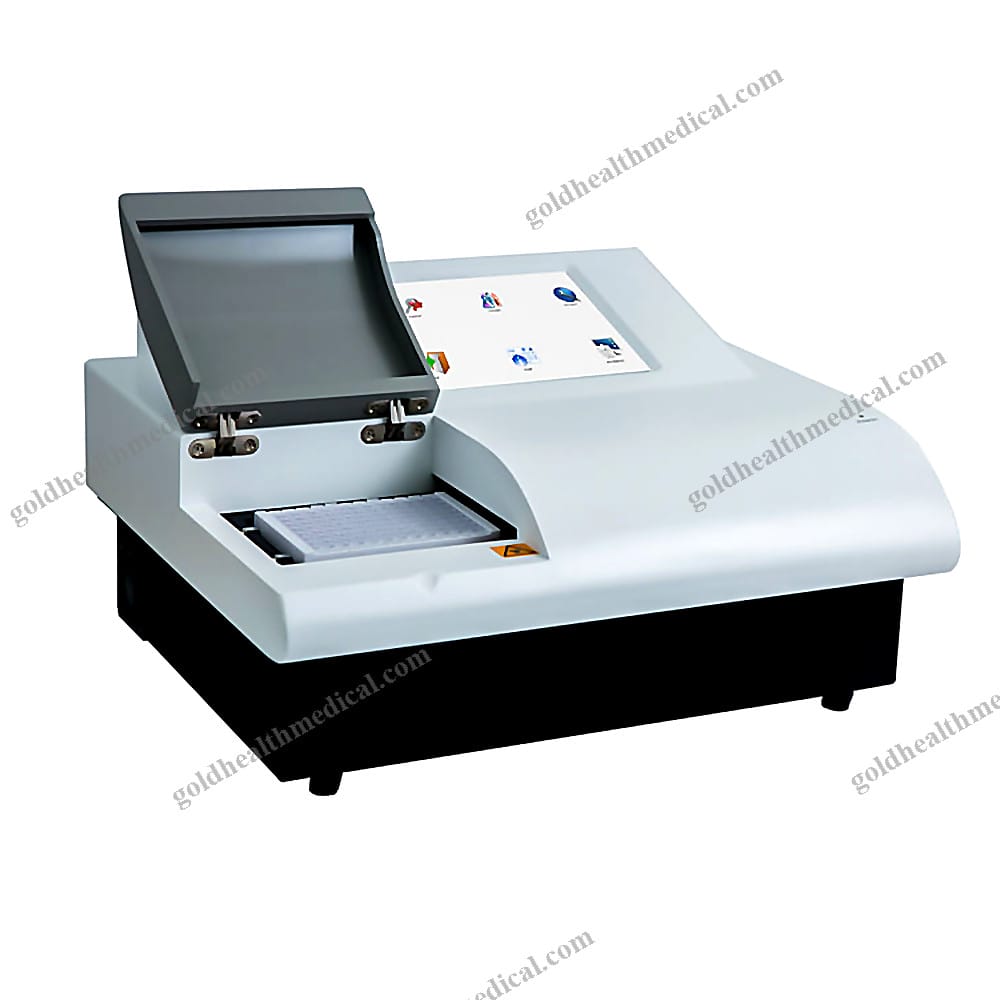

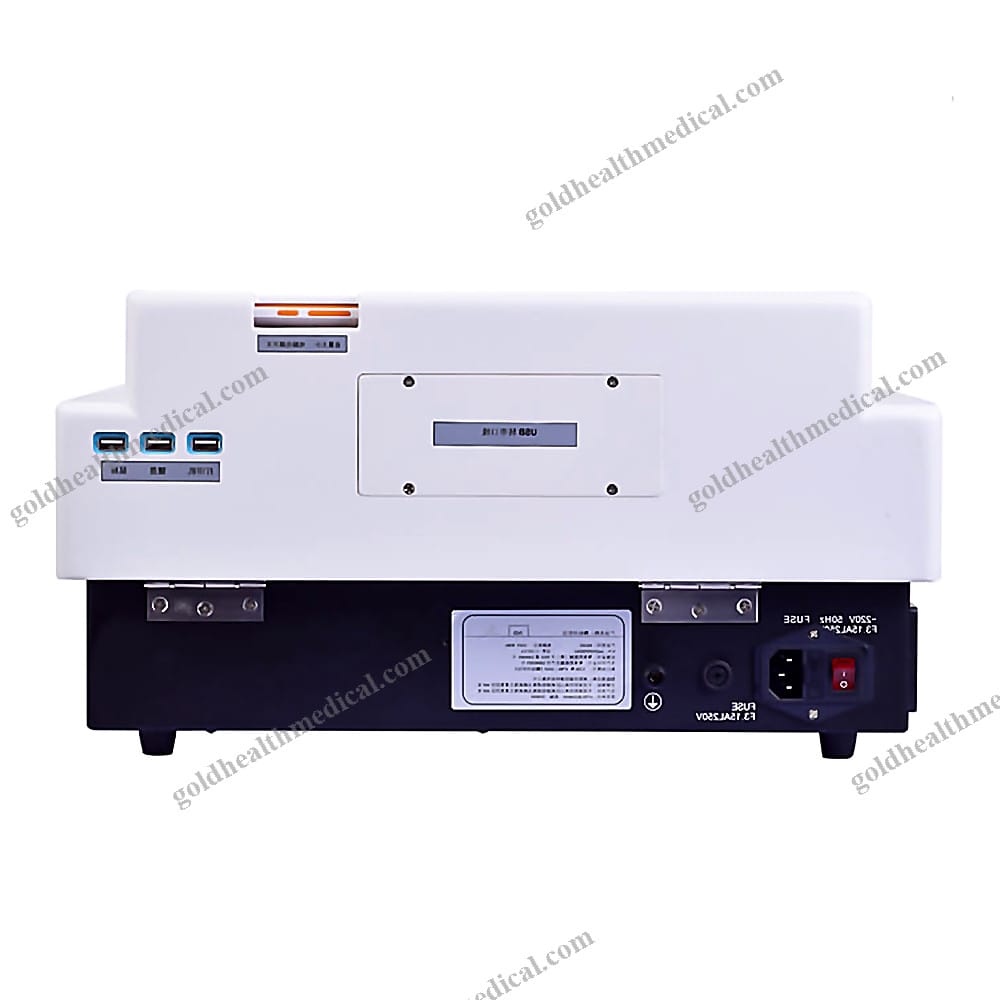

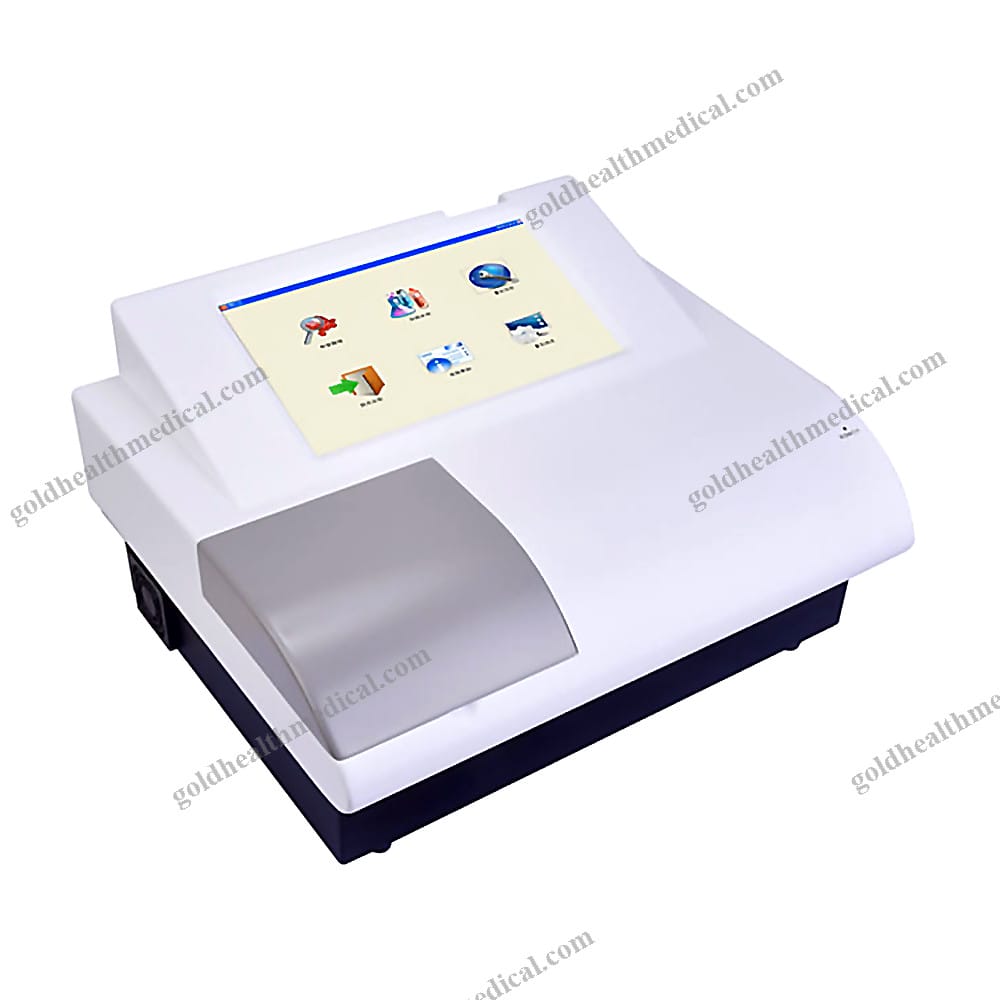

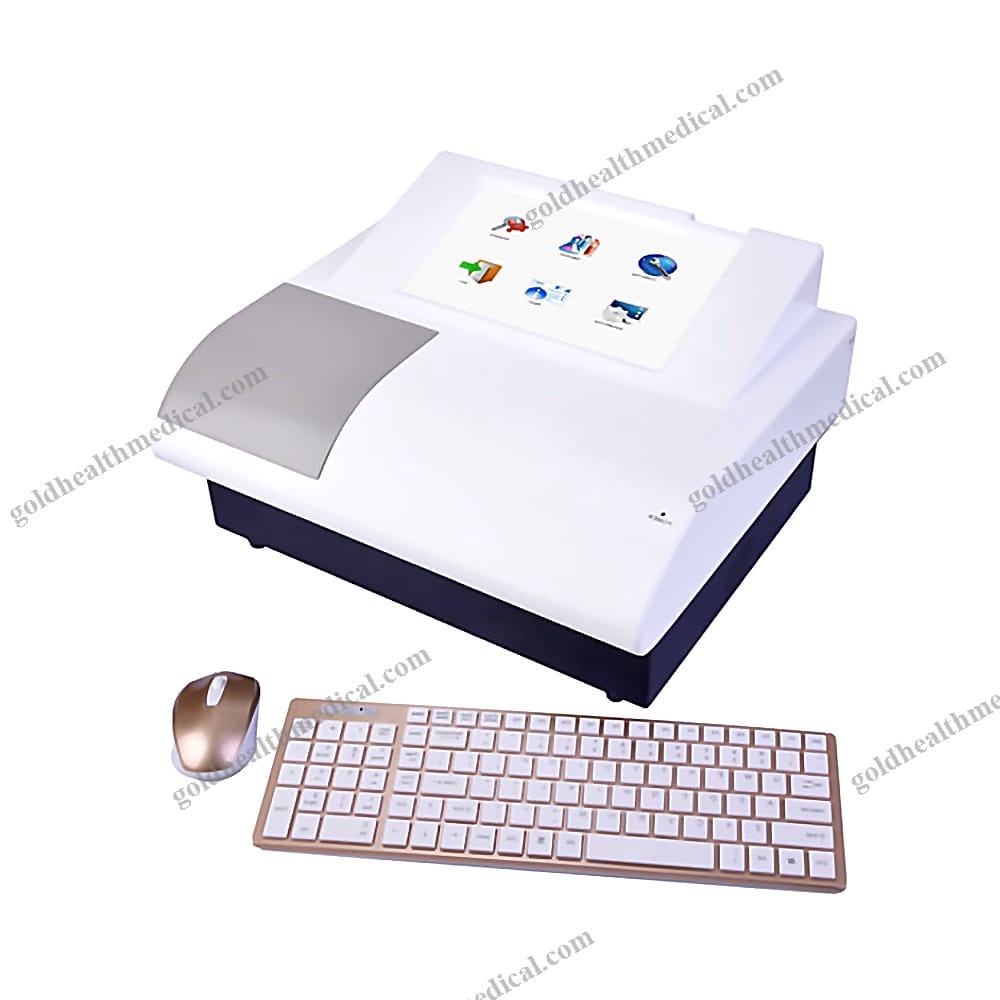

GoldHealth Medical ELISA Plate Reader
Experience precision and versatility with the GoldHealth Medical ELISA Plate Reader, designed to meet the rigorous demands of modern laboratories and healthcare facilities. This advanced micro-plate reader offers an array of features tailored for accuracy, efficiency, and ease of use.
Key Features and Specifications:
- Micro-plate Compatibility: Seamlessly works with 96-well plates (U, V, or flat-bottom) for versatile testing options.
- Test Modes: Supports end-point, kinetic, and multi-wave analysis for comprehensive data collection.
- Optical System: Equipped with an 8-channel optical system for exceptional precision.
- Wavelength Options: Standard wavelengths include 405nm, 450nm, 492nm, and 630nm, with four additional optional filters for expanded capabilities.
- Wavelength Accuracy: Ensures accuracy within <2nm for reliable results.
- Reading Range: Measures from 0.000 to 4.000Abs, with a measurement range of 0.000 to 3.000Abs.
- Light Source: Utilizes long-lasting LED technology with a lifespan exceeding 100,000 hours.
- Resolution: Delivers precise readings with a resolution of 0.001Abs.
- Stability: Maintains stability with <±0.005Abs/10min, ensuring consistent performance.
- Sensitivity: Offers high sensitivity of ≥0.01L/mg for accurate detection.
- Linearity: Achieves excellent linearity with r>0.999.
- Repeatability: Ensures reliable results with a repeatability of <0.3%.
- Reading Speed: Rapid readings with 5 seconds for single wavelength and 10 seconds for dual wavelength.
- Quality Control: Features Westguard Multi-rule automated QC alerts for enhanced quality assurance.
- Self-Checking Function: Includes self-checking and calibration functions for optimal performance.
- Printer Compatibility: Connects to external jet printers for detailed patient reports.
- Processing Power: Powered by a high-speed CPU for efficient data processing.
- Interfaces: Offers RS232, USB, PSTN, and PC connectivity for versatile integration.
- Operating Environment: Functions reliably in temperatures from 5°C to 40°C and humidity ≤85%.
- Power Supply: Operates on 220VAC±15% or 110VAC±15%, 50-60Hz, 100W.
- Dimensions and Weight: Compact design with dimensions 44cm (L) x 37cm (W) x 24cm (H) and weighs 13kg.
Unique Features:
- User-Friendly Interface: Windows-based operation with figure buttons, mouse operation, and a touch screen for intuitive control.
- Efficient Testing: Conduct multiple tests on a single 96-well plate, maximizing throughput.
- Customizable Testing: Store and reuse test item arrangements, modify parameters, and benefit from an open system that allows adding or modifying test items.
- Enhanced Storage: Large storage capacity for up to 1000 test items and 1,000,000 results.
- Advanced Display: Features a 10.4-inch color touch LCD with a built-in portable computer for ease of use.
- Comprehensive Reporting: Prints detailed reports including hospital and patient information along with test results.
- Built-In Computer: Integrated portable computer ensures convenience and ease of operation.
GoldHealth Medical's ELISA Plate Reader stands out with its cutting-edge technology, robust performance, and user-centric design, making it an indispensable tool for any medical or research facility.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the ELISA Plate Reader, a cutting-edge solution designed for precision and reliability in blood analysis. Engineered to meet the demands of modern healthcare and research environments, this Class II medical instrument delivers exceptional performance with an advanced 8-channel optical system. Whether you're conducting endpoint, kinetic, or multi-wave analysis, this device ensures accurate and consistent results every time.
Key Features
- Versatile Micro-plate Compatibility: Supports 96-well plates in U, V, or flat-bottom configurations, offering flexibility for diverse testing requirements.
- Advanced Optical System: Equipped with 8 high-precision channels and optional filters (405, 450, 492, 630nm + 4 additional options), ensuring wavelength accuracy of <2nm.
- Wide Measurement Range: Capable of readings from 0.000 to 4.000Abs with a resolution of 0.001Abs for unparalleled precision.
- Durable LED Light Source: Engineered for longevity, with a lifespan exceeding 100,000 hours, reducing maintenance needs and operational costs.
- Multiple Test Modes: Supports endpoint, kinetic, and multi-wave analysis, catering to a variety of diagnostic and research applications.
Technical Specifications
- Instrument Classification: Class II
- Wavelength Options: 405, 450, 492, 630nm (4 additional filters available)
- Reading Range: 0.000-4.000Abs
- Measurement Range: 0.000-3.000Abs
- Light Source: Long-life LED (>100,000 hours)
- Resolution: 0.001Abs
- Packaging Dimensions: 57 x 53 x 41 cm
- Gross Weight: 14 kg
Warranty & Support
- Comprehensive 1-Year Warranty
- Dedicated online technical support to ensure seamless operation and troubleshooting
Supply & Delivery
- High production capacity: Up to 1,000 units per week
- Carton packaging for secure transportation
- Global shipping available from any port
GoldHealth Medical’s ELISA Plate Reader is the ideal choice for hospitals, clinics, research labs, and rehabilitation centers seeking a reliable, high-performance solution for blood analysis. With its innovative design and robust functionality, this device sets a new standard for accuracy and efficiency in diagnostic testing.
