Hemodialysis Machine for Blood Purification with Single Pump System
Reference: 1600802069128
Transfusion, Dialysis & Circulation Machines
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

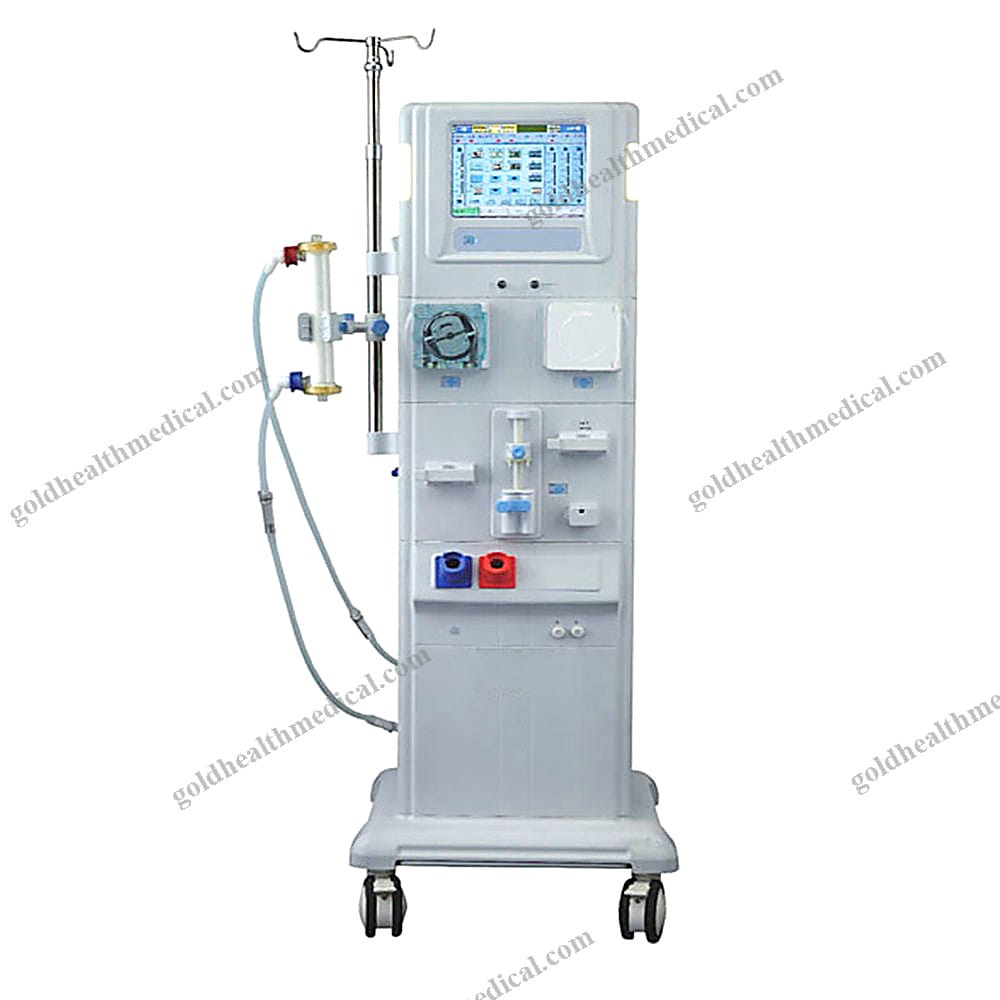

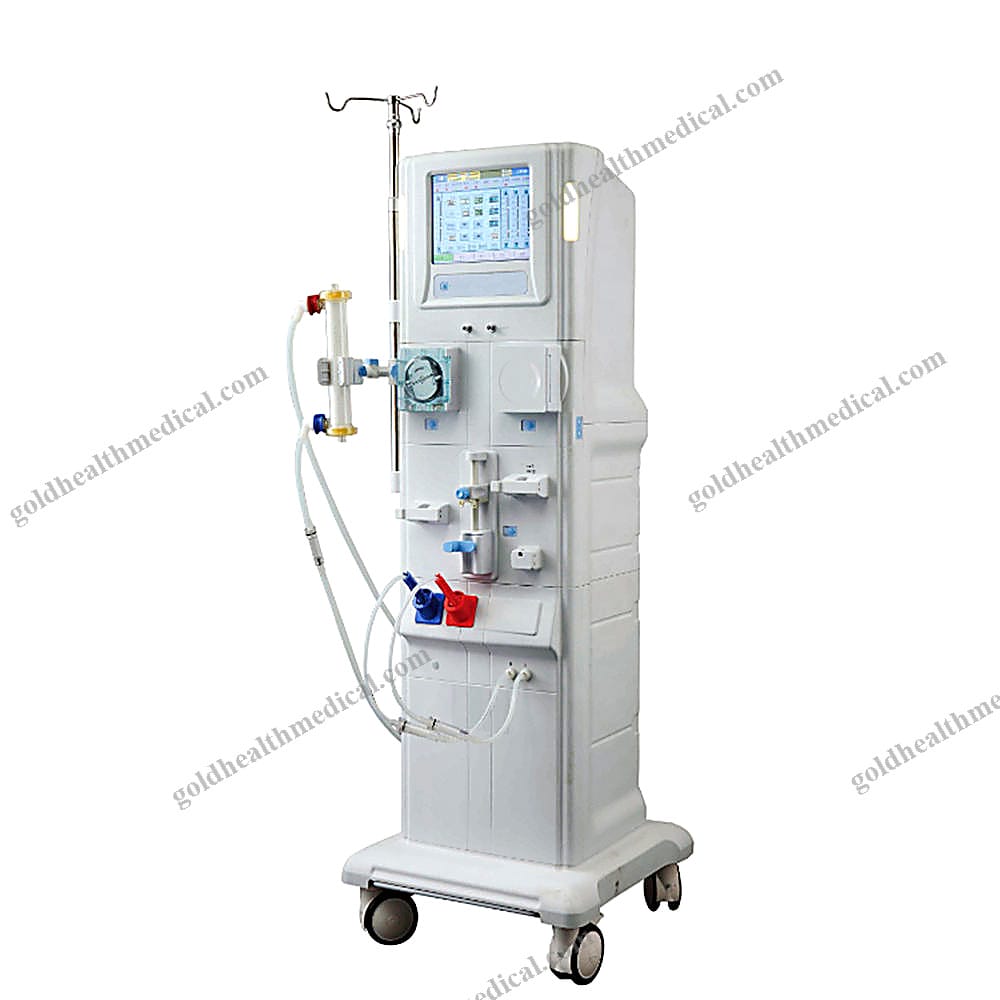

GoldHealth Medical Hemodialysis Machine
Product Overview
GoldHealth Medical presents a cutting-edge hemodialysis machine designed for versatile blood purification. This device integrates multiple treatment modalities, including hemodialysis, hemoperfusion, ISO UF, and plasma exchange, into a single, efficient system. Engineered for both practicality and precision, it is an ideal solution for hospitals, clinics, and home care.
Key Features
- All-in-One Functionality: Seamlessly combines hemodialysis, hemoperfusion, ISO UF, and plasma exchange for comprehensive treatment options.
- Intuitive Interface: Equipped with a high-definition, multi-language LCD touch screen for effortless operation.
- Reliable Power Backup: Built-in battery ensures uninterrupted operation for up to 30 minutes during power outages.
- Advanced Disinfection System: Offers rinse, hot, and chemical disinfection with a closed-loop system. Automatically powers off upon completion.
- Flexible Blood Pump: Adjustable pump diameter (6.4mm and 8mm) accommodates both adult and pediatric patients.
- Customizable Treatment Profiles: Supports various concentration ratios and stores treatment data as curve profiles for detailed analysis.
- Comprehensive Self-Testing: Full-function digital self-test ensures optimal performance before each use.
Technical Specifications
- Extracorporeal Circulation System:
- Blood Pump Flow: 20–620 ml/min
- Heparin Pump Flow: 0–10 ml/h
- Syringe Compatibility: 10ml/20ml/30ml; 20ml/30ml/50ml (optional)
- Arterial Pressure Monitor: -300 to +400 mmHg (±10 mmHg)
- Venous Pressure Monitor: -50 to +300 mmHg (±10 mmHg)
- Air Bubble Detection: Infrared and ultrasound technology
-
Blood Pump Segment Diameter: Adjustable between 6.4mm and 8mm
-
Dialysate System:
- Dialysate Flow: 300–800 ml/min (linearly adjustable, ±10%, -5%)
- Dialysate Temperature Range: 35.0–39.0°C
- Conductivity: 12.3–15.8 mS/cm
- Sodium (Na+) Adjustment: 136–145 mmol/L
- Bicarbonate (HCO3-) Adjustment: 28.0–42.0 mmol/L
- Bicarb Cartridge: Optional
-
Blood Leakage Detection: Photoelectric detection
-
Ultrafiltration Control System:
- Ultrafiltration Rate: 0–4000 ml/h
-
Pump Volume Accuracy: ±1%
-
General Parameters:
- Dimensions: 370mm x 340mm x 1450mm
- Weight: 90 kg
- Power Supply: 100–240VAC ±10%, 50–60Hz
- Power Consumption: 1.7 kW
Why Choose GoldHealth Medical?
GoldHealth Medical’s hemodialysis machine stands out with its innovative design, user-friendly interface, and robust functionality. Whether for clinical or home use, this device ensures precision, safety, and adaptability, making it a trusted choice for healthcare professionals and patients alike.
Related Products
- CRRT Kidney Dialysis Machine: Advanced continuous renal replacement therapy system.
- Portable Peritoneal Dialysis Machine: Compact and user-friendly for home or hospital use.
GoldHealth Medical is committed to delivering excellence in medical technology, empowering healthcare providers to deliver superior patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class III
Product Overview
GoldHealth Medical presents a state-of-the-art dialysis system designed to deliver precision, reliability, and patient safety. Engineered with cutting-edge technology, this device is tailored for use in hospitals, clinics, research institutions, and home care environments. Its advanced monitoring and detection capabilities ensure optimal performance during dialysis treatments, making it an indispensable tool for healthcare professionals.
Key Features
- Blood Pump Flow: Adjustable range of 20~620ml/min for precise control during treatment.
- Heparin Pump Flow Scope: 0~10 ml/h, enabling accurate anticoagulant delivery.
- Arterial and Pressure Monitor: -300~+400mmHg (±10mmHg), ensuring real-time pressure tracking.
- Venous Pressure Monitor: -50~+300mmHg (±10mmHg), providing consistent venous pressure oversight.
- Air Bubble Detector: Dual infrared and ultrasound detection for enhanced safety.
- Dialysate Temperature Scope: 35.0~39.0℃, maintaining optimal thermal conditions.
- Conductivity Range: 12.3~15.8mS/cm, ensuring precise electrolyte balance.
- Na⁺ Adjustment Scope: 136~145mmol/L, supporting accurate sodium level management.
- HCO₃⁻ Adjustment Scope: 28.0~42.0mmol/L, enabling fine-tuned bicarbonate control.
- Detection Method: Advanced photoelectricity detection for reliable performance.
Packaging and Delivery
- Packaging Dimensions: 6969165cm
- Gross Weight: 120kg
- Port of Origin: Shanghai
Supply and Support
- Supply Ability: 500 units per month, ensuring consistent availability.
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Dedicated online technical support to address any operational needs.
GoldHealth Medical’s dialysis system combines innovation, precision, and safety to redefine renal care. Designed with both patients and healthcare providers in mind, this device sets a new benchmark for dialysis technology.
