Advanced Hemodialysis Machine for Kidney Treatment
Reference: 1600658729306
Transfusion, Dialysis & Circulation Machines
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

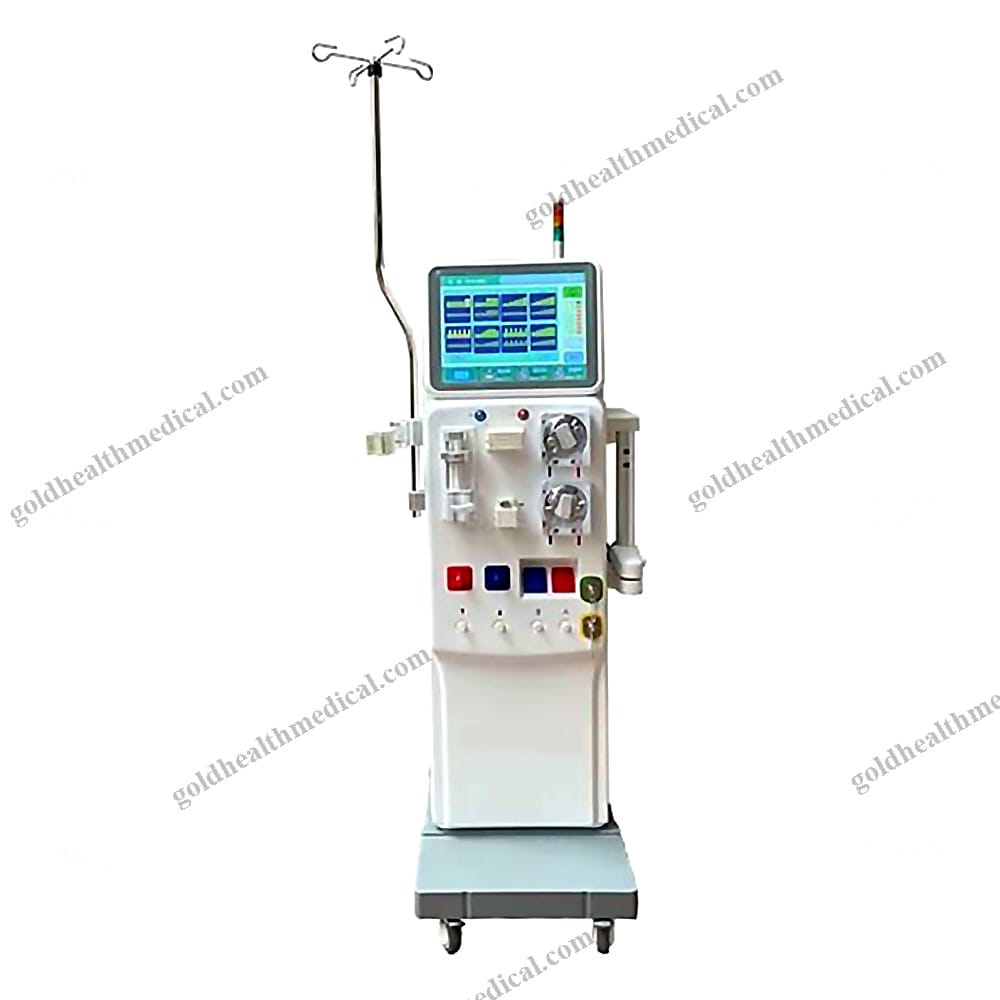

GoldHealth Medical Haemodialysis Machine
GoldHealth Medical presents an advanced Haemodialysis Machine designed to ensure safety, efficiency, and comfort during dialysis treatments. This intelligent system supports multiple treatment modalities including On-line HDF, HD, and On-line HF, offering unparalleled versatility.
Key Features
- On-line HDF: Utilizes a closed volume balance chamber for precise ultrafiltration dehydration control.
- One-key Low Speed Ultrafiltration: Allows setting low UF speed and duration, automatically reverting to normal after execution. Supports isolated UF with adjustable time and volume.
- One-key Dialyzer Priming+: Set priming time and dehydration volume to enhance the priming effect of bloodlines and dialyzers, improving dialysis adequacy.
- Intelligent Automatic Disinfection and Cleaning: Effectively prevents calcium and protein deposition without the need for sodium hypochlorite, ensuring safety for medical personnel.
- One-key Drainage Function: Automatically removes waste liquid from bloodlines and dialyzers post-treatment, maintaining cleanliness and reducing medical waste management costs.
- Intelligent Alarm System: Comprehensive alarm and disinfection history records.
- 15-inch LCD Touch Screen: User-friendly interface for ease of operation.
- Kt/V Evaluation: Customizable Sodium and UF profiling based on patient needs, facilitating personalized treatment and enhancing patient comfort.
Technical Specifications
- Dimensions: 380mm x 400mm x 1380mm (LWH)
- Area: 500mm x 520mm
- Weight: 88kg
- Power Supply: AC220V, 50Hz/60Hz, 10A
- Input Power: 1500W
- Back-up Battery: 30 minutes
- Water Input Pressure: 0.1Mpa ~ 0.6Mpa (15P.S.I ~ 60P.S.I)
- Water Input Temperature: 5°C ~ 30°C
- Working Environment Temperature: 10°C ~ 30°C at relative humidity ≤70%
- UF Rate:
- Flow Range: 0ml/h ~ 4000ml/h
- Resolution: 1ml
- Precision: ±30ml/h

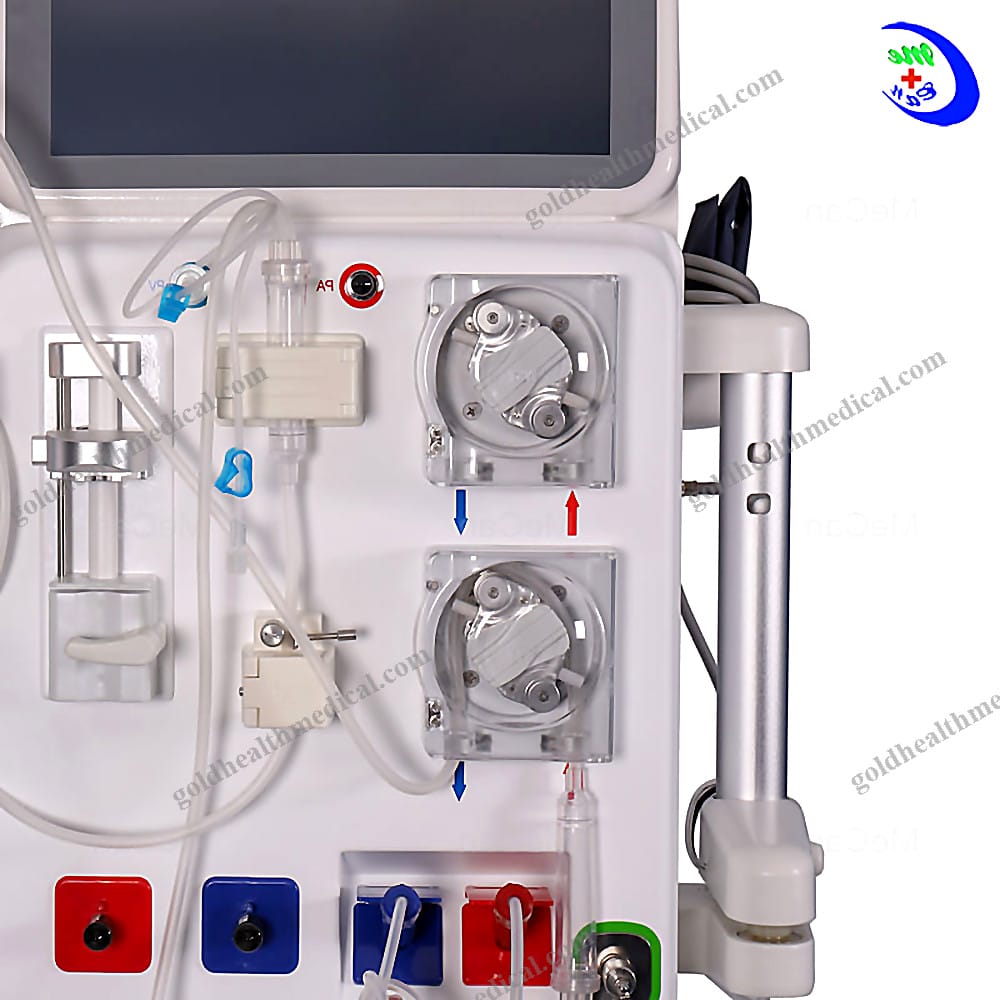

- Blood Pump & Substitution Pump:
- Blood Pump Flow Range: 30ml/min ~ 600ml/min (diameter: 8mm or 6mm)
- Substitution Pump Flow Range: 30ml/min ~ 600ml/min (diameter: 8mm or 6mm)
- Resolution: 0.1ml
- Precision: ±10ml or 10% of reading
- Heparin Pump:
- Syringe Size: 20ml, 30ml, 50ml
- Flow Range: 0ml/h ~ 10ml/h
- Resolution: 0.1ml
- Precision: ±5%
- Storage Environment: Temperature 5°C ~ 40°C, relative humidity ≤80%
- Air Bubble Monitor: Infrared with a response threshold of a single 200μl air bubble at 200ml/min blood flow
- Inflow Pressure: 0MPa ~ 0.6MPa
- Inflow Temperature: 5°C ~ 30°C
- Environment Temperature: 10°C ~ 30°C, relative humidity ≤70%
- Rinse/Disinfection:
- Chemical Disinfection (citric acid, peracetic acid, oxalic acid)
- Hot Rinse: 80°C
- Back-up Power Supply: Lasts 15-30 minutes after power cut
- Monitoring System & Alarm Setup:
- Venous Pressure: -180mmHg ~ +600mmHg, ±10mmHg
- Arterial Pressure: -380mmHg ~ +400mmHg, ±10mmHg
- TMP: -180mmHg ~ +600mmHg, ±20mmHg
- Dialysate Temperature: Preset range 34.0°C ~ 39.0°C
- Dialysate Flow: Less than 800ml/min (Adjustable)
- Substitution Flow Range: 0-28 L/H (on-line HDF)
- Blood Leak Detection: Photo chromic alarm when erythro
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Haemodialysis Machine (HDF)
Category: Haemodialysis Equipment
Key Features
- Advanced Treatment Modes: Supports On-Line HDF, HD, and On-Line HF for versatile dialysis applications.
- Precision Profiling: Offers customizable sodium concentration and ultrafiltration (UF) curve settings for tailored patient care.
- Ultra-Pure Dialysis: Equipped with a high-performance dialysate filter to ensure maximum safety and purity during treatment.
- Safety and Efficiency: Designed with cutting-edge technology to deliver reliable and effective dialysis therapy.
- Intuitive Interface: Features a 15-inch LCD display for clear visualization and effortless operation.
Applications
- Ideal for dialysis treatment in hospitals, clinics, research institutions, and home care environments.
Instrument Classification
- Class II medical device, ensuring compliance with rigorous safety and performance standards.
Product Specifications
- Treatment Modes: On-Line HDF, HD, On-Line HF
- Display: 15-inch LCD screen
- Dialysate Quality: Ultra-pure filtration system
- Customization Options: Sodium concentration and UF curve profiling
- Usage: Medical hospital clinical environments
Packaging and Delivery
- Packaging Details: Standard export packaging for secure transportation.
- Ports: Beijing, Shanghai, Guangzhou, Shenzhen, Hong Kong
Supply Ability
- Monthly Supply Capacity: 1000 units
Warranty and Support
- Warranty Period: 1 year, ensuring peace of mind for users.
- After-Sale Service: Comprehensive online technical support to address any operational or technical queries.
GoldHealth Medical’s Haemodialysis Machine (HDF) is engineered to redefine dialysis treatment with its advanced features, precision engineering, and unwavering commitment to patient safety. Whether for clinical or home use, this device sets a new benchmark in dialysis care.
