Product summary

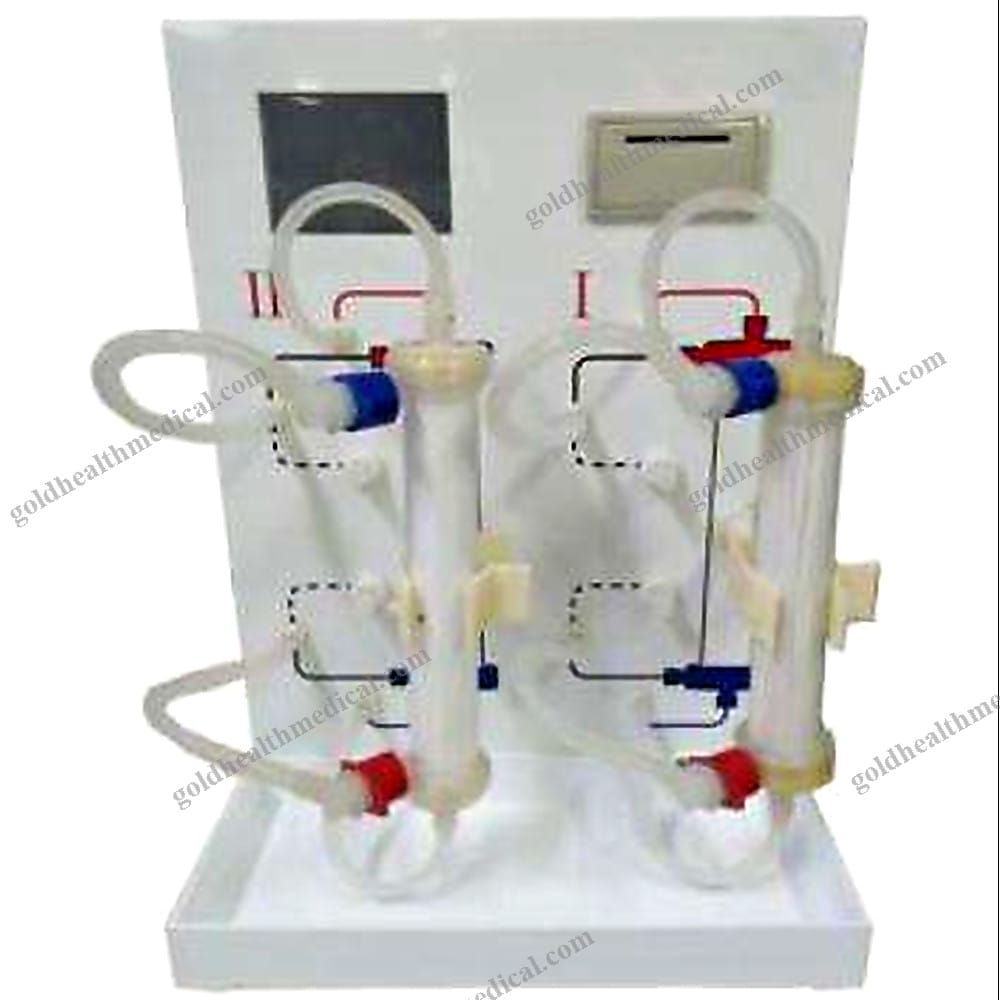

GoldHealth Medical Dialyzer Reprocessing Machine
Product Overview
GoldHealth Medical introduces the world's first automatic dialyzer reprocessing machines, designed to redefine efficiency and safety in hemodialysis treatment. These devices are engineered for hospitals and medical facilities seeking advanced solutions for sterilizing, cleaning, testing, and priming reusable dialyzers. With a dual workstation option, our machines deliver unparalleled versatility and precision.
Key Features
- Advanced Automation: Equipped with PC workstations, these machines allow the creation, saving, and searching of patient databases while enabling automatic operation through code scanning.
- Dual Workstation Capability: Process single or double dialyzers simultaneously, ensuring maximum efficiency.
- Cost-Effective Compatibility: Works seamlessly with multiple brands of disinfectants, reducing operational costs.
- Precision and Safety: Automatic disinfectant dilution and anti-cross infection controls ensure safe and accurate reprocessing.
- Comprehensive Record-Keeping: Built-in and optional external printers provide detailed reprocessing data, including patient information, timestamps, and more.
- Human-Centric Design: Intuitive touch control LCD interface simplifies operation, requiring just a single tap for full automation.
Unique Selling Points
- Pulsating Current Oscillation Technology: Utilizes forward and reverse rinsing and ultrafiltration to eliminate residues and restore cell volume, extending dialyzer lifespan.
- Accurate Testing: Real-time TCV and blood leak tests ensure the highest safety standards throughout the reprocessing cycle.
- Customizable Workflow: Rinse, clean, test, and disinfect functions can be performed individually or in sequence, adapting to specific needs.
- Smart System Settings: Includes machine disinfection, debugging, and evacuation before disinfectant infusion to prevent redilution.
- Concentration Detection: Ensures precise disinfectant levels for consistent safety.
- Efficient Water Usage: Patented technology reduces water consumption to less than 8 liters per dialyzer.
Technical Specifications
- Dimensions:
- Single Workstation: 470mm × 380mm × 480mm (L × W × H)
- Dual Workstation: 480mm × 380mm × 580mm (L × W × H)
- Weight:
- Single Workstation: 30KG
- Dual Workstation: 35KG
- Power Supply: AC 220V ± 10%, 50Hz-60Hz, 2A
- Input Power: 150W
- Water Input Pressure: 0.15–0.35 MPa (21.75–50.75 P.S.I.)
- Water Input Temperature: 10°C–40°C
- Minimum Water Flow Rate: 1.5L/min
- Reprocessing Time: Approximately 12 minutes per cycle
- Operating Environment: Temperature 5°C–40°C, relative humidity ≤ 80%
- Storage Conditions: Temperature 5°C–40°C, relative humidity ≤ 80%
Procedure of Reprocessing
- Rinse: Uses RO water to flush the dialyzer.
- Clean: Applies disinfectant for thorough cleaning.
- Test: Evaluates blood chamber capacity and membrane integrity.
- Disinfect: Infuses disinfectant for final sterilization.
Why Choose GoldHealth Medical?
- Proven Reliability: Trusted by medical facilities in over 168 countries, including the Philippines, Indonesia, Pakistan, Nigeria, and Sudan.
- Decade of Excellence: Over 10 years of operation with zero quality complaints.
- Continuous Innovation: Launches 5+ new models annually, supported by ongoing medical research.
- Global Recognition: Certified with CE and ISO standards, featuring premium components imported from Germany and Japan.
- Exhibition Presence: Participates in two international exhibitions yearly to showcase cutting-edge technology.
Contraindications
This machine is exclusively designed for reusable dialyzers. It cannot process dialyzers used by patients with: - Positive hepatitis B or C virus - HIV carriers or AIDS patients - Other blood-infectious diseases - Allergies to disinfectants used in reprocessing
After-Sales Support
- Warranty: One-year warranty, extendable to 24 months for select parts. Free service within warranty; cost-price service beyond.
- Lifelong Support: Prompt responses within 12 hours for any product issues.
- Quality Assurance: All products meet stringent manufacturer standards and are uniquely serialized for traceability.
- Packaging: Designed for long-distance transport, ensuring safe delivery.
