Emergency Transport Ventilators for Home Clinic Hospital Use
Reference: 1601043866885
Ventilator
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

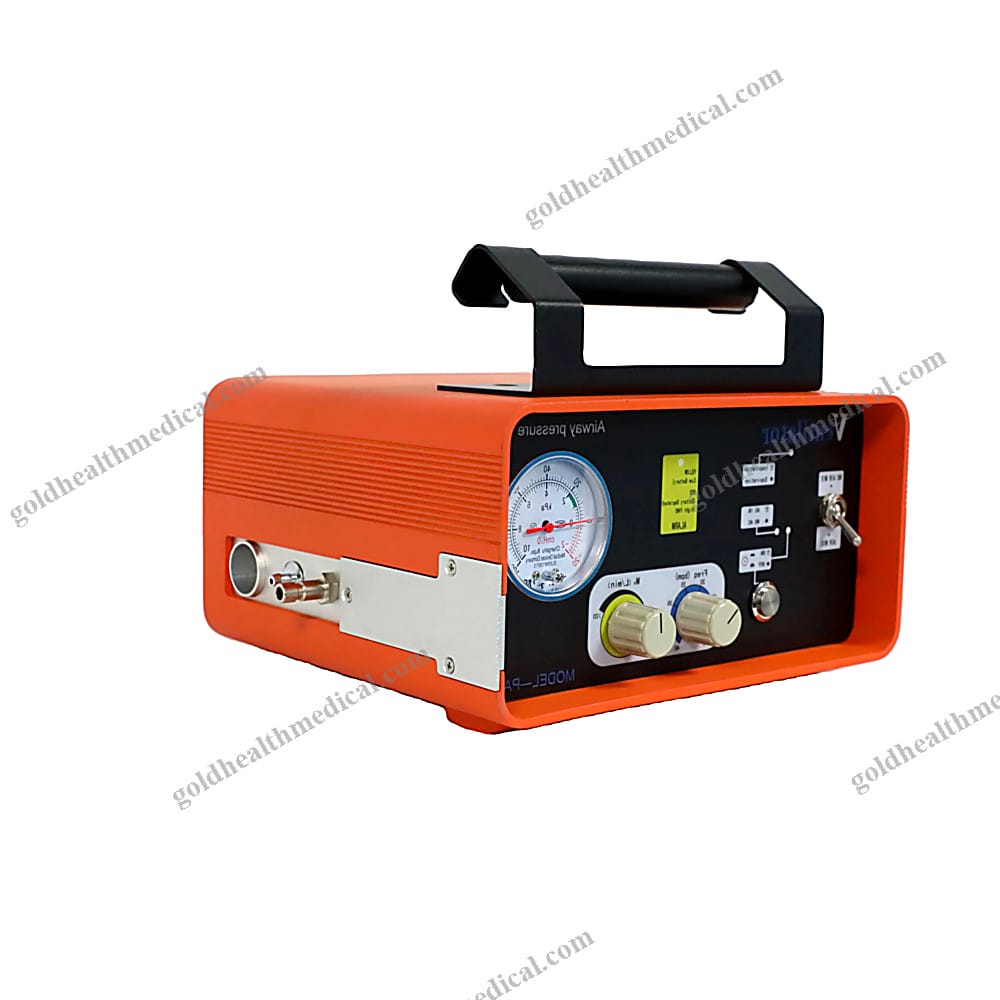

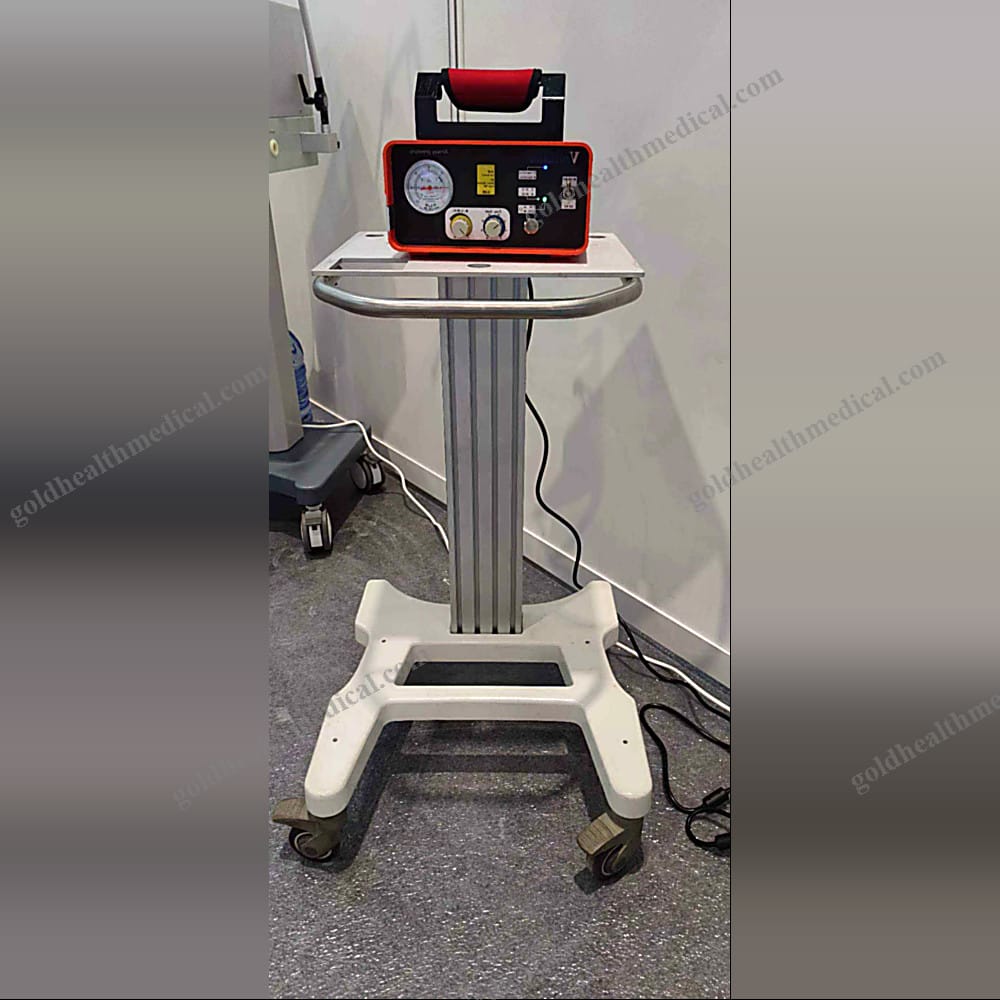

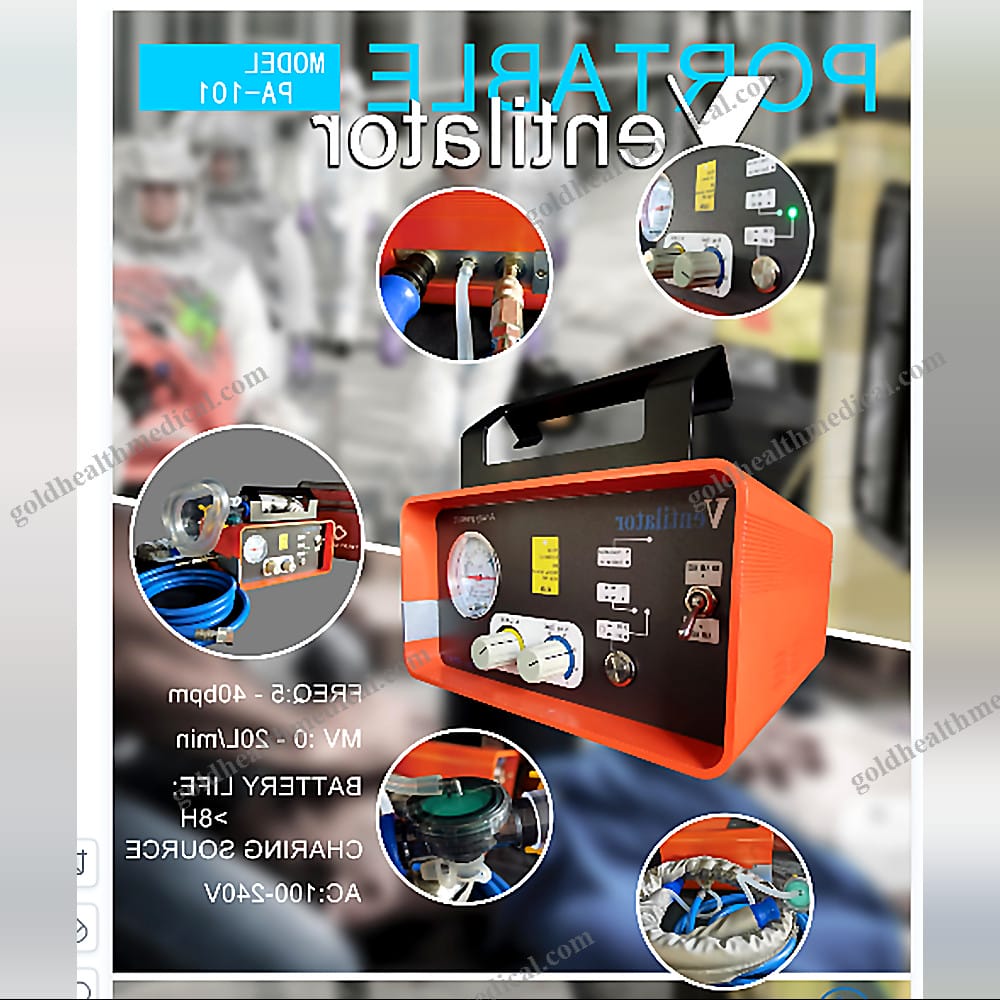

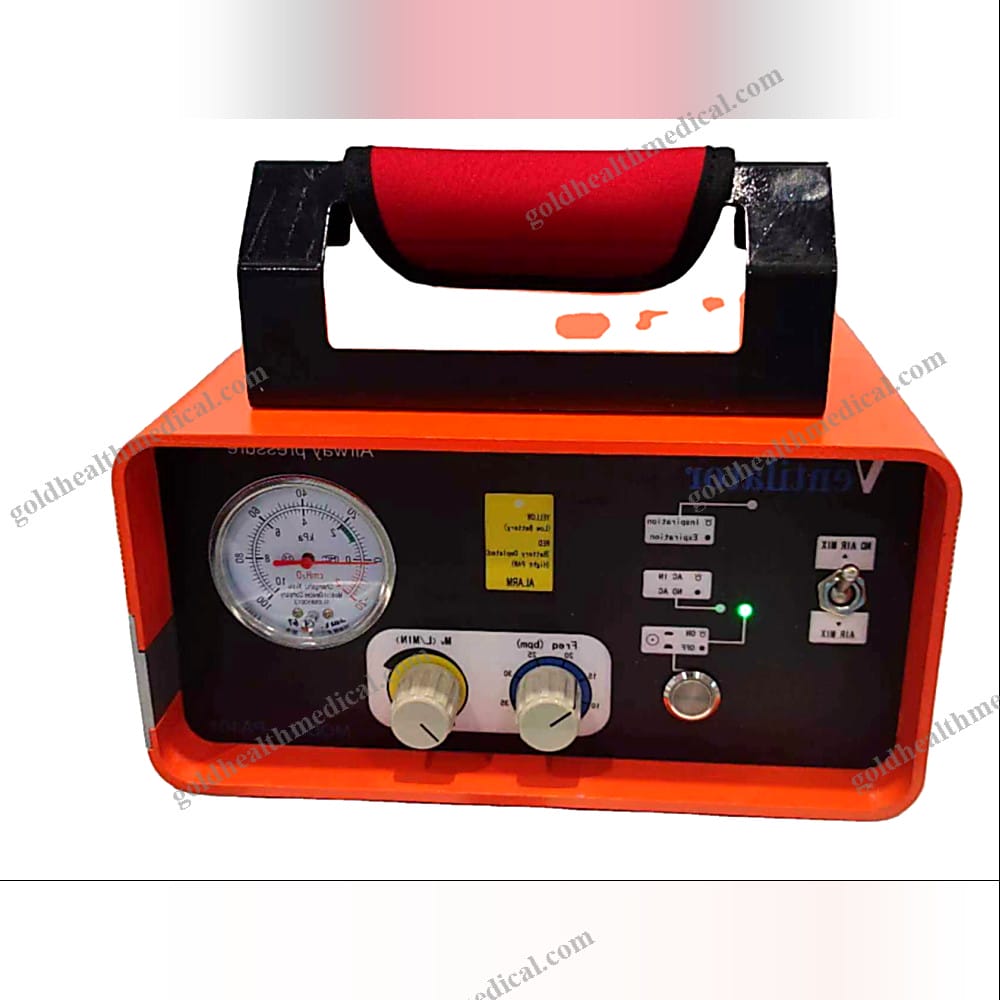

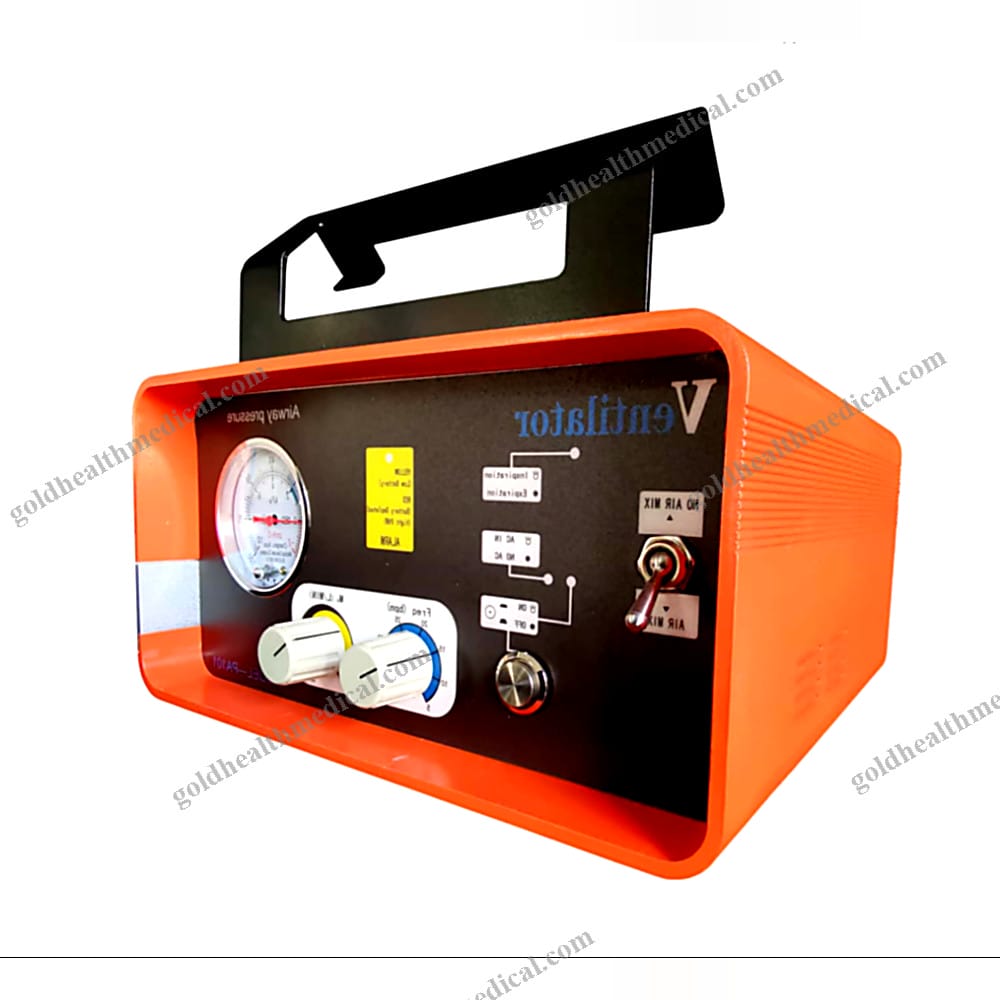

GoldHealth Medical: Advanced Portable Ventilator
Engineered for reliability and precision, the GoldHealth Medical ventilator is designed to meet the demands of modern healthcare environments. Whether in emergency scenarios, during patient transport, or for home care, this device delivers exceptional performance with user-friendly operation.
Key Features and Benefits
- Advanced Respiratory Control: Operates in CMV mode, ensuring consistent and controlled ventilation tailored to patient needs.
- Customizable Settings:
- Respiratory rate adjustable between 5bpm and 40bpm.
- Ventilation flow rate ranging from 0 to 20L/min.
- I/E ratio fixed at 1:2, with FiO2 options for both air mix and no air mix configurations.
- Extended Battery Life: Provides over 8 hours of continuous operation, ensuring uninterrupted care during critical situations.
- Comprehensive Safety Measures:
- Low voltage triggers a medium-priority alarm.
- Battery depletion activates a high-priority alarm.
- High airway pressure issues a medium-priority alarm when exceeding 5.5kPa, with automatic pressure relief protection for enhanced safety.
- Compact and Reliable Design: Built with high-quality components, ensuring durability and consistent performance.
- Instantaneous Overpressure Relief: Protects patients by automatically adjusting excessive airway pressure.
Ideal Applications
- Emergency medical situations.
- Safe and efficient patient transport.
- Suitable for patients weighing more than 5 kg, making it versatile for pediatric to adult care.
Environmental Specifications
- Operating Conditions:
- Temperature: -18°C to 50°C.
- Relative Humidity: ≤95% (non-condensing).
- Atmospheric Pressure: 70kPa to 110kPa.
- Gas Source: Requires medical oxygen at 280-600kPa.
- Power Supply:
- AC 100-240V, 50/60Hz, 30VA.
- Internal power source: Li-ion Battery, 12V/2200mAh.
Standard Configuration
- Main unit.
- Mask.
- Active exhalation valve.
- Respiratory pipeline.
- Exhalation control sampling tube.
- Oxygen tube.
- Oxygen regulator (customizable pressure-reducing valves available upon request).
Why Choose GoldHealth Medical?
GoldHealth Medical stands at the forefront of innovation in medical devices. Our products are crafted with precision in Shenzhen, China's leading hub for medical manufacturing. With over 20 years of expertise, we deliver cutting-edge solutions that meet global standards, including CE, ROHS, and ISO certifications.
Commitment to Quality
- Pre-production samples ensure design accuracy.
- Rigorous final inspections guarantee product reliability.
- A dedicated team focused on delivering excellence in every unit.
Trusted Globally
Our products are utilized across Northern Europe, North America, Western Europe, and beyond, serving a diverse range of healthcare providers and institutions.
Experience the GoldHealth Medical difference—where innovation meets reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents an advanced respiratory support solution designed to meet the needs of modern healthcare environments. Engineered with precision and patient safety in mind, this device delivers reliable performance for a wide range of clinical applications. Whether in hospitals, clinics, or home care settings, it ensures optimal respiratory therapy with cutting-edge technology and user-friendly features.
Key Features and Specifications
- Power Source: Powered by electricity with USB recharge capability, ensuring uninterrupted operation and convenience.
- Battery Life: Provides over 8 hours of continuous use on a full charge, ideal for both stationary and portable use.
- Material: Constructed with a durable combination of high-quality metal and medical-grade plastic for long-lasting reliability.
- Shelf Life: 3 years, ensuring extended usability and reduced maintenance costs.
- Quality Assurance: Certified to meet CE standards and ISO 13485 safety requirements, guaranteeing compliance with global healthcare regulations.
- Instrument Classification: Class II medical device, designed for enhanced safety and performance.
Performance Parameters
- Respiratory Control Mode: CMV (Continuous Mandatory Ventilation) for consistent and controlled breathing support.
- Respiratory Rate: Adjustable range of 5bpm to 40bpm, accommodating diverse patient needs.
- Ventilation Flow Rate: Precise control with a range of 0-20L/min for tailored therapy.
- I/E Ratio: Optimized at 1:2 for effective ventilation cycles.
- FiO2 Settings: Supports both Air Mix and No Air Mix modes, offering flexibility in oxygen delivery.
Safety and Alarms
- High Priority Alarms: Alerts for critical conditions such as high airway pressure, ensuring immediate attention to patient safety.
- Medium Priority Alarms: Notifications for low voltage and battery depletion, allowing proactive management of device performance.
Packaging Details
- Package Dimensions: Compact and efficient design with dimensions of 40x30x30 cm.
- Gross Weight: Lightweight at 10.000 kg, making it easy to transport and store.
After-Sale Support
GoldHealth Medical is committed to customer satisfaction with comprehensive online technical support and a 1-year warranty, ensuring peace of mind for healthcare providers and patients alike.
Experience the next generation of respiratory care with GoldHealth Medical’s innovative solution, designed to empower healthcare professionals and enhance patient outcomes.
