Emergency Medical Ventilator Pro Plus
Reference: 1601058943983
Ventilator
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

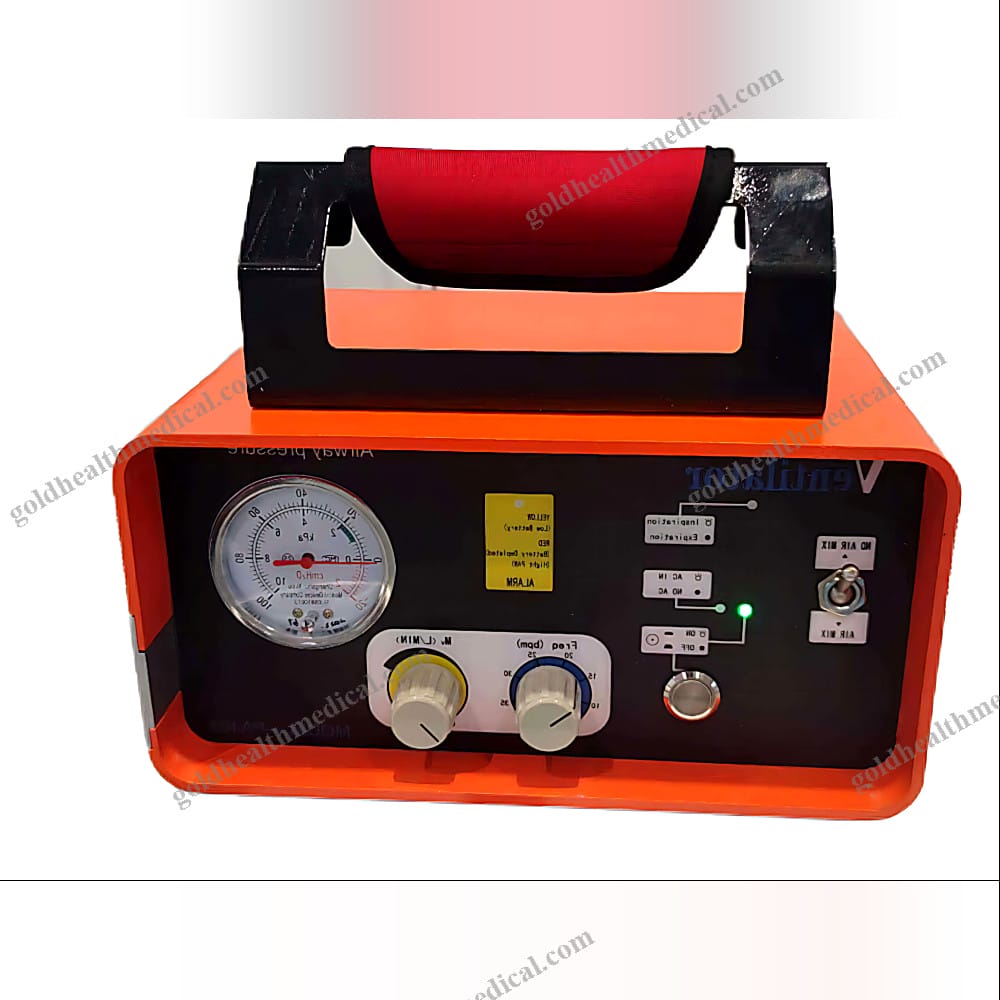

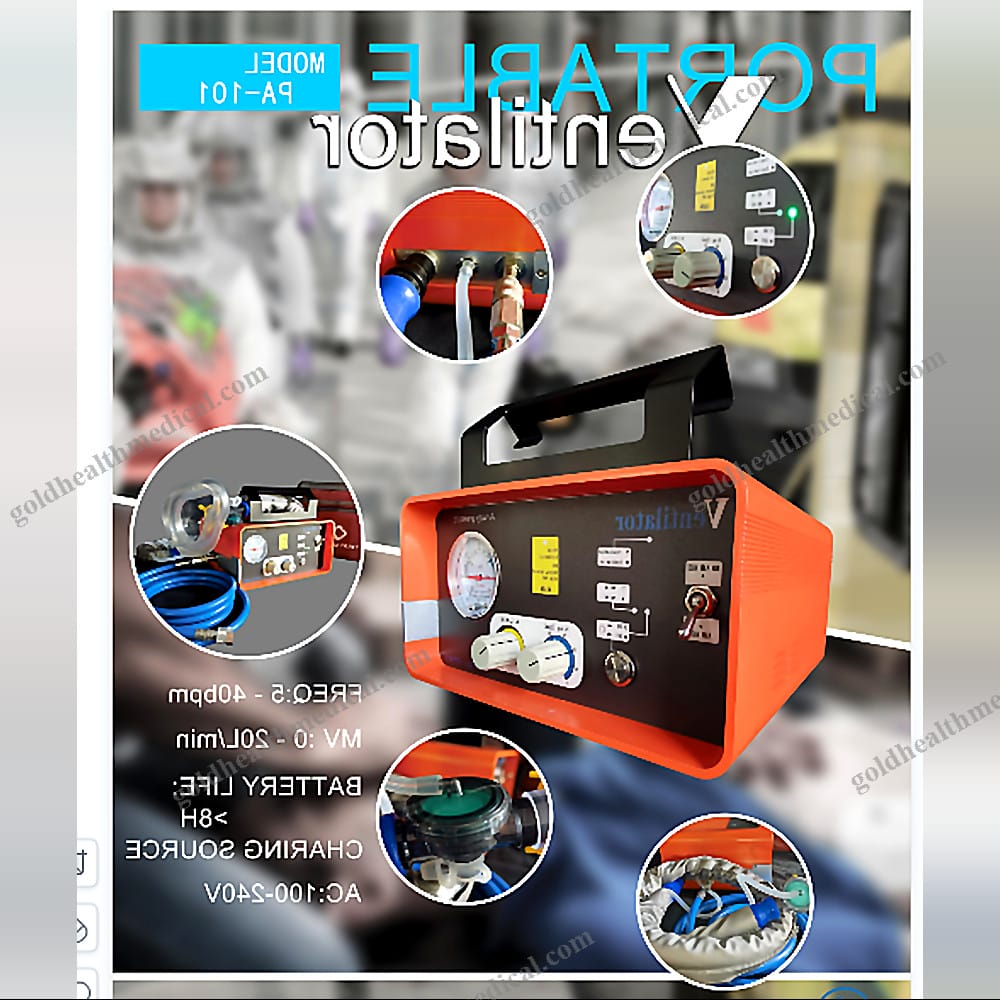

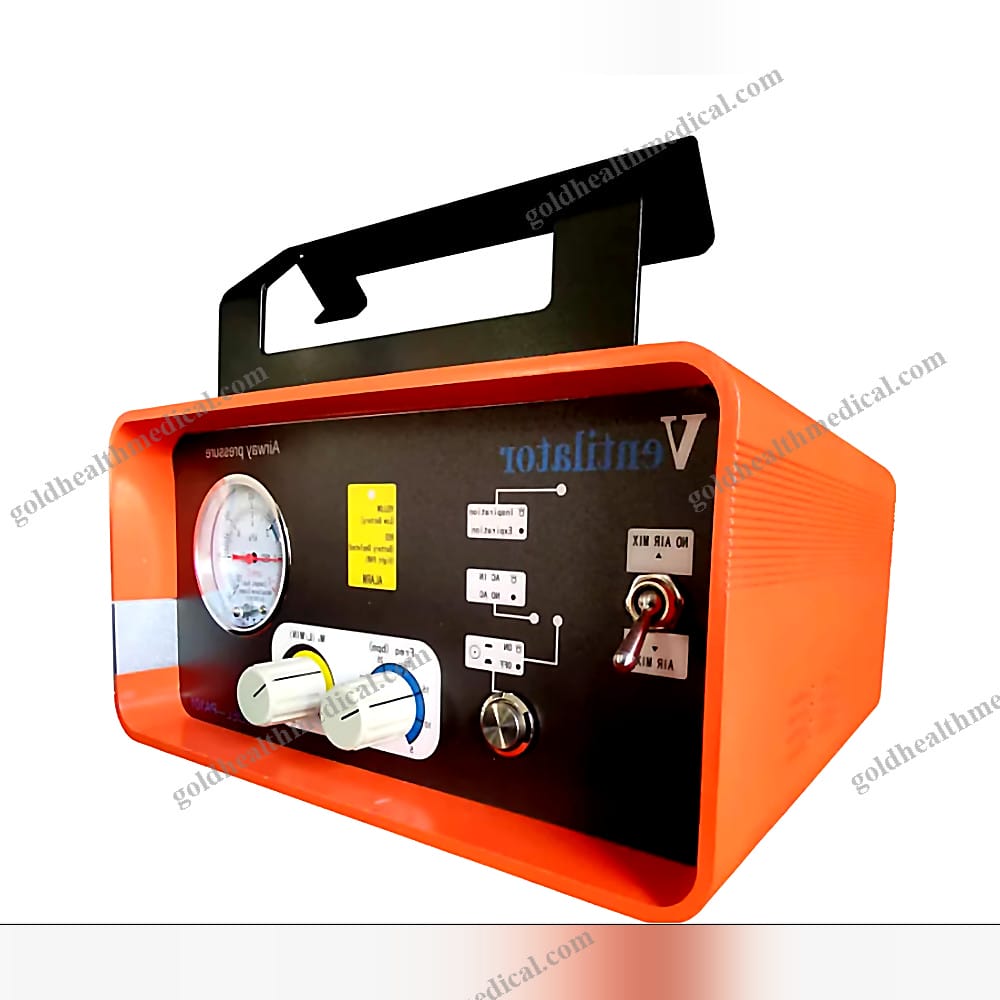

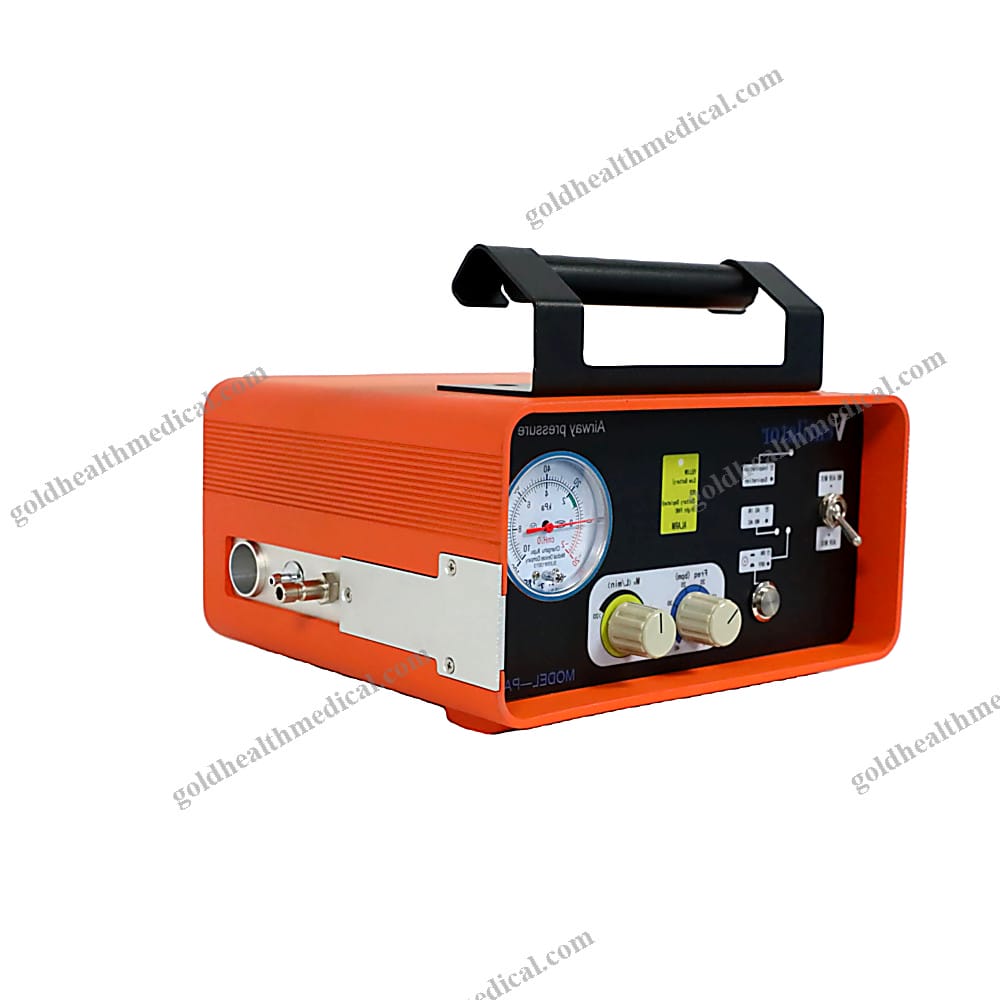

GoldHealth Medical Ventilator
Product Overview
GoldHealth Medical presents a cutting-edge ventilator designed for both emergency and transport scenarios. Engineered with precision, this device is ideal for patients weighing more than 5 kg, offering reliable respiratory support in critical situations.
Key Features
- Advanced Respiratory Control: Operates in CMV mode, ensuring consistent and controlled ventilation.
- Customizable Settings:
- Respiratory rate adjustable from 5 to 40 breaths per minute.
- Ventilation flow rate ranging from 0 to 20 liters per minute.
- I/E ratio set at 1:2 with options for air mix or no air mix FiO2.
- Extended Battery Life: Provides over 8 hours of continuous operation, ensuring uninterrupted care during transport.
- Comprehensive Safety Measures:
- Low voltage alerts with medium priority alarms.
- High-priority alarm for battery depletion.
- Medium priority alarm for high airway pressure exceeding 5.5kPa, with automatic pressure relief protection.
- High-Quality Components: Built with premium parts for maximum reliability and performance.
- Instantaneous Overpressure Relief: Ensures patient safety with automatic pressure adjustments.
Environmental Specifications
- Operating Conditions:
- Temperature: -18°C to 50°C
- Relative Humidity: ≤95% (non-condensing)
- Atmospheric Pressure: 70kPa to 110kPa
- Gas Source: Requires medical oxygen at 280 to 600kPa.
- Power Supply: AC 100-240V, 50/60Hz, 30VA.
- Internal Power: Equipped with a Li-ion Battery, 12V/2200mAh.

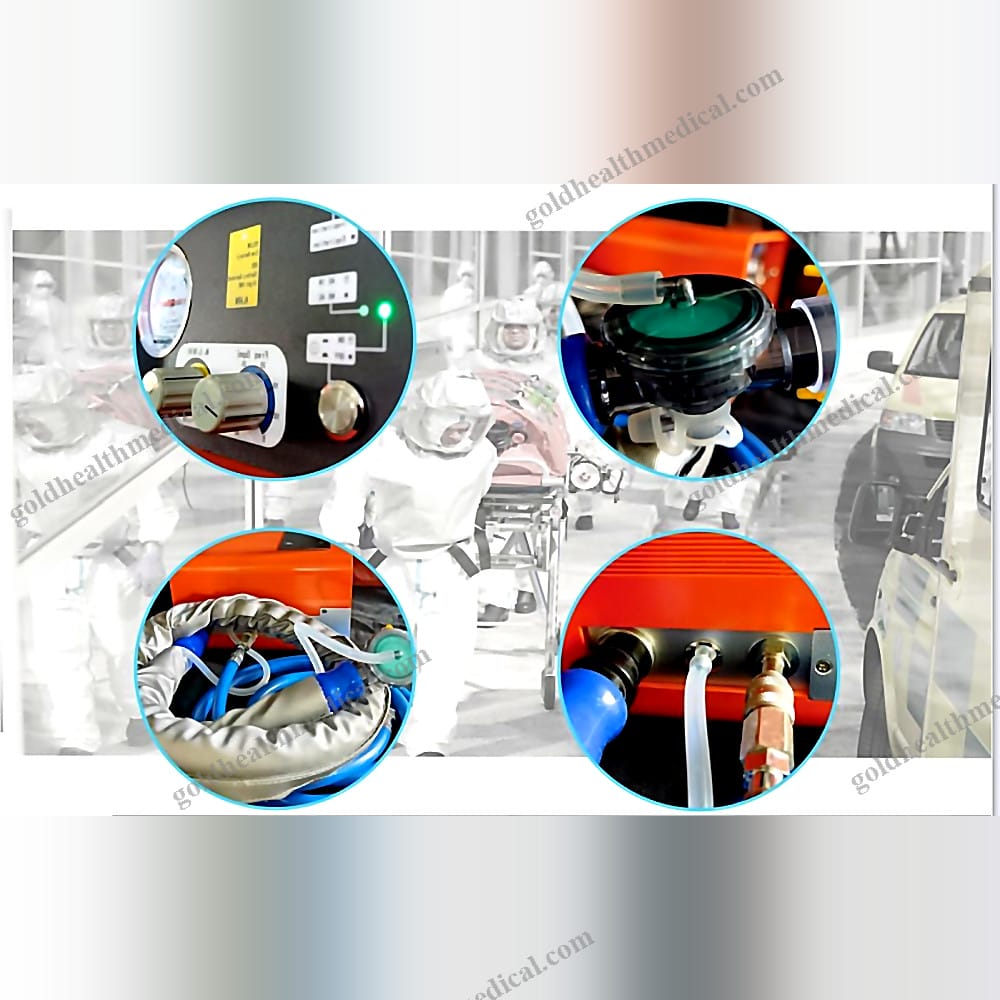

Standard Configuration
- Main unit
- Mask
- Active exhalation valve
- Respiratory pipeline
- Exhalation control sampling tube
- Oxygen tube
- Oxygen regulator (customizable pressure reducing valves available upon request)
Product Principle
The ventilator operates on the principle of utilizing gas pressure differences to deliver or expel air into the lungs through positive or negative pressure, facilitating lung ventilation. It supports various working modes, including single-level and bi-level, to adapt to the patient's breathing needs and conditions. The device primarily influences external breathing with minimal impact on internal gas exchange.
Frequently Asked Questions
What are the primary applications of this ventilator?
This ventilator is designed for emergency situations and patient transport, providing essential respiratory support.
What makes GoldHealth Medical's ventilator stand out?
Our ventilator combines practical functionality with user-friendly operation, featuring high-quality components and comprehensive alarm systems for enhanced safety and reliability.
How does the ventilator ensure patient safety?
Equipped with advanced safety measures, including low voltage and high airway pressure alarms, as well as automatic pressure relief, our ventilator prioritizes patient safety in all scenarios.
What environmental conditions are suitable for this ventilator?
The device operates efficiently in temperatures ranging from -18°C to 50°C, with humidity levels up to 95% (non-condensing), and atmospheric pressures between 70kPa and 110kPa.
Can the ventilator be customized?
Yes, different standard pressure reducing valves can be equipped according to user needs, ensuring flexibility and adaptability in various medical settings.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
Experience the next generation of respiratory care with our cutting-edge ventilator, designed to deliver precision, reliability, and ease of use. Engineered for both clinical and home environments, this device ensures optimal patient outcomes with advanced control modes and intuitive operation. Backed by rigorous quality certifications and a commitment to excellence, it is the ideal solution for hospitals, clinics, and home care providers seeking dependable respiratory support.
Key Features and Specifications:
- Power Source: Powered by electricity with USB recharge capability for uninterrupted performance.
- Battery Life: Provides over 8 hours of continuous operation on a full charge, ensuring reliable support during critical moments.
- Materials: Constructed with durable metal and high-grade plastic for long-lasting use.
- Shelf Life: 3 years, ensuring extended usability and value.
- Quality Certifications: Compliant with CE and ISO 13485 standards, guaranteeing safety and performance.
- Instrument Classification: Class II medical device, designed for professional and personal use.
Advanced Performance Parameters:
- Respiratory Control Mode: CMV (Continuous Mandatory Ventilation) for consistent and controlled breathing support.
- Respiratory Rate: Adjustable range of 5bpm to 40bpm, catering to diverse patient needs.
- Ventilation Flow Rate: Precise control with a range of 0-20L/min for tailored therapy.
- I/E Ratio: Optimized at 1:2 for balanced inhalation and exhalation cycles.
- FiO2 Settings: Supports both Air Mix and No Air Mix options for flexible oxygen delivery.
Safety and Alarm Systems:
- High Priority Alarms:
- High airway pressure alerts to prevent complications.
- Battery depletion warnings to ensure uninterrupted operation.
- Medium Priority Alarms:
- Low voltage notifications for proactive power management.
After-Sale Support:
Benefit from comprehensive online technical support, ensuring seamless integration and operation.
Warranty:
Backed by a 1-year warranty, reflecting our confidence in the product’s durability and performance.
Place of Origin:
Crafted with precision in Guangdong, China, combining innovation with world-class manufacturing standards.
Unique Selling Points:
- Intuitive design for ease of use in both professional and home settings.
- Advanced safety features to ensure patient well-being and peace of mind.
- Long battery life and USB rechargeability for enhanced portability and convenience.
- Compliant with global safety standards, making it a trusted choice for healthcare providers worldwide.
