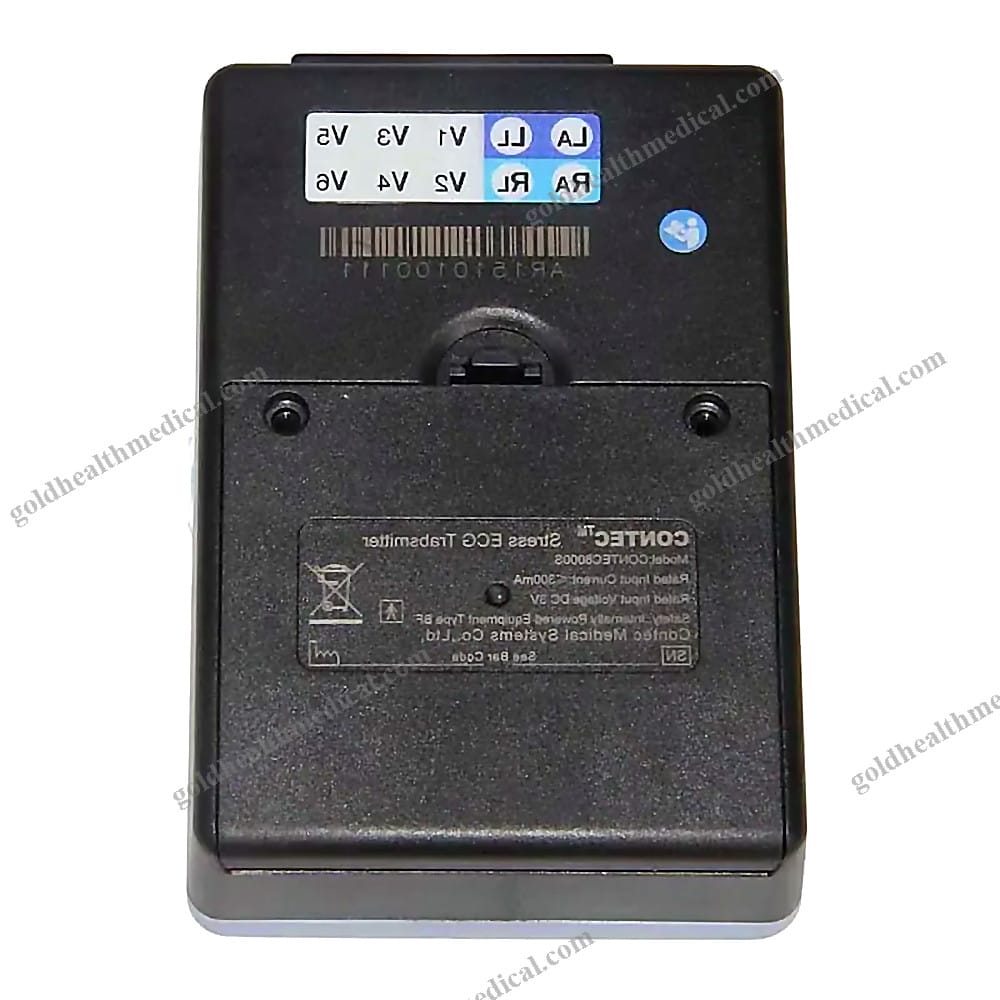

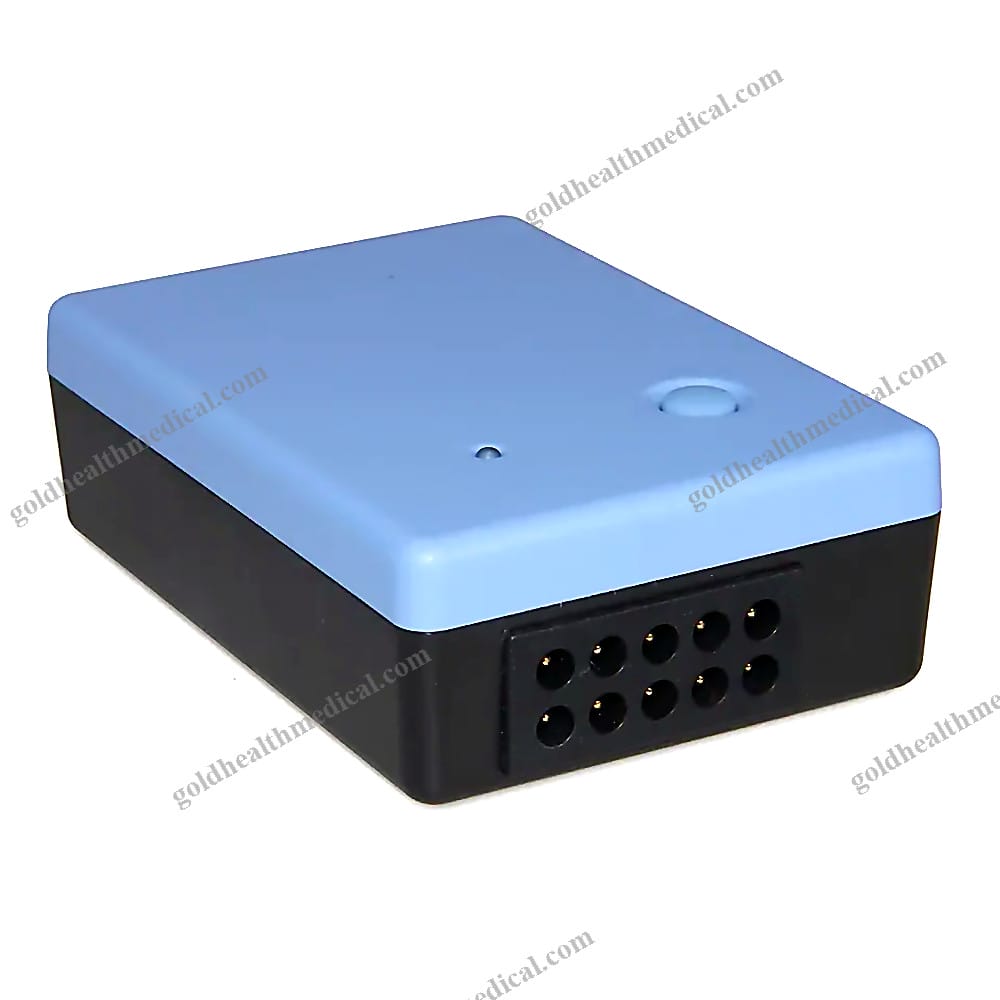

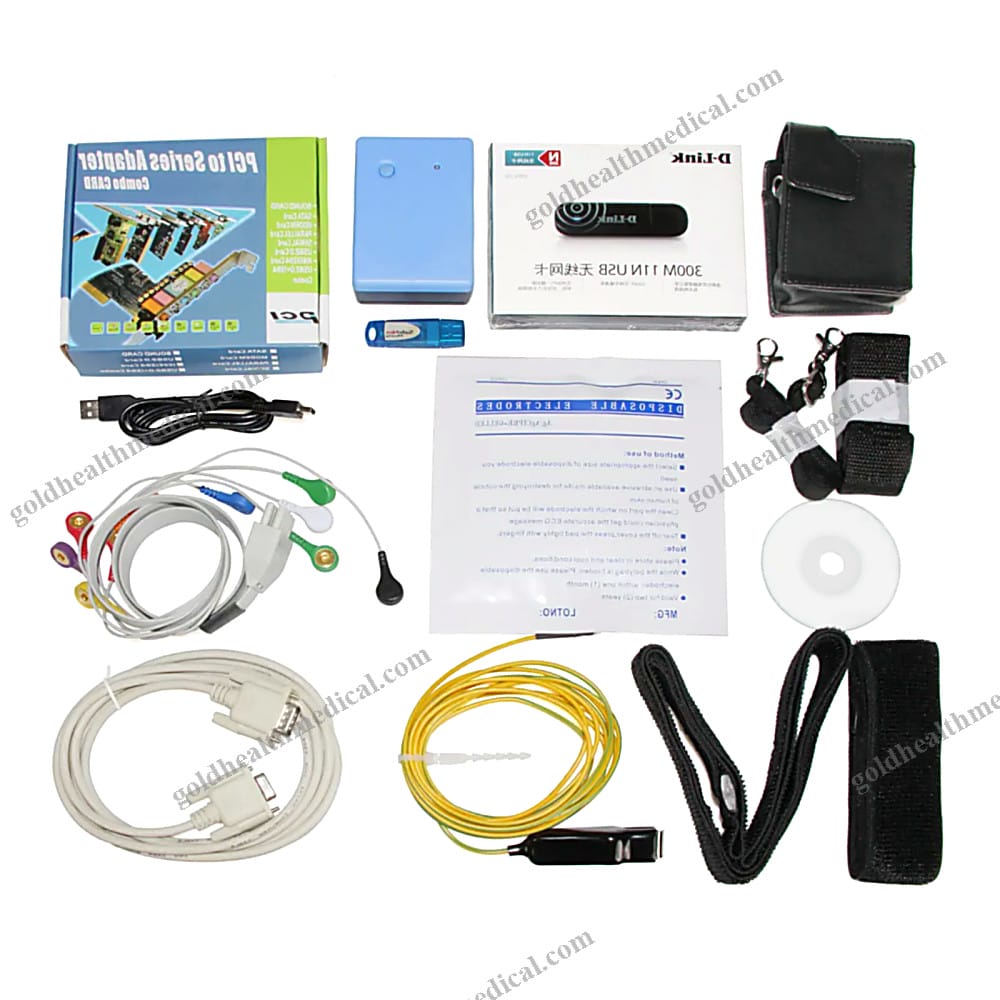

ECG8000S Stress Test System 12Le
Reference: 1601315140948
Ventilator
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Stress ECG Analysis System by GoldHealth Medical
The Stress ECG Analysis System is a cutting-edge solution designed for precision and reliability in cardiac diagnostics. This system integrates advanced sampling hardware, specialized software, and exercise equipment to deliver unparalleled performance in monitoring and analyzing heart function during physical stress tests.
Key Features and Benefits
- Real-Time ECG Waveform Printing: Capture and store ECG data throughout the entire exercise process, ensuring no critical detail is missed.
- Dynamic ST Segment Monitoring: Observe real-time changes in the ST segment with enhanced display options and automatic calculations of ST-related data.
- Advanced Anti-Interference Technology: Minimize the impact of EMG interference, baseline drift, and AC interference, ensuring stable and accurate ECG waveforms.
- Customizable Exercise Protocols: Choose between standard or user-defined exercise schemes, with automated alerts for printing and blood pressure measurements based on exercise phases.
- Event Marking and Comparison: Mark significant events during the test and compare them with current waveforms, allowing for detailed post-exercise observation, editing, and printing.
- Comprehensive Trend Analysis: Display and print various trend charts, including HR, BP, METS, HR*BP, exercise trends, ST segment, and more, providing a holistic view of the patient's condition.
- Dynamic/Static Review Functionality: Review the entire exercise testing process post-exercise, ensuring a thorough analysis of the patient’s heart function.
- Efficient Case Management: Import and export cases with ease, utilizing compression technology to save disk space while maintaining quick and simple file association.
- Extensive System Customization: Tailor the system to your needs with multiple settings, including language switching, waveform display formats, background color, print settings, filter adjustments, and optional parameter displays.
- Versatile Functional Tools: Access tools for device management, case statistics, and other essential operations, enhancing overall system usability.
- Wireless ECG Data Sampling: Improve anti-interference capabilities with wireless data sampling, ensuring cleaner and more reliable data collection.
- Compatibility with Various Exercise Equipment: Seamlessly integrate with a wide range of exercise machines, offering flexibility in testing environments.
Technical Specifications
- Dimensions: 94mm (L) x 66mm (W) x 31mm (H)
- Weight: Approximately 94.6g (without battery)
- Patient Leak Current: <10µA
- Input Impedance: ≥50MΩ
- Frequency Response: 0.05Hz~150Hz (-3dB~+0.4dB)
- Time Constant: ≥3.2s
- Common Mode Rejection Ratio (CMRR): >60dB, >100dB (filter on)
- Calibration Voltage: 1mV
- Sampling Frequency: Max. 1000 Hz
- Sampling Accuracy: Max. 24 bits
- Input Loop Current: ≤50nA
- Polarization Resistance Voltage: ±500mV
- Noise Level: ≤15µVp-p
- Safety Type: Internally powered equipment, type BF
GoldHealth Medical’s Stress ECG Analysis System is engineered to provide medical professionals with the tools they need to make informed decisions, ensuring the highest standards of patient care. Whether used in hospitals, clinics, research institutions, or rehabilitation centers, this system stands out for its precision, adaptability, and ease of use.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
The ECG8000S is a cutting-edge electrocardiograph designed to deliver unparalleled precision and reliability in cardiac diagnostics. Engineered for both clinical and home environments, this device combines advanced technology with user-friendly features, ensuring accurate readings and seamless operation. Its lightweight, portable design and removable battery make it an ideal solution for professionals on the move, while its robust build ensures consistent performance under demanding conditions.
Key Features and Specifications:
- Power Source: Electric with a removable battery for uninterrupted mobility
- Material: High-grade, durable plastic for enhanced longevity
- Shelf Life: 3 years, ensuring extended usability and reliability
- Quality Certification: CE-certified, guaranteeing compliance with international safety and performance standards
- Instrument Classification: Class II medical device, reflecting its advanced diagnostic capabilities
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sale Service: Dedicated online technical support to address any queries or issues promptly
Unique Selling Points:
- Engineered for precision and ease of use, making it suitable for diverse healthcare settings
- Portable and battery-operated design allows for flexibility in remote or mobile environments
- Backed by GoldHealth Medical’s commitment to innovation and quality
Place of Origin: Beijing, China
