Digital Video Colposcope Endoscope Camera System
Reference: 1601079729886
Visual Acuity Examination Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical - Digital Video Colposcopy
Experience a new era of gynecological care with GoldHealth Medical's state-of-the-art digital colposcope. Designed to elevate diagnostic precision and patient care, this innovative endoscope camera combines advanced imaging technology with intuitive functionality.
Unparalleled Imaging Capabilities
- High-Resolution Visuals: Capture crystal-clear, full-screen images without the need for couplers or beam splitters, ensuring uncompromised image quality and field of view.
- True Tissue Color: Advanced lighting technology generates 50% whiter and brighter illumination, providing accurate tissue color representation.
- Glare-Free Assessment: A unique polarization filter eliminates glare, enabling precise tissue evaluation.
- Enhanced Image Control: Electronic green filter removes red tones without light loss, offering superior diagnostic clarity.
Intuitive Design for Seamless Use
- Direct Connectivity: Effortlessly connect to any monitor, including TV or PC monitors, without the need for laptops or additional software.
- Effortless Operation: Simple controls allow for easy image capture and management.
- On-Screen Magnification: Instantly adjust magnification with a push-button feature for detailed examination.
Technical Specifications
- Lens Resolution: 1/4" Super HAD color CCD, 800,000 pixels
- Axial Resolution: 480 lines
- Signal-to-Noise Ratio: 50dB
- Focus Distance: Standard 100–400mm (supports 10–1000mm)
- Field of View: 2.5mm–20mm–320mm
- Depth of Field: 15mm–40mm (up to 480mm)
- Minimum Illumination: 0.15Lux
- Zoom Capability: 1x to 128x
- Image Output: Video, S-video, PAL
- Focus Modes: Auto Focus (AF) / Manual Focus (MF)
- White Balance: Auto White Balance (AWB)

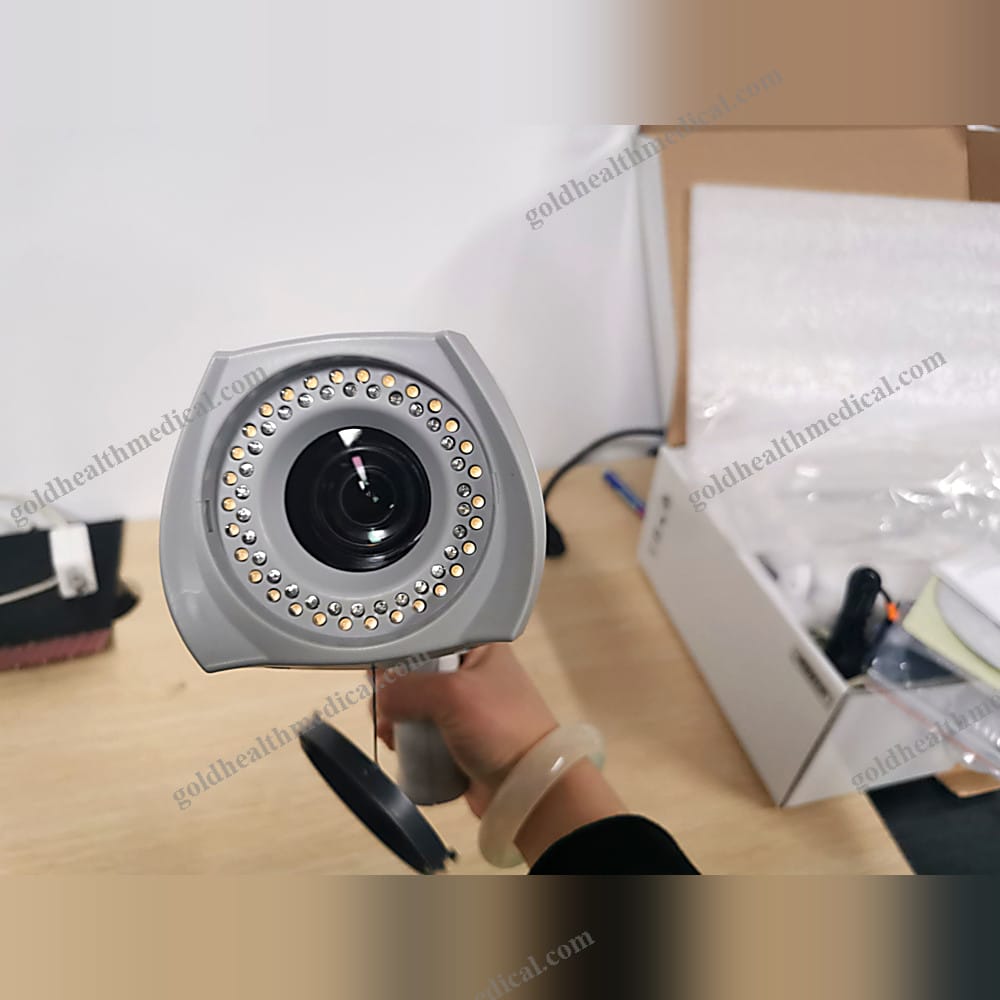

- Light Source: High-brightness LED ring (average lifespan of 100,000 hours)
- Video Output: PAL, VBS-standard 1.0Vp-p
- Power Requirements: AC220V ±10%, 500W
- Brightness Adjustment: Automatic electronic shutter
- Operating Temperature: -40°C to +50°C
- Storage Temperature: -20°C to +60°C
- Relative Humidity: 30–80% RH
Applications
- Capture and store high-quality images of the cervix, vagina, and vulva for comprehensive women's health applications.
- Ideal for cervical cancer screening and advanced diagnostic procedures.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions that empower healthcare professionals. Our digital colposcope is designed to meet the needs of hospitals, clinics, research institutions, and home healthcare providers, ensuring reliable performance and exceptional results.
For more information, contact us today and discover how GoldHealth Medical can transform your practice.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Type: Professional Gynecology Digital Colposcope
Product Overview
The GoldHealth Medical Digital Colposcope is a cutting-edge diagnostic tool designed for precision and reliability in gynecological examinations. Engineered with advanced imaging technology and user-centric features, this device sets a new standard for accuracy and ease of use in clinical environments. Whether in hospitals, clinics, or research facilities, this colposcope delivers exceptional performance to support confident diagnoses and improved patient outcomes.
Key Features
- High-Resolution Imaging: Equipped with a Sony camera offering 830,000 pixels, ensuring crystal-clear visualization of even the finest details.
- Advanced Lens Technology:
- Axial resolution of 480 lines for sharp, detailed images.
- Signal-to-noise ratio (S/N) of 50dB for minimal interference and optimal clarity.
- Zoom capability ranging from 1x to 128x for versatile examination options.
- Integrated Thermal Printer: Includes the SONY UP-897MD thermal printer for instant, high-quality image documentation.
- Foldable Trolley: Designed for portability and space efficiency, making it ideal for various clinical settings.
- User-Friendly Interface: English language software ensures intuitive operation for medical professionals worldwide.
Technical Specifications
- Instrument Classification: Class II medical device
- Power Source: Electric
- Monitor: Included as part of the standard configuration
- Materials: Durable metal and high-quality plastic construction for long-lasting performance
- Shelf Life: 1 year
- Quality Certification: CE-certified for safety and reliability

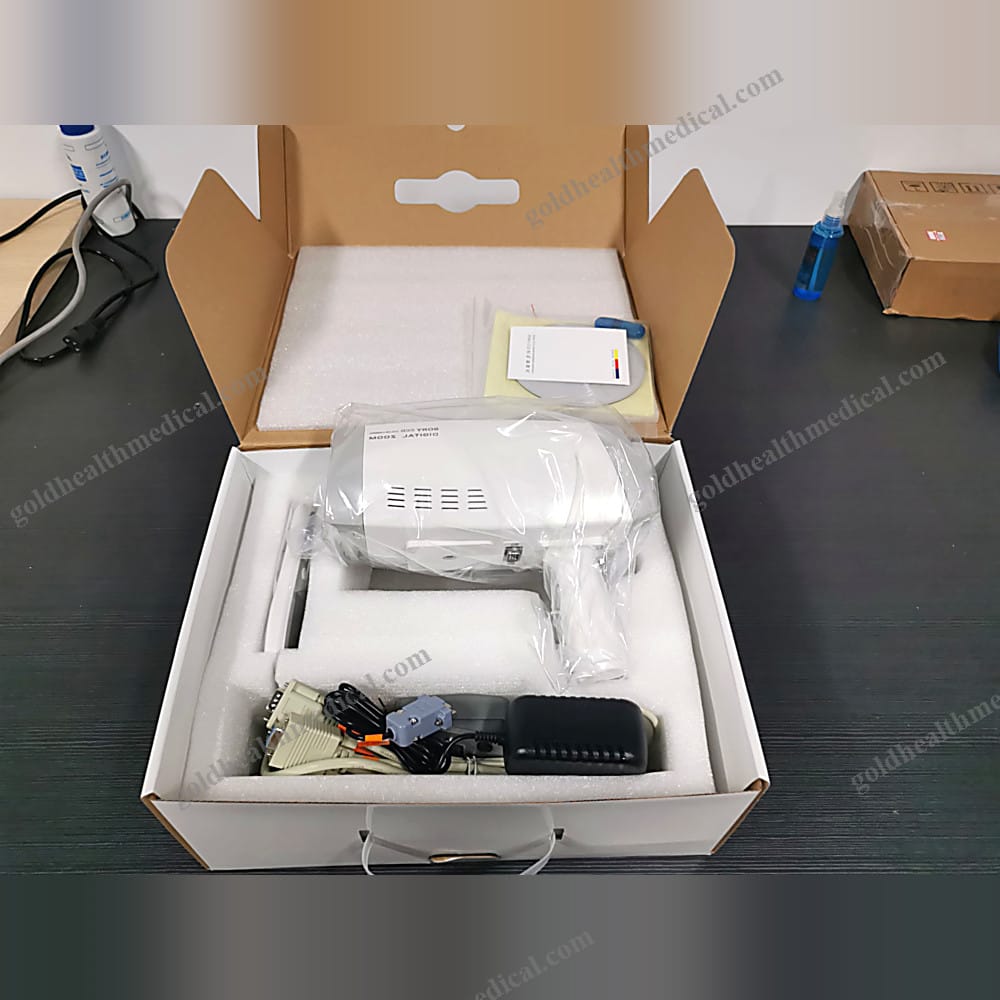

Packaging Details
- Package Dimensions: 37 x 15 x 29 cm
- Gross Weight: 4.000 kg
Warranty & Support
- Warranty Period: 1 year, ensuring peace of mind and long-term reliability.
- After-Sale Service: Comprehensive online technical support to address any queries or issues promptly.
Place of Origin
Shanghai, China
GoldHealth Medical’s Digital Colposcope is more than just a diagnostic tool—it’s a commitment to excellence in healthcare. Designed for professionals who demand precision, this device is the ideal choice for modern medical practices.
