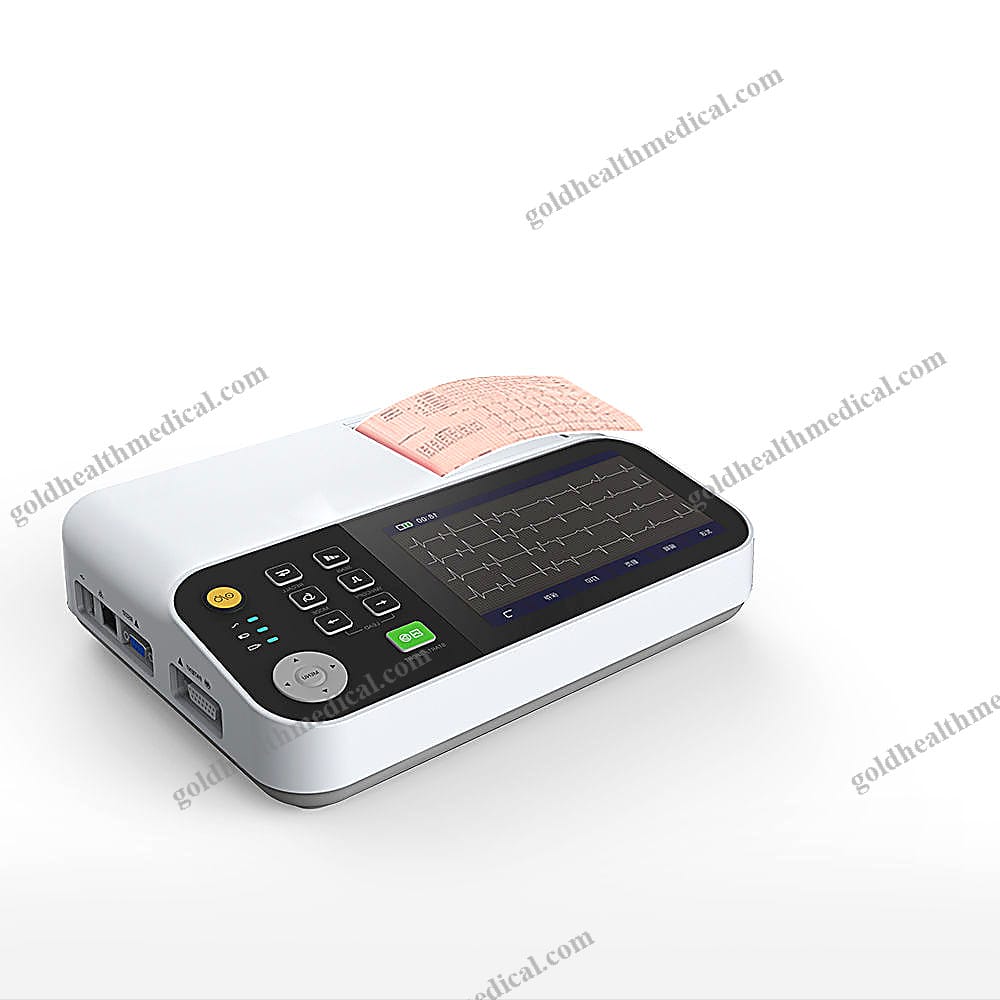

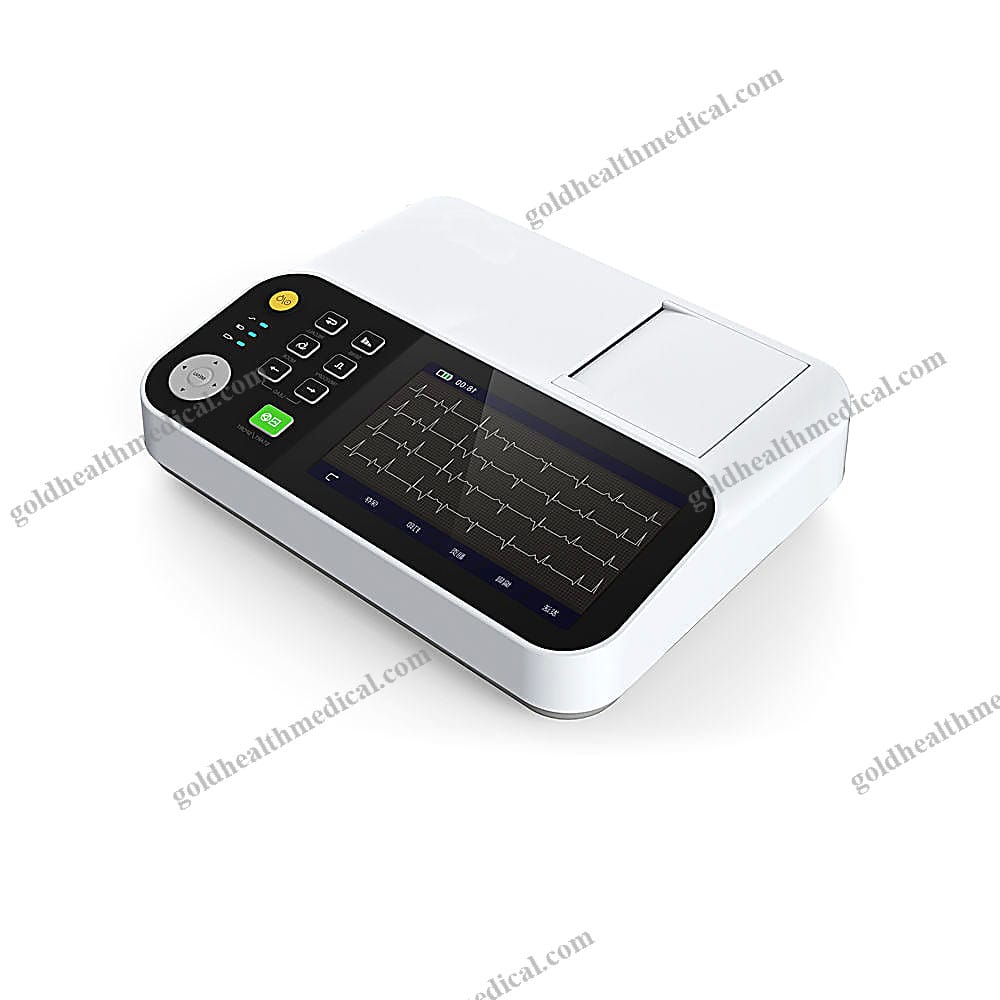

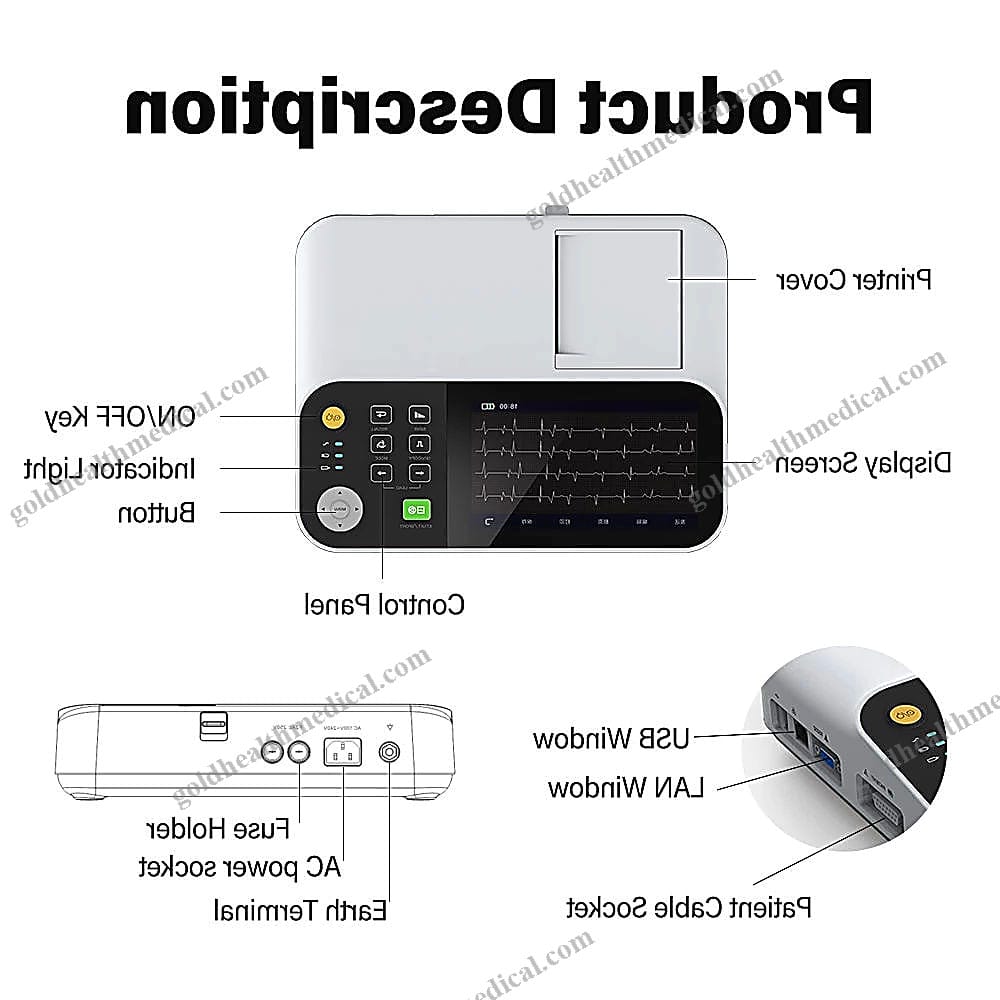

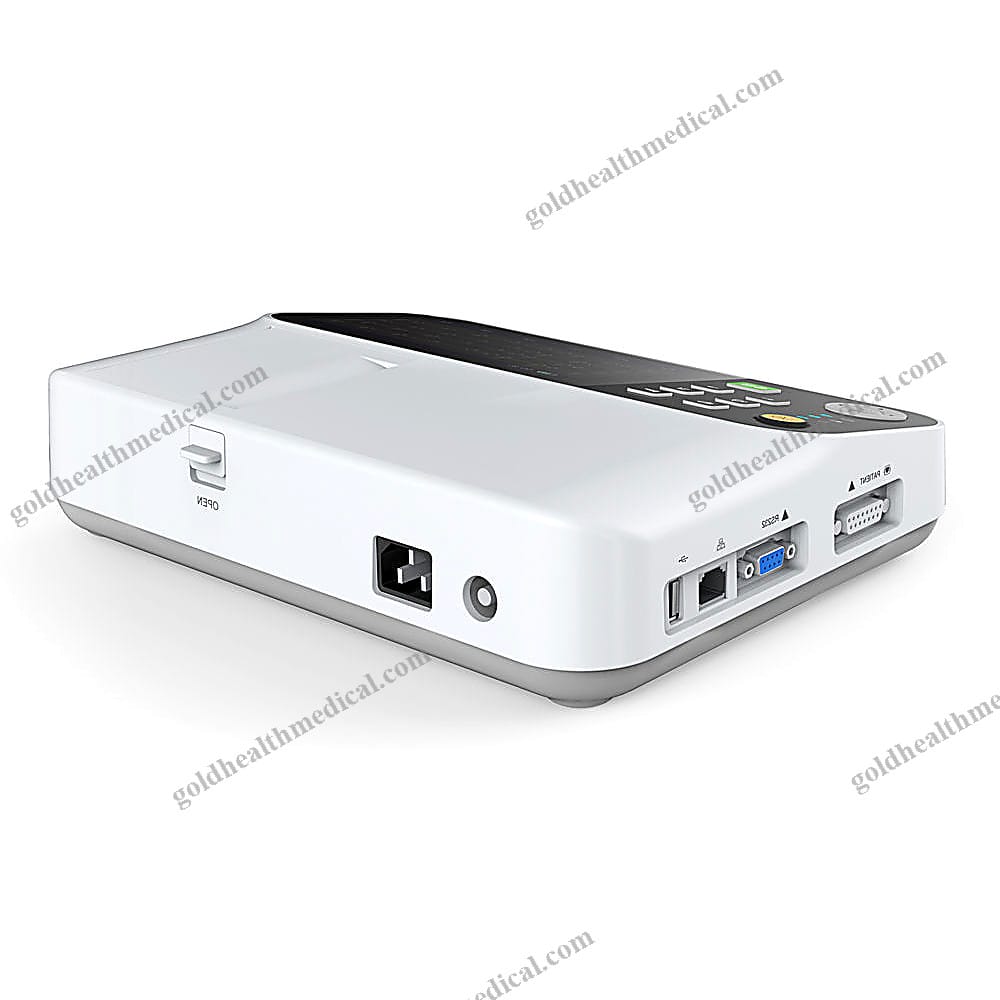

CE 7in Touch Screen Portable ECG Machine 12 Leads
Reference: 1600516807822
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical ECG Machine
Product Overview
GoldHealth Medical presents a cutting-edge ECG machine designed to redefine precision and efficiency in cardiac diagnostics. This state-of-the-art device combines modern aesthetics with advanced functionality, offering a lightweight, compact solution for healthcare professionals and institutions. Its intuitive design ensures seamless operation, while its robust features deliver unparalleled accuracy and reliability.
Key Features
- 12-Lead Simultaneous Acquisition: Captures real-time, high-resolution 12-channel ECG waveforms for comprehensive cardiac analysis.
- 7" High-Resolution Color Display: Full-screen visualization of waveforms with both push-button and optional touch operation for enhanced usability.
- Advanced Filtering Technology: Equipped with sensitive ADS, HUM, and EMG filters to ensure clarity and precision in readings.
- Automated Analysis and Diagnostics: Reduces physician workload with automatic measurement, waveform freezing, and baseline adjustment for optimal recording.
- Built-In Thermal Printer: Synchronizes with the device to print clear, detailed reports on 80mm thermal paper.
- Rechargeable Battery: Powered by a long-lasting lithium-ion battery (12V/2000mAh) with AC/DC power conversion for uninterrupted performance.
- Data Storage and Review: Stores over 500 ECG reports in its built-in flash memory, allowing for easy review and printing of historical data.
- Lead-Off Detection: Alerts users to disconnected leads, ensuring accurate and continuous monitoring.
- Universal Compatibility: Adapts to 100-240V, 50/60Hz power supply with automatic plug configuration based on regional requirements.

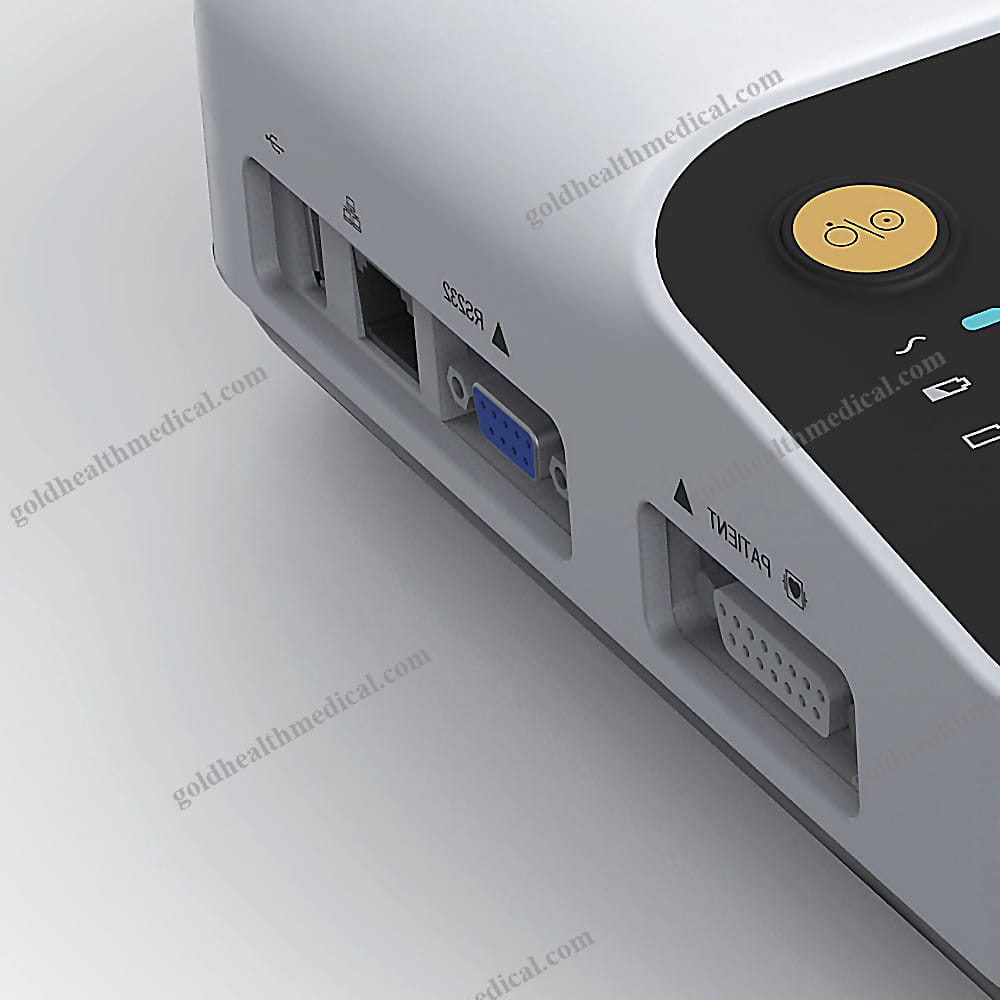

- Optional USB Interface: Facilitates seamless data transfer and communication with external systems.
Technical Specifications
- ECG Collection and Display:
- Input Circuit: Floating, defibrillator-protected
- Voltage Tolerance: Β±500mV
- Time Constant: >3.2s
- Frequency Response: 0.05Hz~150Hz
- Input Impedance: >50MΞ©
- Input Circuit Current: β€ 0.1Β΅A
- Patient Auxiliary Current: < 10Β΅A (220V-240V/50Hz)
- CMRR: β₯ 100dB with AC Filter
- A/D Resolution: 12 bits/1000Hz
- Sensitivity: 5, 10, 20mm/mV
- Heart Rate Measurement:
- Range: 30BPM~300BPM
- Calculation Accuracy: Β±1 BPM
- Display: 7" color screen with optional touch input
- Power Supply:
- AC Power: 100V-240V, 50Hz/60Hz, 60VA
- Battery: Built-in lithium rechargeable (12V/2000mAh)
- Fuse: F2AL 250V
- Recorder:
- Mode: High-resolution thermal printer
- Paper Speed: 12.5mm/s, 25mm/s, 50mm/s (Β±3%)
- Paper Size: 80mm (W) Γ 20m (L)
- Product Dimensions and Weight:
- Size: 300mm Γ 240mm Γ 72.5mm
- Weight: 2.5Kg
- Environmental Requirements:
- Transport/Storage: Temperature -20β~55β, Humidity 25%~95%, Pressure 70kPa~1060kPa
- Operating: Temperature 5β~40β, Humidity 15%~85%, Pressure 860kPa~1060kPa
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative medical solutions that meet the evolving needs of healthcare providers worldwide. Our ECG machine stands out with its precision engineering, user-friendly design, and exceptional performance, making it an indispensable tool for hospitals, clinics, research labs, and home care settings. With a focus on quality and reliability, we empower healthcare professionals to deliver better patient outcomes.
Unique Selling Points
- Compact and Portable: Lightweight design ensures ease of use in any setting.
- Advanced Automation: Reduces manual effort with intelligent diagnostic features.
- Comprehensive Data Management: Built-in storage and review capabilities streamline workflow.
- Global Adaptability: Universal voltage and plug compatibility for seamless integration worldwide.
GoldHealth Medical is your trusted partner in advancing cardiac care. Experience the
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
The GoldHealth Medical ECG Monitor is a cutting-edge clinical examination tool designed to deliver precision and reliability in cardiac diagnostics. Featuring a 7-inch high-resolution LCD display, this device offers intuitive operation and clear visualization of ECG waveforms, making it an indispensable aid for healthcare professionals. Whether used in hospitals, clinics, or home care settings, this Class II medical instrument ensures accurate readings and seamless integration with diagnostic workflows.
Key Features and Specifications:
- Display: 7-inch LCD for sharp and detailed ECG waveform presentation
- Voltage Compatibility: Wide-range input (100-240V) for global usability
- Instrument Classification: Class II medical device, ensuring safety and performance
- Application: Ideal for clinical examination and cardiac monitoring
- Portability: Compact design with a single package size of 36 x 32 x 23 cm and a lightweight gross weight of 3.5 kg
- Software Integration: Comes equipped with advanced software for enhanced diagnostic capabilities
Warranty and Support:
- Warranty Period: Comprehensive 12-month warranty covering the main host and accompanying software
- After-Sales Service: Dedicated online technical support to ensure uninterrupted performance and address any queries
Why Choose GoldHealth Medical?
Our ECG Monitor stands out with its user-friendly interface, robust build quality, and advanced diagnostic features. Designed to meet the needs of modern healthcare environments, it combines precision engineering with innovative technology to deliver unparalleled performance. Trust GoldHealth Medical to provide reliable tools that empower healthcare professionals and improve patient outcomes.
Package Includes:
- 1 x ECG Monitor (Main Host)
- Accompanying software for enhanced functionality
- Securely packed in a durable carton for safe transportation
Ideal For: Hospitals, clinics, research labs, rehabilitation centers, and home healthcare setups.
