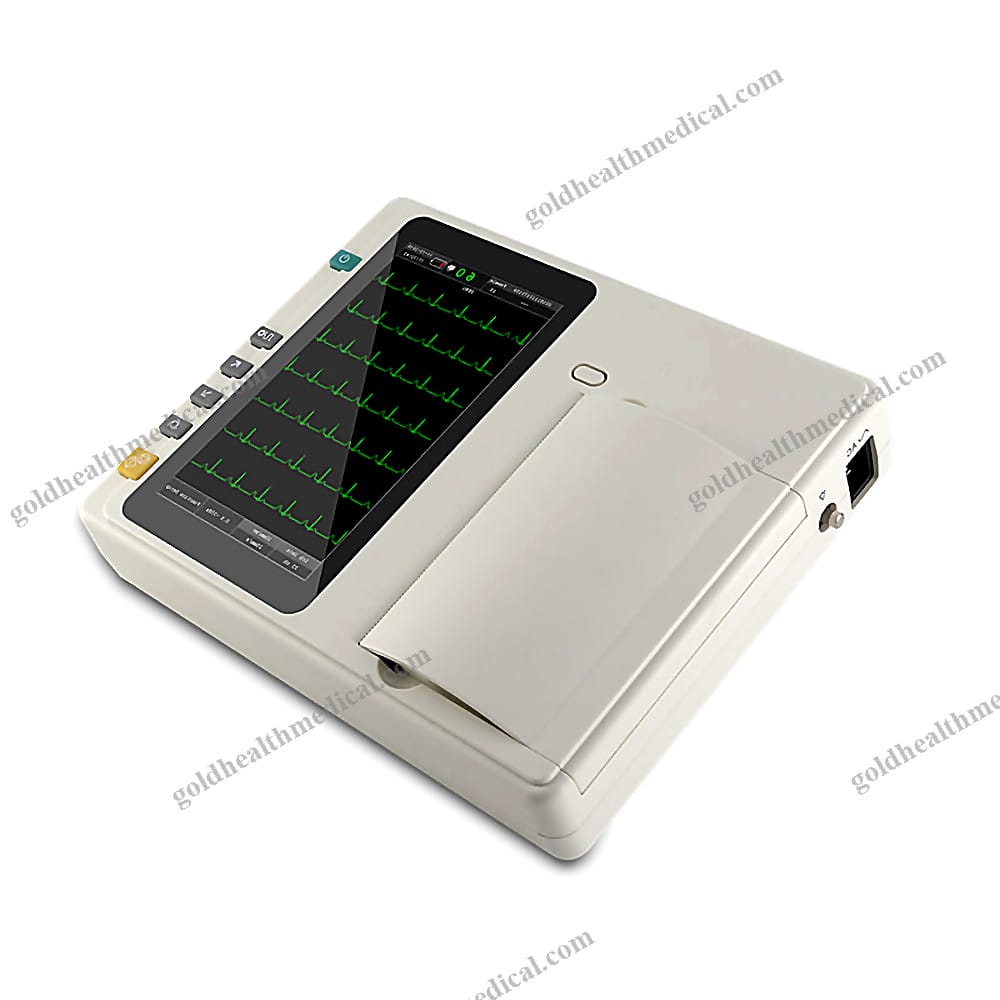

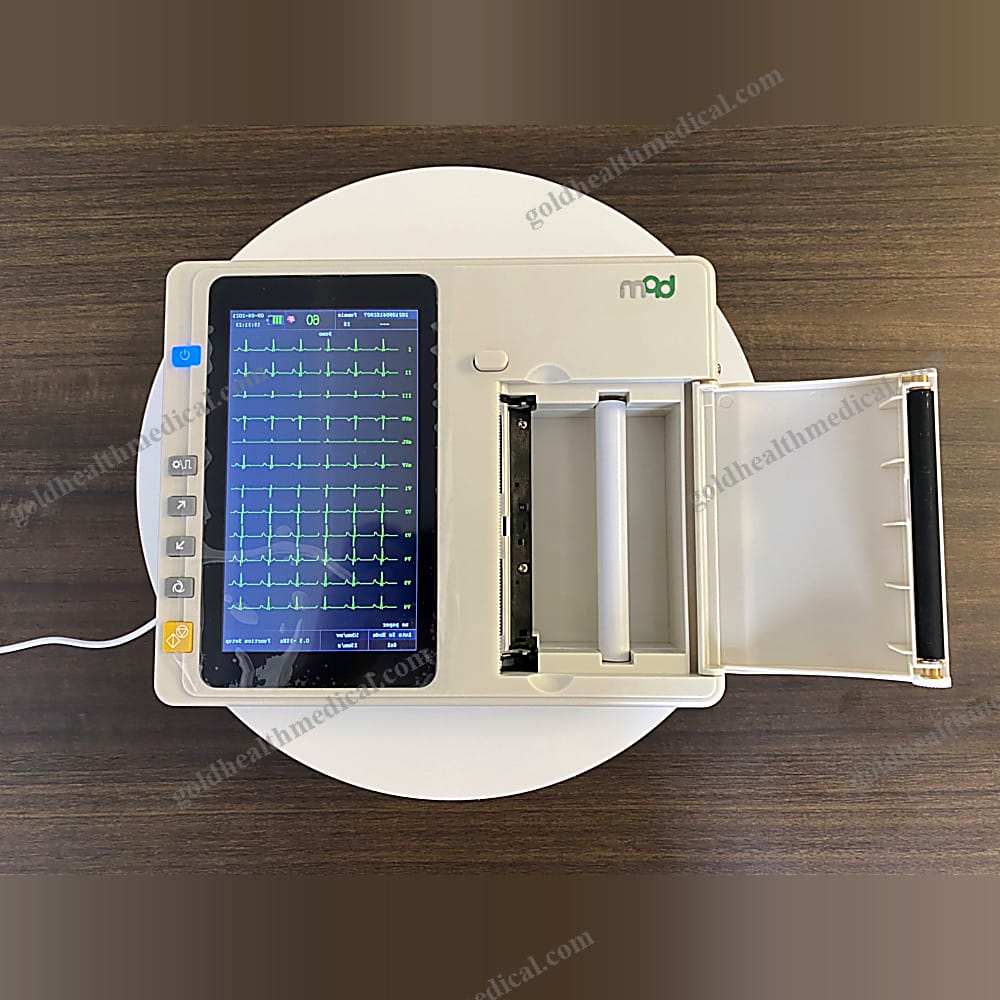

BPME314 Touch Screen Portable ECG Machine 6 Channel
Reference: 1600785671671
Household Medical Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Introducing the GoldHealth Medical ECG System β a state-of-the-art solution designed to redefine precision and reliability in cardiac diagnostics. Engineered for healthcare professionals, this compact and innovative device combines advanced technology with user-friendly features to deliver exceptional performance.
Key Features:

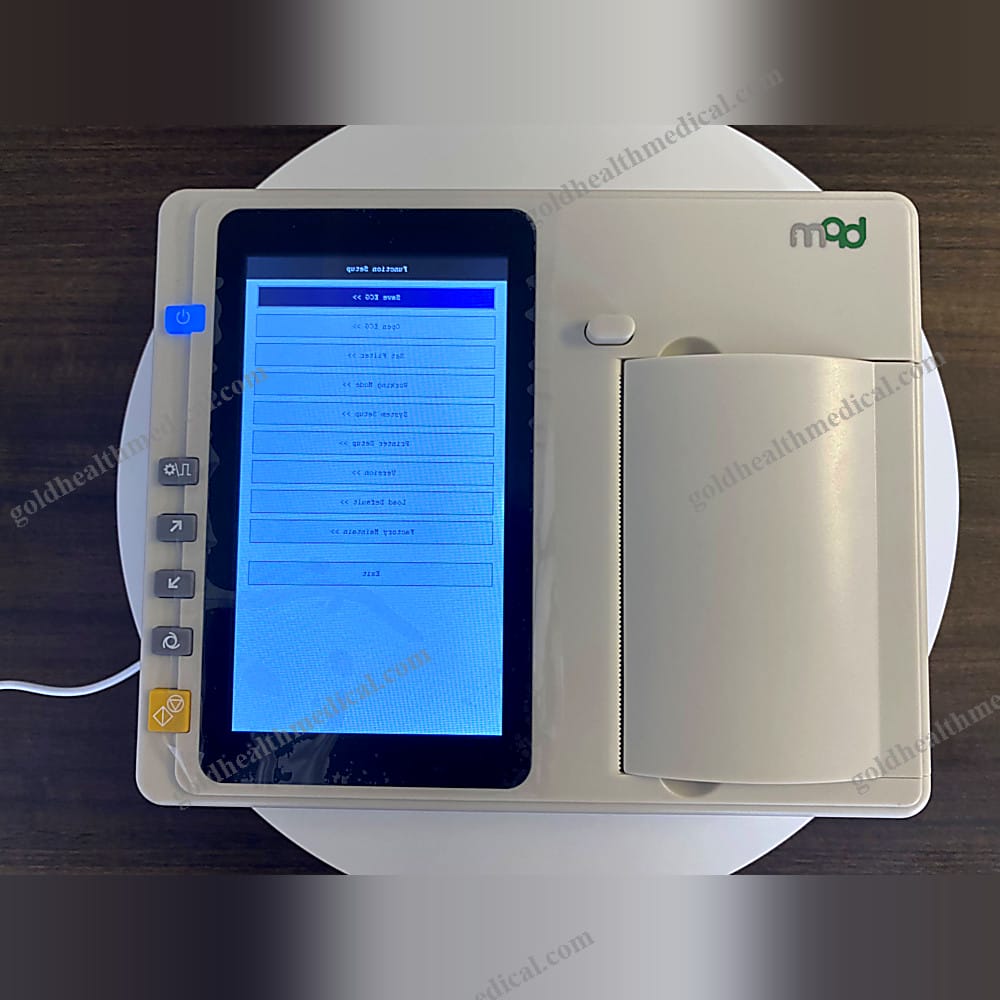

- 7-inch High-Resolution Color Touch Screen: A crystal-clear interface ensures effortless navigation and accurate data visualization.
- 12-Lead Simultaneous Acquisition and Display: Capture comprehensive cardiac data in real-time for faster, more reliable analysis.
- Automatic Measurement and Interpretation: Intelligent algorithms provide precise ECG readings and insightful interpretations, reducing manual effort.
- Advanced Digital Filters: Equipped with EMG, AC, and baseline drift filters to ensure clean, interference-free signals.
- Compact and Lightweight Design: Optimized for portability without compromising durability, making it ideal for various clinical environments.
- Expandable Memory: Supports USB flash drives and micro SD cards for extended storage capacity.
- Seamless Software Upgrades: Effortlessly update system software via USB or SD card to keep your device future-ready.
- Built-in Rechargeable Lithium-Ion Battery: Ensures uninterrupted operation during critical procedures.
Technical Specifications:
- Leads: Standard 12-lead configuration with simultaneous acquisition.
- Measurement Range: Β±5mVpp.
- Input Circuit: Floating design with defibrillator protection for enhanced safety.
- Input Impedance: β₯50MΞ©.
- Input Circuit Current: <0.05Β΅A.
- Recording Modes:
- Automatic: 3CHΓ4+1R, 3CHΓ4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable.
- Filters:
- EMG Filter: 25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz.
- DFT Filter: 0.05 Hz / 0.15 Hz.
- AC Filter: 50 Hz / 60Hz.
- Common Mode Rejection Ratio (CMRR): >100dB.
- Patient Leak Current: <10Β΅A (220V-240V).
- Frequency Response: 0.05Hz~150Hz (-3dB).
- Sensitivity Options: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV (Β±5% error).
- Anti-Baseline Drift: Automatic adjustment for consistent accuracy.
- Time Constant: β₯3.2s.
- Noise Level: <15Β΅Vp-p.
- Paper Speeds: 12.5 mm/s, 25 mm/s, 50 mm/s.
- Recording System: Thermal printing technology for sharp, smudge-free outputs.
- Paper Specification: Roll size 80mm x 20M.
- Safety Standards: Compliant with IEC I/CF standards.
- Sample Rate: 1000 samples per second per channel.
- Power Supply:
- AC: 100~240V, 50/60Hz, 30VA~100VA.
- DC: 14.8V/2200mAh built-in lithium battery.

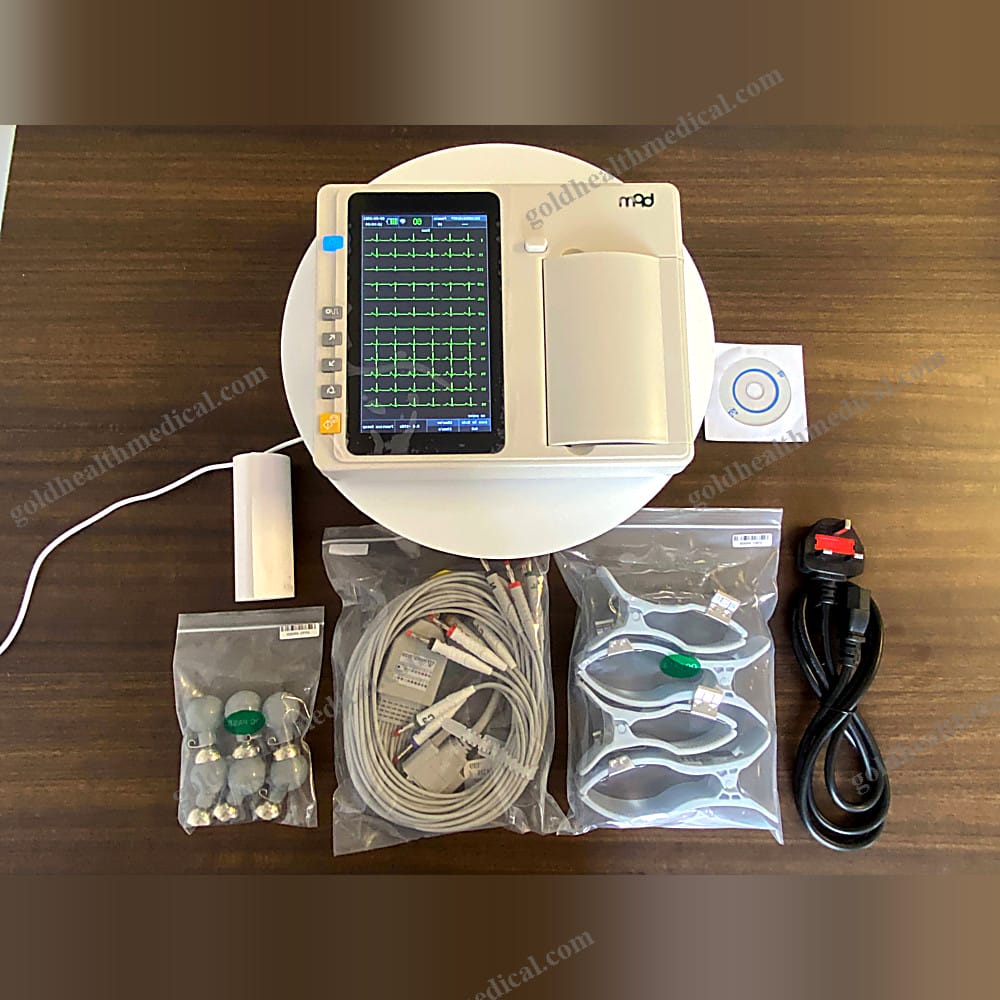

Standard Configuration:
- Main Unit: 1 PC.

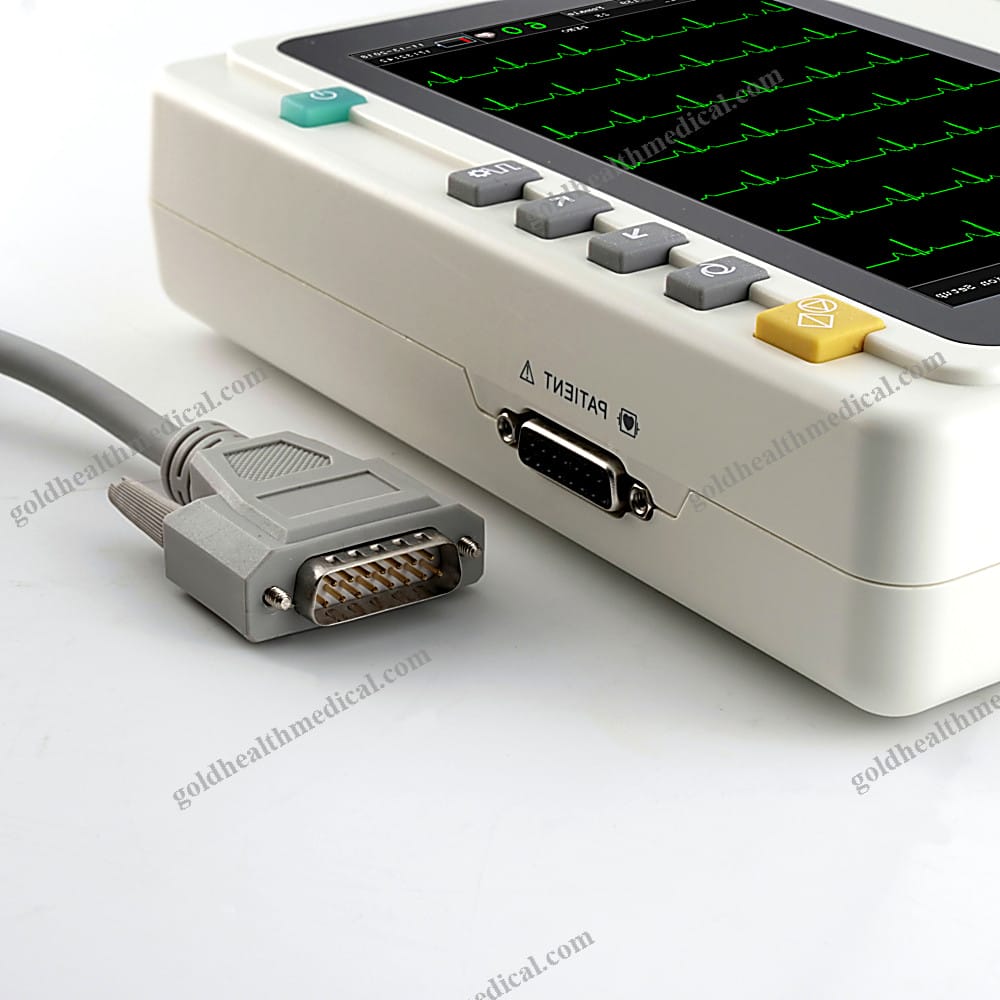

- Patient Cable: 1 PC.
- Limb Electrodes: 1 set (4 pieces).
- Chest Electrodes: 1 set (6 pieces).
- Power Cable: 1 PC.
- Recording Paper (80mm x 20M): 1 roll.
- Paper Axis: 1 PC.
Packaging Details:
- Single Unit Size: 32cm x 25cm x 17cm.
- Single Unit Weight: 2.8 KG.
- Carton Capacity: 8 units per carton.
- Carton Dimensions: 54cm x 33cm x 75cm.
- Total Gross Weight: 22 KG.
GoldHealth Medicalβs ECG System is meticulously crafted to meet the demands of modern healthcare environments. Its combination of cutting-edge technology, intuitive design, and robust performance ensures unparalleled accuracy and reliability. Elevate your diagnostic capabilities with a device that sets a new benchmark in cardiac care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Revolutionizing Cardiac Care with Precision and Reliability
-
Product Overview:
Introducing the GoldHealth Medical ECG Machine, a state-of-the-art 12-channel electrocardiograph designed for precision, portability, and ease of use. Engineered to meet the demands of modern healthcare environments, this device delivers exceptional performance for accurate cardiac diagnostics. Whether in hospitals, clinics, or home care settings, it ensures reliable results with its advanced technology and user-friendly interface. -
Key Features and Specifications:
- Lead Configuration: Standard 12 leads for comprehensive cardiac analysis.
- Display: 7" TFT-LCD touchscreen for intuitive operation and clear visualization.
- Measurement Range: Β±5mVpp, ensuring high sensitivity and accuracy.
- Input Impedance: β₯50MΞ© for minimal signal interference and optimal data quality.
- Frequency Response: 70Hz/100Hz/150Hz, adaptable to diverse diagnostic requirements.
- Power Source: Built-in battery for uninterrupted performance and portability.
- Shelf Life: 3 years, guaranteeing long-term reliability.
-
Material: Durable metal and high-quality plastic construction for robustness and longevity.
-
Instrument Classification:
-
Class II medical device, ensuring safety and compliance with stringent healthcare standards.
-
Safety and Quality Assurance:
- Compliant with GB/T18830-2009 safety standards.
-
Certified by CE and ISO, reflecting our commitment to global quality benchmarks.
-
Multilingual Support:
Available in multiple languages, including English, Turkish, Portuguese, German, Russian, and Kazakh, to cater to a global audience. -
Versatility:
-
Supports 3-channel and 6-channel configurations, offering flexibility for various clinical needs.
-
Warranty and After-Sales Service:
- Backed by a 2-year warranty for peace of mind.
-
Comprehensive online technical support ensures seamless operation and troubleshooting.
-
Packaging and Delivery:
- Standard export packaging ensures safe transit.
-
Ships from major ports, including Guangzhou, Shanghai, Qingdao, and Tianjin.
-
Supply Capability:
- Monthly production capacity of 1000 units, ensuring timely delivery and availability.
Experience the future of cardiac diagnostics with GoldHealth Medical, where innovation meets reliability.
