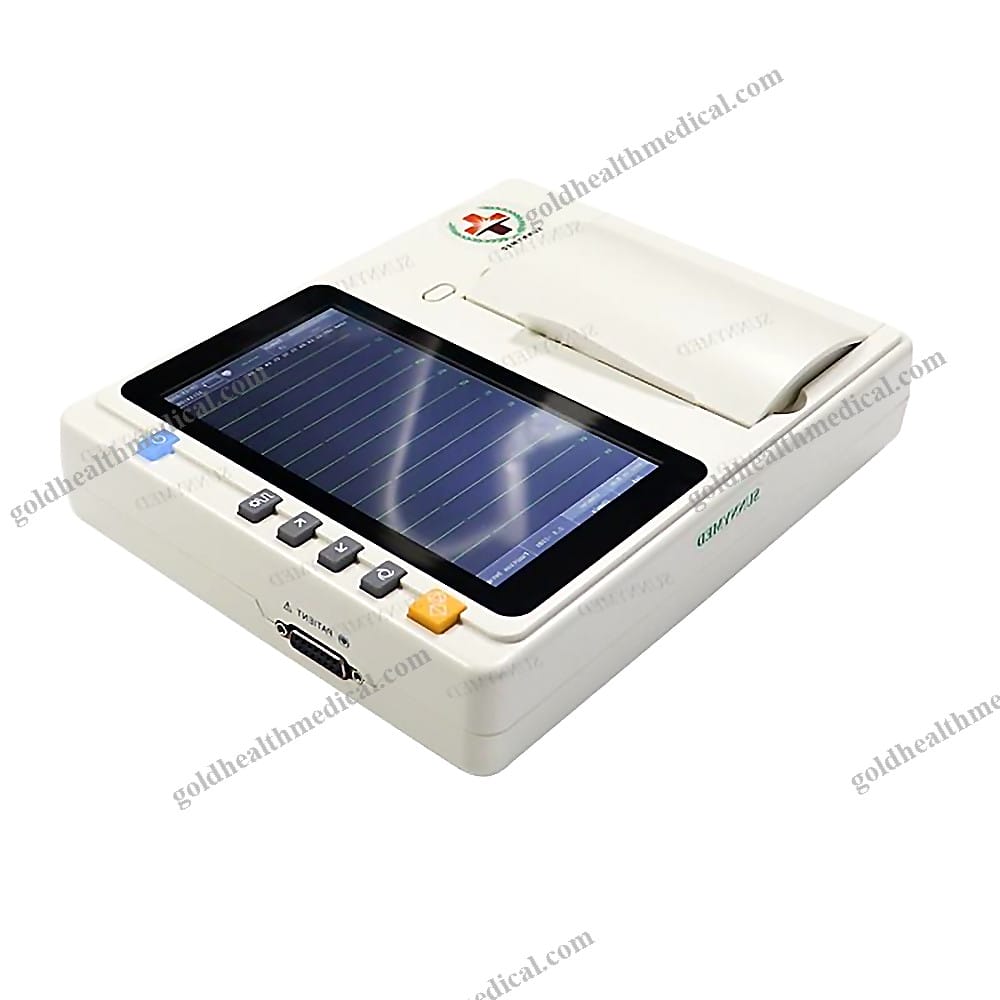

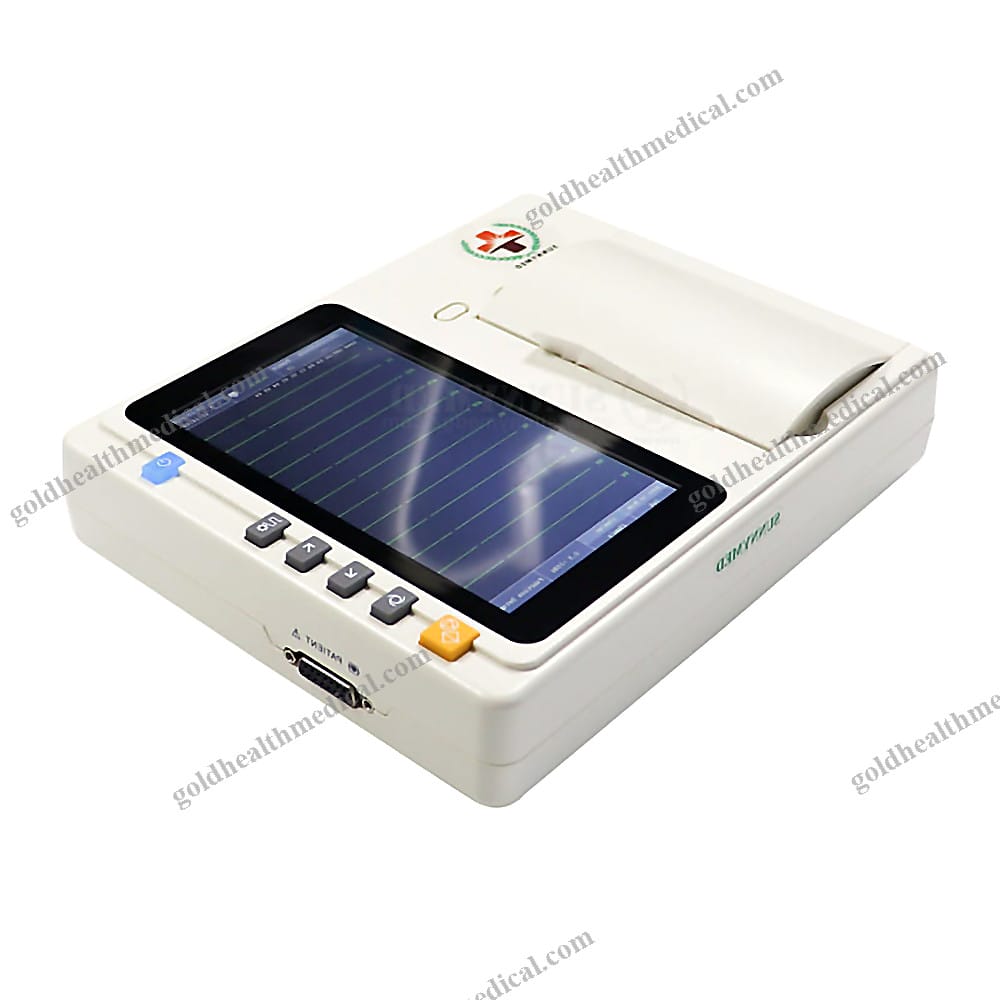

Portable 12Lead ECG Machine with Touch Screen
Reference: 1601159996414Household Medical Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Product Overview
GoldHealth Medical introduces a state-of-the-art electrocardiograph designed to deliver precision, reliability, and ease of use for healthcare professionals. Featuring advanced analysis capabilities and a sleek 7-inch color LCD touch screen, this device is engineered to meet the demands of modern medical environments.
Key Features
- Intuitive Interface: A responsive 7-inch color LCD touch screen ensures effortless navigation and clear visualization of data.
- Advanced ECG Analysis: Equipped with comprehensive ECG interpretation capabilities for accurate diagnostics.
- Robust Data Storage: Supports storage for over 30,000 patient records, ensuring seamless data management.

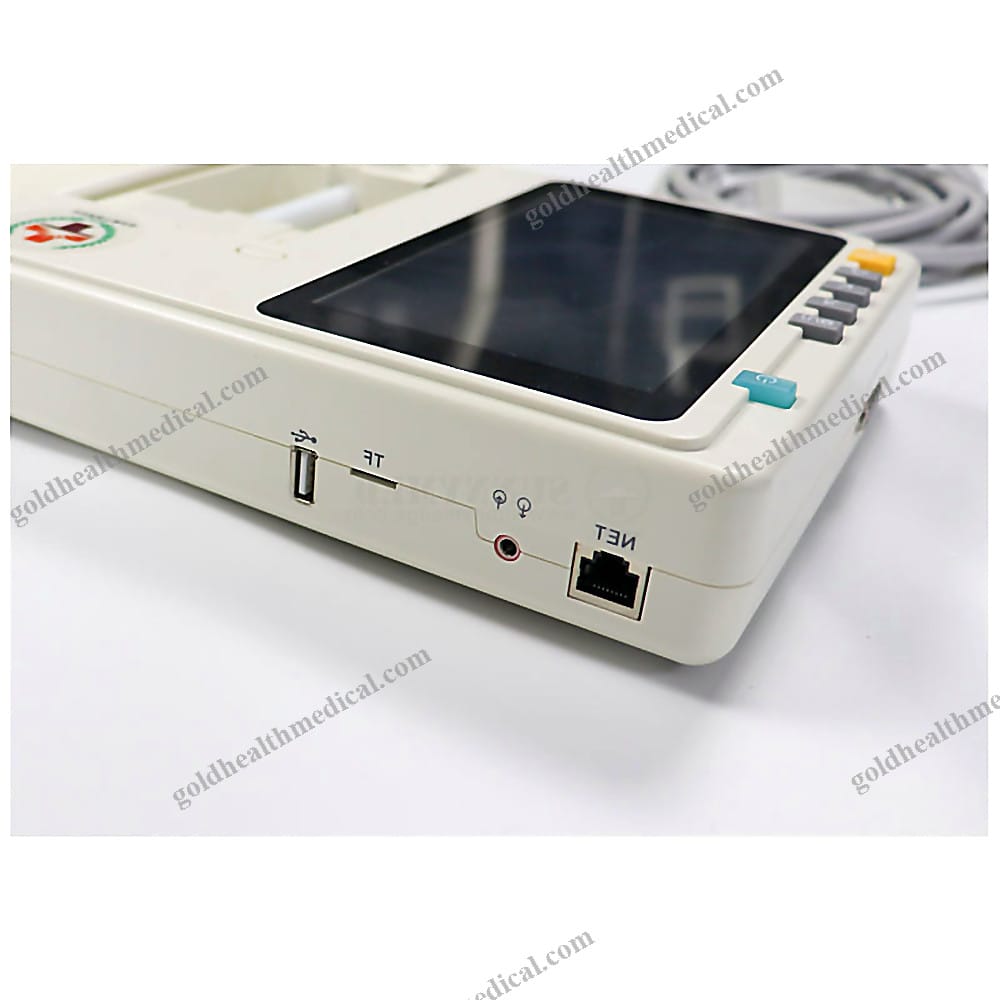

- Flexible Connectivity: Compatible with SD cards and USB drives for convenient data transfer and backup.
Technical Specifications

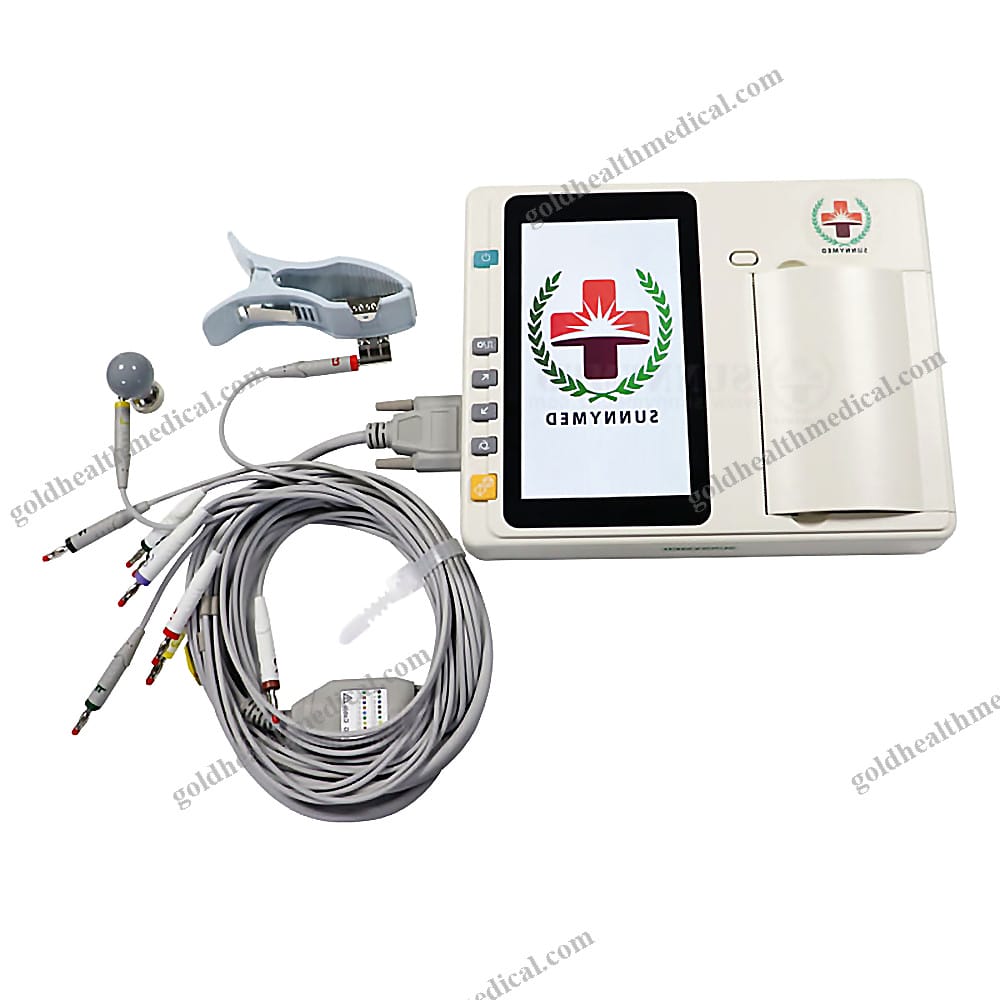

- Leads: Standard 12-lead system with synchronous acquisition for precise readings.
- Input Circuit: Floating design with defibrillator protection to ensure safety and accuracy.
- Input Impedance: β₯50MΞ© for minimal signal loss.
- Input Circuit Current: β€0.05ΞΌA, ensuring patient safety during operation.
- Recording Modes:
- Automatic: 3CHΓ4+1R, 3CHΓ4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable for detailed analysis.
- Filters:
- EMG Filter: 25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz.
- DFT Filter: 0.05 Hz / 0.15 Hz.
- AC Filter: 50 Hz / 60Hz.
- CMRR: >100dB for superior noise rejection.
- Patient Current Leakage: <10ΞΌA, ensuring maximum safety.
- Frequency Response: 0.05Hz~150Hz (-3dB) for accurate signal capture.
- Sensitivity: Adjustable settings of 2.5mm/mV, 5mm/mV, 10mm/mV, and 20mm/mV.
- Anti-Baseline Drift: Automatic adjustment for stable readings.
- Time Constant: β₯3.2s for reliable performance.
- Noise Level: <15ΞΌVp-p for clear signal quality.
- Paper Speed: Adjustable speeds of 12.5mm/s, 25mm/s, and 50mm/s.

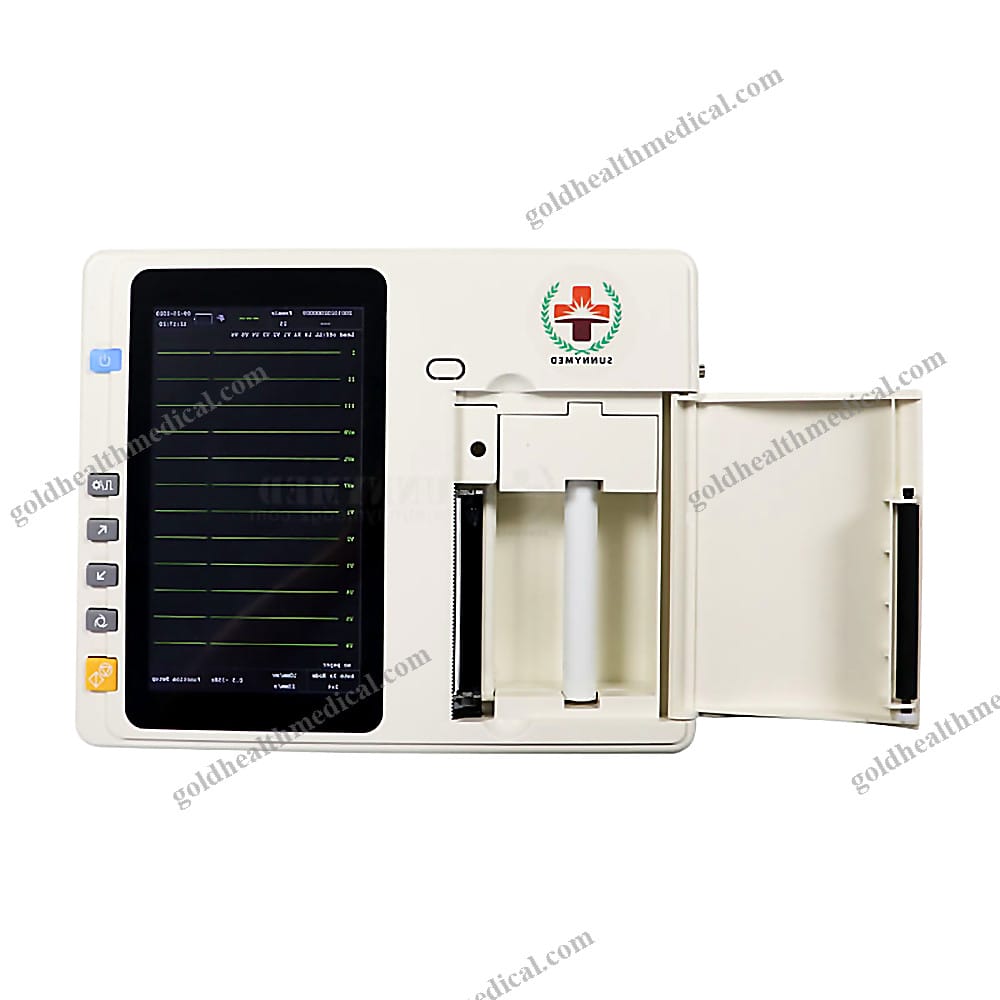

- Recording System: High-resolution thermal printing for durable and precise outputs.
- Paper Specifications:
- Sun-7031: 80mm x 20m paper roll.
- Sun-7062: 120mm x 20m paper roll.
- Safety Classification: Compliant with IEC60601-1 Class I, Type CF standards.

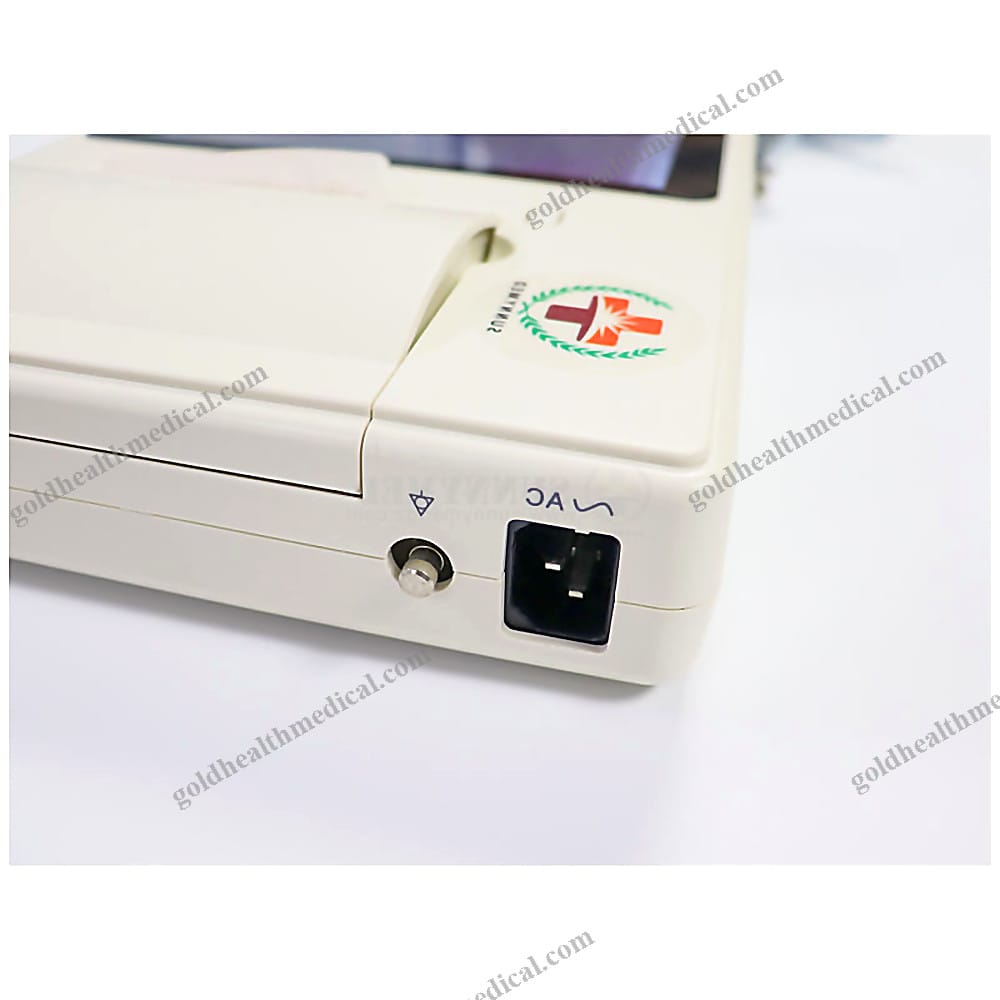

- Power Supply: AC 100~240V, 50/60Hz, 30VA~100VA.
- Fuse: AC220VΒ±10%, 2*Ξ¦5Γ20mm, T2A/250V AC time lag.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions with unmatched quality and affordability. Our products are trusted by healthcare providers worldwide, offering superior performance, innovative design, and exceptional reliability. With a focus on precision engineering and user-centric features, we empower healthcare professionals to deliver the best possible care.
Certifications
Our products are rigorously tested and certified to meet international standards, ensuring safety, accuracy, and compliance with global regulations.
Frequently Asked Questions
- Q: Is the device suitable for high-volume clinical environments?
A: Yes, with storage for over 30,000 patients and robust connectivity options, it is ideal for busy clinics and hospitals. - Q: Can the device be used in remote or mobile settings?
A: Absolutely, its compact design and reliable performance make it perfect for mobile healthcare services. - Q: What makes this product stand out from competitors?
A: Its advanced ECG analysis, intuitive touch screen, and superior safety features set it apart as a leader in its class.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: 3-Channel Portable ECG Machine by GoldHealth Medical
Key Features and Benefits:
- Advanced Portability: Designed for seamless use in hospitals, clinics, and home care settings, this compact ECG machine delivers precision and convenience without compromising performance.
- Enhanced Safety: Equipped with a floating input circuit and a defibrillator protection circuit to ensure safe operation in critical environments.
- Crystal-Clear Display: A 7" graphic LCD provides sharp, easy-to-read visuals for accurate diagnostics.
- Reliable Power Options: Operates on a built-in rechargeable battery or AC power (100~240V, 50/60Hz), ensuring uninterrupted functionality wherever you need it.
Technical Specifications:
- Input Impedance: β₯50MΞ© for superior signal quality.
- Common Mode Rejection Ratio (CMRR): >100dB, minimizing interference for precise readings.
- Input Circuit Current: β€0.05ΞΌA, ensuring patient safety during use.
- Power Supply: AC: 100~240V, 50/60Hz, 30VA~100VA, adaptable to global power standards.
- Material: Durable, high-quality plastic construction for long-lasting use.
Certifications and Standards:
- Quality Certification: CE-approved, meeting international safety and performance benchmarks.
- Instrument Classification: Class II medical device, designed for professional and reliable healthcare applications.
Additional Information:
- Shelf Life: 1 year from the date of manufacture.
- Place of Origin: Guangdong, China, ensuring high-quality craftsmanship and innovation.
Warranty and Support:
- Warranty: 1-year comprehensive warranty for peace of mind.
- GoldHealth Medical Commitment: Backed by a legacy of excellence, our products are engineered to deliver unmatched reliability and precision in cardiac diagnostics.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to advancing healthcare technology with innovative, user-friendly solutions. Our 3-channel portable ECG machine is a testament to our commitment to quality, safety, and cutting-edge design, empowering medical professionals and caregivers worldwide.
