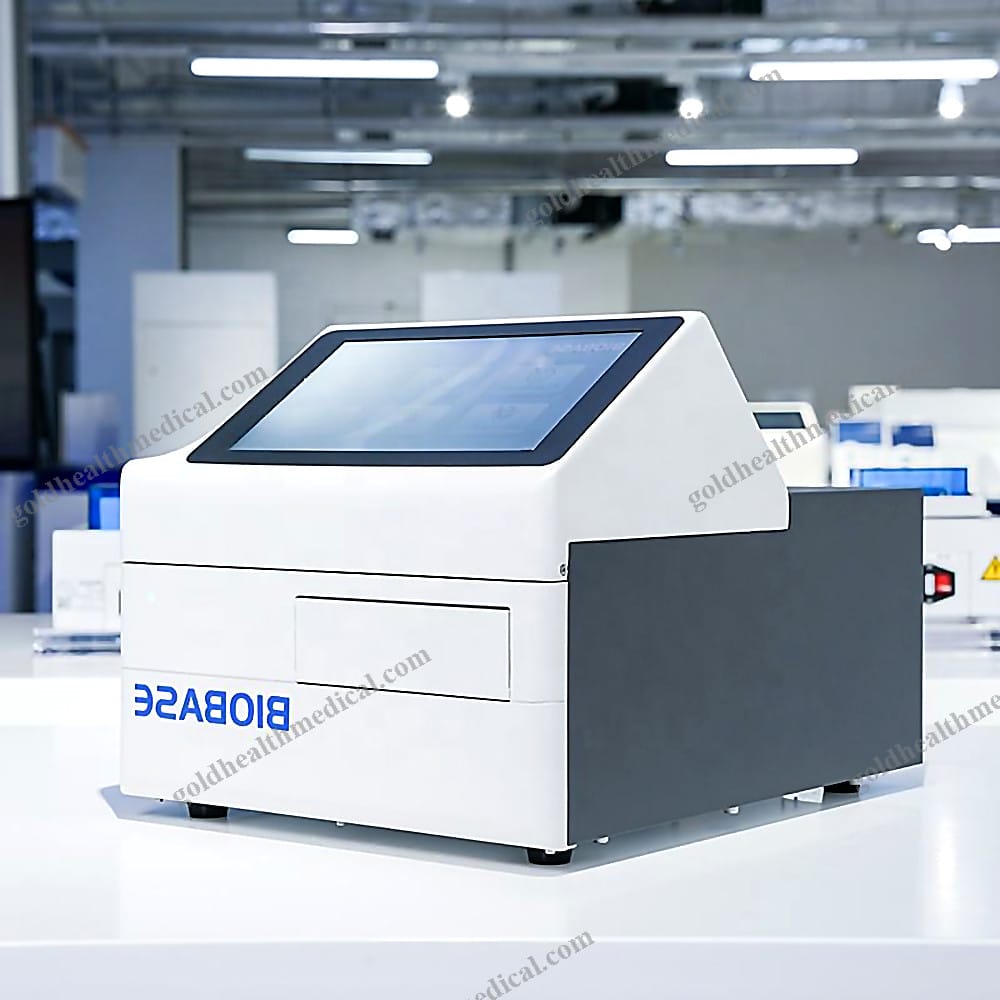

BIOBASE BKEL10C Elisa Microplate Reader
Reference: 1601374522602
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Elisa Microplate Reader
Product Highlights
- Advanced Optical System: Equipped with an 8-channel vertical optical system for superior performance.
- Unmatched Speed: Achieves a super-fast reading speed of just 7 seconds, ensuring efficiency in every test.

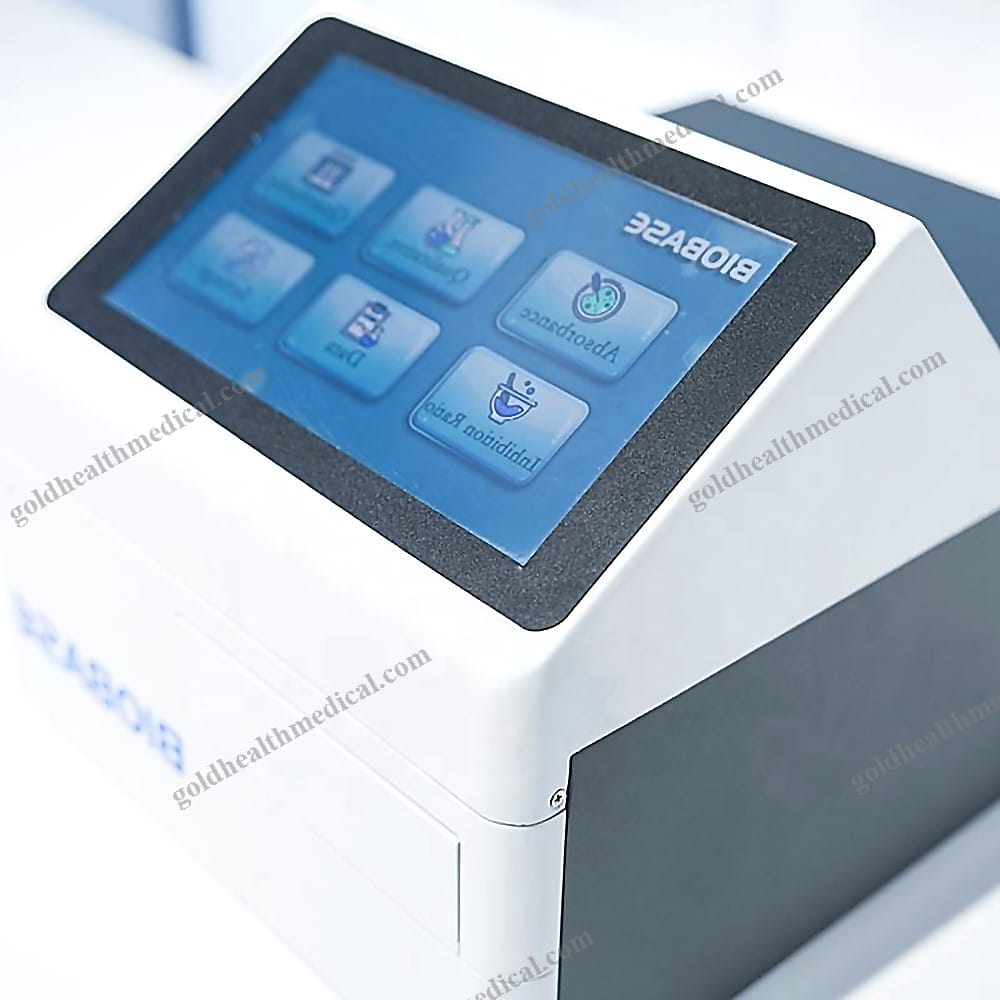

- Intuitive Interface: Features a 10.1-inch large touch screen with a visual layout function, offering a seamless what-you-see-is-what-you-get experience.
- High-Performance Hardware: Built on ARM architecture with a high-performance, low-power processor and ADI high-precision AD conversion chip for accurate and stable measurements.
- Proprietary Software: Utilizes a self-developed core algorithm with independent intellectual property rights, enabling flexible use of multiple calculation methods.
Product Specifications
- Measurement Channels: Vertical 8 optical channels
- Wavelength Range: 400～800 nm
- Filter Options: Standard wavelengths of 405, 450, 492, 630nm; expandable to ten wavelengths (optional)
- Reading Range: 0.000～4.000 Abs
- Linear Range: 0.000～3.000 Abs
- Repeatability: CV≤1.0%
- Stability: ≤±0.003Abs
- Absorbance Accuracy:
- Absorbance value [0.0~1.0], error≤±0.02Abs
- Absorbance value [1.0~2.0], error≤±0.03Abs
- Wavelength Indication Error: ≤±2nm
- Wavelength Repeatability: ≤±1.5nm
- Sensitivity: ≥0.01 mg/L
- Channel Difference: ≤0.02Abs
- Vibration Plate Function: 3 adjustable vibration plate functions (0~255 s)
- Display: 10.1-inch Large Touch Screen
- Input Power: 60VA
- Power Supply: AC220V, 50Hz
- Interface: RS-232
- Packing Size (WDH): 535mm395mm395mm
- Gross Weight: 13kg
Why Choose GoldHealth Medical?
GoldHealth Medical's Elisa Microplate Reader is designed to deliver precision, speed, and reliability. With its cutting-edge technology and user-friendly interface, it is the ideal choice for hospitals, clinics, research institutions, and more. Elevate your diagnostic capabilities with a device that combines innovation and accuracy.
Explore our range of advanced medical solutions to meet your specific needs.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Type: Biochemical Analysis System
Product Overview
The GoldHealth Medical Biochemical Analysis System is a cutting-edge solution designed for precision and reliability in biochemical testing. Engineered to meet the demands of modern healthcare, this system delivers exceptional accuracy, versatility, and ease of use, making it ideal for hospitals, clinics, research labs, and more.
Key Features
- Advanced Optical Technology: Equipped with 8 vertical optical channels for high-performance analysis.
- Wide Wavelength Range: Operates within 400~800 nm, ensuring compatibility with a broad spectrum of biochemical assays.
- Customizable Filters: Comes with 4 standard wavelengths (405, 450, 492, 630 nm) and supports up to 10 optional filters for tailored testing needs.
- Exceptional Precision:
- Reading Range: 0.000~4.000 Abs
- Linear Range: 0.000~3.000 Abs
- Repeatability: CV ≤ 1.0%
- Stability: ≤ ±0.003 Abs
- Accurate Wavelength Control:
- Indication Error: ≤ ±2 nm
- Repeatability: ≤ ±1.5 nm
Technical Specifications
- Measurement Channels: 8 vertical optical channels
- Wavelength Range: 400~800 nm
- Filter Options: 4 standard wavelengths (405, 450, 492, 630 nm); expandable to 10 wavelengths (optional)
- Reading Range: 0.000~4.000 Abs
- Linear Range: 0.000~3.000 Abs
- Repeatability: CV ≤ 1.0%
- Stability: ≤ ±0.003 Abs
- Wavelength Indication Error: ≤ ±2 nm
- Wavelength Repeatability: ≤ ±1.5 nm
Packaging and Delivery
- Package Dimensions: 54 x 40 x 40 cm
- Gross Weight: 13.000 kg
After-Sale Support
- Warranty: 1 year
- Service: Online technical support available to ensure seamless operation and troubleshooting.
GoldHealth Medical’s Biochemical Analysis System is designed to empower healthcare professionals with reliable, accurate, and efficient diagnostic capabilities. Elevate your testing standards with a system built for excellence.
