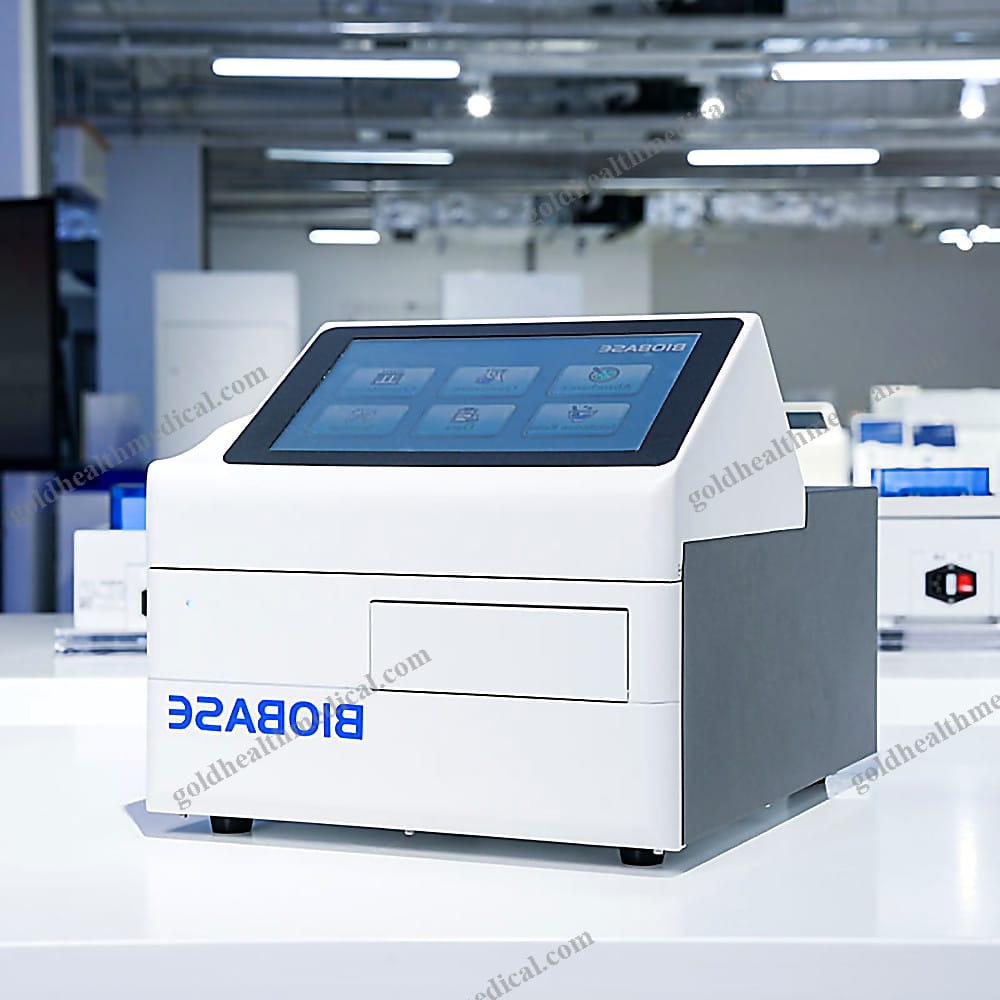

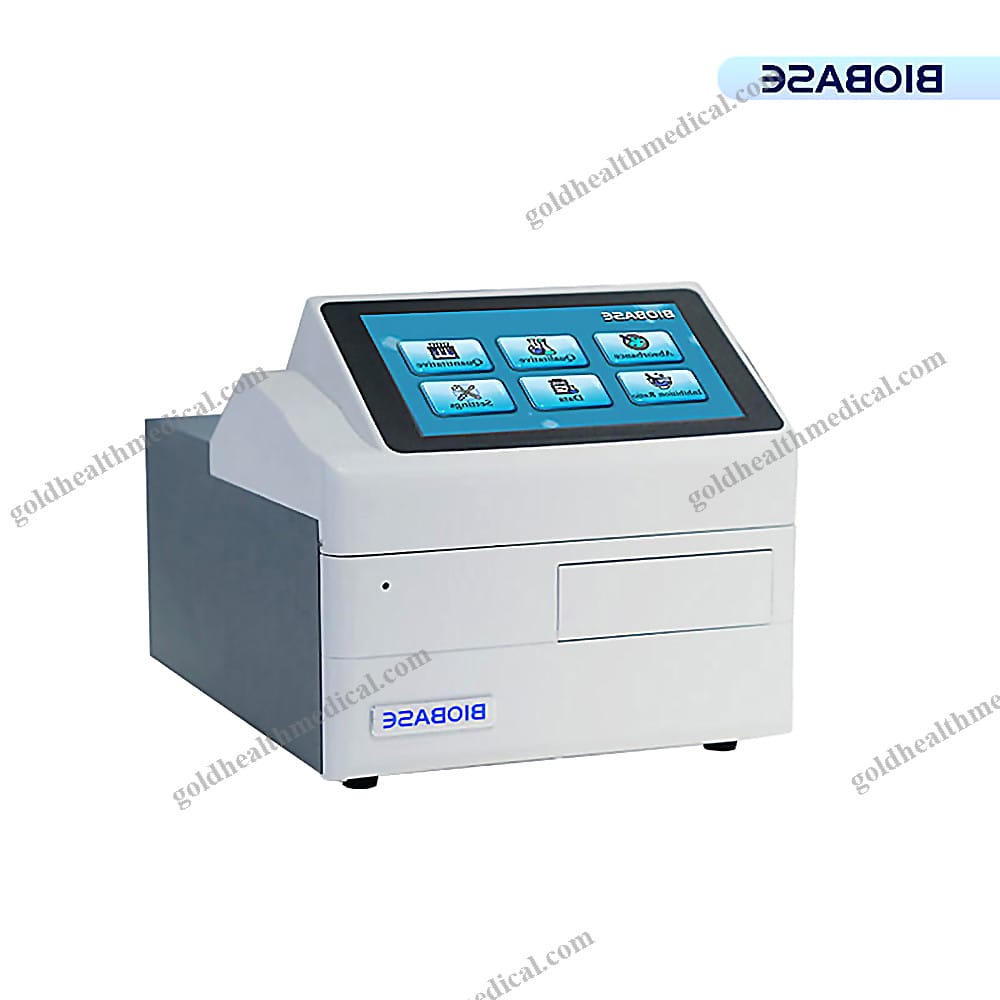

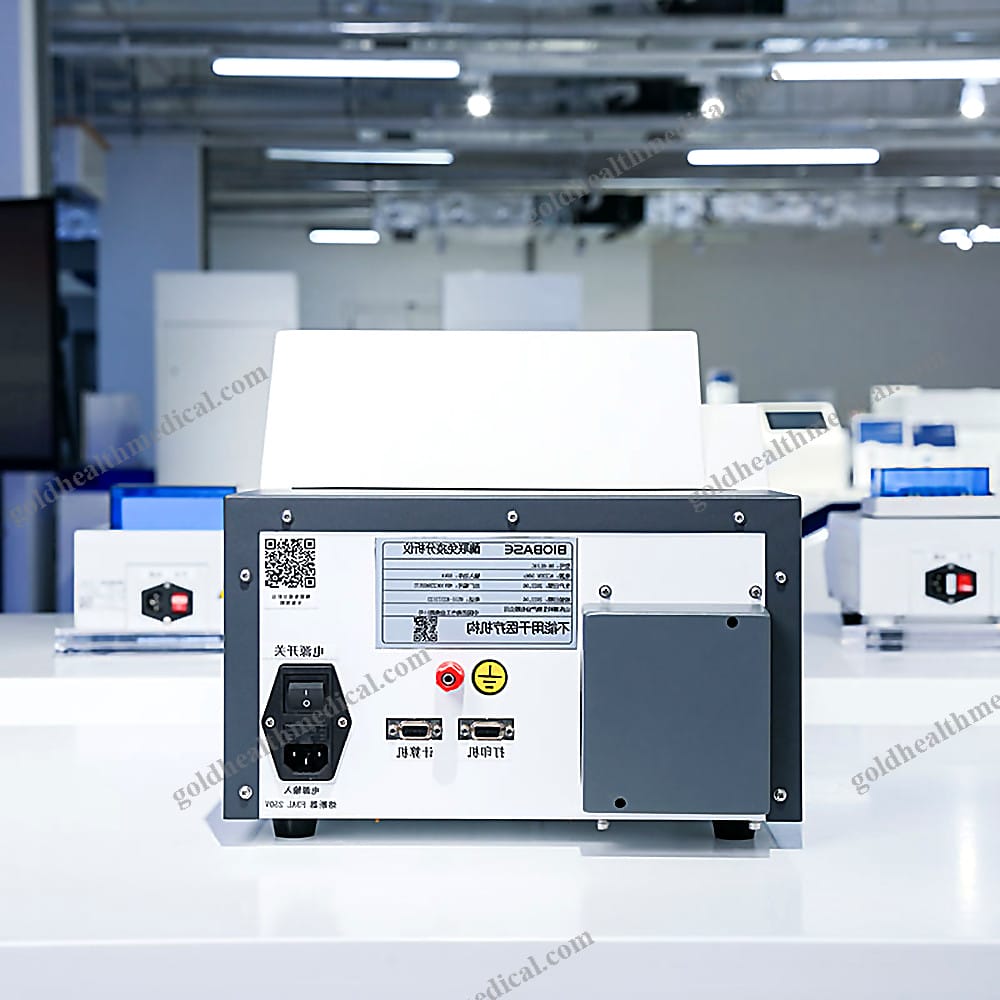

BIOBASE BKEL10C ELISA Microplate Reader
Reference: 1601374416644
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Diagnostic Precision with Advanced ELISA Microplate Reader Technology
Product Highlights:
- Innovative 8-Channel Vertical Optical System: Achieve unparalleled accuracy with our cutting-edge optical design, ensuring consistent and reliable results for every test.
- Unmatched Speed: Experience super-fast reading in just 7 seconds, maximizing efficiency without compromising precision.

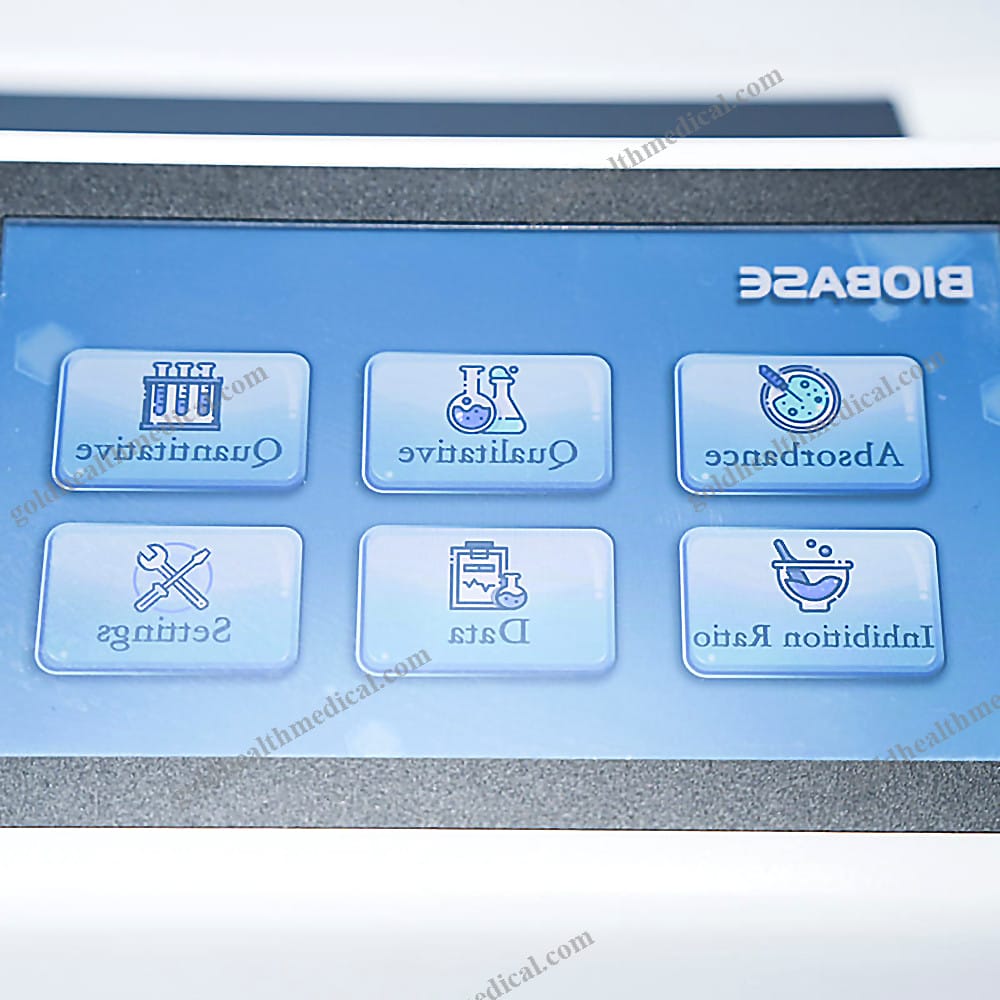

- Intuitive 10.1-Inch Touch Screen Interface: A visually-driven layout with a "what you see is what you get" approach ensures effortless operation and seamless workflow integration.
- High-Performance Hardware: Powered by an ARM architecture processor and ADI high-precision AD conversion chip, delivering exceptional accuracy and stability for every measurement.
- Proprietary Software Algorithm: Our self-developed core algorithm, protected by independent intellectual property rights, offers flexible and precise calculation methods tailored to your needs.
Technical Specifications:
- Measurement Channels: Vertical 8 optical channels
- Wavelength Range: 400–800 nm
- Standard Wavelengths: 405, 450, 492, 630 nm (expandable up to ten wavelengths as an optional feature)
- Reading Range: 0.000–4.000 Abs
- Linear Range: 0.000–3.000 Abs
- Repeatability: CV ≤ 1.0%
- Stability: ≤ ±0.003 Abs
- Absorbance Accuracy:
- Absorbance value [0.0–1.0]: Error ≤ ±0.02 Abs
- Absorbance value [1.0–2.0]: Error ≤ ±0.03 Abs
- Wavelength Indication Error: ≤ ±2 nm
- Wavelength Repeatability: ≤ ±1.5 nm
- Sensitivity: ≥ 0.01 mg/L
- Channel Difference: ≤ 0.02 Abs
- Vibration Plate Function: Three adjustable modes with a timer range of 0–255 seconds
- Display: 10.1-inch large touch screen
- Input Power: 60 VA
- Power Supply: AC 220V, 50 Hz
- Interface: RS-232
- Packing Size (W x D x H): 535 mm x 395 mm x 395 mm
- Gross Weight: 13 kg
Why Choose GoldHealth Medical?
Our ELISA Microplate Reader is designed to meet the rigorous demands of modern healthcare and research environments. With its advanced optical system, rapid processing capabilities, and user-friendly interface, this device sets a new standard for diagnostic excellence. Whether you're in a hospital, clinic, or research lab, our solution ensures precision, reliability, and ease of use.
Experience the future of diagnostics with GoldHealth Medical—where innovation meets precision.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Type: Biochemical Analysis System
Product Highlights
The GoldHealth Medical Biochemical Analysis System is a cutting-edge solution designed for precision, reliability, and versatility in medical diagnostics. Engineered to meet the demands of modern healthcare environments, this system delivers exceptional performance with advanced optical technology and user-friendly functionality.
Key Features
- Optical Precision: Equipped with 8 vertical optical channels for accurate and efficient measurements.
- Broad Wavelength Range: Operates within 400~800 nm, ensuring compatibility with a wide range of biochemical assays.
- Customizable Filters: Includes 4 standard wavelengths (405, 450, 492, 630 nm) with the option to install up to 10 filters for expanded testing capabilities.
- Wide Reading Range: Measures absorbance from 0.000 to 4.000 Abs, with a linear range of 0.000 to 3.000 Abs for consistent results.
- Exceptional Repeatability: Coefficient of Variation (CV) ≤1.0%, ensuring reliable and reproducible data.
- Stability and Accuracy: Wavelength indication error ≤±2 nm and repeatability ≤±1.5 nm, guaranteeing precise readings every time.
- Robust Stability: Absorbance stability ≤±0.003 Abs, maintaining accuracy over extended use.
Technical Specifications
- Measurement Channels: 8 vertical optical channels
- Wavelength Range: 400~800 nm
- Standard Filters: 405, 450, 492, 630 nm (expandable up to 10 filters)
- Reading Range: 0.000~4.000 Abs
- Linear Range: 0.000~3.000 Abs
- Repeatability: CV ≤1.0%
- Stability: ≤±0.003 Abs
- Wavelength Indication Error: ≤±2 nm
- Wavelength Repeatability: ≤±1.5 nm
Packaging and Delivery
- Package Dimensions: 54 x 40 x 40 cm
- Gross Weight: 13.000 kg
After-Sale Support
- Warranty: 1 year
- Technical Assistance: Comprehensive online technical support to ensure seamless operation and troubleshooting.
Applications
This biochemical analysis system is ideal for hospitals, clinics, research laboratories, and rehabilitation centers. Its versatility and precision make it suitable for a wide range of diagnostic and analytical applications, including enzyme-linked immunosorbent assays (ELISA), protein quantification, and other biochemical tests.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals with accurate, reliable, and efficient diagnostic tools.
