4Channel EMG Biofeedback System Portable Electromyography Mapping Device
Reference: 1601109395757
Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

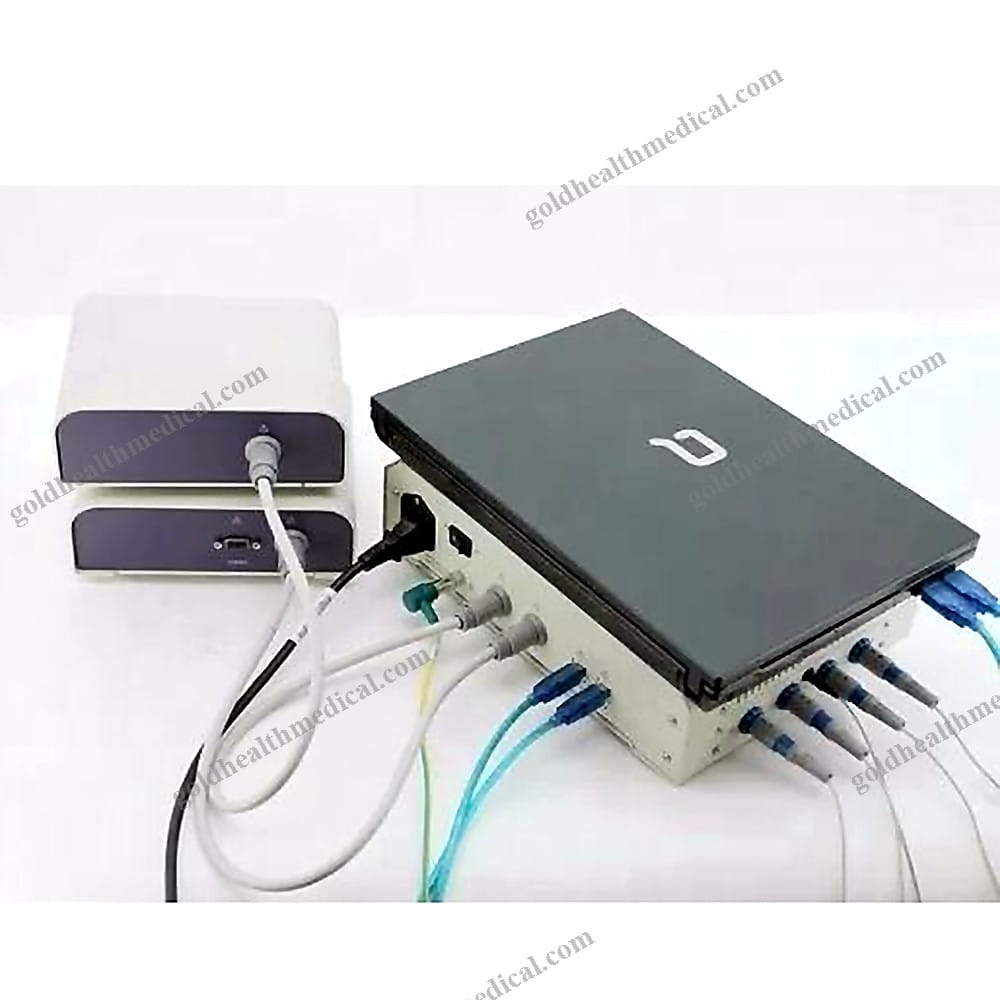

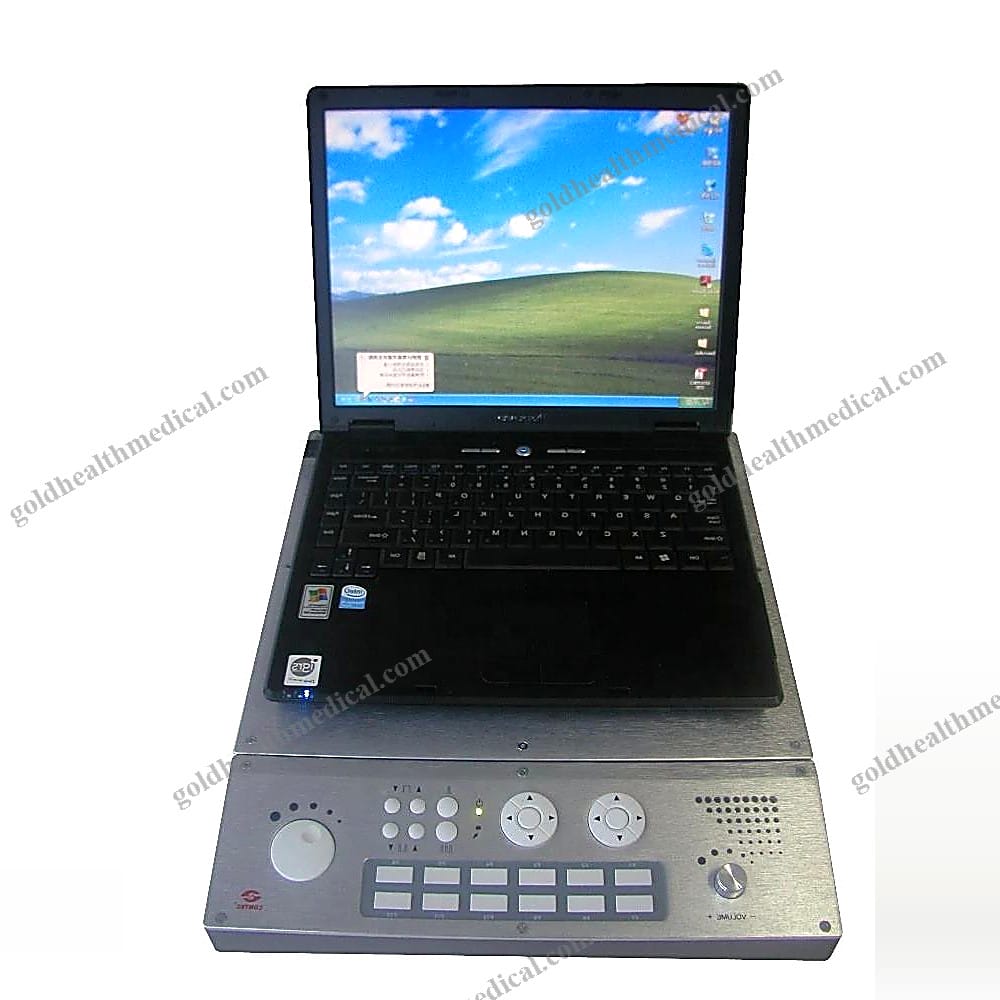

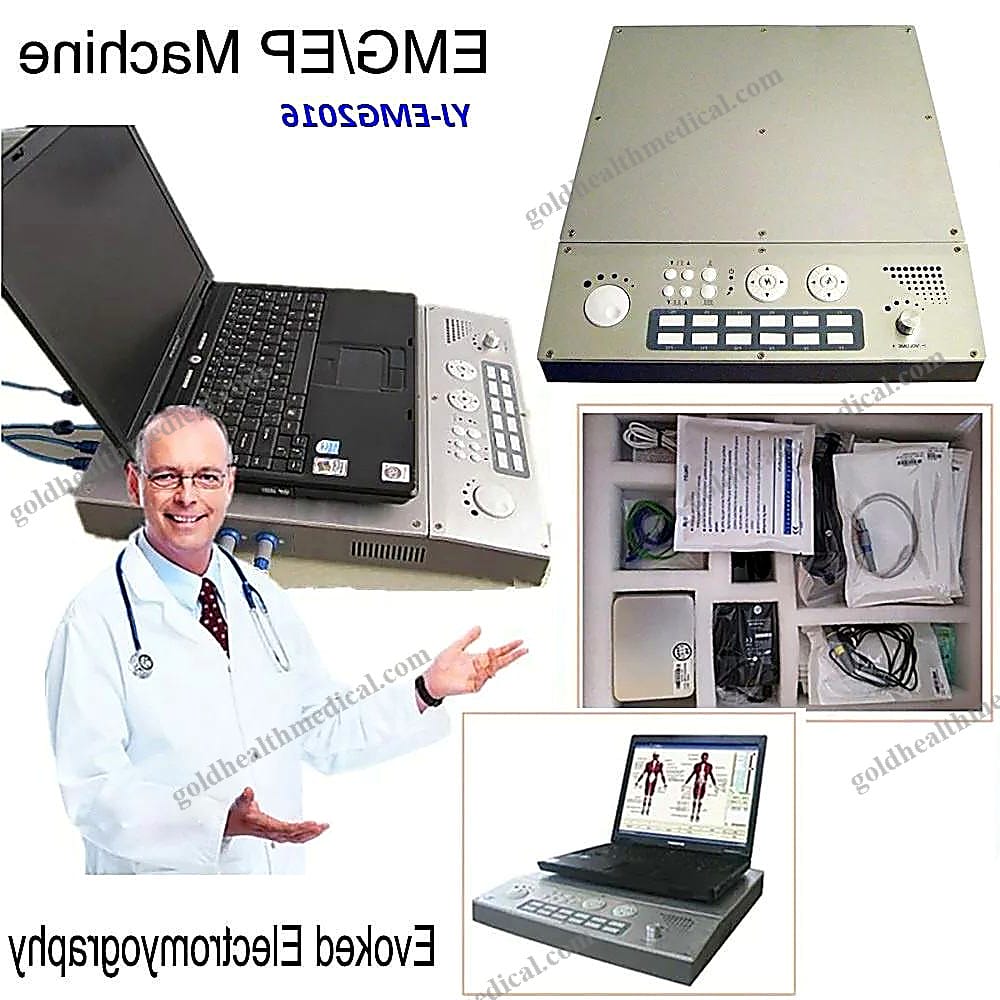

GoldHealth Medical EMG Biofeedback Device
The GoldHealth Medical EMG Biofeedback Device is a cutting-edge solution designed to record the bioelectric activity of nerves and muscles, providing critical insights into their functional state. By integrating with nerve conduction velocity measurements, this device offers an advanced auxiliary diagnostic tool for healthcare professionals.
Key Testing Capabilities:
- Electromyogram (EMG)
- Motor Nerve Conduction Velocity (MCS)
- Sensory Nerve Conduction Velocity (SCS)
- F Wave
- H Reflex
- Repetitive Nerve Stimulation (RNS)
- Blink Reflex
- Visual Evoked Potential (VEP)
- Brainstem Auditory Evoked Potential (BAEP)
- Somatosensory Evoked Potential (SEP)
Technical Specifications:
- Dimensions: 420mm x 350mm x 46mm (L×W×H)
- Net Weight: 6KG
- Sensitivity: 0.05μV-20mV/Grid
- Common-mode Rejection Ratio: ≥100dB
- Lower Limit Filter Frequency: 0.01Hz
- Upper Limit Filter Frequency: 20kHz
- Earth Noise: EMG ≤4μV(Vpp)
- Constant Current: 0.2-100mA
- Pulse Width: 50-1000μS short circuit and over
Unique Features:
- Professional EMG/EP Operation Platform: Comprehensive testing capabilities ensure rapid and efficient diagnostics.
- Neuro and Muscle Navigation System: Simplifies the selection of test areas for enhanced precision.
- Powerful Normal Values System: Automatically compares results with standard data for accurate assessments.
- Flexible Software Design: Customizable system parameters to meet specific requirements.
- High-speed Data Collection: Advanced electromagnetic interference suppression, photoelectric isolation, and low noise performance.
- Compact Hardware System: Streamlined design for portability and ease of use.
Performance Highlights:
- Main System:
- A/D Conversion Resolution: 16 Bit
- Sampling Ratio: 200kHz
- Analysis Time: 5-5000ms
- Stimulating Frequency: 0.1-50Hz
- Amplifier:
- Four-channel operation
- Sensitivity: 0.05μV-20mV/Grid
- Earth Noise: EMG ≤4μV(Vpp), EP ≤0.1μV(Vpp) (1000 times in average)
- Common-mode Rejection Ratio: ≥100dB
- Filter Frequency Range: 1Hz to 20kHz
- Gain Amplification: 25x-400,000x

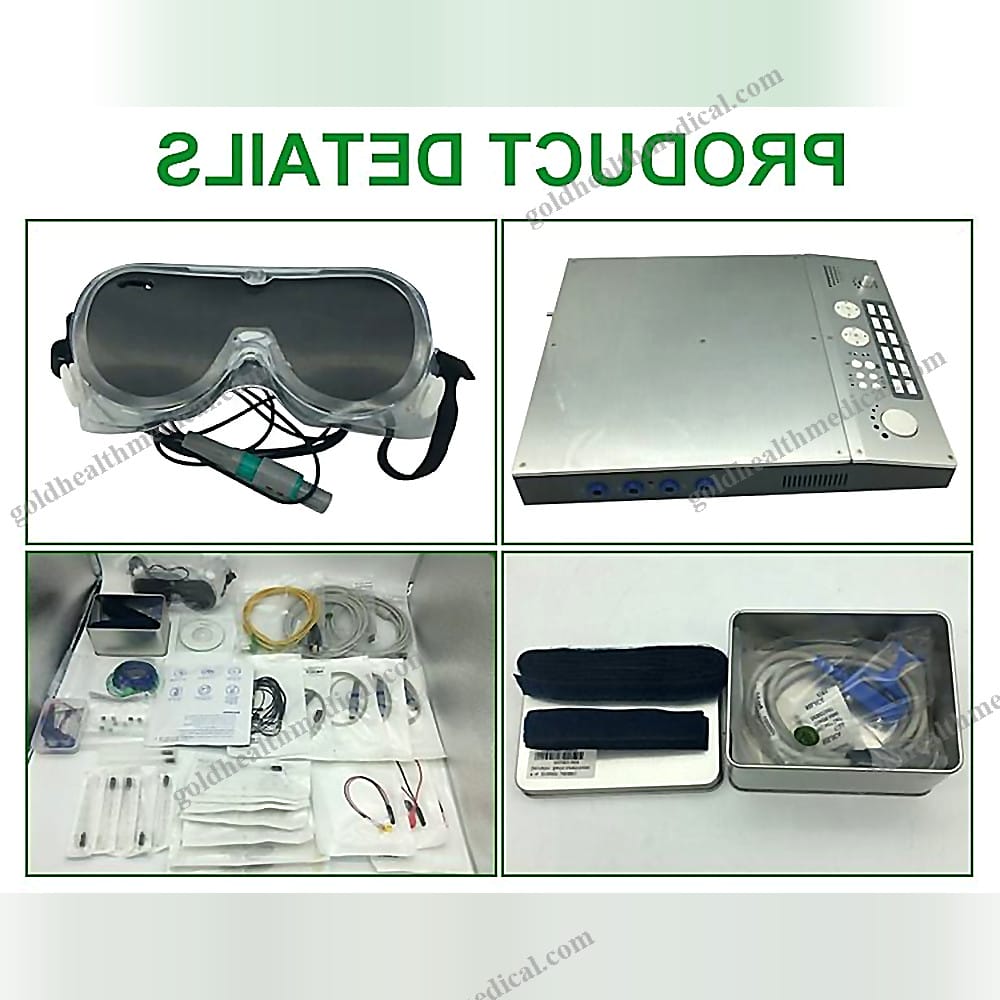

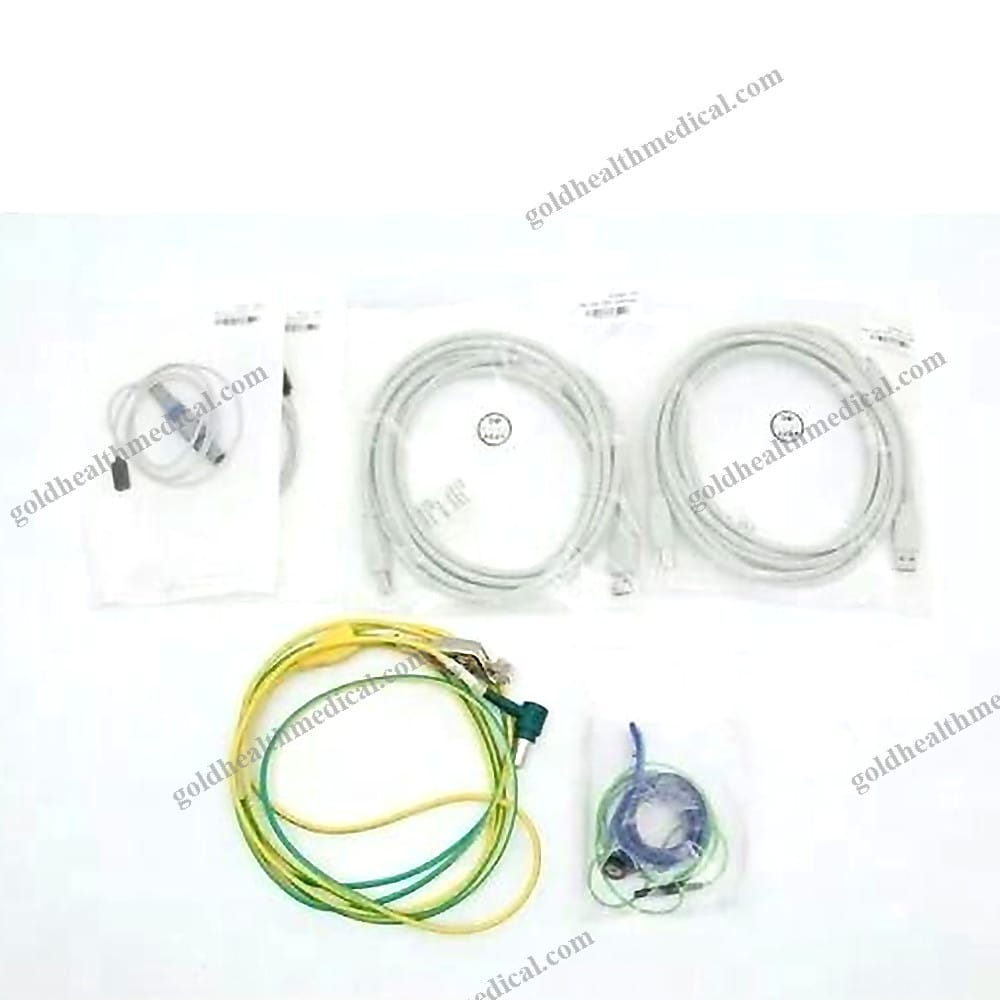

Included Accessories:
- Disk
- Power Cord
- Power Adapter
- USB Cable
- Audio Cable
- Earth Cable
- Current Stimulator
- One-off Bipolar Needle Electrodes (0.3540mm, 0.6070mm)
- Reusable Bipolar Needle Electrodes (0.3540mm, 0.6070mm)
- Concentric Needle Connecting Wire
- 1mm Connecting Lead Wire
- Disc Electrode
- Ring Electrode
- Surface Electrode
- Ground Electrode (includes lead cable)
- One-off Unipolar Needle Electrode
- From 1 to 2 Conversion Cable
- Surface Electrode Conversion Cable
- Fuse 0.1A/250V (5*20mm)
- Fuse F1.6AL250V (5*20mm)
- Flash Stimulator
- Audio Stimulator
GoldHealth Medical's EMG Biofeedback Device stands out with its precision engineering, user-friendly interface, and comprehensive diagnostic capabilities, making it an indispensable tool for modern medical practices.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Portable EMG Machine
Product Overview
The Portable EMG Machine by GoldHealth Medical is a cutting-edge solution designed for precision and reliability in clinical examinations. Engineered to meet the demands of modern healthcare, this device delivers exceptional performance for electromyography applications in hospitals, clinics, and research settings. Its compact and portable design ensures seamless integration into any professional environment, while its advanced technical specifications guarantee accurate and consistent results.
Key Features
- Unmatched Precision: Sensitivity ranging from 0.05μV to 20mV/Grid ensures the detection of even the most subtle muscle activity.
- Superior Noise Reduction: A common-mode rejection ratio of ≥100dB minimizes interference, providing clear and reliable data.
- Advanced Filtering Capabilities:
- Lower limit filter frequency: 0.01Hz
- Upper limit filter frequency: 20kHz
- Minimal Earth Noise: EMG noise ≤4μV(Vpp) ensures clean signals for accurate analysis.
- Customizable Stimulation Parameters:
- Constant current range: 0.2-100mA
- Adjustable pulse width: 50-1000μS
- Built-in safeguards for short circuits and overloads
Applications
- Hospitals and clinics
- Research institutions and laboratories
- Rehabilitation centers and physical therapy practices
- Home healthcare monitoring
Technical Specifications
- Instrument Classification: Class II medical device
- Type: Clinical Examination Aid
- Earth Noise: ≤4μV(Vpp)
- Constant Current Range: 0.2-100mA
- Pulse Width Range: 50-1000μS
- Filter Frequency Range:
- Lower limit: 0.01Hz
- Upper limit: 20kHz
Packaging Details
- Single Package Dimensions: 70 x 60 x 50 cm
- Shipping Package Dimensions: 40 x 50 x 72 cm
- Gross Weight: 12.000 kg
Warranty and Support
- Warranty Period: 1 Year
- After-Sale Service: Comprehensive online technical support to ensure uninterrupted performance and address any queries or concerns.
GoldHealth Medical’s Portable EMG Machine is more than just a diagnostic tool—it’s a commitment to excellence in patient care and clinical accuracy. Elevate your practice with a device that combines innovation, reliability, and precision.
