480A Portable Ophthalmic Phacoemulsification Machine for
Reference: 1601042482467
Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Cataract Surgery with Advanced Phacoemulsification Technology
GoldHealth Medical introduces a cutting-edge portable ophthalmic surgical system designed for cataract extraction. This ultrasonic phacoemulsification machine represents the pinnacle of precision engineering and clinical excellence, delivering unparalleled performance in ophthalmic surgery.
Key Features and Components

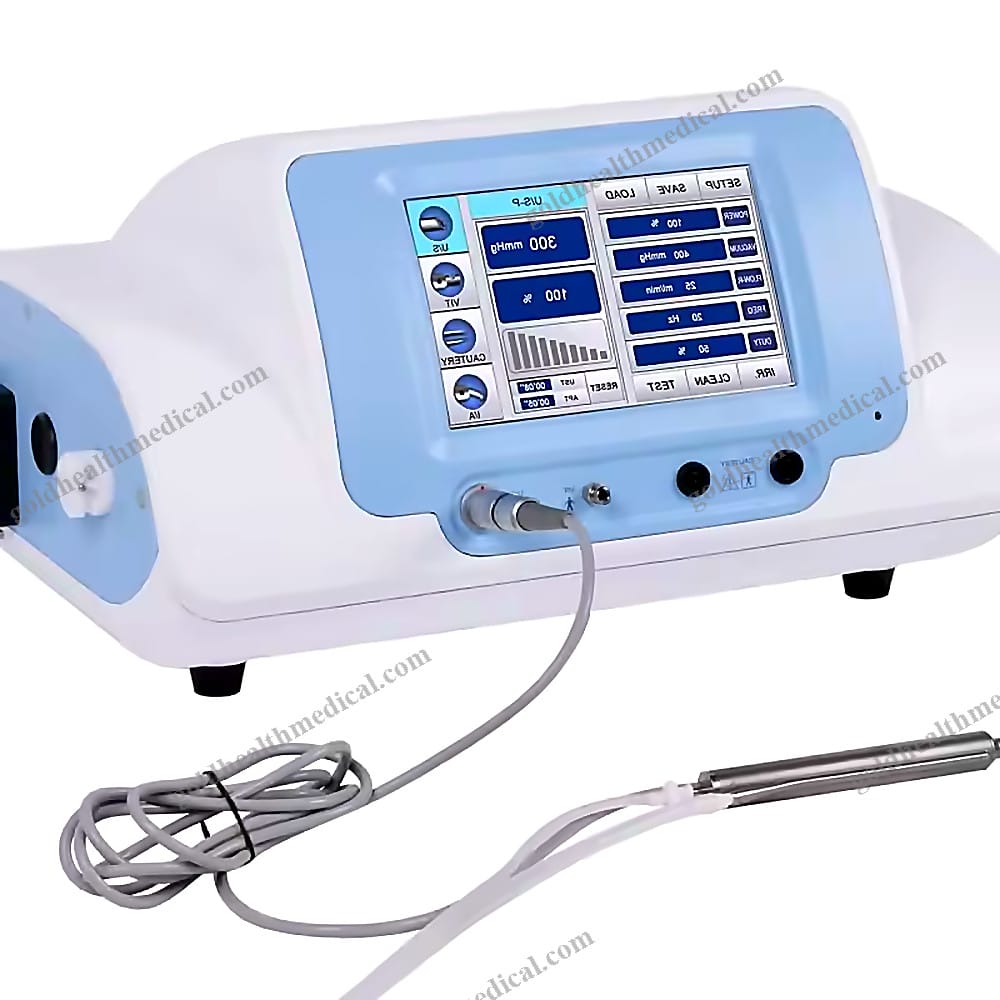

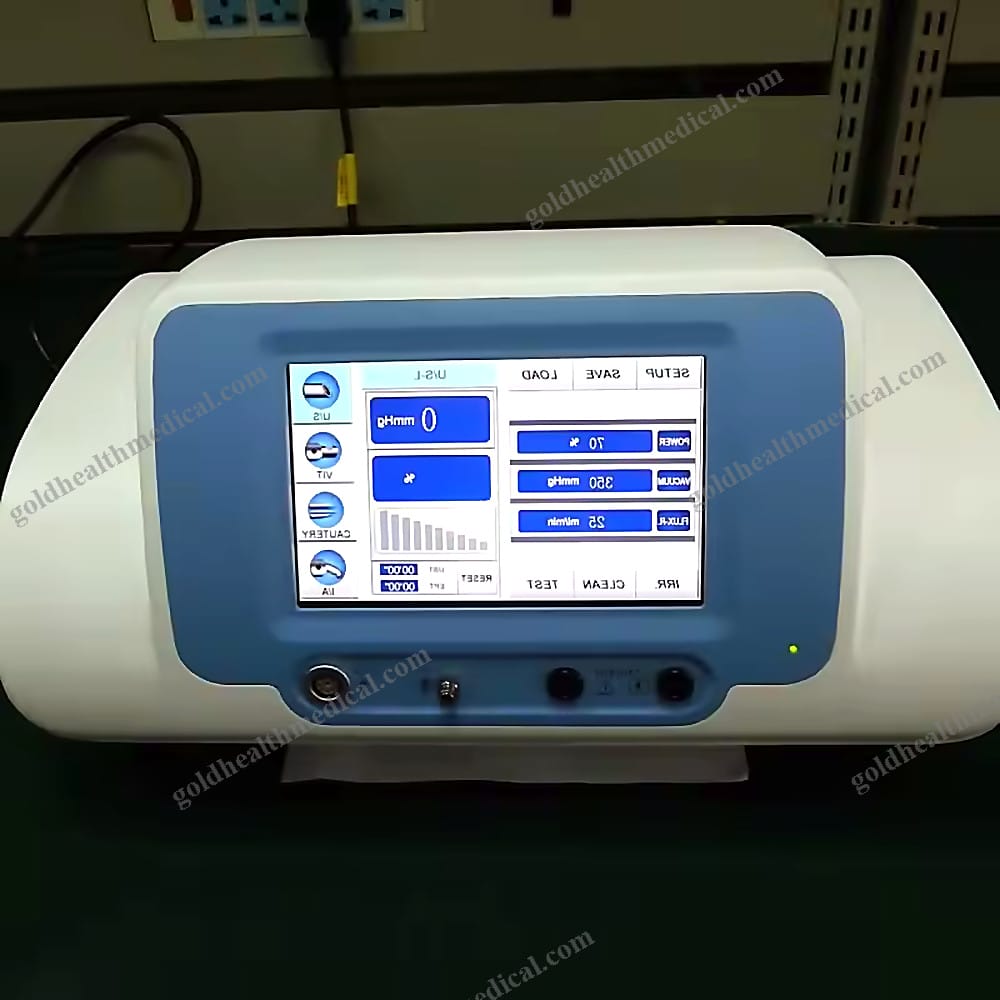

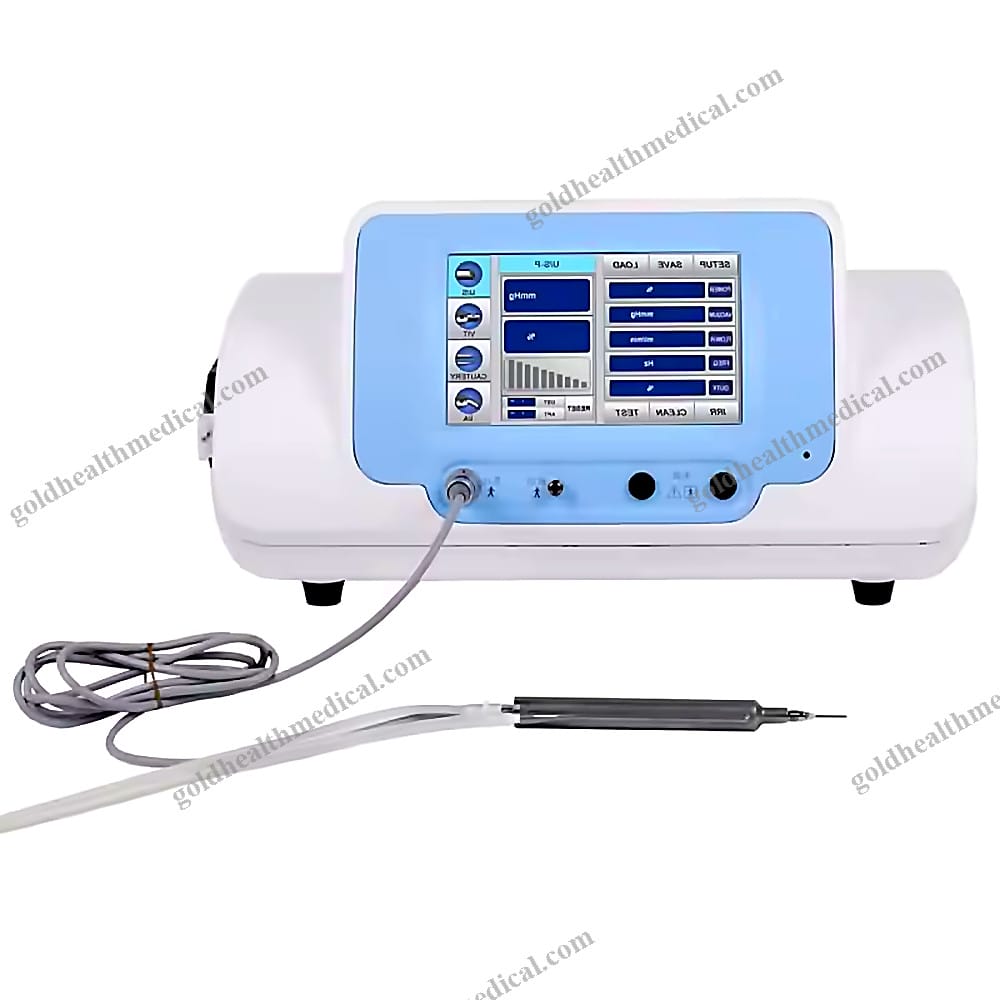

- Main Unit: Central control system with intuitive interface
- Ultrasonic (Phaco) Handpiece: Precision-engineered for optimal performance
- Bipolar Cautery Forceps: Advanced hemostatic capabilities
- Vitrector: Specialized for delicate vitreous procedures
- I/A (Irrigation/Aspiration) Handpiece: Ensures precise fluid management

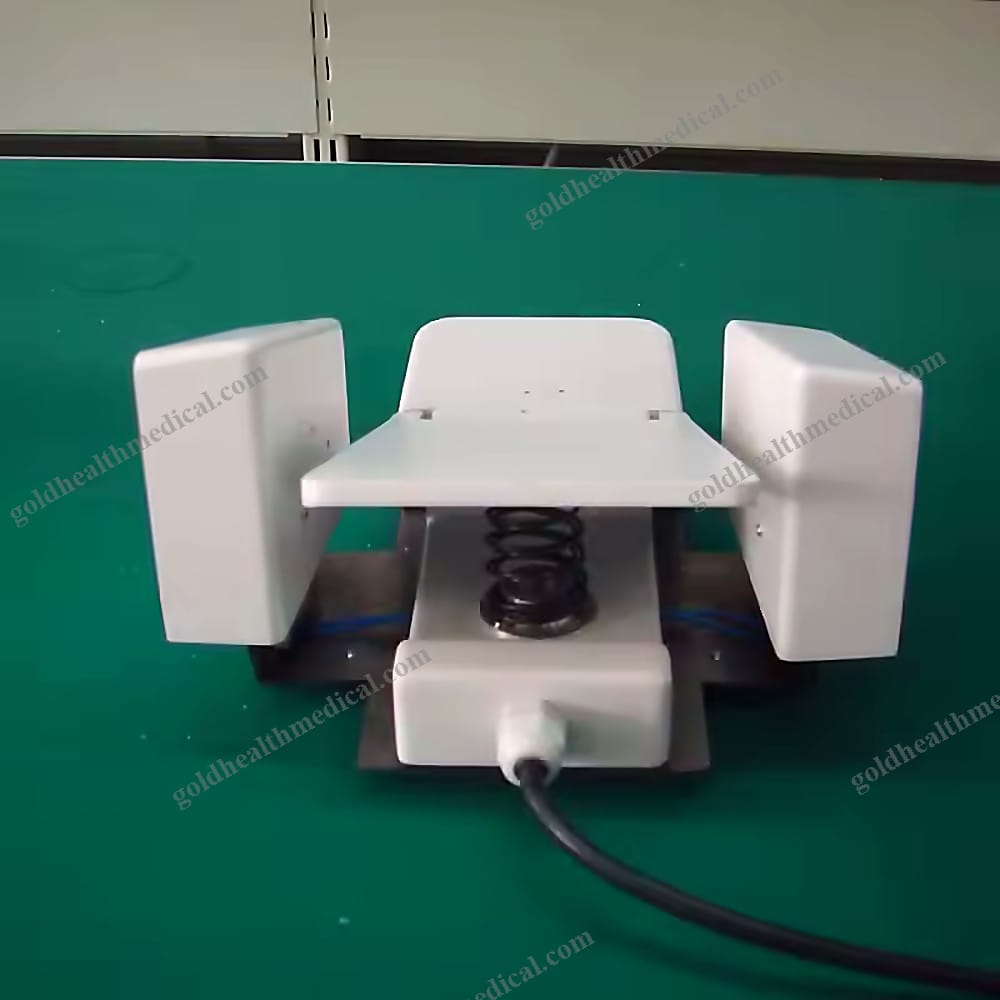

- Footswitch: Ergonomic control system
- Comprehensive Accessories Kit:
- Ultrasonic Tips
- Protective Sleeves for U/S and I/A
- Test Chambers for U/S and I/A
- Vitrectomy Irrigation Sleeve
Technical Specifications
Phaco Emulsification Parameters
- Operating Frequency: 40KHz ± 20%
- Maximum Vibration Accuracy: 120μm ± 20%
- Power Range: 0-100% with 1% incremental adjustments
- Pulse Frequency: 1Hz-99Hz adjustable in 1Hz steps
- Effective Emulsification Time: 1%-99% (≥5ms)
- Burst Time: 5ms-100ms with 1ms precision
- Maximum Vacuum: 66.7kPa (500mmHg)
- Maximum Flow Rate: 40 ml/min
High-Frequency Cautery
- Operating Frequency: 1MHz ± 20%
- Maximum Output Power: 10W ± 20% (200Ω Load)
- Adjustable Power Range: 0-100% with 1% increments
Vitrectomy Capabilities
- Cutting Frequency: 20-600 cuts/min adjustable in 5 cuts/min steps
- Maximum Vacuum: 66.7kPa (500mmHg)
- Maximum Flow Rate: 40 ml/min
Irrigation/Aspiration System
- Vacuum Range: 1-500mmHg
- Flow Rate: 1-40 ml/min
- Reflux Rate: 20 ml/min ± 20%
Unique Selling Points
- Precision Engineering: Advanced vibration accuracy ensures minimal tissue damage

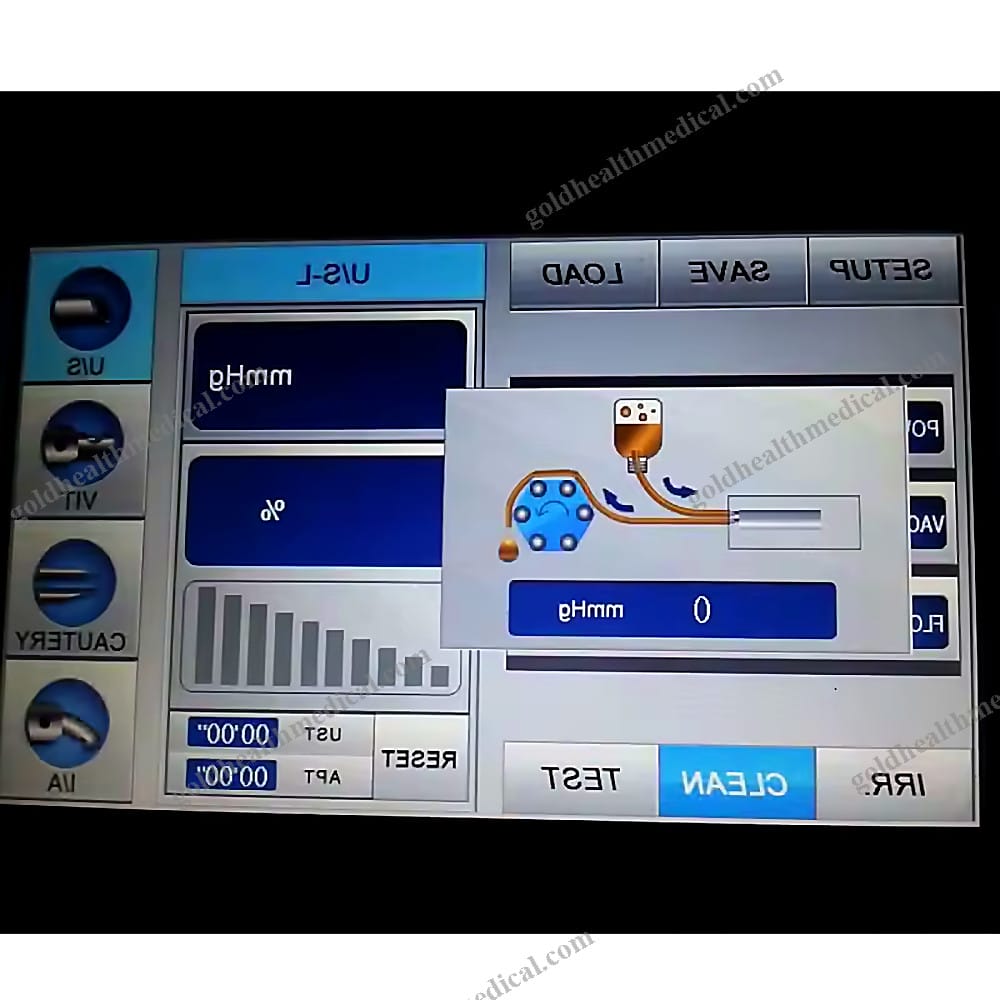

- Intuitive Control System: Soft keyboard interface with precise incremental adjustments
- Comprehensive Safety Features: Multiple display accuracy safeguards across all parameters
- Versatile Performance: Integrated system handles phacoemulsification, cautery, and vitrectomy functions
- Reliable Fluid Management: Precise control of vacuum and flow rates for optimal surgical outcomes
Quality Assurance
- Manufactured with premium materials including medical-grade metal and specialized plastics
- Meets international safety standards
- Backed by comprehensive quality certification
- Designed for compatibility with modern operating systems (Windows 7 and above)
GoldHealth Medical's phacoemulsification system represents a breakthrough in ophthalmic surgical technology, combining precision, reliability, and versatility in a single platform. Our commitment to innovation ensures superior clinical outcomes while maintaining the highest standards of safety and performance.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Fundus Camera by GoldHealth Medical
Key Features and Benefits:
- Advanced Inspection Capabilities: Achieve a wide 90° inspection range with precision, ensuring comprehensive fundus examination for accurate diagnostics.
- Optimized Lighting System: Equipped with adjustable background light brightness (White 31.5asb) and a versatile visual target brightness range (1asb–10,000asb) for enhanced clarity and adaptability in various clinical scenarios.
- Automatic Pupil Size Testing: Streamline workflows with intelligent, automatic pupil size measurement, reducing manual effort and improving efficiency.
- Goldmann III Visual Target Size: Delivers consistent and reliable results with a standardized visual target size trusted by medical professionals worldwide.
- Rapid Visual Target Interval Time: A swift 200ms interval time ensures quick transitions during examinations, saving valuable time for both practitioners and patients.
Technical Specifications:
- Instrument Classification: Class II medical device, designed for safety and reliability.
- Safety Standard Compliance: Meets GB15979-2002 standards, guaranteeing adherence to rigorous quality benchmarks.
- Power Source: Operates on 100-240V, 50-60Hz, ensuring compatibility across global power systems.
- Operation System: Compatible with Windows 7 and above, offering seamless integration into modern clinical environments.
- Materials: Constructed with durable metal and plastic, balancing robustness and lightweight design.
- Shelf Life: 2 years, ensuring long-term usability and reliability.
Quality Assurance:
- Backed by CE certification, reflecting our commitment to delivering products that meet international safety and performance standards.
- Comprehensive 1-year warranty for peace of mind, supported by online technical support to address any queries or concerns promptly.
Packaging Details:
- Single Package Size: 15.6 x 6 x 2 cm
- Single Gross Weight: 0.500 kg
GoldHealth Medical’s Fundus Camera is engineered to empower healthcare professionals with cutting-edge technology, enabling precise diagnostics and improved patient outcomes. Whether in hospitals, clinics, or research labs, this device sets a new standard for fundus examination excellence.
