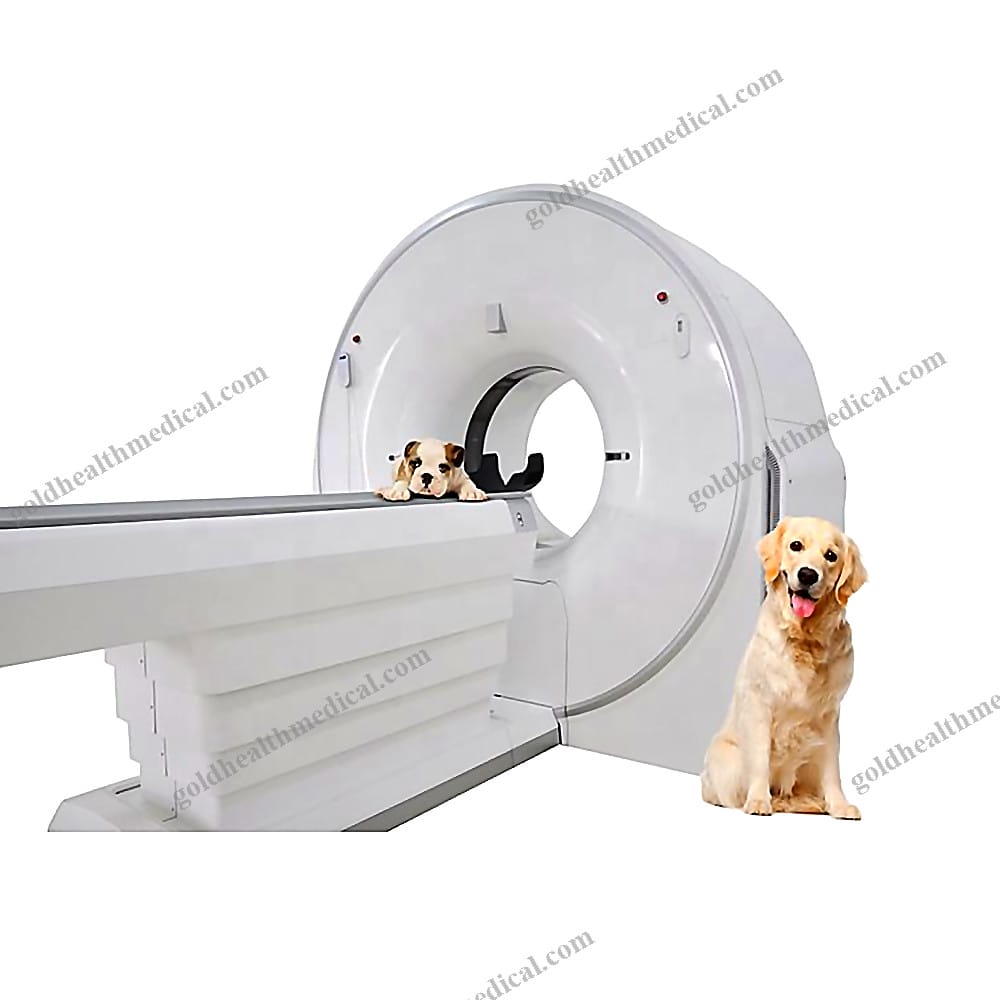

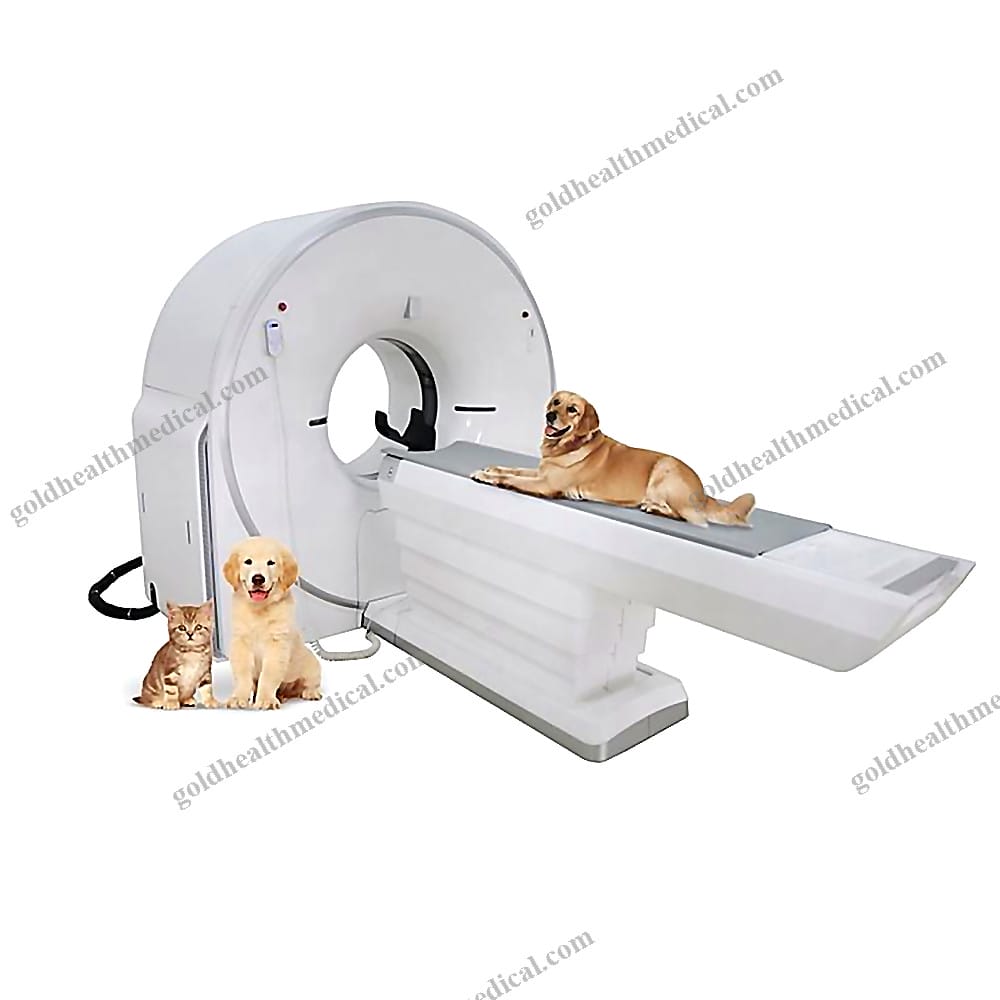

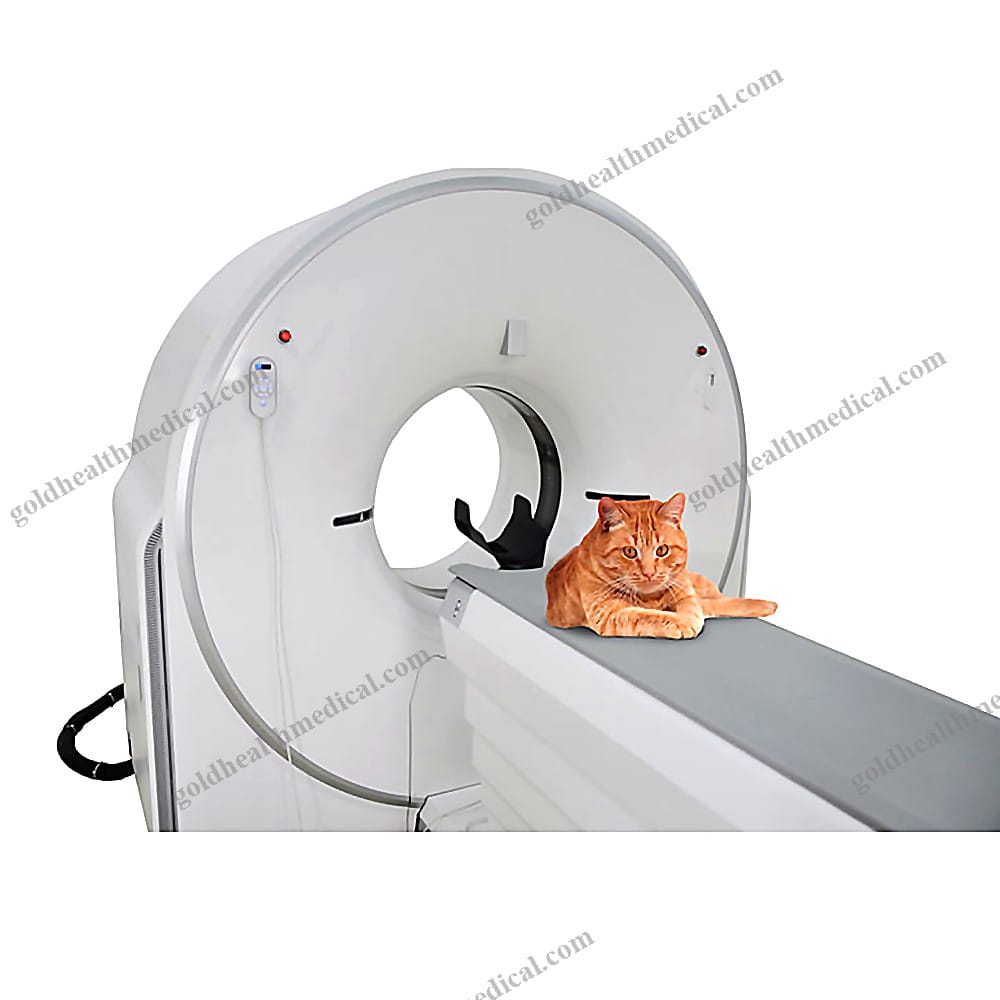

Ysenmed VET 1632 Slice CT Scan Machine
Reference: 1601268911863
Veterinary Instrument
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Medical Imaging
Scanning Frame
- Aperture Size: 700mm ±10mm for optimal scanning precision
- Rotation Speeds: 0.75s, 1.0s, 1.5s, 2.0s to accommodate diverse scanning needs
- Field of View: 430mm, ensuring comprehensive imaging
- Slip Ring Type: Contact slip ring for reliable performance
High Voltage Generator
- Voltage Range: 70~140kV for versatile imaging applications
- Current Range: 10~300mA to support various diagnostic requirements
- Output Power: 32kW nominal, delivering consistent and robust performance
Collimator
- Half Value Layer: ≥4.6mmAl for superior beam filtration
- Aluminum Equivalent Thickness: 2.3mmAl, ensuring precise X-ray attenuation
X-ray Tube Sleeve
- Nominal Voltage: 140kV for high-energy imaging
- Anode Input Power: 29kW/48kW, providing exceptional power efficiency
- Heat Dissipation: 3.5kW maximum continuous, ensuring prolonged operational stability
- Focus Sizes: 0.7mm ×0.8mm, 1.2mm ×1.4mm for detailed imaging
- Anode Rotation Speed: 60Hz/180Hz, enabling rapid and smooth operation
- Target Surface Diameter: 140mm with a 7° target angle for optimal X-ray generation
- Heat Capacity: 2MHU, supporting extended scanning sessions
Detector
- Scintillation Material: GOS crystal for high-resolution imaging
- Pixel Matrix: 704×16, capturing intricate details
- Detector Count: 11, ensuring comprehensive coverage
- Coverage at Rotation Center: 430mm, providing expansive imaging
- Pixel Size: 1.25mm × 1.25mm at rotation center for sharp images
- Scanning Angles: 0°/90° for versatile positioning
- Axial and Spiral Scanning Thickness: Multiple options from 1.25mm to 10.0mm, accommodating various diagnostic needs
- Collimation Combinations: 16×1.25, 4×1.25 for precise beam alignment
Diagnostic Bed
- Z-axis Accuracy: ≤±1mm for precise patient positioning
- Speed: 0~150mm/s, allowing smooth and controlled movement
- Lifting Range: ≥440mm, ensuring accessibility for all patients
- Maximum Load: 205kg, supporting a wide range of patient sizes
Laser
- Category: Type 2 for safe and effective use
- Positioning Accuracy: ±1mm, ensuring exact alignment
- Wavelength: 600~700nm for optimal visibility
- Output Power: <1mW, providing safe and reliable operation
Console
- Control Box Features: Exposure control, bed motion control, and intercom function for seamless operation
- Computer Specifications:
- CPU: Minimum 2GHz, dual-core
- Memory: 8GB minimum
- Storage: 850GB minimum image storage
- Certifications: Compliant with CCC, GB4943.1, GB9254, GB17625.1 standards
- Monitor Specifications:
- Resolution: 1920×1200 SXGA
- Size: 24 inches LCD color display
- Contrast Ratio: 1000:1 for vivid imaging
Computer Image Processing Software
- Software Name: ScintVue
- Version: 1.0
- System Parameters:
- X-ray Source Rotation: 360°
- Maximum Scan Layers per Axial Scan: 32
- Scanning Range: 1200mm
- Pitch Coefficients: 0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75
- Scan Modes: Positioning, tomographic, spiral, enhanced, perfusion scans
- Software Functions: Patient file management, registration, scan function, reconstruction, 2D/3D image browsing and processing, film printing, data management
GoldHealth Medical is
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Introduction:
GoldHealth Medical presents a cutting-edge diagnostic and injection system designed to deliver unparalleled precision and reliability. Engineered for a wide range of medical applications, this system is ideal for hospitals, clinics, research institutions, and rehabilitation centers. With advanced features and robust performance, it ensures optimal imaging quality and operational efficiency, making it an indispensable tool for medical professionals.
Key Features and Specifications:
- Tube Voltage Setting: Adjustable range of 70~140kV for versatile imaging requirements
- Tube Current Range: 10~300mA, providing flexibility for diverse diagnostic needs
- Nominal Output Power: 32kW, ensuring consistent and reliable performance
- Half Value Layer: ≥4.6mmAl, delivering superior radiation filtration for enhanced safety
- Nominal Tube Voltage: 140kV, enabling high-quality imaging with minimal distortion
- Nominal Anode Input Power: Dual power modes of 29kW/48kW for adaptable performance
- Focus Size: Precision-engineered at 0.7mm * 0.8mm and 1.2mm * 1.4mm for sharp, detailed imaging
- Anode Rotation Speed: High-speed rotation at 60Hz/180Hz for consistent heat dissipation
- Anode Type: Rotating anode design for extended durability and performance
- Bearing Type: Mechanical bearing system, ensuring smooth and reliable operation
Packaging Details:
- Selling Units: Single item
- Single Package Size: 50 x 50 x 50 cm, compact and secure for easy transport
- Single Gross Weight: 50.000 kg, optimized for safe and efficient handling
GoldHealth Medical’s diagnostic and injection system is meticulously crafted to meet the highest standards of medical imaging. Its advanced engineering and user-centric design make it a trusted choice for healthcare providers worldwide. Elevate your diagnostic capabilities with a system that combines precision, power, and reliability.
